Danfoss H1P 147, H1P 165cc Service guide

Download
Parts Manual
H1P 147 and 165cc
Variable Displacement Pump
www.danfoss.com
Parts Manual
H1P 147 and 165cc
Revision history Table of revisions
Date Changed Rev
March 2022 Updated auxiliary mounting and endcap part numbers; added new service bulletin 1301
August 2021 Added new options; updated automotive controls 1201
February 2021 Updated charge pressure shaft part numbers 1102
December 2020 Moved pressure limiter screens and retainers from housing kits to pressure limiter kits 1101
May 2020 Changed document number from 'AX00000007' to 'AX152886481215' and corrected CCO
January 2020 Updated control gasket part numbers 0904
August 2019 Corrected part numbers 0903
June 2019 Updated part numbers; added new options 0902
February 2019 Added various new options; changed part numbers for CPRV 18-34 0901
November 2018 Added control options T6, T7, T8 and T9 0805
August 2018 Minor updates 0804
May 2018 Added new high pressure setting options 0803
May 2018 Updated to Engineering Tomorrow 0802
1006
2 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc

Contents

General information
Service parts identification........................................................................................................................................................... 6
Nameplate...........................................................................................................................................................................................6
Date code............................................................................................................................................................................................ 7
About service bulletins...................................................................................................................................................................7
Procedure to identify a part..........................................................................................................................................................8
Regional part numbers............................................................................................................................................................. 8
Example of a part identification (H1P 147cc)....................................................................................................................8
Adobe Acrobat 2-page viewing..................................................................................................................................................9
Order code........................................................................................................................................................................................10
Notes...................................................................................................................................................................................................11
Common parts and special hardware
Special hardware H1-P4...............................................................................................................................................................12
Special hardware P5......................................................................................................................................................................16
Controls
Control A2, A3................................................................................................................................................................................. 18
Control A4, A5................................................................................................................................................................................. 20
Control A6.........................................................................................................................................................................................22
Control A7.........................................................................................................................................................................................24
Control A8.........................................................................................................................................................................................26
Control A9, B1..................................................................................................................................................................................28
Control B7.........................................................................................................................................................................................30
Control B8.........................................................................................................................................................................................32
Control C2.........................................................................................................................................................................................34
Control C3.........................................................................................................................................................................................36
Control C9, D1................................................................................................................................................................................. 38
Control E6, E7...................................................................................................................................................................................40
Control E8......................................................................................................................................................................................... 42
Control F1, F2...................................................................................................................................................................................44
Control F4......................................................................................................................................................................................... 46
Control G7.........................................................................................................................................................................................48
Control H2, H3.................................................................................................................................................................................50
Control H6, H7.................................................................................................................................................................................52
Control H8, H9.................................................................................................................................................................................54
Control M1, M2............................................................................................................................................................................... 56
Control M3, M4............................................................................................................................................................................... 58
Control M5, M6............................................................................................................................................................................... 60
Control N1, N2.................................................................................................................................................................................62
Control N3, N4.................................................................................................................................................................................64
Control N5, N6.................................................................................................................................................................................66
Control N7, N8.................................................................................................................................................................................68
Control ND, NN............................................................................................................................................................................... 70
Control P5......................................................................................................................................................................................... 72
Control P6, P7..................................................................................................................................................................................74
Control P8, P9..................................................................................................................................................................................76
Control R1, R2..................................................................................................................................................................................78
Control R3......................................................................................................................................................................................... 80
Control R4......................................................................................................................................................................................... 82
Control S6......................................................................................................................................................................................... 84
Control S7......................................................................................................................................................................................... 86
Control T6, T7.................................................................................................................................................................................. 88
Control T8, T9.................................................................................................................................................................................. 90
Displacement limitation
Displacement limitation..............................................................................................................................................................92
Orifice
Orifice C-D.........................................................................................................................................................................................94
©
Danfoss | March 2022 AX152886481215en-001301 | 3
Parts Manual
H1P 147 and 165cc
Contents
End cap
End cap D2, D3................................................................................................................................................................................98
End cap D4.....................................................................................................................................................................................100
End cap D6.....................................................................................................................................................................................102
End cap D8.....................................................................................................................................................................................104
End cap E3, E8...............................................................................................................................................................................106
End cap G3, G4, G5......................................................................................................................................................................108
End cap G7, G8..............................................................................................................................................................................110
End cap J8, J9................................................................................................................................................................................ 112
Housing
Housing...........................................................................................................................................................................................114
Shaft
Shaft A8-F3.....................................................................................................................................................................................116
Auxiliary mounting
Aux mounting E5-H3..................................................................................................................................................................118
Aux mounting H4-NN................................................................................................................................................................ 122
Aux mounting P3-SN..................................................................................................................................................................126
High pressure setting
Port A................................................................................................................................................................................................128
High pressure setting (port A) F01-K33..........................................................................................................................128
High pressure setting (port A) K38-KWY........................................................................................................................132
High pressure setting (port A) L15-L41.......................................................................................................................... 136
High pressure setting (port A) L42-LEG..........................................................................................................................140
High pressure setting (port A) S40...................................................................................................................................142
High pressure setting (port A) S42-S45..........................................................................................................................144
Port B................................................................................................................................................................................................146
High pressure setting (port B) F01-K28..........................................................................................................................146
High pressure setting (port B) K30-KWY........................................................................................................................152
High pressure setting (port B) L15-L41...........................................................................................................................156
High pressure setting (port B) L42-LED..........................................................................................................................160
High pressure setting (port B) S40................................................................................................................................... 164
High pressure setting (port B) S42-S45.......................................................................................................................... 166
Charge pump
H1P charge pump........................................................................................................................................................................168
Filtration
H1P filtration C..............................................................................................................................................................................170
H1P filtration D-S......................................................................................................................................................................... 172
Charge pressure relief and ISL settings
H1P 147/165cc charge pressure relief 18-34.....................................................................................................................176
H1P 147/165cc ISL setting G14-G34..................................................................................................................................... 178
H1P 147/165cc ISL setting GAA-GAU................................................................................................................................... 180
H1P 147/165cc ISL setting MAA-YAJ.................................................................................................................................... 182
Overhaul seal kit
H1P 147/165cc seal kit...............................................................................................................................................................184
Service bulletin
SB-2006-030...................................................................................................................................................................................185
SB-2007-033...................................................................................................................................................................................187
SB-2006-40.....................................................................................................................................................................................189
SB-2007-052...................................................................................................................................................................................189
SB-2008-014...................................................................................................................................................................................191
SB-2008-038...................................................................................................................................................................................192
SB-2009-046...................................................................................................................................................................................194
SB-2009-068...................................................................................................................................................................................196
SB-2011-002...................................................................................................................................................................................198
4 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Contents
SB-2011-022...................................................................................................................................................................................199
SB-2011-023...................................................................................................................................................................................201
SB-2012-003...................................................................................................................................................................................203
SB-2012-027...................................................................................................................................................................................204
SB-2012-035...................................................................................................................................................................................205
SB-2013-003...................................................................................................................................................................................206
SB-2013-019...................................................................................................................................................................................208
SB-2015-035...................................................................................................................................................................................209
SB-2016-028...................................................................................................................................................................................210
SB-2016-033...................................................................................................................................................................................212
SB-2016-040...................................................................................................................................................................................213
SB-2018-007...................................................................................................................................................................................214
SB-2018-025...................................................................................................................................................................................216
SB-2018-036...................................................................................................................................................................................217
SB-2019-012B................................................................................................................................................................................217
SB-2019-013B................................................................................................................................................................................218
SB-2020-029...................................................................................................................................................................................220
SB-2021-014...................................................................................................................................................................................221
©
Danfoss | March 2022 AX152886481215en-001301 | 5
Made in Germany
Serial No.
N-05-44-12345
Model Code
Model No./Ident No.
H1P147 R C A A2 C2 N D8 G G2 NN L 42 L 42 A P 24 PN NNN NNN
11000672
Parts Manual
H1P 147 and 165cc

General information

Service parts identification

Nameplate

The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the H1P 147 and 165cc.
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major Repairs” or “Conversions” on the .
Each unit will have a nameplate affixed to the housing. The nameplate of the will include the following information:
Model code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.
Model/material number
The Danfoss model number (also known as material number) is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.
Serial number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly). The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the
calendar week of manufacture. The third number (5 digits) is a sequential number used to identify a specific unit.
6 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
General information

Date code

About service bulletins

The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code Item Date Begin Date End Part Number Part Name Qty. per
80 G30 89-17 8000243 End cap gasket 1
G30 89-16 8000151 End cap gasket
(SB-1995-006)
Model/Kit
1
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units with a date code of 89-17 and newer must use part number “8000243.”
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.
©
Danfoss | March 2022 AX152886481215en-001301 | 7
Parts Manual
H1P 147 and 165cc
General information

Procedure to identify a part

The modular design of this product results in a simplified service parts list and part number identification procedure.
The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.

Regional part numbers

Some part numbers are region specific and should be ordered accordingly. As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold
in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.

Example of a part identification (H1P 147cc)

The nameplate on an H1 pump has an Order Code of H1P147R C A A2 C2 N D8 G G2 NN L 42 L 42 A P 24 NN NNN NNN. Use the following procedures to determine the part number of the drive shaft used on this pump.
1. Referring to the input shaft module in the Order code on page 10, the input shaft option for this pump is identified by the code“G2”. (H1P147R C A A2 C2 N D8 G G2NN L 42 L 42 A P 24 NN NNN NNN).
2. Referring to the Service Parts List, find the shaft group.
3. Next find the order code that relates to this unit,which is “G2”.
The shaft is found to be item J100 and part number 11123699.
8 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
General information

Adobe Acrobat 2-page viewing

While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.
1. Select “View” → “Page Display” → “Two Page View”
2. Select “View” → “Page Display” → “Show Cover Page in Two Page View”
©
Danfoss | March 2022 AX152886481215en-001301 | 9
Orifice
Displacement limitation
End cap
Control
Mounting flange
Input shaft
Auxiliary mounting
High pressure setting, port A
High pressure setting, port B
Charge pump
Filtration
Paint and nametag
Settings
Charge relief pressure setting
Special hardware features
P
G
N
A
PN
Series
Frame
Size
D F
G
E
H J SPTK M N
NNNXNNNL42L42
Y
W
V
24
Product Type
R
Rotation
NNG2
D8C2A2
H1
147
C A
Product
Version
Port
Configuration
Parts Manual
H1P 147 and 165cc
General information

Order code

10 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
General information

Notes

©
Danfoss | March 2022 AX152886481215en-001301 | 11
D692
D703
B010
B010
QD075
D070
C25
C20
QC10
C010
C025
C020
C50
C25
C20
QC10
C010
C50
C15
C15
(P2, P4)
(H1, P1, PN)(H1, P1, PN)
Parts Manual
H1P 147 and 165cc

Common parts and special hardware

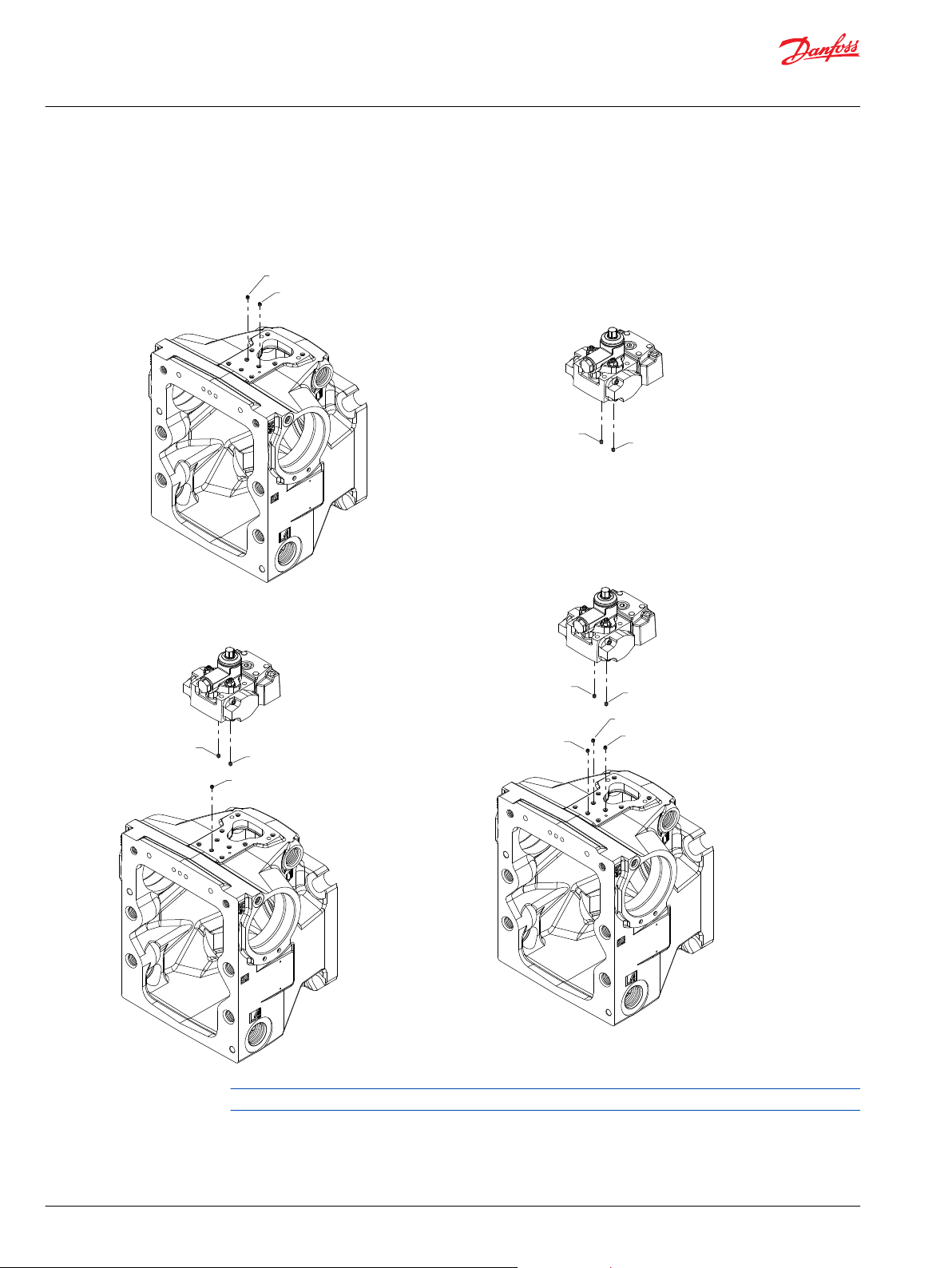

H1P 147/165cc special hardware H1-P4
Parts configuration
Generic housing and control used to show part location only.
* Included in overhaul seal kit Q210
12 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Common parts and special hardware
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
B010 05-18 9004800-3708 Dowel pin 2 C15 17-46 11148927 Slipper retainer ball guide (SB-2018-007 on page 214) 1 C20 05-18 140292 Slipper retainer 1 C25 11-15 11180936 Spring washer (SB-2016-040 on page 213) 1 C020 05-18 141128 Valve plate pin, CCW 1 C020 05-18 141126 Valve plate pin, CW 1 D070 05-18 11105987 Swashplate (SB-2012-035 on page 205) 1 QC10 05-18 11021922 Slipper/piston assembly kit, 147cc 1 QC10 05-18 11021924 Slipper/piston assembly kit, 165cc 1 QD075 05-18 11004705 Swashplate bearing kit 1
Order code: H1
C010 17-46 11190005 Cylinder block kit, 147cc (SB-2018-007 on page 214) 1 C010 17-46 11190006 Cylinder block kit, 165cc (SB-2018-007 on page 214) 1 C025 13-28 11125575 Valve plate, CCW 1 C025 13-28 11123708 Valve plate, CW 1 C50 13-28 11124494 Cylinder block assembly, 147cc 1 C50 13-28 11126004 Cylinder block assembly, 165cc 1 D692 13-28 11185938 Control handle 1 D703 13-28 11173701 Screw, M6 x 20 1
Model/Kit
Order code: NN, PN
C010 17-46 11190005 Cylinder block kit, 147cc (SB-2018-007 on page 214) 1 C010 17-46 11190006 Cylinder block kit, 165cc (SB-2018-007 on page 214) 1 C025 05-18 11125575 Valve plate, CCW 1 C025 05-18 11123708 Valve plate, CW 1 C50 11-15 11124494 Cylinder block assembly, 147cc 1 C50 11-15 11126004 Cylinder block assembly, 165cc 1
Order code: P1
C010 17-46 11190005 Cylinder block kit, 147cc (SB-2018-007 on page 214) 1 C010 17-46 11190006 Cylinder block kit, 165cc (SB-2018-007 on page 214) 1 C025 10-11 11125574 Valve plate, CCW 1 C025 10-11 11125576 Valve plate, CW 1 C50 11-15 11124494 Cylinder block assembly, 147cc 1 C50 11-15 11126004 Cylinder block assembly, 165cc 1
Parts continue to the next 2 pages.
©
Danfoss | March 2022 AX152886481215en-001301 | 13
D692
D703
B010
B010
QD075
D070
C25
C20
QC10
C010
C025
C020
C50
C25
C20
QC10
C010
C50
C15
C15
(P2, P4)
(H1, P1, PN)(H1, P1, PN)
Parts Manual
H1P 147 and 165cc
Common parts and special hardware
Parts configuration
Generic housing and control used to show part location only.
* Included in overhaul seal kit Q210
14 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Common parts and special hardware
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
B010 05-18 9004800-3708 Dowel pin 2 C15 17-46 11148927 Slipper retainer ball guide (SB-2018-007 on page 214) 1 C20 05-18 140292 Slipper retainer 1 C25 11-15 11180936 Spring washer (SB-2016-040 on page 213) 1 C25 05-18 11-14 11091046 Slipper retainer ball guide/spring washer replacement kit 1 C020 05-18 141128 Valve plate pin, CCW 1 C020 05-18 141126 Valve plate pin, CW 1 D070 05-18 11105987 Swashplate (SB-2012-035 on page 205) 1 QC10 05-18 11021922 Slipper/piston assembly kit, 147cc 1 QC10 05-18 11021924 Slipper/piston assembly kit, 165cc 1 QD075 05-18 11004705 Swashplate bearing kit 1
Order code: P2
C010 17-46 11191007 Cylinder block kit with speed ring, 147cc (SB-2018-007 on
page 214)
C010 17-46 11191008 Cylinder block kit with speed ring, 165cc (SB-2018-007 on
page 214) C025 10-11 11125574 Valve plate, CCW 1 C025 10-11 11125576 Valve plate, CW 1 C50 11-15 11124495 Cylinder block assembly w/speed ring, 147cc 1 C50 11-15 11124497 Cylinder block assembly w/speed ring, 165cc 1
Model/Kit
1
1
Order code: P4
C010 17-46 11191007 Cylinder block kit with speed ring, 147cc (SB-2018-007 on
page 214) C010 17-46 11191008 Cylinder block kit with speed ring, 165cc (SB-2018-007 on
page 214) C025 11-28 11125575 Valve plate, CCW 1 C025 11-28 11123708 Valve plate, CW 1 C50 11-28 11124495 Cylinder block assembly w/speed ring, 147cc 1 C50 11-28 11124497 Cylinder block assembly w/speed ring, 165cc 1
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 15
C025
C010
C50
Parts Manual
H1P 147 and 165cc
Common parts and special hardware
H1P 147/165cc special hardware P5
Parts configuration
16 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Common parts and special hardware
Order code: P5
Item Date Begin Date End Part Number Part Name Qty. per
C010 17-46 11190006 Cylinder block kit, 165cc (SB-2018-007 on page 214) 1 C025 11-45 11126989 Valve plate, CW 1 C50 11-45 11126004 Cylinder block assembly, 165 cc 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 17
E100 912E
D300
D300
D200
QD25
*QD26
QD27
D050
D050
QD27
*QD26
QD100
QD25
D250
*D060
QD28
QD29
QD28
QD29
D065
*D150
Parts Manual
H1P 147 and 165cc

Controls

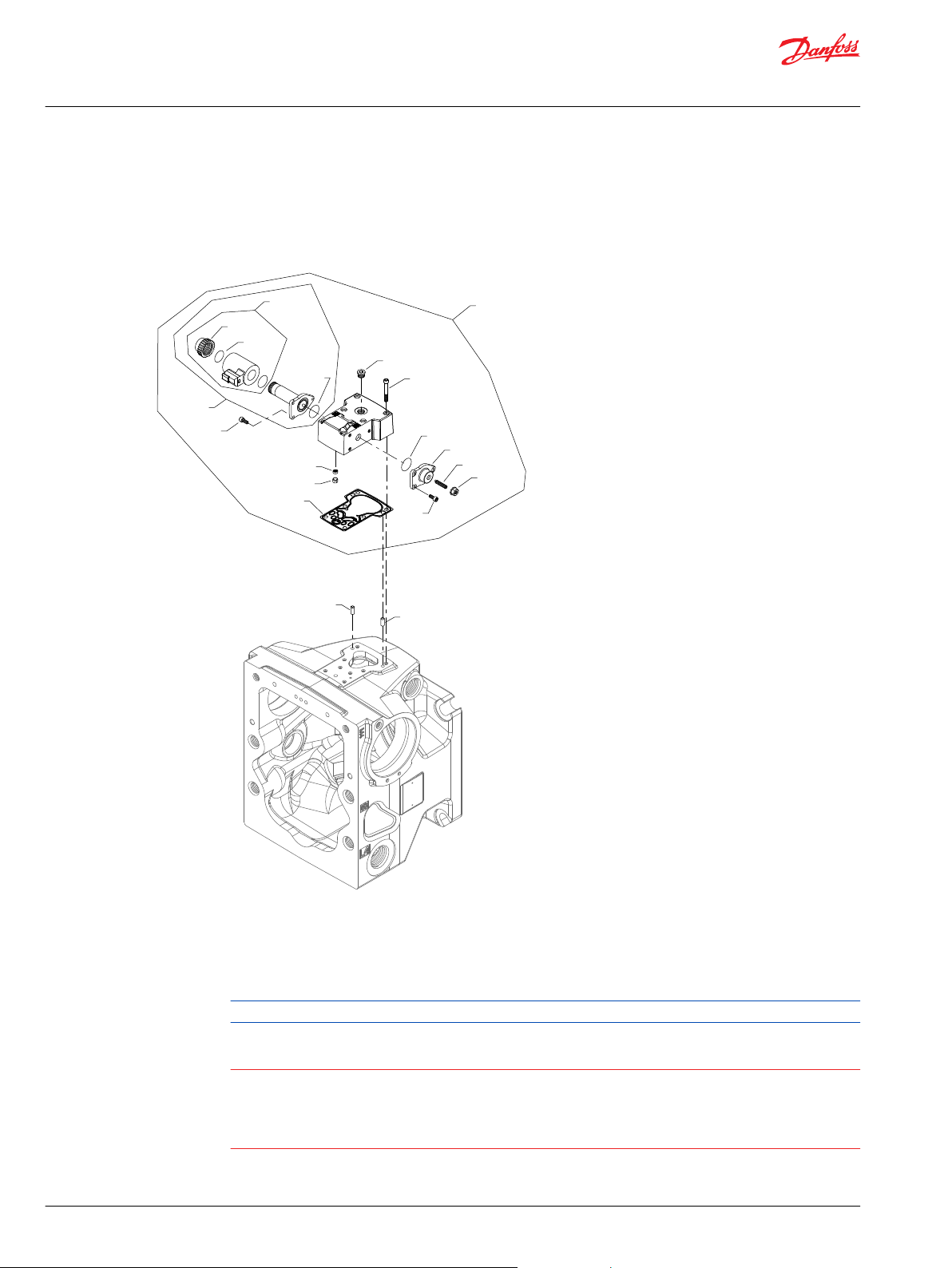

H1P control A2, A3
Generic housing shown.
* Included in overhaul seal kit Q210
18 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 716860 Screw, M5 x 12 6 D055 05-18 06-52 11040532 Plug assembly 2 D060 05-18 612291 (9003508-0008) Seal nut, M8 1 D065 05-18 327007 Plug assembly (SAE) 1 D150 05-18 11227209 Control gasket (SB-2016-033 on page 212) 1 D150 05-18 06-52 140722 Control gasket (SB-2006-030 on page 185) 1 D200 05-18 11202172 Swash plate feedback link (SB-2018-025 on page
216)
D250 05-18 505038 Screw, M6 x 45 6 D250 05-18 06-52 510382 Screw, M6 x 45 (SB-2006-030 on page 185) D300 05-18 310979 Dowel pin 2 QD26 05-18 11001952 O-ring 2 QD28 05-18 063172 O-ring 2
Model/Kit
1
Order code: A2
QD25 05-18 11012457 Proportional solenoid, 12v 2 QD27 05-18 11028018 Coil kit, 12v, DEUTSCH connector 2 QD29 05-18 11027046 Coil nut 2 QD100 05-18 11019680 EDC kit, 12v, DEUTSCH connector, fast 1 QD100 05-18 06-52 11004693 EDC kit, 12v, DEUTSCH connecter, fast
(SB-2006-030 on page 185)
Order code: A3
QD25 05-18 11012459 Proportional solenoid, 24v 2 QD27 05-18 11028019 Coil kit, 24v, DEUTSCH connector 2 QD29 05-18 11028024 Coil nut 2 QD100 07-01 11019681 EDC kit, 24v, DEUTSCH connector, fast 1 QD100 05-18 06-52 11004695 EDC kit, 24v, DEUTSCH connector, fast
(SB-2006-030 on page 185)
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 19
QD27
QD28
QD29
QD30
QD27
QD28
QD29
QD30
D300
D300
D200
QD25
*QD26
D050
D050
*QD26
QD100
QD25
D250
*D060
D065
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control A4, A5
A4 and A5 configuration
Generic housing shown.
* Included in overhaul seal kit Q210
20 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 716860 Screw, M5 x 12 6 D055 05-18 06-52 716860 Plug assembly 2 D060 05-18 612291 (9003508-0008) Seal nut, M8 1 D065 05-18 327007 Plug assembly 1 D150 05-18 11227209 Control gasket (SB-2016-033 on page 212) 1 D150 05-18 06-52 140722 Control gasket (SB-2006-030 on page 185) D200 05-18 11202172 Swash plate feedback link (SB-2018-025 on page
216)
D250 05-18 505038 Screw, M6 x 45 6 D250 05-18 06-52 510382 Screw, M6 x 40 (SB-2006-030 on page 185) D300 05-18 310979 Dowel pin 2 QD26 05-18 11001952 O-ring 2 QD28 05-18 063172 O-ring 2 QD30 05-18 11027883 Cap 2
Model/Kit
1
Order code: A4
QD25 05-18 140750 Proportional solenoid, 12v 2 QD27 05-18 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 05-18 11004749 Coil nut 2 QD100 05-18 11019732 EDC kit, 12v, DEUTSCH connector, fast, manual
override
QD100 05-18 06-52 11004697 EDC kit, 12v, DEUTSCH connector, fast
(SB-2006-030 on page 185)
Order code: A5
QD25 05-18 140751 Proportional solenoid, 24v 2 QD27 05-18 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 05-18 11004750 Coil nut 2 QD100 05-18 11019733 EDC kit, 24v, DEUTSCH connector, fast, manual
override
QD100 05-18 06-52 11004699 EDC kit, 24v, DEUTSCH connector, fast
(SB-2006-030 on page 185)
1
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 21
D300
D300
D200
*D150
QD100
D065
D067
D076
D250
*QD81
*D060
QD25
*QD26
QD27
D050
QD28
QD29
D050
QD27
*QD26
QD25
QD28
QD29
Parts Manual
H1P 147 and 165cc
Controls
H1P control A6
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
22 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: A6
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 13-01 716860 Screw, M5 x 12 6 D060 05-18 13-01 612291 (9003508-0008) Seal nut, M8 1 D065 05-18 13-01 327007 Plug assembly 1 D067 05-18 13-01 11040532 Plug assembly 1 D076 05-18 13-01 346957 Screw, M4 x 8 4 D150 05-18 13-01 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 05-18 13-01 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 05-18 13-01 505038 Screw, M6 x 45 6 D300 05-18 13-01 310979 Dowel pin 2 QD25 05-18 13-01 11012457 Proportional solenoid, 12V 2 QD26 05-18 13-01 11001952 O-ring 2 QD27 05-18 13-01 11028018 Coil kit, 12V, DEUTSCH connector 2 QD28 05-18 13-01 063172 O-ring 2 QD29 05-18 13-01 11027046 Coil nut 2 QD081 05-18 13-01 11059551 O-ring 1 QD100 05-18 13-01 11152574 EDC kit, 12V, high gain spool, control override
(SB-2015-035 on page 209)
Model/Kit
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 23
D300
D300
D250
QD100
D655
D660
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
*D611
*D612
Parts Manual
H1P 147 and 165cc
Controls

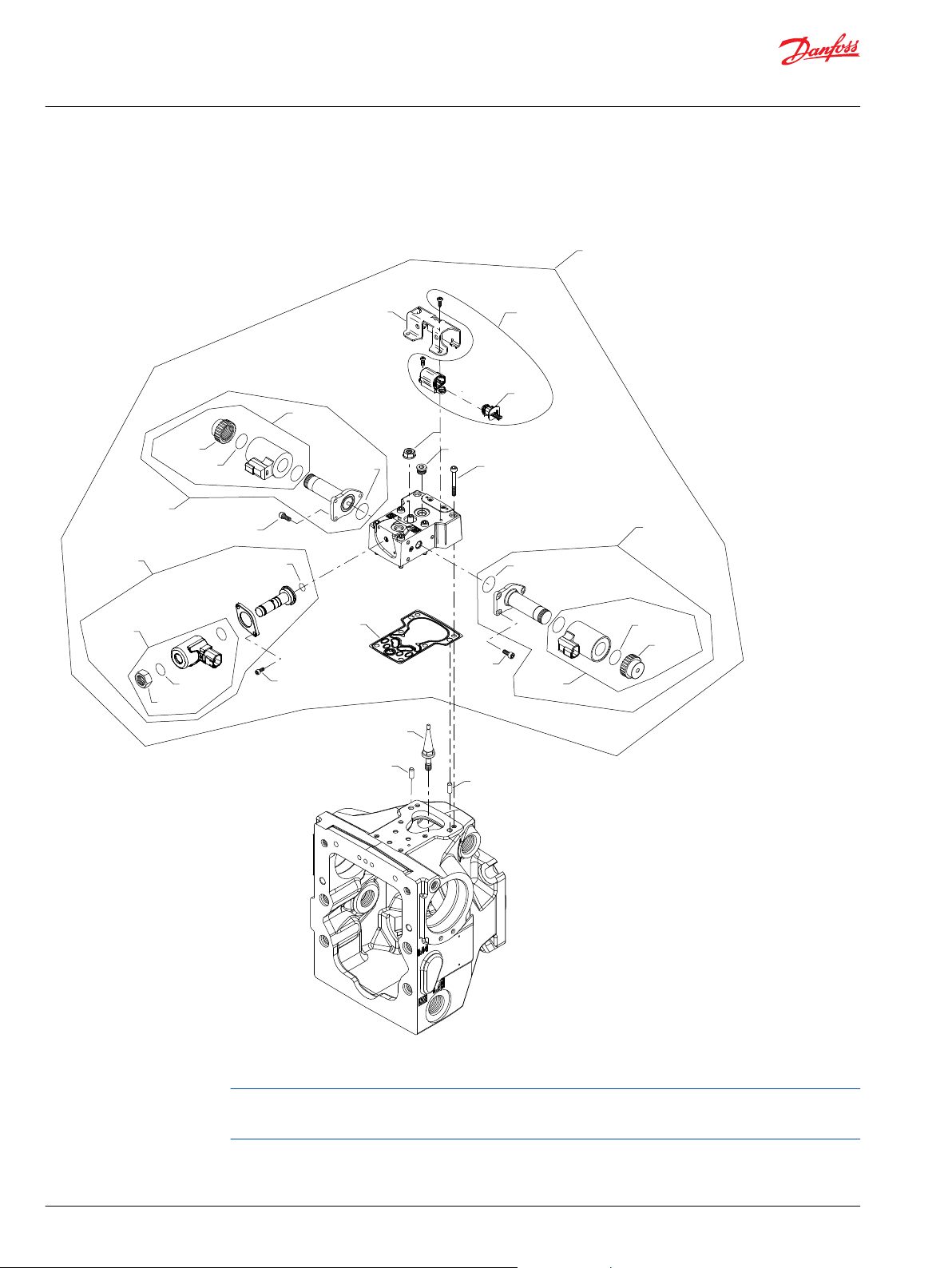

H1P control A7
Parts configuration
Generic housing shown
* Included in overhaul seal kit
24 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: A7
Item Date Begin Date End Part Number Part Name Qty. per
D050 10-14 716860 Screw, M5 x 12 6 D055 10-14 11040532 Plug assembly 2 D067 10-14 327007 Plug assembly 1 D150 10-14 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 10-14 505038 Screw, M6 x 45 6 D300 10-14 11036469 Dowel pin 2 D612 10-14 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D611 10-14 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D640 10-14 11023348 AC wiring harness 1 D655 10-14 11084827 Connector DTM 06-3S 1 D660 10-14 11084822 Connector DTM 06-6S 1 D672 10-14 11151875 Protection 1 D674 10-14 716860 Screw, M5 x 12 2 QD25 10-14 140750 Proportional solenoid, 12 volt 2 QD26 10-14 11001952 O-ring 2 QD27 10-14 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 10-14 063172 O-ring 2 QD29 10-14 11004749 Coil nut 2 QD30 10-14 11027883 Cap 2 QD100 10-14 11065118 Automotive control kit, 12v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 25
D300
D300
QD100
D250
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D067
D055
D065
*D150
Parts Manual
H1P 147 and 165cc
Controls

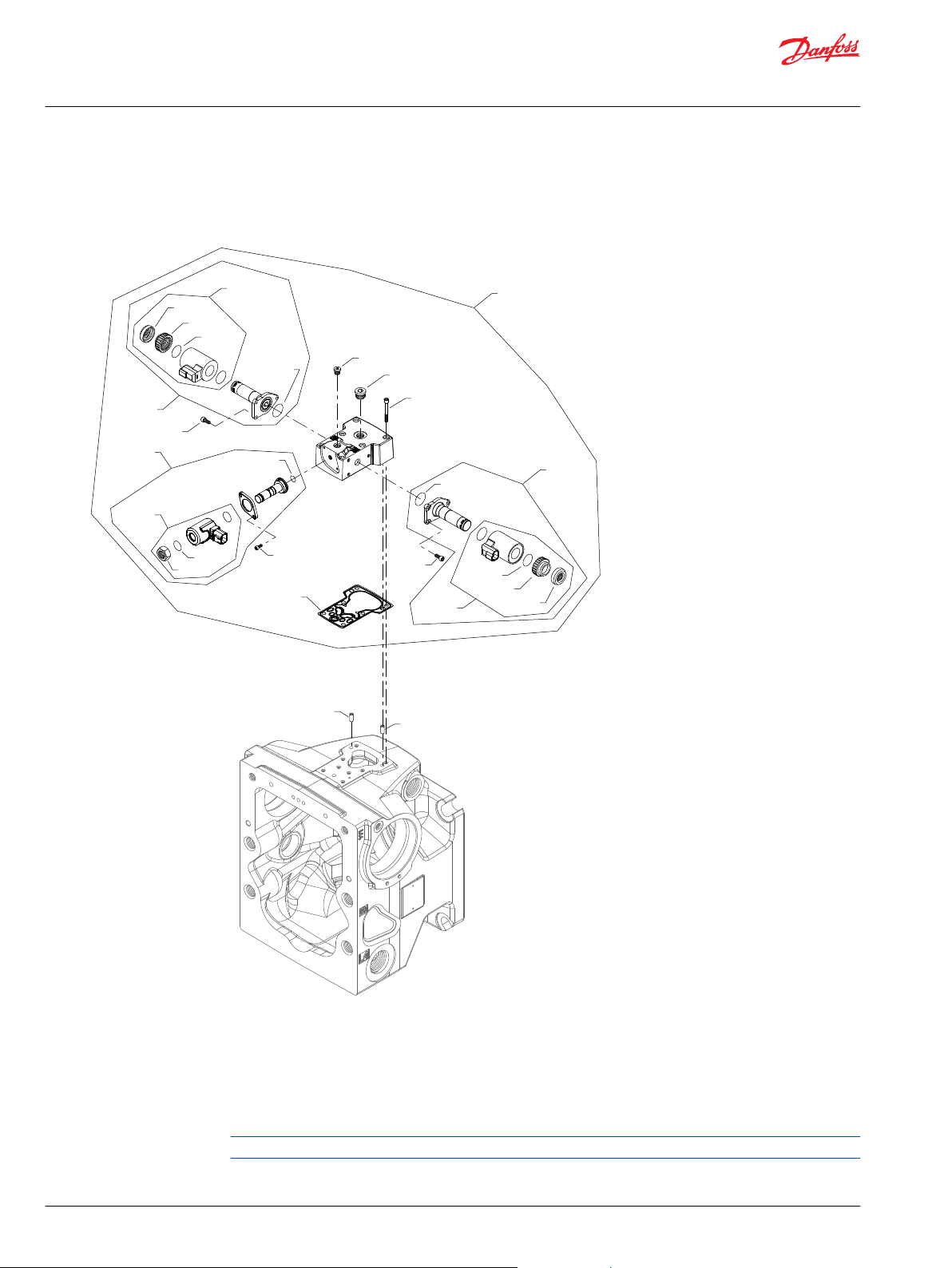

H1P control A8
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
26 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: A8
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 716860 Screw, M5 x 12 6 D055 05-18 11040532 Plug assembly 2 D065 05-18 327007 Plug assembly 1 D067 05-18 327007 Plug assembly 1 D150 05-18 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 05-18 505038 Screw, M6 x 45 6 D300 05-18 310979 Dowel pin 2 QD25 05-18 140750 Proportional solenoid, 12v, DEUTSCH connector 2 QD26 05-18 11001952 O-ring 2 QD27 05-18 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 05-18 063172 O-ring 2 QD29 05-18 11004749 Coil nut 2 QD30 05-18 11027883 Cap 2 QD100 05-18 11015803 NFPE control kit, 12V, manual override, DEUTSCH
connector
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 27
D300
D300
QD100
D250
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D065
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control A9, B1
Parts configuration
Generic housing shown
* Included in overhaul seal kit Q210
28 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 716860 Screw, M5 x 12 6 D065 05-18 327007 Plug assembly 1 D150 05-18 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 05-18 505038 Screw, M6 x 45 6 D300 05-18 310979 Dowel pin 2 QD26 05-18 11001952 O-ring 2 QD28 05-18 063172 O-ring 2 QD30 05-18 11027883 Cap 2
Order code: A9
QD25 05-18 141301 Proportional solenoid, 12v, DEUTSCH connector 2 QD27 05-18 11005222 Coil kit, 12v, DEUTSCH connector 2 QD29 05-18 11004749 Coil nut 2 QD100 05-18 11025905 FNR control kit, 12v, manual override, DEUTSCH
connector
Model/Kit
1
Order code: B1
QD25 05-18 141313 Proportional solenoid, 24v, DEUTSCH connector 2 QD27 05-18 11005223 Coil kit, 24v, DEUTSCH connector 2 QD29 05-18 11004750 Coil nut 2 QD100 05-18 11025906 FNR control kit, 24v, manual override, DEUTSCH
connector
1
©
Danfoss | March 2022 AX152886481215en-001301 | 29
D200
D450
D300
D300
D250
QD100
D655
D660
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
*D611
*D612
Parts Manual
H1P 147 and 165cc
Controls
H1P control B7
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
30 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: B7
Item Date Begin Date End Part Number Part Name Qty. per
D050 10-14 716860 Screw, M5 x 12 6 D055 10-14 11040532 Plug assembly 2 D067 10-14 327007 Plug assembly 1 D150 10-14 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 10-14 141472 Screw, special 1 D250 10-14 505038 Screw, M6 x 45 6 D300 10-14 11036469 Dowel pin 2 D450 10-14 11003097 Magnet carrier 1 D611 10-14 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 10-14 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 10-14 11023348 AC wiring harness 1 D655 10-14 11084827 Connector DTM 06-3S 1 D660 10-14 11084822 Connector DTM 06-6S 1 D672 10-14 11151875 Protection 1 D674 10-14 716860 Screw, M5 x 12 2 QD25 10-14 140750 Proportional solenoid, 12 volt 2 QD26 10-14 11001952 O-ring 2 QD27 10-14 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 10-14 063172 O-ring 2 QD29 10-14 11004749 Coil nut 2 QD30 10-14 11027883 Cap 2 QD100 10-14 11065119 Automotive control kit, 12v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 31
D300
D300
QD100
D250
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D067
D055
D065
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control B8
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
32 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: B8
Item Date Begin Date End Part Number Part Name Qty. per
D050 05-18 716860 Screw, M5 x 12 6 D055 05-18 11040532 Plug assembly 2 D065 05-18 327007 Plug assembly 1 D067 05-18 327007 Plug assembly 1 D150 05-18 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 05-18 505038 Screw, M6 x 45 6 D300 05-18 310979 Dowel pin 2 QD25 05-18 140751 Proportional solenoid, 24v, DEUTSCH connector 2 QD26 05-18 11001952 O-ring 2 QD27 05-18 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 05-18 063172 O-ring 2 QD29 05-18 11004750 Coil nut 2 QD30 05-18 11027883 Cap 2 QD100 05-18 11025904 NFPE control kit, 24v, manual override, DEUTSCH
connector
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 33
D300
D300
D250
QD100
D655
D660
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
*D611
*D612
Parts Manual
H1P 147 and 165cc
Controls
H1P control C2
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
34 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: C2
Item Date Begin Date End Part Number Part Name Qty. per
D050 10-14 716860 Screw, M5 x 12 6 D055 10-14 11040532 Plug assembly 2 D067 10-14 327007 Plug assembly 1 D150 10-14 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 10-14 505038 Screw, M6 x 45 6 D300 10-14 11036469 Dowel pin 2 D611 10-14 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 10-14 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 10-14 11023348 AC wiring harness 1 D655 10-14 11084827 Connector DTM 06-3S 1 D660 10-14 11084822 Connector DTM 06-6S 1 D672 10-14 11151875 Protection 1 D674 10-14 716860 Screw, M5 x 12 2 QD25 10-14 140751 Proportional solenoid, 24 volt 2 QD26 10-14 11001952 O-ring 2 QD27 10-14 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 10-14 063172 O-ring 2 QD29 10-14 11004750 Coil nut 2 QD30 10-14 11027883 Cap 2 QD100 10-14 11065120 Automotive control kit, 24v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 35
D200
D450
D300
D300
D250
QD100
D655
D660
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
*D611
*D612
Parts Manual
H1P 147 and 165cc
Controls
H1P control C3
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
36 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: C3
Item Date Begin Date End Part Number Part Name Qty. per
D050 10-14 716860 Screw, M5 x 12 6 D055 10-14 11040532 Plug assembly 2 D067 10-14 327007 Plug assembly 1 D150 10-14 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 10-14 141472 Screw, special 1 D250 10-14 505038 Screw, M6 x 45 6 D300 10-14 11036469 Dowel pin 2 D450 10-14 11003097 Magnet carrier 1 D611 10-14 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 10-14 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 10-14 11023348 AC wiring harness 1 D655 10-14 11084827 Connector DTM 06-3S 1 D660 10-14 11084822 Connector DTM 06-6S 1 D672 10-14 11151875 Protection 1 D674 10-14 716860 Screw, M5 x 12 2 QD25 10-14 140751 Proportional solenoid, 24 volt 2 QD26 10-14 11001952 O-ring 2 QD27 10-14 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 10-14 063172 O-ring 2 QD29 10-14 11004750 Coil nut 2 QD30 10-14 11027883 Cap 2 QD100 10-14 11065121 Automotive control kit, 24v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 37
D200
D450
D300
D300
D250
D610
QD100
D655
*D611
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D674
D674
D672
*D150
D640
Parts Manual
H1P 147 and 165cc
Controls
H1P control C9, D1
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
38 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 12-02 716860 Screw, M5 x 12 6 D055 12-02 11040532 Plug assembly 2 D067 12-02 327007 Plug assembly 1 D150 12-02 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 12-02 141472 Screw, special 1 D250 12-02 505038 Screw, M6 x 45 6 D300 12-02 11036469 Dowel pin 2 D450 12-02 11003097 Magnet carrier 1 D610 12-02 11000467 Plug assembly 2 D611 12-02 11066774 O-ring 2 D640 12-02 11105876 AC wiring harness 1 D655 12-02 11084827 Connector DTM 06-3S 1 D672 12-02 11151875 Protection 1 D674 12-02 716860 Screw, M5 x 12 2 QD26 12-02 11001952 O-ring 2 QD28 12-02 063172 O-ring 2 QD30 12-02 11027883 Cap 2
Model/Kit
Order code: C9
QD25 12-02 140751 Proportional solenoid, 24v 2 QD27 12-02 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 12-02 11004750 Coil nut 2 QD100 12-02 11065121 Automotive control kit, 24v, manual override 1
Order code: D1
QD25 12-02 140750 Proportional solenoid, 12v 2 QD27 12-02 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 12-02 11004749 Coil nut 2 QD100 12-02 11065119 Automotive control kit, 12v, manual override 1
©
Danfoss | March 2022 AX152886481215en-001301 | 39
D300
D300
D200
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
QD100
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control E6, E7
E6 and E7 configuration
Generic housing shown.
* Included in overhaul seal kit Q210
40 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 14-25 716860 Screw, M5 x 12 6 D060 14-25 612291 (9003508-0008) Seal nut, M8 1 D065 14-25 327007 Plug assembly (SAE) 1 D067 14-25 327007 Plug assembly (SAE) 1 D076 14-25 067694 Screw, M4 x 10 2 D150 14-25 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-25 11202172 Swash plate feedback link (SB-2018-025 on page
216) D250 14-25 505038 Screw, M6 x 45 6 D300 14-25 310979 Dowel pin 2 QD26 14-25 11001952 O-ring 2 QD28 14-25 063172 O-ring 2 QD81 14-25 11152257 O-ring 1 QD85 14-25 11140394 Coil nut 1
Model/Kit
1
Order code: E6
QD25 14-25 11012459 Proportional solenoid, 12v 2 QD27 14-25 11028019 Coil kit, 24v, DEUTSCH connector 2 QD29 14-25 11028024 Coil nut 2 QD80 14-25 11231201 Solenoid valve, on/off, 24v 1 QD83 14-25 11232697 Coil kit, 24v 1 QD84 14-25 11232752 O-ring 1 QD100 14-25 11147423 EDC kit, 24v, CCO 1
Order code: E7
QD25 14-25 11012457 Proportional solenoid, 12v 2 QD27 14-25 11028018 Coil kit, 124v, DEUTSCH connector 2 QD29 14-25 11027046 Coil nut 2 QD80 14-25 11231200 Solenoid valve, on/off, 12v 1 QD83 14-25 11232757 Coil kit, 12v 1 QD84 14-25 11232752 O-ring 1 QD100 14-25 11147471 EDC kit, 12v, CCO (SAE) 1
©
Danfoss | March 2022 AX152886481215en-001301 | 41
D300
D300
D200
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
QD100
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control E8
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
42 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: E8
Item Date Begin Date End Part Number Part Name Qty. per
D050 14-25 716860 Screw, M5 x 12 6 D060 14-25 612291 (9003508-0008) Seal nut, M8 1 D065 14-25 327007 Plug assembly 1 D067 14-25 327007 Plug assembly 1 D076 14-25 067694 Screw, M4 x 10 2 D150 14-25 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-25 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-25 505038 Screw, M6 x 45 6 D300 14-25 310979 Dowel pin 2 QD25 14-25 11012459 Proportional solenoid, 24v 2 QD26 14-25 11001952 O-ring 2 QD27 14-25 11028019 Coil kit, 24v, DEUTSCH connector 2 QD28 14-25 063172 O-ring 2 QD29 14-25 11028024 Coil nut 2 QD80 14-25 11231201 Solenoid vale, on/off, 24v 1 QD81 14-25 11152257 O-ring 1 QD83 14-25 11147332 Coil kit, 24v 1 QD84 14-25 11232752 O-ring 1 QD85 14-25 11140394 Coil nut 1 QD100 14-25 11147472 EDC kit, 24v, CCO 1
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 43
*QD26
D050
D688
*D685
D682
D300
D300
D050
QD27
*QD26
QD100
QD25
D084
D098
D250
QD28
QD29
D065
*D150
W
Parts Manual
H1P 147 and 165cc
Controls
H1P control F1, F2
F1 and F2 configuration
Generic housing shown.
Warning
This control is for Fan Drive systems only. Use in other systems could result in unintended movement of machine or its elements. Loss of the input signal to this control will cause the pump to produce maximum flow. Contact Danfoss or an authorized distributor with questions regarding the use of this product.
* Included in overhaul seal kit Q210
44 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 12-33 716860 Screw, M5 x 12 6 D065 12-33 327007 Plug assembly 1 D150 12-33 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 12-33 505038 Screw, M6 x 45 6 D300 12-33 310979 Dowel pin 2 D682 12-33 11079441 Flange 1 D685 12-33 612291 (9003508-0008) Seal nut, M8 1 D688 12-33 11079453 Adjusting screw 1 QD26 12-33 11001952 O-ring 2 QD28 12-33 063172 O-ring 1
Order code: F1
QD25 12-33 11012457 Proportional solenoid, 12v 1 QD27 12-33 11028018 Coil kit, 12v, DEUTSCH connector 1 QD29 12-33 11027046 Coil nut 1 QD100 12-33 11081306 FDC kit, 12v, DEUTSCH connector 1
Model/Kit
Order code: F2
QD25 12-33 11012459 Proportional solenoid, 24v 1 QD27 12-33 11028019 Coil kit, 24v, DEUTSCH connector 1 QD29 12-33 11028024 Coil nut 1 QD100 12-33 11081307 FDC kit, 24v, DEUTSCH connector 1
©
Danfoss | March 2022 AX152886481215en-001301 | 45
D050
*QD26
*D685
D688
D300
D300
QD25
*QD26
QD27
D050
QD100
D250
QD28
QD29
D065
*D150
D682
Parts Manual
H1P 147 and 165cc
Controls
H1P control F4
F4 configuration
Generic housing shown.
* Included in overhaul seal kit
46 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: F4
Item Date Begin Date End Part Number Part Name Qty. per
D050 07-25 716860 Screw, M5 x 12 6 D065 07-25 327007 Plug assembly 1 D150 07-25 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 07-25 505038 Screw, M6 x 45 6 D300 07-25 310979 Dowel pin 2 D682 07-25 11079441 Flange 1 D685 07-25 612291 (9003508-0008) Seal nut, M8 1 D688 07-25 11079453 Adjusting screw 1 QD25 07-25 11012459 Proportional solenoid, 24v 1 QD26 07-25 11001952 O-ring 2 QD27 07-25 11028019 Coil kit, 24v, DEUTSCH connector 1 QD28 07-25 063172 O-ring 1 QD29 07-25 11028024 Coil nut 1 QD100 07-25 11174982 FDC kit, 24v, DEUTSCH connector 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 47
D300
D300
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
D79
QD100
*D150
D200
Parts Manual
H1P 147 and 165cc
Controls
H1P control G7
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
48 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: G7
Item Date Begin Date End Part Number Part Name Qty. per
D79 14-31 11153287 Cable adapter 1 D050 14-31 716860 Screw, M5 x 12 6 D060 14-31 612291 (9003508-0008) Seal nut, M8 1 D065 14-31 327007 (9005110-4400) Plug assembly 1 D067 14-31 327007 (9005110-4400) Plug assembly 1 D076 14-31 067694 Screw, M4 x 10 2 D150 14-31 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-31 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-31 505038 Screw, M6 x 45 6 D300 14-31 310979 Dowel pin 2 QD25 14-31 11012457 Proportional solenoid, 12v 2 QD26 14-31 11001952 O-ring 2 QD27 14-31 11028018 Coil kit, 12v, DEUTSCH connector 2 QD28 14-31 063172 O-ring 2 QD29 14-31 11027046 Coil nut 2 QD80 14-31 11231200 Solenoid vale, on/off, 12v 1 QD81 14-31 11152257 O-ring 1 QD83 14-31 11232757 Coil kit, 12v 1 QD84 14-31 11232752 O-ring 1 QD85 14-31 11140394 Coil nut 1 QD100 14-31 11156149 EDC kit, 12v, CCO 1
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 49
D300
D300
D200
*D150
QD100
D250
*D060
D065
QD25
*QD26
D050
QD27
QD29
QD28
D050
*QD26
QD25
QD27
QD29
QD28
D766
D768
QD760
Parts Manual
H1P 147 and 165cc
Controls
H1P control H2, H3
Parts configuration
Generic housing shown
* Included in overhaul seal kit Q210
50 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-11 716860 Screw, M5 x 12 6 D060 18-11 612291 Seal nut 1 D065 18-11 327007 Plug assembly 1 D150 18-11 11227209 Control gasket 1 D200 18-11 11202172 Swashplate feedback link 1 D250 18-11 505038 Screw, M6 x 45 6 D300 18-11 310979 Dowel pin 2 D766 18-11 11187406 Protection cover 1 D768 18-11 11184617 Paint cover 1 QD26 18-11 11001952 O-ring 2 QD28 18-11 063172 O-ring 2 QD760 18-11 11201819 EDC sensor service kit 1
Order code: H2
QD100 18-11 11196619 EDC kit, 12v, ASNSR 1 QD25 18-11 11012457 Proportional solenoid, 12v 2 QD27 18-11 11028018 Coil kit, 12V, DEUTSCH connector 2 QD29 18-11 11027046 Nut 2
Model/Kit
Order code: H3
QD100 18-11 11179280 EDC kit, 24v, ASNSR 1 QD25 18-11 11012459 Proportional solenoid, 24v 2 QD27 18-11 11028019 Coil kit, 24v DEUTSCH connector 2 QD29 18-11 11028024 Nut 2
©
Danfoss | March 2022 AX152886481215en-001301 | 51
D300
D300
D200
*D150
QD100
D250
*D060
D065
D766
D768
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
QD760
Parts Manual
H1P 147 and 165cc
Controls
H1P control H6, H7
Parts configuration
Generic housing shown
* Included in overhaul seal kit Q210
52 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-13 716860 Screw, M5 x 12 6 D060 18-13 612291 Seal nut 1 D065 18-13 327007 Plug assembly 1 D150 18-13 11227209 Control gasket 1 D200 18-13 11202172 Swashplate feedback link 1 D250 18-13 505038 Screw, M6 x 45 6 D300 18-13 310979 Dowel pin 2 D766 18-13 11187406 Protection cover 1 D768 18-13 11184617 Paint cover 1 QD26 18-13 11001952 O-ring 2 QD28 18-13 063172 O-ring 2 QD30 18-13 11027883 Cap 2 QD760 18-13 11201819 EDC sensor service kit 1
Model/Kit
Order code: H6
QD100 18-13 11179281 EDC kit, 12V 1 QD25 18-13 140750 Proportional solenoid, 12V 2 QD27 18-13 11004698 Coil kit, 12V, DEUTSCH connector 2 QD29 18-13 11004749 Coil nut 2
Order code: H7
QD100 18-13 11179292 EDC kit, 24V 1 QD25 18-13 140751 Proportional solenoid, 24V 2 QD27 18-13 11004700 Coil kit, 24V, DEUTSCH connector 2 QD29 18-13 11004750 Coil nut 2
©
Danfoss | March 2022 AX152886481215en-001301 | 53
D300
D300
D200
QD25
*QD26
D050
D050
*D150
*QD26
QD100
QD25
QD27
QD29
QD28
QD27
QD29
QD28
D250
*D060
D065
D076
*QD81
QD80
QD83
QD84
QD85
D766
D768
QD760
Parts Manual
H1P 147 and 165cc
Controls
H1P control H8, H9
Parts configuration
Generic housing shown Option H8 is available in SAE and metric configurations. Please order accordingly.
* Included in overhaul seal kit Q210
54 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-13 716860 Screw, M5 x 12 6 D060 18-13 612291 Seal nut 1 D065 18-13 327007 Plug assembly 1 D067 18-13 327007 Plug assembly 1 D076 18-13 067694 Screw, M4 x 10 2 D150 18-13 11227209 Control gasket 1 D200 18-13 11202172 Swashplate feedback link 1 D250 18-13 505038 Screw, M6 x 45 6 D300 18-13 310979 Dowel pin 2 D766 18-13 11187406 Protection cover 1 D768 18-13 11184617 Paint cover 1 QD28 18-13 063172 O-ring 2 QD85 18-13 11140394 Nut 1 QD760 18-13 11201819 EDC sensor service kit 1
Model/Kit
Order code: H8
QD100 18-13 11179293 EDC kit, 12V 1 QD100 16-30 11182566 EDC kit, 12v ASNSR (metric) 1 QD25 18-13 11012457 Proportional solenoid, 12V 2 QD27 18-13 11028018 Coil kit, 12V, DEUTSCH connector 2 QD29 18-13 11027046 Coil nut 2 QD80 18-13 11231200 Solenoid, 12V, DEUTSCH connector 1 QD83 18-13 11232757 Coil kit, 12V, DEUTSCH connector 1 QD84 18-13 11232752 O-ring 1
Order code: H9
QD100 18-13 11179296 EDC kit, 24V 1 QD25 18-13 11012459 Proportional solenoid, 24V 2 QD27 18-13 11028019 Coil kit, 24V, DEUTSCH connector 2 QD29 18-13 11028024 Coil nut 2 QD80 18-13 11231201 Solenoid, 24V, DEUTSCH connector 1 QD83 18-13 11232697 Coil kit, 24V, DEUTSCH connector 1 QD84 18-13 11232752 O-ring 1
©
Danfoss | March 2022 AX152886481215en-001301 | 55
D300
D300
*D150
QD100
D250
D065
*QD751
QD75
D300
D300
*D150
D250
D065
*QD751
QD75
QD100
D200
D200
(M1)
(M2)
Parts Manual
H1P 147 and 165cc
Controls
H1P control M1, M2
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
56 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: M1
Item Date Begin Date End Part Number Part Name Qty. per
D065 14-15 327007 Plug assembly 1 D150 14-15 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-15 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-15 505038 Screw, M6 x 45 6 D300 14-15 310979 Dowel pin 2 QD75 14-15 11119332 Spring seat assembly 1 QD100 14-15 11141225 MDC kit 1 QD751 14-15 001131 O-ring 1
Order code: M2
D065 14-15 327007 Plug assembly 1 D150 14-15 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-15 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-15 505038 Screw, M6 x 45 6 D300 14-15 310979 Dowel pin 2 QD75 14-15 11126847 Spring seat/neutral start switch assembly 1 QD100 14-15 11141236 MDC kit 1 QD751 14-15 001131 O-ring 1
Model/Kit
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 57
QD100
D250
D065
*QD751
QD75
*D150
D300
D300
D200
*QD81
QD85
QD83
QD70
QD84
Parts Manual
H1P 147 and 165cc
Controls
H1P control M3, M4
M3 and M4 configuration
Generic housing shown
* Included in overhaul seal kit Q210
58 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D065 14-01 327007 Plug assembly 1 D150 14-01 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-01 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-01 505038 Screw, M6 x 45 6 D300 14-01 310979 Dowel pin 2 QD81 14-01 11152257 O-ring 1 QD84 14-01 11140393 O-ring 1 QD85 14-01 11140394 Coil nut 1 QD751 14-01 001131 (9004201-5000) O-ring 1
Order code: M3
QD70 14-01 11129916 Solenoid valve, 12v 1 QD75 14-01 11119332 Spring seat assembly 1 QD83 14-01 11136347 Coil kit, 12v 1 QD100 14-01 11218976 MDC kit, 12v, CCO 1
Model/Kit
1
Order code: M4
QD70 14-01 11129917 Solenoid valve, 24v 1 QD83 14-01 11136348 Coil kit, 24v, CCO 1 QD100 14-01 11218977 MDC kit, 24v 1
©
Danfoss | March 2022 AX152886481215en-001301 | 59
QD100
D250
D065
*D150
D300
D300
D200
*QD81
QD85
QD83
QD70
QD84
*QD751
QD75
Parts Manual
H1P 147 and 165cc
Controls
H1P control M5, M6
M5 and M6 configuration
Generic housing shown
* Included in overhaul seal kit Q210
60 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D065 14-01 327007 Plug assembly 1 D150 14-01 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-01 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-01 505038 Screw, M6 x 45 6 D300 14-01 310979 Dowel pin 2 QD75 14-01 11126847 Spring seat/neutral start switch assembly 1 QD81 14-01 11152257 O-ring 1 QD84 14-01 11140393 O-ring 1 QD85 14-01 11140394 Coil nut 1 QD751 14-01 001131 (9004201-5000) O-ring 1
Order code: M5
QD70 14-01 11129916 Solenoid valve, 12v 1 QD83 14-01 11136347 Coil kit, 12v 1 QD100 14-01 11218978 MDC kit, 12v, neutral start switch assembly, CCO 1
Model/Kit
1
Order code: M6
QD70 14-01 11129917 Solenoid valve, 24v 1 QD83 14-01 11136348 Coil kit, 24v 1 QD100 14-01 11218979 MDC kit, 24v, neutral start switch assembly, CCO 1
©
Danfoss | March 2022 AX152886481215en-001301 | 61
QD27
QD28
QD29
QD30
QD27
QD28
QD29
QD30
D300
D300
QD25
*QD26
D050
D050
*QD26
QD100
QD25
D250
D065
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control N1, N2
N1 and N2 configuration
Generic housing shown
* Included in overhaul seal kit Q210
62 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D065 16-30 327007 Plug assembly 1 D150 16-30 11227209 Control gasket 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 310979 Dowel pin 2 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD30 16-30 11027883 Cap 2
Order code: N1
QD25 16-30 140750 Proportional solenoid, 12v, DEUTSCH connector 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 16-30 11004749 Coil nut 2 QD100 16-30 11147921 NFPE control kit, 12v, manual override, DEUTSCH
connector
Model/Kit
1
Order code: N2
QD25 16-30 140751 Proportional solenoid, 24v, DEUTSCH connector 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 16-30 11004750 Coil nut 2 QD100 16-30 11147925 NFPE control kit, 24v, manual override, DEUTSCH
connector
1
©
Danfoss | March 2022 AX152886481215en-001301 | 63
D300
D300
D076
*QD81
D050
*QD26
QD25
D067
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD100
*D150
QD27
QD28
QD29
QD30
QD27
QD28
QD29
QD30
D200
D450
Parts Manual
H1P 147 and 165cc
Controls
H1P control N3, N4
N3 and N4 configuration
Generic housing shown
* Included in overhaul seal kit Q210
64 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D067 16-30 327007 Plug assembly 1 D076 16-30 067694 Screw, M4 x 10 2 D150 16-30 11227209 Control gasket 1 D200 16-30 141472 Screw, special 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 310979 Dowel pin 2 D450 16-30 11003097 Magnetic carrier 1 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD29 16-30 11004749 Coil nut 2 QD30 16-30 11027883 Cap 2 QD81 16-30 11152257 O-ring 1 QD85 16-30 11140394 Nut 1
Model/Kit
Order code: N3
QD25 16-30 140750 Proportional solenoid, 12v 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD80 16-30 11231200 Solenoid, 12V, DEUTSCH connector 1 QD83 16-30 11232757 Coil kit, 12V, DEUTSCH connector 1 QD84 16-30 11232752 O-ring 1 QD100 16-30 11147920 NFPE control kit, 12v, CCO 1
Order code: N4
QD25 16-30 140751 Proportional solenoid, 24v 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD80 16-30 11231201 Solenoid, 24V, DEUTSCH connector 1 QD83 16-30 11232697 Coil kit, 24V, DEUTSCH connector 1 QD84 16-30 11232752 O-ring 1 QD100 16-30 11147924 NFPE control kit, 24v, CCO 1
©
Danfoss | March 2022 AX152886481215en-001301 | 65
QD100
D250
*D150
D300
D300
D200
D450
D050
QD25
*QD26
QD27
QD28
QD29
QD30
D050
*QD26
QD25
QD27
QD28
QD29
QD30
Parts Manual
H1P 147 and 165cc
Controls
H1P control N5, N6
N5 and N6 configuration
Generic housing shown
* Included in overhaul seal kit Q210
66 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D150 16-30 11227209 Control gasket 1 D200 16-30 141472 Screw, special 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 310979 Dowel pin 2 D450 16-30 11003097 Magnetic carrier 1 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD29 16-30 11004749 Coil nut 2 QD30 16-30 11027883 Cap 2
Order code: N5
QD25 16-30 140750 Proportional solenoid, 12v 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD100 16-30 11147918 NFPE control kit, 12v, manual override 1
Model/Kit
Order code: N6
QD25 16-30 140751 Proportional solenoid, 24v 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD100 16-30 11147922 NFPE control kit, 24v, manual override 1
©
Danfoss | March 2022 AX152886481215en-001301 | 67
D300
D300
D076
*QD81
D067
QD80
QD83
QD84
QD85
D250
QD100
*D150
D050
QD25
*QD26
QD27
QD28
QD29
QD30
D050
*QD26
QD25
QD27
QD28
QD29
QD30
D065
Parts Manual
H1P 147 and 165cc
Controls
H1P control N7, N8
N7 and N8 configuration
Generic housing shown
* Included in overhaul seal kit Q210
68 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D067 16-30 327007 Plug assembly 1 D076 16-30 067694 Screw, M4 x 10 1 D150 16-30 11227209 Control gasket 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 310979 Dowel pin 2 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD30 16-30 11027883 Cap 2 QD81 16-30 11152257 O-ring 1 QD85 16-30 11140394 Nut 1
Order code: N7
QD25 16-30 140750 Proportional solenoid, 12v 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 16-30 11004749 Coil nut 2 QD80 16-30 11231200 Solenoid, 12V, DEUTSCH connector 1 QD83 16-30 11232757 Coil kit, 12V, DEUTSCH connector 1 QD84 16-30 11232752 O-ring 1 QD100 16-30 11147919 NFPE control kit, 12v, CCO 1
Model/Kit
Order code: N8
QD25 16-30 140751 Proportional solenoid, 24v 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 16-30 11004750 Coil nut 2 QD80 16-30 11231201 Solenoid, 24V, DEUTSCH connector 1 QD83 16-30 11232697 Coil kit, 24V, DEUTSCH connector 1 QD84 16-30 11232752 O-ring 1 QD100 16-30 11147923 NFPE control kit, 24v, CCO 1
©
Danfoss | March 2022 AX152886481215en-001301 | 69
D300
D300
*D150
QD100
D250
D550
D550
D300
D300
*D150
QD100
D250
D550
D550
D200
(ND)
(NN)
Parts Manual
H1P 147 and 165cc
Controls
H1P control ND, NN
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
70 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: ND
Item Date Begin Date End Part Number Part Name Qty. per
D150 15-11 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 15-11 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 15-11 505038 Screw, M6 x 45 6 D300 15-11 310979 Dowel pin 2 D550 15-11 140644 Plug assembly 2 QD100 15-11 11121984 Control cover kit 1
Order code: NN
D150 13-38 11227209 Control gasket (SB-2016-033 on page 212) 1 D250 13-38 505038 Screw, M6 x 45 6 D300 13-38 310979 Dowel pin 2 D550 13-38 140644 Plug assembly 2 QD100 13-38 11121984 Control cover kit 1
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 71
D300
D300
D250
*D612
QD100
D655
D660
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D665
D674
D674
D672
*D150
*D611
Parts Manual
H1P 147 and 165cc
Controls
H1P control P5
P5 configuration
Generic housing shown
* Included in overhaul kit Q210
72 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: P5
Item Date Begin Date End Part Number Part Name Qty. per
D050 17-15 716860 Screw, M5 x 12 6 D150 17-15 11227209 Control gasket 1 D250 17-15 505038 Screw, M6 x 45 6 D300 17-15 11036469 Dowel pin 2 D611 17-15 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 17-15 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D655 17-15 11084827 Blank, connector DTM 06-3S 1 D660 17-15 11084822 Blank, connector DTM 06-6S 1 D665 17-15 11084827 Blank, connector DTM 06-3S 1 D672 17-15 11151875 Protection 1 D674 17-15 716860 Screw, M5 x 12 2 QD25 17-15 140750 Proportional solenoid, 12 volt 2 QD26 17-15 11001952 O-ring 2 QD27 17-15 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 17-15 063172 O-ring 2 QD29 17-15 11004749 Coil nut 2 QD30 17-15 11027883 Cap 2 QD100 17-15 11232768 Automotive control kit, 12v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 73
D300
D300
D250
*D612
QD100
D655
D660
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control P6, P7
P6 and P7 configuration
Generic housing shown
* Included in overhaul seal kit Q210
74 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D150 16-30 11227209 Control gasket 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 11036469 Dowel pin 2 D611 16-30 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 16-30 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 16-30 11023348 AC wiring harness 1 D655 16-30 11084827 Blank, connector DTM 06-3S 1 D660 16-30 11084822 Blank, connector DTM 06-6S 1 D672 16-30 11151875 Protection 1 D674 16-30 716860 Screw, M5 x 12 2 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD29 16-30 11004749 Coil nut 2 QD30 16-30 11027883 Cap 2
Model/Kit
Order code: P6
QD25 16-30 140750 Proportional solenoid, 12 volt 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD100 16-30 11232768 Automotive control kit, 12v, manual override 1
Order code: P7
QD25 16-30 140751 Proportional solenoid, 24 volt 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD100 16-30 11232769 Automotive control kit, 24v, manual override 1
©
Danfoss | March 2022 AX152886481215en-001301 | 75
D300
D300
D250
*D612
QD100
D655
D660
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
D200
D450
Parts Manual
H1P 147 and 165cc
Controls
H1P control P8, P9
P8 and P9 configuration
Generic housing shown
* Included in overhaul seal kit Q210
76 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D150 16-30 11227209 Control gasket 1 D200 16-30 141472 Screw, special 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 11036469 Dowel pin 2 D450 16-30 11003097 Magnetic carrier 1 D611 16-30 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 16-30 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 16-30 11023348 AC wiring harness 1 D655 16-30 11084827 Blank, connector DTM 06-3S 1 D660 16-30 11084822 Blank, connector DTM 06-6S 1 D672 16-30 11151875 Protection 1 D674 16-30 716860 Screw, M5 x 12 2 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD30 16-30 11027883 Cap 2
Model/Kit
Order code: P8
QD25 16-30 140750 Proportional solenoid, 12 volt 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 16-30 11004749 Coil nut 2 QD100 16-30 11232770 Automotive control kit, 12v, manual override 1
Order code: P9
QD25 16-30 140751 Proportional solenoid, 24 volt 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 16-30 11004750 Coil nut 2 QD100 16-30 11232771 Automotive control kit, 24v, manual override 1
©
Danfoss | March 2022 AX152886481215en-001301 | 77
D300
D300
D250
D610
QD100
D655
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D674
D674
D672
*D150
D200
D450
D640
Parts Manual
H1P 147 and 165cc
Controls
H1P control R1, R2
R1 and R2 configuration
Generic housing shown
* Included in overhaul seal kit Q210
78 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-30 716860 Screw, M5 x 12 6 D150 16-30 11227209 Control gasket 1 D200 16-30 141472 Screw, special 1 D250 16-30 505038 Screw, M6 x 45 6 D300 16-30 11036469 Dowel pin 2 D450 16-30 11003097 Magnetic carrier 1 D610 16-30 11000467 Plug assembly 2 D611 16-30 11066774 O-ring 2 D640 16-30 11105876 AC wiring harness 1 D655 16-30 11084827 Blank, connector DTM 06-3S 1 D672 16-30 11151875 Protection 1 D674 16-30 716860 Screw, M5 x 12 2 QD26 16-30 11001952 O-ring 2 QD28 16-30 063172 O-ring 2 QD30 16-30 11027883 Cap 2
Model/Kit
Order code: R1
QD25 16-30 140750 Proportional solenoid, 12 volt 2 QD27 16-30 11004698 Coil kit, 12v, DEUTSCH connector 2 QD29 16-30 11004749 Coil nut 2 QD100 16-30 11232770 Automotive control kit, 12v, manual override 1
Order code: R2
QD25 16-30 140751 Proportional solenoid, 24 volt 2 QD27 16-30 11004700 Coil kit, 24v, DEUTSCH connector 2 QD29 16-30 11004750 Coil nut 2 QD100 16-30 11232771 Automotive control kit, 24v, manual override 1
©
Danfoss | March 2022 AX152886481215en-001301 | 79
D300
D300
D250
*D612
QD100
D655
D660
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
D200
D450
D665
Parts Manual
H1P 147 and 165cc
Controls
H1P control R3
R3 configuration
Generic housing shown
* Included in overhaul seal kit Q210
80 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: R3
Item Date Begin Date End Part Number Part Name Qty. per
D050 16-17 716860 Screw, M5 x 12 6 D150 16-17 11227209 Control gasket 1 D200 16-17 141472 Screw, special 1 D250 16-17 505038 Screw, M6 x 45 6 D300 16-17 11036469 Dowel pin 2 D450 16-17 11003097 Magnetic carrier 1 D611 16-17 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 16-17 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 16-17 11084822 Blank, connector DTM 06-6S 1 D655 16-17 11084827 Blank, connector DTM 06-3S 1 D660 16-17 11084822 Blank, connector DTM 06-6S 1 D665 16-17 11084827 Blank, connector DTM 06-3S 1 D672 16-17 11151875 Protection 1 D674 16-17 716860 Screw, M5 x 12 2 QD25 16-17 140751 Proportional solenoid, 24 volt 2 QD26 16-17 11001952 O-ring 2 QD27 16-17 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 16-17 063172 O-ring 2 QD29 16-17 11004750 Coil nut 2 QD30 16-17 11027883 Cap 2 QD100 16-17 11232769 Automotive control kit, 24v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 81
D200
D450
D300
D300
D250
*D612
QD100
D655
D660
*D611
D067
D055
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D674
D674
D672
*D150
D665
Parts Manual
H1P 147 and 165cc
Controls
H1P control R4
R4 configuration
Generic housing shown
* Included in overhaul seal kit Q210
82 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: R4
Item Date Begin Date End Part Number Part Name Qty. per
D050 17-15 716860 Screw, M5 x 12 6 D150 17-15 11227209 Control gasket 1 D200 17-15 141472 Screw, special 1 D250 17-15 505038 Screw, M6 x 45 6 D300 17-15 11036469 Dowel pin 2 D450 17-15 11003097 Magnetic carrier 1 D611 17-15 21-12 11066774 O-ring (SB-2021-014 on page 221) 2 D611 21-13 11225703 O-ring 2 D612 17-15 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D655 17-15 11084827 Blank, connector DTM 06-3S 1 D660 17-15 11084822 Blank, connector DTM 06-6S 1 D665 17-15 11084827 Blank, connector DTM 06-3S 1 D672 17-15 11151875 Protection 1 D674 17-15 716860 Screw, M5 x 12 2 QD25 17-15 140750 Proportional solenoid, 12 volt 2 QD26 17-15 11001952 O-ring 2 QD27 17-15 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 17-15 063172 O-ring 2 QD29 17-15 11004749 Coil nut 2 QD30 17-15 11027883 Cap 2 QD100 17-15 11232770 Automotive control kit, 12v, manual override 1
Model/Kit
©
Danfoss | March 2022 AX152886481215en-001301 | 83
D300
D300
D200
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
D79
QD100
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control S6
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
84 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: S6
Item Date Begin Date End Part Number Part Name Qty. per
D79 14-25 11150437 Cable adapter 1 D050 14-25 716860 Screw, M5 x 12 6 D060 14-25 612291 (9003508-0008) Seal nut, M8 1 D065 14-25 327007 Plug assembly 1 D067 14-25 11040532 Plug assembly 1 D076 14-25 067694 Screw, M4 x 10 2 D150 14-25 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-25 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-25 505038 Screw, M6 x 45 6 D300 14-25 310979 Dowel pin 2 QD25 14-25 11012457 Proportional solenoid, 12v 2 QD26 14-25 11001952 O-ring 2 QD27 14-25 11028018 Coil kit, 12v, DEUTSCH connector 2 QD28 14-25 063172 O-ring 2 QD29 14-25 11027046 Coil nut 2 QD80 14-25 11231200 Solenoid vale, on/off, 12v 1 QD81 14-25 11152257 O-ring 1 QD83 14-25 11232757 Coil kit, 12v 1 QD84 14-25 11232752 O-ring 1 QD85 14-25 11140394 Coil nut 1 QD100 14-25 11152574 EDC kit, 12v, CORF 1
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 85
D300
D300
D200
D076
*QD81
D050
QD27
*QD26
QD25
D065
D067
QD29
QD28
QD80
QD83
QD84
QD85
D250
D050
QD25
*QD26
QD27
QD28
QD29
*D060
QD100
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control S7
Parts configuration
Generic housing shown.
* Included in overhaul seal kit Q210
86 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: S7
Item Date Begin Date End Part Number Part Name Qty. per
D050 14-31 716860 Screw, M5 x 12 6 D060 14-31 612291 (9003508-0008) Seal nut, M8 1 D065 14-31 327007 Plug assembly 1 D067 14-31 11040532 Plug assembly 1 D076 14-25 067694 Screw, M4 x 10 2 D150 14-31 11227209 Control gasket (SB-2016-033 on page 212) 1 D200 14-31 11202172 Swashplate feedback link (SB-2018-025 on page
216) D250 14-31 505038 Screw, M6 x 45 6 D300 14-31 310979 Dowel pin 2 QD25 14-31 11012457 Proportional solenoid, 12v 2 QD26 14-31 11001952 O-ring 2 QD27 14-31 11028018 Coil kit, 12v, DEUTSCH connector 2 QD28 14-31 063172 O-ring 2 QD29 14-31 11027046 Coil nut 2 QD80 14-31 11231200 Solenoid vale, on/off, 12v 1 QD81 14-31 11152257 O-ring 1 QD83 14-31 11232757 Coil kit, 12v 1 QD84 14-31 11232752 O-ring 1 QD85 14-31 11140394 Coil nut 1 QD100 14-31 11152574 EDC kit, 12v, CORF 1
Model/Kit
1
©
Danfoss | March 2022 AX152886481215en-001301 | 87
D300
D300
D250
*D612
QD100
D655
D660
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
Parts Manual
H1P 147 and 165cc
Controls
H1P control T6, T7
Parts configuration
Generic housing shown
* Included in overhaul seal kit Q210
88 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: T6
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-15 716860 Screw, M5 x 12 6 D150 18-15 11227209 Control Gasket 1 D250 18-15 505038 Screw, M6 x 45 6 D300 18-15 11036469 Dowel pin 2 D611 18-15 21-12 11066774 O-ring (SB-2021-014 on page 221) 1 D611 21-13 11225703 O-ring 2 D612 18-15 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 18-15 11197432 AC wiring harness 1 D655 18-15 11084827 Blank, connector DTM 06-3S 1 D660 18-15 11084822 Blank, connector DTM 06-6S 1 D665 18-15 11084827 Blank, connector DTM 06-3S 1 D672 18-15 11151875 Protection 1 D674 18-15 716860 Screw, M5 x 12 2 QD100 18-15 11232768 Automotive control kit, 12v, manual override 1 QD25 18-15 140750 Proportional solenoid, 12v 2 QD26 18-15 11001952 O-ring 2 QD27 18-15 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 18-15 063172 O-ring 2 QD29 18-15 11004749 Coil nut 2 QD30 18-15 11027883 Cap 2
Model/Kit
Order code: T7
D050 18-15 716860 Screw, M5 x 12 6 D150 18-15 11227209 Control gasket 1 D250 18-15 505038 Screw, M6 x 45 6 D300 18-15 11036469 Dowel pin 2 D611 18-15 21-12 11066774 O-ring (SB-2021-014 on page 221) 1 D611 21-13 11225703 O-ring 2 D612 18-15 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 18-15 11197432 AC wiring harness 1 D655 18-15 11084827 Blank, connector DTM 06-3S 1 D660 18-15 11084822 Blank, connector DTM 06-6S 1 D665 18-15 11084827 Blank, connector DTM 06-3S 1 D672 18-15 11151875 Protection 1 D674 18-15 716860 Screw, M5 x 12 2 QD100 18-15 11232769 Automotive control kit, 24v, manual override 1 QD25 18-15 140751 Proportional solenoid, 24v 2 QD26 18-15 11001952 O-ring 2 QD27 18-15 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 18-15 063172 O-ring 2 QD29 18-15 11004750 Coil nut 2 QD30 18-15 11027883 Cap 2
©
Danfoss | March 2022 AX152886481215en-001301 | 89
D300
D300
D250
*D612
QD100
D655
D660
*D611
QD25
*QD26
QD27
D050
QD28
QD29
QD30
D050
QD27
*QD26
QD25
QD28
QD29
QD30
D640
D674
D674
D672
*D150
D665
D200
D450
Parts Manual
H1P 147 and 165cc
Controls
H1P control T8, T9
Parts configuration
Generic housing shown
* Included in overhaul seal kit Q210
90 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Controls
Order code: T8
Item Date Begin Date End Part Number Part Name Qty. per
D050 18-12 716860 Screw, M5 x 12 6 D150 18-12 11227209 Control gasket 1 D200 18-12 141472 Screw, special 1 D250 18-12 505038 Screw, M6 x 45 6 D300 18-12 11036469 Dowel pin 2 D450 18-12 11003097 Magnet carrier 1 D611 18-12 21-12 11066774 O-ring (SB-2021-014 on page 221) 1 D611 21-13 11225703 O-ring 2 D612 18-12 21-12 11003126 Plug (SB-2021-014 on page 221) 2 D612 21-13 11223708 Plug 2 D640 18-12 11197432 AC wiring harness 1 D655 18-12 11084827 Blank, connector DTM 06-3S 1 D660 18-12 11084822 Blank, connector DTM 06-6S 1 D665 18-12 11084827 Blank, connector DTM 06-3S 1 D672 18-12 11151875 Protection 1 D674 18-12 716860 Screw, M5 x 12 2 QD100 18-12 11232770 Automotive control kit, 12v, manual override 1 QD25 18-12 140750 Proportional solenoid, 12v 2 QD26 18-12 11001952 O-ring 2 QD27 18-12 11004698 Coil kit, 12v, DEUTSCH connector 2 QD28 18-12 063172 O-ring 2 QD29 18-12 11004749 Coil nut 2 QD30 18-12 11027883 Cap 2
Model/Kit
Order code: T9
D150 18-12 11227209 Control gasket 1 D200 18-12 141472 Screw, special 1 D250 18-12 505038 Screw, M6 x 45 6 D450 18-12 11003097 Magnet carrier 1 D610 18-12 11000467 Plug assembly 2 D611 18-12 11066774 O-ring 1 D640 18-12 11197432 AC wiring harness 1 D655 18-12 11084827 Blank, connector DTM 06-3S 1 D660 18-12 11084822 Blank, connector DTM 06-6S 1 D665 18-15 11084827 Blank, connector DTM 06-3S 1 D672 18-12 11151875 Protection 1 D674 18-12 716860 Screw, M5 x 12 2 QD100 18-12 11232771 Automotive control kit, 24v, manual override 1 QD25 18-12 140751 Proportional solenoid, 24v 2 QD26 18-12 11001952 O-ring 2 QD27 18-12 11004700 Coil kit, 24v, DEUTSCH connector 2 QD28 18-12 063172 O-ring 2 QD29 18-12 11004750 Coil nut 2 QD30 18-12 11027883 Cap 2
©
Danfoss | March 2022 AX152886481215en-001301 | 91
E100
*E025
E015
*E025
*E020
*E020
*E250
E300
E150
E350
*E250
*E500
E400
E350
E300
E150
*E550
E450
E200
*E250
E350
E300
E200
*E250
E350
E300
(B & D)(B & D)
(C & N)(C & N)
(C & N)(C & N)
(B & D)(B & D)
Parts Manual
H1P 147 and 165cc

Displacement limitation

H1P 147/165cc displacement limitation
Parts configuration
* Included in overhaul seal kit Q210
92 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Displacement limitation
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
E015 05-18 11141991 Slider block 1 E020 05-18 11075559 O-ring 2 E025 05-18 11075558 Piston ring 2 E250 05-18 9004104-1520 O-ring 2 E300 10-29 11033382 Locking plate (SB-2009-046 on page 194) 2 E300 05-18 10-28 140513 Locking plate 2 E350 05-18 508438 Screw, M6 x 12 4
Order code: B
E100 05-18 11005250 Servo piston assembly (SB-2006-030 on page 185) 1 E150 05-18 11162485 Servo cylinder assembly (SB-2009-046 on page 194) 1 E200 05-18 11162485 Servo cylinder assembly (SB-2009-046 on page 194) 1 E400 05-18 11000798 Set screw 1 E450 05-18 11000798 Set screw 1 E500 05-18 649822 Seal nut, M14 1 E550 05-18 649822 Seal nut, M14 1
Model/Kit
Order code: C
E100 05-18 11005249 Servo piston assembly w/nested springs (SB-2006-030 on
page 185)
E150 05-18 11089775 Servo cylinder assembly (SB-2009-046 on page 194) 1 E200 05-18 11089775 Servo cylinder assembly (SB-2009-046 on page 194) 1
Order code: D
E100 05-18 11005249 Servo piston assembly w/nested springs (SB-2006-030 on
page 185)
E150 05-18 11162485 Servo cylinder assembly (SB-2009-046 on page 194) 1 E200 05-18 11162485 Servo cylinder assembly (SB-2009-046 on page 194) 1 E400 05-18 11000798 Set screw 1 E450 05-18 11000798 Set screw 1 E500 05-18 649822 Seal nut, M14 1 E550 05-18 649822 Seal nut, M14 1
Order code: N
E100 05-18 11005250 Servo piston assembly (SB-2006-030 on page 185) 1 E150 05-18 11089775 Servo cylinder assembly (SB-2009-046 on page 194) 1 E200 05-18 11089775 Servo cylinder assembly (SB-2009-046 on page 194) 1
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 93
F00B
F00A
F00P
F00T
F00T
F00T
F00T
F00T
F00T
F00P
F00B
F00A
(C1, C2, C4, C5, D7, D8)
(C6, C7)
(D1, D2, D3, D6, E5)
(D4)
Parts Manual
H1P 147 and 165cc

Orifice

H1P orifice C-D
Parts configuration
Generic controls and housings shown.
94 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Orifice
Order code: C1
Item Date Begin Date End Part Number Part Name Qty. per
F00A 05-18 140611 Orifice, 0.8, M6 x 0.75 mm 1 F00B 05-18 140611 Orifice, 0.8, M6 x 0.75 mm 1
Order code: C2
F00A 05-18 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00B 05-18 140754 Orifice, 1.3, M6 x 0.75 mm 1
Order code: C3
No parts
Order code: C4
F00A 14-01 140757 Orifice, 1.8, M6 x 0.75 mm 1 F00B 14-01 140757 Orifice, 1.8, M6 x 0.75 mm 1
Model/Kit
Order code: C5
F00A 18-01 140759 Orifice, 2.5, M6 x 0.75mm 1 F00B 18-01 140759 Orifice, 2.5, M6 x 0.75mm 1
Order code: C6
F00T 14-01 11151734 Orifice, 1.0, M6 x 0.75 mm 2
Order code: C7
F00T 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 2
Order code: D1
F00P 14-01 11151734 Orifice, 1.0 M6 x 0.75 mm 1 F00T 14-01 140611 Orifice, 0.8 M6 x 0.75 mm 2
Order code: D2
F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00T 14-01 140611 Orifice, 0.8 M6 x 0.75 mm 2
©
Danfoss | March 2022 AX152886481215en-001301 | 95
F00B
F00A
F00P
F00T
F00T
F00T
F00T
F00T
F00T
F00P
F00B
F00A
(C1, C2, C4, C5, D7, D8)
(C6, C7)
(D1, D2, D3, D6, E5)
(D4)
Parts Manual
H1P 147 and 165cc
Orifice
Parts configuration
Generic controls and housings shown.
96 | © Danfoss | March 2022 AX152886481215en-001301
Parts Manual
H1P 147 and 165cc
Orifice
Order code: D3
Item Date Begin Date End Part Number Part Name Qty. per
F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00T 14-01 11151734 Orifice, 1.0 M6 x 0.75 mm 2
Order code: D4
F00A 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00B 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00T 14-01 11151734 Orifice, 1.0 M6 x 0.75 mm 2
Order code: D6
F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1 F00T 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 2
Model/Kit
Order code: D7
F00A 17-07 11168268 Orifice, 3.0 M6 x 0.75mm 1 F00B 17-07 11168268 Orifice, 3.0 M6 x 0.75mm 1
Order code: D8
F00A 17-07 11189557 Orifice, 2.3, M6 x 0.75mm 1 F00B 17-07 11189557 Orifice, 2.3, M6 x 0.75mm 1
Order code: E1
F00A 17-09 11151734 Orifice, 1.0, M6 x 0.75 1 F00B 17-09 11151734 Orifice, 1.0, M6 x 0.75 1
Order code: E5
F00P 20-38 11151734 Orifice, 1.0, M6 x 0.75 1 F00T 20-38 140754 Orifice, 1.3, M6 x 0.75 2
©
Danfoss | March 2022 AX152886481215en-001301 | 97
*G150
G350
G550
G980
G302
G255
G125
G450
G250
G400
G960
G970
G300
G450
G251
G312
G314
G750
*G750A
G870
G900
G850
*E063
G780
*G780A
G310
G550
G980
G302
G450
G250
G350
G400
G960
G970
G300
G450
G251
G125
G310
*G150
(D2)
(D3)
Parts Manual
H1P 147 and 165cc

End cap

H1P 147/165cc end cap D2, D3
Parts configuration
98 | © Danfoss | March 2022 AX152886481215en-001301
* Included in overhaul seal kit Q210
Parts Manual
H1P 147 and 165cc
End cap
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G150 05-18 140518 End cap gasket 1 G250 05-18 140644 Plug assembly 1 G251 05-18 140644 Plug assembly 1 G300 05-18 140644 Plug assembly 1 G302 05-18 11040532 Plug assembly 1 G310 05-18 140644 Plug assembly 1 G350 18-49 11189533 Screw, M20 x 135 4 G350 05-18 18-48 140314 Screw, M20 x 100 (SB-2019-012B on page 217) 4 G400 05-18 503499 Screw, M12 x 45 2 G450 05-18 9004800-3708 Dowel pin 2 G550 05-18 11070150 Journal bearing 1 G960 05-18 508438 Screw, M6 x 12 2 G970 05-18 4460311 Lifting bracket 1 G980 05-18 11000229 Lubrication orifice 1
Model/Kit
Order code: D2
G125 10-39 11050309 End cap assembly, CW, ISL (SB-2011-002 on page
198 & SB-2019-012B on page 217)
G255 05-18 140644 Plug assembly 1 G312 05-18 11040532 Plug assembly 1 G314 05-18 11040532 Plug assembly 1 G780 05-18 521318 Reducer plug assembly 1 G780A 05-18 093823 (9004201-9200) O-ring 1
Order code: D3
G125 10-39 11050310 End cap assembly, CW (SB-2011-002 on page 198
& )
G125 10-39 11050350 End cap assembly, CCW (SB-2011-002 on page
198 & )
1
1
1
©
Danfoss | March 2022 AX152886481215en-001301 | 99
G350
G550
G980
G302
G255
G125
G450
G250
G400
G960
G970
G300
G450
G251
G312
G314
G310
*G150
Parts Manual
H1P 147 and 165cc
End cap
H1P 147/165cc end cap D4
Parts configuration
* Included in overhaul seal kit Q210
100 | © Danfoss | March 2022 AX152886481215en-001301
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
