Parts Manual
H1B 80cc
Bent Axis Motor
www.danfoss.com
Parts Manual
H1B 080 Bent Axis Motor
Revision history Table of revisions
Date Changed Rev
December 2021 Corrected cylinder block assembly part numbers in special features options 0711
February 2021 Corrected end cap RA valve segment assembly part number 0710
January 2021 Updated loop flushing part numbers 0709
June 2020 Changed servo pressure O-ring part numbers 0708
March 2020 Corrected flange/housing VB part numbers and changed document number from
AX00000038
January 2020 Updated HE/HF servo pressure supply part numbers 0605
August 2019 Updated part numbers and added caution for servo piston removal 0604
January 2019 Updated servo pressure supply illustrations 0603
November 2018 Updated servo pressure supply option HE 0602
May 2018 Added servo pressure supply option BC, minimum displacement AC2 and SB-2018-028 0601
January 2018 Corrected end dates for DN flange parts 0503
October 2017 Updated to Engineering Tomorrow design 0502
0707
2 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Contents
General information
Service Parts Identification............................................................................................................................................................5
Nameplate...........................................................................................................................................................................................5
Date code............................................................................................................................................................................................ 6
About service bulletins...................................................................................................................................................................6
Procedure to identify a part..........................................................................................................................................................6
Regional part numbers............................................................................................................................................................. 6
Adobe Acrobat 2-page viewing..................................................................................................................................................7
Order code.......................................................................................................................................................................................... 8
Notes.....................................................................................................................................................................................................9
Controls
Control D1-DH.................................................................................................................................................................................10
Control E1-F2...................................................................................................................................................................................12
Control K1-KH..................................................................................................................................................................................14
Control L1-LH...................................................................................................................................................................................16
Control M1-MH............................................................................................................................................................................... 18
Control P1-T2...................................................................................................................................................................................20
Control TA, TH................................................................................................................................................................................. 22
Servo pressure supply
Servo pressure AA, AD..................................................................................................................................................................24
Servo pressure BA, BB...................................................................................................................................................................26
Servo pressure BC, BD, CA...........................................................................................................................................................28
Servo pressure D1, D1.................................................................................................................................................................. 30
Servo pressure DA, EA.................................................................................................................................................................. 32
Servo pressure G1, G2...................................................................................................................................................................34
Servo pressure HA-HD..................................................................................................................................................................36
Servo pressure HE, HF...................................................................................................................................................................38
Servo pressure K1, K2....................................................................................................................................................................40
Servo pressure KA, KH.................................................................................................................................................................. 42
Servo pressure M1, M2.................................................................................................................................................................44
Servo pressure MA, MF.................................................................................................................................................................46
Servo pressure MH, MW...............................................................................................................................................................48
Servo pressure NP, NR, NT...........................................................................................................................................................50
Orifice
Orifice A, B, C, D...............................................................................................................................................................................52
End cap
End cap PA, PB, PM........................................................................................................................................................................54
End cap RA, RB.................................................................................................................................................................................62
End cap TA, TB, TL.......................................................................................................................................................................... 66
Flange/housing
Flange/housing CN, CS................................................................................................................................................................ 72
Flange/housing DN, DS................................................................................................................................................................74
Flange/housing VA, VB.................................................................................................................................................................76
Flange/housing VN, VS.................................................................................................................................................................78
Shaft
Shaft AN-JN, AS-JS, OS..................................................................................................................................................................80
Speed sensing

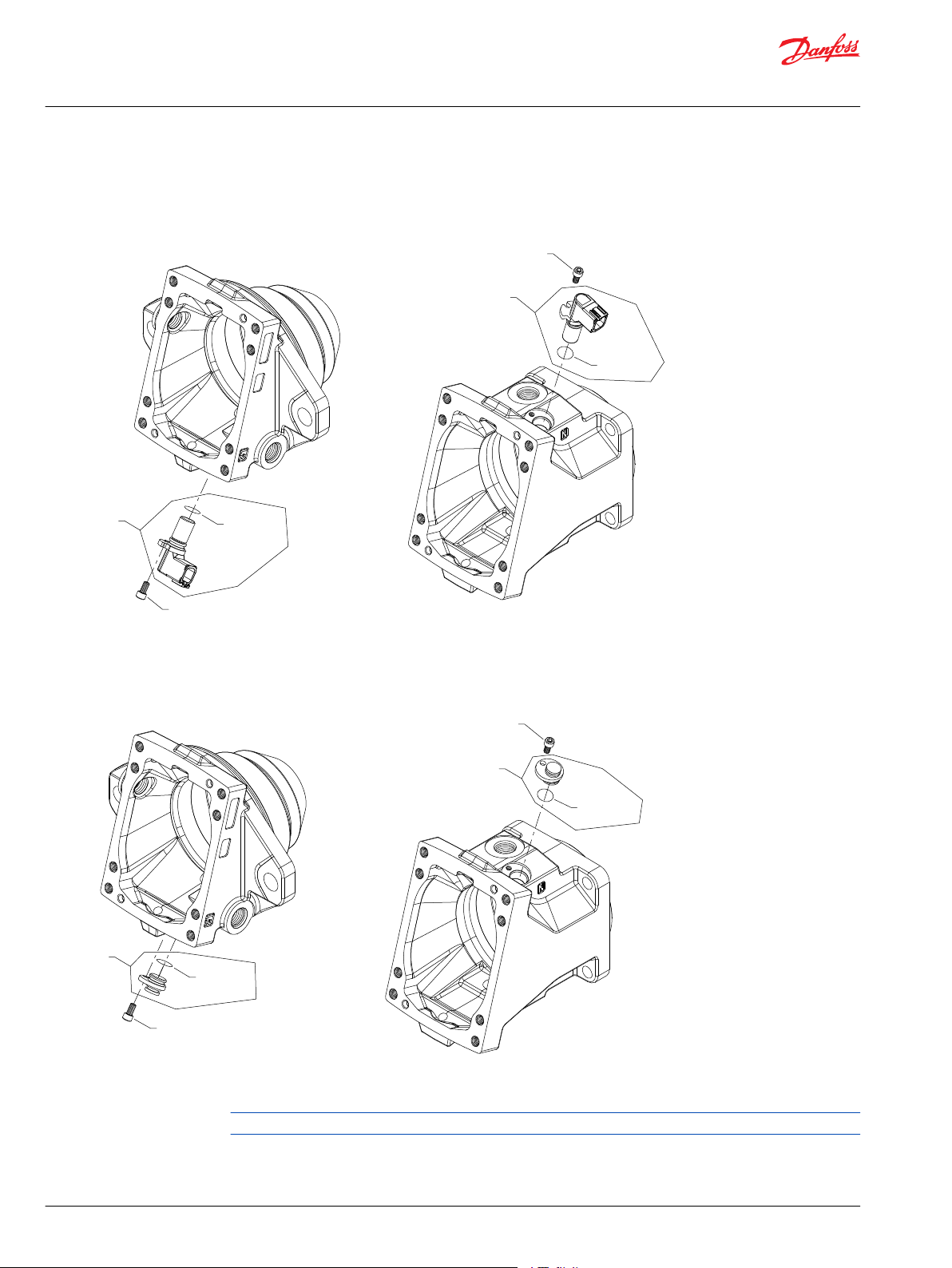

Speed sensor B, C, P, S..................................................................................................................................................................84
Loop flushing
Loop flushing A-N..........................................................................................................................................................................86
Loop flushing 05-50...................................................................................................................................................................... 88
Loop flushing E2, E3, E4, NN.......................................................................................................................................................90
Special hardware and displacement
Special hardware NN.................................................................................................................................................................... 92
©
Danfoss | December 2021 AX152886481647en-000711 | 3
Parts Manual
H1B 080 Bent Axis Motor
Contents
Overhaul seal kit
Service bulletin
Minimum displacement AA2-MB0...........................................................................................................................................94
Minimum displacement AC2..................................................................................................................................................... 98
Maximum displacement........................................................................................................................................................... 100
H1B 80cc seal kit.......................................................................................................................................................................... 104
SB-2012-018...................................................................................................................................................................................105
SB-2018-028...................................................................................................................................................................................106
SB-2019-017...................................................................................................................................................................................107
SB-2020-038...................................................................................................................................................................................108
4 | © Danfoss | December 2021 AX152886481647en-000711
Made in Germany
Serial No.
N-13-20-23456
Model Code
Model No./Ident No.
H1B080-A-A-L1-BA-NB-PA-DS-GS-S-A-10NN-016-N-00-NNN
83004286
Parts Manual
H1B 080 Bent Axis Motor
General information
Service Parts Identification
Nameplate
The following information and procedure is used to identify the module group, item number,
manufacture date, part number, and part name of the parts included in the .
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major
Repairs” or “Conversions” on the .
Each unit will have a nameplate affixed to the housing. The nameplate will include the following
information:
Model Code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to
service this product.
Model Number
The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit
can be ordered by the model number.
Serial Number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build.
The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly).
The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the
calendar week of manufacture.
The third number (5 digits) is a sequential number used to identify a specific unit.
©
Danfoss | December 2021 AX152886481647en-000711 | 5
Parts Manual
H1B 080 Bent Axis Motor
General information
Date code
About service bulletins
The date code is defined as the year and week of manufacture. The same item number may list more than
one part number. This indicates that there is more than one configuration for that item number. You will
see that there are different date codes for the different part numbers. Find the date code of your unit
from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code Item Date Begin Date End Part Number Part Name Qty. per
80 G30 89-17 8000243 End cap gasket 1
G30 89-16 8000151 End cap gasket
(SB-1995-006)
Model/Kit
1
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units
with a date code of 89-17 and newer must use part number “8000243.”
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must
read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins,
as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more
detailed information such as interchangeability, what additional parts are involved, etc. It is suggested
that you add additional Service Bulletins to this manual as you receive them.
Procedure to identify a part
The modular design of this product results in a simplified service parts list and part number identification
procedure.
The same item numbers are used for same part names on all units within a product type. A part number
that has another number following it in parentheses is done to make this a world wide manual.
Regional part numbers
Some part numbers are region specific and should be ordered accordingly.
As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold
in Germany. The number in parentheses is sold in the United States. Customers would order
9008000-0118 if ordering the part in the United States.
Example of part identification
The nameplate on an H1 pump has an Order Code of H1B060 A A L1 BA N B PA DS GS S A 10 NN 016 N00
NNN. Use the following procedures to determine part number of the minimum angle set screw used on
the H1B 60cc.
This example generically uses H1B 60cc Bent Axis Motor order code to identify a part.
1. Referring to the minimum displacement module in the Order Code, the minimum angle set screw
option for this motor is identified by the code “016”. (H1B060 A A L1 BA N B PA DS GS SA 10 NN
016 N
00 NNN)
2. Referring to the Service Parts List, find the minimum displacement group. Next find the order code
that relates to this unit, which is “016”. The minimum angle set screw is found to be item N1000 and
part number 11012777.
6 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
General information
Adobe Acrobat 2-page viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper
page display.
1. Select “View” → “Page Display” → “Two Page View”
2. Select “View” → “Page Display” → “Show Cover Page in Two Page View”
©
Danfoss | December 2021 AX152886481647en-000711 | 7
H1B
0
0
8
L
1
B
A
B
D S
A
P
N
G S
0
6 NA 1
S
0
0
Series
Frame
Size
Servo pressure supply
Threshold setting
Orifice
Control
End cap
Flange/housing
Shaft
Speed sensor
Loop flushing shuttle system
B C
E
D
F G L1MH J
N N
0
K
NN N
Q R
P
N
Loop flushing relief valve
Special hardware
PCOR setting
Customer values
Minimum displacement
Maximum displacement
Product Type
A A
Product
Version
Port
Configuration
Parts Manual
H1B 080 Bent Axis Motor
General information
Order code
8 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
General information
Notes
©
Danfoss | December 2021 AX152886481647en-000711 | 9
B0020
*B0035
B0050
B0040
B0010
B0025
B0028
B0027
B0029
B0061
B0060
B0180
B0050
B0190
B0010
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control D1-DH
D1 and D2 configuration
DH configuration
Generic housings used to show part locations only.
* Included in overhaul seal kit Q210
10 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Electric proportional
Order code: D1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 149053 Solenoid valve, proportional, 12 volt 1
B0020 08-14 11031746 Coil kit, 12 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Order code: D2
B0010 08-14 11002705 Solenoid valve, proportional, 24 volt 1
B0020 08-14 11031749 Coil kit, 24 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Model/Kit
Hydraulic proportional
Order code: DH
B0010 14-37 11146306 Actuator assembly 1
B0050 14-37 716860 Screw, M5 x 12 3
B0060 14-37 140644 Plug assembly 1
B0061 14-37 140644 Plug assembly 1
B0180 14-37 076042 (9003509-0012) Seal nut, M12 1
B0190 14-37 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 11
*B0034
C2000
B0010
B0026
B0028
B0024
B0024
B0026
B0028
C2000
*B0034
B0010
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control E1-F2
E1 and E2 configuration
F1 and F2 configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
12 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Electric 2-position
Order code: E1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 11013615 Solenoid, on/off, 12 volt 1
B0024 08-14 11027046 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring
B0034 08-14 085043 (9004201-3700) O-ring 1
C2000 08-14 11031763 Coil kit, 12 volt 1
Order code: E2
B0010 08-14 11013616 Solenoid, on/off, 24 volt 1
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
C2000 08-14 11031764 Coil kit, 24 volt 1
Model/Kit
Order code: F1
B0010 11-48 11013615 Solenoid, on/off, 12 volt 1
B0024 11-48 11027046 O-ring 1
B0026 11-48 11027046 Coil nut 1
B0028 11-48 063172 O-ring
B0034 11-48 085043 (9004201-3700) O-ring 1
C2000 11-48 11031763 Coil kit, 12 volt 1
Order code: F2
B0010 11-48 11013616 Solenoid, on/off, 24 volt 1
B0024 11-48 11031608 O-ring 1
B0026 11-48 11027046 Coil nut 1
B0028 11-48 063172 O-ring 1
B0034 11-48 085043 (9004201-3700) O-ring 1
C2000 11-48 11031764 Coil kit, 24 volt 1
Order code: HE and HF
No parts
©
Danfoss | December 2021 AX152886481647en-000711 | 13
*B0035
B0040
B0010
B0020
B0050
B0025
B0028
B0027
B0029
B0190
B0180
B0050
B0060
B0061
B0010
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control K1-KH
K1, K2 configuration
KH configuration
Generic housing used to show part location only.
* Included in overhaul seal kit Q210
14 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Order code: K1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 149053 Solenoid valve, proportional, 12 volt 1
B0020 08-14 11031746 Coil kit, 12 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Order code: K2
B0010 08-14 11002705 Solenoid valve, proportional, 24 volt 1
B0020 08-14 11031749 Coil kit, 24 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Model/Kit
Order code: KH
B0010 15-48 11146306 Actuator assembly 1
B0050 15-48 716860 Screw, M5 x 12 3
B0060 15-48 140644 Plug assembly 1
B0061 15-48 140644 Plug assembly 1
B0180 15-48 076042 (9003509-0012) Seal nut, M12 1
B0190 15-48 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 15
B0020
*B0035
B0050
B0040
B0010
B0025
B0028
B0027
B0029
B0061
B0060
B0180
B0050
B0190
B0010
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control L1-LH
L1 and L2 configuration
LH configuration
Generic housings used to show part locations only.
* Included in overhaul seal kit Q210
16 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Electric proportional
Order code: L1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 149053 Solenoid valve, proportional, 12 volt 1
B0020 08-14 11031746 Coil kit, 12 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Order code: L2
B0010 08-14 11002705 Solenoid valve, proportional, 24 volt 1
B0020 08-14 11031749 Coil kit, 24 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Model/Kit
Hydraulic proportional
Order code: LH
B0010 14-37 11146306 Actuator assembly 1
B0050 14-37 716860 Screw, M5 x 12 3
B0060 14-37 140644 Plug assembly 1
B0061 14-37 140644 Plug assembly 1
B0180 14-37 076042 (9003509-0012) Seal nut, M12 1
B0190 14-37 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 17
*B0035
B0040
B0010
B0020
B0050
B0025
B0028
B0027
B0029
B0190
B0180
B0050
B0060
B0061
B0010
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control M1-MH
M1, M2 configuration
MH configuration
Generic housing used to show part location only.
* Included in overhaul seal kit Q210
18 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Order code: M1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 149053 Solenoid valve, proportional, 12 volt 1
B0020 08-14 11031746 Coil kit, 12 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Order code: M2
B0010 08-14 11002705 Solenoid valve, proportional, 24 volt 1
B0020 08-14 11031749 Coil kit, 24 volt 1
B0025 08-14 11004735 O-ring 1
B0027 08-14 11004749 Coil nut 1
B0028 08-14 063172 O-ring 1
B0029 08-14 11037174 O-ring 1
B0035 08-14 11001952 O-ring 1
B0040 08-14 11014185 Plastic cap 1
B0050 08-14 716860 Screw, M5 x 12 3
Model/Kit
Order code: MH
B0010 14-23 11146306 Actuator assembly 1
B0050 14-23 716860 Screw, M5 x 12 3
B0060 14-23 140644 Plug assembly 1
B0061 14-23 140644 Plug assembly 1
B0180 14-23 076042 (9003509-0012) Seal nut, M12 1
B0190 14-23 012575 (9004105-1170) O-ring 1
Order code: N1, NA, NB
No parts
©
Danfoss | December 2021 AX152886481647en-000711 | 19
*B0034
B0020
B0010
B0026
B0028
B0024
*B0034
C2000
B0010
B0026
B0028
B0024
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control P1-T2
P1 and P2 configuration
T1 and T2 configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
20 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Order code: P1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 08-14 11013613 Solenoid valve, proportional, 12 volt 1
B0020 08-14 11031751 Coil kit, 12 volt 1
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
Order code: P2
B0010 08-14 11013614 Solenoid valve, proportional, 24 volt 1
B0020 08-14 11031762 Coil kit, 24 volt 1
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
Model/Kit
Order code: T1
B0010 08-14 11013615 Solenoid, on/off, 12 volt 1
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
C2000 08-14 11031763 Coil kit, 12 volt 1
Order code: T2
B0010 08-14 11013616 Solenoid, on/off, 24 volt 1
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
C2000 08-14 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 21
B0060
B0320
B0330
QB300
B0300
Parts Manual
H1B 080 Bent Axis Motor
Controls
H1B control TA, TH
TA configuration
TH configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
22 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Controls
Order code: TA
Item Date Begin Date Begin Part Number Part Name Qty. per
B0060 11-46 140644 Plug assembly 1
Order code: TH
B0300 15-27 11157844 PCOR override adapter assembly 1
B0320 15-27 11157843 Sensing spool 1
B0330 15-27 11164139 O-ring 1
QB300 15-27 085043 (9004201-3700) O-ring 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 23
*C0130
C0025
C0060
C0080
C0075
C0010
C0060
(removed 11-21)
C0060
C0050
E00T2
E00T3
C0050
C0110
C0120
C0010
C0060
C0050
C0080
C0070
C0060
C0050
*C0130
E00T2
E00T3
C0110
C0120
C0090
*M223
*M224
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply

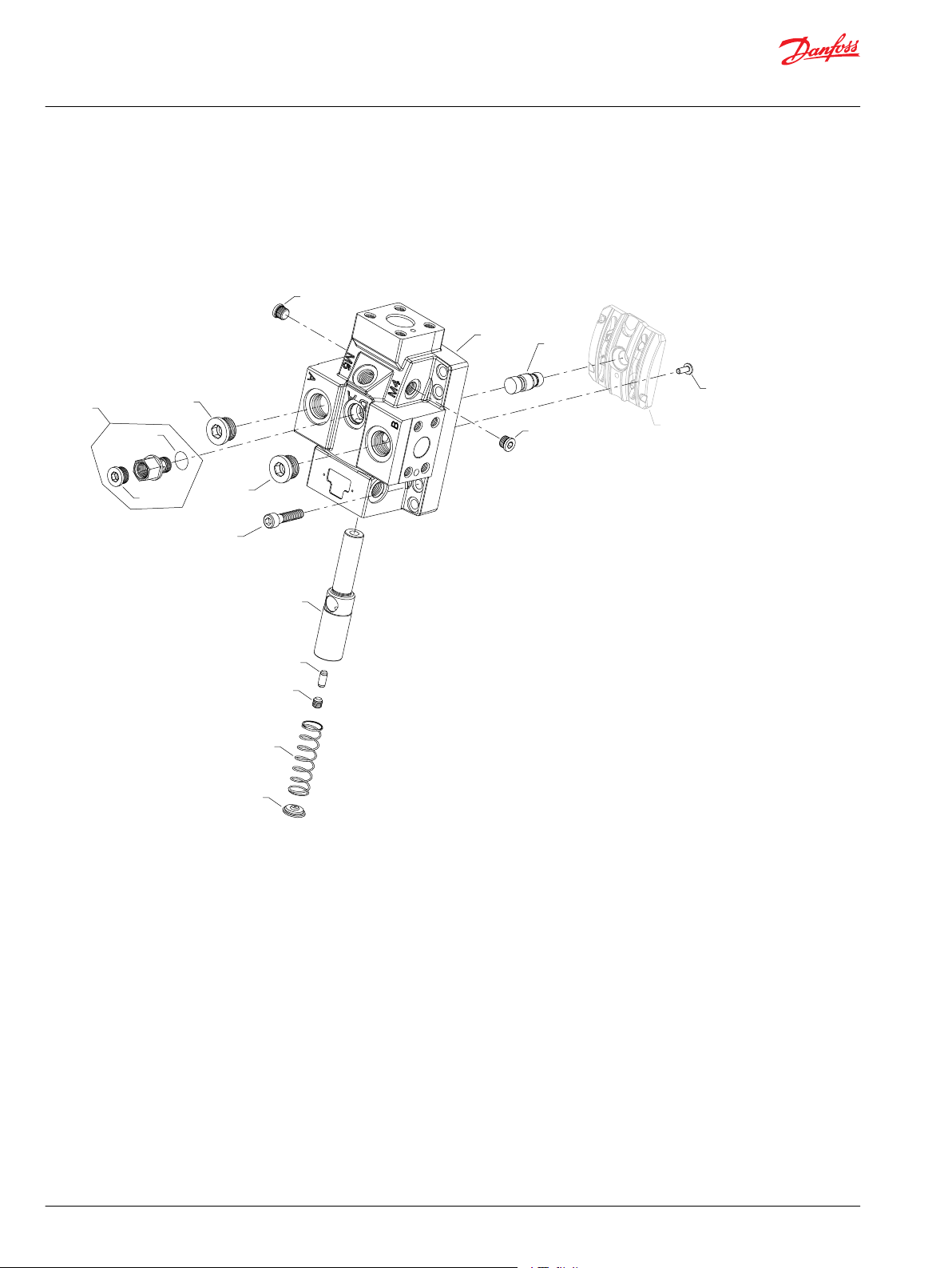

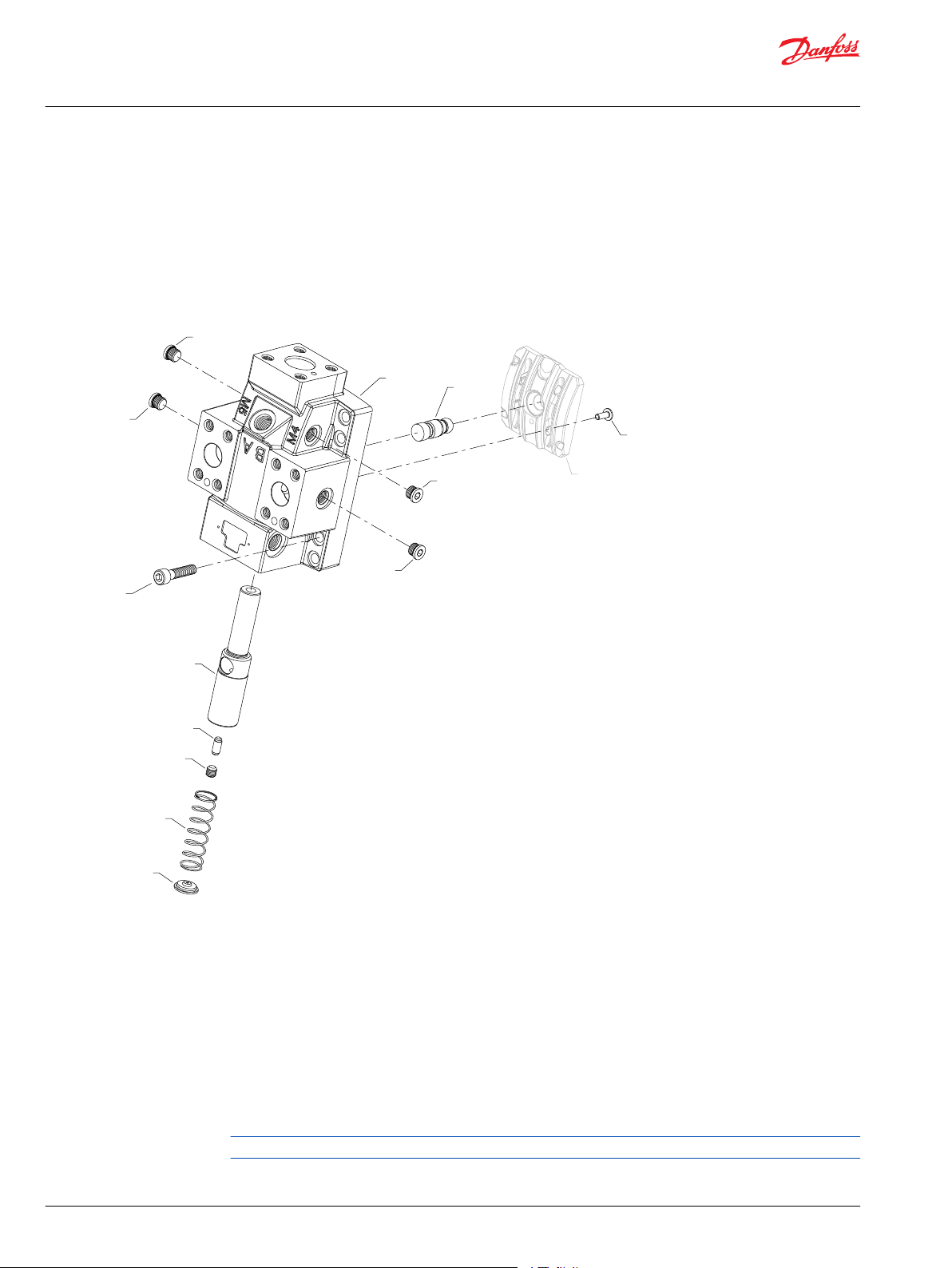

H1B servo pressure AA, AD
AA configuration
AD configuration
* Included in overhaul seal kit Q210
24 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: AA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 08-14 11086113 Control housing, 2-position (SAE) 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0060 11-22 11040532 Plug assembly 2
C0060 08-14 11-21 11040532 Plug assembly 3
C0075 08-14 11016166 Spool 1
C0080 08-14 1160236 Spring (SAE) 1
C0110 08-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 08-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 08-14 11016168 Control seal 1
Order code: AD
C0010 12-14 11110070 Control housing, 2-position 1
C0050 12-14 140644 Plug assembly (SAE) 2
C0060 11-22
C0060 11-22 11040532 Plug assembly 2
C0070 12-14 11016228 Spool 1
C0080 12-14 11160236 Spring (SAE) 1
C0090 12-14 509360 Adjuster 1
C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 12-14 11016168 Control seal 1
M223 12-14 085043 (9004201-3700) O-ring 1
M224 12-14 732479 O-ring 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 25
C0100
C0060
C0060
E00T2
C0060
E00T3
C0025
C0050
*C0130
C0110
C0010
C0100
C0060
C0060
E00T2
C0060
E00T3
C0025
C0050
*C0130
C0110
C0010
C0320
C0300
C0320
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure BA, BB
BA configuration
BB configuration
26 | © Danfoss | December 2021 AX152886481647en-000711
* Included in overhaul seal kit Q210
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Option BA and BB are available in SAE and metric. Please order accordingly.
Order code: BA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 08-14 149057 Control housing, proportional (SAE) 1
C0010 15-45 11161819 Control housing, proportional (metric) 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 1
C0050 15-45 11178808 Plug assembly (metric) 1
C0060 08-14 11040532 Plug assembly 3
C0100 08-14 11146871 Spool (SAE) 1
C0100 15-45 11146871 Spool (metric) 1
C0110 08-14 710855 Screw, M8 x 35 4
C0130 08-14 149040 Control seal 1
Order code: BB
C0010 12-24 11116918 Control housing, proportional (SAE) 1
C0010 15-45 11161819 Control housing, proportional (metric) 1
C0025 12-24 11000893 Shuttle valve assembly 1
C0050 12-24 140644 Plug assembly (SAE) 1
C0050 15-45 11178808 Plug assembly (metric) 1
C0060 12-24 11040532 Plug assembly 3
C0100 12-24 11146871 Spool (SAE) 1
C0100 15-45 11146871 Spool (metric) 1
C0110 12-24 710855 Screw, M8 x 35 4
C0130 12-24 149040 Control seal 1
C0300 12-24 11086158 Protective cover 1
C0320 12-24 395822 Screw, M6 x 12mm 2
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 27
E00T2
E00T3
C0100
C0060
C0060
C0060
C0025
C0050
*C0130
C0110
C0010
C0320
C0300
C0320
C0010
C0060
C0050
C0080
C0070
C0060
C0050
*C0130
E00T2
E00T3
C0110
C0120
C0090
*M223
*M224
E00T3
E00T2
C0100
C0010
C0025
*C0130
C0060
C0050
C0060
C0060
C0110
(BC)
(BD)
(CA)
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure BC, BD, CA
Parts configuration
* Included in overhaul seal kit Q210
Option BC is only available in metric configuration. Option CA is available is both SAE and metric
configurations. Please order accordingly.
28 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: BC
Item Date Begin Date End Part Number Part Name Qty. per
C0010 16-38 11169197 Control housing, proportional (metric) 1
C0025 16-38 11000893 Shuttle valve assembly 1
C0050 16-38 11178808 Plug assembly (metric) 1
C0060 16-38 11040532 Plug assembly 3
C0100 16-38 11146871 Spool (metric) 1
C0110 16-38 710855 Screw, M8 x 35 4
C0130 16-38 149040 Control seal 1
C0300 16-38 11086158 Protection cover 1
C0320 16-38 395822 Screw, M6 x 12 2
Order code: BD
C0010 12-14 11110071 Control housing, 2-position 1
C0050 12-14 140644 Plug assembly (SAE) 2
C0060 12-14 11040532 Plug assembly 2
C0070 12-14 11016228 Spool 1
C0080 12-14 11160236 Spring (SAE) 1
C0090 12-14 509360 Adjuster 1
C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 12-14 11016168 Control seal 1
M223 12-14 085043 (9004201-3700) O-ring 1
M224 12-14 732479 O-ring 1
Model/Kit
Order code: CA
C0010 08-14 149057 Control housing, proportional (SAE) 1
C0010 15-51 11161819 Control housing, proportional (metric) 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 1
C0050 15-51 11178808 Plug assembly (metric) 1
C0060 08-14 11040532 Plug assembly 3
C0100 08-14 11146871 Spool (SAE) 1
C0100 15-51 11146871 Spool (metric) 1
C0110 08-14 710855 Screw, M8 x 35 4
C0130 08-14 149040 Control seal 1
©
Danfoss | December 2021 AX152886481647en-000711 | 29
C0030
C0020
C0060
C0010
C0060
*B0034
C2000
C0040
B0026
B0028
B0024
C0060
C0050
*C0130
E00T2
E00T3
C0050
C0110
C0120
C0080
C0070
C0090
*M223
*M224
C0060
(removed 11-21)
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure D1, D2
D1 and D2 configuration
* Included in overhaul seal kit Q210
30 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: D1 and D2 common parts
Item Date Begin Date End Part Number Part Name Qty. per
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
C0010 08-14 11086114 Control housing, PCOR 1
C0020 08-14 11016229 Spool 1
C0030 08-14 11160236 Spring 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0060 11-22 11040532 Plug assembly 3
C0060 08-14 11-21 11040532 Plug assembly 4
C0070 08-14 11016228 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
C0110 08-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 08-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 08-14 11016168 Control seal 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Model/Kit
Order code: D1
C0040 08-14 11013615 Solenoid, on/off, 12 volt 1
C2000 08-14 11031763 Coil kit, 12 volt 1
Order code: D2
C0040 08-14 11013616 Solenoid, on/off, 24 volt 1
C2000 08-14 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 31
C0025
C0010
C0060
C0060
(removed 11-21)
C0060
C0050
*C0130
E00T2
E00T3
C0080
C0070
C0090
*M223
*M224
C0050
C0110
C0120
C0010
C0060
C0050
C0080
C0075
C0110
C0120
C0050
C0025
C0060
*C0130
E00T2
E00T3
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure DA, EA
DA configuration
EA configuration
* Included in overhaul seal kit Q210
32 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: DA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 08-14 11086115 Control housing, PCOR 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0060 11-22 11040532 Plug assembly 2
C0060 08-14 11-21 11040532 Plug assembly 3
C0070 08-14 11016228 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Order code: EA
C0010 11-22 11099281 Control housing, 2-position 1
C0025 11-22 11000893 Shuttle valve assembly 1
C0050 11-22 140644 Plug assembly 1
C0060 11-22 11040532 Plug assembly 2
C0075 11-22 11122114 Spool, 2-position 1
C0080 11-22 11160236 Spring 1
C0110 11-22 737866 (9007314-1207) Screw, M12 x 30 2
C0120 11-22 283325 (9007314-1211) Screw, M12 x 50 2
C0130 11-22 11016168 Control seal 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 33
C0060
E00T2
E00T3
C0010
C0060
C0080
C0070
*M223
*M224
C0050
C0110
C0120
C0030
C0020
C0050
*C0130
B0024
B0026
B0028
C2000
*B0034
C0040
C0090
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply

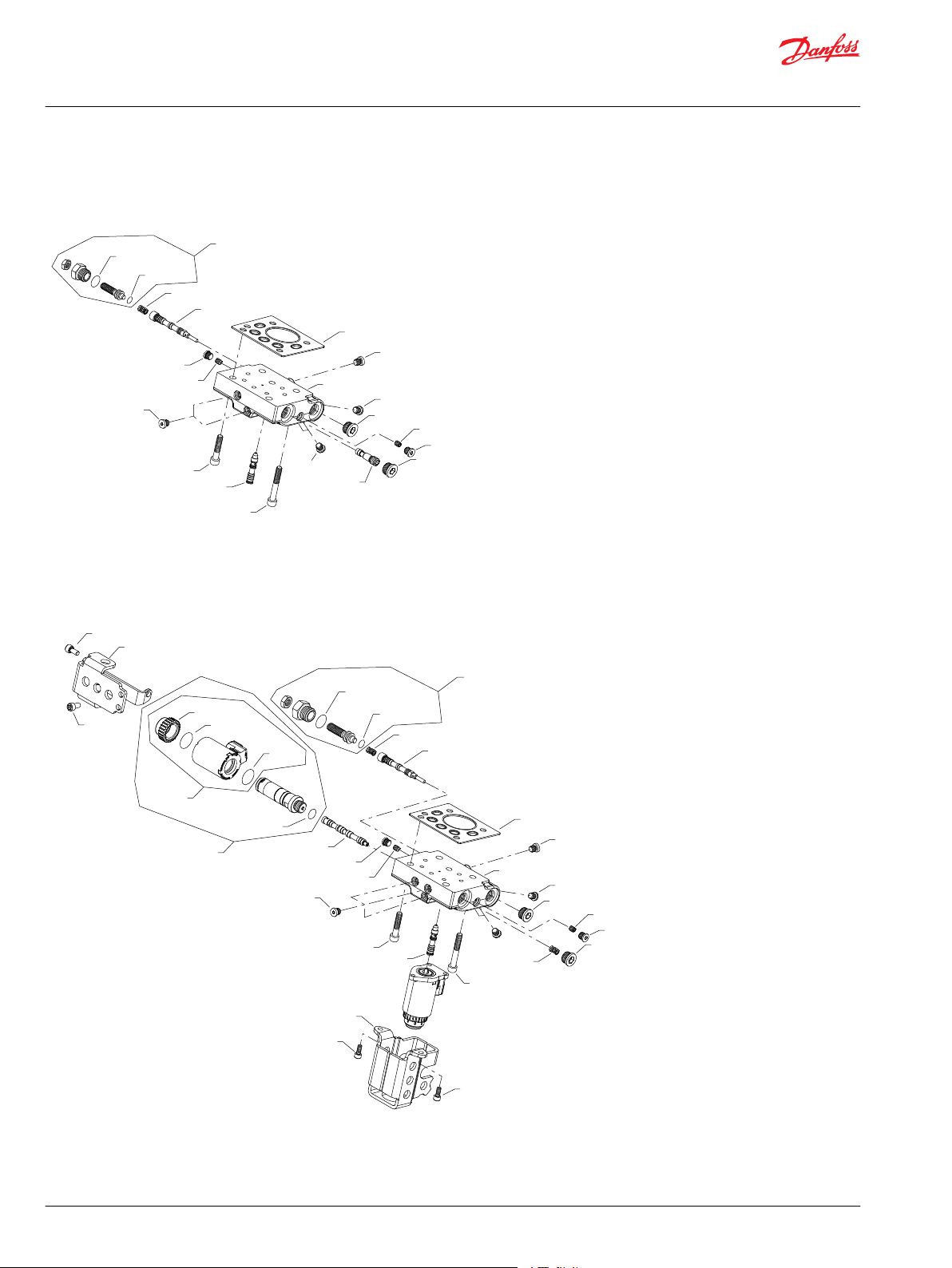

H1B servo pressure G1, G2
G1 and G2 configuration
* Included in overhaul seal kit Q210
34 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: G1 and G2 common parts
Item Date Begin Date End Part Number Part Name Qty. per
B0024 16-07 11031608 O-ring 1
B0026 16-07 11027046 Coil nut 1
B0028 16-07 063172 O-ring 1
B0034 16-07 085043 (9004201-3700) O-ring 1
C0010 16-07 11173253 Control housing, 2-position 1
C0020 16-07 11016229 Spool 1
C0030 16-07 11160236 Spring 1
C0050 16-07 140644 Plug assembly (SAE) 2
C0060 16-07 11040532 Plug assembly 3
C0070 16-07 11016228 Spool 1
C0080 16-07 11160236 Spring 1
C0090 16-07 509360 Adjuster 1
C0110 16-07 737866 (9007314-1207) Screw, M12 x 30 2
C0120 16-07 283325 (9007314-1211) Screw, M12 x 50 2
C0130 16-07 11016168 Control seal 1
M223 16-07 085043 (9004201-3700) O-ring 1
M224 16-07 732479 O-ring 1
Model/Kit
Order code: G1
C0040 16-07 11013615 Solenoid valve, 12v 1
C200 16-07 11031763 Coil kit, 12 volt 1
Order code: G2
C0040 16-07 11013616 Solenoid valve, 24v 1
C2000 16-07 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 35
*C0130
C0060
E00T2
E00T3
C0050
C0010
C0060
C0050
C0025
C0110
C0120
C0080
C0070
C0090
*M223
*M224
*C0130
C0060
E00T2
E00T3
C0010
C0060
C0020
C1400
C1400
C0080
C0070
C0090
*M223
*M224
C0050
C0110
C0120
*C0130
C0060
E00T2
E00T3
C0010
C0060
C0080
C0070
C0090
*M223
*M224
C0050
C0110
C0120
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure HA-HD
HA configuration
HB and HD configuration
HC configuration
* Included in overhaul seal kit Q210
36 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: Common parts
Item Date Begin Date End Part Number Part Name Qty. per
C0070 15-37 11016228 Spool 1
C0080 15-37 11160236 Spring 1
C0090 15-37 509360 Adjuster 1
C0110 15-37 737866 (9007314-1207) Screw, M12 x 30 2
C0120 15-37 283325 (9007314-1211) Screw, M12 x 50 2
C0130 15-37 11016168 Control seal 1
M223 15-37 085043 (9004201-3700) O-ring 1
M224 15-37 732479 O-ring 1
Order code: HA
C0010 15-37 11162117 Control housing, 2-position 1
C0025 15-37 11000893 Shuttle valve assembly 1
C0050 15-37 140644 Plug assembly 2
C0060 15-37 11040532 Plug assembly 2
Model/Kit
Order code: HB
C0010 15-37 11162118 Control housing, 2-position 1
C0020 15-37 11162120 Spool 1
C0050 15-37 140644 Plug assembly 1
C0060 15-37 11040532 Plug assembly 3
Order code: HC
C0010 15-37 11162119 Control housing, 2-position 1
C0050 15-37 140644 Plug assembly 1
C0060 15-37 11040532 Plug assembly 2
Order code: HD
C0010 20-48 11272360 Control housing, 2-position 1
C0020 20-48 11162120 Spool 1
C0050 20-48 140644 Plug assembly 1
C0060 20-48 11040532 Plug assembly 3
C1400 20-48 11151817 Limiter plug 2
©
Danfoss | December 2021 AX152886481647en-000711 | 37
E00T3
E00T2
C0010
C0050
C0140
C0050C0050
C0025
C0080
C0060
C0150
C0060
*C0130
C0110
C0120
C0160
*QC160
C0060
C0050
C0140
C0080
C0060
C0150
C0060
C0010
C0025
C0060
C0050
*C0130
E00T3
C0110
C0120
C0160
QC160
E00T2
(HE)
(HF)
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply

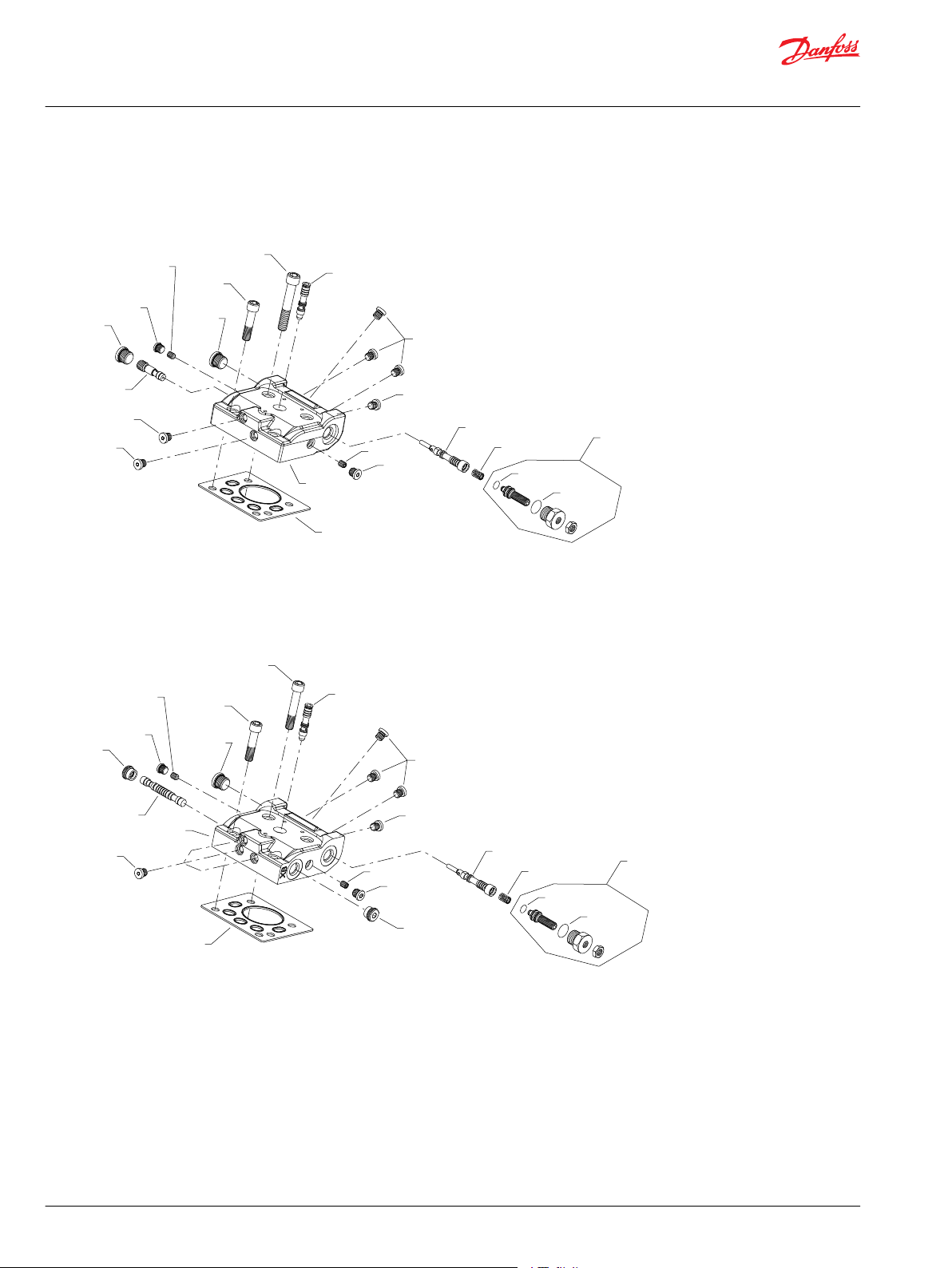

H1B servo pressure HE, HF
HE and HF configuration
* Included in overhaul seal kit Q210
Option HE is available in SAE and metric. Please order accordingly.
38 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: HE and HF common parts
Item Date Begin Date End Part Number Part Name Qty. per
C0025 08-14 11000893 Shuttle valve assembly 1
C0060 08-14 11040532 Plug assembly 3
C0110 08-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 08-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 08-14 11016168 Control seal 1
C0150 08-14 11068172 Spool 1
C0160 08-14 511244 Plug assembly 1
QC160 08-14 039297 (9004201-1200) O-ring 1
Order code: HE
C0010 08-14 11086117 Control housing, 2-position (SAE) 1
C0010 08-14 11175039 Control housing, 2-position (metric) 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0050 08-14 11178808 Plug assembly (metric) 2
C0080 08-14 11160236 Spring (SAE) 1
C0080 08-14 11160236 Spring (metric) 1
C0140 08-14 9005110-8700 (315325) Plug assembly (SAE) 1
C0140 08-14 9005110-8700 (315325) Plug assembly (metric) 1
Model/Kit
Order code: HF
C0010 08-14 11086118 Control housing, 2-position (SAE) 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0080 08-14 11160236 Spring (SAE) 1
C0140 08-14 9005110-8700 (315325) Plug assembly (SAE) 1
©
Danfoss | December 2021 AX152886481647en-000711 | 39
C0120
C0110
C0010
C0100
C0060
C0060
*B0034
C2000
C0040
B0026
B0028
B0024
C0050
C0060
C0030
C0020
C0050
*C0130
C0060
E00T2
C0060
E00T3
C0080
C0070
*M223
*M224
C0090
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure K1, K2
K1 and K2 configuration
* Included in overhaul seal kit Q210
40 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: K1 and K2 common parts
Item Date Begin Date End Part Number Part Name Qty. per
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 O-ring 1
C0010 08-14 11026748 Control housing, proportional, PCOR 1
C0020 08-14 11026792 Spool 1
C0030 08-14 11160236 Spring 1
C0050 08-14 140644 Plug assembly SAE 2
C0060 08-14 11040532 Plug assembly 9
C0070 08-14 11026751 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
C0100 08-14 11146871 Spool 1
C0110 08-14 710855 Screw, M8 x 35 2
C0120 08-14 746644 (9007314-0810) Screw, M8 x 45 2
C0130 08-14 149040 Control seal 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Model/Kit
Order code: K1
C0040 08-14 11013615 Solenoid, on/off, 12 volt 1
C2000 08-14 11031763 Coil kit, 12 volt 1
Order code: K2
C0040 08-14 11013616 Solenoid, on/off, 24 volt 1
C2000 08-14 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 41
E101 604E
C0110
C0100
C0060
C0060
*C0130
C0050
C0060
C0025
C0060
C0050
C0010
C0060
E00T2
C0060
E00T3
C0080
C0070
*M223
*M224
C0090
C0120
C0120
C0110
C0010
C0100
C0060
C0060
C0050
C0060
*C0130
C0060
E00T2
C0060
E00T3
C0080
C0070
*M223
*M224
C0090
C1400
C0020
C1400
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure KA, KH
KA configuration
KH configuration
* Included in overhaul seal kit Q210
42 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: KA
Item Date Begin Part Number Part Name Qty. per
C0010 08-14 11026749 Control housing, proportional, PCOR 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 1
C0060 08-14 11040532 Plug assembly 8
C0070 08-14 11026751 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
C100 08-14 11146871 Spool 1
C0110 08-14 710855 Screw, M8 x 35 2
C0120 08-14 746644 (9007314-0810) Screw, M8 x 45 2
C0130 08-14 149040 Control seal 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Model/Kit
Order code: KH
C0010 15-48 11161283 Control housing, proportional, PCOR 1
C0020 15-48 11151818 Spool 1
C0050 15-48 140644 Plug assembly 1
C0060 15-48 11040532 Plug assembly 9
C0070 15-48 11026751 Spool 1
C0080 15-48 11160236 Spring 1
C0090 15-48 509360 Adjuster 1
C100 15-48 11146871 Spool 1
C0110 15-48 710855 Screw, M8 x 35 2
C0120 15-48 746644 (9007314-0810) Screw, M8 x 45 2
C0130 15-48 149040 Control seal 1
C1400 15-48 11151817 Limiter plug 2
M223 15-48 085043 (9004201-3700) O-ring 1
M224 15-48 732479 O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 43
C0100
C0060
C0060
E00T3
C0060
E00T2
C0050
*C0130
C0110
C0010
*B0034
C2000
C0070
B0026
B0028
B0024
C0120
C0040
C0080
C0050
C0020
C0030
C0060
C0060
C0090
*M223
*M224
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure M1, M2
M1 and M2 configuration
* Included in overhaul seal kit Q210
44 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: M1 and M2 common parts
Item Date Begin Date End Part Number Part Name Qty. per
B0024 08-14 11031608 O-ring 1
B0026 08-14 11027046 Coil nut 1
B0028 08-14 063172 O-ring 1
B0034 08-14 085043 (9004201-3700) O-ring 1
C0010 08-14 11028958 Control housing, proportional, PCOR 1
C0020 08-14 11026792 Spool 1
C0030 08-14 11160236 Spring 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0060 08-14 11040532 Plug assembly 9
C0070 08-14 11028957 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
C0100 08-14 11146871 Spool 1
C0110 08-14 710855 Screw, M8 x 35 2
C0120 08-14 746644 (9007314-0810) Screw, M8 x 45 2
C0130 08-14 149040 Control seal 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Model/Kit
Order code: M1
C0040 08-14 11013615 Solenoid, on/off, 12 volt 1
C2000 08-14 11031763 Coil kit, 12 volt 1
Order code: M2
C0040 08-14 11013616 Solenoid, on/off, 24 volt 1
C2000 08-14 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 45
C0100
C0060
C0060
E00T3
C0060
E00T2
C0050
*C0130
C0110
C0010
C0070
C0110
C0080
C0050
C0060
C0060
C0025
C0090
*M223
*M224
C0060
C0100
C0060
C0060
E00T3
C0060
E00T2
C0050
*C0130
C0110
C0010
C0070
*B0034
B0020
B0026
B0028
B0024
C0040
C0080
C0050
C0020
C0030
C0060
C0060
C0320
C0300
C0320
C0120
C0320
C0310
C0320
C0090
*M223
*M224
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure MA, MF
MA configuration
MF configuration
* Included in overhaul seal kit Q210
46 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: MA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 08-14 11028959 Control housing, proportional, PCOR 1
C0025 08-14 11000893 Shuttle valve assembly 1
C0050 08-14 140644 Plug assembly (SAE) 2
C0060 08-14 11040532 Plug assembly 8
C0070 08-14 11028957 Spool 1
C0080 08-14 11160236 Spring 1
C0090 08-14 509360 Adjuster 1
C0100 08-14 11146871 Spool 1
C0110 08-14 710855 Screw, M8 x 35 2
C0120 08-14 746644 (9007314-0810) Screw, M8 x 45 2
C0130 08-14 149040 Control seal 1
M223 08-14 085043 (9004201-3700) O-ring 1
M224 08-14 732479 O-ring 1
Model/Kit
Order code: MF
B0020 12-05 11031763 Coil kit, 12 volt 1
B0024 12-05 11031608 O-ring 1
B0026 12-05 11027046 Coil nut 1
B0028 12-05 063172 O-ring 1
B0034 12-05 085043 (9004201-3700) O-ring 1
C0010 12-05 11123556 Control housing, proportional, PCOR 1
C0020 12-05 11101616 Spool 1
C0030 12-05 11160236 Spring 1
C0040 12-05 11013615 Solenoid, on/off, 12 volt 1
C0050 12-05 140644 Plug assembly 2
C0060 12-05 11040532 Plug assembly 9
C0070 12-05 11028957 Spool 1
C0080 12-05 11160263 Spring 1
C0090 12-05 509360 Adjuster 1
C0100 12-05 11146871 Spool 1
C0110 12-05 710855 Screw, M8 x 35 2
C0120 12-05 746644 (9007314-0810) Screw, M8 x 45 2
C0130 12-05 149040 Control seal 1
C0300 12-05 11086158 Protective cover 1
C0310 12-05 11086159 Protective cover 1
C0320 12-05 395822 Screw, M6 x 12mm 4
M223 12-05 085043 (9004201-3700) O-ring 1
M224 12-05 732479 O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 47
C0100
C0060
E00T3
E00T2
*C0130
C0110
C0010
C0070
C0120
C0080
C0050
C0020
C0060
C0060
C1400
C1400
C0060
C0060
C0090
*M223
*M224
C0060
C0060
C0060
C0100
C0060
E00T3
C0060
E00T2
C0050
*C0130
C0110
C0010
C0060
*B0034
C2000
B0026
B0028
B0024
C0040
C0050
C0020
C0030
C0060
C0060
C0320
C0300
C0320
C0120
C0320
C0310
C0320
C0025
C0060
C0060
C0060
C0060
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure MH, MW
MH configuration
MW configuration
* Included in overhaul seal kit Q210
48 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: MH
Item Date Begin Date End Part Number Part Name Qty. per
C0010 14-37 11151816 Control housing, proportional, PCOR 1
C0020 14-37 11151818 Spool 1
C0050 14-37 140644 Plug assembly 1
C0060 14-37 11040532 Plug assembly 9
C0070 14-37 11028957 Spool 1
C0080 14-37 11160236 Spring 1
C0090 14-37 509360 Adjuster 1
C0100 14-37 11146871 Spool 1
C0110 14-37 710855 Screw, M8 x 35 2
C0120 14-37 746644 (9007314-0810) Screw, M8 x 45 2
C0130 14-37 149040 Control seal 1
C1400 14-37 11151817 Limiter plug 2
M223 14-37 085043 (9004201-3700) O-ring 1
M224 14-37 732479 O-ring 1
Model/Kit
Order code: MW
B0024 12-05 11031608 O-ring 1
B0026 12-05 11027046 Coil nut 1
B0028 12-05 063172 O-ring 1
B0034 12-05 085043 (9004201-3700) O-ring 1
C0010 12-05 11101720 Control housing, proportional, PCOR 1
C0020 12-05 11101616 Spool 1
C0025 12-05 11000893 Shuttle valve assembly 1
C0030 12-05 11160236 Spring 1
C0040 12-05 11013615 Solenoid, on/off, 12 volt 1
C0050 12-05 140644 Plug assembly 2
C0060 12-05 11146871 Plug assembly 10
C0100 12-05 1146871 Spool 1
C0110 12-05 710855 Screw, M8 x 35 2
C0120 12-05 746644 (9007314-0810) Screw, M8 x 45 2
C0130 12-05 149040 Control seal 1
C0300 12-05 11086158 Protective cover 1
C0310 12-05 11086159 Protective cover 1
C0320 12-05 395822 Screw, M6 x 12 4
C2000 12-05 11031763 Coil kit, 12 volt 1
©
Danfoss | December 2021 AX152886481647en-000711 | 49
C0010
*C0130
C0060
C0110
C0120
C0060
E00T2
E00T3
C0060
C0060
C0060
C0025
C0050
*C0130
C0110
C0010
C0170
*C0130
C0010
C0060
C0025
C0110
C0120
C0060
C0060
C0050
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
H1B servo pressure NP, NR, NT
NP configuration
NR configuration
NT configuration
50 | © Danfoss | December 2021 AX152886481647en-000711
* Included in overhaul seal kit Q210
Parts Manual
H1B 080 Bent Axis Motor
Servo pressure supply
Order code: NP
Item Date Begin Date End Part Number Part Name Qty. per
C0010 08-14 11086116 Control housing, 2-position 1
C0050 08-14 140644 Plug assembly 1
C0060 08-14 11040532 Plug assembly 2
C0110 08-14 737866 (9007314-1207) Screw, M12 x 30 2
C0120 08-14 283325 (9007314-1211) Screw, M12 x 50 2
C0130 08-14 11016168 Control seal 1
Order code: NR
C0010 12-42 11123843 Control housing, proportional 1
C0025 12-42 11000893 Shuttle valve 1
C0050 12-42 140644 Plug assembly 1
C0060 12-42 11040532 Plug assembly 3
C0110 12-42 710855 Screw, M8 x 35 2
C0130 12-42 149040 Control seal 1
C0170 12-42 716860 Screw, M5 x 12 1
Model/Kit
Order code: NT
C0010 12-42 11123847 Control housing, 2-position 1
C0025 12-42 11000893 Shuttle valve 1
C0050 12-42 140644 Plug assembly 1
C0060 12-42 11040532 Plug assembly 3
C0110 12-42 737866 (9007314-1207) Screw, M12 x 30 2
C0120 12-42 283325 (9007314-1211) Screw, M12 x 50 2
C0130 12-42 11016168 Control seal 1
©
Danfoss | December 2021 AX152886481647en-000711 | 51

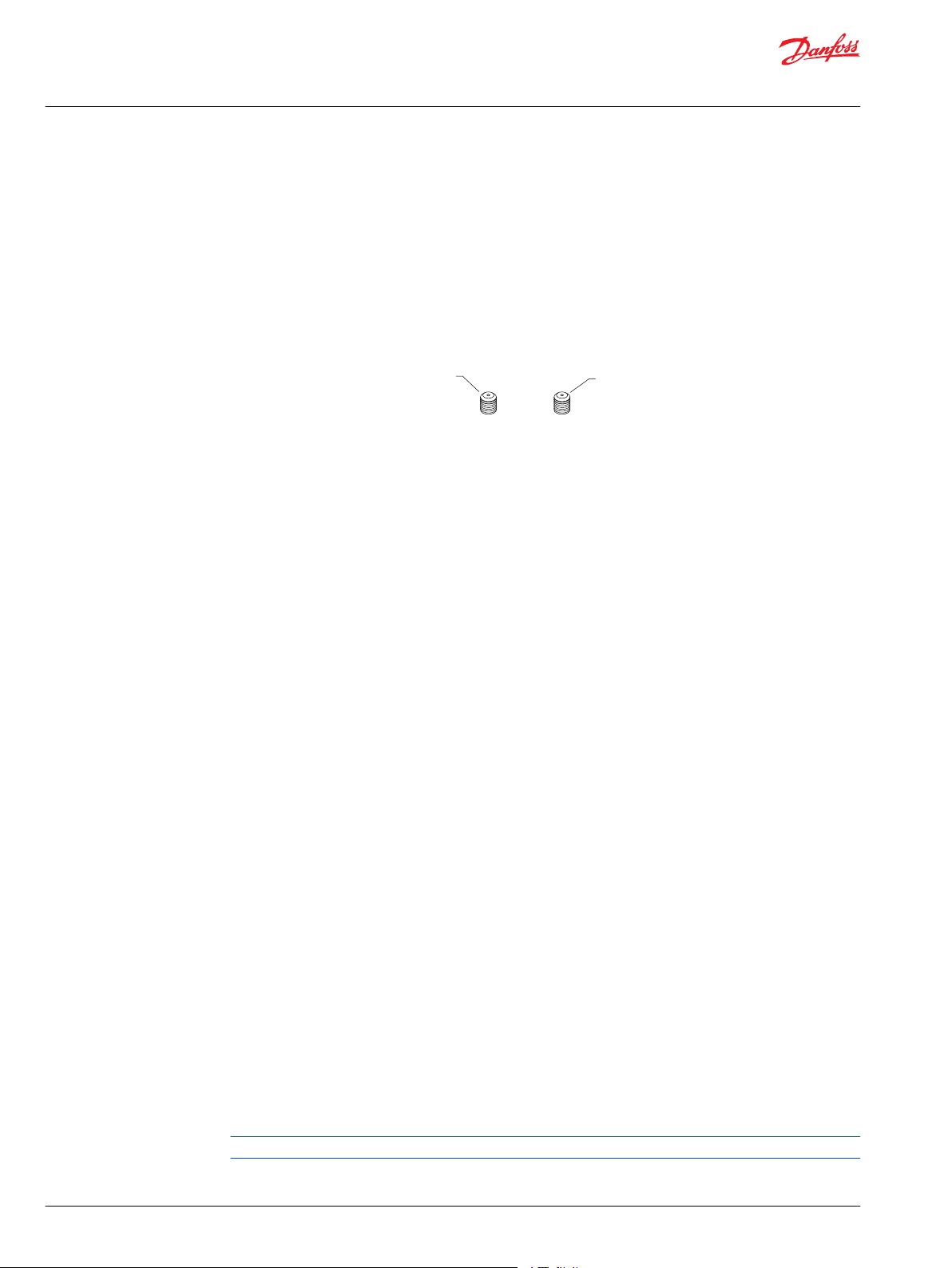

E00T2
E00T3
Parts Manual
H1B 080 Bent Axis Motor
Orifice
H1B orifice A, B, C, D
A-D orifice plugs
See servo pressure supply drawing for orifice location.
52 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Orifice
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
E00T2 08-14 516598 Orifice plug, 1.2 mm 1
E00T3 08-14 516598 Orifice plug, 1.2 mm 1
Order code: B
E00T2 08-14 578542 Orifice plug, 0.8 mm 1
E00T3 08-14 578542 Orifice plug, 0.8 mm 1
Order code: C
E00T2 08-14 511825 Orifice plug, 0.6 mm 1
E00T3 08-14 511825 Orifice plug, 0.6 mm 1
Order code: D
E00T2 08-14 679316 Orifice plug, 0.5 mm 1
E00T3 08-14 679316 Orifice plug, 0.5 mm 1
Model/Kit
Order code: N
No parts
©
Danfoss | December 2021 AX152886481647en-000711 | 53
QF080
F0100
F0160
F0010
F0020
F0070
F0040
F0030
F0090
F0050
F0120
F0100
F0160
F0060
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap PA
PA configuration
This option is available in SAE and metric configurations. Please order accordingly.
54 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: PA
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11004637 End cap, axial ports (SAE) 1
F0010 15-45 11166043 End cap, axial ports (metric) 1
F0020 08-14 11004621 Servo piston 1
F0030 08-14 11004794 Spring guide 1
F0040 08-14 11004885 Spring 1
F0050 08-14 11004619 Setting lug 1
F0060 08-14 11008915 Setting lug pin 1
F0070 08-14 042465 Set screw 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly (SAE) 2
F0100 15-45 11178808 Plug assembly (metric) 2
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0160 08-14 140644 Plug assembly (SAE) 2
F0160 15-45 11178808 Plug assembly (metric) 2
QF080 08-14 18-06 11051882 Valve segment assembly 1
Model/Kit
Parts for option PB-PM are found on the next few pages.
©
Danfoss | December 2021 AX152886481647en-000711 | 55
F0150
F0150
QF080
F0100
F0010
F0020
F0070
F0040
F0030
F0090
F0050
F0120
F0100
F0060
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap PB
PB configuration
This option is available in SAE and metric configurations. Please order accordingly.
56 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: PB
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11010111 End cap, side ports (SAE) 1
F0010 15-45 11161815 End cap, side ports (metric) 1
F0020 08-14 11004621 Servo piston 1
F0030 08-14 11004794 Spring guide 1
F0040 08-14 11004885 Spring 1
F0050 08-14 11004619 Setting lug 1
F0060 08-14 11008915 Setting lug pin 1
F0070 08-14 042465 Set screw 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly (SAE) 2
F0100 15-45 11178808 Plug assembly (metric) 2
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0150 15-45 11178807 Plug assembly (metric) 2
QF080 08-14 18-06 11051882 Valve segment assembly 1
Mode/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 57
QF080
F0100
F0160
F0010
F0020
F0070
F0040
F0030
F0090
F0050
F0120
F0100
F0160
F0060
F0170
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap PC
PC configuration
58 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: PC
Item Date Begin Date End Part Number Part Name Qty. per
F0010 12-25 11101353 End cap, axial ports 1
F0020 12-25 11004621 Servo piston 1
F0030 12-25 11004794 Spring guide 1
F0040 12-25 11004885 Spring 1
F0050 12-25 11004619 Setting lug 1
F0060 12-25 11008915 Setting lug pin 1
F0070 12-25 042465 Set screw, M10 x 10 1
F0090 12-25 11014186 Button head screw 1
F0100 12-25 140644 Plug assembly 2
F0120 12-25 672295 (9007314-1010) Screw, M10 x 45 8
F0160 12-25 140644 Plug assembly 2
F0170 12-25 11124768 Edge filter 2
QF080 12-25 18-06 11051882 Valve segment assembly 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 59
F0150
F0150
QF080
F0100
F0010
F0020
F0070
F0040
F0030
F0090
F0050
F0120
F0100
F0060
F0163
F0162
F1160
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B 80cc end cap PM
Order code: PM
* Included in overhaul seal kit Q210
60 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: PM
Item Date Begin Date End Part Number Part Name Qty. per
F0010 12-03 11108198 End cap, side ports 1
F0020 12-03 11004621 Servo piston 1
F0030 12-03 11004794 Spring guide 1
F0040 12-03 11004885 Spring 1
F0050 12-03 11004619 Setting lug 1
F0060 12-03 11008915 Setting lug pin 1
F0070 12-03 042465 Set screw, M10 x 10 1
F0090 12-03 11014186 Button head screw 1
F0100 12-03 140644 Plug assembly 2
F0120 12-03 672295 (9007314-1010) Screw, M10 x 45 8
F0150 12-03 664524 (9005110-9000) Plug assembly 2
F0162 12-03 001149 (9004201-6200) O-ring 1
F0163 12-03 9005110-7500 Plug assembly 1
F1160 12-03 11108129 Loop flushing adapter assembly 1
QF080 12-03 18-06 11051882 Valve segment assembly 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 61
QF080
F0090
F0050
F0010
F0120
F0020
F0070
F0040
F0030
F0160
F0100
F0160
F0100
F0060
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap RA
RA configuration
This option is available is SAE and metric configurations. Please order accordingly.
62 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: RA
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11004637 End cap, axial ports (SAE) 1
F0010 15-51 11166043 End cap, axial ports (metric) 1
F0020 08-14 11007450 Servo piston 1
F0030 08-14 11007448 Spring guide 1
F0040 08-14 11160231 Spring 1
F0050 08-14 11007449 Setting lug 1
F0060 08-14 11008915 Setting lug pin 1
F0070 08-14 042465 Set screw 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly (SAE) 2
F0100 15-51 11178808 Plug assembly (metric) 2
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0160 08-14 140644 Plug assembly (SAE) 2
F0160 15-51 11178808 Plug assembly (metric) 2
QF080 08-14 18-06 11051882 Valve segment assembly (SB-2018-028 on page
106)
Model/Kit
1
Parts for option RB are found on the next 2 pages.
©
Danfoss | December 2021 AX152886481647en-000711 | 63
QF080
F0090
F0050
F0010
F0120
F0020
F0070
F0040
F0030
F0100
F0150
F0150
F0100
F0060
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap RB
RB configuration
This option is available in SAE and metric configurations. Please order accordingly.
64 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: RB
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11010111 End cap, side ports (SAE) 1
F0010 16-29 11161815 End cap, side ports (metric) 1
F0020 08-14 11004621 Servo piston 1
F0030 08-14 11004794 Spring guide 1
F0040 08-14 11004885 Spring 1
F0040 16-29 11160232 Spring (metric) 1
F0050 08-14 11004619 Setting lug 1
F0060 08-14 11008915 Setting lug pin 1
F0070 08-14 042465 Set screw 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly (SAE) 2
F0100 16-29 11178808 Plug assembly (metric) 2
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0150 08-14 664524 (9005110-9000) Plug assembly (SAE) 2
F0150 16-29 11178807 Plug assembly (metric) 2
QF080 08-14 18-06 11051882 Valve segment assembly 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 65
F0090
QF080
F0010
*P0044
*P0043
F0020
F0120
F0160
F0160
F0100
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap TA
TA configuration
* Included in overhaul seal kit Q210
66 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: TA
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11024201 End cap, axial ports 1
F0020 08-14 11023129 Servo piston 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly 1
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0160 08-14 140644 Plug assembly 2
P0043 08-14 504208 O-ring 1
P0044 08-14 508136 Piston ring 1
QF080 08-14 18-06 11051881 Valve segment assembly (SB-2018-028 on page
106)
Parts for options TB and TL are found on the next few pages.
Model/Kit
1
©
Danfoss | December 2021 AX152886481647en-000711 | 67
F0090
QF080
F0010
*P0044
*P0043
F0020
F0120
F0150
F0150
F0100
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap TB
TB configuration
* Included in overhaul seal kit Q210
68 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: TB
Item Date Begin Date End Part Number Part Name Qty. per
F0010 08-14 11024212 End cap, side ports 1
F0020 08-14 11023129 Servo piston 1
F0090 08-14 11014186 Button head screw 1
F0100 08-14 140644 Plug assembly (SAE) 1
F0120 08-14 672295 (9007314-1010) Screw, M10 x 45 8
F0150 08-14 664524 (9005110-9000) Plug assembly 2
P0043 08-14 504208 O-ring 1
P0044 08-14 508136 Piston ring 1
QF080 08-14 18-06 11051881 Valve segment assembly (SB-2018-028 on page
106)
Model/Kit
1
©
Danfoss | December 2021 AX152886481647en-000711 | 69
F0090
QF080
F0010
*P0044
*P0043
F0020
F0120
F0160
F0160
F1170
F0100
Parts Manual
H1B 080 Bent Axis Motor
End cap
H1B end cap TL
TL configuration
* Included in overhaul seal kit Q210
70 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
End cap
Order code: TL
Item Date Begin Date End Part Number Part Name Qty. per
F0010 09-05 11059617 End cap, axial ports 1
F0020 09-05 11023129 Servo piston 1
F0090 09-05 11014186 Button head screw 1
F0100 09-05 140644 Plug assembly 1
F0120 09-05 672295 (9007314-1010) Screw, M10 x 45 8
F0160 09-05 140644 Plug assembly 2
F1170 09-05 315325 (9005110-8700) Plug assembly 1
P0043 09-05 504208 O-ring 1
P0044 09-05 508136 Piston ring 1
QF080 09-05 18-06 11051881 Valve segment assembly (SB-2018-028 on page
106)
Model/Kit
1
©
Danfoss | December 2021 AX152886481647en-000711 | 71
G0040
G0040
*G0020
G0030
J0020
*J0041
J0010
*G0070
G0010
G0055
*QG055
G0061
G0060
(removed 15-34)
G0040
G0040
*G0020
G0030
*G0070
G0010
G0061
G0060
G0055
*QG055
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
H1B flange/housing CN, CS
CN configuration
CS configuration
* Included in overhaul seal kit Q210
The CS option is available in SAE and metric. Please order accordingly.
72 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
G0020 08-14 519021 Lip seal 1
G0030 08-14 915280 Retaining ring 1
G0040 08-14 11007677 Pin 2
G0055 10-22 11056747 Shaft location plug assembly 1
G0055 08-14 10-21 327007 (9005110-4400) Plug assembly 1
G0070 08-14 11098011 Gasket 1
QG055 10-22 039297 (9004201-1200) O-ring 1
Order code: CN
G0010 10-22 11078066 Housing cartridge with speed sensor port 1
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
J0010 08-14 11013290 PPU plug assembly 1
J0020 08-14 395822 (9007315-0603) Screw, M6 x 12 1
J0041 08-14 11013397 O-ring 1
Model/Kit
Order code: CS
G0010 10-22 11078066 Housing, cartridge with speed sensor port (SAE) 1
G0010 15-45 11161817 Housing, cartridge with speed sensor port
(metric)
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0060 15-45 11178809 Plug assembly (metric) 1
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0061 15-45 11178809 Plug assembly (metric) 1
1
©
Danfoss | December 2021 AX152886481647en-000711 | 73
*J0041
J0010
J0020
*G0070
G0040
G0010
*G0020
G0030
G0061
G0060
*QG050
G0050
G0040
Used prior to 17-15
*G0070
G0040
G0040
G0010
*G0020
G0030
*QG050
G0050
G0061
G0060
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
H1B flange/housing DN, DS
DN configuration
DS configuration
* Included in overhaul seal kit Q210
Option DS is available in SAE and metric configurations. Please order accordingly.
74 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
Order code: DN
Item Date Begin Date End Part Number Part Name Qty. per
G0010 17-15 11180352 Housing, DIN flange 1
G0010 08-14 17-14 11002768 Housing, DIN flange with speed sensor port 1
G0020 08-14 519021 Lip seal 1
G0030 08-14 915280 Retaining ring 1
G0040 08-14 11007677 Pin 2
G0050 10-20 11063948 Shaft locating plug assembly 1
G0050 08-14 10-19 11001378 Shaft locating plug assembly 1
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0070 08-14 11098011 Gasket 1
J0010 08-14 17-14 11013290 PPU plug assembly 1
J0041 08-14 17-14 11013397 O-ring 1
J0020 08-14 17-14 395822 (9007315-0603) Screw, M6 x 12 1
QG050 10-20 001123 (9004201-2500) O-ring 1
QG050 08-14 10-19 039297 (9004201-1200) O-ring 1
Model/Kit
Order code: DS
G0010 08-14 11002768 Housing, DIN flange with speed sensor port (SAE) 1
G0010 08-14 11166042 Housing, DIN flange with speed sensor port
(metric)
G0020 08-14 519021 Lip seal 1
G0030 08-14 915280 Retaining ring 1
G0040 08-14 11007677 Pin 2
G0050 10-20 11063948 Shaft locating plug assembly 1
G0050 08-14 10-19 11001378 Shaft locating plug assembly 1
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0060 09-31 11178809 Plug assembly (metric) 1
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0061 09-31 11178809 Plug assembly (metric) 1
G0070 08-14 11098011 Gasket 1
QG050 10-20 001123 (9004201-2500) O-ring 1
QG050 08-14 10-19 039297 (9004201-1200) O-ring 1
1
©
Danfoss | December 2021 AX152886481647en-000711 | 75
*G0070
G0040
G0040
G0010
*G0020
G0030
*J0041
J0010
J0020
G0061
G0060
*QG050
G0050
*G0070
G0040
G0040
G0010
G0061
G0060
G0030
G0200
G0050
*QG050
(VB)(VB)
(VA)(VA)
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
H1B flange/housing VA, VB
Parts configuration
* Included in overhaul seal kit Q210
76 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
Order code: VA
Item Date Begin Date End Part Number Part Name Qty. per
G0010 10-14 11066910 Housing, SAE flange with speed sensor port 1
G0020 09-29 519021 Lip seal 1
G0030 09-29 915280 Retaining ring 1
G0040 09-29 11007677 Pin 2
G0050 10-14 11063948 Shaft locating plug assembly 1
G0050 09-29 10-13 11001378 Shaft locating plug assembly 1
G0060 09-29 315325 (9005110-8700) Plug assembly 1
G0061 09-29 315325 (9005110-8700) Plug assembly 1
G0070 09-29 11098011 Gasket 1
J0010 09-29 11013290 Speed sensor plug assembly 1
J0041 09-29 11013397 O-ring 1
J0020 09-29 395822 (9007315-0603) Screw, M6 x 12 1
QG050 10-14 001123 (9004201-2500) O-ring 1
QG050 09-29 10-13 039297 (9004201-1200) O-ring 1
Model/Kit
Order code: VB
G0010 11-13 11095940 Housing, SAE flange with speed sensor port 1
G0030 11-13 392472 Retaining ring 1
G0040 11-13 11007677 Pin 2
G0050 11-13 11063948 Shaft locating plug assembly 1
G0060 11-13 315325 (9005110-8700) Plug assembly 1
G0061 11-13 315325 (9005110-8700) Plug assembly 1
G0070 11-13 11098011 Gasket 1
G0200 11-13 11095939 Seal carrier assembly 1
QG050 11-13 001123 (9004201-2500) O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 77
*J0041
J0010
J0020
*G0070
G0040
G0010
*G0020
G0030
G0061
G0060
*QG050
G0050
G0040
Used prior to 17-15
*G0070
G0040
G0040
G0010
*G0020
G0030
G0061
G0060
*QG050
G0050
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
H1B flange/housing VN, VS
VN configuration
VS configuration
* Included in overhaul seal kit Q210
Option VS is available in SAE and metric configurations. Please order accordingly.
78 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Flange/housing
Order code: VN
Item Date Begin Date End Part Number Part Name Qty. per
G0010 17-15 11180353 Housing, cartridge with speed sensor port 1
G0010 10-24 17-14 11002766 Housing, cartridge with speed sensor port 1
G0020 08-14 519021 Lip seal 1
G0030 08-14 915280 Retaining ring 1
G0040 08-14 11007677 Pin 2
G0050 10-24 11063948 Shaft locating plug assembly 1
G0050 08-14 10-23 11001378 Shaft locating plug assembly 1
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 2
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0070 08-14 11098011 Gasket 1
J0010 08-14 07-14 11013290 Speed sensor plug assembly 1
J0041 08-14 07-14 11013397 O-ring 1
J0020 08-14 07-14 395822 (9007315-0603) Screw, M6 x 12 1
QG050 10-24 001123 (9004201-2500) O-ring 1
QG050 08-14 10-23 039297 (9004201-1200) O-ring 1
Model/Kit
Order code: VS
G0010 08-14 11002766 Housing, cartridge with speed sensor port (SAE) 1
G0010 15-51 11174592 Housing, SAE flange with speed sensor port
(metric)
G0020 08-14 519021 Lip seal 1
G0030 08-14 915280 Retaining ring 1
G0040 08-14 11007677 Pin 2
G0050 10-24 11063948 Shaft locating plug assembly 1
G0050 08-14 10-23 11001378 Shaft locating plug assembly 1
G0060 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0060 15-51 11178809 Plug assembly (metric) 1
G0061 08-14 315325 (9005110-8700) Plug assembly (SAE) 1
G0061 15-51 11178809 Plug assembly (metric) 1
G0070 08-14 11098011 Gasket 1
QG050 10-24 001123 (9004201-2500) O-ring 1
QG050 08-14 10-23 039297 (9004201-1200) O-ring 1
1
©
Danfoss | December 2021 AX152886481647en-000711 | 79

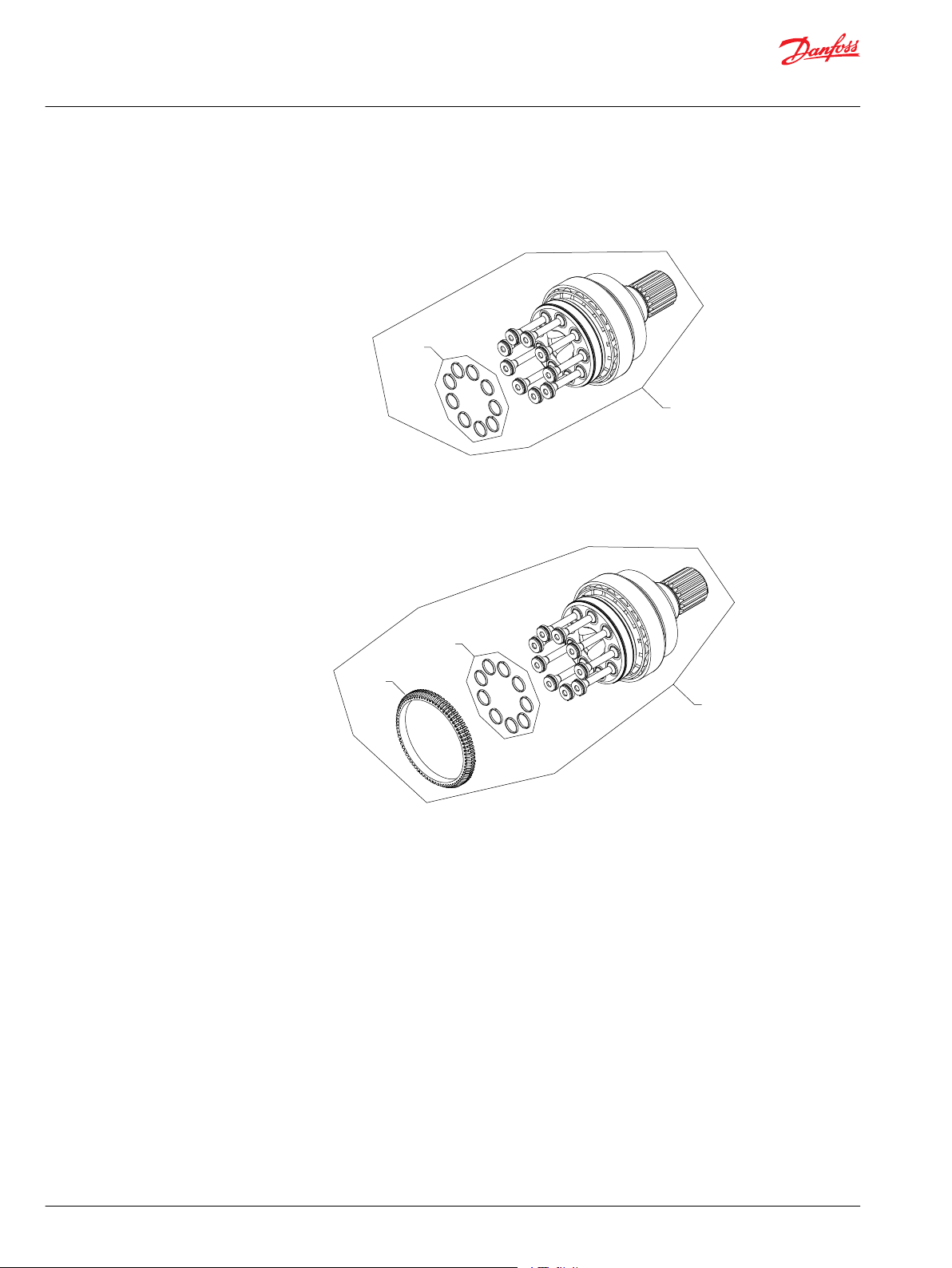

QH300
QH030
H0180
QH300
QH030
Parts Manual
H1B 080 Bent Axis Motor
Shaft
H1B 80cc shaft AN-JN, AS-JS, OS
AN, BN, CN, HN, JN configuration
AS, BS, CS, HS, JS, OS configuration
80 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Shaft
Order code: AN
Item Date Begin Date End Part Number Part Name Qty. per
QH030 08-14 11174675 Piston ring kit 1
QH300 08-14 11050519 Shaft assembly, 14 tooth, 12/24 pitch 1
Order code: AS
H0180 08-14 11001958 Speed ring 1
QH030 08-14 11174675 Piston ring kit 1
QH300 08-14 11050518 Shaft assembly, 14 tooth, 12/24 pitch, speed ring 1
Order code: BN
QH030 13-29 11174675 Piston ring kit 1
QH300 13-29 11117455 Shaft assembly, 21 tooth, 12/24 pitch 1
Order code: BS
H0180 13-29 11001958 Speed ring 1
QH030 13-29 11174675 Piston ring kit 1
QH300 13-29 11117454 Shaft assembly, 21 tooth, 12/24 pitch, speed ring 1
Model/Kit
Order code: CN
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11121851 Shaft assembly, 23 tooth 1
Order code: CS
H0180 13-29 11001958 Speed ring 1
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11121863 Shaft assembly, 23 tooth, speed ring 1
Order code: HN
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11050517 Shaft assembly, 16 tooth, DIN 1
Order code: HS
H0180 13-29 11001958 Speed ring 1
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11050516 Shaft assembly, 16 tooth, DIN, speed ring 1
Parts continue to the next 2 pages.
©
Danfoss | December 2021 AX152886481647en-000711 | 81
QH300
QH030
H0180
QH300
QH030
Parts Manual
H1B 080 Bent Axis Motor
Shaft
AN, BN, CN, HN, JN configuration
AS, BS, CS, HS, JS, OS configuration
82 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Shaft
Order code: JN
Item Date Begin Date End Part Number Part Name Qty. per
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11050514 Shaft assembly, 18 tooth, DIN 1
Order code: JS
H0180 13-29 11001958 Speed ring 1
QH030 13-29 11174675 Piston ring kit 1
QH300 08-14 11050513 Shaft assembly, 18 tooth, DIN, speed ring 1
Order code: OS
H0180 13-29 11001958 Speed ring 1
QH030 13-29 11174675 Piston ring kit 1
QH300 13-29 11095815 Shaft assembly, 14 tooth, speed ring 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 83
J0010
*J0041
J0020
J0020
J0010
*J0041
J0020
J0010
J0010
*J0041
J0020
*J0041
Parts Manual
H1B 080 Bent Axis Motor
Speed sensing
H1B speed sensor B, C, P, S
B, C, S configuration
P configuration
* Included in base motor seal kit Q210
Generic housings used to show part location only.
84 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Speed sensing
Order code: B
Item Date Begin Date End Part Number Part Name Qty. per
J0010 12-15 11232698 Speed sensor assembly 1
J0020 12-15 395822 (9007315-0603) Screw, M6 x 12 1
J0041 12-15 11013397 O-ring 1
Order code: C
J0010 14-41 11157520 Speed sensor assembly 1
J0020 14-41 395822 (9007315-0603) Screw, M6 x 12 1
J0041 14-41 11013397 O-ring 1
Order code: N
No parts
Order code: P
J0010 08-14 11013290 Plug assembly 1
J0020 08-14 395822 (9007315-0603) Screw, M6 x 12 1
J0041 08-14 11013397 O-ring 1
Model/Kit
Order code: S
J0010 08-14 149055 Speed sensor assembly 1
J0020 08-14 395822 (9007315-0603) Screw, M6 x 12 1
J0041 08-14 11013397 O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 85
K0010
*QK050
K0050
K0040
*QK040
*QK050
K0050
*QK050
K0050
K0040
*QK040
K0010
*QK050
K0050
K0010
K0040
*QK040
K0010
K0040
*QK040
K0010
K0040
*QK040
K0050
*QK050
(A & N)(A & N)
(C)(C)
(D)(D)
(E)(E)
(G)(G)
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
H1B loop flushing A-N
Parts configuration
* Included in base motor seal kit Q210
86 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
Order code: A and N
Item Date Begin Date End Part Number Part Name Qty. per
K0010 08-14 19-43 11031106 Spool (SB-2020-038 on page 108) 1
K0010 19-44 11165542 Spool 1
K0040 08-14 11160780 Plug/spring assembly 1
K0050 08-14 11160780 Plug/spring assembly 1
QK040 08-14 149052 O-ring 1
QK050 08-14 149052 O-ring 1
Order code: C
K0010 12-15 19-43 11031106 Spool (SB-2020-038 on page 108) 1
K0010 19-44 11165542 Spool 1
K0040 12-15 11115123 Plug/spring assembly 1
K0050 12-15 11160780 Plug/spring assembly 1
QK040 12-15 149052 O-ring 1
QK050 12-15 149052 O-ring 1
Model/Kit
Order code: D
K0010 12-15 11031106 Spool 1
K0040 12-15 11160780 Plug/spring assembly 1
K0050 12-15 11115123 Plug/spring assembly 1
QK040 12-15 149052 O-ring 1
QK050 12-15 149052 O-ring 1
Order code: E
K0010 14-41 11157411 Spool 1
K0040 14-41 11160780 Plug/spring assembly 1
K0050 14-41 11160780 Plug/spring assembly 1
QK040 14-41 149052 O-ring 1
QK050 14-41 149052 O-ring 1
Order code: G
K0010 16-32 11181360 Spool 1
K0040 16-32 11181359 Plug/spring assembly 1
K0050 16-32 11181359 Plug/spring assembly 1
QK040 16-32 149052 O-ring 1
QK050 16-32 149052 O-ring 1
For order code N, please refer to order code A.
©
Danfoss | December 2021 AX152886481647en-000711 | 87
*L0150
*L0150
L0100
*L0150
*L0150
L0100
L0100
L0100
*L0150
B0026
C2000
*B0034
L0010
B0028
B0024
L0100
L0100
L0100
(NN)(NN)
(05-50)(05-50)
(CA)(CA)
(NN)(NN)
(05-50)(05-50)
(CA)(CA)
(E2, E3, E4)(E2, E3, E4)
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
H1B loop flushing 05-50
Parts configuration
Generic end caps shown
* Included in overhaul seal kit Q210
88 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
Order code: 05
Item Date Begin Date End Part Number Part Name Qty. per
L0100 08-14 11008698 Loop flushing relief valve, 5L/min 1
L0150 08-14 149052 O-ring 1
Order code: 10
L0100 08-14 11003448 Loop flushing relief valve, 10L/min 1
L0150 08-14 149052 O-ring 1
Order code: 15
L0100 08-14 11003450 Loop flushing relief valve, 15L/min 1
L0150 08-14 149052 O-ring 1
Order code: 20
L0100 08-14 11001676 Loop flushing relief valve, 20L/min 1
L0150 08-14 149052 O-ring 1
Model/Kit
Order code: 30
L0100 13-23 11008700 Loop flushing relief valve, 30L/min 1
L0150 13-23 149052 O-ring 1
Order code: 40
L0100 13-23 11008701 Loop flushing relief valve, 40L/min 1
L0150 13-23 149052 O-ring 1
Order code: 50
L0100 13-23 11001697 Loop flushing relief valve, 50L/min 1
L0150 13-23 149052 O-ring 1
Order code: CA
L0180 13-23 315325 (9005110-8700) Plug assembly 1
Part numbers for options E2, E3, E4, and NN are continued on the next page.
©
Danfoss | December 2021 AX152886481647en-000711 | 89
*L0150
*L0150
L0100
*L0150
*L0150
L0100
L0100
L0100
*L0150
B0026
C2000
*B0034
L0010
B0028
B0024
L0100
L0100
L0100
(NN)(NN)
(05-50)(05-50)
(CA)(CA)
(NN)(NN)
(05-50)(05-50)
(CA)(CA)
(E2, E3, E4)(E2, E3, E4)
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
H1B loop flushing E2, E3, E4, NN
Parts configuration
Generic end caps shown
* Included in overhaul seal kit Q210
90 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Loop flushing
Order code: E2
Item Date Begin Date End Part Number Part Name Qty. per
B0024 13-23 11031608 O-ring 1
B0026 13-23 11027046 Coil nut 1
B0028 13-23 063172 O-ring 1
B0034 13-23 085043 (9004201-3700) O-ring 1
C2000 13-23 11031763 Coil kit, 12 volt 1
L0100 13-23 11096735 Loop flushing relief valve, 12v, 10L/min 1
L0150 13-23 149052 O-ring 1
L1000 13-23 11013615 Solenoid valve, 12v 1
Order code: E3
B0024 13-23 11031608 O-ring 1
B0026 13-23 11027046 Coil nut 1
B0028 13-23 063172 O-ring 1
B0034 13-23 085043 (9004201-3700) O-ring 1
C2000 13-23 11031763 Coil kit, 12 volt 1
L0100 13-23 11096736 Loop flushing relief valve, 12v, 15L/min 1
L0150 13-23 149052 O-ring 1
L1000 13-23 11013615 Solenoid valve, 12v 1
Model/Kit
Order code: E4
B0024 16-06 11031608 O-ring 1
B0026 16-06 11027046 Coil nut 1
B0028 16-06 063172 O-ring 1
B0034 16-06 085043 (9004201-3700) O-ring 1
C2000 16-06 11031763 Coil kit 12 volt 1
L0150 16-06 149052 O-ring 1
L0100 16-06 11175555 Loop flushing relief valve, 12v, 20L/min 1
L1000 16-06 11013615 Solenoid valve, 12v 1
Order code: NN
L0100 08-14 11027278 Plug assembly 1
L0150 08-14 149052 O-ring 1
©
Danfoss | December 2021 AX152886481647en-000711 | 91
M0030
QM020
QM010
QM050
QM050
(NP)(NP)
(NN)(NN)
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
H1B 80cc Special hardware
Parts configuration
* Included in overhaul seal kit Q210
92 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
Order code: NN
Item Date Begin Date End Part Number Part Name Qty. per
M0030 08-14 515367 Bearing plate 1
QM010 08-14 11051898 Synch shaft assembly 1
QM020 08-14 11051896 Cylinder block assembly 1
QM050 18-16 11051881 Valve segment assembly (2-position) 1
Order code: NP
M0030 18-16 515367 Bearing plate 1
QM010 18-16 11051898 Synch shaft assembly 1
QM020 18-16 11051896 Cylinder block assembly 1
QM050 18-16 11051882 Valve segment assembly (proportional) 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 93
N1000
*N2000
Q1200
N1000
QN070
N1000
(AA2, AA4, AA8, AB5
AB6, AB8)
(AB5, MB0)
(000-054, AA2, AA4, AAB
AA8, AB6, AB8)
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
H1B 80cc minimum displacement AA2-MB0
Minimum displacement A2-MB0 configuration
* Included in overhaul seal kit Q210
94 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
Order code: 000-019
Item Date Begin Date End Part Number Part Name Qty. per
N1000 08-14 11012777 Set screw, 0-19cc, M12 x 65mm (SB-2012-018) 1
N2000 08-14 076042 Seal nut, M12 1
Q1200 08-14 770842 Plastic cap, green 1
Order code: 020-035
N1000 08-14 750646 Set screw, 20-35cc, M12 x 75mm (SB-2012-018) 1
N2000 08-14 076042 Seal nut, M12 1
Q1200 08-14 770842 Plastic cap, green 1
Order code: 036-054
N1000 08-14 749564 Set screw, 36-54cc, M12 x 90mm (SB-2012-018) 1
N2000 08-14 076042 Seal nut, M12 1
Q1200 08-14 770842 Plastic cap, green 1
Model/Kit
Order code: AA2
N1000 10-19 11106517 Set screw, 20cc special, 2-position, M12 x 40mm 1
N2000 10-19 076042 Seal nut, M12 1
N4000 10-19 11083834 Spacer, 12.27mm 1
Q1200 10-19 770842 Plastic cap, green 1
Order code: AA4
N1000 10-27 11106517 Set screw, 60cc special, 2-position, M12 x 40mm 1
N2000 10-27 076042 Seal nut, M12 1
N0040 10-27 11086508 Spacer, 43.95mm 1
Q1200 10-27 770842 Plastic cap, green 1
Order code: AA8
N1000 12-44 11106517 Set screw, 56cc special, 2-position, M12 x 40mm 1
N2000 12-44 076042 Seal nut, M12 1
N4000 12-44 11123259 Spacer, 40.90mm 1
Q1200 12-44 770842 Plastic cap, green 1
Order code: AB5
N1000 15-20 11161812 Seal plug assembly, M12 1
N4000 15-20 11167126 Spacer, 25.00mm 1
QN070 15-20 11001952 O-ring 1
Parts continue to the next 2 pages.
©
Danfoss | December 2021 AX152886481647en-000711 | 95
N1000
*N2000
Q1200
N1000
QN070
N1000
(AA2, AA4, AA8, AB5
AB6, AB8)
(AB5, MB0)
(000-054, AA2, AA4, AAB
AA8, AB6, AB8)
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
Minimum displacement A2-MB0 configuration
* Included in overhaul seal kit Q210
96 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
Order code: AB6
Item Date Begin Date End Part Number Part Name Qty. per
N1000 15-28 11106517 Set screw, M12 x 40mm 1
N2000 15-28 076042 Seal nut, M12 1
N4000 15-28 11168620 Spacer, 42.20mm 1
Q1200 15-28 770842 Plastic cap, green 1
Order code: AB8
N1000 15-43 11106517 Set screw, M12 x 40mm 1
N2000 15-43 076042 Seal nut, M12 1
N4000 15-43 11171592 Spacer, 39.64mm 1
Q1200 15-43 770842 Plastic cap, green 1
Order code: MB0
N1000 15-28 11161812 Seal plug assembly, M12 1
QN070 15-28 11001952 O-ring 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 97
N4000
N1000
QN070
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
H1B 80cc minimum displacement AC2
Parts configuration
98 | © Danfoss | December 2021 AX152886481647en-000711
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
Order code: AC2
Item Date Begin Date End Part Number Part Name Qty. per
N1000 17-39 11161812 Plug assembly, M12 1
N4000 17-39 11196535 Spacer, 22mm 1
QN070 17-39 11001952 O-ring 1
Model/Kit
©
Danfoss | December 2021 AX152886481647en-000711 | 99
P0010
P0020
*P0030
P0050
*P0044
*P0043
P0040
P0200
P0100
(N)(N) (Q, R, S, T, U)(Q, R, S, T, U)
F0020
P0040
*P0044
*P0043
P0050
P0030
P0010
P0020
(A)(A)
Parts Manual
H1B 080 Bent Axis Motor
Special hardware and displacement
H1B 80cc maximum displacement
Parts configuration
* Included in overhaul seal kit Q210
100 | © Danfoss | December 2021 AX152886481647en-000711
Loading...
