Danfoss H1B 60cc Service guide

Download

Parts Manual

H1B 60cc

Bent Axis Motor

www.danfoss.com

Parts Manual

H1B 060 Bent Axis Motor

Revision history Table of revisions

Date Changed Rev

December 2021 Corrected cylinder block assembly part numbers in special features options 0709

January 2021 Updated loop flushing part numbers 0708

June 2020 Changed document number from 'AX00000044' to 'AX152886481506' and updated servo

pressure O-ring part numbers

January 2020 Corrected valve segment assembly and HE/HF servo pressure supply part numbers 0605

August 2019 Updated part numbers and added caution for servo piston removal 0604

January 2019 Updated servo pressure supply illustrations 0603

November 2018 Updated C0140 (metric) part number in servo pressure supply HE 0602

May 2018 Added SB-2018-028 0601

November 2017 Updated to Engineering Tomorrow design 0502

0707

2 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

General information

Service Parts Identification............................................................................................................................................................5

Nameplate...........................................................................................................................................................................................5

Date code............................................................................................................................................................................................ 6

About service bulletins...................................................................................................................................................................6

Procedure to identify a part..........................................................................................................................................................6

Adobe Acrobat 2-page viewing..................................................................................................................................................7

Order code.......................................................................................................................................................................................... 8

Control

Control D1-DH.................................................................................................................................................................................10

Control E1-F2...................................................................................................................................................................................12

Control K1-KH..................................................................................................................................................................................14

Control L1-LH...................................................................................................................................................................................16

Control M1-MH............................................................................................................................................................................... 18

Control P1-T2...................................................................................................................................................................................20

Control TA, TH................................................................................................................................................................................. 22

Servo pressure supply

Servo pressure AA, AD..................................................................................................................................................................24

Servo pressure BA, BB...................................................................................................................................................................26

Servo pressure BC, BD, CA...........................................................................................................................................................28

Servo pressure D1, D1.................................................................................................................................................................. 30

Servo pressure DA, EA.................................................................................................................................................................. 32

Servo pressure G1, G2...................................................................................................................................................................34

Servo pressure HA-HD..................................................................................................................................................................36

Servo pressure HE, HF...................................................................................................................................................................38

Servo pressure K1, K2....................................................................................................................................................................40

Servo pressure KA, KH.................................................................................................................................................................. 42

Servo pressure M1, M2.................................................................................................................................................................44

Servo pressure MA, MF.................................................................................................................................................................46

Servo pressure MH, MW...............................................................................................................................................................48

Servo pressure NP, NR, NT...........................................................................................................................................................50

Orifice

Orifice A, B, C, D...............................................................................................................................................................................52

End cap

End cap PA, PB, PM........................................................................................................................................................................54

End cap RA, RB.................................................................................................................................................................................60

End cap TA, TB, TL.......................................................................................................................................................................... 64

Flange/housing

Flange/housing CN, CS................................................................................................................................................................ 70

Flange/housing DN, DS................................................................................................................................................................72

Flange/housing VN, VS.................................................................................................................................................................74

Shaft

Shaft AN-HN, AS-HS.......................................................................................................................................................................76

Speed sensing

Speed sensor B, C, P, S..................................................................................................................................................................78

Loop flushing

Loop flushing A-N..........................................................................................................................................................................80

Loop flushing 05-50...................................................................................................................................................................... 82

Special hardware and displacement

Special hardware............................................................................................................................................................................86

Minimum displacement...............................................................................................................................................................88

Maximum displacement A-V......................................................................................................................................................90

Overhaul seal kit

H1B 60cc seal kit.............................................................................................................................................................................94

Danfoss | December 2021 AX152886481506en-000709 | 3

Parts Manual

H1B 060 Bent Axis Motor

Contents

Service bulletin

SB-2018-028.....................................................................................................................................................................................95

SB-2019-017.....................................................................................................................................................................................96

SB-2020-038.....................................................................................................................................................................................97

4 | © Danfoss | December 2021 AX152886481506en-000709

Made in Germany

Serial No.

N-13-20-23456

Model Code

Model No./Ident No.

H1B060-A-A-L1-BA-NB-PA-DS-GS-S-A-10NN-016-N-00-NNN

83004286

Parts Manual

H1B 060 Bent Axis Motor

General information

Service Parts Identification

Nameplate

The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the .

The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major Repairs” or “Conversions” on the H1B.

Each unit will have a nameplate affixed to the housing. The nameplate will include the following information:

Model Code

The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.

Model Number

The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.

Serial Number

The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.

The letter code indicates the location of original manufacture (assembly). The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the

calendar week of manufacture. The third number (5 digits) is a sequential number used to identify a specific unit.

Danfoss | December 2021 AX152886481506en-000709 | 5

Parts Manual

H1B 060 Bent Axis Motor

General information

Date code

About service bulletins

The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.

Example: The service part desired is item G30

Order Code Item Date Begin Date End Part Number Part Name Qty. per

80 G30 89-17 8000243 End cap gasket 1

G30 89-16 8000151 End cap gasket

(SB-1995-006)

Model/Kit

All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units with a date code of 89-17 and newer must use part number “8000243.”

A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.

Procedure to identify a part

The modular design of this product results in a simplified service parts list and part number identification procedure.

The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.

Regional part numbers

Some part numbers are region specific and should be ordered accordingly. As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold

in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.

Example of part identification

The nameplate on an H1 pump has an Order Code of H1B060 A A L1 BA N B PA DS GS S A 10 NN 016 N00 NNN. Use the following procedures to determine part number of the minimum angle set screw used on the H1B 60cc.

This example generically uses H1B 60cc Bent Axis Motor order code to identify a part.

1. Referring to the minimum displacement module in the Order Code, the minimum angle set screw

option for this motor is identified by the code “016”. (H1B060 A A L1 BA N B PA DS GS SA 10 NN

016 N

00 NNN)

2. Referring to the Service Parts List, find the minimum displacement group. Next find the order code

that relates to this unit, which is “016”. The minimum angle set screw is found to be item N1000 and part number 11012777.

6 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

General information

Adobe Acrobat 2-page viewing

While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.

1. Select “View” → “Page Display” → “Two Page View”

2. Select “View” → “Page Display” → “Show Cover Page in Two Page View”

Danfoss | December 2021 AX152886481506en-000709 | 7

H1B

D S

G S

6 NA 1

Series

Frame

Size

Servo pressure supply

Threshold setting

Orifice

Control

End cap

Flange/housing

Shaft

Speed sensor

Loop flushing shuttle system

B C

F G L1MH J

N N

Q R

Loop flushing relief valve

Special hardware

PCOR setting

Customer values

Minimum displacement

Maximum displacement

Product Type

Product

Version

Port

Configuration

Parts Manual

H1B 060 Bent Axis Motor

General information

Order code

8 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

General information

Notes

Danfoss | December 2021 AX152886481506en-000709 | 9

B0020

*B0035

B0050

B0040

B0010

B0025

B0028 B0027

B0029

B0061

B0060

B0180

B0050

B0190

B0010

Parts Manual

H1B 060 Bent Axis Motor

Control

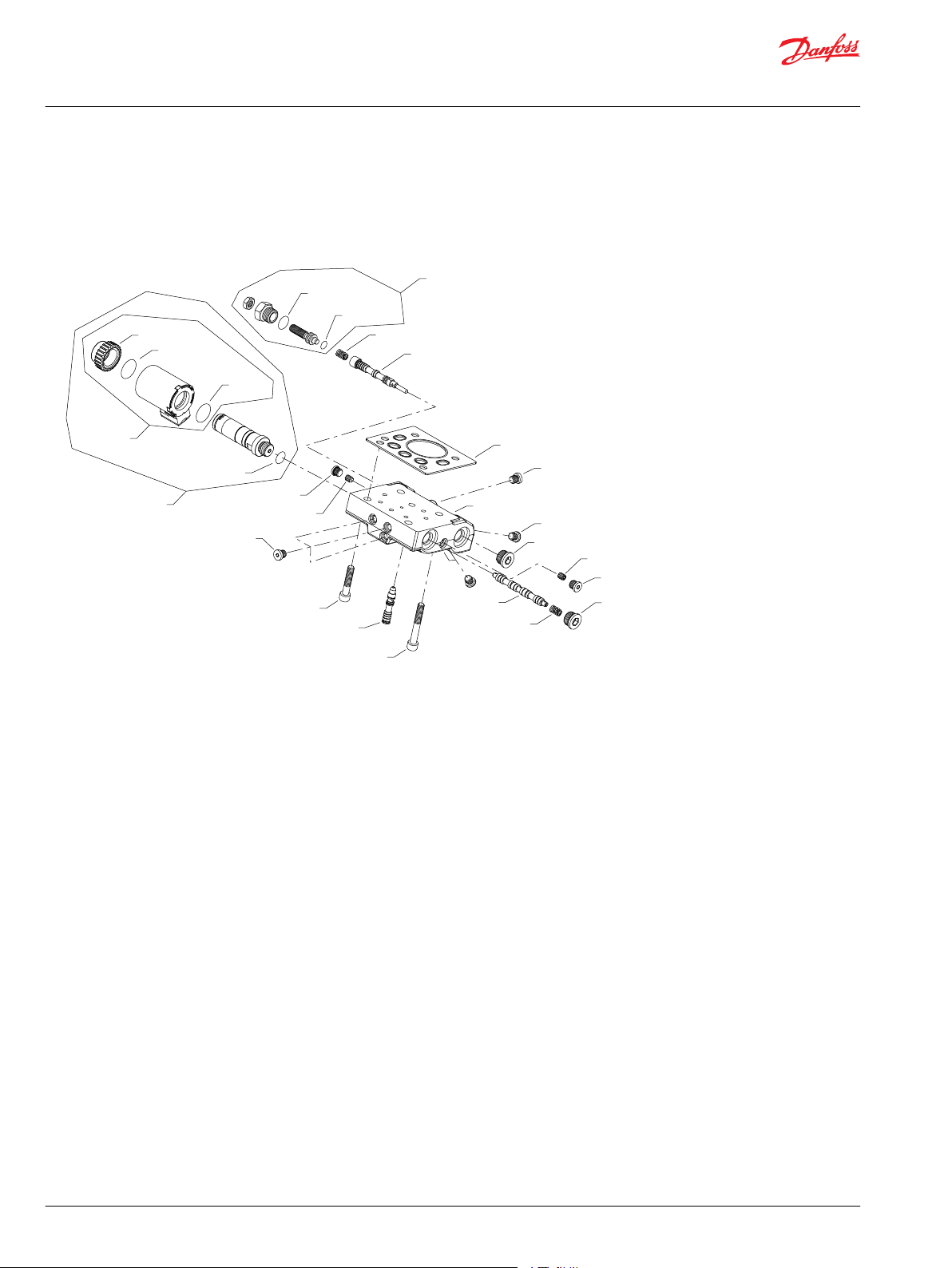

H1B control D1-DH

D1 and D2 configuration

DH configuration

Generic housings used to show part locations only.

* Included in overhaul seal kit Q210

10 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Electric proportional

Order code: D1

Item Date Begin Date End Part Number Part Name Qty. per

B0010 09-31 149053 Solenoid valve, proportional, 12 volt 1 B0020 09-31 11031746 Coil kit, 12 volt 1 B0025 09-31 11004735 O-ring 1 B0027 09-31 11004749 Coil nut 1 B0028 09-31 063172 O-ring 1 B0029 09-31 11037174 O-ring 1 B0035 09-31 11001952 O-ring 1 B0040 09-31 11014185 Plastic cap 1 B0050 09-31 716860 Screw, M5 x 12 3

Order code: D2

B0010 09-31 11002705 Solenoid valve, proportional, 24 volt 1 B0020 09-31 11031749 Coil kit, 24 volt 1 B0025 09-31 11004735 O-ring 1 B0027 09-31 11004749 Coil nut 1 B0028 09-31 063172 O-ring 1 B0029 09-31 11037174 O-ring 1 B0035 09-31 11001952 O-ring 1 B0040 09-31 11014185 Plastic cap 1 B0050 09-31 716860 Screw, M5 x 12 3

Model/Kit

Hydraulic proportional

Order code: DH

B0010 14-37 11146306 Actuator assembly 1 B0050 14-37 716860 Screw, M5 x 12 3 B0060 14-37 140644 Plug assembly 1 B0061 14-37 140644 Plug assembly 1 B0180 14-37 076042 (9003509-0012) Seal nut, M12 1 B0190 14-37 012575 (9004105-1170) O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 11

*B0034

C2000

B0010

B0026

B0028

B0024

B0026

B0028

C2000

*B0034

B0010

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control E1-F2

E1 and E2 configuration

F1 and F2 configuration

Generic housings used to show part location only.

* Included in overhaul seal kit Q210

12 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Electric 2-position

Order code: E1

Item Date Begin Date End Part Number Part Name Qty. per

B0010 09-31 11013615 Solenoid, on/off, 12 volt 1 B0024 09-31 11027046 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring B0034 09-31 085043 (9004201-3700) O-ring 1 C2000 09-31 11031763 Coil kit, 12 volt 1

Order code: E2

B0010 09-31 11013616 Solenoid, on/off, 24 volt 1 B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1 C2000 09-31 11031764 Coil kit, 24 volt 1

Model/Kit

Order code: F1

B0010 11-48 11013615 Solenoid, on/off, 12 volt 1 B0024 11-48 11027046 O-ring 1 B0026 11-48 11027046 Coil nut 1 B0028 11-48 063172 O-ring B0034 11-48 085043 (9004201-3700) O-ring 1 C2000 11-48 11031763 Coil kit, 12 volt 1

Order code: F2

B0010 11-48 11013616 Solenoid, on/off, 24 volt 1 B0024 11-48 11031608 O-ring 1 B0026 11-48 11027046 Coil nut 1 B0028 11-48 063172 O-ring 1 B0034 11-48 085043 (9004201-3700) O-ring 1 C2000 11-48 11031764 Coil kit, 24 volt 1

Order code: HE and HF

No parts

Danfoss | December 2021 AX152886481506en-000709 | 13

*B0035

B0040

B0010

B0020

B0050

B0025

B0028

B0027

B0029

B0190

B0180

B0050

B0060

B0061

B0010

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control K1-KH

K1, K2 configuration

KH configuration

Generic housing used to show part location only.

* Included in overhaul seal kit Q210

14 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Order code: K1

Item Date Begin Date End Part Number Part Name Qty. per

Order code: K2

Model/Kit

Order code: KH

B0010 15-48 11146306 Actuator assembly 1 B0050 15-48 716860 Screw, M5 x 12 3 B0060 15-48 140644 Plug assembly 1 B0061 15-48 140644 Plug assembly 1 B0180 15-48 076042 (9003509-0012) Seal nut, M12 1 B0190 15-48 012575 (9004105-1170) O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 15

B0020

*B0035

B0050

B0040

B0010

B0025

B0028 B0027

B0029

B0061

B0060

B0180

B0050

B0190

B0010

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control L1-LH

L1 and L2 configuration

LH configuration

Generic housings used to show part locations only.

* Included in overhaul seal kit Q210

16 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Electric proportional

Order code: L1

Item Date Begin Date End Part Number Part Name Qty. per

Order code: L2

Model/Kit

Hydraulic proportional

Order code: LH

Danfoss | December 2021 AX152886481506en-000709 | 17

*B0035

B0040

B0010

B0020

B0050

B0025

B0028

B0027

B0029

B0190

B0180

B0050

B0060

B0061

B0010

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control M1-MH

M1, M2 configuration

MH configuration

Generic housing used to show part location only.

* Included in overhaul seal kit Q210

18 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Order code: M1

Item Date Begin Date End Part Number Part Name Qty. per

Order code: M2

Model/Kit

Order code: MH

B0010 14-23 11146306 Actuator assembly 1 B0050 14-23 716860 Screw, M5 x 12 3 B0060 14-23 140644 Plug assembly 1 B0061 14-23 140644 Plug assembly 1 B0180 14-23 076042 (9003509-0012) Seal nut, M12 1 B0190 14-23 012575 (9004105-1170) O-ring 1

Order code: N1, NA, NB

No parts

Danfoss | December 2021 AX152886481506en-000709 | 19

*B0034

B0020

B0010

B0026

B0028

B0024

*B0034

C2000

B0010

B0026

B0028

B0024

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control P1-T2

P1 and P2 configuration

T1 and T2 configuration

Generic housings used to show part location only.

* Included in overhaul seal kit Q210

20 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Order code: P1

Item Date Begin Date End Part Number Part Name Qty. per

B0010 09-31 11013613 Solenoid valve, proportional, 12 volt 1 B0020 09-31 11031751 Coil kit, 12 volt 1 B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1

Order code: P2

B0010 09-31 11013614 Solenoid valve, proportional, 24 volt 1 B0020 09-31 11031762 Coil kit, 24 volt 1 B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1

Model/Kit

Order code: T1

B0010 09-31 11013615 Solenoid, on/off, 12 volt 1 B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1 C2000 09-31 11031763 Coil kit, 12 volt 1

Order code: T2

Danfoss | December 2021 AX152886481506en-000709 | 21

B0060

B0320

B0330

QB300

B0300

Parts Manual

H1B 060 Bent Axis Motor

Control

H1B control TA, TH

TA configuration

TH configuration

Generic housings used to show part location only.

* Included in overhaul seal kit Q210

22 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Control

Order code: TA

Item Date Begin Date Begin Part Number Part Name Qty. per

B0060 11-46 140644 Plug assembly 1

Order code: TH

B0300 15-27 11157844 PCOR override adapter assembly 1 B0320 15-27 11157843 Sensing spool 1 B0330 15-27 11164139 O-ring 1 QB300 15-27 085043 (9004201-3700) O-ring 1

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 23

*C0130

C0025

C0060

C0080

C0075

C0010

C0060

(removed 11-21)

C0060

C0050

E00T2

E00T3

C0050

C0110

C0120

C0010

C0060

C0050

C0080

C0070

C0060

C0050

*C0130

E00T2

E00T3

C0110

C0120

C0090

*M223

*M224

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure AA, AD

AA configuration

AD configuration

* Included in overhaul seal kit Q210

Option AA is available in SAE and metric port configurations. Please order accordingly.

24 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: AA

Item Date Begin Date End Part Number Part Name Qty. per

C0010 09-31 11086113 Control housing, 2-position (SAE) 1 C0010 15-48 11171632 Control housing, 2-position (metric) 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0050 15-48 11178809 Plug assembly (metric) 2 C0060 11-22 11040532 Plug assembly 2 C0060 09-31 11-21 11040532 Plug assembly 3 C0075 09-31 11016166 Spool 1 C0080 09-31 1160236 Spring (SAE) 1 C0080 09-31 11160236 Spring (metric) 1 C0110 09-31 737866 (9007314-1207) Screw, M12 x 30 2 C0120 09-31 283325 (9007314-1211) Screw, M12 x 50 2 C0130 09-31 11016168 Control seal 1

Model/Kit

Order code: AD

C0010 12-14 11110070 Control housing, 2-position 1 C0050 12-14 140644 Plug assembly (SAE) 2 C0060 11-22 C0060 11-22 11040532 Plug assembly 2 C0070 12-14 11016228 Spool 1 C0080 12-14 11160236 Spring (SAE) 1 C0090 12-14 509360 Adjuster 1 C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2 C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2 C0130 12-14 11016168 Control seal 1 M223 12-14 085043 (9004201-3700) O-ring 1 M224 12-14 732479 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 25

C0100

C0060

E00T2

C0060

E00T3

C0025

C0050

*C0130

C0110

C0010

C0100

C0060

E00T2

C0060

E00T3

C0025

C0050

*C0130

C0110

C0010

C0320

C0300

C0320

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure BA, BB

BA configuration

BB configuration

26 | © Danfoss | December 2021 AX152886481506en-000709

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Option BA and BB are available in SAE and metric. Please order accordingly.

Order code: BA

Item Date Begin Date End Part Number Part Name Qty. per

C0010 09-31 149057 Control housing, proportional (SAE) 1 C0010 15-45 11161819 Control housing, proportional (metric) 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 1 C0050 15-45 11178808 Plug assembly (metric) 1 C0060 09-31 11040532 Plug assembly 3 C0100 09-31 11146871 Spool (SAE) 1 C0100 15-45 11146871 Spool (metric) 1 C0110 09-31 710855 Screw, M8 x 35 4 C0130 09-31 149040 Control seal 1

Order code: BB

C0010 12-24 11116918 Control housing, proportional (SAE) 1 C0025 12-24 11000893 Shuttle valve assembly 1 C0050 12-24 140644 Plug assembly (SAE) 1 C0060 12-24 11040532 Plug assembly 3 C0100 12-24 11146871 Spool (SAE) 1 C0110 12-24 710855 Screw, M8 x 35 4 C0130 12-24 149040 Control seal 1 C0300 12-24 11086158 Protective cover 1 C0320 12-24 395822 Screw, M6 x 12mm 2

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 27

E00T2

E00T3

C0100

C0060

C0025

C0050

*C0130

C0110

C0010

C0320

C0300

C0320

C0010

C0060

C0050

C0080

C0070

C0060

C0050

*C0130

E00T2

E00T3

C0110

C0120

C0090

*M223

*M224

E00T3

E00T2

C0100

C0010

C0025

*C0130

C0060

C0050

C0060

C0110

(BC)

(BD)

(CA)

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure BC, BD, CA

Parts configuration

* Included in overhaul seal kit Q210

Option BC is only available in metric configuration. Option CA is available is both SAE and metric configurations. Please order accordingly.

28 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: BC

Item Date Begin Date End Part Number Part Name Qty. per

C0010 16-38 11169197 Control housing, proportional (metric) 1 C0025 16-38 11000893 Shuttle valve assembly 1 C0050 16-38 11178808 Plug assembly (metric) 1 C0060 16-38 11040532 Plug assembly 3 C0100 16-38 11146871 Spool (metric) 1 C0110 16-38 710855 Screw, M8 x 35 4 C0130 16-38 149040 Control seal 1 C0300 16-38 11086158 Protection cover 1 C0320 16-38 395822 Screw, M6 x 12 2

Order code: BD

C0010 12-14 11110071 Control housing, 2-position 1 C0050 12-14 140644 Plug assembly (SAE) 2 C0060 12-14 11040532 Plug assembly 2 C0070 12-14 11016228 Spool 1 C0080 12-14 11160236 Spring (SAE) 1 C0090 12-14 509360 Adjuster 1 C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2 C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2 C0130 12-14 11016168 Control seal 1 M223 12-14 085043 (9004201-3700) O-ring 1 M224 12-14 732479 O-ring 1

Model/Kit

Order code: CA

C0010 09-31 149057 Control housing, proportional (SAE) 1 C0010 09-31 11161819 Control housing, proportional (metric) 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 1 C0050 09-31 11178808 Plug assembly (metric) 1 C0060 09-31 11040532 Plug assembly 3 C0100 09-31 11146871 Spool (SAE) 1 C0100 09-31 11146871 Spool (metric) 1 C0110 09-31 710855 Screw, M8 x 35 4 C0130 09-31 149040 Control seal 1

Danfoss | December 2021 AX152886481506en-000709 | 29

C0030

C0020

C0060

C0010

C0060

*B0034

C2000

C0040

B0026

B0028

B0024

C0060

C0050

*C0130

E00T2

E00T3

C0050

C0110

C0120

C0080

C0070

C0090

*M223

*M224

C0060

(removed 11-21)

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure D1, D2

D1 and D2 configuration

* Included in overhaul seal kit Q210

30 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: D1 and D2 common parts

Item Date Begin Date End Part Number Part Name Qty. per

B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1 C0010 09-31 11086114 Control housing, PCOR 1 C0020 09-31 11016229 Spool 1 C0030 09-31 11160236 Spring 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0060 11-22 11040532 Plug assembly 3 C0060 09-31 11-21 11040532 Plug assembly 4 C0070 09-31 11016228 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 C0110 09-31 737866 (9007314-1207) Screw, M12 x 30 2 C0120 09-31 283325 (9007314-1211) Screw, M12 x 50 2 C0130 09-31 11016168 Control seal 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Model/Kit

Order code: D1

C0040 09-31 11013615 Solenoid, on/off, 12 volt 1 C2000 09-31 11031763 Coil kit, 12 volt 1

Order code: D2

C0040 09-31 11013616 Solenoid, on/off, 24 volt 1 C2000 09-31 11031764 Coil kit, 24 volt 1

Danfoss | December 2021 AX152886481506en-000709 | 31

C0025

C0010

C0060

(removed 11-21)

C0060

C0050

*C0130

E00T2

E00T3

C0080

C0070

C0090

*M223

*M224

C0050

C0110

C0120

C0010

C0060

C0050

C0080

C0075

C0110

C0120

C0050

C0025

C0060

*C0130

E00T2

E00T3

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure DA, EA

DA configuration

EA configuration

* Included in overhaul seal kit Q210

32 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: DA

Item Date Begin Date End Part Number Part Name Qty. per

C0010 09-31 11086115 Control housing, PCOR 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0060 11-22 11040532 Plug assembly 2 C0060 09-31 11-21 11040532 Plug assembly 3 C0070 09-31 11016228 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Order code: EA

C0010 11-22 11099281 Control housing, 2-position 1 C0025 11-22 11000893 Shuttle valve assembly 1 C0050 11-22 140644 Plug assembly 1 C0060 11-22 11040532 Plug assembly 2 C0075 11-22 11122114 Spool, 2-position 1 C0080 11-22 11160236 Spring 1 C0110 11-22 737866 (9007314-1207) Screw, M12 x 30 2 C0120 11-22 283325 (9007314-1211) Screw, M12 x 50 2 C0130 11-22 11016168 Control seal 1

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 33

C0060

E00T2

E00T3

C0010

C0060

C0080

C0070

*M223

*M224

C0050

C0110

C0120

C0030

C0020

C0050

*C0130

B0024

B0026

B0028

C2000

*B0034

C0040

C0090

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure G1, G2

G1 and G2 configuration

* Included in overhaul seal kit Q210

34 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: G1 and G2 common parts

Item Date Begin Date End Part Number Part Name Qty. per

B0024 16-07 11031608 O-ring 1 B0026 16-07 11027046 Coil nut 1 B0028 16-07 063172 O-ring 1 B0034 16-07 085043 (9004201-3700) O-ring 1 C0010 16-07 11173253 Control housing, 2-position 1 C0020 16-07 11016229 Spool 1 C0030 16-07 11160236 Spring 1 C0050 16-07 140644 Plug assembly (SAE) 2 C0060 16-07 11040532 Plug assembly 3 C0070 16-07 11016228 Spool 1 C0080 16-07 11160236 Spring 1 C0090 16-07 509360 Adjuster 1 C0110 16-07 737866 (9007314-1207) Screw, M12 x 30 2 C0120 16-07 283325 (9007314-1211) Screw, M12 x 50 2 C0130 16-07 11016168 Control seal 1 M223 16-07 085043 (9004201-3700) O-ring 1 M224 16-07 732479 O-ring 1

Model/Kit

Order code: G1

C0040 16-07 11013615 Solenoid valve, 12v 1 C200 16-07 11031763 Coil kit, 12 volt 1

Order code: G2

C0040 16-07 11013616 Solenoid valve, 24v 1 C2000 16-07 11031764 Coil kit, 24 volt 1

Danfoss | December 2021 AX152886481506en-000709 | 35

*C0130

C0060

E00T2

E00T3

C0050

C0010

C0060

C0050

C0025

C0110

C0120

C0080

C0070

C0090

*M223

*M224

*C0130

C0060

E00T2

E00T3

C0010

C0060

C0020

C1400

C0080

C0070

C0090

*M223

*M224

C0050

C0110

C0120

*C0130

C0060

E00T2

E00T3

C0010

C0060

C0080

C0070

C0090

*M223

*M224

C0050

C0110

C0120

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

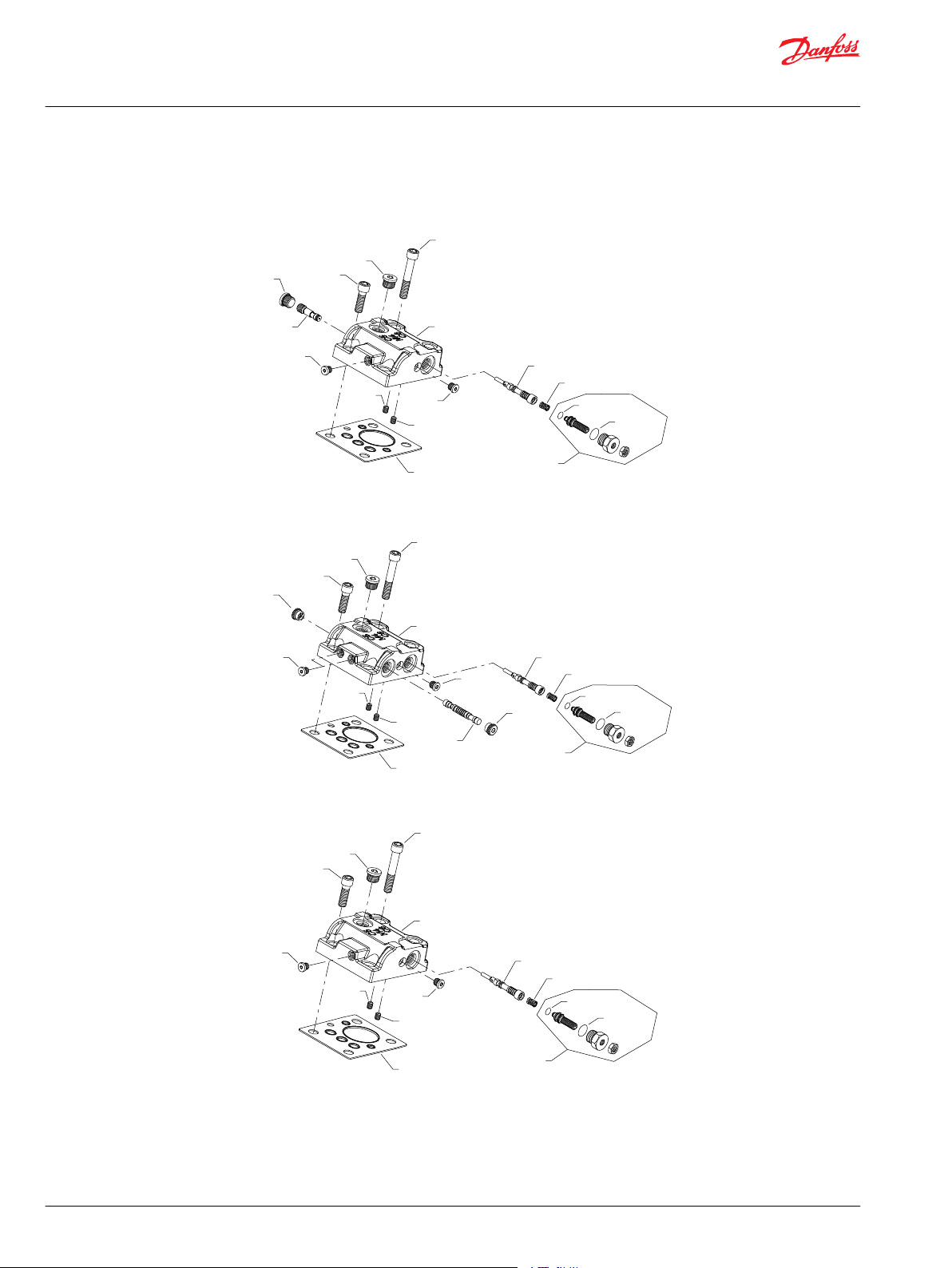

H1B servo pressure HA-HD

HA configuration

HB and HD configuration

HC configuration

* Included in overhaul seal kit Q210

36 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: Common parts

Item Date Begin Date End Part Number Part Name Qty. per

C0070 15-37 11016228 Spool 1 C0080 15-37 11160236 Spring 1 C0090 15-37 509360 Adjuster 1 C0110 15-37 737866 (9007314-1207) Screw, M12 x 30 2 C0120 15-37 283325 (9007314-1211) Screw, M12 x 50 2 C0130 15-37 11016168 Control seal 1 M223 15-37 085043 (9004201-3700) O-ring 1 M224 15-37 732479 O-ring 1

Order code: HA

C0010 15-37 11162117 Control housing, 2-position 1 C0025 15-37 11000893 Shuttle valve assembly 1 C0050 15-37 140644 Plug assembly 2 C0060 15-37 11040532 Plug assembly 2

Model/Kit

Order code: HB

C0010 15-37 11162118 Control housing, 2-position 1 C0020 15-37 11162120 Spool 1 C0050 15-37 140644 Plug assembly 1 C0060 15-37 11040532 Plug assembly 3

Order code: HC

C0010 15-37 11162119 Control housing, 2-position 1 C0050 15-37 140644 Plug assembly 1 C0060 15-37 11040532 Plug assembly 2

Order code: HD

C0010 20-48 11272360 Control housing, 2-position 1 C0020 20-48 11162120 Spool 1 C0050 20-48 140644 Plug assembly 1 C0060 20-48 11040532 Plug assembly 3 C1400 20-48 11151817 Limiter plug 2

Danfoss | December 2021 AX152886481506en-000709 | 37

E00T3

E00T2

C0010

C0050

C0140

C0050C0050

C0025

C0080

C0060

C0150

C0060

*C0130

C0110

C0120

C0160

*QC160

C0060

C0050

C0140

C0080

C0060

C0150

C0060

C0010

C0025

C0060

C0050

*C0130

E00T3

C0110

C0120

C0160

QC160

E00T2

(HE)

(HF)

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure HE, HF

HE and HF configuration

* Included in overhaul seal kit Q210

Option HE is available in SAE and metric. Please order accordingly.

38 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: HE and HF common parts

Item Date Begin Date End Part Number Part Name Qty. per

C0025 09-31 11000893 Shuttle valve assembly 1 C0060 09-31 11040532 Plug assembly 3 C0110 09-31 737866 (9007314-1207) Screw, M12 x 30 2 C0120 09-31 283325 (9007314-1211) Screw, M12 x 50 2 C0130 09-31 11016168 Control seal 1 C0150 09-31 11068172 Spool 1 C0160 09-31 511244 Plug assembly 1 QC160 09-31 039297 (9004201-1200) O-ring 1

Order code: HE

C0010 09-31 11086117 Control housing, 2-position (SAE) 1 C0010 09-31 11175039 Control housing, 2-position (metric) 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0050 09-31 11178808 Plug assembly (metric) 2 C0080 09-31 11160236 Spring (SAE) 1 C0080 09-31 11160236 Spring (metric) 1 C0140 09-31 9005110-8700 (315325) Plug assembly (SAE) 1 C0140 09-31 9005110-8700 (315325) Plug assembly (metric) 1

Model/Kit

Order code: HF

C0010 09-31 11086118 Control housing, 2-position (SAE) 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0080 09-31 11160236 Spring (SAE) 1 C0140 09-31 9005110-8700 (315325) Plug assembly (SAE) 1

Danfoss | December 2021 AX152886481506en-000709 | 39

C0120

C0110

C0010

C0100

C0060

*B0034

C2000

C0040

B0026

B0028

B0024

C0050

C0060

C0030

C0020

C0050

*C0130

C0060

E00T2

C0060

E00T3

C0080

C0070

*M223

*M224

C0090

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure K1, K2

K1 and K2 configuration

* Included in overhaul seal kit Q210

40 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: K1 and K2 common parts

Item Date Begin Date End Part Number Part Name Qty. per

B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 O-ring 1 C0010 09-31 11026748 Control housing, proportional, PCOR 1 C0020 09-31 11026792 Spool 1 C0030 09-31 11160236 Spring 1 C0050 09-31 140644 Plug assembly SAE 2 C0060 09-31 11040532 Plug assembly 9 C0070 09-31 11026751 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 C0100 09-31 11146871 Spool 1 C0110 09-31 710855 Screw, M8 x 35 2 C0120 09-31 746644 (9007314-0810) Screw, M8 x 45 2 C0130 09-31 149040 Control seal 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Model/Kit

Order code: K1

C0040 09-31 11013615 Solenoid, on/off, 12 volt 1 C2000 09-31 11031763 Coil kit, 12 volt 1

Order code: K2

C0040 09-31 11013616 Solenoid, on/off, 24 volt 1 C2000 09-31 11031764 Coil kit, 24 volt 1

Danfoss | December 2021 AX152886481506en-000709 | 41

E101 604E

C0110

C0100

C0060

*C0130

C0050

C0060

C0025

C0060

C0050

C0010

C0060

E00T2

C0060

E00T3

C0080

C0070

*M223

*M224

C0090

C0120

C0110

C0010

C0100

C0060

C0050

C0060

*C0130

C0060

E00T2

C0060

E00T3

C0080

C0070

*M223

*M224

C0090

C1400

C0020

C1400

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure KA, KH

KA configuration

KH configuration

* Included in overhaul seal kit Q210

42 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: KA

Item Date Begin Part Number Part Name Qty. per

C0010 09-31 11026749 Control housing, proportional, PCOR 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 1 C0060 09-31 11040532 Plug assembly 8 C0070 09-31 11026751 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 C100 09-31 11146871 Spool 1 C0110 09-31 710855 Screw, M8 x 35 2 C0120 09-31 746644 (9007314-0810) Screw, M8 x 45 2 C0130 09-31 149040 Control seal 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Model/Kit

Order code: KH

C0010 15-48 11161283 Control housing, proportional, PCOR 1 C0020 15-48 11151818 Spool 1 C0050 15-48 140644 Plug assembly 1 C0060 15-48 11040532 Plug assembly 9 C0070 15-48 11026751 Spool 1 C0080 15-48 11160236 Spring 1 C0090 15-48 509360 Adjuster 1 C100 15-48 11146871 Spool 1 C0110 15-48 710855 Screw, M8 x 35 2 C0120 15-48 746644 (9007314-0810) Screw, M8 x 45 2 C0130 15-48 149040 Control seal 1 C1400 15-48 11151817 Limiter plug 2 M223 15-48 085043 (9004201-3700) O-ring 1 M224 15-48 732479 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 43

C0100

C0060

E00T3

C0060

E00T2

C0050

*C0130

C0110

C0010

*B0034

C2000

C0070

B0026

B0028

B0024

C0120

C0040

C0080

C0050

C0020

C0030

C0060

C0090

*M223

*M224

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure M1, M2

M1 and M2 configuration

* Included in overhaul seal kit Q210

44 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: M1 and M2 common parts

Item Date Begin Date End Part Number Part Name Qty. per

B0024 09-31 11031608 O-ring 1 B0026 09-31 11027046 Coil nut 1 B0028 09-31 063172 O-ring 1 B0034 09-31 085043 (9004201-3700) O-ring 1 C0010 09-31 11028958 Control housing, proportional, PCOR 1 C0020 09-31 11026792 Spool 1 C0030 09-31 11160236 Spring 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0060 09-31 11040532 Plug assembly 9 C0070 09-31 11028957 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 C0100 09-31 11146871 Spool 1 C0110 09-31 710855 Screw, M8 x 35 2 C0120 09-31 746644 (9007314-0810) Screw, M8 x 45 2 C0130 09-31 149040 Control seal 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Model/Kit

Order code: M1

C0040 09-31 11013615 Solenoid, on/off, 12 volt 1 C2000 09-31 11031763 Coil kit, 12 volt 1

Order code: M2

C0040 09-31 11013616 Solenoid, on/off, 24 volt 1 C2000 09-31 11031764 Coil kit, 24 volt 1

Danfoss | December 2021 AX152886481506en-000709 | 45

C0100

C0060

E00T3

C0060

E00T2

C0050

*C0130

C0110

C0010

C0070

C0110

C0080

C0050

C0060

C0025

C0090

*M223

*M224

C0060

C0100

C0060

E00T3

C0060

E00T2

C0050

*C0130

C0110

C0010

C0070

*B0034

B0020

B0026

B0028

B0024

C0040

C0080

C0050

C0020

C0030

C0060

C0320

C0300

C0320

C0120

C0320

C0310

C0320

C0090

*M223

*M224

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure MA, MF

MA configuration

MF configuration

* Included in overhaul seal kit Q210

46 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: MA

Item Date Begin Date End Part Number Part Name Qty. per

C0010 09-31 11028959 Control housing, proportional, PCOR 1 C0025 09-31 11000893 Shuttle valve assembly 1 C0050 09-31 140644 Plug assembly (SAE) 2 C0060 09-31 11040532 Plug assembly 8 C0070 09-31 11028957 Spool 1 C0080 09-31 11160236 Spring 1 C0090 09-31 509360 Adjuster 1 C0100 09-31 11146871 Spool 1 C0110 09-31 710855 Screw, M8 x 35 2 C0120 09-31 746644 (9007314-0810) Screw, M8 x 45 2 C0130 09-31 149040 Control seal 1 M223 09-31 085043 (9004201-3700) O-ring 1 M224 09-31 732479 O-ring 1

Model/Kit

Order code: MF

B0020 12-05 11031763 Coil kit, 12 volt 1 B0024 12-05 11031608 O-ring 1 B0026 12-05 11027046 Coil nut 1 B0028 12-05 063172 O-ring 1 B0034 12-05 085043 (9004201-3700) O-ring 1 C0010 12-05 11123556 Control housing, proportional, PCOR 1 C0020 12-05 11101616 Spool 1 C0030 12-05 11160236 Spring 1 C0040 12-05 11013615 Solenoid, on/off, 12 volt 1 C0050 12-05 140644 Plug assembly 2 C0060 12-05 11040532 Plug assembly 9 C0070 12-05 11028957 Spool 1 C0080 12-05 11160263 Spring 1 C0090 12-05 509360 Adjuster 1 C0100 12-05 11146871 Spool 1 C0110 12-05 710855 Screw, M8 x 35 2 C0120 12-05 746644 (9007314-0810) Screw, M8 x 45 2 C0130 12-05 149040 Control seal 1 C0300 12-05 11086158 Protective cover 1 C0310 12-05 11086159 Protective cover 1 C0320 12-05 395822 Screw, M6 x 12mm 4 M223 12-05 085043 (9004201-3700) O-ring 1 M224 12-05 732479 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 47

C0100

C0060

E00T3

E00T2

*C0130

C0110

C0010

C0070

C0120

C0080

C0050

C0020

C0060

C1400

C0060

C0090

*M223

*M224

C0060

C0100

C0060

E00T3

C0060

E00T2

C0050

*C0130

C0110

C0010

C0060

*B0034

C2000

B0026

B0028

B0024

C0040

C0050

C0020

C0030

C0060

C0320

C0300

C0320

C0120

C0320

C0310

C0320

C0025

C0060

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

H1B servo pressure MH, MW

MH configuration

MW configuration

* Included in overhaul seal kit Q210

48 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: MH

Item Date Begin Date End Part Number Part Name Qty. per

C0010 14-37 11151816 Control housing, proportional, PCOR 1 C0020 14-37 11151818 Spool 1 C0050 14-37 140644 Plug assembly 1 C0060 14-37 11040532 Plug assembly 9 C0070 14-37 11028957 Spool 1 C0080 14-37 11160236 Spring 1 C0090 14-37 509360 Adjuster 1 C0100 14-37 11146871 Spool 1 C0110 14-37 710855 Screw, M8 x 35 2 C0120 14-37 746644 (9007314-0810) Screw, M8 x 45 2 C0130 14-37 149040 Control seal 1 C1400 14-37 11151817 Limiter plug 2 M223 14-37 085043 (9004201-3700) O-ring 1 M224 14-37 732479 O-ring 1

Model/Kit

Order code: MW

B0024 12-05 11031608 O-ring 1 B0026 12-05 11027046 Coil nut 1 B0028 12-05 063172 O-ring 1 B0034 12-05 085043 (9004201-3700) O-ring 1 C0010 12-05 11101720 Control housing, proportional, PCOR 1 C0020 12-05 11101616 Spool 1 C0025 12-05 11000893 Shuttle valve assembly 1 C0030 12-05 11160236 Spring 1 C0040 12-05 11013615 Solenoid, on/off, 12 volt 1 C0050 12-05 140644 Plug assembly 2 C0060 12-05 11146871 Plug assembly 10 C0100 12-05 1146871 Spool 1 C0110 12-05 710855 Screw, M8 x 35 2 C0120 12-05 746644 (9007314-0810) Screw, M8 x 45 2 C0130 12-05 149040 Control seal 1 C0300 12-05 11086158 Protective cover 1 C0310 12-05 11086159 Protective cover 1 C0320 12-05 395822 Screw, M6 x 12 4 C2000 12-05 11031763 Coil kit, 12 volt 1

Danfoss | December 2021 AX152886481506en-000709 | 49

C0010

*C0130

C0060

C0110

C0120

C0060

E00T2

E00T3

C0060

C0025

C0050

*C0130

C0110

C0010

C0170

*C0130

C0010

C0060

C0025

C0110

C0120

C0060

C0050

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

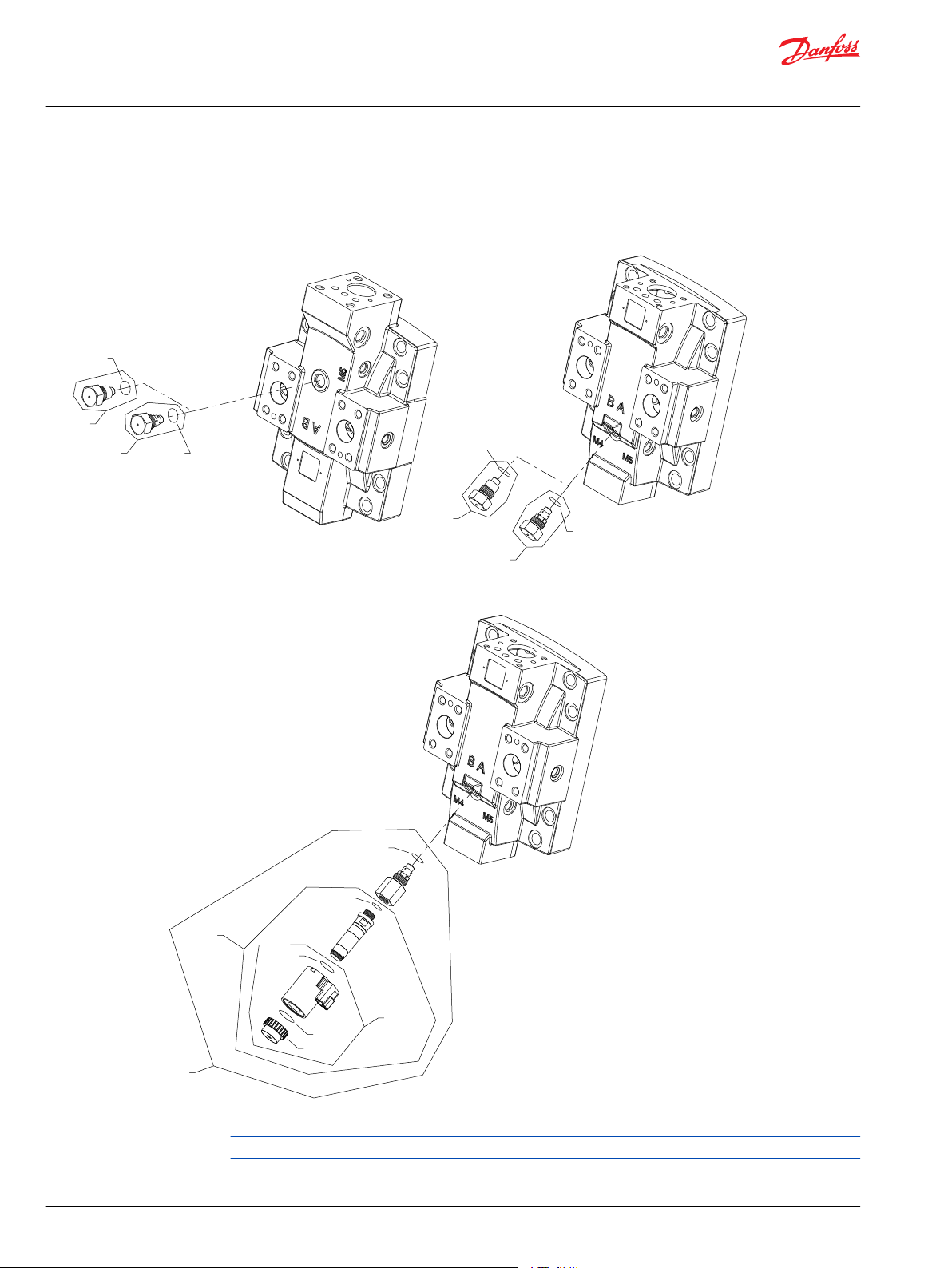

H1B servo pressure NP, NR, NT

NP configuration

NR configuration

NT configuration

50 | © Danfoss | December 2021 AX152886481506en-000709

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Servo pressure supply

Order code: NP

Item Date Begin Date End Part Number Part Name Qty. per

C0010 09-31 11086116 Control housing, 2-position 1 C0050 09-31 140644 Plug assembly 1 C0060 09-31 11040532 Plug assembly 2 C0110 09-31 737866 (9007314-1207) Screw, M12 x 30 2 C0120 09-31 283325 (9007314-1211) Screw, M12 x 50 2 C0130 09-31 11016168 Control seal 1

Order code: NR

C0010 12-42 11123843 Control housing, proportional 1 C0025 12-42 11000893 Shuttle valve 1 C0050 12-42 140644 Plug assembly 1 C0060 12-42 11040532 Plug assembly 3 C0110 12-42 710855 Screw, M8 x 35 2 C0130 12-42 149040 Control seal 1 C0170 12-42 716860 Screw, M5 x 12 1

Model/Kit

Order code: NT

C0010 12-42 11123847 Control housing, 2-position 1 C0025 12-42 11000893 Shuttle valve 1 C0050 12-42 140644 Plug assembly 1 C0060 12-42 11040532 Plug assembly 3 C0110 12-42 737866 (9007314-1207) Screw, M12 x 30 2 C0120 12-42 283325 (9007314-1211) Screw, M12 x 50 2 C0130 12-42 11016168 Control seal 1

Danfoss | December 2021 AX152886481506en-000709 | 51

E00T2

E00T3

Parts Manual

H1B 060 Bent Axis Motor

Orifice

H1B orifice A, B, C, D

A-D orifice plugs

See servo pressure supply drawing for orifice location.

52 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

Orifice

Order code: A

Item Date Begin Date End Part Number Part Name Qty. per

E00T2 09-31 516598 Orifice plug, 1.2 mm 1 E00T3 09-31 516598 Orifice plug, 1.2 mm 1

Order code: B

E00T2 09-31 578542 Orifice plug, 0.8 mm 1 E00T3 09-31 578542 Orifice plug, 0.8 mm 1

Order code: C

E00T2 09-31 511825 Orifice plug, 0.6 mm 1 E00T3 09-31 511825 Orifice plug, 0.6 mm 1

Order code: D

E00T2 09-31 679316 Orifice plug, 0.5 mm 1 E00T3 09-31 679316 Orifice plug, 0.5 mm 1

Model/Kit

Order code: N

No parts

Danfoss | December 2021 AX152886481506en-000709 | 53

QF080

F0100

F0160

F0010

F0020

F0070

F0040

F0030

F0090

F0050

F0120

F0100

F0160

F0060

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap PA

PA configuration

54 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: PA

Item Date Begin Date End Part Number Part Name Qty. per

F0010 09-31 11007456 End cap 1 F0020 09-31 11007450 Servo piston 1 F0030 09-31 11007448 Spring guide 1 F0040 09-31 11160231 Spring 1 F0050 09-31 11007449 Setting lug 1 F0060 09-31 11008915 Setting lug pin 1 F0070 09-31 042465 Set screw 1 F0090 09-31 11014186 Button head screw 1 F0100 09-31 140644 Plug assembly (SAE) 2 F0120 09-31 672295 (9007314-1010) Screw, M10 x 45 8 F0160 09-31 140644 Plug assembly (SAE) 2 QF080 09-31 18-16 11051880 Valve segment assembly (SB-2018-028 on page

95)

Parts for option PB-PM are found on the next few pages.

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 55

F0150

QF080

F0100

F0010

F0020

F0070

F0040

F0030

F0090

F0050

F0120

F0100

F0060

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap PB

PB configuration

56 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: PB

Item Date Begin Date End Part Number Part Name Qty. per

F0010 09-31 11007457 End cap 1 F0020 09-31 11007450 Servo piston 1 F0030 09-31 11007448 Spring guide 1 F0040 09-31 11160231 Spring 1 F0050 09-31 11007449 Setting lug 1 F0060 09-31 11008915 Setting lug pin 1 F0070 09-31 042465 Set screw 1 F0090 09-31 11014186 Button head screw 1 F0100 09-31 140644 Plug assembly (SAE) 2 F0120 09-31 672295 (9007314-1010) Screw, M10 x 45 8 F0150 09-31 315325 (9005110-8700) Plug assembly 2 QF080 09-31 18-16 11051880 Valve segment assembly (SB-2018-028 on page

95)

Mode/Kit

Danfoss | December 2021 AX152886481506en-000709 | 57

F0150

QF080

F0100

F0010

F0020

F0070

F0040

F0030

F0090

F0050

F0120

F0100

F0060

F0163

F0162

F1160

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap PM

PM configuration

58 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: PM

Item Date Begin Date End Part Number Part Name Qty. per

F0010 12-03 11108196 End cap 1 F0020 12-03 11007450 Servo piston 1 F0030 12-03 11007448 Spring guide 1 F0040 12-03 11160231 Spring 1 F0050 12-03 11007449 Setting lug 1 F0060 12-03 11008915 Setting lug pin 1 F0070 12-03 042465 Set screw 1 F0090 12-03 11014186 Button head screw 1 F0100 12-03 140644 Plug assembly 2 F0120 12-03 672295 (9007314-1010) Screw M10 x 45 8 F0105 12-03 315325 (9005110-8700) Plug assembly 2 F0162 12-03 001149 (9004201-6200) O-ring 1 F0163 12-03 9005110-7500 Plug assembly 1 F1160 12-03 11108129 Loop flushing adapter assembly 1 QF080 12-03 18-16 11051880 Valve segment assembly (SB-2018-028 on page

95)

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 59

QF080

F0090

F0050

F0010

F0120

F0020

F0070

F0040

F0030

F0160

F0100

F0160

F0100

F0060

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap RA

RA configuration

60 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: RA

Item Date Begin Date End Part Number Part Name Qty. per

F0010 12-03 11007456 End cap 1 F0020 12-03 11007450 Servo piston 1 F0030 12-03 11007448 Spring guide 1 F0040 12-03 11160231 Spring 1 F0050 12-03 11007449 Setting lug 1 F0060 12-03 11008915 Setting lug pin 1 F0070 12-03 042465 Set screw 1 F0090 12-03 11014186 Button head screw 1 F0100 12-03 140644 Plug assembly (SAE) 2 F0120 12-03 672295 (9007314-1010) Screw, M10 x 45 8 F0160 12-03 140644 Plug assembly (SAE) 2 QF080 12-03 18-06 11051880 Valve segment assembly (SB-2018-028 on page

95)

Parts for option RB are found on the next 2 pages.

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 61

QF080

F0090

F0050

F0010

F0120

F0020

F0070

F0040

F0030

F0100

F0150

F0100

F0060

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap RB

RB configuration

This option is available in SAE and metric configurations. Please order accordingly.

62 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: RB

Item Date Begin Date End Part Number Part Name Qty. per

F0010 09-31 11007457 End cap (SAE) 1 F0010 16-29 11182400 End cap (metric) 1 F0020 09-31 11007450 Servo piston 1 F0030 09-31 11007448 Spring guide 1 F0040 09-31 11160231 Spring 1 F0050 09-31 11007449 Setting lug 1 F0060 09-31 11008915 Setting lug pin 1 F0070 09-31 042465 Set screw 1 F0090 09-31 11014186 Button head screw 1 F0100 09-31 140644 Plug assembly (SAE) 2 F0100 16-29 11178809 Plug assembly (metric) 2 F0120 09-31 672295 (9007314-1010) Screw, M10 x 45 8 F0150 09-31 315325 (9005110-8700) Plug assembly 2 F0150 16-29 11178809 Plug assembly (metric) 2 QF080 09-31 18-16 11051880 Valve segment assembly (SB-2018-028 on page

95)

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 63

F0090

QF080

F0010

*P0044

*P0043

F0020

F0120

F0160

F0100

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap TA

TA configuration

* Included in overhaul seal kit Q210

64 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: TA

Item Date Begin Date End Part Number Part Name Qty. per

F0010 09-31 11037511 End cap 1 F0020 09-31 11043400 Servo piston 1 F0090 09-31 11014186 Button head screw 1 F0100 09-31 140644 Plug assembly 1 F0120 09-31 672295 (9007314-1010) Screw, M10 x 45 8 F0160 09-31 140644 Plug assembly 2 P0043 09-31 504207 O-ring 1 P0044 09-31 508134 Piston ring 1 QF080 09-31 18-06 11051879 Valve segment assembly (SB-2018-028 on page

95)

Parts for options TB and TL are found on the next few pages.

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 65

F0090

QF080

F0010

*P0044

*P0043

F0020

F0120

F0150

F0100

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap TB

TB configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric. Please order accordingly.

66 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: TB

Item Date Begin Date End Part Number Part Name Qty. per

F0010 09-31 11037522 End cap (SAE) 1 F0010 15-40 11171627 End cap (metric) 1 F0020 09-31 11043400 Servo piston 1 F0090 09-31 11014186 Button head screw 1 F0100 09-31 140644 Plug assembly (SAE) 1 F0100 16-17 11178809 Plug assembly (metric) 1 F0120 09-31 672295 (9007314-1010) Screw, M10 x 45 8 F0150 09-31 315325 (9005110-8700) Plug assembly 2 F0150 16-17 11178809 Plug assembly (metric) 2 P0043 09-31 504207 O-ring 1 P0044 09-31 508134 Piston ring 1 QF080 09-31 18-06 11051879 Valve segment assembly (SB-2018-028 on page

95)

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 67

F0090

QF080

F0010

*P0044

*P0043

F0020

F0120

F0160

F1170

F0100

Parts Manual

H1B 060 Bent Axis Motor

End cap

H1B end cap TL

TL configuration

* Included in overhaul seal kit Q210

68 | © Danfoss | December 2021 AX152886481506en-000709

Parts Manual

H1B 060 Bent Axis Motor

End cap

Order code: TL

Item Date Begin Date End Part Number Part Name Qty. per

F0010 13-33 11059617 End cap, axial ports 1 F0020 13-33 11023129 Servo piston 1 F0090 13-33 11014186 Button head screw 1 F0100 13-33 140644 Plug assembly 1 F0120 13-33 672295 (9007314-1010) Screw, M10 x 45 8 F0160 13-33 140644 Plug assembly 2 F1170 13-33 315325 (9005110-8700) Plug assembly 1 P0043 13-33 504208 O-ring 1 P0044 13-33 508136 Piston ring 1 QF080 13-33 18-06 11051881 Valve segment assembly (SB-2018-028 on page

95)

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 69

G0040

*G0020

G0030

J0020

*J0041

J0010

*G0070

G0010

G0055

*QG055

G0061

G0060

(removed 15-34)

G0040

*G0020

G0030

*G0070

G0010

G0061

G0060

G0055

*QG055

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

H1B flange/housing CN, CS

CN configuration

CS configuration

* Included in overhaul seal kit Q210

The CS option is available in SAE and metric. Please order accordingly.

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

Common parts

Item Date Begin Date End Part Number Part Name Qty. per

G0020 09-31 519021 Lip seal 1 G0030 09-31 915280 Retaining ring 1 G0040 09-31 11007677 Pin 2 G0055 10-51 11056747 Bearing shaft log 1 G0055 09-31 10-50 327007 (9005110-4400) Plug assembly 1 G0070 09-31 11007447 Gasket 1 QG055 10-51 039297 (9004201-1200) O-ring 1

Order code: CN

G0010 15-35 11162272 Housing, cartridge without speed sensor port 1 G0010 09-31 15-34 11078063 Housing, cartridge without speed sensor port 1 G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 J0010 09-31 15-34 11013290 PPU plug assembly 1 J0020 09-31 15-34 395822 (9007315-0603) Screw, M6 x 12 1 J0041 09-31 15-34 11013397 O-ring 1

Model/Kit

Order code: CS

G0010 10-51 11078063 Housing, cartridge with speed sensor port (SAE) 1 G0010 15-40 11171599 Housing, cartridge with speed sensor port

(metric) G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0060 16-17 11178809 Plug assembly (metric) 1 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0061 16-17 11178809 Plug assembly (metric) 1

Danfoss | December 2021 AX152886481506en-000709 | 71

*J0041

J0010

J0020

(removed speed sensor port and plug 15-34)

*G0070

G0040

G0010

*G0020

G0030

*QG050

G0050

G0061

G0060

G0040

*G0070

G0040

G0010

*G0020

G0030

*QG050

G0050

G0061

G0060

G0040

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

H1B flange/housing DN, DS

DN configuration

DS configuration

* Included in overhaul seal kit Q210

Option DS is available in SAE and metric configurations. Please order accordingly.

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

Order code: DN

Item Date Begin Date End Part Number Part Name Qty. per

G0010 15-35 11162251 Housing, DIN flange without speed sensor port 1 G0010 09-31 15-34 11004632 Housing, DIN flange with speed sensor port 1 G0020 09-31 519021 Lip seal 1 G0030 09-31 915280 Retaining ring 1 G0040 09-31 11007677 Pin 2 G0050 10-31 11063948 Shaft locating plug assembly 1 G0050 09-31 10-30 11001378 Shaft locating plug assembly 1 G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0070 09-31 11007447 Gasket 1 J0010 09-31 15-34 11013290 PPU plug assembly 1 J0041 09-31 15-34 11013397 O-ring 1 J0020 09-31 15-34 395822 (9007315-0603) Screw, M6 x 12 1 QG050 10-31 001123 (9004201-2500) O-ring 1 QG050 09-31 10-30 039297 (9004201-1200) O-ring 1

Model/Kit

Order code: DS

G0010 10-31 11004632 Housing, DIN flange with speed sensor port 1 G0020 09-31 519021 Lip seal 1 G0030 09-31 915280 Retaining ring 1 G0040 09-31 11007677 Pin 2 G0050 10-31 11063948 Shaft locating plug assembly 1 G0050 09-31 10-30 11001378 Shaft locating plug assembly 1 G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0070 09-31 11007447 Gasket 1 QG050 10-31 001123 (9004201-2500) O-ring 1 QG050 09-31 10-30 039297 (9004201-1200) O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 73

*J0041

J0010

J0020

(removed speed sensor port and plug 15-34)

*G0070

G0040

G0010

*G0020

G0030

*QG050

G0050

G0060

G0040

G0061

*G0070

G0040

G0010

*G0020

G0030

*QG050

G0050

G0060

G0040

G0061

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

H1B flange/housing VN, VS

VN configuration

VS configuration

* Included in overhaul seal kit Q210

Option VS is available in SAE and metric configurations. Please order accordingly.

Parts Manual

H1B 060 Bent Axis Motor

Flange/housing

Order code: VN

Item Date Begin Date End Part Number Part Name Qty. per

G0010 15-35 11162250 Housing, SAE flange without speed sensor port 1 G0010 09-31 15-34 11006473 Housing, SAE flange with speed sensor port 1 G0020 09-31 519021 Lip seal 1 G0030 09-31 915280 Retaining ring 1 G0040 09-31 11007677 Pin 2 G0050 10-13 11063948 Shaft locating plug assembly 1 G0050 09-31 10-12 11001378 Shaft locating plug assembly 1 G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 2 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0070 09-31 11007447 Gasket 1 J0010 09-31 11013290 Speed sensor plug assembly 1 J0041 09-31 15-34 11013397 O-ring 1 J0020 09-31 15-34 395822 (9007315-0603) Screw, M6 x 12 1 QG050 10-13 001123 (9004201-2500) O-ring 1 QG050 09-31 10-12 039297 (9004201-1200) O-ring 1

Model/Kit

Order code: VS

G0010 10-51 11078063 Housing, cartridge with speed sensor port (SAE) 1 G0020 09-31 519021 Lip seal 1 G0030 09-31 915280 Retaining ring 1 G0040 09-31 11007677 Pin 2 G0050 10-13 11063948 Shaft locating plug assembly 1 G0050 09-31 10-12 11001378 Shaft locating plug assembly 1 G0060 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0061 09-31 315325 (9005110-8700) Plug assembly (SAE) 1 G0070 09-31 11007447 Gasket 1 QG050 10-31 001123 (9004201-2500) O-ring 1 QG050 09-31 10-30 039297 (9004201-1200) O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 75

QH300

QH030

H0180

QH300

QH030

Parts Manual

H1B 060 Bent Axis Motor

Shaft

H1B 60cc shaft AN-HN, AS-HS

AN, BN, GN, HN configuration

AS, BS, GS, HS configuration

Parts Manual

H1B 060 Bent Axis Motor

Shaft

Order code: AN

Item Date Begin Date End Part Number Part Name Qty. per

QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11050523 Shaft assembly, 14 tooth, 12/24 pitch 1

Order code: AS

H0180 09-31 11005895 Speed ring 1 QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11050522 Shaft assembly, 14 tooth, 12/24 pitch, speed ring 1

Order code: BN

QH030 13-29 11100632 Piston ring kit 1 QH300 13-29 11120999 Shaft assembly, 21 tooth, 12/24 pitch 1

Oder code: BS

H0180 13-29 11005895 Speed ring 1 QH030 13-29 11100632 Piston ring kit 1 QH300 13-29 11120998 Shaft assembly, 21 tooth, 12/24 pitch, speed ring 1

Model/Kit

Oder code: GN

QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11050521 Shaft assembly, 14 tooth, DIN 1

Order code: GS

H0180 09-31 11005895 Speed ring 1 QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11050520 Shaft assembly, 14 tooth, DIN, speed ring 1

Order code: HN

QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11064303 Shaft assembly, 16 tooth, DIN 1

Order code: HS

H0180 09-31 11005895 Speed ring 1 QH030 09-31 11100632 Piston ring kit 1 QH300 09-31 11064305 Shaft assembly, 16 tooth, DIN, speed ring 1

Danfoss | December 2021 AX152886481506en-000709 | 77

J0010

*J0041

J0020

J0010

*J0041

J0020

J0010

*J0041

J0020

*J0041

Parts Manual

H1B 060 Bent Axis Motor

Speed sensing

H1B speed sensor B, C, P, S

B, C, S configuration

P configuration

* Included in base motor seal kit Q210

Generic housings used to show part location only.

Parts Manual

H1B 060 Bent Axis Motor

Speed sensing

Order code: B

Item Date Begin Date End Part Number Part Name Qty. per

J0010 12-15 11232698 Speed sensor assembly 1 J0020 12-15 395822 (9007315-0603) Screw, M6 x 12 1 J0041 12-15 11013397 O-ring 1

Order code: C

J0010 14-41 11157520 Speed sensor assembly 1 J0020 14-41 395822 (9007315-0603) Screw, M6 x 12 1 J0041 14-41 11013397 O-ring 1

Order code: N

No parts

Order code: P

J0010 09-31 11013290 Plug assembly 1 J0020 09-31 395822 (9007315-0603) Screw, M6 x 12 1 J0041 09-31 11013397 O-ring 1

Model/Kit

Order code: S

J0010 09-31 149055 Speed sensor assembly 1 J0020 09-31 395822 (9007315-0603) Screw, M6 x 12 1 J0041 09-31 11013397 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 79

K0010

*QK050

K0050

K0040

*QK040

*QK050

K0050

*QK050

K0050

K0040

*QK040

K0010

*QK050

K0050

K0010

K0040

*QK040

K0010

K0040

*QK040

K0010

K0040

*QK040

K0050

*QK050

(A & N)(A & N)

(C)(C)

(D)(D)

(E)(E)

(G)(G)

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

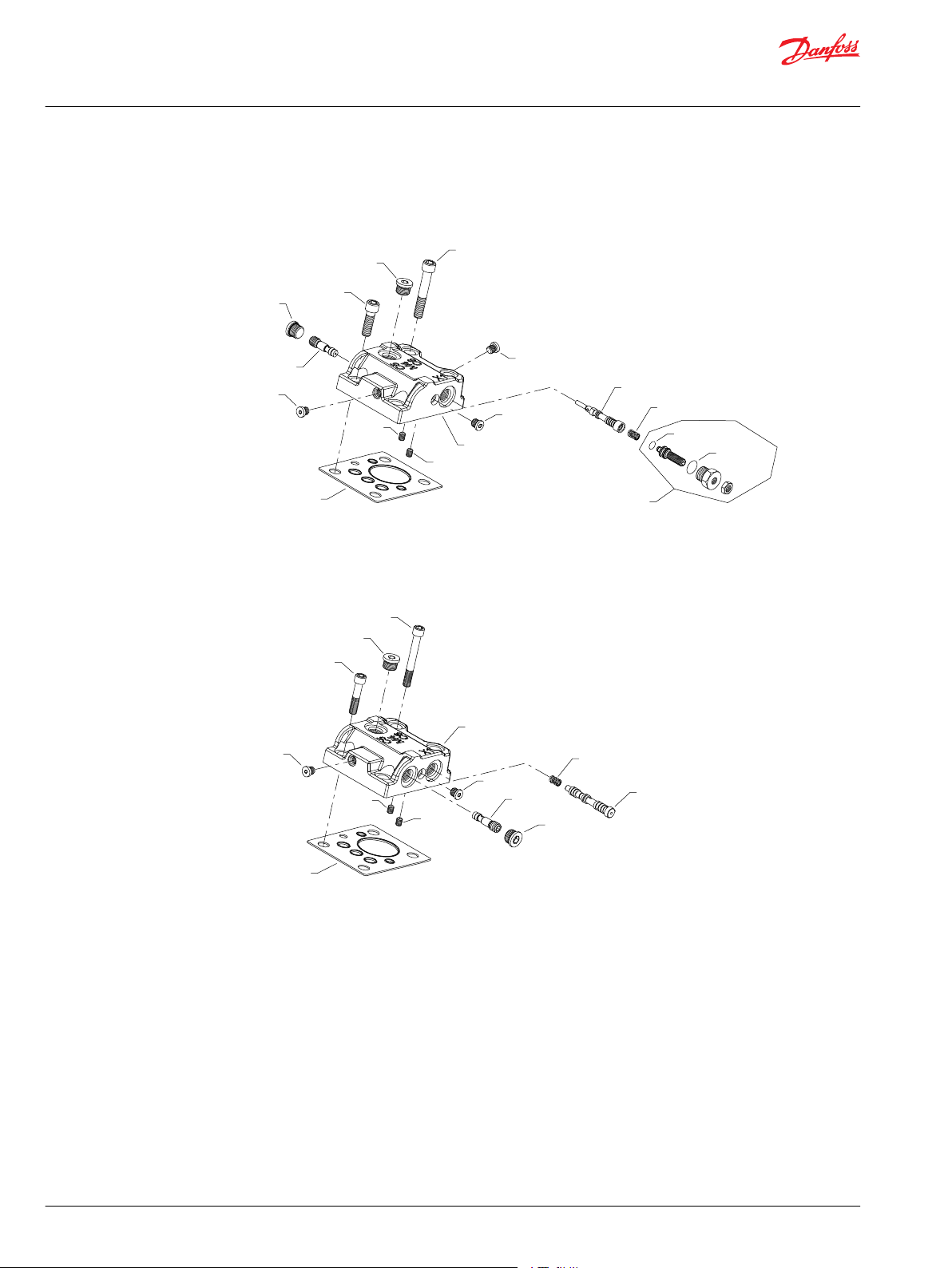

H1B loop flushing A-N

Parts configuration

* Included in base motor seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

Order code: A and N

Item Date Begin Date End Part Number Part Name Qty. per

K0010 09-31 19-43 11031106 Spool (SB-2020-038 on page 97) 1 K0010 19-44 11165542 Spool 1 K0040 09-31 11160780 Plug/spring assembly 1 K0050 09-31 11160780 Plug/spring assembly 1 QK040 09-31 149052 O-ring 1 QK050 09-31 149052 O-ring 1

Order code: C

K0010 12-15 19-43 11031106 Spool (SB-2020-038 on page 97) 1 K0010 19-44 11165542 Spool 1 K0040 12-15 11115123 Plug/spring assembly 1 K0050 12-15 11160780 Plug/spring assembly 1 QK040 12-15 149052 O-ring 1 QK050 12-15 149052 O-ring 1

Model/Kit

Order code: D

K0010 12-15 11031106 Spool 1 K0040 12-15 11160780 Plug/spring assembly 1 K0050 12-15 11115123 Plug/spring assembly 1 QK040 12-15 149052 O-ring 1 QK050 12-15 149052 O-ring 1

Order code: E

K0010 14-41 11157411 Spool 1 K0040 14-41 11160780 Plug/spring assembly 1 K0050 14-41 11160780 Plug/spring assembly 1 QK040 14-41 149052 O-ring 1 QK050 14-41 149052 O-ring 1

Order code: G

K0010 16-32 11181360 Spool 1 K0040 16-32 11181359 Plug/spring assembly 1 K0050 16-32 11181359 Plug/spring assembly 1 QK040 16-32 149052 O-ring 1 QK050 16-32 149052 O-ring 1

For order code N, please refer to order code A.

Danfoss | December 2021 AX152886481506en-000709 | 81

*L0150

L0100

*L0150

L0100

*L0150

B0026

B0020

*B0034

L0010

B0028

B0024

L0100

(NN)(NN)

(05-50)(05-50)

(NN)(NN)

(05-50)(05-50)

(E2, E3, E4)(E2, E3, E4)

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

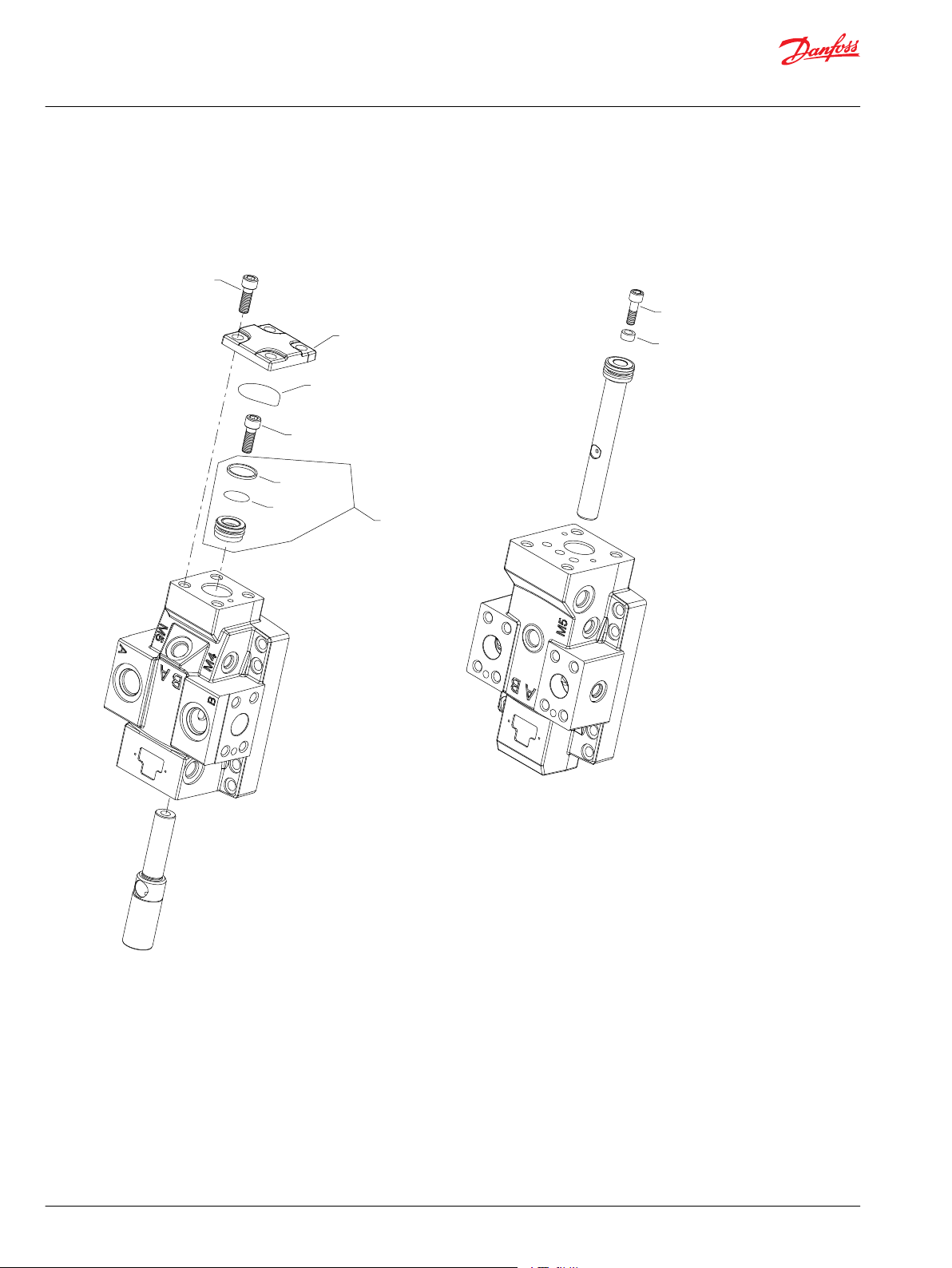

H1B loop flushing 05-50

Parts configuration

Generic end caps shown

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

Order code: 05

Item Date Begin Date End Part Number Part Name Qty. per

L0100 09-31 11008698 Loop flushing relief valve, 5L/min 1 L0150 09-31 149052 O-ring 1

Order code: 10

L0100 09-31 11003448 Loop flushing relief valve, 10L/min 1 L0150 09-31 149052 O-ring 1

Order code: 15

L0100 09-31 11003450 Loop flushing relief valve, 15L/min 1 L0150 09-31 149052 O-ring 1

Order code: 20

L0100 09-31 11001676 Loop flushing relief valve, 20L/min 1 L0150 09-31 149052 O-ring 1

Model/Kit

Order code: 30

L0100 13-23 11008700 Loop flushing relief valve, 30L/min 1 L0150 13-23 149052 O-ring 1

Order code: 40

L0100 13-23 11008701 Loop flushing relief valve, 40L/min 1 L0150 13-23 149052 O-ring 1

Order code: 50

L0100 13-23 11001697 Loop flushing relief valve, 50L/min 1 L0150 13-23 149052 O-ring 1

Part numbers for options E2, E3, E4, and NN are continued on the next page.

Danfoss | December 2021 AX152886481506en-000709 | 83

*L0150

L0100

*L0150

L0100

*L0150

B0026

B0020

*B0034

L0010

B0028

B0024

L0100

(NN)(NN)

(05-50)(05-50)

(NN)(NN)

(05-50)(05-50)

(E2, E3, E4)(E2, E3, E4)

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

H1B loop flushing E2, E3, E4, NN

Parts configuration

Generic end caps shown

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Loop flushing

Order code: E2

Item Date Begin Date End Part Number Part Name Qty. per

B0024 13-23 11031608 O-ring 1 B0026 13-23 11027046 Coil nut 1 B0028 13-23 063172 O-ring 1 B0034 13-23 085043 (9004201-3700) O-ring 1 C2000 13-23 11031763 Coil kit, 12 volt 1 L0100 13-23 11096763 Loop flushing relief valve, 12v, 10L/min 1 L0150 13-23 149052 O-ring 1 L1000 13-23 11013615 Solenoid valve, 12v 1

Order code: E3

Model/Kit

Order code: E4

B0024 16-06 11031608 O-ring 1 B0026 16-06 11027046 Coil nut 1 B0028 16-06 063172 O-ring 1 B0034 16-06 085043 (9004201-3700) O-ring 1 C2000 16-06 11031763 Coil kit 12 volt 1 L0150 16-06 149052 O-ring 1 L0100 16-06 11175555 Loop flushing relief valve, 12v, 20L/min 1 L1000 16-06 11013615 Solenoid valve, 12v 1

Order code: NN

L0100 09-31 11027278 Plug assembly 1 L0150 09-31 149052 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 85

M0030

QM020

QM010

QM050

(NP)(NP)

(NN)(NN)

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

H1B 60cc special hardware NN, NP

Parts configuration

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

Order code: NN

Item Date Begin Date End Part Number Part Name Qty. per

M0030 09-31 515366 Bearing plate 1 QM010 09-31 11051897 Synch shaft assembly 1 QM020 09-31 11051897 Cylinder block assembly 1 QM050 18-06 11051879 Valve segment assembly (2-position) 1

Order code: NP

M0030 09-31 515366 Bearing plate 1 QM010 09-31 11051897 Synch shaft assembly 1 QM020 09-31 11051897 Cylinder block assembly 1 QM050 18-06 11051880 Valve segment assembly (proportional) 1

Model/Kit

Danfoss | December 2021 AX152886481506en-000709 | 87

N1000

*N2000

Q1200

N1000

QN070

N4000

(AB1, AB3)(AB1, AB3)

(AB3, MB0)(AB3, MB0)

(000-040, AB1)(000-040, AB1)

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

H1B 60cc minimum displacement

Parts configuration

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

Order code: 000-019

Item Date Begin Date End Part Number Part Name Qty. per

N1000 09-31 11012777 Set screw, 0-19cc, M12 x 65mm 1 N2000 09-31 076042 Seal nut, M12 1 Q1200 09-31 770842 Plastic cap, green 1

Order code: 020-040

N1000 09-31 076109 Set screw, 20-40cc, M12 x 80mm 1 N2000 09-31 076042 Seal nut, M12 1 Q1200 09-31 770842 Plastic cap, green 1

Order code: AB1

N1000 14-27 11106517 Set screw, 43cc, M12 x 40mm 1 N2000 14-27 076042 Seal nut, M12 1 N4000 14-27 11147463 Spacer, 38.42mm 1 Q1200 14-27 770842 Plastic cap, green 1

Model/Kit

Order code: AB3

N1000 15-14 11161812 Plug assembly 1 N4000 15-14 11163281 Spacer, 17.34mm 1 QN070 15-14 11001952 O-ring 1

Order code: MB0

N1000 15-14 11161812 Plug assembly 1 QN070 15-14 11001952 O-ring 1

Danfoss | December 2021 AX152886481506en-000709 | 89

P0010

P0020

*P0030

P0050

*P0044

*P0043

P0040

P0200

P0100

(Q, R, S, T, U, V)(Q, R, S, T, U, V)

(A, E, N)

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

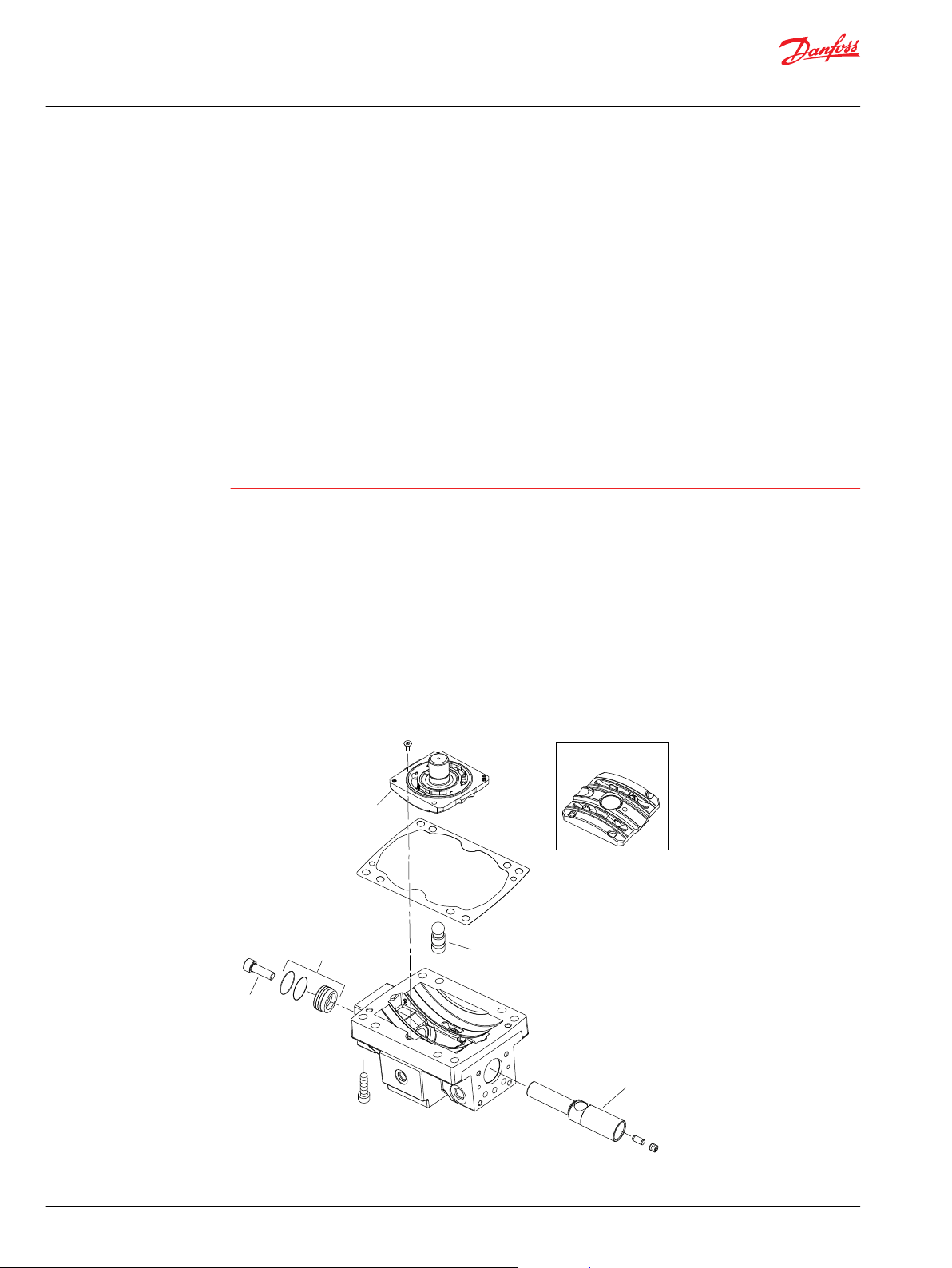

H1B 60cc max displacement A, E, N, Q-V

Parts configuration

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

Caution

During removal of screw (P0050) and set screw (F0070), the servo piston assembly will be subjected to high torque and may create a pinch point for fingers. Use caution when disassembling these components from the servo piston. For more information, see SB-2019-017 on page 96.

Order code: A

Item Date Begin Date End Part Number Part Name Qty. per

P0010 09-31 11001110 Servo piston cover 1 P0020 09-31 737866 (9007314-1207) Screw, M12 x 30 4 P0030 09-31 11050757 O-ring 1 P0040 09-31 11182412 Servo piston assembly 1 P0043 09-31 504207 O-ring 1 P0044 09-31 508134 Piston ring 1 P0050 09-31 293225 (9007314-1007) Screw, M10 x 30 1

Order code: E

P0010 19-14 11001110 Servo piston cover 1 P0020 19-14 737866 Screw, M12 x 30 4 P0030 19-14 11050757 O-ring 1 P0040 19-14 11234140 Servo piston assembly 1 P0043 19-14 504207 O-ring 1 P0044 19-14 508134 Piston ring 1 P0050 19-14 293225 Screw, M10 x 30 1

Model/Kit

Order code: N

P0010 09-31 11001110 Servo piston cover 1 P0020 09-31 737866 (9007314-1207) Screw, M12 x 30 4 P0030 09-31 11050757 O-ring 1 P0040 09-31 11043408 Servo piston assembly 1 P0043 09-31 504207 O-ring 1 P0044 09-31 508134 Piston ring 1 P0050 09-31 293225 (9007314-1007) Screw, M10 x 30 1

Order code: Q

P0100 13-09 506969 Screw, M8 x 25 1 P0200 13-09 11064423 Spacer, 3.1mm 1

Order code: R

P0100 11-26 506969 Screw, M8 x 25 1 P0200 11-26 11101077 Spacer, 5.9mm 1

Part numbers continue to the next two pages.

Danfoss | December 2021 AX152886481506en-000709 | 91

P0010

P0020

*P0030

P0050

*P0044

*P0043

P0040

P0200

P0100

(Q, R, S, T, U, V)(Q, R, S, T, U, V)

(A, E, N)

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

Parts configuration

* Included in overhaul seal kit Q210

Parts Manual

H1B 060 Bent Axis Motor

Special hardware and displacement

Caution

Order code: S

Item Date Begin Date End Part Number Part Name Qty. per

P0100 09-36 506969 Screw, M8 x 25 1 P0200 09-36 11068564 Spacer, 8.8mm 1

Order code: T

P0100 17-45 506969 Screw, M8 x 25 1 P0200 17-45 11038079 Spacer, 11.5 mm 1

Order code: U

P0100 10-27 710855 Screw, M8 x 35 1 P0200 10-27 11086826 Spacer, 14.6mm 1

Model/Kit

Order code: V

P0100 13-09 149064 Screw, M8 x 40 1 P0200 13-09 11001123 Spacer, 20.5mm 1

Danfoss | December 2021 AX152886481506en-000709 | 93

Parts Manual

H1B 060 Bent Axis Motor

Overhaul seal kit

H1B 60cc seal kit

Seal kit

Item Date Begin Date End Part Number Part Name Qty. per

Q210 09-31 11172537 Overhaul seal kit, H1B060 1 B0034 09-31 085043 (9004201-3700) O-ring, 11.89 x 1.98, nitrile 2 B0035 09-31 11001952 O-ring, 18.00 x 1.50, nitrile 1 C0130 09-31 149040 Control seal 1 C0130 09-31 11016168 Control seal, 2-position 1 G0020 09-31 519021 Lip seal 1 G0070 09-31 11007447 End cap gasket, H1B060 1 J0041 09-31 11013397 O-ring, 15.60 x 1.78, nitrile 1 L0150 09-31 149052 O-ring, 15.30 x 2.20, nitrile 1 M223 09-31 085043 (9004201-3700) O-ring, 11.89 x 1.98, nitrile 1 M224 09-31 732479 O-ring, 6.07 x 1.78, viton 1 N2000 09-31 076042 Seal nut, M12 1 P0030 09-31 11050757 O-ring, 47.00 x 3.00, nitrile 1 P0043 09-31 504207 O-ring, 20.29 x 2.62, nitrile 1 P0044 09-31 508134 Piston ring 1 Q1200 09-31 770842 Plastic cap, green 1 QC160 09-31 039297 (9004201-1200) O-ring, 6.07 x 1.63, nitrile 1 QG050 09-31 001123 (9004201-2500) O-ring, 8.92 x 1.83, nitrile 1 QG055 09-31 039297 (9004201-1200) O-ring, 6.07 x 1.63, nitrile 1 QK040 09-31 149052 O-ring, 15.30 x 2.20, nitrile 1 QK050 09-31 149052 O-ring, 15.30 x 2.20, nitrile 1

Model/Kit

Two position valve segment Special hardware feature NN

Proportional valve segment Special hardware feature NP

Parts Manual

H1B 060 Bent Axis Motor

Service bulletin

SB-2018-028

Products affected

H1B motors

Subject

Parts manual change for valve segment assembly

Description

Danfoss has reorganized topics in the Parts Manual for H1B 60cc, 80cc, 110cc, 160cc, 210cc and 250cc motors. The valve segment assembly (Item QF080) has been moved to the “Special Hardware/Common Parts” section (Option M). It was formerly located in the “End Cap” section (Option F).

Because of the move, 2-position and proportional valve segments will need to be included in their own order code designation. The order code for 2-position valve segments will be NN and the order code for proportional valve segments will be NP.

Part numbers have not changed.

Danfoss | December 2021 AX152886481506en-000709 | 95

Models affected

H1B 60, 80, 110, 160, 210 and 250cc motors

Serial numbers

This change became effective at 18-12-xxxxx

Part number affected

Not applicable

Parts disposition

Not applicable

QM050

F0020 (servo piston with setting lug bore)

F0050 (setting lug)

P0040

P0050

Rear view of valve segment proportional controls

Parts Manual

H1B 060 Bent Axis Motor

Service bulletin

SB-2019-017

Products affected

H1 Bent Axis Motors Size 060/080/110/160/210/250

Subject

Potential injury risk on motors with proportional control servo systems

Description

Danfoss Power Solutions has identified a potential safety concern when performing disassembly and reassembly of the H1B bent axis motors. Specifically, when removing and installing the servo piston assembly, it is important the instructions as documented within the H1B Bent Axis Variable Displacement Motors Repair Instructions (document AX152886484588) are strictly followed.

Caution

Failure to follow these instructions while performing a repair can result in a severe laceration or finger amputation injury.

Injury may occur if the removal of the servo piston bolt (P0050) is performed after the end cap has been removed along with the valve segment (QM050) and setting lug (F0050). If torque is applied to the servo piston bolt (P0050) while an operator’s fingers are in proximity to the empty and exposed setting lug bore, a severe laceration or finger amputation injury may occur.

The risk of injury is also present during the reassembly of the servo piston assembly (P0040 and F0020) in the end cap. If torque is applied to the servo piston bolt (P0050) while an operator’s fingers are in the proximity to the empty and exposed setting lug bore, a severe laceration or finger amputation injury may occur.

It is important that the setting lug and valve segment (QM050) are properly installed prior to installing and torquing the servo piston bolt (P0050).

Parts Manual

H1B 060 Bent Axis Motor

Service bulletin

SB-2020-038

Products affected

H1B motors

Subject

6.5 bar shuttle spool

Description

Danfoss has changed the design of the 6.5 bar shuttle spool used in H1B motors. With this change a new part number will be issued. The old part number is still active for older end caps.

The flats on the current shuttle spool aid in the dampening of the shuttle shift. Now the dampening is corrected by the addition of 2mm bores in the end cap. The end caps were updated 17-1. The new spool (without flats) cannot be used in end caps without 2mm bore. The current spool can be used in end caps with and without 2mm bore.

Models affected

H1B motors

Serial numbers affected

This change became effective at X.

Danfoss | December 2021 AX152886481506en-000709 | 97

Parts Manual

H1B 060 Bent Axis Motor

Service bulletin

Part numbers affected

Description Old part number New part number

Loop flushing spool 11031106 Loop flushing spool - 11165542

Parts disposition

Non-interchangeable

Danfoss Power Solutions GmbH & Co. OHG

Krokamp 35 D-24539 Neumünster, Germany Phone: +49 4321 871 0

Danfoss Power Solutions ApS

Nordborgvej 81 DK-6430 Nordborg, Denmark Phone: +45 7488 2222

Danfoss Power Solutions (US) Company

2800 East 13th Street Ames, IA 50010, USA Phone: +1 515 239 6000

Danfoss Power Solutions Trading (Shanghai) Co., Ltd.

Building #22, No. 1000 Jin Hai Rd Jin Qiao, Pudong New District Shanghai, China 201206 Phone: +86 21 2080 6201

Products we offer:

Hydro-Gear

www.hydro-gear.com

Daikin-Sauer-Danfoss

www.daikin-sauer-danfoss.com

Cartridge valves

•

DCV directional control

•

valves Electric converters

•

Electric machines

•

Electric motors

•

Gear motors

•

Gear pumps

•

Hydraulic integrated

•

circuits (HICs) Hydrostatic motors

•

Hydrostatic pumps

•

Orbital motors

•

PLUS+1® controllers

•

PLUS+1® displays

•

PLUS+1® joysticks and

•

pedals PLUS+1® operator

•

interfaces PLUS+1® sensors

•

PLUS+1® software

•

PLUS+1® software services,

•

support and training Position controls and

•

sensors PVG proportional valves

•

Steering components and

•

systems Telematics

•

Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electric components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile off-highway market as well as the marine sector. Building on our extensive applications expertise, we work closely with you to ensure exceptional performance for a broad range of applications. We help you and other customers around the world speed up system development, reduce costs and bring vehicles and vessels to market faster.

Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile electrification.

Go to www.danfoss.com for further product information.

We offer you expert worldwide support for ensuring the best possible solutions for outstanding performance. And with an extensive network of Global Service Partners, we also provide you with comprehensive global service for all of our components.

Local address:

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.

Danfoss | December 2021 AX152886481506en-000709

Danfoss H1B 60cc Service guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

General information

Service Parts Identification

Nameplate

Date code

About service bulletins

Procedure to identify a part

Adobe Acrobat 2-page viewing

Order code

Control

Servo pressure supply

Orifice

End cap

Flange/housing

Shaft

Speed sensing

Loop flushing

Special hardware and displacement

Overhaul seal kit

H1B 60cc seal kit

Service bulletin

SB-2018-028

SB-2019-017

SB-2020-038
