Parts Manual Series 90 55cc Axial Piston Pump
Contents
General information
Variable displacement
pump
Service parts identication ................................................................................................................. 4
Nameplate ................................................................................................................................................ 4
Date code .................................................................................................................................................. 5
Service bulletins ..................................................................................................................................... 5
Procedure to identify a part ...............................................................................................................5
Order code ................................................................................................................................................ 7
Common parts ..................................................................................................................................8-21
Special hardware ........................................................................................................................... 10-21
Displacement limitation ............................................................................................................. 22-33
End cap ............................................................................................................................................. 34-37
Charging system ............................................................................................................................38-39
Auxiliary mounting ....................................................................................................................... 40-47
Charge pressure setting ..............................................................................................................46-47
Shaft ................................................................................................................................................... 46-47
Control .............................................................................................................................................. 48-93
Filtration ........................................................................................................................................... 94-95
High pressure protection .........................................................................................................96-101
Orice ........................................................................................................................................... 102-113
Overhaul seal kit ................................................................................................................................ 114
2
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Contents
Service bulletin
BLN-10107 (charge pump design change) ..................................................................... 115-116
SB-1988-009 (servo arm/swashplate change) ........................................................................ 117
SB-1988-016 (slipper holddown clearance).............................................................................118
SB-1988-023 (piston improvement) ........................................................................................... 119
SB-1988-024 (remote pressure ltration change) ................................................................. 120
SB-1989-002 (incorporation of adjustable charge relief valve) ........................................ 121
SB-1989-003 (leveler/servo pressure check valves) .............................................................. 122
SB-1989-006 (charge pump redesign) .............................................................................. 123-124
SB-1989-009 (end cap gasket consolidation) .........................................................................125
SB-1989-037 (end cap/housing change) .................................................................................. 126
SB-1992-003 (pump redesign)......................................................................................................127
SB-1992-011 (feedback link retention) ...................................................................................... 128
SB-1993-001 (charge pump redesign) .............................................................................. 129-130
SB-1993-002 (HDC gasket change) ............................................................................................. 131
SB-1993-015 (servo arm/speed ring interference) ................................................................ 132
SB-1994-017 (swashplate cage locator) .................................................................................... 133
SB-1994-018 (Side cover washer elimination) ........................................................................ 134
SB-1994-036 (Integral ltration manifold) ...............................................................................135
SB-1995-003 (MDC w/electric solenoid override manifold change) .............................. 136
SB-1995-025 (side cover design change) .................................................................................137
SB-1995-026 (valve plate change)...............................................................................................138
SB-1996-009 (feedback link change) ..........................................................................................139
SB-1998-018 (cage locator pin) .................................................................................................... 140
SB-1998-041 (piston holddown redesign) ...................................................................... 141-142
SB-1998-066 (charge pump shaft) ..................................................................................... 143-144
SB-1999-019 (feedback link change) ..........................................................................................145
SB-1999-041 (side cover insert material change) .................................................................. 144
SB-2000-041 (leveler spring shim) .............................................................................................. 147
SB-2002-050 (auxiliary mounting pad) ..................................................................................... 148
SB-2004-012 (cage locator pin) .................................................................................................... 149
SB-2005-011 (auxiliary ange charge pump cover ............................................................... 150
SB-2007-027 (SAE A auxiliary mounting ange ............................................................ 151-152
SB-2007-051 (SAE C auxiliary mounting ange ............................................................ 153-154
SB-2007-055 (SAE B auxiliary mounting ange ............................................................ 155-156
SB-2009-038 (slipper hold down spacer) ..................................................................................157
SB-2010-005 (SAE B auxiliary mounting ange) ........................................................... 158-159
SB-2010-025 (shaft seal change) ................................................................................................. 160
SB-2013-011 (feedback link) ..........................................................................................................161
SB-2014-020 (control solenoid valve) ............................................................................... 162-163
SB-2015-005 (slider block change) ............................................................................................. 164
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
3
Parts Manual Series 90 55cc Axial Piston Pump
General information
Service parts
indentification
The following information and procedure is used to identify the module group, item
number, manufacture date, part number, and part name of the parts included in the
Series 90 55 cc variable displacement pumps.
The parts listed include all parts which may be used when performing either “Minor
Repairs”, “Major Repairs” or “Conversions” on the Series 90 55 cc pump.
Nameplate Each unit will have a nameplate axed to
the housing. The nameplate will include the
following information.
Model Code
The Sauer-Danfoss model code completely
denes the specic unit and must be used
when ordering parts to service this product.
Model Number
The Sauer-Danfoss model number is used by
the factory in manufacturing. On repeat orders,
a complete unit can be ordered by the model
number.
Serial Number
The Sauer-Danfoss serial number is used to
identify the manufacture date and the unit
sequence in the build. The serial number is also
used to identify the units warranty time period.
Model No./Ident No.
Model Code
Serial No.
90 R 055 MA 1
NN 80 L 3 C6 D
03 GCA 42 42 24
A-01-26-23456
Made in U. S. A.
9421216
The letter code indicates the location of original
manufacture (assembly). “A” indicates the unit
was originally assembled in Ames, Iowa, USA.
The rst number (2 digits) indicates the year of
manufacture. (“01” would indicate the unit was
manufactured in 2001)
The second number (2 digits) indicates the
calendar week of manufacture.
The third number (5 digits) is a sequential
number used to identify a specic unit.
4
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
General information
Date code
The date code is dened as the year and week of manufacture. The same item number
may list more than one part number. This indicates that there is more than one
conguration for that item number. You will see that there are dierent date codes
for the dierent part numbers. Find the date code of your unit from the nameplate to
determine which service part number you need to order.
EXAMPLE: The service part desired is Item G30
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
80 G30 89-17 8000243 End cap gasket 1
G30 87-02 89-16 8000151 End cap gasket (SB-1995-006) 1
All units using this order code with a date code of 87-02 and up to and including 89-16,
must use part number “8000151”. All units with a date code of 89-17 and newer must use
part number “8000243.”.
Service bulletins A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you
desire. You must read that Service Bulletin prior to ordering that part. The information
contained in these Service Bulletins, as of the print date of this bulletin, are included
at the end of this manual. Service Bulletins contain more detailed information such as
interchangeability, what additional parts are involved, etc. It is suggested that you add
additional Service Bulletins to this manual as you recieve them.
Procedure to identify a
part
General
The modular design of Series 90 units results in a simplied service parts list and part
number identication procedure.
The same item numbers are used for same part names on all units within a product type.
(Example: The lip seal - Item L40 has the same item number on all pumps.)
A part number that has another number following it in parentheses is done to make this
a world wide manual. The rst number is sold in Germany. The number in parentheses
is sold in the United States. (Example: 314583 (9008000-0118), customers would order
9008000-0118 if ordering the part in the United States.)
Example of a Part Identification
The nameplate on a Series 90 pump has an Order Code of 90R055 MA 1 NN 80 L 3 C6
D 03 GCA 42 42 24. Use the following procedures to determine the part number of the
drive shaft used on this pump.
1) Referring to the input shaft module in the Order Code (see page 7), the input shaft
option for this pump is identied by the code “C6”. (90R055 MA 1 NN 80 L 3 C6 D 03 GCA
42 42 24)
2) Referring to the Service Parts List, nd the shaft group. Next nd the order code that
relates to this unit, which is “C6”. The shaft is found to be item L100 and part number
8000079.
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
5
Parts Manual Series 90 55cc Axial Piston Pump
Adobe Acrobat 2-page viewing
Abobe Acrobat 2-page
viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to
ensure proper page display.
1. Select “View” --> “Page Display” --> “Two Page View”
2. Select “View” --> “Page Display” --> “Show Cover Page in Two Page View”
6
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Series
Displacement
Order Code
90 R
Rotation
Control
Pressure regulation
Auxiliary mounting pad
End cap
Filtration
Displacement limitation
055
MP JGNF
MA
NN
1
80
L
3
LHTWYZK
C6
D
03
GCA
42
42 42
Shaft
Charging system
Control orifice
Special hardware features
High pressure setting port A
High pressure setting port B
Charge pressure setting
P100 686E
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
7
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
*B90
B72
B82
B10
B50
B50
B80
*B90
B70
L10
L20
E30
L40
*L60
L50
L70
*L25
QL25
E30
D95
QD50
F20
D55
D65
D10
D75
D70
QB30
M14
D50
D60
D85
D80
E24
E80
E22
E10
E70
E20
*E50
E90
*E60
*E40
E100 703E
* = included in overhaul seal kit Q210
8
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
B10 95-06 8000387 Housing (SB-1992-003) 1
B50 87-02 9004800-3708 Pin 2
B70 87-02 327007 (9005110-4400) Plug assembly 1
B72 87-02 327007 (9005110-4400) Plug assembly 1
B80 87-02 664524 (9005110-9000) Plug assembly 1
B82 87-02 9005110-5600 Plug assembly (SB-1992-003) 1
B90 87-02 9803390 Control lter screen 3
D10 88-14 8000318 Servo arm assembly (SB-1993-015) 1
D50 88-14 8000188 Swashplate (SB-1988-009) 1
D55 87-02 666032 (9007276-0107) Screw 1
D60 87-02 8800669 Swashplate guide 1
D65 87-02 9007375-0044 Screw (SB-1992-011) 1
D70 87-02 9009625-0146 Washer 1
D75 87-02 9004875-0098 Spiral head pin 1
D80 87-02 8100506 Cage locator link (SB-1994-017) 1
D85 04-43 8801235 Pin (SB-2004-012) 1
D85 87-02 04-42 8801135 Pin (SB-1998-018) 1
D95 87-02 8100035 Spring 1
E10 95-50 8000400 Side cover (SB-1995-025) 1
E20 87-02 8000094 Leveler (SB-1989-003) 1
E22 87-02 358838 Spring seat (SB-1989-003) 2
E24 92-06 8801225 Shim (SB-1989-003 & SB-2000-041) 2
E30 95-50 11056530 Guide post 2
E30 87-02 95-49 8100353 Guide post (SB-1995-025) 2
E40 87-02 505412 (9003509-0008) Seal nut 2
E50 87-02 056739 (9004104-1580) O-ring 1
E60 87-02 5000206 Screw (SB-1994-018) 6
E70 87-02 664524 (9005110-9000) Plug assembly 1
E80 87-02 8000186 Spring 2
E90 95-50 513886 Insert assembly (SB-1995-025 & SB-1999-041) 1
F20 88-14 11116313 Slider block (SB-1988-009 & SB-2015-005) 1
L10 87-02 5000504 Roller bearing 1
L20 87-02 9006300-0137 Retaining ring 1
L25 10-40 11083637 Seal carrier assembly 1
L40 10-40 11013519 Lip seal (SB-2010-025) 1
L50 87-02 071845 (9004104-1510) O-ring 1
L60 87-02 11083638 Retainer plate (SB-2010-025) 1
L70 87-02 041160 (9007314-0605) Screw 3
QB30 87-02 8000131 Bearing/pin assembly 1
QD50 88-14 8000200 Swashplate kit (SB-1988-009) 1
QD50 87-02 88-14 8000201 Swashplate kit 1
QL25 87-02 10-39 11084372 Seal carrier replacement kit (SB-2010-025) 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
9
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
EAB & EDC
QC04
C40
C06
C30
B83
*C70
C20
QB83
C50
EEC
B83
E82
E82
C80
C06
C80
EBC & EFI
QC04
EEB & EEG
B83
QB83
B83
C20
C30
C40
C50
*C70
E100 704E
* = included in base pump seal kit Q210
10
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 11067348 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016, SB-1998-041 & SB-2009-038) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
EAB & NMS B83 92-06 KPPG12508 Speed sensor 1
& NWN C06 92-06 8000336 Cylinder block assembly, with speed ring 1
C80 92-06 11015185 Valve plate 1
E82 92-06 8000203 Spring 2
QB83 92-06 085043 (9004201-3700) O-ring 1
QC04 92-06 8510362 Cylinder block kit, with speed ring 1
EBC B83 96-06 KPPG13408 Speed sensor 1
C06 96-06 8000336 Cylinder block assembly, with speed ring 1
C80 96-06 11015186 Valve plate 1
QB83 96-06 085043 (9004201-3700) O-ring 1
QC04 96-06 8510362 Cylinder block kit, with speed ring 1
EDC B83 96-39 12-35 KPPG13403 Speed sensor 1
C06 96-39 12-35 8000336 Cylinder block assembly, with speed ring 1
C80 96-39 12-35 11018343 Valve plate, CW 1
E82 96-39 12-35 8000203 Spring 2
QB83 96-39 12-35 085043 (9004201-3700) O-ring 1
QC04 96-39 12-35 8510362 Cylinder block kit, with speed ring 1
EEB B83 96-06 9005110-5600 Plug assembly 1
C06 96-06 8000336 Cylinder block assembly, with speed ring 1
C80 96-06 11015186 Valve plate 1
QC04 96-06 8510362 Cylinder block kit, with speed ring 1
EEC B83 94-51 9005110-5600 Plug assembly 1
C06 94-51 8000336 Cylinder block assembly, with speed ring 1
C80 94-51 11018330 Valve plate, CCW 1
C80 94-51 11018343 Valve plate, CW 1
E82 94-51 8000203 Spring 2
QC04 94-51 8510362 Cylinder block kit, with speed ring 1
EEG B83 00-06 9005110-5600 Plug assembly 1
C06 00-06 8000336 Cylinder block assembly, with speed ring 1
C80 00-06 11018330 Valve plate, CCW 1
C80 00-06 11018343 Valve plate, CW 1
QC04 00-06 8510362 Cylinder block kit, with speed ring 1
EFI B83 07-38 KPPG156 Speed sensor 1
C06 07-38 8000336 Cylinder block assembly, with speed ring 1
C80 07-38 11018343 Valve plate, CW 1
QB83 07-38 085043 (9004201-3700) O-ring 1
QC04 07-38 8510362 Cylinder block kit, with speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
11
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QC04
C40
C05
FAA, FAB, FAC
& FAD
C20
C30
*C70
B83
E82
E82
C50
C80
C06
C80
QC04
EFU, EHA
& EHC
QB83
B83
C20
C30
C40
C50
*C70
E101 866E
* = included in overhaul seal kit Q210
12
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 11067348 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016, SB-1998-041 & SB-2009-038) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
EFU B83 14-04 KPPG156 Speed sensor 1
C06 14-04 8000336 Cylinder block assembly, with speed ring 1
C80 14-04 11018343 Valve plate, CW 1
QB83 14-04 085043 (9004201-3700) O-ring 1
QC04 14-04 8510362 Cylinder block kit, with speed ring 1
EHA B83 99-14 KPPG16408 Speed sensor 1
C06 99-14 8000336 Cylinder block assembly, with speed ring 1
C80 99-14 11015186 Valve plate 1
QB83 99-14 085043 (9004201-3700) O-ring 1
QC04 99-14 8510362 Cylinder block kit, with speed ring 1
EHC B83 99-14 KPPG12408 Speed sensor 1
C06 99-14 8000336 Cylinder block assembly, with speed ring 1
C80 99-14 11015186 Valve plate 1
QB83 99-14 085043 (9004201-3700) O-ring 1
QC04 99-14 8510362 Cylinder block kit, with speed ring 1
FAA & NDN B83 91-04 9005110-5600 Plug assembly 1
C05 91-04 8000128 Cylinder block assembly, without speed ring 1
C80 91-04 11017478 Valve plate 1
E82 91-04 8000203 Spring 2
QC04 91-04 8510363 Cylinder block kit, without speed ring 1
FAB & NBN B83 91-46 9005110-5600 Plug assembly 1
C05 91-46 8000128 Cylinder block assembly, without speed ring 1
C80 91-46 363713 Valve plate 1
E82 91-46 8000203 Spring 2
QC04 91-46 8510363 Cylinder block kit, without speed ring 1
FAC B83 94-23 9005110-5600 Plug assembly 1
C05 94-23 8000128 Cylinder block assembly, without speed ring 1
C80 94-23 11015185 Valve plate 1
E82 94-23 8000203 Spring 2
QC04 94-23 8510363 Cylinder block kit, without speed ring 1
FAD & NSN B83 94-23 9005110-5600 Plug assembly 1
C05 94-23 8000128 Cylinder block assembly, without speed ring 1
C80 94-23 11015186 Valve plate (SB-1997-003) 1
E82 94-23 8000203 Spring 2
QC04 94-23 8510363 Cylinder block kit, without speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
13
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QC04
C40
C05
FAK, FAP, FAR,
FAU,FBD, FBE &
FBG
B83
C20
C30
E82
E82
C50
C80
*C70
E101 867E
* = included in overhaul seal kit Q210
14
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 11067348 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016 & SB-1998-041) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
FAK B83 99-45 13-15 9005110-5600 Plug assembly 1
C05 99-45 13-15 8000128 Cylinder block assembly, without speed ring 1
C80 99-45 13-15 11015186 Valve plate 1
E82 99-45 13-15 8000203 Spring 2
QC04 99-45 13-15 8510363 Cylinder block kit, without speed ring 1
FAP B83 96-08 9005110-5600 Plug assembly 1
C05 96-08 8000128 Cylinder block assembly, without speed ring 1
C80 96-08 11018330 Valve plate, CCW 1
C80 96-08 11018343 Valve plate, CW 1
E82 96-08 8000203 Spring 2
QC04 96-08 8510363 Cylinder block kit, without speed ring 1
FAR B83 99-11 06-34 9005110-5600 Plug assembly 1
C05 99-11 06-34 8000128 Cylinder block assembly, without speed ring 1
C80 99-11 06-34 510714 Valve plate 1
E82 99-11 06-34 8000203 Spring 2
QC04 99-11 06-34 8510363 Cylinder block kit, without speed ring 1
FAU B83 99-11 06-34 9005110-5600 Plug assembly 1
C05 99-11 06-34 8000128 Cylinder block assembly, without speed ring 1
C80 99-11 06-34 11015186 Valve plate 1
E82 99-11 06-34 8000203 Spring 2
QC04 99-11 06-34 8510363 Cylinder block kit, without speed ring 1
FBD B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 510714 Valve plate 1
E82 06-12 8000203 Spring 2
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
FBE B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015186 Valve plate 1
E82 06-12 8000203 Spring 2
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
FBG B83 06-17 9005110-5600 Plug assembly 1
C05 06-17 8000128 Cylinder block assembly, without speed ring 1
C80 06-17 11015186 Valve plate 1
E82 06-17 8000203 Spring 2
QC04 06-17 8510363 Cylinder block kit, without speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
15
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QC04
C40
C05
GAA, GBA, GBG ,GCA, GCR, GDE,
GEA & GFD
B83
GBG only
B2CN
C20
C30
C80
C50
*C70
E100 708E
* = included in overhaul seal kit Q210
16
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 11067348 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016 & SB-1998-041) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
GAA & NCN B83 91-07 09-49 9005110-5600 Plug assembly 1
C05 91-07 09-49 8000128 Cylinder block assembly, without speed ring 1
C80 91-07 09-49 11017479 Valve plate 1
QC04 91-07 09-49 8510363 Cylinder block kit, without speed ring 1
GBA, NNN B83 92-06 9005110-5600 Plug assembly 1
& NWN C05 87-02 8000128 Cylinder block assembly, without speed ring 1
C80 87-02 11015186 Valve plate (SB-1995-026, SB-1997-003) 1
QC04 87-02 8510363 Cylinder block kit, without speed ring 1
GBG B83 99-45 9005110-5600 Plug assembly 1
B2CN 99-45 042457 Set screw 1
C05 99-45 8000128 Cylinder block assembly, without speed ring 1
C80 99-45 11015186 Valve plate 1
QC04 99-45 8510363 Cylinder block kit, without speed ring 1
GCA B83 94-27 9005110-5600 Plug assembly 1
C05 94-27 8000128 Cylinder block assembly, without speed ring 1
C80 94-27 11015185 Valve plate 1
QC04 94-27 8510363 Cylinder block kit, without speed ring 1
GCR B83 11-23 9005110-5600 Plug assembly 1
C05 11-23 8000128 Cylinder block assembly, without speed ring 1
C80 11-23 11015186 Valve plate 1
QC04 11-23 8510363 Cylinder block kit, without speed ring 1
GDE B83 15-20 9005110-5600 Plug assembly 1
C05 15-20 8000128 Cylinder block assembly, without speed ring 1
C80 15-20 11015186 Valve plate 1
QC04 15-20 8510363 Cylinder block kit, without speed ring 1
GEA & SLN B83 92-06 9005110-5600 Plug assembly 1
C05 90-07 8000128 Cylinder block assembly, without speed ring 1
C80 90-07 11087562 Valve plate 1
QC04 90-07 8510363 Cylinder block kit, without speed ring 1
GFD B83 98-14 9005110-5600 Plug assembly 1
C05 98-14 8000128 Cylinder block assembly, without speed ring 1
C80 98-14 11015186 Valve plate 1
QC04 98-14 8510363 Cylinder block kit, without speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
17
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QC04
C40
C05
GFH, GFJ, GLK, GFL, GFM,
GFN, GFS & GFW
B83
C20
C30
E82
E82
C50
C80
*C70
GFM only
E101 867E
* = included in overhaul seal kit Q210
18
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 8000007 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016 & SB-1998-041) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
GFH B83 98-14 9005110-5600 Plug assembly 1
C05 98-14 8000128 Cylinder block assembly, without speed ring 1
C80 98-14 11015186 Valve plate 1
QC04 98-14 8510363 Cylinder block kit, without speed ring 1
GFJ B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015186 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
GFK B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015186 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
GFL B83 13-51 9005110-5600 Plug assembly 1
C05 13-51 8000128 Cylinder block assembly, without speed ring 1
C80 13-51 11015186 Valve plate 1
QC04 13-51 8510363 Cylinder block kit, without speed ring 1
GFM B83 13-51 9005110-5600 Plug assembly 1
C05 13-51 8000128 Cylinder block assembly, without speed ring 1
C80 13-51 11015186 Valve plate 1
E82 13-51 8000203 Spring 2
QC04 13-51 8510363 Cylinder block kit, without speed ring 1
GFN B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015186 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
GFS B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015186 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
GFW B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11015185 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
19
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QC04
C05
GFY, GLA, GLC, GTA,
JCA, JCB & PGA
GLC & GTA
only
C30
C40
*C70
B83
B2CN
C20
C50
C80
C06
C80
QC04
PEA
QB83
B83
C20
C30
C40
C50
*C70
20
E101 869E
* = included in overhaul seal kit Q210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
C20 87-02 367672 Piston assembly (SB-1988-023) 9
C30 87-02 8000007 Slipper guide 1
C40 88-43 8000137 Slipper guide bearing (SB-1988-016) 2
C50 88-43 11065864 Spacer (SB-1988-016 & SB-1998-041) 4
C70 88-43 648477 Screw (SB-1988-016 & SB-1998-041) 4
Special hardware
GFY B83 06-12 9005110-5600 Plug assembly 1
C05 06-12 8000128 Cylinder block assembly, without speed ring 1
C80 06-12 11087562 Valve plate 1
QC04 06-12 8510363 Cylinder block kit, without speed ring 1
GLA B83 98-14 9005110-5600 Plug assembly 1
C05 98-14 8000128 Cylinder block assembly, without speed ring 1
C80 98-14 11018330 Valve plate, CCW 1
C80 98-14 11018343 Valve plate, CW 1
QC04 98-14 8510363 Cylinder block kit, without speed ring 1
GLC B83 04-38 9005110-5600 Plug assembly 1
B2CN 04-38 042457 Set screw 1
C05 04-38 8000128 Cylinder block assembly, without speed ring 1
C80 04-38 11018343 Valve plate, CW 1
QC04 04-38 8510363 Cylinder block kit, without speed ring 1
GTA B83 14-21 9005110-5600 Plug assembly 1
B2CN 14-21 042457 Set screw 1
C05 14-21 8000128 Cylinder block assembly, without speed ring 1
C80 14-21 11015186 Valve plate 1
QC04 14-21 8510363 Cylinder block kit, without speed ring 1
JCA B83 10-18 9005110-5600 Plug assembly 1
C05 10-18 8000128 Cylinder block assembly, without speed ring 1
C80 10-18 11015186 Valve plate 1
QC04 10-18 8510363 Cylinder block kit, without speed ring 1
JCB B83 09-10 12-35 9005110-5600 Plug assembly 1
C05 09-10 12-35 8000128 Cylinder block assembly, without speed ring 1
C80 09-10 12-35 11015186 Valve plate 1
QC04 09-10 12-35 8510363 Cylinder block kit, without speed ring 1
PEA B83 07-03 KPPG156 Speed sensor 1
C06 07-03 8000336 Cylinder block assembly, with speed ring 1
C80 07-03 11015186 Valve plate 1
QB83 92-06 085043 (9004201-3700) O-ring 1
QC04 07-03 8510362 Cylinder block kit, with speed ring 1
PGA B83 08-01 9005110-5600 Plug assembly 1
C05 08-01 8000128 Cylinder block assembly, without speed ring 1
C80 08-01 11015186 Valve plate 1
QC04 08-01 8510363 Cylinder block kit, without speed ring 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
21
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
*F112
F111
F111
3
(*F40)
(*F50)
1 & 4
F113
F105
F105
(*F40)
(*F50)
(*F50)
(*F40)
4
(*F12)
(*F11)
F211
F10
(*F11)
(*F12)
F205
1 & 3
(*F50)
(*F40)
F205
F211
F213
*F212
22
E100 688E
* = included in overhaul seal kit Q210
( ) = not available individually
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
1 F10 91-07 11046668 Servo piston assembly 1
F105 91-07 11054834 Servo cylinder assembly 1
F111 91-07 9007210-0604 Screw 3
F112 91-07 505412 (9003509-0008) Seal nut 1
F113 91-07 5000747 Set screw 1
F205 91-07 11054864 Servo cylinder assembly 1
F211 91-07 9007210-0604 Screw 3
3 F10 87-02 11046668 Servo piston assembly 1
F105 91-07 11054864 Servo cylinder assembly 1
F111 87-02 9007210-0604 Screw 3
F205 91-07 11054864 Servo cylinder assembly 1
F211 87-02 9007210-0604 Screw 3
4 F10 91-07 11046668 Servo piston assembly 1
F105 91-07 11054834 Servo cylinder assembly 1
F111 91-07 9007210-0604 Screw 3
F112 91-07 505412 (9003509-0008) Seal nut 1
F113 91-07 5000747 Set screw 1
F205 91-07 11054834 Servo cylinder assembly 1
F211 91-07 9007210-0604 Screw 3
F212 91-07 505412 (9003509-0008) Seal nut 1
F213 91-07 5000747 Set screw 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
23
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
F022
F021
F020
F019
*F124
F018
7
F111
F105
(*F40)
(*F50)
F016
F023
F015
F017
F100
(*F12)
(*F11)
F10
(*F11)
(*F12)
F205
(*F50)
(*F40)
F211
E100 705E
* = included in overhaul seal kit Q210
( ) = not available individually
24
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
7 F10 95-31 11046669 Servo piston assembly 1
F015 95-31 346395 Screw 1
F016 95-31 507092 Spring guide 1
F017 95-31 346320 Servo spring housing 1
F018 95-31 346254 Spring 1
F019 95-31 507093 Spring guide 1
F020 95-31 346379 Retaining ring 1
F021 95-31 787887 Castle nut 1
F022 95-31 336800 Nut 1
F023 95-31 11140220 Adjusting screw 1
F100 95-31 8000760 Servo assembly 1
F105 95-31 11054838 Servo cylinder assembly, automotive control 1
F111 95-31 704395 (9007314-0604) Screw 3
F124 95-31 336826 Seal nut 1
F205 95-31 11054864 Servo cylinder assembly, non-adjustable 1
F211 95-31 9007210-0604 Screw 3
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
25
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
F105
F111
(*F40)
(*F50)
B
(*F12)
(*F11)
F10
(*F11)
(*F12)
F200
(*F50)
(*F40)
F017
F015
F205
F211
F023
F016
*F224
F020
F018
F019
F021
F022
E101 870E
26
* = included in overhaul seal kit Q210
( ) = not available individually
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
B F10 98-40 11046669 Servo piston assembly 1
F015 98-40 346395 Screw 1
F016 98-40 507092 Spring guide 1
F017 98-40 346320 Servo spring housing 1
F018 98-40 346254 Spring 1
F019 98-40 507093 Spring guide 1
F020 98-40 346379 Retaining ring 1
F021 98-40 787887 Castle nut 1
F022 98-40 336800 Nut 1
F023 98-40 11140220 Adjusting screw 1
F105 98-40 11054864 Servo cylinder assembly 1
F111 98-40 9007210-0604 Screw 3
F200 98-40 8000760 Servo assembly 1
F205 98-40 11054838 Servo cylinder assembly 1
F211 98-40 704395 (9007314-0604) Screw 3
F224 98-40 336826 Seal nut 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
27
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
F105
F111
(*F40)
(*F50)
(*F12)
(*F11)
F10
F
(*F11)
(*F12)
F205
(*F12)
(*F11)
K
(*F50)
F10
(*F11)
(*F40)
(*F12)
(*F50)
(*F40)
F211
F205
F211
E101 871E
28
* = included in overhaul seal kit Q210
( ) = not available individually
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
F F10 91-30 11046668 Servo piston assembly 1
F105 91-30 11054836 Servo cylinder assembly 1
F111 91-30 9007210-0604 Screw 3
F205 91-30 11054836 Servo cylinder assembly 1
F211 91-30 9007210-0604 Screw 3
K F10 95-02 11046669 Servo piston assembly 1
F105 95-02 11054864 Servo cylinder assembly 1
F111 95-02 9007210-0604 Screw 3
F205 95-02 11054864 Servo cylinder assembly 1
F211 95-02 9007210-0604 Screw 3
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
29
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
*F112
F022
F021
F020
F019
*F124
F018
F111
F105
F016
F113
(*F40)
(*F50)
F023
F015
F017
F100
(*F12)
(*F11)
F10
(*F11)
(*F12)
(*F50)
(*F40)
F205
F213
F211
*F212
30
E100 706E
* = included in overhaul seal kit Q210
( ) = not available individually
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
L F10 98-14 11046669 Servo piston assembly 1
F015 98-14 346395 Screw 1
F016 98-14 507092 Spring guide 1
F017 98-14 346320 Servo spring housing 1
F018 98-14 346254 Spring 1
F019 98-14 507093 Spring guide 1
F020 98-14 346379 Retaining ring 1
F021 98-14 787887 Castle nut 1
F022 98-14 336800 Nut 1
F023 98-14 11140220 Adjusting screw 1
F100 98-14 8000760 Servo assembly 1
F105 98-14 11054840 Servo cylinder assembly 1
F111 98-14 704395 (9007314-0604) Screw 3
F112 98-40 505412 (9003509-0008) Seal nut 1
F113 98-40 5000747 Set screw 1
F124 98-14 336826 Seal nut 1
F205 98-14 11054834 Servo cylinder assembly 1
F211 98-14 9007210-0604 Screw 3
F212 98-14 505412 (9003509-0008) Seal nut 1
F213 98-14 5000747 Set screw 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
31
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

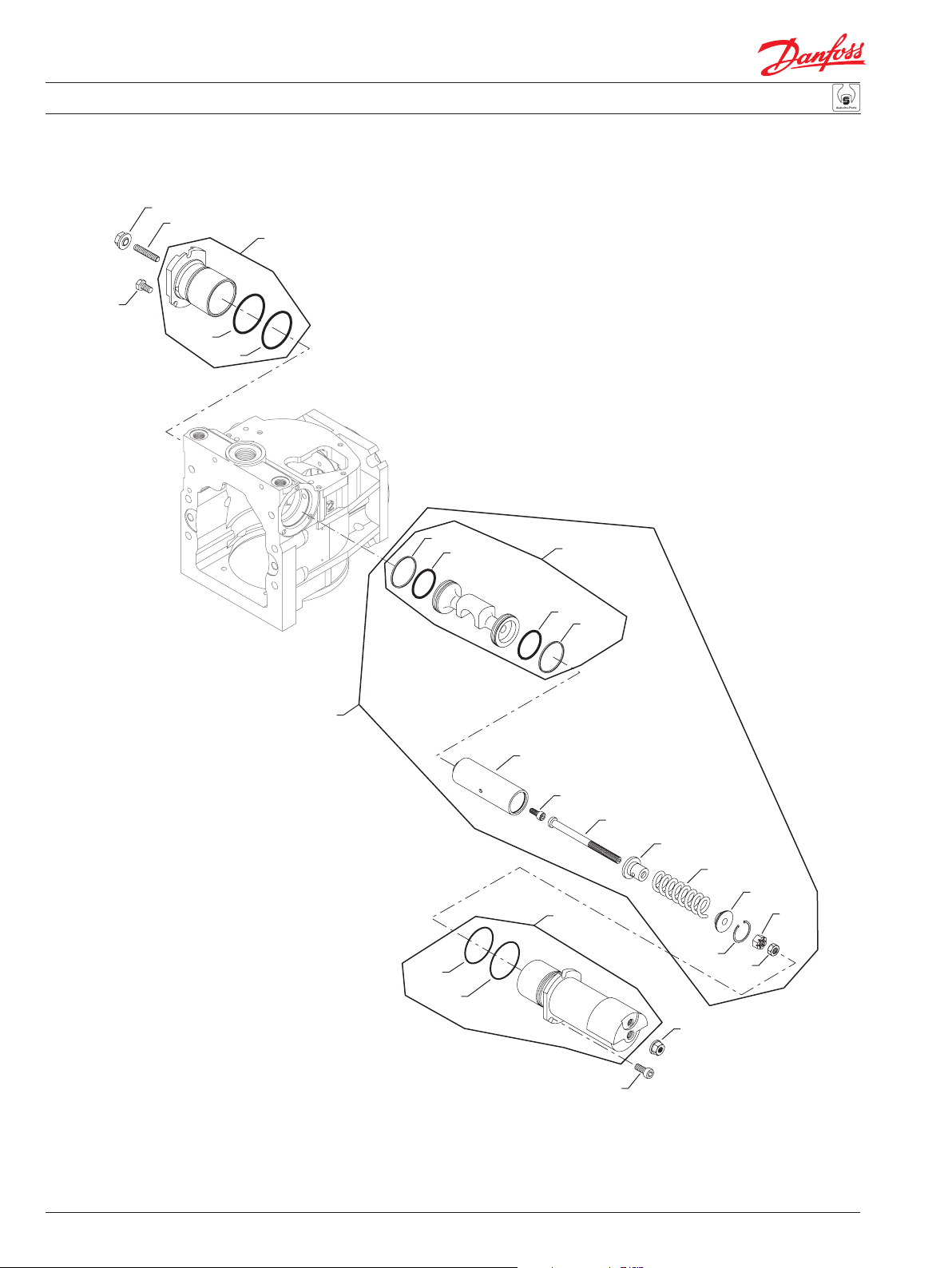

*F112
F113
F105
F111
(*F40)
(*F50)
(*F12)
(*F11)
F10
F200
(*F50)
(*F40)
F017
(*F11)
F015
F205
(*F12)
F023
F016
F020
*F224
F018
F019
F021
F022
F211
E100 707E
* = included in overhaul seal kit Q210
( ) = not available individually
32
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Displacement limitation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
N F10 98-40 11046669 Servo piston assembly 1
F015 98-40 346395 Screw 1
F016 98-40 507092 Spring guide 1
F017 98-40 346320 Servo spring housing 1
F018 98-40 346254 Spring 1
F019 98-40 507093 Spring guide 1
F020 98-40 346379 Retaining ring 1
F021 98-40 787887 Castle nut 1
F022 98-40 336800 Nut 1
F023 98-40 11140220 Adjusting screw 1
F105 98-40 11054834 Servo cylinder assembly 1
F111 98-40 9007210-0604 Screw 3
F112 98-40 505412 (9003509-0008) Seal nut 1
F113 98-40 5000747 Set screw 1
F200 98-40 8000760 Servo assembly 1
F205 98-40 11054840 Servo cylinder assembly 1
F211 98-40 704395 (9007314-0604) Screw 3
F212 98-14 505412 (9003509-0008) Seal nut 1
F213 98-14 5000747 Set screw 1
F224 98-40 336826 Seal nut 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
33
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

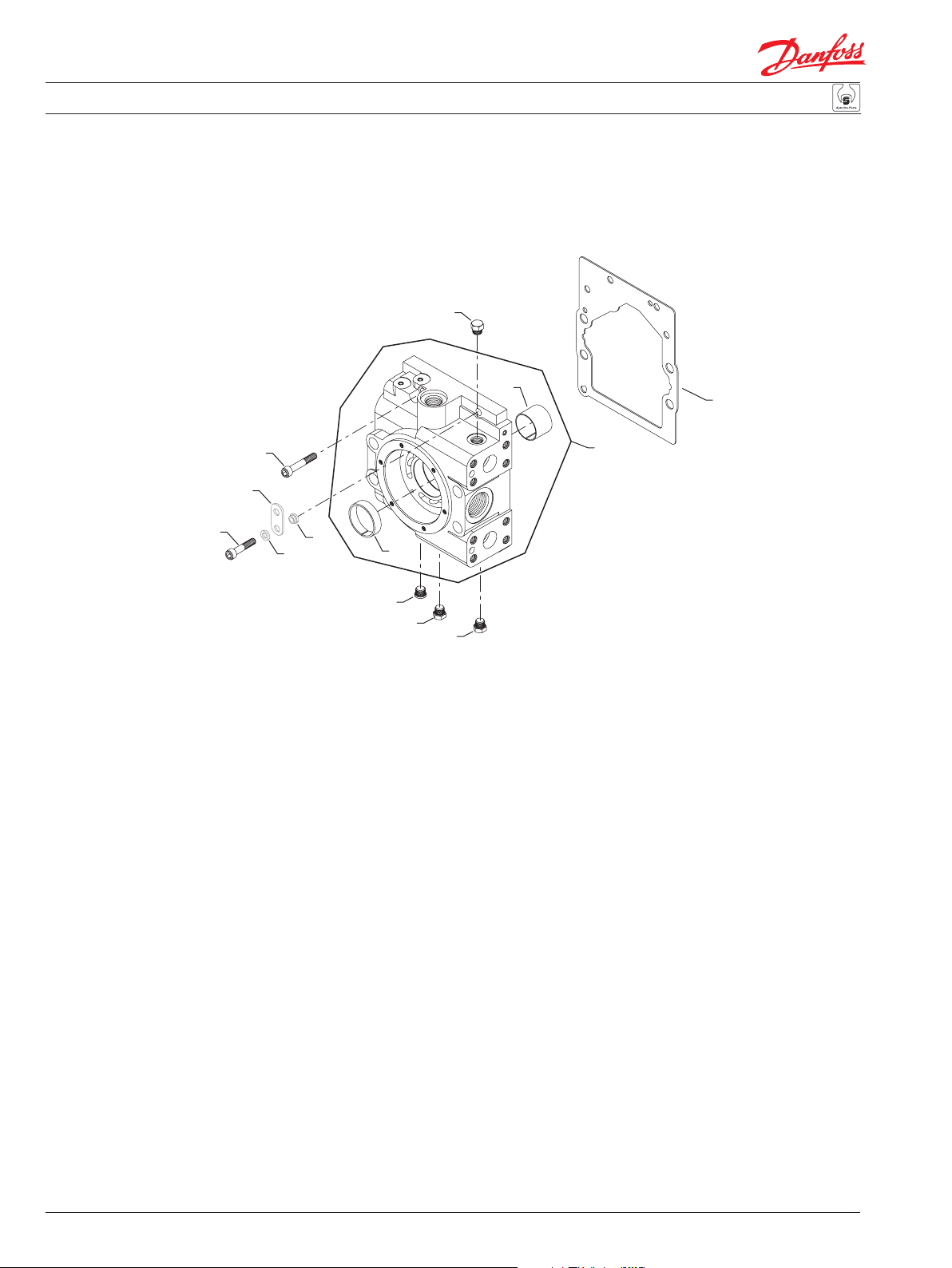

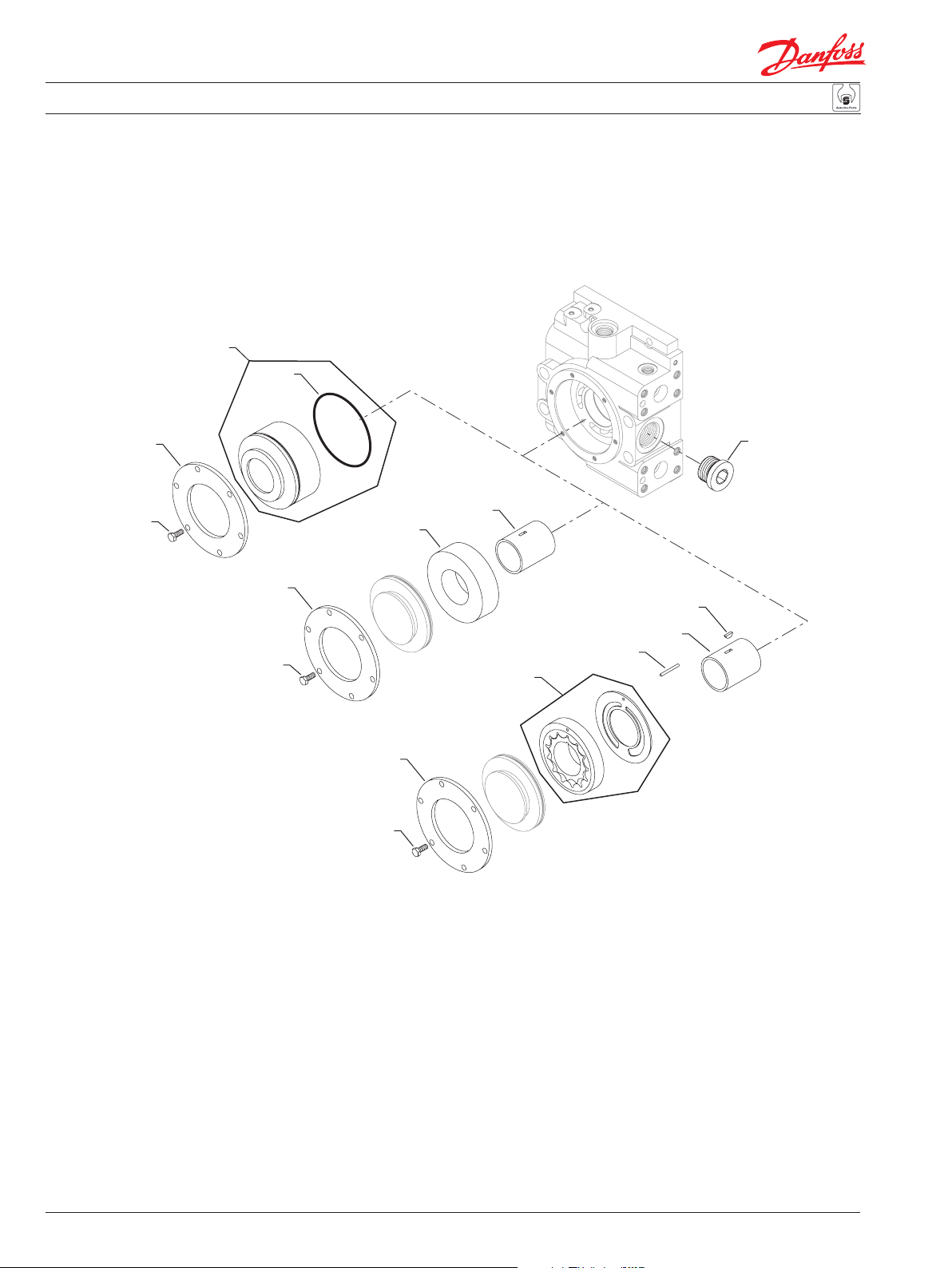

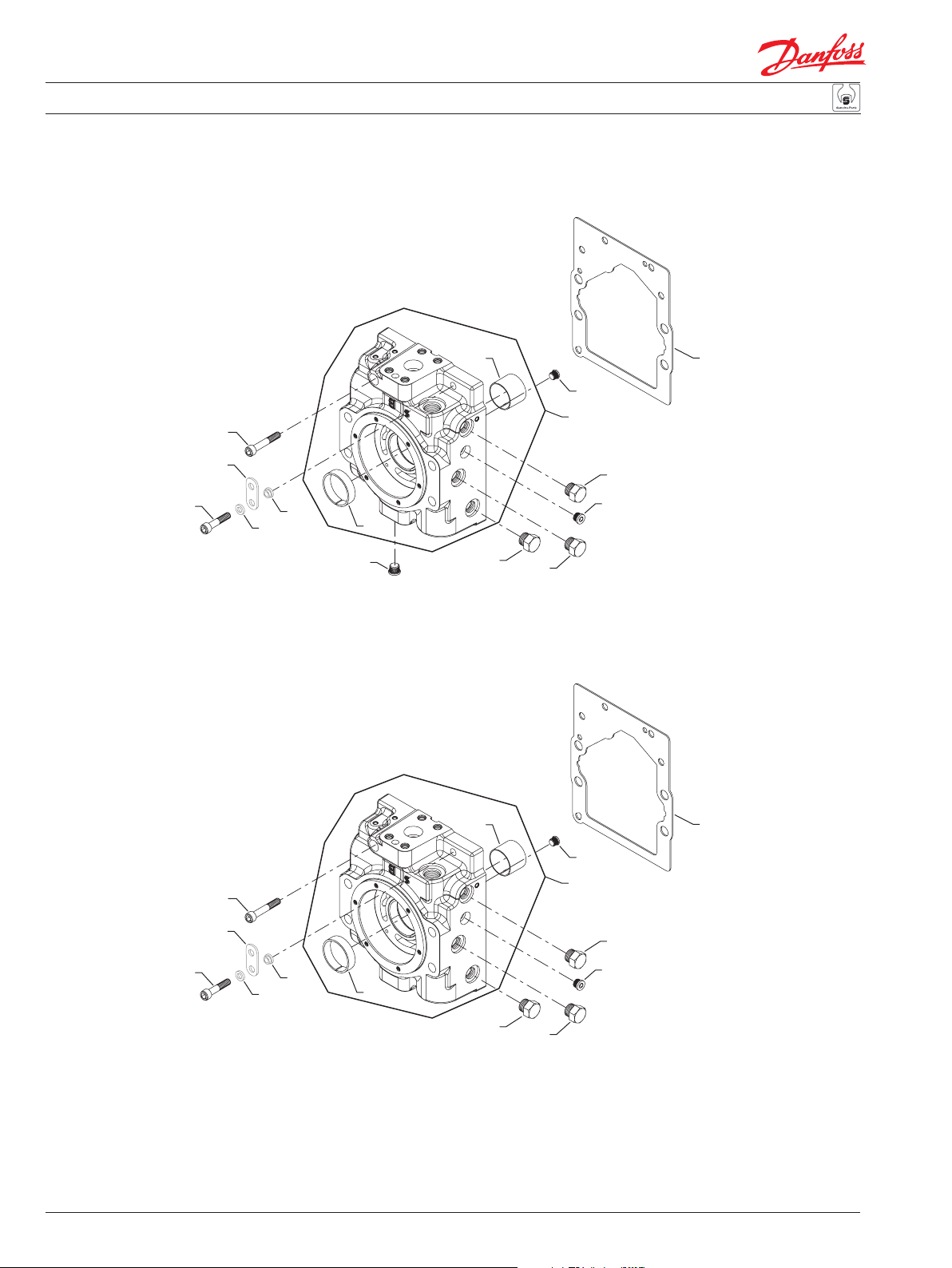

G90
G94
G97
G95
G93
60, 61, 62 & 6L
G40
G52
G20
G48
*G30
G18
G04
G50
G17
G49
G97
G90
G94
G95
G93
64
G20
G18
G04
G40
G48
* = included in overhaul seal kit Q210
G49
*G30
G50
G17
E100 709E
34
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
G17 92-06 327007 (9005110-4400) Plug (SB-1992-0003) 1
G18 92-06 327007 (9005110-4400) Plug (SB-1992-0003) 1
G20 87-02 8700018 Jounal bearing 1
G30 89-17 8000243 End cap gasket (SB-1989-037 & SB-1992-003) 1
G30 87-02 89-16 8000107 End cap gasket (SB-1989-009) 1
G40 87-02 8700008 Bushing 1
G48 87-02 046151 (9005100-5600) Plug assembly 1
G49 87-02 046151 (9005100-5600) Plug assembly 1
G50 87-02 046151 (9005100-5600) Plug assembly 1
G90 89-47 713768 (9007314-0812) Screw (SB-1989-037) 1
G93 89-47 713800 (8800564) Spacer 1
G93 87-02 89-46 8800404 Spacer 1
G94 89-47 8800565 Lifting bracket 1
G94 87-02 89-46 8800522 Lifting bracket 1
G95 89-47 002311 (9009610-3459) Washer 1
G95 87-02 89-46 002295 (9009610-2850) Washer 1
G97 89-47 746644 (9007314-0810) Screw (SB-1989-037) 1
G97 87-02 89-46 694356 (9007314-0608) Screw 1
6 & 60 G04 92-06 8000259 End cap assembly, side ports (SB-1992-003) 1
G52 92-06 9005110-5600 Plug assembly 1
2 & 61 G04 92-06 8000259 End cap assembly, side ports (SB-1992-003) 1
G52 92-06 9005110-5600 Plug assembly 1
H & 62 G04 94-33 8000353 End cap assembly, metric side ports 1
G52 94-33 9005110-5600 Plug assembly 1
4 & 64 G04 95-03 10-39 771410 End cap assembly, side ports, FBA 1
6L G04 97-24 8000543 End cap assembly, metric side ports, lapped 1
G52 97-24 9005110-5600 Plug assembly 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
35
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
G90
G94
G97
G95
G93
80, 81, 82 & 8L
G45
G20
G40
*G30
G04
G52
G47
G46
36
* = included in overhaul seal kit Q210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
E100 710E
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
G20 87-02 8700018 Jounal bearing 1
G30 89-17 8000243 End cap gasket (SB-1989-037 & SB-1992-003) 1
G30 87-02 89-16 8000107 End cap gasket (SB-1989-009) 1
G40 87-02 8700008 Bushing 1
G45 87-02 046151 (9005100-5600) Plug assembly 1
G46 87-02 046151 (9005100-5600) Plug assembly 1
G47 87-02 046151 (9005100-5600) Plug assembly 1
G52 87-02 9005110-5600 Plug assembly 1
G90 89-47 713768 (9007314-0812) Screw (SB-1989-037) 1
G93 89-47 713800 (8800564) Spacer 1
G93 87-02 89-46 8800404 Spacer 1
G94 89-47 8800565 Lifting bracket 1
G94 87-02 89-46 351643 (8800522) Lifting bracket 1
G95 89-47 002311 (9009610-3459) Washer 1
G95 87-02 89-46 002295 (9009610-2850) Washer 1
G97 89-47 746644 (9007314-0810) Screw (SB-1989-037) 1
G97 87-02 89-46 694356 (9007314-0608) Screw 1
8 & 80 G04 92-06 8000260 End cap assembly, twin ports (SB-1992-003) 1
1 & 81 G04 92-06 8000260 End cap assembly, twin ports (SB-1992-003) 1
82 G04 97-01 8000414 End cap assembly, metric twin ports 1
8L G04 97-24 8000540 End cap assembly, metric twin ports, lapped 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
37
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
J15
*J40
H70
H80
T
H70
H80
H25
H50
H90
1
H60
H50
H40
H05
L
H70
H80
B, C & D
E100 712E
* = included in overhaul seal kit
38
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Charging system
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
1 H90 92-22 320002 (9005110-9200) Plug assembly 1
2 H90 95-02 None
B H05 93-10 8000268 Charge pump set, 11 cc (SB-1993-001*) 1
H40 87-02 9004800-1221 Pin 1
H50 93-10 8801177 Charge pump shaft (SB-1993-001* & SB-1998-066) 1
H50 87-02 89-16 8000078 Charge pump shaft (SB-1989-006) 1
H60 87-02 9003310-1206 Key 1
H70 87-02 516761 Retaining plate 1
H80 87-02 9007210-0604 Screw 6
C H05 93-10 8000269 Charge pump set, 14 cc (SB-1993-001*) 1
H40 87-02 9004800-1221 Pin 1
H50 93-10 8801177 Charge pump shaft (SB-1993-001* & SB-1998-066) 1
H50 87-02 89-16 8000078 Charge pump shaft (SB-1989-006) 1
H60 87-02 9003310-1206 Key 1
H70 87-02 516761 Retaining plate 1
H80 87-02 9007210-0604 Screw 6
D H05 93-10 8000270 Charge pump set, 17 cc (SB-1993-001*) 1
H40 87-02 9004800-1221 Pin 1
H50 93-10 8801177 Charge pump shaft (SB-1993-001* & SB-1998-066) 1
H50 87-02 89-16 8000078 Charge pump shaft (SB-1989-006) 1
H60 87-02 9003310-1206 Key 1
H70 87-02 516761 Retaining plate 1
H80 87-02 9007210-0604 Screw 6
L H25 87-02 342543 (8800466-0055) Charge pump spacer 1
H50 93-10 8801177 Charge pump shaft (SB-1993-001* & SB-1998-066) 1
H50 87-02 89-16 8000078 Charge pump shaft (SB-1989-006) 1
H70 87-02 516761 Retaining plate 1
H80 87-02 9007210-0604 Screw 6
H90 87-02 320002 (9005110-9200) Plug assembly 1
T H70 99-11 516761 Retaining plate 1
H80 99-11 9007210-0604 Screw 6
J15 99-11 8000704 Spacer assembly 1
J40 99-11 680892 (9004104-0440) O-ring 1
* For information regarding replacement parts for units built from 89-17 to 93-09, refer to BLN-10107 in the appendix.
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
39
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Design prior to 09-30

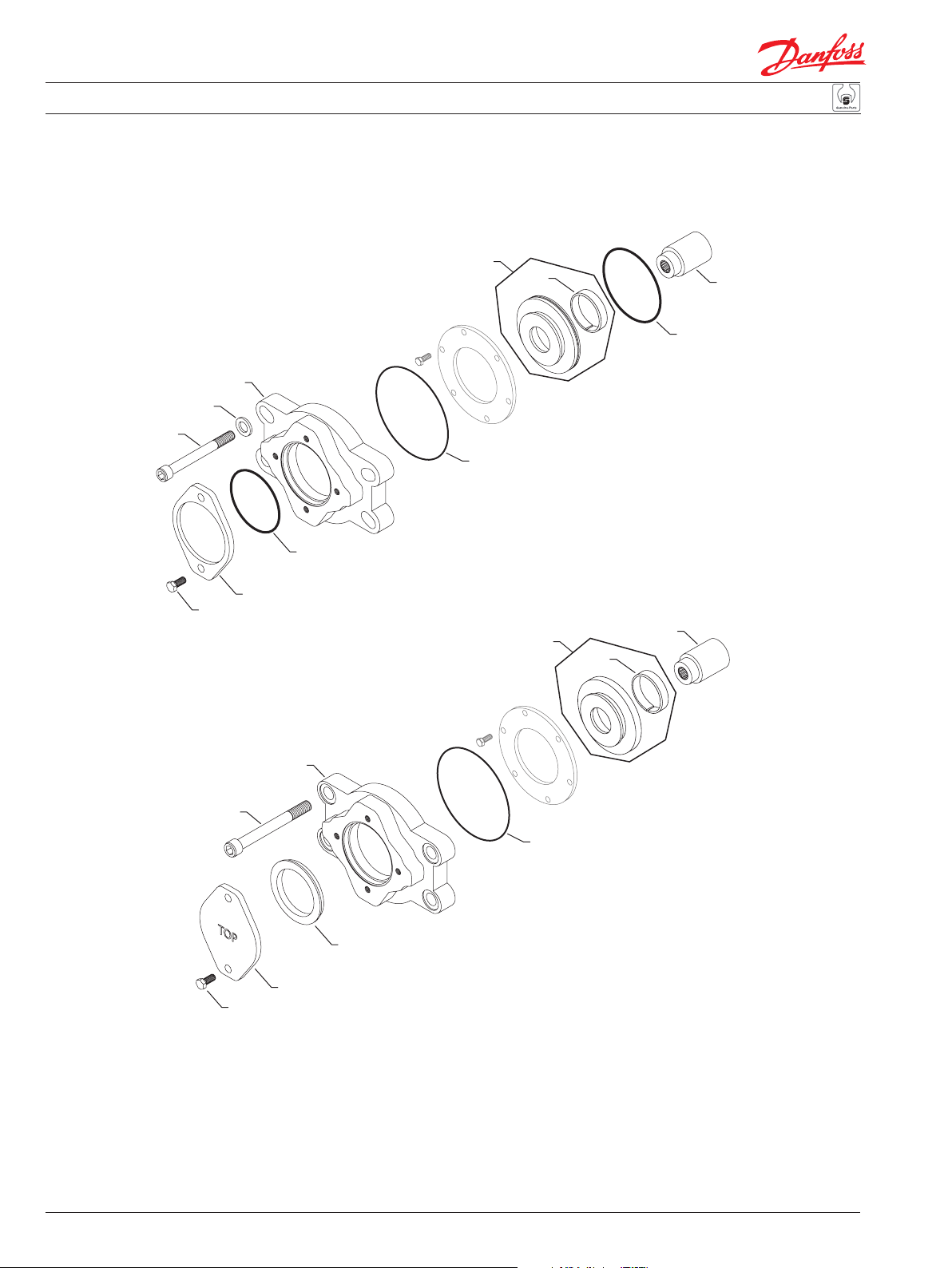

J60
J70
J80
J92
J95
J90
AB, AC, AD & AF
J15
J30
*J50
J15
J10
*J40
(used prior to 92-30)
J10
J30
Design after 09-29
J60
J80
J92
J95
*J50
J90
E100 713E
40
= included in overhaul seal kit Q210
*
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Auxiliary mounting
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
AB & AD J10 87-02 8000075 Coupling, 9 tooth 1
J15 87-02 8800832 Cover assembly, CW (SB-1993-001* & SB-2005-011) 1
J15 87-02 8800833 Cover assembly, CCW (SB-1993-001* & SB-2005-011) 1
J30 87-02 8700008 Bushing 1
J40 87-02 92-29 680892 (9004104-0440) O-ring 1
J50 87-02 056739 (9004104-1580) O-ring 1
J60 87-02 8000641 Flange adaptor (SB-2007-027B) 1
J70 87-02 07-43 5000601 Washer (SB-2007-027B) 4
J80 87-02 324152 (9007314-1221) Screw, M12 x 120 4
J90 07-44 4800482 A pad seal 1
J90 87-02 07-43 726950 (9004104-0420) O-ring (SB-2007-027B) 1
J92 07-44 4460586 Cover plate 1
J92 87-02 07-43 9802336 Cover plate (SB-2007-027B) 1
J95 87-02 9007200-3714 Screw 2
AC & AF J10 87-02 11053344 Coupling, 11 tooth 1
J15 87-02 8800832 Cover assembly, CW (SB-1993-001* & SB-2005-011) 1
J15 87-02 8800833 Cover assembly, CCW (SB-1993-001* & SB-2005-011) 1
J30 87-02 8700008 Bushing 1
J40 87-02 92-29 680892 (9004104-0440) O-ring 1
J50 87-02 056739 (9004104-1580) O-ring 1
J60 87-02 8000641 Flange adaptor (SB-2007-027B) 1
J70 87-02 07-43 5000601 Washer (SB-2007-027B) 4
J80 87-02 324152 (9007314-1221) Screw, M12 x 120 4
J90 07-44 4800482 A pad seal 1
J90 87-02 07-43 726950 (9004104-0420) O-ring 1
J92 07-44 4460586 Cover plate 1
J92 87-02 07-43 9802336 Cover plate 1
J95 87-02 9007200-3714 Screw 2
* For information regarding replacement parts for units built from 89-17 to 93-09, refer to BLN-10107 in the appendix.
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
41
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Design prior to 09-30
J60
J70
J80
J90
J92
J95
J80
J15
*J50
Design after 09-29
J60
J30
J10
*J40
(used prior to 92-30)
BB, BC, BG & BK
J15
J30
*J50
J10
J95
J80
J95
BN
J10
J90
J92
J60
*J50
J90
J92
E100 714E
= included in overhaul seal kit Q210
*
42
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Auxiliary mounting
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
BB & BK J10 87-02 11053343 Coupling, 15 tooth 1
J15 87-02 8800832 Cover assembly, CW (SB-1993-001* & SB-2005-011) 1
J15 87-02 8800833 Cover assembly, CCW (SB-1993-001* & SB-2005-011) 1
J30 87-02 8700008 Bushing 1
J40 87-02 92-15 680892 (9004104-0440) O-ring 1
J50 87-02 056739 (9004104-1580) O-ring 1
J60 87-02 8000642 Flange adaptor (SB-2007-055A) 1
J70 87-02 08-10 5000601 Washer (SB-2007-027B) 4
J80 87-02 324152 (9007314-1221) Screw, M12 x 120 4
J90 08-11 8801061 B pad seal 1
J90 87-02 08-10 726935 (9004104-0450) O-ring (SB-2007-055A) 1
J92 08-11 8801059 Cover plate 1
J92 87-02 08-10 4460370 Cover plate (SB-2007-055A) 1
J95 87-02 9007200-5021 Screw 2
BC & BG J10 87-02 8000076 Coupling, 13 tooth 1
J15 87-02 8800832 Cover assembly, CW (SB-1993-001* & SB-2005-011) 1
J15 87-02 8800833 Cover assembly, CCW (SB-1993-001* & SB-2005-011) 1
J30 87-02 8700008 Bushing 1
J40 87-02 92-15 680892 (9004104-0440) O-ring 1
J50 87-02 056739 (9004104-1580) O-ring 1
J60 87-02 8000642 Flange adaptor (SB-2007-055A) 1
J70 87-02 08-10 5000601 Washer (SB-2007-055A) 4
J80 87-02 324152 (9007314-1221) Screw, M12 x 120 4
J90 07-44 8801061 B pad seal 1
J90 87-02 08-10 726935 (9004104-0450) O-ring (SB-2007-055A) 1
J92 08-11 8801059 Cover plate (SB-2007-055A) 1
J92 87-02 08-10 4460370 Cover plate (SB-2007-055A) 1
J95 87-02 9007200-5021 Screw 2
BN J10 98-24 8000076 Coupling, 13 tooth 1
J50 98-24 056739 (9004104-1580) O-ring 1
J60 98-24 8000771 Flange adaptor, metric (SB-2010-005) 1
J70 98-24 10-49 506753 Washer (SB-2010-005) 4
J80 98-24 507585 Screw, M12 x 110 4
J90 10-50 9004104-1540 O-ring 1
J90 98-24 10-49 726935 (9004104-0450) O-ring (SB-2010-005) 1
J92 98-24 4460370 Cover plate 1
J95 98-24 370320 Screw 2
* For information regarding replacement parts for units built from 89-17 to 93-09, refer to BLN-10107 in the appendix.
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
43
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
J60
Design prior to 03-09
J90
J95
J92
J80
J60
J70
CD & CG
J15
*J50
J30
J10
*J40
(used prior to 92-30)
J15
J30
J10
Design 03-10 thru 08-09
J90
J95
Design after 08-09
J90
J92
*J50
J15
J30
J80
J10
J92
J60
*J50
J80
44
J95
= included in overhaul seal kit Q210
*
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
E101 872E
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Auxiliary mounting
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
CD J10 87-02 11053340 Coupling, 14 tooth 1
J15 87-02 8800832 Cover assembly, CW (SB-1993-001* & SB-2005-011) 1
J15 87-02 8800833 Cover assembly, CCW (SB-1993-001* & SB-2005-011) 1
J30 87-02 8700008 Bushing 1
J40 87-02 92-15 680892 (9004104-0440) O-ring 1
J50 87-02 056739 (9004104-1580) O-ring 1
J60 87-02 8000740 Flange adaptor (SB-2002-050 & SB-2007-051) 1
J70 87-02 03-10 5000602 Washer (SB-2002-050) 4
J80 87-02 324152 (9007314-1221) Screw, M12 x 120 4
J90 08-10 11081805 C pad seal 1
J90 87-02 08-09 719179 (9004100-0480) O-ring (SB-2007-051) 1
J92 08-10 8801060 Cover plate 1
J92 87-02 08-09 8800406 Cover plate (SB-2007-051) 1
J95 87-02 9007200-5021 Screw 4
CG J10 04-44 11053343 Coupling, 15 tooth 1
J15 04-44 8800832 Cover assembly, CW (SB-2005-011) 1
J15 04-44 8800833 Cover assembly, CCW (SB-2005-011) 1
J30 04-44 8700008 Bushing 1
J50 04-44 056739 (9004104-1580) O-ring 1
J60 04-44 8000740 Flange adaptor (SB-2007-051) 1
J80 04-44 324152 (9007314-1221) Screw, M12 x 120 4
J90 08-10 11081805 C pad seal 1
J90 04-44 08-10 719179 (9004100-0480) O-ring (SB-2007-051) 1
J92 08-10 8801060 Cover plate 1
J92 04-44 08-09 8800406 Cover plate (SB-2007-051) 1
J95 04-44 9007200-5021 Screw 4
* For information regarding replacement parts for units built from 89-17 to 93-09, refer to BLN-10107 in the appendix.
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
45
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
NN
Generic end cap used to
part location only.
J80
J15
J30
H70
H80
*J40
Generic end cap used to
part location only.
*K50
0042 & XX
QK10
C6, C9, D9 & S1 K1
L80
L100
L100
* = included in control seal kit Q210
T1
L90
L80
L100
L61
E100 715E
46
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Auxiliary mounting
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
NN J15 87-02 8800834 Cover assembly, (SB-1993-001) 1
J30 87-02 8700008 Bushing 1
J40 87-02 680892 (9004104-0440) O-ring 1
J80 87-02 324202 (9007210-1219) Screw, M12 x 100 4
Charge pressure setting
00-30 QK10 87-42 8002K000-A Charge relief valve kit, 10-30 bar (SB-1989-002) 1
K50 87-42 001149 (9004201-6200) O-ring (SB-1989-002) 1
32-42 QK10 94-13 8510269 Charge relief valve kit, 30-42 bar 1
K50 94-13 001149 (9004201-6200) O-ring 1
XX QK10 96-23 11086335 Charge relief valve kit, viton 1
K50 96-23 012559 (9004202-6200) O-ring, viton 1
Shaft
C6 L100 87-02 8000079 Shaft, 21 tooth spline 1
C9 L100 96-10 503396 Shaft, 21 tooth spline 1
D9 L100 96-40 500069 Shaft, 21 tooth spline, M10 threaded tapped hole 1
K1 L80 87-36 9003261-3124 Key 1
L100 87-36 8000175 Shaft, straight key, 1.375” diameter 1
S1 L100 87-02 8000112 Shaft, 14 tooth spline 1
T1 L61 87-34 716779 (9004600-1230) Cotter pin 1
L80 87-34 9003310-3724 Key 1
L90 87-34 5000606 Slotted nut 1
L100 87-34 8000166 Shaft, tapered 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
47
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

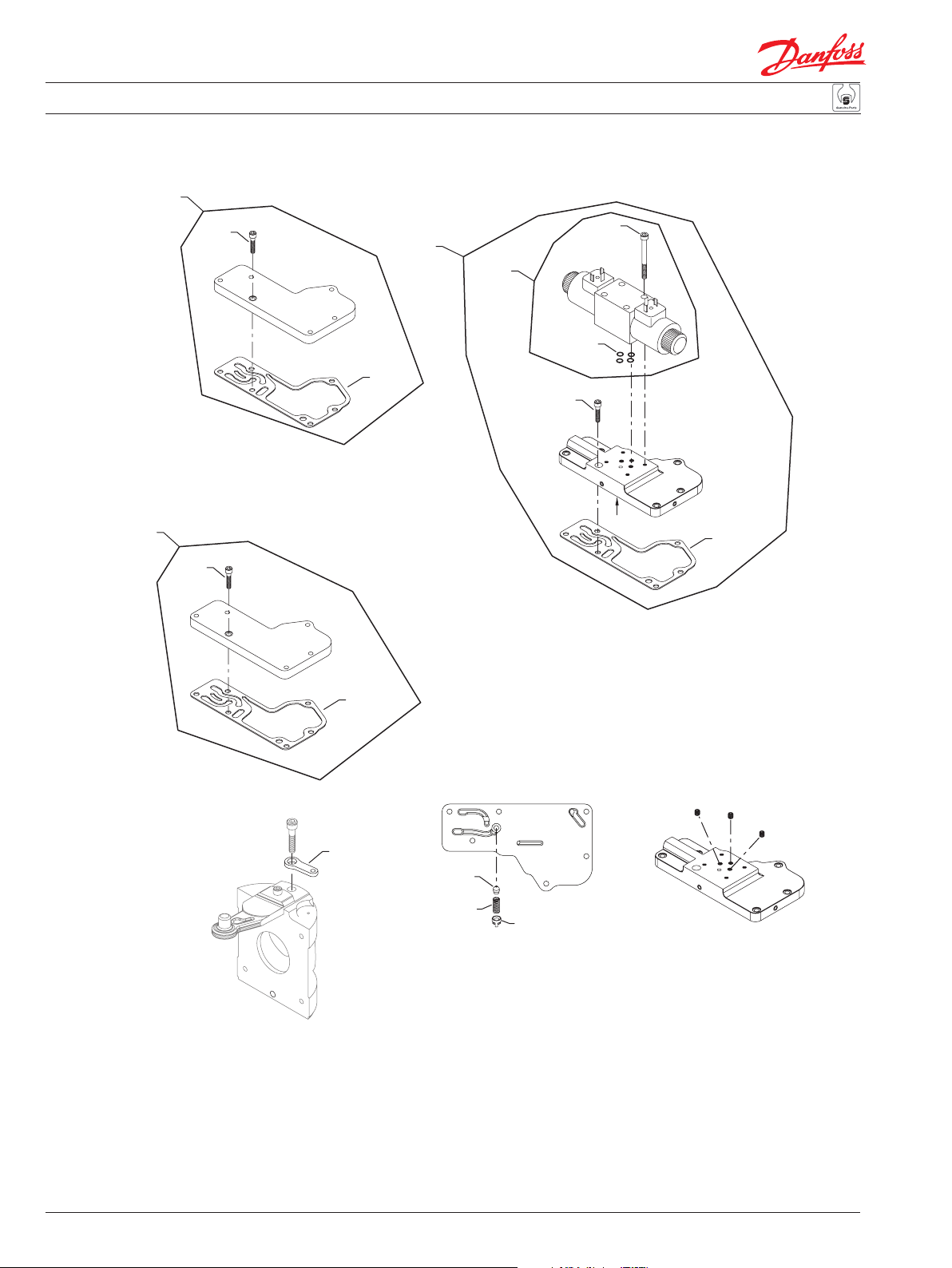

CA & CB DC & DD
QM10
M90
QM10
M90
M29
QM10
M76
*QM031
*M11
M90
View A
*M11
Generic swashplate used to
show link location only
M14
*M11
T20
(supply)
T30
View “A”
T40
T70
(servo feed)
T50
(drain)
(servo feed)
Possible orice locations
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
E100 716E
T80
48
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
CA M11 87-02 8800520 Control gasket 1
M90 87-02 693341 (9007314-0606) Screw 6
QM10 87-02 8002M0CA-A Control cover plate kit 1
CB M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M90 87-02 693341 (9007314-0606) Screw 6
QM10 87-02 8002M0CA-A Control cover plate kit 1
DC M11 87-02 8800520 Control gasket 1
M29 87-02 035592 Screw 4
M76 87-02 687103 Solenoid valve, 12 volt 1
M90 87-02 693341 (9007314-0606) Screw 6
QM10 87-02 8002M0DC-A 3-position control kit, 12 volt 1
QM031 87-02 11099647 Valve seal kit 1
QM210 87-02 11096161 Control seal kit 1
DD M11 87-02 8800520 Control gasket 1
M29 87-02 035592 Screw 4
M76 87-02 549907/P Solenoid valve, 24 volt 1
M90 87-02 693341 (9007314-0606) Screw 6
QM10 87-02 8510314 3-position control kit, 24 volt 1
QM031 87-02 11099647 Valve seal kit 1
QM210 87-02 11096161 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
49
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QM10
M90
EA, EF, EG & EK
M9
*M97
*M96
View A
M29
A generic PCP is shown.
*M95
*M51
*M11
M14
Generic swashplate used to
show link location only
T50
(drain)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 717E
T60
(drain)
50
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
EA M9 91-16 MCV110A1017 PCP, MS connector 1
M11 91-16 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 91-16 96-39 8000481 Feedback link (SB-1996-009) 1
M29 91-16 K07067 Screw 4
M51 91-16 505412 (9003509-0008) Seal nut 1
M90 91-16 692889 (9007314-0611) Screw 6
M95 91-16 318337 (9004104-0120) O-ring 2
M96 91-16 011304 (9004104-0140) O-ring 1
M97 91-16 318345 (9004104-0240) O-ring 1
QM10 91-16 8002M0EA-B EDC kit, MS connector 1
QM210 91-16 11096173 Control kit 1
EF M9 92-18 MCV110A1058 PCP, Weatherpack connector 1
M11 92-18 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 92-18 96-39 8000481 Feedback link (SB-1996-009) 1
M29 92-18 K07067 Screw 4
M51 92-18 505412 (9003509-0008) Seal nut 1
M90 92-18 692889 (9007314-0611) Screw 6
M95 92-18 318337 (9004104-0120) O-ring 2
M96 92-18 011304 (9004104-0140) O-ring 1
M97 92-18 318345 (9004104-0240) O-ring 1
QM10 92-18 8510125 EDC kit, Weatherpack connector 1
QM210 92-18 11096173 Control seal kit 1
EG M9 98-44 MCV110A1018 PCP, MS connector 1
M11 98-44 8800520 Control gasket 1
M14 98-44 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M29 98-44 K07067 Screw 4
M51 98-44 505412 (9003509-0008) Seal nut 1
M90 98-44 692889 (9007314-0611) Screw 6
M95 98-44 318337 (9004104-0120) O-ring 2
M96 98-44 011304 (9004104-0140) O-ring 1
M97 98-44 318345 (9004104-0240) O-ring 1
QM10 98-44 11097000 EDC kit, MS connector 1
QM210 98-44 11096173 Control seal kit 1
EK M9 99-16 MCV110A1014 PCP, Deutsch connector 1
M11 99-16 8800520 Control gasket 1
M14 99-16 11070305 Feedback link 1
M29 99-16 K07067 Screw 4
M51 99-16 505412 (9003509-0008) Seal nut 1
M90 99-16 692889 (9007314-0611) Screw 6
M95 99-16 318337 (9004104-0120) O-ring 2
M96 99-16 011304 (9004104-0140) O-ring 1
M97 99-16 318345 (9004104-0240) O-ring 1
QM10 99-16 8510379 EDC kit, Deutsch connector 1
QM210 99-16 11096173 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
51
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

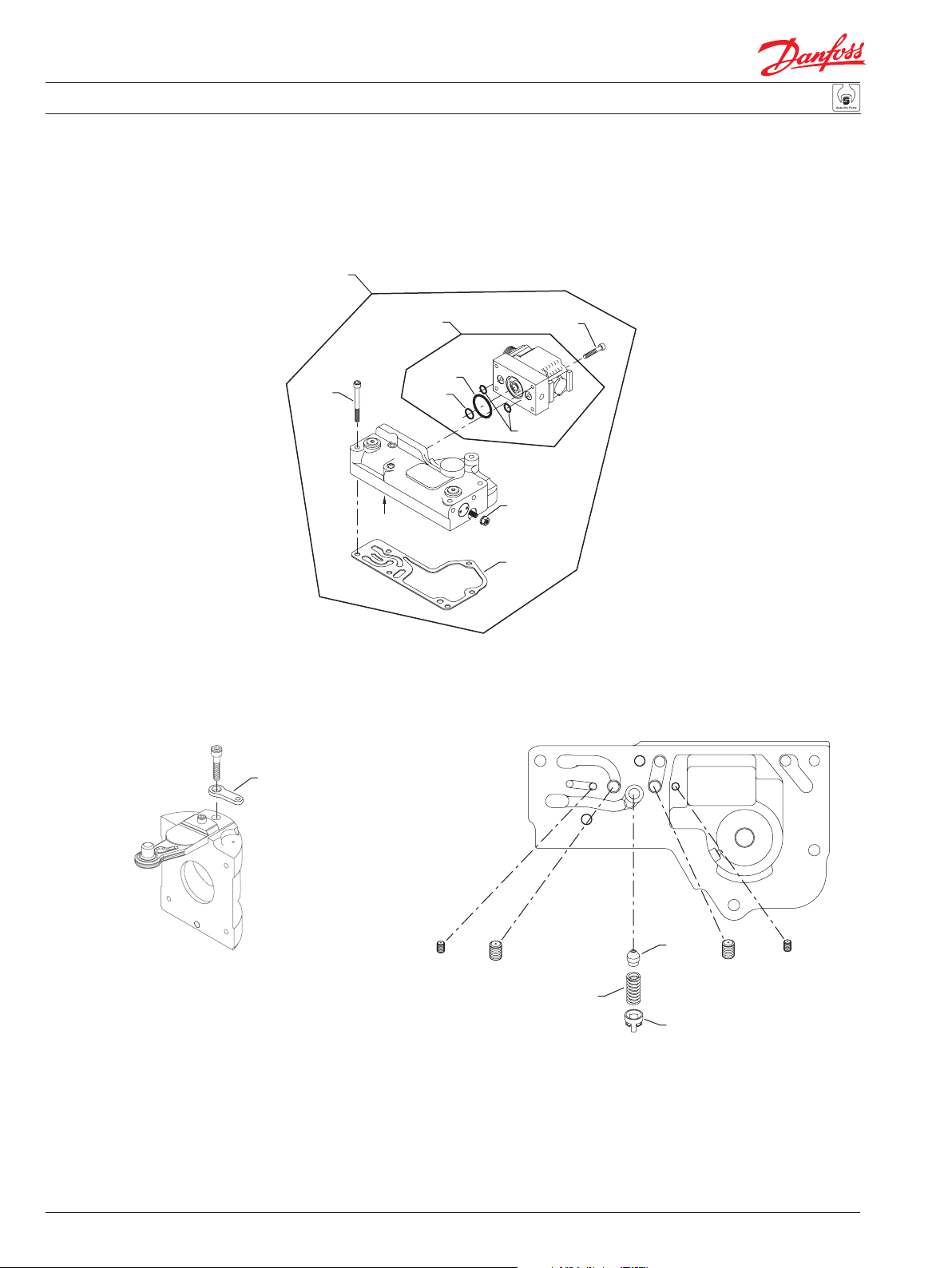

QM10
M90
View A
EP & EX
M9
*M97
*M96
M29
A generic PCP is shown.
*M95
*M51
*M11
M14
Generic swashplate used to
show link location only
T50
(drain)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 717E
T60
(drain)
52
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
EP M9 91-07 MCV110A1058 PCP, Packard connector 1
M11 91-07 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 91-07 96-39 8000481 Feedback link (SB-1996-009) 1
M29 91-07 K07067 Screw 4
M51 91-07 505412 (9003509-0008) Seal nut 1
M90 91-07 692889 (9007314-0611) Screw 6
M95 91-07 318337 (9004104-0120) O-ring 2
M96 91-16 011304 (9004104-0140) O-ring 1
M97 91-16 318345 (9004104-0240) O-ring 1
QM10 91-16 8002M0EP-B EDC kit, Packard connector 1
QM210 91-16 11096173 Control seal kit 1
EX M9 93-16 MCV110A1090 PCP, Metri-pack connector 1
M11 93-16 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 93-16 96-39 8000481 Feedback link (SB-1996-009) 1
M29 93-16 K07067 Screw 4
M51 93-16 505412 (9003509-0008) Seal nut 1
M90 93-16 692889 (9007314-0611) Screw 6
M95 93-16 318337 (9004104-0120) O-ring 2
M96 93-16 011304 (9004104-0140) O-ring 1
M97 93-16 318345 (9004104-0240) O-ring 1
QM10 93-16 8002M0EX-B EDC kit, Metri-pack connector 1
QM210 93-16 11096173 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
53
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

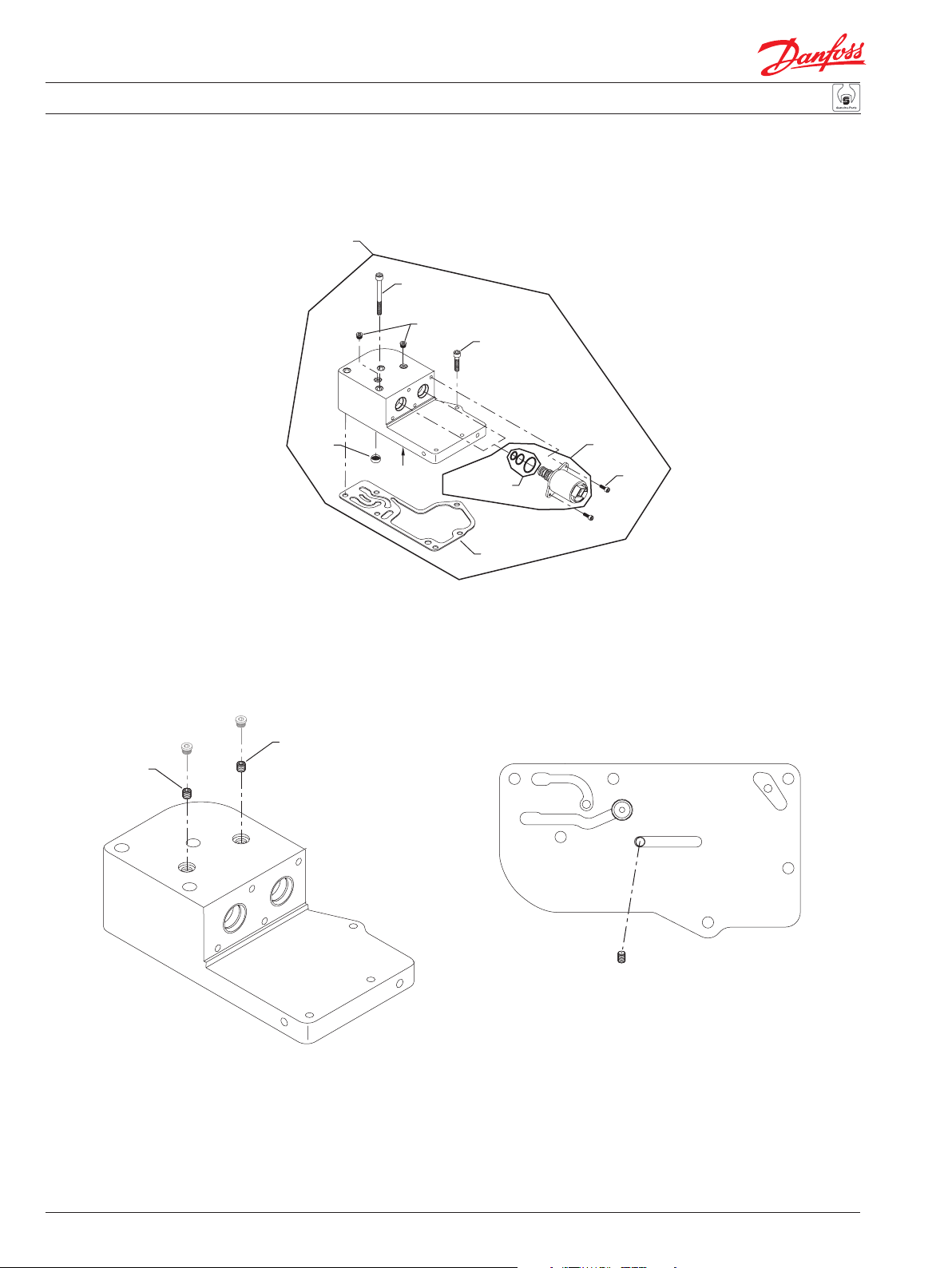

QM10
M007
M90
View A
FA, FB, FC
& FD
M005
M92
*QM034
*M11
M76
M29
T70
T80
Possible orice locations
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
View “A”
T50
E101 873E
54
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
FA M11 98-14 8800520 Control gasket 1
M29 98-14 067694 Screw 4
M76 98-14 518080 Solenoid valve, 12 volt, 25 bar 2
M90 98-14 9007314-0614 Screw 3
M92 98-14 041160 (9007314-0605) Screw 3
M005 98-14 11040532 Plug assembly 2
M007 98-14 K00775 Filter screen 1
QM10 98-14 11067537 NFPE control, 12 volt, 25 bar 1
QM034 98-14 11099849 Valve seal kit 2
QM210 98-14 11100027 Control seal kit 1
FB M11 98-14 8800520 Control gasket 1
M29 98-14 067694 Screw 4
M76 98-14 518081 Solenoid valve, 24 volt, 25 bar 2
M90 98-14 9007314-0614 Screw 3
M92 98-14 041160 (9007314-0605) Screw 3
M005 98-14 11040532 Plug assembly 2
M007 98-14 K00775 Filter screen 1
QM10 98-14 11067538 NFPE control, 24 volt, 25 bar 1
QM034 98-14 11099849 Valve seal kit 2
QM210 98-14 11100027 Control seal kit 1
FC M11 98-14 8800520 Control gasket 1
M29 98-14 067694 Screw 4
M76 98-14 521709 Solenoid valve, 12 volt, 32 bar 2
M90 98-14 9007314-0614 Screw 3
M92 98-14 041160 (9007314-0605) Screw 3
M005 98-14 11040532 Plug assembly 2
M007 98-14 K00775 Filter screen 1
QM10 98-14 8510220 NFPE control, 12 volt, 32 bar 1
QM034 98-14 11099849 Valve seal kit 2
QM210 98-14 11100027 Control seal kit 1
FD M11 98-14 8800520 Control gasket 1
M29 98-14 067694 Screw 4
M76 98-14 517214 Solenoid valve, 24 volt, 32 bar 2
M90 98-14 9007314-0614 Screw 3
M92 98-14 041160 (9007314-0605) Screw 3
M005 98-14 11040532 Plug assembly 2
M007 98-14 K00775 Filter screen 1
QM10 98-14 8510380 NFPE control, 24 volt, 32 bar 1
QM034 98-14 11099849 Valve seal kit 2
QM210 98-14 11100027 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
55
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

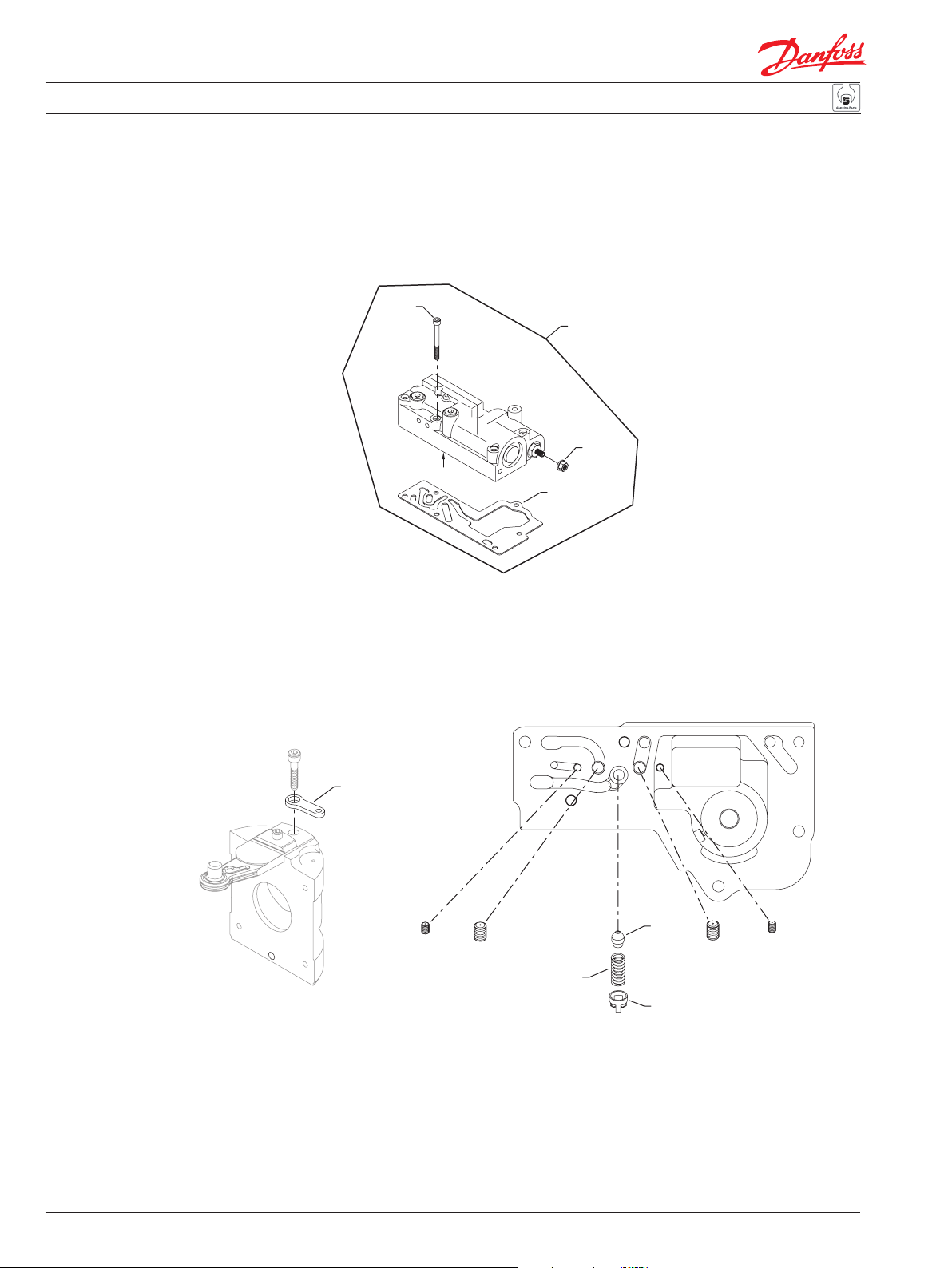

HF, HK, HM, HP,
HS & JB
M90
QM10
*M51
View A
*M11
* = included in control seal kit QM210
Generic swashplate used to
show link location only
M14
T50
(drain)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
T60
(drain)
E101 874E
56
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
HF M11 92-15 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 92-15 96-39 8000481 Feedback link (SB-1996-009) 1
M51 92-15 505412 (9003509-0008) Seal nut 1
M90 92-15 692889 (9007314-0611) Screw 6
QM10 92-15 8002M0HF-A HDC kit, 3-11 bar 1
QM210 92-15 11096267 Control seal kit 1
HK M11 92-15 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 92-15 96-39 8000481 Feedback link (SB-1996-009) 1
M51 92-15 505412 (9003509-0008) Seal nut 1
M90 92-15 692889 (9007314-0611) Screw 6
QM10 92-15 8002M0HK-A HDC kit, 1-11 bar 1
QM210 92-15 11096267 Control seal kit 1
HM M11 92-15 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 92-15 96-39 8000481 Feedback link (SB-1996-009) 1
M51 92-15 505412 (9003509-0008) Seal nut 1
M90 92-15 692889 (9007314-0611) Screw 6
QM10 92-15 8002M0HM-A HDC kit, 1.1 -6.7 bar 1
QM210 92-15 11096267 Control seal kit 1
HP M11 94-05 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-05 96-39 8000481 Feedback link (SB-1996-009) 1
M51 94-05 505412 (9003509-0008) Seal nut 1
M90 94-05 692889 (9007314-0611) Screw 6
QM10 94-05 8002M0HP-A HDC kit, 4-19 bar 1
QM210 94-05 11096267 Control seal kit 1
HS M11 94-19 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-19 96-39 8000481 Feedback link (SB-1996-009) 1
M51 94-19 505412 (9003509-0008) Seal nut 1
M90 94-19 692889 (9007314-0611) Screw 6
QM10 94-19 8002M0HS-A HDC kit, 6-18 bar 1
QM210 94-19 11096267 Control seal kit 1
JB M11 02-22 K11419 Control gasket (SB-1993-002) 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M51 02-22 505412 (9003509-0008) Seal nut 1
M90 02-22 692889 (9007314-0611) Screw 6
QM10 02-22 8510305 HDC kit, 5-15 bar 1
QM210 02-22 11096267 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
57
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QM10
K7, K8, K9 & KA
M9
M90
*M96
View A
*M99
M29
*M97
*M51
*M11
A generic PCP is shown.
58
M14
NOTE:All orices present in the original control
Generic swashplate used to
show link location only
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
View “A”
T50
(drain)
T70
(servo feed)
T30
T20
(supply)
T40
(servo feed)
T80
T60
(drain)
Possible orice locations
must be transfered to the replacement
control. If replacement control contains
pre-installed orices, remove and discard
them before transferring existing orices to
new control.
E100 718E
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
K7 M9 14-12 11101116 PCP, MS connector, 4-20MA, single coil 1
M11 14-12 8800520 Control gasket 1
M14 14-12 11070305 Feedback link 1
M29 14-12 K07067 Screw 4
M51 14-12 505412 (9003509-0008) Seal nut 1
M90 14-12 692889 (9007314-0611) Screw 6
M96 14-12 011296 (9004105-0120) O-ring 3
M97 14-12 9004105-0130 O-ring 1
M99 14-12 K08572 Filter assembly 1
QM10 14-12 11139992 EDC3 kit, MS connector 1
QM210 14-12 11096131 Control seal kit 1
K8 M9 14-12 11101106 PCP, MS connector, 24-160MA 1
M11 14-12 8800520 Control gasket 1
M14 14-12 11070305 Feedback link 1
M29 14-12 K07067 Screw 4
M51 14-12 505412 (9003509-0008) Seal nut 1
M90 14-12 692889 (9007314-0611) Screw 6
M96 14-12 011296 (9004105-0120) O-ring 3
M97 14-12 9004105-0130 O-ring 1
M99 14-12 K08572 Filter assembly 1
QM10 14-12 11140003 EDC3 kit, MS connector 1
QM210 14-12 11096131 Control seal kit 1
K9 M9 14-37 11101118 PCP, MS connector, 14-85MA 1
M11 14-37 8800520 Control gasket 1
M14 14-37 11070305 Feedback link 1
M29 14-37 K07067 Screw 4
M51 14-37 505412 (9003509-0008) Seal nut 1
M90 14-37 692889 (9007314-0611) Screw 6
M96 14-37 011296 (9004105-0120) O-ring 3
M97 14-37 9004105-0130 O-ring 1
M99 14-37 K08572 Filter assembly 1
QM10 14-37 11139998 EDC3 kit, MS connector 1
QM210 14-37 11096131 Control seal kit 1
KA M9 95-26 MCV116G4201 PCP, MS connector 1
M11 95-26 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 95-26 96-39 8000481 Feedback link (SB-1996-009) 1
M29 95-26 K07067 Screw 4
M51 95-26 505412 (9003509-0008) Seal nut 1
M90 95-26 692889 (9007314-0611) Screw 6
M96 95-26 011296 (9004105-0120) O-ring 3
M97 95-26 9004105-0130 O-ring 1
M99 95-26 K08572 Filter assembly 1
QM10 95-26 8510113 EDC3 kit, MS connector, dual coil 1
QM210 95-26 11096131 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
59
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QM10
M90
KN, KP, KS & KT
M9
*M99
*M96
View A
*M97
*M51
*M11
M29
A generic PCP is shown.
60
M14
NOTE:All orices present in the original control
Generic swashplate used to
show link location only
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
View “A”
T50
(drain)
T70
(servo feed)
T30
T20
(supply)
T40
(servo feed)
T80
T60
(drain)
Possible orice locations
must be transfered to the replacement
control. If replacement control contains
pre-installed orices, remove and discard
them before transferring existing orices to
new control.
E100 718E
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
KN M9 95-51 MCV116A3501 PCP, MS connector 1
M11 95-51 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 95-51 96-39 8000481 Feedback link (SB-1996-009) 1
M29 95-51 K07067 Screw 4
M51 95-51 505412 (9003509-0008) Seal nut 1
M90 95-51 692889 (9007314-0611) Screw 6
M96 95-51 011296 (9004105-0120) O-ring 3
M97 95-51 9004105-0130 O-ring 1
M99 95-51 K08572 Filter assembly 1
QM10 95-51 8510381 EDC3 kit, MS connector 1
QM210 95-51 11096131 Control seal kit 1
KP M9 95-26 MCV116G4204 PCP, Weather-pack connector 1
M11 95-26 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 95-26 96-39 8000481 Feedback link (SB-1996-009) 1
M29 95-26 K07067 Screw 4
M51 95-26 505412 (9003509-0008) Seal nut 1
M90 95-26 692889 (9007314-0611) Screw 6
M96 95-26 011296 (9004105-0120) O-ring 3
M97 95-26 9004105-0130 O-ring 1
M99 95-26 K08572 Filter assembly 1
QM10 95-26 8510114 EDC3 kit, Weather-pack connector, dual coil 1
QM210 95-26 11096131 Control seal kit 1
KS M9 97-30 MCV116G4201 PCP, MS connector, dual coil 1
M11 97-30 8800520 Control gasket 1
M14 97-30 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M29 97-30 K07067 Screw 4
M51 97-30 505412 (9003509-0008) Seal nut 1
M90 97-30 692889 (9007314-0611) Screw 6
M96 97-30 011296 (9004105-0120) O-ring 3
M97 97-30 9004105-0130 O-ring 1
M99 97-30 K08572 Filter assembly 1
QM10 97-30 8510177 EDC3 kit, MS connector, dual coil 1
QM210 97-30 11096131 Control seal kit 1
KT M9 03-10 MCV116G4214 PCP, Deutsch connector, dual coil 1
M11 03-10 8800520 Control gasket 1
M14 03-10 11070305 Feedback link 1
M29 03-10 K07067 Screw 4
M51 03-10 505412 (9003509-0008) Seal nut 1
M90 03-10 692889 (9007314-0611) Screw 6
M96 03-10 011296 (9004105-0120) O-ring 3
M97 03-10 9004105-0130 O-ring 1
M99 03-10 K08572 Filter assembly 1
QM10 03-10 8510317 EDC3 kit, Deutsch connector, dual coil 1
QM210 03-10 11096131 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
61
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QM10
M90
M9
*M96
View A
*M99
KZ
M29
*M97
*M51
*M11
A generic PCP is shown.
62
M14
NOTE:All orices present in the original control
Generic swashplate used to
show link location only
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
View “A”
T50
(drain)
T70
(servo feed)
T30
T20
(supply)
T40
(servo feed)
T80
T60
(drain)
Possible orice locations
must be transfered to the replacement
control. If replacement control contains
pre-installed orices, remove and discard
them before transferring existing orices to
new control.
E100 718E
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
KZ M9 98-10 MCV116G4204 PCP, Weather-pack connector 1
M11 98-10 8800520 Control gasket 1
M14 98-10 11070305 Feedback link 1
M29 98-10 K07067 Screw 4
M51 98-10 505412 (9003509-0008) Seal nut 1
M90 98-10 692889 (9007314-0611) Screw 6
M96 98-10 011296 (9004105-0120) O-ring 3
M97 98-10 9004105-0130 O-ring 1
M99 98-10 K08572 Filter assembly 1
QM10 98-10 8510355 EDC3 kit, Weather-pack connector, dual coil 1
QM210 98-10 11096131 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
63
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

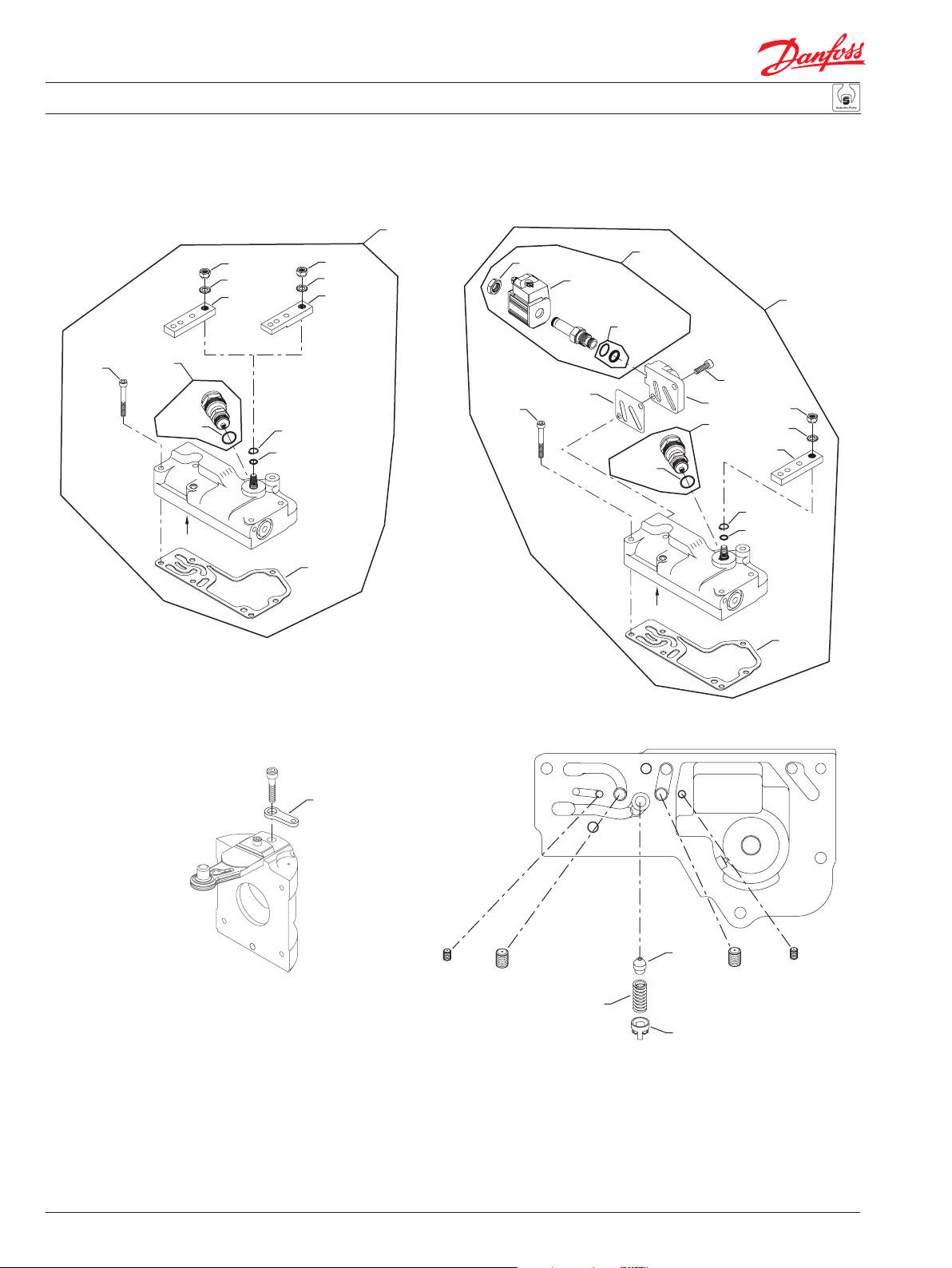

LE & LM LL
M72
M71
M70
M90
LE
QM89
*M83
View A
*M27
*M26
LM
*M11
M72
M71
M70
QM10
M90
QM036
*M77
QM037
M76
*QM034
*M83
M78
M75
QM89
QM10
M72
M71
M70
*M27
*M26
A generic neutral start switch is shown.
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
(drain)
T70
(servo feed)
View A
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 719E
*M11
T60
(drain)
64
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
LE M11 01-27 8800520 Control gasket 1
M14 01-27 11070305 Feedback link 1
M26 01-27 144725 (9004105-0110) O-ring 1
M27 01-27 9006300-0044 Retaining ring 1
M70 01-27 9800916 Control handle 1
M71 01-27 9009660-3100 Toothlock washer 1
M72 01-27 040642 (9003513-0800) Nut 1
M83 01-27 001123 (9004201-5000) O-ring 1
M90 01-27 692889 (9007314-0611) Screw 6
QM10 01-27 8510301 MDC kit, high force neutral start switch 1
QM89 01-27 8510316 Neutral start switch kit, high force, Weather-pack 1
QM210 01-27 11096275 Control seal kit 1
LL M11 00-07 8800520 Control gasket 1
M14 00-07 11070305 Feedback link 1
M26 00-07 144725 (9004105-0110) O-ring 1
M27 00-07 9006300-0044 Retaining ring 1
M70 00-07 9800916 Control handle 1
M71 00-07 9009660-3100 Toothlock washer 1
M72 00-07 040642 (9003513-0800) Nut 1
M75 00-07 505022 Control manifold 1
M76 14-06 11127988 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 00-07 8800882 Manifold gasket 1
M78 00-07 693341 (9007314-0606) Screw 2
M83 00-07 001123 (9004201-5000) O-ring 1
M90 00-07 692889 (9007314-0611) Screw 6
QM10 00-07 8510373 MDC kit w/12 volt solenoid, high force nss 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM89 00-07 8510316 Neutral start switch kit, high force 1
QM210 14-06 11100049 Control seal kit 1
LM M11 01-27 8800520 Control gasket 1
M14 01-27 11070305 Feedback link 1
M26 01-27 144725 (9004105-0110) O-ring 1
M27 01-27 9006300-0044 Retaining ring 1
M70 01-27 8801260 Control handle, special 1
M71 01-27 9009660-3100 Toothlock washer 1
M72 01-27 040642 (9003513-0800) Nut 1
M83 01-27 001123 (9004201-5000) O-ring 1
M90 01-27 692889 (9007314-0611) Screw 6
QM10 01-27 8510382 MDC kit, high force neutral start switch 1
QM89 01-27 8510027 Neutral start switch kit, high force 1
QM210 01-27 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
65
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
M90
View A
M72
M71
M70
*M27
*M26
*M11
QM10
M90
QM89
*M83
View A
M2M1 & M4
QM10
M72
M71
M70
*M27
*M26
*M11
A generic neutral start switch is shown.
M14
Generic swashplate used to
show link location only
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
(drain)
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 720E
T60
(drain)
66
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
M1 M11 95-37 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 95-37 96-39 8000481 Feedback link (SB-1996-009) 1
M26 95-37 144725 (9004105-0110) O-ring 1
M27 95-37 9006300-0044 Retaining ring 1
M70 95-37 9800916 Control handle 1
M71 95-37 9009660-3100 Toothlock washer 1
M72 95-37 040642 (9003513-0800) Nut 1
M90 95-37 692889 (9007314-0611) Screw 6
QM10 95-37 8510109 MDC kit, brass sleeve 1
QM210 95-37 11096275 Control seal kit 1
M2 M11 95-37 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 95-37 96-39 8000481 Feedback link (SB-1996-009) 1
M26 95-37 144725 (9004105-0110) O-ring 1
M27 95-37 9006300-0044 Retaining ring 1
M70 95-37 9800916 Control handle 1
M71 95-37 9009660-3100 Toothlock washer 1
M72 95-37 040642 (9003513-0800) Nut 1
M83 95-37 001123 (9004201-5000) O-ring 1
M90 95-37 692889 (9007314-0611) Screw 6
QM10 95-37 8510110 MDC kit, with neutral start switch, brass sleeve 1
QM89 95-37 80020S40 Neutral start switch kit 1
QM210 95-37 11096275 Control seal kit 1
M4 M11 96-22 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 96-22 96-39 8000481 Feedback link (SB-1996-009) 1
M26 96-22 144725 (9004105-0110) O-ring 1
M27 96-22 9006300-0044 Retaining ring 1
M70 96-22 9800916 Control handle 1
M71 96-22 9009660-3100 Toothlock washer 1
M72 96-22 040642 (9003513-0800) Nut 1
M90 96-22 692889 (9007314-0611) Screw 6
QM10 96-22 8510264 MDC kit 1
QM210 96-22 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
67
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
M5 M6
QM036
QM037
*M77
M90
M76
*QM034
*M83
M78
M75
QM89
M72
M71
M70
*M27
*M26
QM10
M90
QM036
*M77
QM037
M76
*QM034
M75
QM10
M78
M72
M71
M70
*M27
*M26
View A
*M11
A generic neutral start switch is shown.
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
(drain)
T70
(servo feed)
View A
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E101 875E
*M11
T60
(drain)
68
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
M5 M11 00-07 8800520 Control gasket 1
M14 00-07 11070305 Feedback link 1
M26 00-07 144725 (9004105-0110) O-ring 1
M27 00-07 9006300-0044 Retaining ring 1
M70 00-07 9800916 Control handle 1
M71 00-07 9009660-3100 Toothlock washer 1
M72 00-07 040642 (9003513-0800) Nut 1
M75 00-07 505022 Control manifold 1
M76 14-06 11127988 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 00-07 8800882 Manifold gasket 1
M78 00-07 693341 (9007314-0606) Screw 2
M83 00-07 001123 (9004201-5000) O-ring 1
M90 00-07 692889 (9007314-0611) Screw 6
QM10 00-07 8510168 MDC kit w/12 volt solenoid, neutral start switch 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM89 00-07 8510170 Neutral start switch kit 1
QM210 14-06 11100049 Control seal kit 1
M6 M11 00-07 8800520 Control gasket 1
M14 00-07 11070305 Feedback link 1
M26 00-07 144725 (9004105-0110) O-ring 1
M27 00-07 9006300-0044 Retaining ring 1
M70 00-07 9800916 Control handle 1
M71 00-07 9009660-3100 Toothlock washer 1
M72 00-07 040642 (9003513-0800) Nut 1
M75 00-07 505022 Control manifold 1
M76 14-06 11127988 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 00-07 8800882 Manifold gasket 1
M78 00-07 693341 (9007314-0606) Screw 2
M90 00-07 692889 (9007314-0611) Screw 6
QM10 00-07 8510183 MDC kit w/12 volt solenoid 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM210 14-06 11100049 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
69
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

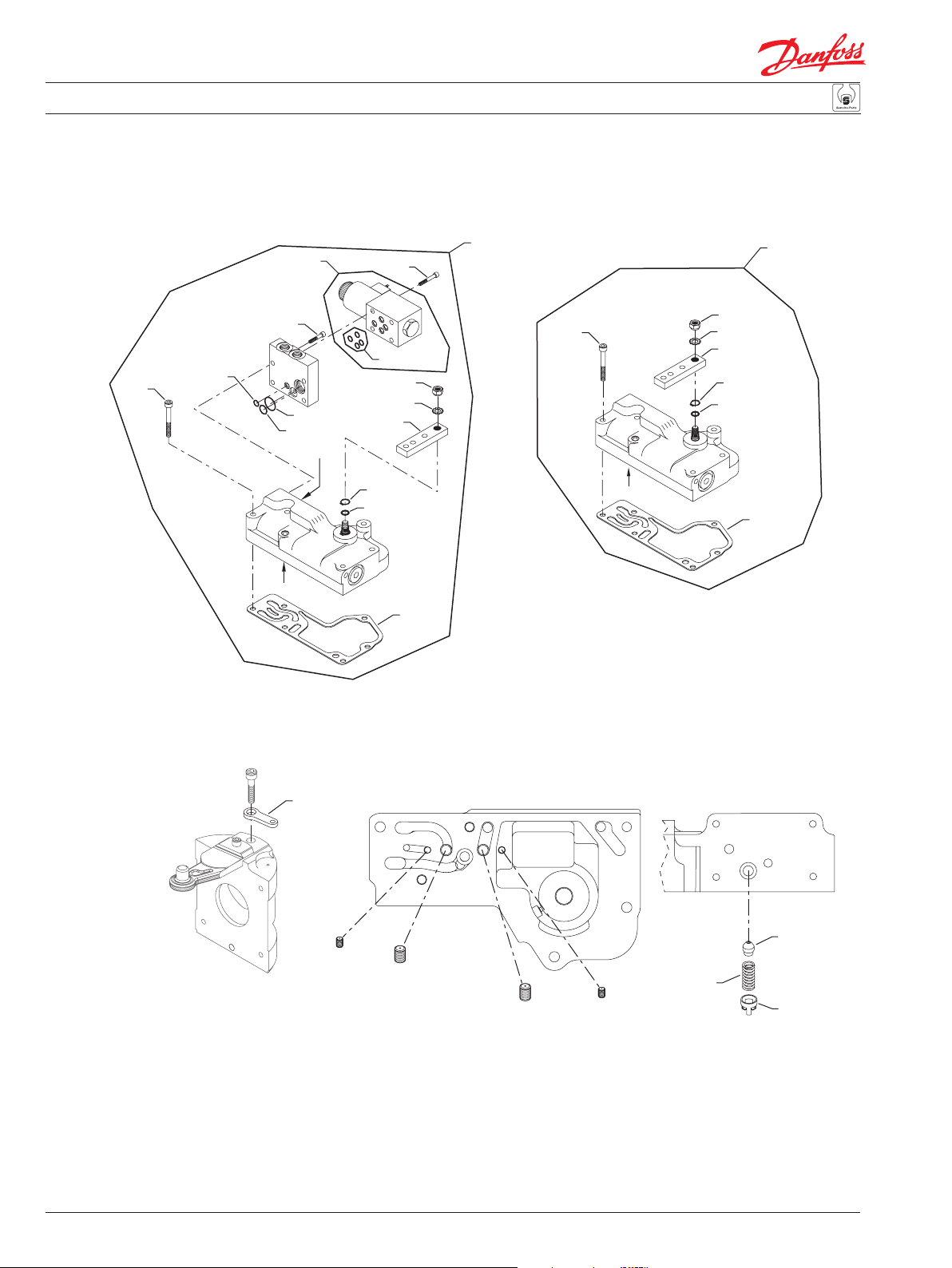

M8
M98
M90
*M95
View A
M76
*M97
*M96
View B
M29
*QM031
M70
*M27
*M26
M72
M71
QM10
M90
MA
QM10
M72
M71
M70
*M27
*M26
View A
*M11
*M11
M14
Generic swashplate used to
show link location only
T50
(drain)
T70
(servo feed)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
View “A”
T80
(servo feed)
T30
T60
(drain)
Possible orice locations
View “B”
T20
(supply)
T40
E100 721E
* = included in control seal kit QM210
70
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
M8 M11 04-31 8800520 Control gasket 1
M14 04-31 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M26 04-31 144725 (9004105-0110) O-ring 1
M27 04-31 9006300-0044 Retaining ring 1
M29 04-31 9007315-0507 Screw 4
M70 04-31 9800916 Control handle 1
M71 04-31 9009660-3100 Toothlock washer 1
M72 04-31 040642 (9003513-0800) Nut 1
M76 04-31 508009 Solenoid valve 1
M90 04-31 692889 (9007314-0611) Screw 6
M95 04-31 144725 (9004105-0110) O-ring 1
M96 04-31 056713 (9004105-0140) O-ring 1
M97 04-31 544742 (9004105-0190) O-ring 1
M98 04-31 9007315-0505 Screw 4
QM10 04-31 11099889 MDC kit w/2-position solenoid valve, 12 volt 1
QM031 04-31 11099647 Valve seal kit 1
QM210 04-31 11099977 Control seal kit 1
MA M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MA-A MDC kit 1
QM210 87-02 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
71
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
MB MC
M90
A generic neutral start switch is shown.
QM89
*M83
View A
M72
M71
M70
*M27
*M26
*M11
QM10
M90
QM036
*M77
QM037
M76
*QM034
View A
M75
QM10
M78
M72
M71
M70
*M27
*M26
*M11
M14
Generic swashplate used to
show link location only
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
T50
(drain)
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E101 876E
T60
(drain)
72
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MB M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MB-A MDC kit, with neutral start switch 1
QM89 87-02 80020S40 Neutral start switch kit 1
QM210 87-02 11096275 Control seal kit 1
MC M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M75 87-02 505022 Control manifold (SB-1995-003) 1
M76 14-06 11127987 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 87-02 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 87-02 95-09 041160 (9007314-0605) Screw 2
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MC-A MDC kit w/12 volt solenoid, single pole 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM210 14-06 11100049 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
73
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
MD ME
QM036
QM037
*M77
M90
M76
*QM034
*M83
A generic neutral start
switch is shown.
QM10
M78
M75
QM89
M72
M71
M70
*M27
*M26
M90
*M95
M98
View A
M76
*M97
*M96
View B
QM10
M29
*QM031
M72
M71
M70
*M27
*M26
View A
*M11
Generic swashplate used to
show link location only
M14
T50
(drain)
T70
(servo feed)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
View “A”
T80
(servo feed)
T30
T60
(drain)
Possible orice locations
*M11
View “B”
T20
(supply)
T40
E101 877E
* = included in control seal kit QM210
74
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MD M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M75 87-02 505022 Control manifold (SB-1995-003) 1
M76 14-06 11127986 Solenoid valve, 12 volt, double pole (SB-2014-020) 1
M77 87-02 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 87-02 95-09 041160 (9007314-0605) Screw 2
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MD-A MDC kit w/12 volt double pole solenoid, high force nss 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100385 Coil kit, 12 volt, double pole 1
QM89 87-02 8510027 Neutral start switch kit, high force 1
QM210 14-06 11100049 Control seal kit 1
ME M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M29 87-02 9007315-0510 Screw 4
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M76 87-02 519357 Solenoid valve, 12 volt 1
M90 87-02 692889 (9007314-0611) Screw 6
M95 87-02 144725 (9004105-0110) O-ring 1
M96 87-02 056770 (9004105-0140) O-ring 1
M97 87-02 544742 (9004105-0190) O-ring 1
M98 87-02 9007315-0505 Screw 4
QM10 87-02 8002M0ME-A MDC kit w/2-position solenoid valve, 12 volt 1
QM031 87-02 11099647 Valve seal kit 1
QM210 87-02 11099977 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
75
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
MF MG
QM036
QM037
*M77
M90
M76
*QM034
M75
M78
M70
*M27
*M26
M72
M71
QM10
M90
QM036
*M77
QM037
M76
*QM034
*M83
View A
A generic neutral start
switch is shown.
QM10
M78
M75
QM89
M72
M71
M70
*M27
*M26
View A
*M11
Generic swashplate used to
show link location only
M14
(drain)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E101 878E
*M11
T60
(drain)
* = included in control seal kit QM210
76
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MF M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M75 87-02 505022 Control manifold (SB-1995-003) 1
M76 87-02 11127985 Solenoid valve, 24 volt, double pole (SB-2014-020) 1
M77 87-02 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 87-02 95-09 041160 (9007314-0605) Screw 2
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MF-A MDC kit w/24 volt solenoid, double pole 1
QM034 87-02 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100386 Coil kit, 24 volt, double pole 1
QM210 14-06 11100049 Control seal kit 1
MG M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M75 87-02 505022 Control manifold (SB-1995-003) 1
M76 87-02 11127985 Solenoid valve, 24 volt, double pole (SB-2014-020) 1
M77 87-02 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 87-02 95-09 041160 (9007314-0605) Screw 2
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8002M0MG-A MDC kit w/24 volt solenoid, double pole, nss 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100386 Coil kit, 24 volt, double pole 1
QM89 87-02 8510027 Neutral start switch kit, high force 1
QM210 14-06 11100049 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
77
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
M72
MH
M90
View A
M71
M70
*M27
*M26
M72
M71
M70
MQ
*M11
QM10
A generic neutral start
switch is shown.
M90
QM89
*M83
View A
MK & MLMH & MQ
QM10
M72
M71
M70
*M27
*M26
*M11
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
T50
(drain)
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 722E
T60
(drain)
78
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MH M11 99-12 8800520 Control gasket 1
M14 99-12 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M26 99-12 144725 (9004105-0110) O-ring 1
M27 99-12 9006300-0044 Retaining ring 1
M70 99-12 9800916 Control handle 1
M71 99-12 9009660-3100 Toothlock washer 1
M72 99-12 040642 (9003513-0800) Nut 1
M90 99-12 692889 (9007314-0611) Screw 6
QM10 99-12 8510383 MDC kit w/reduced deadband 1
QM210 99-12 11096275 Control seal kit 1
MK M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 99-12 8002M0MK-A MDC kit w/wide deadband, nss 1
QM89 87-02 80020S40 Neutral start switch kit 1
QM210 99-12 11096275 Control seal kit 1
ML M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8510356 MDC kit w/wide deadband, high force nss 1
QM89 87-02 8510027 Neutral start switch kit, high force 1
QM210 87-02 11096275 Control seal kit 1
MQ M11 10-27 8800520 Control gasket 1
M14 10-27 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M26 10-27 144725 (9004105-0110) O-ring 1
M27 10-27 9006300-0044 Retaining ring 1
M70 10-27 8801260 Control handle, special 1
M71 10-27 9009660-3100 Toothlock washer 1
M72 10-27 040642 (9003513-0800) Nut 1
M90 10-27 692889 (9007314-0611) Screw 6
QM10 10-27 11099891 MDC kit w/special handle 1
QM210 10-27 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
79
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

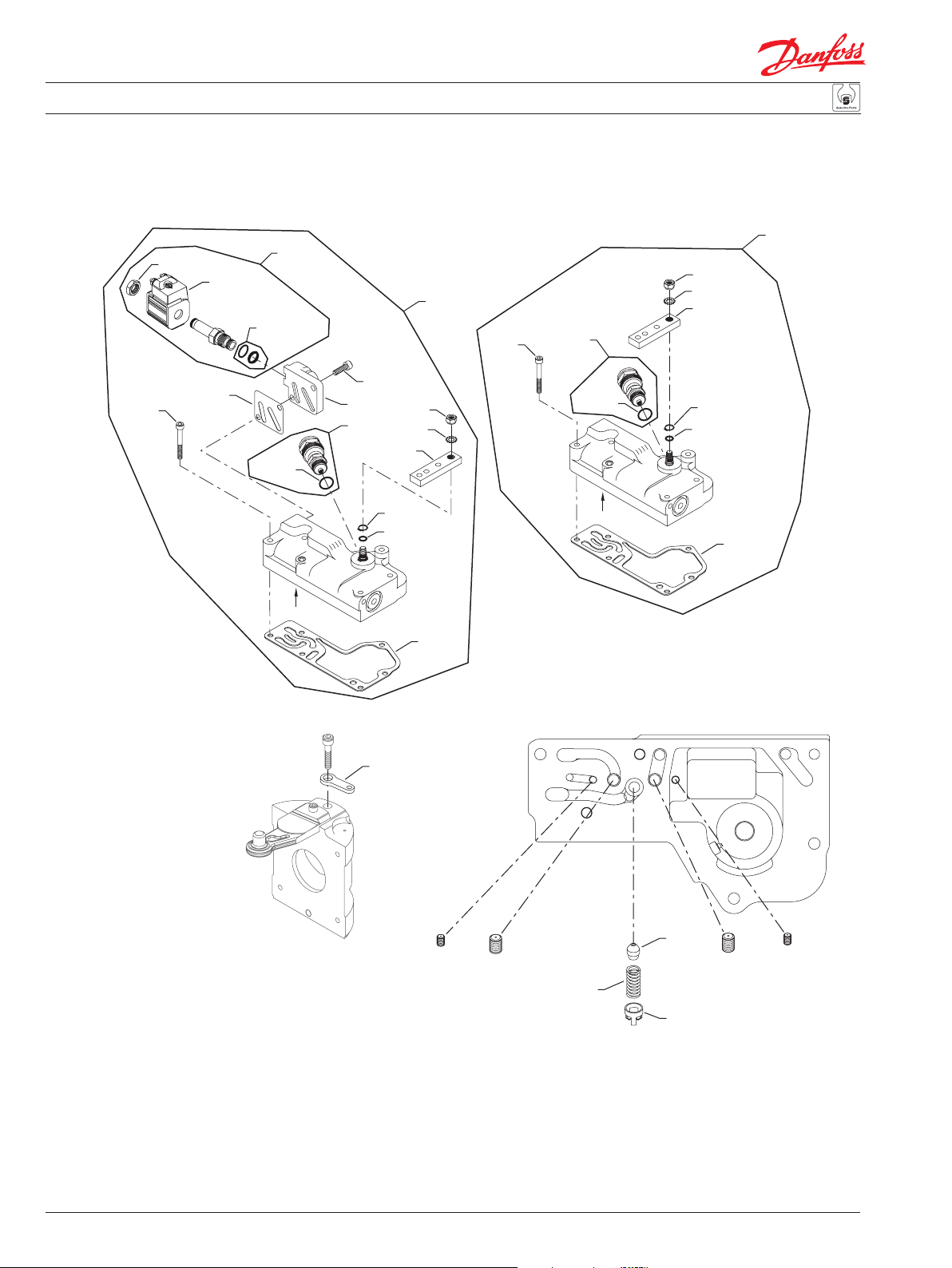

MR
QM036
QM037
*QM034
*M77
M90
*M83
M76
M78
M75
QM89
A generic neutral start
switch is shown.
QM10
M72
M71
M70
*M27
*M26
M90
QM89
*M83
View A
MS
QM10
M72
M71
M70
*M27
*M26
*M11
View A
*M11
Generic swashplate used to
show link location only
M14
(drain)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E101 879E
T60
(drain)
80
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MR M11 93-31 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 93-31 96-39 8000481 Feedback link (SB-1996-009) 1
M26 93-31 144725 (9004105-0110) O-ring 1
M27 93-31 9006300-0044 Retaining ring 1
M70 93-31 9800916 Control handle 1
M71 93-31 9009660-3100 Toothlock washer 1
M72 93-31 040642 (9003513-0800) Nut 1
M75 93-31 505022 Control manifold (SB-1995-003) 1
M76 93-31 11127985 Solenoid valve, 24 volt, double pole (SB-2014-020) 1
M77 93-31 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 93-31 95-09 041160 (9007314-0605) Screw 2
M83 93-31 001123 (9004201-5000) O-ring 1
M90 93-31 692889 (9007314-0611) Screw 6
QM10 93-31 8002M0MR-A MDC kit w/24 volt solenoid, double pole, high force nss 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100386 Coil kit, 24 volt, double pole 1
QM89 93-31 8510027 Neutral start switch kit, high force 1
QM210 14-06 11100049 Control seal kit 1
MS M11 94-41 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-41 96-39 8000481 Feedback link (SB-1996-009) 1
M26 94-41 144725 (9004105-0110) O-ring 1
M27 94-41 9006300-0044 Retaining ring 1
M70 94-41 9800916 Control handle 1
M71 94-41 9009660-3100 Toothlock washer 1
M72 94-41 040642 (9003513-0800) Nut 1
M83 94-41 001123 (9004201-5000) O-ring 1
M90 94-41 692889 (9007314-0611) Screw 6
QM10 94-41 8510127 MDC kit, high force nss 1
QM89 94-41 8510027 Neutral start switch kit, high force 1
QM210 94-41 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
81
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
MT
QM036
QM037
*M77
M90
M76
*QM034
M75
M78
M70
*M27
*M26
M72
M71
A generic neutral start
switch is shown.
QM10
M90
QM89
MV & MW
*M83
View A
QM10
M72
M71
M70
*M27
*M26
*M11
View A
*M11
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
(drain)
T70
(servo feed)
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E100 723E
T60
(drain)
82
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MT M11 01-50 8800520 Control gasket 1
M14 01-50 11070305 Feedback link 1
M26 01-50 144725 (9004105-0110) O-ring 1
M27 01-50 9006300-0044 Retaining ring 1
M70 01-50 9800916 Control handle 1
M71 01-50 9009660-3100 Toothlock washer 1
M72 01-50 040642 (9003513-0800) Nut 1
M75 01-50 505022 Control manifold 1
M76 93-31 11127986 Solenoid valve, 12 volt, double pole (SB-2014-020) 1
M77 01-50 8800882 Manifold gasket 1
M78 01-50 693341 (9007314-0606) Screw 2
M90 01-50 692889 (9007314-0611) Screw 6
QM10 01-50 8510319 MDC kit w/12 volt solenoid, double pole 1
QM034 00-07 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100385 Coil kit, 12 volt, double pole 1
QM210 14-06 11100049 Control seal kit 1
MV M11 94-30 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-30 96-39 8000481 Feedback link (SB-1996-009) 1
M26 94-30 144725 (9004105-0110) O-ring 1
M27 94-30 9006300-0044 Retaining ring 1
M70 94-30 9800916 Control handle 1
M71 94-30 9009660-3100 Toothlock washer 1
M72 94-30 040642 (9003513-0800) Nut 1
M83 94-30 001123 (9004201-5000) O-ring 1
M90 94-30 692889 (9007314-0611) Screw 6
QM10 94-30 8510129 MDC kit, high force nss 1
QM89 94-30 8510170 Neutral start switch kit 1
QM210 94-30 11096275 Control seal kit 1
MW M11 94-30 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-30 96-39 8000481 Feedback link (SB-1996-009) 1
M26 94-30 144725 (9004105-0110) O-ring 1
M27 94-30 9006300-0044 Retaining ring 1
M70 94-30 9800916 Control handle 1
M71 94-30 9009660-3100 Toothlock washer 1
M72 94-30 040642 (9003513-0800) Nut 1
M83 94-30 001123 (9004201-5000) O-ring 1
M90 94-30 692889 (9007314-0611) Screw 6
QM10 94-30 11099892 MDC kit, high force nss 1
QM89 94-30 80020S40 Neutral start switch kit 1
QM210 94-30 11096275 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
83
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

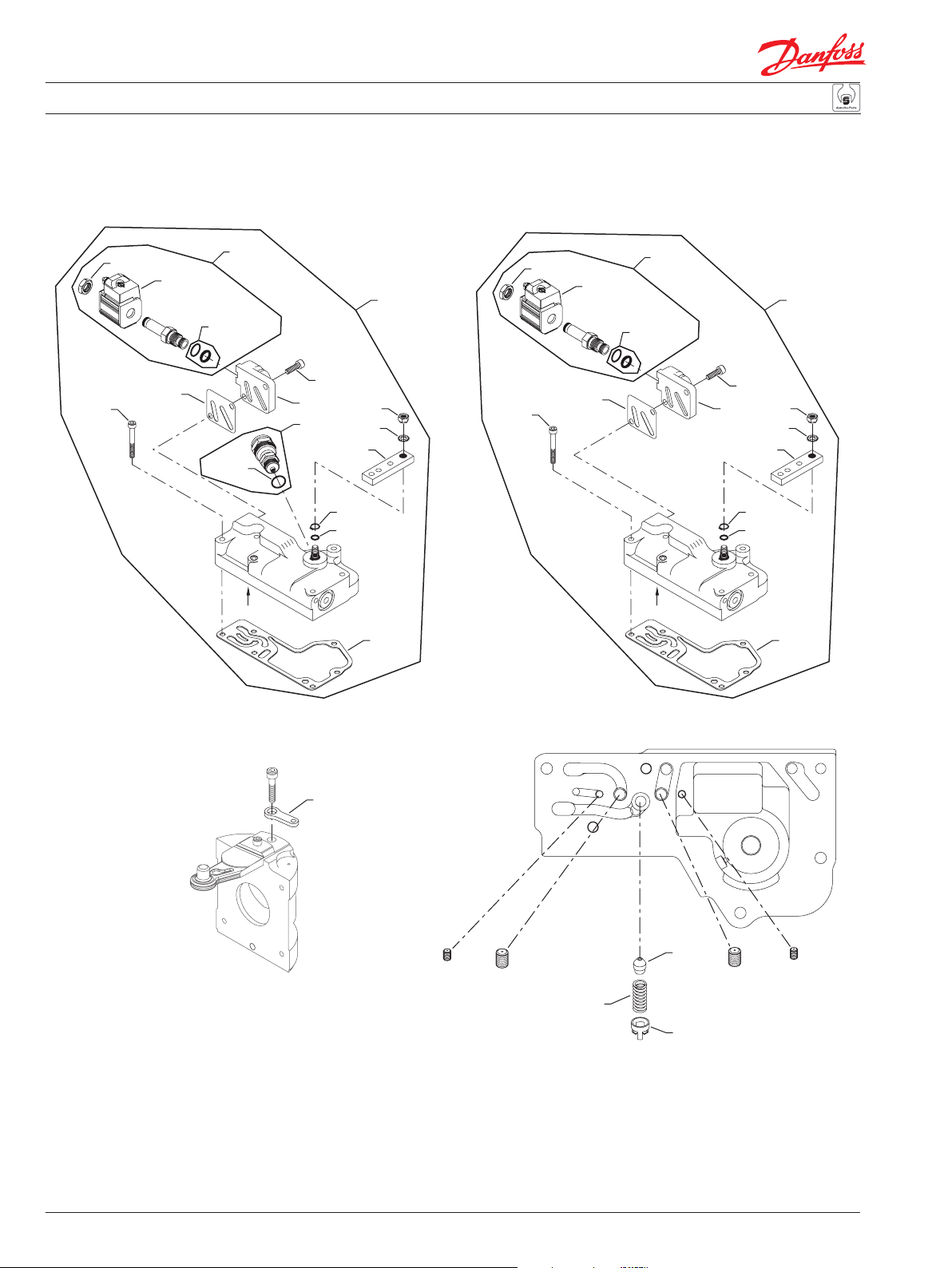

MZ MX
QM036
QM037
*M77
M90
M76
*QM034
*M83
M78
M75
QM89
M72
M71
M70
*M27
*M26
QM10
M90
QM036
*M77
QM037
M76
*QM034
M75
QM10
M78
M72
M71
M70
*M27
*M26
View A
*M11
A generic neutral start switch is shown.
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T50
(drain)
T70
(servo feed)
View A
View “A”
T20
(supply)
T30
(servo feed)
T40
Possible orice locations
T80
E101 875E
*M11
T60
(drain)
84
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
MX M11 94-24 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 94-24 96-39 8000481 Feedback link (SB-1996-009) 1
M26 94-24 144725 (9004105-0110) O-ring 1
M27 94-24 9006300-0044 Retaining ring 1
M70 94-24 9800916 Control handle 1
M71 94-24 9009660-3100 Toothlock washer 1
M72 94-24 040642 (9003513-0800) Nut 1
M75 94-24 505022 Control manifold (SB-1995-003) 1
M76 94-24 11127988 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 94-24 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 94-24 95-09 041160 (9007314-0605) Screw 2
M90 94-24 692889 (9007314-0611) Screw 6
QM10 94-24 8510063 MDC kit w/12 volt solenoid, single pole 1
QM034 94-24 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM210 14-06 11100049 Control seal kit 1
MZ M11 87-02 8800520 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 87-02 96-39 8000481 Feedback link (SB-1996-009) 1
M26 87-02 144725 (9004105-0110) O-ring 1
M27 87-02 9006300-0044 Retaining ring 1
M70 87-02 9800916 Control handle 1
M71 87-02 9009660-3100 Toothlock washer 1
M72 87-02 040642 (9003513-0800) Nut 1
M75 87-02 505022 Control manifold (SB-1995-003) 1
M76 14-06 11127988 Solenoid valve, 12 volt, single pole (SB-2014-020) 1
M77 87-02 8800882 Manifold gasket 1
M78 95-10 693341 (9007314-0606) Screw (SB-1995-003) 2
M78 87-02 95-09 041160 (9007314-0605) Screw 2
M83 87-02 001123 (9004201-5000) O-ring 1
M90 87-02 692889 (9007314-0611) Screw 6
QM10 87-02 8510108 MDC kit w/12 volt solenoid, single pole, high force nss 1
QM034 87-02 11099649 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100388 Coil kit, 12 volt, single pole 1
QM89 87-02 8510170 Neutral start switch kit 1
QM210 14-06 11100049 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
85
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
QM10
M90
M9
View A
PA & PB
*M97
*M96
M76
*M658
M29
*M95
*M51
*M11
Generic swashplate used to
show link location only
M14
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
* = included in control seal kit QM210
T70
(servo feed)
T50
(drain)
T30
Possible orice locations
View “A”
T20
(supply)
T40
T80
(servo feed)
E100 724E
T60
(drain)
86
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
PA M9 96-33 782037 PDC, 12 volt 1
M11 96-33 K11419 Control gasket 1
M14 96-40 11070305 Feedback link (SB-1999-019, SB-2013-011) 1
M14 96-33 96-39 8000481 Feedback link (SB-1996-009) 1
M29 96-33 035592 Screw 4
M51 96-33 505412 (9003509-0008) Seal nut 1
M76 96-33 11001795 Solenoid valve, 12 volt 2
M90 96-33 692889 (9007314-0611) Screw 6
M95 96-33 011296 (9004105-0120) O-ring 2
M96 96-33 ` 688721 O-ring 1
M97 96-33 314534 (9004104-0310) O-ring 1
M658 96-33 635938 (9004100-0210) O-ring 2
QM10 96-33 8510165 HDC kit w/PDC, 12 volt 1
QM210 96-33 11096250 Control seal kit 1
PB M9 08-29 782045 PDC, 24 volt 1
M11 08-29 K11419 Control gasket 1
M14 08-29 11070305 Feedback link 1
M29 08-29 035592 Screw 4
M76 08-29 11001794 Solenoid valve, 24 volt 2
M90 08-29 692889 (9007314-0611) Screw 6
M95 08-29 011296 (9004105-0120) O-ring 2
M96 08-29 ` 688721 O-ring 1
M97 08-29 314534 (9004104-0310) O-ring 1
M658 08-29 635938 (9004100-0210) O-ring 2
QM10 08-29 11034081 HDC kit w/PDC, 24 volt 1
QM210 08-29 11096250 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
87
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

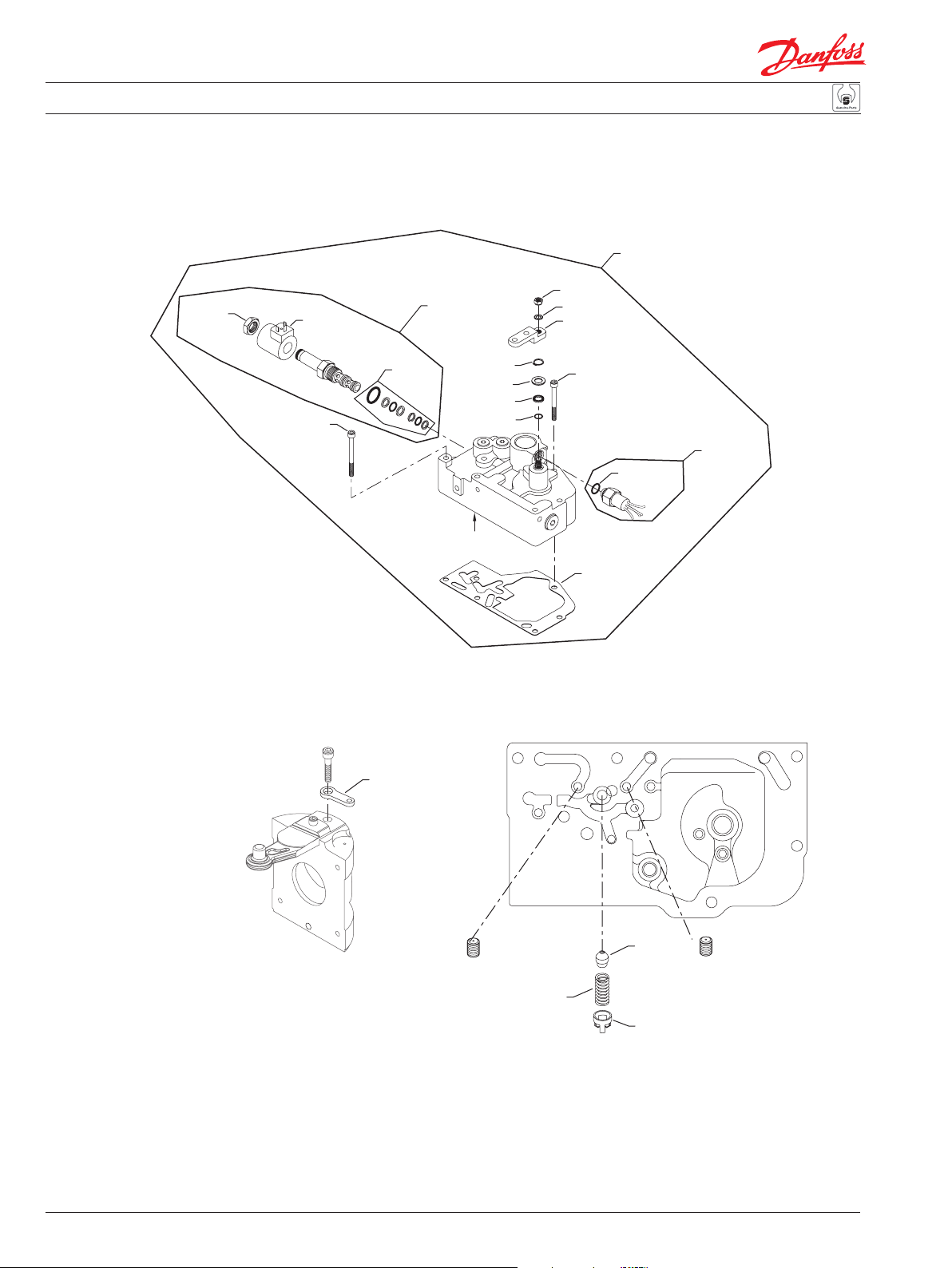

QM036
QM037
M90
QM034
M76
RU
*M27
M029
View A
QM10
M72
M71
M70
M92
*M28
*M26
QM89
*QM83
*M11
M14
Generic swashplate used to
show link location only
(servo feed)
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
T70
View “A”
T20
(supply)
(servo feed)
T30
T40
Possible orice locations
T80
E100 725E
88
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
RU M11 99-45 510379 Control gasket 1
M14 99-45 11070305 Feedback link 1
M26 99-45 144725 O-ring 1
M27 99-45 042507 Retaining ring 1
M28 99-45 510690 Lib seal 1
M029 99-45 512047 Washer 1
M70 99-45 769075 Control handle 1
M71 99-45 9009660-3100 Toothlock washer 1
M72 99-45 040642 (9003513-0800) Nut 1
M90 99-45 354407 Screw 5
M92 99-45 510382 Screw 1
M76 99-45 513017 Solenoid valve, 12 volt 1
QM10 99-45 8510384 MDC kit, roller 1
QM034 99-45 11099850 Solenoid valve seal kit 1
QM036 14-06 11100383 Coil nut 1
QM037 14-06 11100386 Coil kit, 12 volt, single pole 1
QM83 99-45 001123 (9004201-3700) O-ring 1
QM89 99-45 11099847 Neutral start switch 1
QM210 14-06 11100029 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
89
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
SA & SB
M92
M90
View A
*M11
NOTE: THIS CONTROL IS NOT AVAILABLE
AS A SERVICE PART.
M14
Generic swashplate used to
show link location only
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
View “A”
T70
(servo feed)
T80
(servo feed)
Possible orice locations
E101 880E
90
* = included in control seal kit QM210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
SA M11 07-03 8800520 Gasket 1
M14 07-03 11070305 Feedback link 1
M90 07-03 9007314-0608 Screw 5
M92 07-03 9007314-0612 Screw 1
SB M11 08-01 8800520 Gasket 1
M14 08-01 11070305 Feedback link 1
M90 08-01 9007314-0608 Screw 5
M92 08-01 9007314-0612 Screw 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
91
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
SC
M29
QM10
M76
*QM031
M90
View A
View “A”
T20
(supply)
T30
T40
Possible orice locations
NOTE: All orices present in the original control must be
transfered to the replacement control. If replacement
control contains pre-installed orices, remove and
discard them before transferring existing orices to
new control.
*M11
T70
(servo feed)
T50
(drain)
T80
(servo feed)
E101 881E
* = included in control seal kit QM210
92
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Control
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
SC M11 99-11 8800520 Gasket 1
M29 99-11 035592 Screw 4
M76 99-11 509848/P Solenoid valve 1
M90 99-11 693341 (9007314-0606) Screw 6
QM10 99-11 8510385 Control kit, 3-position, 12 volt 1
QM031 99-11 11099647 Valve seal kit 1
QM210 99-11 11096161 Control seal kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
93
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
3, A, L, P & X
QN01
N35
6
N01
N35
N36
N36
QN40
N20
*N15
QN40
N20
*N15
R
N01
N36
S
N32
N37
Generic end cap used to
part location only.
N20
*N15
N10
*N15
94
E100 726E
* = included in overhaul seal kit Q210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Filtration
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
3 & X N15 98-14 001172 (9004201-9000) O-ring 1
N20 98-14 11049997 Nut 1
N35 98-14 140644 Plug assembly 1
N36 98-14 140644 Plug assembly 1
QN01 98-14 11145249 Filter manifold kit 1
QN40 98-14 11004919 Filter, long 1
6 N01 00-01 11060345 Filter manifold assembly 1
N15 00-01 001172 (9004201-9000) O-ring 1
N20 00-01 11049997 Nut 1
N32 00-01 140644 Plug assembly 1
N35 00-01 140644 Plug assembly 1
N36 00-01 140644 Plug assembly 1
QN40 00-01 11004917 Filter, short 1
A N15 98-14 001172 (9004201-9000) O-ring 1
N20 98-14 11049997 Nut 1
N35 98-14 140644 Plug assembly 1
N36 98-14 140644 Plug assembly 1
QN01 98-14 11145249 Filter manifold kit 1
QN40 98-14 11004917 Filter, short 1
D None
L N15 87-02 001172 (9004201-9000) O-ring 1
N20 95-18 11049997 Nut 1
N20 87-02 95-17 700492 (9002863-1600) Nut (SB-1994-036) 1
N35 87-02 140644 Plug assembly 1
N36 87-02 140644 Plug assembly 1
QN01 98-14 11145249 Filter manifold kit 1
QN40 87-02 11004919 Filter, long 1
P N15 87-02 001172 (9004201-9000) O-ring 1
N20 95-18 11049997 Nut 1
N20 87-02 95-17 700492 (9002863-1600) Nut (SB-1994-036) 1
N35 87-02 140644 Plug assembly 1
N36 87-02 140644 Plug assembly 1
QN01 98-14 11145249 Filter manifold kit 1
QN40 87-02 11004917 Filter, short 1
R N01 87-42 11060427 Filter manifold assembly 1
N15 87-42 001172 (9004201-9000) O-ring 1
N20 87-42 11049997 Nut 1
N36 87-42 140644 Plug assembly 1
S N10 87-42 5000230 Reducer assembly 1
N15 87-42 001172 (9004201-9000) O-ring 1
N37 87-42 140644 Plug assembly 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
95
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

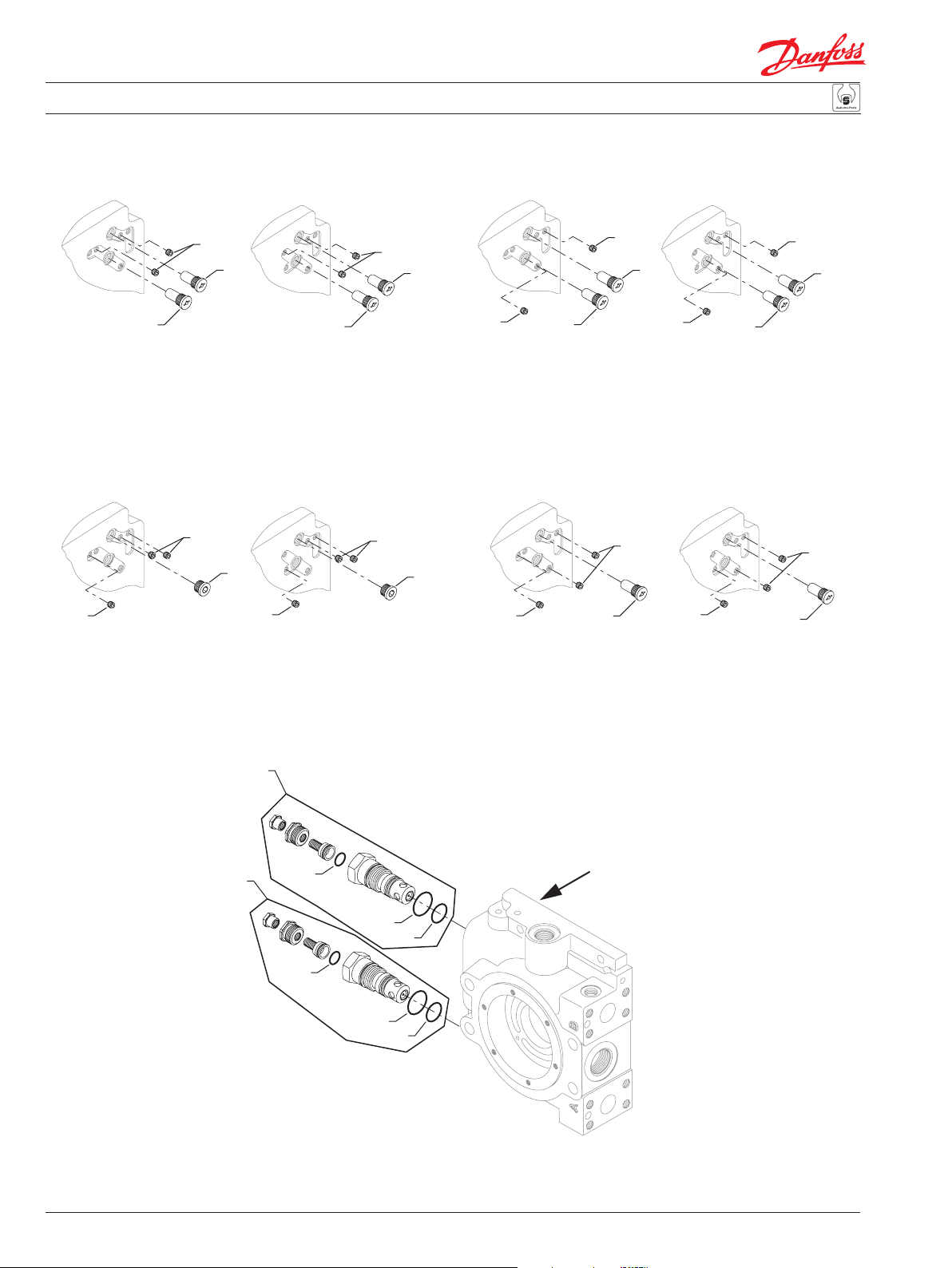

Twin ported
end cap
P80
P70
View “A” with
pressure limiters,
left hand rotation,
Side ported
end cap
P70
(1, 5 & 6)
Twin ported
end cap
P80
Side ported
end cap
P70
P70
P80
P80
P70
P70
Twin ported
end cap
P80
Twin ported
end cap
P80
P70
P70
View “A” with
pressure limiters,
right hand rotation,
(1, 5 & 6)
P80
Side ported
end cap
P80
Side ported
end cap
P80
P70
P70
P80
P80
P80
View “A” without
pressure limiters,
left/right hand rotation
(2 & 7)
QPA2B
QPA2A
*P02
*P02
*P06
*P06
*P13
*P13
P80
P70
P80
View “A” with
pressure limiter port A,
HPRV port B,
right hand rotation
(B)
View “A”
Generic end caps used to
show valve location only
P70
96
E100 727E
* = included in overhaul seal kit Q210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
High pressure regulation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
1 P02 87-02 688721 O-ring 2
P06 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 8800188 Check valve assembly 2
P80 87-02 9005475-0004 Special pipe plug 2
QPA2A 87-02 8510022-1 Multi-function valve kit 1
QPA2B 87-02 8510022-1 Multi-function valve kit 1
2 P02 87-02 688721 O-ring 2
P06 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 327007 (9005110-4400) Plug assembly 1
P80 87-02 9005475-0004 Special pipe plug 3
QPA2A 87-02 8510022-2 Multi-function valve kit 1
QPA2B 87-02 8510022-2 Multi-function valve kit 1
5 P02 87-02 688721 O-ring 2
P06 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 8800188 Check valve assembly 2
P80 87-02 9005475-0004 Special pipe plug 2
QPA2A 87-02 8510240 Multi-function valve kit 1
QPA2B 87-02 8510240 Multi-function valve kit 1
6 P02 87-02 688721 O-ring 2
P06 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 8800188 Check valve assembly 2
P80 87-02 9005475-0004 Special pipe plug 2
QPA2A 87-02 8510022-6 Multi-function valve kit 1
QPA2B 87-02 8510022-6 Multi-function valve kit 1
7 P02 87-02 688721 O-ring 2
P16 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 327007 (9005110-4400) Plug assembly 1
P80 87-02 9005475-0004 Special pipe plug 3
QPA2A 87-02 8510022-7 Multi-function valve kit 1
QPA2B 87-02 8510022-7 Multi-function valve kit 1
B P02 87-02 688721 O-ring 2
P06 87-02 071811 O-ring 2
P13 87-02 544742 (9004105-0190) O-ring 2
P70 87-02 8800188 Check valve assembly 1
P80 87-02 9005475-0004 Special pipe plug 3
QPA2A 87-02 8510022-1 Multi-function valve kit 1
QPA2B 87-02 8510022-7 Multi-function valve kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
97
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
Twin ported
end cap
P80
P70
View “A” with
pressure limiters,
left hand rotation,
Side ported
end cap
P70
(F, G, H and P)
QPA2B
(F, G, H and P)
QPA2B
P70
*P02
P80
P70
(D)
*P06
Twin ported
end cap
P80
P80
P70
View “A” with
pressure limiters,
right hand rotation,
(F, G, H and P)
Side ported
P70
P80
end cap
P80
P70
P70
*QPA2B
*QPA2A
(H and J)
(J)
*P21
*P21
(F, G, and P)
*P20
*P20
QPA2A
QPA2A
(D)
*P02
*P02
*P02
*P02
*P02
*P06
*P06
*P06
*P06
*P13
*P13
*P13
*P13
Generic end caps used to
show valve location only
View “A”
* = included in overhaul seal kit Q210
E100 728E
98
*P06
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump
High pressure regulation
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
D P02 92-22 688721 O-ring 2
P06 92-22 071811 O-ring 2
QPA2A 92-22 8510388 Multi-function valve kit 1
QPA2B 92-22 8510388 Multi-function valve kit 1
F P02 98-29 688721 O-ring 2
P06 98-29 071811 O-ring 2
P13 98-29 544742 (9004105-0190) O-ring 2
P70 98-29 8800188 Check valve 2
P80 98-29 9005475-0004 Special plug 2
QPA2A 98-29 8510022-2 Multi-function valve kit 1
QPA2B 98-29 8510022-2 Multi-function valve kit 1
G P02 97-06 688721 O-ring 2
P06 97-06 071811 O-ring 2
P13 97-06 544742 (9004105-0190) O-ring 2
P70 97-06 8800188 Check valve 2
P80 97-06 9005475-0004 Special plug 2
QPA2A 97-06 8510196 Multi-function valve kit 1
QPA2B 97-06 8510196 Multi-function valve kit 1
H P02 97-40 688721 O-ring 2
P06 97-40 071811 O-ring 2
P13 97-40 544742 (9004105-0190) O-ring 2
P20 97-40 9004105-0160 O-ring 1
P21 97-40 9006110-0160 Back up ring 1
P70 97-40 8800188 Check valve 2
P80 97-40 9005475-0004 Special plug 2
QPA2A 97-40 8510275 Multi-function valve kit, dual setting 1
QPA2B 97-40 8510022-1 Multi-function valve kit 1
J P02 97-40 688721 O-ring 2
P06 97-40 071811 O-ring 2
P13 97-40 544742 (9004105-0190) O-ring 2
P20 97-40 9004105-0160 O-ring 2
P21 97-40 9006110-0160 Back up ring 2
QPA2A 97-40 8510275 Multi-function valve kit, dual setting 1
QPA2B 97-40 8510275 Multi-function valve kit, dual setting 1
P P02 99-26 688721 O-ring 2
P06 99-26 071811 O-ring 2
P13 99-26 544742 (9004105-0190) O-ring 2
P70 99-26 8800188 Check valve assembly 2
P80 99-26 9005475-0004 Special pipe plug 2
QPA2A 99-26 8510389 Multi-function valve kit 1
QPA2B 99-26 8510389 Multi-function valve kit 1
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
99
Parts Manual Series 90 55cc Axial Piston Pump
Variable displacement pump

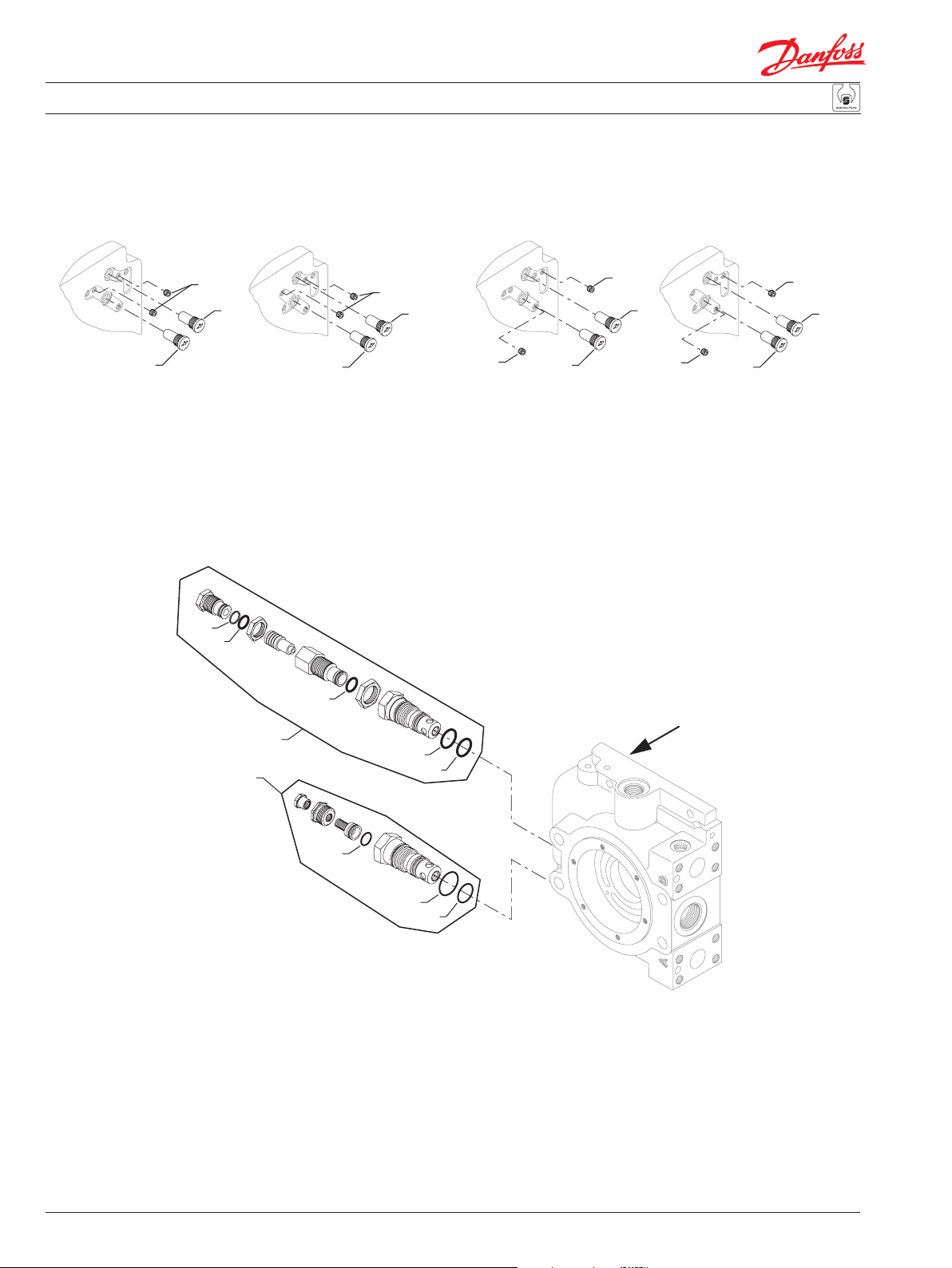

Twin ported
end cap
P80
P70
View “A” with
pressure limiters,
left hand rotation,
Side ported
end cap
P70
(Y)
P70
P80
P70
Twin ported
end cap
P80
P80
P70
P70
View “A” with
pressure limiters,
right hand rotation,
(Y)
Side ported
end cap
P80
P80
P70
P70
*P21
*P20
*QPA2B
QPA2A
(Y)
Generic end caps used to
show valve location only
*P02
View “A”
*P06
*P13
*P02
*P06
*P13
100
E101 882E
* = included in overhaul seal kit Q210
AX00000089en-US | 520L0889 • Rev 0500 • February 2019
Loading...
