Danfoss H1B 160cc Service guide

Parts Manual
H1B 160cc
Bent Axis Motor
www.danfoss.com
Parts Manual
Revision history Table of revisions
Date Changed Rev
December 2021 Corrected endcap part numbers 0810
January 2021 Updated loop flushing part numbers 0809
June 2020 Changed servo pressure O-ring part numbers 0808
March 2020 Corrected endcap sort strings and changed document number from AX00000226 0807
January 2020 Updated HE/HF servo pressure supply part numbers 0705
August 2019 Updated part numbers and added a caution for servo piston removal 0704
March 2019 Correct shaft EN order code 0703
February 2019 Updated servo pressure supply illustrations 0702
December 2018 Corrected special hardware part numbers 0701
November 2018 Updated servo pressure supply option HE 0603
May 2018 Minor corrections 0602
May 2018 Added SB-2018-028 and various new options 0601
February 2018 Updated to Engineering Tomorrow 0502
2 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual

Contents

General information
Controls
Servo pressure supply
Orifice
End cap
Flange/housing
Shaft
Service Parts Identification............................................................................................................................................................5
Nameplate...........................................................................................................................................................................................5
Date code............................................................................................................................................................................................ 6
About service bulletins...................................................................................................................................................................6
Procedure to identify a part..........................................................................................................................................................6
Regional part numbers............................................................................................................................................................. 6
Adobe Acrobat 2-page viewing..................................................................................................................................................7
Order code.......................................................................................................................................................................................... 8
Notes.....................................................................................................................................................................................................9
Control D1-DH.................................................................................................................................................................................10
Control E1-F2...................................................................................................................................................................................12
Control K1-KH..................................................................................................................................................................................14
Control L1-LH...................................................................................................................................................................................16
Control M1-MH............................................................................................................................................................................... 18
Control P1-T2...................................................................................................................................................................................20
Control TA, TH................................................................................................................................................................................. 22
Servo pressure AA, AD..................................................................................................................................................................24
Servo pressure BA, BB...................................................................................................................................................................26
Servo pressure BC, BD, CA...........................................................................................................................................................28
Servo pressure D1, D1.................................................................................................................................................................. 30
Servo pressure DA, EA.................................................................................................................................................................. 32
Servo pressure G1, G2...................................................................................................................................................................34
Servo pressure HA-HD..................................................................................................................................................................36
Servo pressure HE, HF...................................................................................................................................................................38
Servo pressure K1, K2....................................................................................................................................................................40
Servo pressure KA, KH.................................................................................................................................................................. 42
Servo pressure M1, M2.................................................................................................................................................................44
Servo pressure MA, MF.................................................................................................................................................................46
Servo pressure MH, MW...............................................................................................................................................................48
Servo pressure NP, NR, NT...........................................................................................................................................................50
Orifice A, B, C, D...............................................................................................................................................................................52
End cap PA........................................................................................................................................................................................54
End cap PB........................................................................................................................................................................................56
End cap PF........................................................................................................................................................................................ 58
End cap PG........................................................................................................................................................................................60
End cap PH........................................................................................................................................................................................62
End cap PJ.........................................................................................................................................................................................64
End cap PN........................................................................................................................................................................................66
End cap RA........................................................................................................................................................................................68
End cap RB........................................................................................................................................................................................70
End cap TA........................................................................................................................................................................................72
End cap TB........................................................................................................................................................................................ 74
End cap TE.........................................................................................................................................................................................76
End cap TL.........................................................................................................................................................................................78
Flange/housing CN, CS................................................................................................................................................................ 80
H1B 160cc flange/housing DE-DS............................................................................................................................................82
Flange/housing VB........................................................................................................................................................................ 84
Flange/housing VN, VS.................................................................................................................................................................86
Shaft DN-PS......................................................................................................................................................................................88
©
Danfoss | December 2021 AX152986481980en-000810 | 3
Parts Manual
Contents
Speed sensor
Speed sensor B, C, P, S..................................................................................................................................................................90
Loop flushing
Loop flushing A-N..........................................................................................................................................................................92
Loop flushing 05-50...................................................................................................................................................................... 96
Loop flushing E2, E3, E4, NN.......................................................................................................................................................98
Special hardware and displacement
Special hardware HN, HP.......................................................................................................................................................... 100
Special hardware NN, NP.......................................................................................................................................................... 102
Minimum displacement 000-AB4, MB0...............................................................................................................................104
Minimum displacement AC3...................................................................................................................................................106
Maximum displacement........................................................................................................................................................... 108
Overhaul seal kit
H1B 160cc seal kit........................................................................................................................................................................110
Service bulletin
SB-2018-028...................................................................................................................................................................................111
SB-2019-017...................................................................................................................................................................................112
SB-2020-038...................................................................................................................................................................................113
4 | © Danfoss | December 2021 AX152986481980en-000810
Made in Germany
Serial No.
N-11-20-23456
Model Code
Model No./Ident No.
H1B160-A-A-L1-BA-N­B-PA-CN-KN-N-N-NN­NN-032-N-00-NNN
83013646
Parts Manual

General information

Service Parts Identification

Nameplate

The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the .
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major Repairs” or “Conversions” on the .
Each unit will have a nameplate affixed to the housing. The nameplate will include the following information:
Model Code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.
Model Number
The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.
Serial Number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly). The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the
calendar week of manufacture. The third number (5 digits) is a sequential number used to identify a specific unit.
©
Danfoss | December 2021 AX152986481980en-000810 | 5
Parts Manual
General information

Date code

About service bulletins

The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code Item Date Begin Date End Part Number Part Name Qty. per
80 G30 89-17 8000243 End cap gasket 1
G30 89-16 8000151 End cap gasket
(SB-1995-006)
Model/Kit
1
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units with a date code of 89-17 and newer must use part number “8000243.”
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.

Procedure to identify a part

The modular design of this product results in a simplified service parts list and part number identification procedure.
The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.

Regional part numbers

Some part numbers are region specific and should be ordered accordingly. As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold
in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.
6 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
General information

Adobe Acrobat 2-page viewing

While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.
1. Select “View” “Page Display” “Two Page View”
2. Select “View” “Page Display” “Show Cover Page in Two Page View”
©
Danfoss | December 2021 AX152986481980en-000810 | 7
L
1
B
A
B
C N
A
P
N
K N
0
2 NN N
N
0
0
Servo pressure supply
Threshold setting
Orifice
Control
End cap
Flange/housing
Shaft
Speed sensor
Loop flushing shuttle system
B C
E
D
F G L3MH J
N N
N
K
NN N
Q R
P
N
Loop flushing relief valve
Special hardware
PCOR setting
Customer values
Minimum displacement
Maximum displacement
H1B
0
1
6
Series
Frame
Size
Product Type
A A
Product
Version
Port
Configuration
Parts Manual
General information

Order code

8 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
General information

Notes

©
Danfoss | December 2021 AX152986481980en-000810 | 9
B0020
*B0035
B0050
B0040
B0010
B0025
B0028 B0027
B0029
B0061
B0060
B0180
B0050
B0190
B0010
Parts Manual

Controls

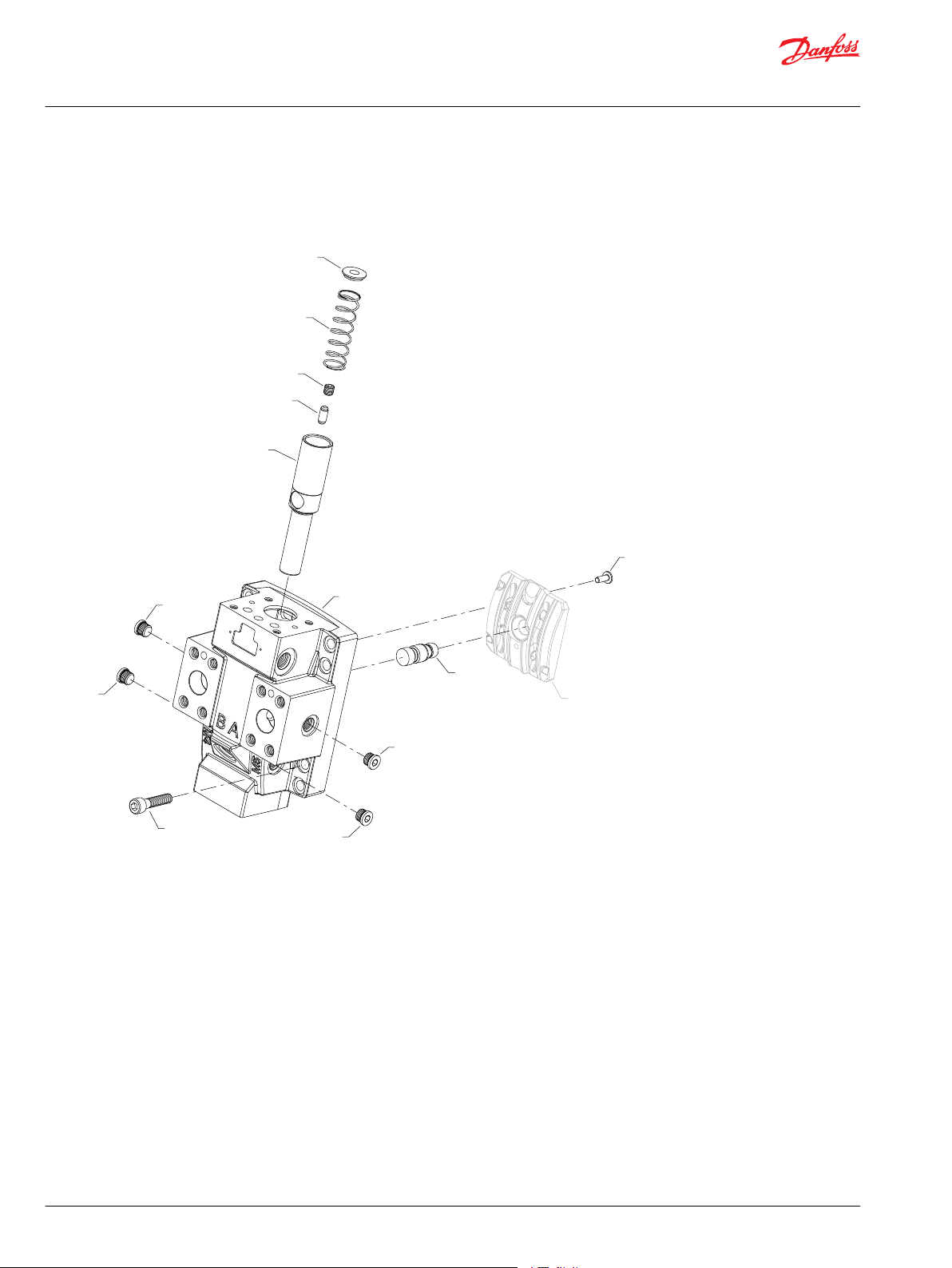

H1B control D1-DH
D1 and D2 configuration
DH configuration
Generic housings used to show part locations only.
* Included in overhaul seal kit Q210
10 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Electric proportional
Order code: D1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 149053 Solenoid valve, proportional, 12 volt 1 B0020 11-18 11031746 Coil kit, 12 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Order code: D2
B0010 11-18 11002705 Solenoid valve, proportional, 24 volt 1 B0020 11-18 11031749 Coil kit, 24 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Model/Kit
Hydraulic proportional
Order code: DH
B0010 14-37 11146306 Actuator assembly 1 B0050 14-37 716860 Screw, M5 x 12 3 B0060 14-37 140644 Plug assembly 1 B0061 14-37 140644 Plug assembly 1 B0180 14-37 076042 (9003509-0012) Seal nut, M12 1 B0190 14-37 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152986481980en-000810 | 11
*B0034
C2000
B0010
B0026
B0028
B0024
B0024
B0026
B0028
C2000
*B0034
B0010
Parts Manual
Controls
H1B control E1-F2
E1 and E2 configuration
F1 and F2 configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
12 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Electric 2-position
Order code: E1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 11013615 Solenoid, on/off, 12 volt 1 B0024 11-18 11027046 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031763 Coil kit, 12 volt 1
Order code: E2
B0010 11-18 11013616 Solenoid, on/off, 24 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031764 Coil kit, 24 volt 1
Model/Kit
Order code: F1
B0010 11-18 11013615 Solenoid, on/off, 12 volt 1 B0024 11-18 11027046 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031763 Coil kit, 12 volt 1
Order code: F2
B0010 11-18 11013616 Solenoid, on/off, 24 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031764 Coil kit, 24 volt 1
Order code: HE and HF
No parts
©
Danfoss | December 2021 AX152986481980en-000810 | 13
*B0035
B0040
B0010
B0020
B0050
B0025
B0028
B0027
B0029
B0190
B0180
B0050
B0060
B0061
B0010
Parts Manual
Controls

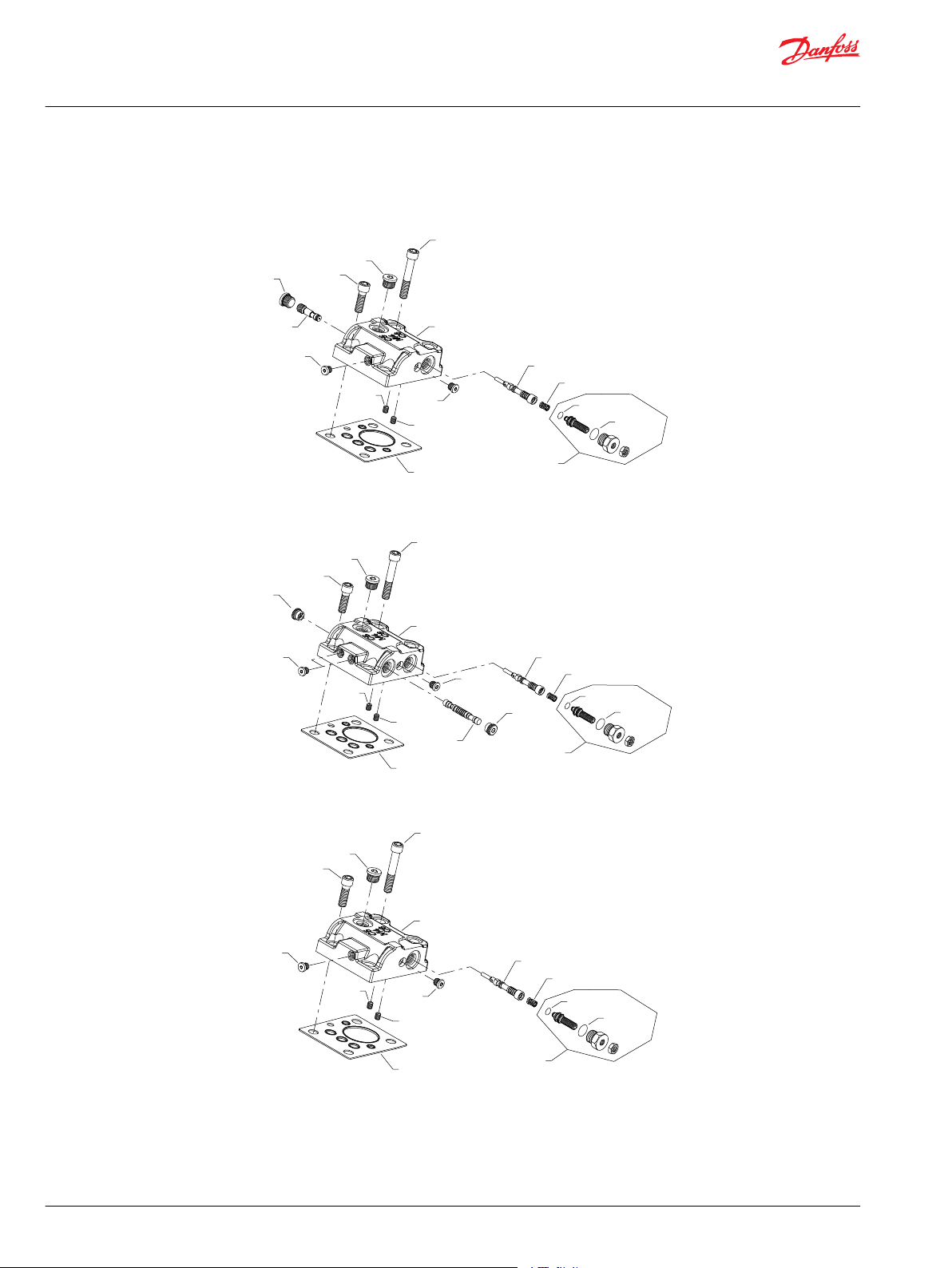

H1B control K1-KH
K1, K2 configuration
KH configuration
Generic housing used to show part location only.
* Included in overhaul seal kit Q210
14 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Order code: K1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 149053 Solenoid valve, proportional, 12 volt 1 B0020 11-18 11031746 Coil kit, 12 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Order code: K2
B0010 11-18 11002705 Solenoid valve, proportional, 24 volt 1 B0020 11-18 11031749 Coil kit, 24 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Model/Kit
Order code: KH
B0010 15-48 11146306 Actuator assembly 1 B0050 15-48 716860 Screw, M5 x 12 3 B0060 15-48 140644 Plug assembly 1 B0061 15-48 140644 Plug assembly 1 B0180 15-48 076042 (9003509-0012) Seal nut, M12 1 B0190 15-48 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152986481980en-000810 | 15
B0020
*B0035
B0050
B0040
B0010
B0025
B0028 B0027
B0029
B0061
B0060
B0180
B0050
B0190
B0010
Parts Manual
Controls
H1B control L1-LH
L1 and L2 configuration
LH configuration
Generic housings used to show part locations only.
* Included in overhaul seal kit Q210
16 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Electric proportional
Order code: L1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 149053 Solenoid valve, proportional, 12 volt 1 B0020 11-18 11031746 Coil kit, 12 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Order code: L2
B0010 11-18 11002705 Solenoid valve, proportional, 24 volt 1 B0020 11-18 11031749 Coil kit, 24 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Model/Kit
Hydraulic proportional
Order code: LH
B0010 14-37 11146306 Actuator assembly 1 B0050 14-37 716860 Screw, M5 x 12 3 B0060 14-37 140644 Plug assembly 1 B0061 14-37 140644 Plug assembly 1 B0180 14-37 076042 (9003509-0012) Seal nut, M12 1 B0190 14-37 012575 (9004105-1170) O-ring 1
©
Danfoss | December 2021 AX152986481980en-000810 | 17
*B0035
B0040
B0010
B0020
B0050
B0025
B0028
B0027
B0029
B0190
B0180
B0050
B0060
B0061
B0010
Parts Manual
Controls
H1B control M1-MH
M1, M2 configuration
MH configuration
Generic housing used to show part location only.
* Included in overhaul seal kit Q210
18 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Order code: M1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 149053 Solenoid valve, proportional, 12 volt 1 B0020 11-18 11031746 Coil kit, 12 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Order code: M2
B0010 11-18 11002705 Solenoid valve, proportional, 24 volt 1 B0020 11-18 11031749 Coil kit, 24 volt 1 B0025 11-18 11004735 O-ring 1 B0027 11-18 11004749 Coil nut 1 B0028 11-18 063172 O-ring 1 B0029 11-18 11037174 O-ring 1 B0035 11-18 11001952 O-ring 1 B0040 11-18 11014185 Plastic cap 1 B0050 11-18 716860 Screw, M5 x 12 3
Model/Kit
Order code: MH
B0010 14-23 11146306 Actuator assembly 1 B0050 14-23 716860 Screw, M5 x 12 3 B0060 14-23 140644 Plug assembly 1 B0061 14-23 140644 Plug assembly 1 B0180 14-23 076042 (9003509-0012) Seal nut, M12 1 B0190 14-23 012575 (9004105-1170) O-ring 1
Order code: N1, NA, NB
No parts
©
Danfoss | December 2021 AX152986481980en-000810 | 19
*B0034
B0020
B0010
B0026
B0028
B0024
*B0034
C2000
B0010
B0026
B0028
B0024
Parts Manual
Controls
H1B control P1-T2
P1 and P2 configuration
T1 and T2 configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
20 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Order code: P1
Item Date Begin Date End Part Number Part Name Qty. per
B0010 11-18 11013613 Solenoid valve, proportional, 12 volt 1 B0020 11-18 11031751 Coil kit, 12 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1
Order code: P2
B0010 11-18 11013614 Solenoid valve, proportional, 24 volt 1 B0020 11-18 11031762 Coil kit, 24 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1
Model/Kit
Order code: T1
B0010 11-18 11013615 Solenoid, on/off, 12 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031763 Coil kit, 12 volt 1
Order code: T2
B0010 11-18 11013616 Solenoid, on/off, 24 volt 1 B0024 11-18 11031608 O-ring 1 B0026 11-18 11027046 Coil nut 1 B0028 11-18 063172 O-ring 1 B0034 11-18 085043 (9004201-3700) O-ring 1 C2000 11-18 11031764 Coil kit, 24 volt 1
©
Danfoss | December 2021 AX152986481980en-000810 | 21
B0060
B0320
B0330
QB300
B0300
Parts Manual
Controls
H1B control TA, TH
TA configuration
TH configuration
Generic housings used to show part location only.
* Included in overhaul seal kit Q210
22 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Controls
Order code: TA
Item Date Begin Date Begin Part Number Part Name Qty. per
B0060 11-46 140644 Plug assembly 1
Order code: TH
B0300 15-27 11157844 PCOR override adapter assembly 1 B0320 15-27 11157843 Sensing spool 1 B0330 15-27 11164139 O-ring 1 QB300 15-27 085043 (9004201-3700) O-ring 1
Model/Kit
©
Danfoss | December 2021 AX152986481980en-000810 | 23
*C0130
C0025
C0060
C0080
C0075
C0010
C0060
(removed 11-21)
C0060
C0050
E00T2
E00T3
C0050
C0110
C0120
C0010
C0060
C0050
C0080
C0070
C0060
C0050
*C0130
E00T2
E00T3
C0110
C0120
C0090
*M223
*M224
Parts Manual

Servo pressure supply

H1B servo pressure AA, AD
AA configuration
AD configuration
* Included in overhaul seal kit Q210
Option AA is available in SAE and metric port configurations. Please order accordingly.
24 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Servo pressure supply
Order code: AA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 11-18 11086113 Control housing, 2-position (SAE) 1 C0010 15-48 11171632 Control housing, 2-position (metric) 1 C0025 11-18 11000893 Shuttle valve assembly 1 C0050 11-18 140644 Plug assembly (SAE) 2 C0050 15-48 11178808 Plug assembly (metric) 2 C0060 11-22 11040532 Plug assembly 2 C0060 11-18 11-21 11040532 Plug assembly 3 C0075 11-18 11016166 Spool 1 C0080 11-18 1160236 Spring (SAE) 1 C0080 11-18 11160236 Spring (metric) 1 C0110 11-18 737866 (9007314-1207) Screw, M12 x 30 2 C0120 11-18 283325 (9007314-1211) Screw, M12 x 50 2 C0130 11-18 11016168 Control seal 1
Model/Kit
Order code: AD
C0010 12-14 11110070 Control housing, 2-position 1 C0050 12-14 140644 Plug assembly (SAE) 2 C0060 11-22 C0060 11-22 11040532 Plug assembly 2 C0070 12-14 11016228 Spool 1 C0080 12-14 11160236 Spring (SAE) 1 C0090 12-14 509360 Adjuster 1 C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2 C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2 C0130 12-14 11016168 Control seal 1 M223 12-14 085043 (9004201-3700) O-ring 1 M224 12-14 732479 O-ring 1
©
Danfoss | December 2021 AX152986481980en-000810 | 25
C0100
C0060
C0060
E00T2
C0060
E00T3
C0025
C0050
*C0130
C0110
C0010
C0100
C0060
C0060
E00T2
C0060
E00T3
C0025
C0050
*C0130
C0110
C0010
C0320
C0300
C0320
Parts Manual
Servo pressure supply
H1B servo pressure BA, BB
BA configuration
BB configuration
26 | © Danfoss | December 2021 AX152986481980en-000810
* Included in overhaul seal kit Q210
Parts Manual
Servo pressure supply
Option BA and BB are available in SAE and metric. Please order accordingly.
Order code: BA
Item Date Begin Date End Part Number Part Name Qty. per
C0010 11-18 149057 Control housing, proportional (SAE) 1 C0010 15-45 11161819 Control housing, proportional (metric) 1 C0025 11-18 11000893 Shuttle valve assembly 1 C0050 11-18 140644 Plug assembly (SAE) 1 C0050 15-45 11178808 Plug assembly (metric) 1 C0060 11-18 11040532 Plug assembly 3 C0100 11-18 11146871 Spool (SAE) 1 C0100 15-45 11146871 Spool (metric) 1 C0110 11-18 710855 Screw, M8 x 35 4 C0130 11-18 149040 Control seal 1
Order code: BB
C0010 12-24 11116918 Control housing, proportional (SAE) 1 C0010 12-24 11178808 Control housing, proportional (metric) 1 C0025 12-24 11000893 Shuttle valve assembly 1 C0050 12-24 140644 Plug assembly (SAE) 1 C0060 12-24 11040532 Plug assembly 3 C0100 12-24 11146871 Spool (SAE) 1 C0110 12-24 710855 Screw, M8 x 35 4 C0130 12-24 149040 Control seal 1 C0300 12-24 11086158 Protective cover 1 C0320 12-24 395822 Screw, M6 x 12mm 2
Model/Kit
©
Danfoss | December 2021 AX152986481980en-000810 | 27
E00T2
E00T3
C0100
C0060
C0060
C0060
C0025
C0050
*C0130
C0110
C0010
C0320
C0300
C0320
C0010
C0060
C0050
C0080
C0070
C0060
C0050
*C0130
E00T2
E00T3
C0110
C0120
C0090
*M223
*M224
E00T3
E00T2
C0100
C0010
C0025
*C0130
C0060
C0050
C0060
C0060
C0110
(BC)
(BD)
(CA)
Parts Manual
Servo pressure supply
H1B servo pressure BC, BD, CA
Parts configuration
* Included in overhaul seal kit Q210
Option BC is only available in metric configuration. Option CA is available is both SAE and metric configurations. Please order accordingly.
28 | © Danfoss | December 2021 AX152986481980en-000810
Parts Manual
Servo pressure supply
Order code: BC
Item Date Begin Date End Part Number Part Name Qty. per
C0010 16-38 11169197 Control housing, proportional (metric) 1 C0025 16-38 11000893 Shuttle valve assembly 1 C0050 16-38 11178808 Plug assembly (metric) 1 C0060 16-38 11040532 Plug assembly 3 C0100 16-38 11146871 Spool (metric) 1 C0110 16-38 710855 Screw, M8 x 35 4 C0130 16-38 149040 Control seal 1 C0300 16-38 11086158 Protection cover 1 C0320 16-38 395822 Screw, M6 x 12 2
Order code: BD
C0010 12-14 11110071 Control housing, 2-position 1 C0050 12-14 140644 Plug assembly (SAE) 2 C0060 12-14 11040532 Plug assembly 2 C0070 12-14 11016228 Spool 1 C0080 12-14 11160236 Spring (SAE) 1 C0090 12-14 509360 Adjuster 1 C0110 12-14 737866 (9007314-1207) Screw, M12 x 30 2 C0120 12-14 283325 (9007314-1211) Screw, M12 x 50 2 C0130 12-14 11016168 Control seal 1 M223 12-14 085043 (9004201-3700) O-ring 1 M224 12-14 732479 O-ring 1
Model/Kit
Order code: CA
C0010 11-18 149057 Control housing, proportional (SAE) 1 C0010 17-06 11161819 Control housing, proportional (metric) 1 C0025 11-18 11000893 Shuttle valve assembly 1 C0050 11-18 140644 Plug assembly (SAE) 1 C0050 17-06 11178808 Plug assembly (metric) 1 C0060 11-18 11040532 Plug assembly 3 C0100 11-18 11146871 Spool (SAE) 1 C0100 17-06 11146871 Spool (metric) 1 C0110 11-18 710855 Screw, M8 x 35 4 C0130 11-18 149040 Control seal 1
©
Danfoss | December 2021 AX152986481980en-000810 | 29
C0030
C0020
C0060
C0010
C0060
*B0034
C2000
C0040
B0026
B0028
B0024
C0060
C0050
*C0130
E00T2
E00T3
C0050
C0110
C0120
C0080
C0070
C0090
*M223
*M224
C0060
(removed 11-21)
Parts Manual
Servo pressure supply
H1B servo pressure D1, D2
D1 and D2 configuration
* Included in overhaul seal kit Q210
30 | © Danfoss | December 2021 AX152986481980en-000810
Loading...
+ 85 hidden pages
