Danfoss EV310B Data sheet

Data Sheet
Solenoid valve Type EV310B
Direct-operated 3/2-way solenoid valves for universal use
EV310B covers a wide range of direct-operated 3/2-way solenoid valves for universal use. EV310B is a real robust valve program with high performance and can be used in all kind of tough working conditions. Clip-on coils can not be used on EV310B.
Features
• For water, oil, compressed air and similar neutral media
• Screw on coil
• Ambient temperature: Up to 40 °C
• Coil enclosure (cable plug): Up to IP67
• Viscosity: Up to 50 cSt
AI206986429628en-000901
Features
EV310B
EV310B MAN
EV310B Flange MAN
Body material
Brass
Brass
Brass
DN [mm]
1.5-3.5
2.0
2.0
Function
NC, NO
NC, NO
NC
Connection
G - G
Flange 32x32 mm
Sealing material
FKM
FKM
FKM
Kv [m3/h]
0.8-0.40
0.15
0.15
Dierential pressure range [bar]
0-20
0-16
0-16
Temperature range [°C]
-10 - 100
-10 - 100
-10 - 100
Manual override (MAN)
No
Yes
Yes
Solenoid valve, type EV310B
1 Portfolio overview
Table 1: Portfolio overview
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 2
NC: R(3)
NC: A(2)
1
2
3
4
Danfoss
32U1781.10
1234pAR
Coil
Armature
Closing spring
Valve plate
Pressure port (stamped: 1)
Application port (stamped: 2)
Relief port (3)
Solenoid valve, type EV310B
2 Functions
2.1 Function, NC
Coil voltage disconnected (closed):
When the voltage to the coil is disconnected, the armature with the valve plates is pressed down by the closing spring and closes the connection between P and A. At the same time, the connection between ports A and R is opened.
The connection between P and A will be closed for as long as the voltage to the coil is disconnected.
Coil voltage connected (open):
When voltage is applied, the armature with the valve plates is lifted and closes the connection between A and R. At the same time, the connection between P and A is opened.
The connection between P and A will be open for as long as there is voltage to the coil.
2.2 Function, NO
Coil voltage disconnected (open):
When the voltage is disconnected, the armature with the valve plates is pressed down by the opening spring and closes the connection between A and R. At the same time, the connection between ports P and A is open.
The connection between P and A will be open for as long as the voltage to the coil is disconnected.
On valves with manual override the connection between P and A can be closed using a closing screw in the valve body.
Coil voltage connected (closed):
When voltage is applied to the coil, the armature with the valve plates is lifted and closes the connection between P and A. At the same time, the connection between ports A and R is opened.
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 3
Danfoss
32U1782.10
1
2
3
4
NO: R(3) NO: A (2)
NO: P(1)
1234pAR
Coil
Armature
Opening spring
Valve plate
Pressure port (1)
Application port (stamped: 2)
Relief port (stamped: 3)
Solenoid valve, type EV310B
The connection between P and A will be closed for as long as there is voltage to the coil.
2.3 Function, NC FL MAN
Coil voltage disconnected (open):
When the voltage to the coil is disconnected, the armature, with the valve plates, is pressed down by the closing spring and closes the connection between P and A. At the same time, the connection between ports A and R is opened. The connection between P and A will be closed for as long as the voltage to the coil is disconnected. On valves with manual override the connection between P and A can be opened using an opening screw in the valve body.
Coil voltage connected (closed):
When voltage is applied, the armature with the valve plates is lifted and closes the connection between A and R. At the same time, the connection between P and A is opened.
The connection between P and A will be open for as long as there is voltage to the coil.
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 4
Danfoss
32U1780.10
1
2
3
4
NC: R(3)
NC: P(1) A(2)
1234pAR
Coil
Armature
Closing spring
Valve plate
Pressure port (stamped: 1)
Application port (stamped: 2)
Relief port (3)
Solenoid valve, type EV310B
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 5
ON
OFF
24h
Solenoid valve, type EV310B
3 Applications
It is recommended to use a lter in front of the valve. Recommended lter 50 mesh (297 microns).
Figure 1: Filter
In water applications, exercise the valves at least once every 24 hours, meaning change the state of the valve. The valve exercise will minimize the risk of the valve sticking due to calcium carbonate, zinc or iron oxide build-up.
Figure 2: Exercise: Valve on/o
To minimize scaling, and corrosion attack it is recommended that the water passing the valve have the following values:
• Hardness 6 - 18 °dH to avoid scaling (chalk / lime stone build up)
• Conductivity 50 – 800 µS/cm to avoid brass dezincication and corrosion
• Above 25 °C media temperature avoid stagnant water inside the valve to avoid dezincication and corrosion attack
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 6
Media
FKM
For water, oil, compressed air and similar neutral media
Media temperature [°C]
-10 °C - 100 °C
Ambient temperature [°C]
Up to 40 °C
Kv value [m3/h]
DN1.5
0.08 m3/h
DN2.0
0.15 m3/h
DN3.0
0.30 m3/h
DN3.5
0.40 m3/h
Min. Opening dierential pressure [bar]
0 bar
Max. Opening dierential pressure [bar]
Up to 20 bar
Max. working pressure [bar]
Up to 20 bar
Max. test pressure [bar]
50 bar
Viscosity [cSt]
Max. 50 cSt
Connection
ISO228/1
Orice size
Max working pressure
Dierential pressure, min. to max
NC/NO
NC/NO MAN
NC FL MAN
[bar]
[bar]
[bar]
[bar]
G
1.5200-20
2.0160-16
3.070-7G¼1.5200-20
2.0160-16
0-16
0-16
3.070-7
3.550-5G2.0160-16
3.070-7
3.550-5
Main type
EV310B NC/NO/NC MAN/NO MAN/NC FL MAN
Time to open [ms]
(1)
10 – 20
Time to close [ms]
(1)
10 – 20
Components
Materials
Specications
Valve body
Brass
W.no. 2.0402
Armature
Stainless steel
W.no. 1.4105/AISI 430FR
Armature tube
Stainless steel
W.no. 1.4306/AISI 304L
Armature stop
Stainless steel
W.no. 1.4105/AISI 430FR
Spring
Stainless steel
W.no. 1.4310 / AISI 301
Seal material
FKM
Solenoid valve, type EV310B
4 Product specication
4.1 Technical data
Table 2: Technical data
Dierential pressure range
Table 3: Dierential pressure range
Time to open/close
Table 4: Time to open/close
(1)
(1)
The times are indicative.
The times are indicative.
Materials
Table 5: Materials
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 7
Weight without coil 0.220 kg
65
32.5
45.5
G 1/8 A
NC/NO
33
15.5
PAR
Weight without coil : 0.185 kg
Bottom viewNC FL
R
G1/8 A
68
17
32
32
24
P
4x4.5
A
Ø2
Ø6.5
24
7
Pressure port
Application port
Relief port
Solenoid valve, type EV310B

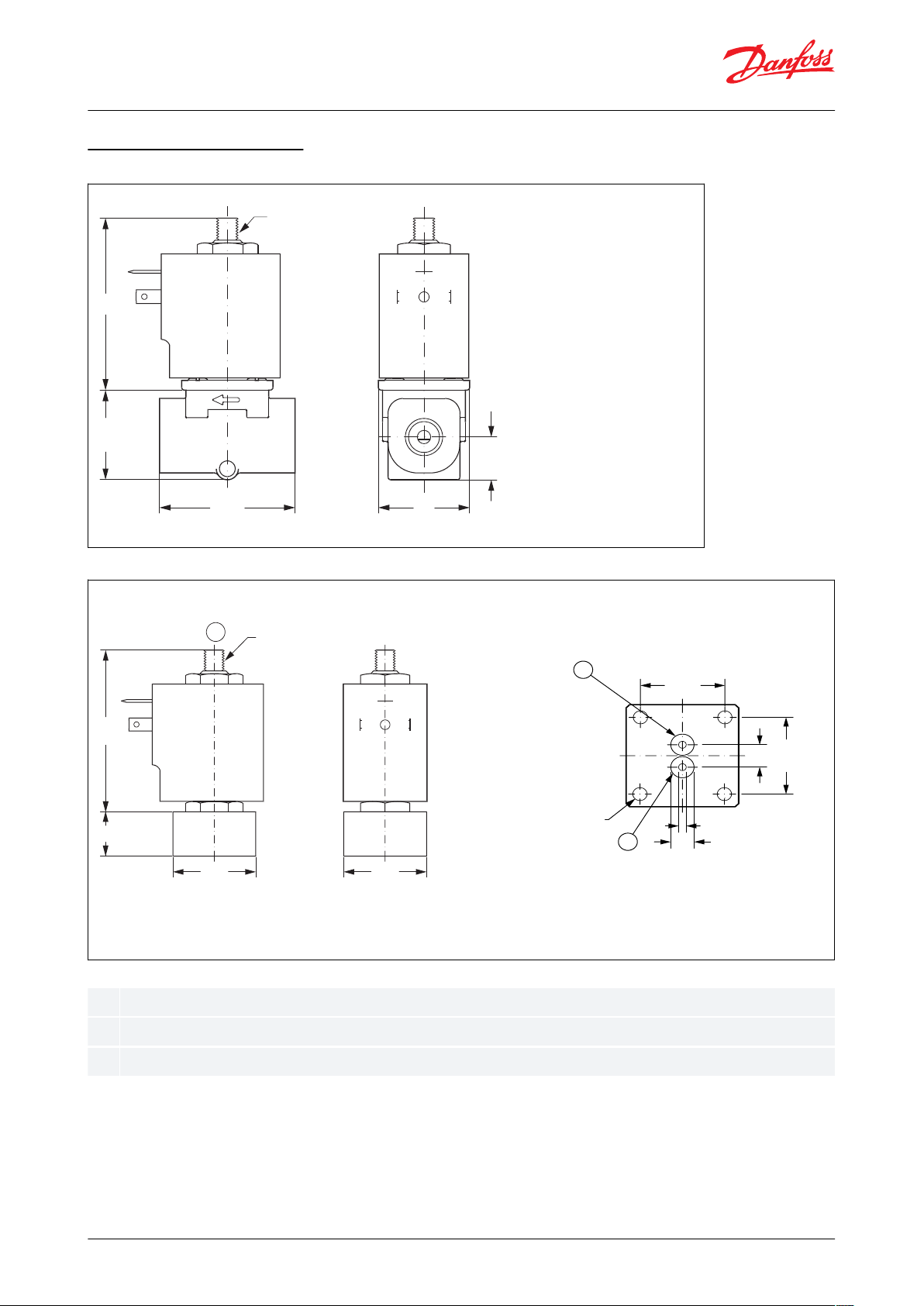

4.2 Dimension and weight
Figure 3: Dimension and weight NC / NO / NC MAN / NO MAN
Figure 4: Dimension and weight NC FL MAN
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 8
360º
360º
Solenoid valve, type EV310B
4.3 Mounting
Figure 5: Mounting angle
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 9
Connection ISO 228/1
Orice
Kv value
Function
[mm]
[m3/h]
NCNONC MAN
NO MAN
NC FL MAN
G
1.5
0.08
032U4900
032U4926
2.0
0.15
032U4901
032U4927
3.0
0.30
032U4902
G ¼
1.5
0.08
032U4903
032U4929
2.0
0.15
032U4904
032U4930
032U4919
032U4944
3.0
0.30
032U4905
032U4931
3.5
0.40
032U4906
G
2.0
0.15
032U4907
032U4933
3.0
0.30
032U4908
032U4934
3.5
0.40
032U4909
Flange 32x32
2.0
0.15
032U4923
Coil
Type
Power consumption
Enclosure
Features
BA / BD, screw on
9 W AC
15 W AC
15 W DC
IP00
with spade connector
IP20 with protective cap,
IP67 with cable plug
Cable plug size
Description
Code no
DIN 18
Cable plug IP67
042N1256
Solenoid valve, type EV310B
5 Ordering
5.1 Parts program
Table 6: Brass, valve body NC, NO, NC MAN, NO MAN, NC FL MAN
5.2 Accessories
Coil
Table 7: Below coil can be used with EV310B
Cable plug
Figure 6: Cable plug
Table 8: Cable plug
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 10
Type
Voltage [V]
Suitable for coil types
Code number
BA024A
24 – 240
AL, AM, AS, AZ, BA, BD, BB
042N0185
Type
Actuator kit
NC
NO
EV310B
032U2033
032U2035
1
2
1. Armature with mounted spring
2. O-ring
Solenoid valve, type EV310B
Universal electronic multi-timer, type ET20M
Figure 7: ET20M
Spare parts kit
Table 9: Actuator kit, NC and NO
© Danfoss | Climate Solutions | 2021.06 AI206986429628en-000901 | 11
