Danfoss EV310A Data sheet

Data Sheet
Solenoid valve Type EV310A
Direct-operated 3/2-way solenoid valves for use in industrial applications
EV310A covers a wide range of small competitive, direct-operated 3/2-way solenoid valves for use within industrial applications, for example as pilot valve.
Features
• For water, oil, compressed air and similar neutral media
• Screw on coil
• Coil enclosure: Up to IP65
• Viscosity: Up to 20 cSt
AI204086434876en-000801
Features
EV310A NC
EV310A NO
EV310A NC MAN
Body material
Brass
Brass
Brass
DN [mm]
1.2-2
1.2-1.5
1.5
Connection
G1/8''-1/4''
G1/8''
G1/8''-1/4''
Sealing material
FKM
FKM
FKM
Kv [m3/h]
0.04-0.08
0.04-0.07
0.07
Dierential pressure range [bar]
0-20
0-13
0-12
Temperature range [°C]
-10 - 100
-10 - 100
-10 - 100
Manual override (MAN)
NoNoYes
Solenoid valve, type EV310A
1 Portfolio overview
Table 1: Portfolio overview
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 2
A P
R
1
4
2
3
1234PAR
Opening spring
Armature
Valve plate
Coil
Pressure gate
Working gate
Relief gate
Solenoid valve, type EV310A
2 Functions
2.1 Function, NC / NC MAN
Coil voltage disconnected (closed):
When the voltage to the coil (4) is disconnected, the armature (2) with the valve plates (3) is pressed down by the closing spring (1) and closes the connection between P and A. At the same time, the connection between gates A and R is opened. The connection between P and A will be closed for as long as the voltage to the coil is disconnected.
Coil voltage connected (open):
When voltage is applied, the armature (2) with the valve plates (3) is lifted and closes the connection between A and R. At the same time, the connection between P and A is opened. The connection between P and A will be open for as long as there is voltage to the coil.
2.2 Function, NO
Coil voltage disconnected (open):
When the voltage is disconnected, the armature (2) with the valve plates (3) is pressed down by the opening spring (1) and closes the connection between A and R. At the same time, the connection between P and A is open. The connection between P and A will be open for as long as the voltage to the coil is disconnected.
Coil voltage connected (closed):
When voltage is applied to the coil (4), the armature (2) with the valve plates (3) is lifted and closes the connection between P and A. At the same time, the connection between gates A and R is opened.
The connection between P and A will be closed for as long as there is voltage to the coil.
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 3
A R
P
1
4
2
3
1234PAR
Opening spring
Armature
Valve plate
Coil
Pressure gate
Working gate
Relief gate
Solenoid valve, type EV310A
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 4
ON
OFF
24h
Solenoid valve, type EV310A
3 Applications
It is recommended to use a lter in front of the valve. Recommended lter 50 mesh (297 microns).
Figure 1: Filter
In water applications, exercise the valves at least once every 24 hours, meaning change the state of the valve. The valve exercise will minimize the risk of the valve sticking due to calcium carbonate, zinc or iron oxide build-up.
Figure 2: Exercise: Valve on/o
To minimize scaling, and corrosion attack it is recommended that the water passing the valve have the following values:
• Hardness 6 - 18 °dH to avoid scaling (chalk / lime stone build up)
• Conductivity 50 – 800 µS/cm to avoid brass dezincication and corrosion
• Above 25 °C media temperature avoid stagnant water inside the valve to avoid dezincication and corrosion attack
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 5
Media
FKM
For water, oil, compressed air and similar neutral media
Media temperature [°C]
FKM
-10 - 100 °C
Ambient temperature [°C]
Up to 50 °C
Kv value [m3/h]
DN1.2
0.04 m3/h
DN1.5
0.07 m3/h
DN2
0.08 m3/h
Min. Opening dierential pressure [bar]
0 bar
Max. Opening dierential pressure [bar]
Up to 20 bar
Max. working pressure [bar]
Up to 20 bar (Equal to max. dierential pressure)
Max. test pressure [bar]
50 bar
Viscosity [cSt]
Max. 20 cSt
Connection ISO228/1
Orice size
Dierential pressure, min. to max
NC/NC MAN
NO
AC/AM
ABACAB/AKDCACACACDCAMACAM DC
[mm]
Water
Oil
Air
[bar]
[bar]
G
1.2
0-18
0-9
0-20
0-6
0-4
0-9
0-7
0-13
0-9
1.5
0-10
0-5
0-12
0-3
0-2
0-5
0-3.5
0-7
0-5G¼1.2
0-18
0-9
0-20
1.5
0-10
0-5
0-1220-6.5
0-4
0-8
Main type
EV310A NC/NO/NC MAN
Time to open [ms]
(1)
7 – 10
Time to close [ms]
(1)
7 – 10
Components
Materials
Specications
Valve body
Brass
W.no. 2.0401
Armature
orice
Stainless steel
W.no. 1.4305 / AISI 303
Armature
Stainless steel
W.no. 1.4016 / AISI 430
Armature tube
Stainless steel
W.no. 1.4303 / AISI 305
Armature stop
Stainless steel
W.no. 1.4016 / AISI 430
Spring
Stainless steel
W.no. 1.4310 / AISI 301
O-ring/Valve plate
FKM
-
Manual override
Polymer
Polysulfon black
Solenoid valve, type EV310A
4 Product specication
4.1 Technical data
Table 2: Technical data
Dierential pressure range
Table 3: Dierential pressure range
Time to open/close
Table 4: Time to open/close
(1)
(1)
The times are indicative.
The times are indicative.
Materials
Table 5: Materials
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 6
Thread ISO 228/1
L
[mm]
B [mm] Coil type
H
[mm]A[mm]
Weight without coil
[kg]
AB / AC
AM / AK
G 26223354130.085
G ¼35223359
17.5
0.110
Bottom view
Bottom view
NC/NO
NC MAN
L
15
B
22
23,8
L
L
22
B
H
A
A
15
1/”:M3 ¼”:M4
1/”:M3 ¼”:M4
Solenoid valve, type EV310A
4.2 Dimension and Weight
Table 6: Dimensions and weight, NC, NO and NC MAN
Figure 3: Dimensions
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 7
360°
360°
Solenoid valve, type EV310A
4.3 Mounting
Figure 4: Mounting angle
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 8
Connection
ISO 228/1
Orice
Kv value
Function
[mm]
[m3/h]
NC
NC MAN
NO
G
1.2
0.04
032H8085
032H8125
1.5
0.07
032H8087
032H8143
032H8127
G ¼
1.2
0.04
032H8095
1.5
0.07
032H8097
032H8153
2
0.08
032H8099
Coil
Type
Power consumption
Enclosure
Features
AM
7.5 W AC
9.5 W DC
IP00 with spade connector,
IP65 with cable plug
Cable plug
AC
7 W AC
10 W DC
IP00 with spade connector,
IP65 with cable plug
Industrial plug
AB
4.5 W AC 5 W DC
IP00 with spade connector,
IP65 with cable plug
Industrial plug
AK
3 W DC
IP00 with spade connector,
IP65 with cable plug
Cable plug
Cable plug size
Description
Code no
DIN 18
Cable plug IP65
042N1278
Solenoid valve, type EV310A

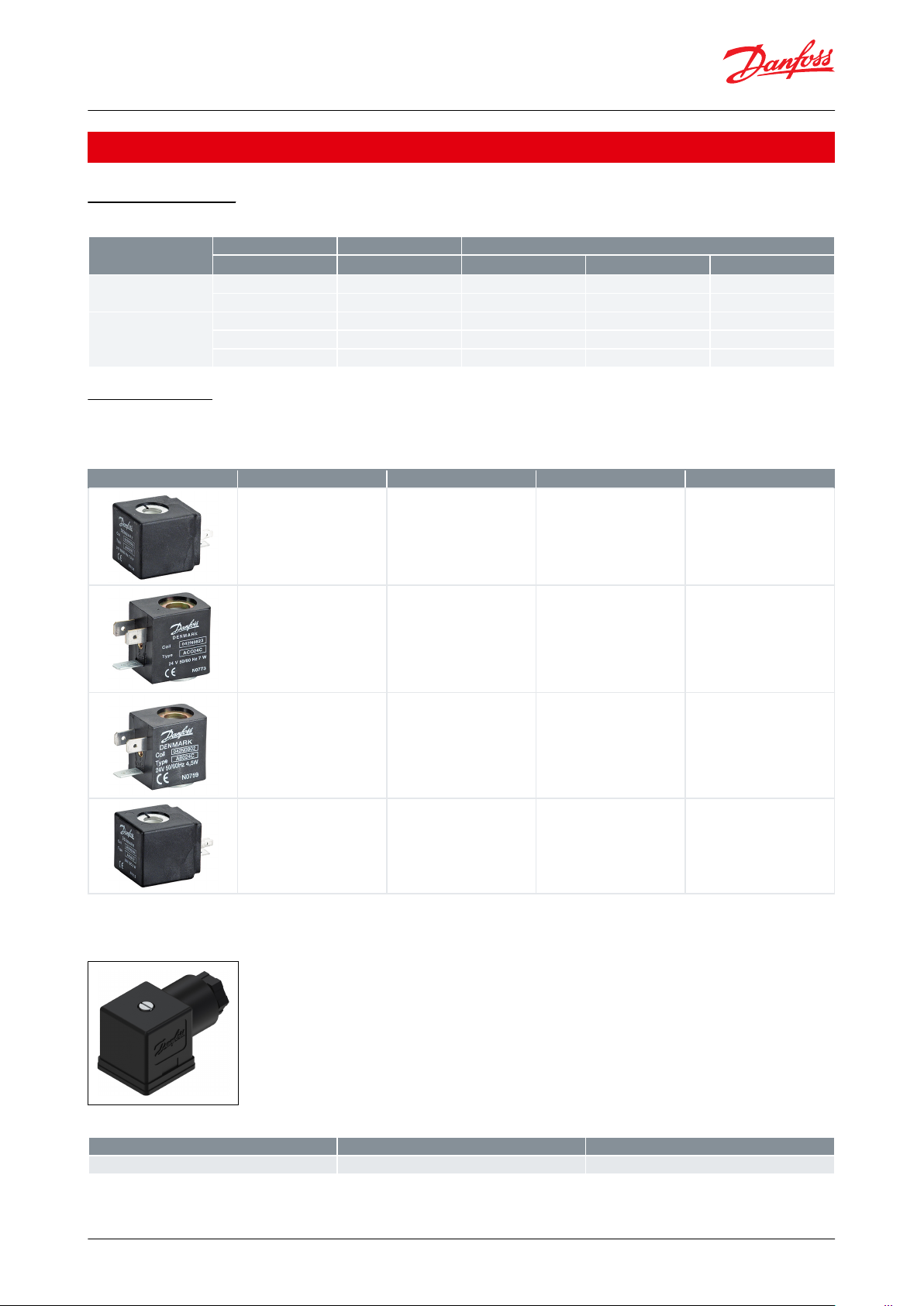

5 Ordering
5.1 Parts program
Table 7: Brass, valve body NC, NC MAN, NO
5.2 Accessories
Coils
Table 8: Below coils can be used with EV310A
Cable plug
Figure 5: Cable plug
Table 9: Cable plug
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 9
Application
Code number
GM 209 (Black) cable plug according to DIN 43650-B PG9
042N0139
Solenoid valve, type EV310A
Figure 6: Cable plug
© Danfoss | Climate Solutions | 2021.06 AI204086434876en-000801 | 10
6 Online support
Danfoss oers a wide range of support along with our products, including digital product information, software, mobile apps, and expert guidance. See the possibilities below.
The Danfoss Product Store
The Danfoss Product Store is your one-stop shop for everything product related—no matter where you are in the world or what area of the cooling industry you work in. Get quick access to essential information like product specs, code numbers, technical documentation, certications, accessories, and more. Start browsing at store.danfoss.com.
Find technical documentation
Find the technical documentation you need to get your project up and running. Get direct access to our ocial collection of data sheets, certicates and declarations, manuals and guides, 3D models and drawings, case stories, brochures, and much more.
Start searching now at www.danfoss.com/en/service-and-support/documentation.
Danfoss Learning
Danfoss Learning is a free online learning platform. It features courses and materials specically designed to help engineers, installers, service technicians, and wholesalers better understand the products, applications, industry topics, and trends that will help you do your job better.
Create your Danfoss Learning account for free at www.danfoss.com/en/service-and-support/learning.
Get local information and support
Local Danfoss websites are the main sources for help and information about our company and products. Find product availability, get the latest regional news, or connect with a nearby expert—all in your own language.
Find your local Danfoss website here: www.danfoss.com/en/choose-region.
Spare Parts
Get access to the Danfoss spare parts and service kit catalog right from your smartphone. The app contains a wide range of components for air conditioning and refrigeration applications, such as valves, strainers, pressure switches, and sensors.
Download the Spare Parts app for free at www.danfoss.com/en/service-and-support/downloads.
