Danfoss EV225B Data sheet

Data Sheet
Solenoid valve Type EV225B
Servo diaphragm operated for steam applications
EV225B is a servo-operated 2/2-way solenoid valve for use in steam applications.
The design is based on a PTFE diaphragm concept, ensuring highly reliable function when used in connection with contaminated steam.
Each valve body is made of dezincication resistant brass and the valve seats are made of stainless steel.
This ensures a long life even in when used with highly aggressive steam.
Features and versions
Specically designed for steam applications, 160 °C or 185 °C
• Clip on coil
• Ambient temperature: up to 40 °C
• Coil enclosure: up to IP65
• EV225B used with BQ coil: AC voltage up to 185 °C
• EV225B used with BN coil: DC voltage up to 160 °C
• EV225B used with BB coil: AC voltage up to 160 °C DC voltage up to 140 °C
• Connection: ISO 228/1
AI250386497491en-000701
Features
EV225B
Body material
DZR brass
DZR brass
DZR brass
DN [mm]
6-25
10-25
10-25
Connection
G1/4'' - G1''
G1/2''-G1''
G1/2''-G1''
Sealing material
PTFE
PTFE
PTFE
Function
NCNCNC
Kv [m3/h]
0.9 - 6.0
2.2 - 6.0
2.2 - 6.0
Dierential pressure range [bar]
0.2 - 10
0.2-10
0.2 - 5
Temperature range [°C]
0 - 185
0 - 185
0 - 160
Solenoid valve, type EV225B
1 Portfolio overview
Table 1: Portfolio overview
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 2
1.2.3.
4.5.6.7.8.
EV225B 6 – EV225B 10
EV225B 15 – EV225B 25
Coil
Valve plate
Pilot orice
Armature spring
Equalizing orice
Diaphragm
Main orice
Closing spring
Solenoid valve, type EV225B
2 Functions
2.1 Function NC
Coil voltage disconnected (closed)
When the voltage is disconnected, the valve plate (2) is pressed down against the pilot orice (3) by the armature spring (4). The pressure across the diaphragm (6) is built up via the equalizing orice (5). The diaphragm/piston closes the main orice (7) as soon as the pressure across the diaphragm/piston is equivalent to the inlet pressure. The valve will be closed for as long as the voltage to the coil is disconnected.
Coil voltage connected (open)
When voltage is applied to the coil (1), the pilot orice (3) is opened. As the pilot orice is larger than the equalizing orice (5), the pressure across the diaphragm (6) drops and therefore it is lifted clear of the main orice (7). The valve
is now open for unimpeded ow and will be open for as long as the minimum dierential pressure across the valve is maintained, and for as long as there is voltage to the coil.
Table 2: Function NC
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 3
Danfoss
32U1460
ON
OFF
24h
Danfoss
32U9100
Solenoid valve, type EV225B
3 Applications
It is recommended to use a lter in front of the valve. Recommended lter 50 mesh (297 microns).
Figure 1: Filter
In water applications, exercise the valves at least once every 24 hours, meaning change the state of the valve. The valve exercise will minimize the risk of the valve sticking due to calcium carbonate, zinc or iron oxide build-up.
Figure 2: Exercise: Valve on/o
To minimize scaling, and corrosion attack it is recommended that the water passing the valve have the following values:
• Hardness 6-18 °dH to avoid scaling (chalk / lime stone build up).
• Conductivity 50 – 800 µS/cm to avoid brass dezincication and corrosion.
• Above 25°C media temperature avoid stagnant water inside the valve to avoid dezincication and corrosion attack.
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 4
Media
PTFE
Steam 160°C or 185°C
Media temperature [°C] (Depending on which type of coil you used)
AC coil
0-185°C
DC coil
0-160°C
Ambient temperature [°C]
Max. 40 °C at a medium temperature of 185 °C
Kv value [m3/h]
DN6
0.9 m3/h
DN10
2.2 m3/h
DN15
3.0 m3/h
DN20
5.0 m3/h
DN25
6.0 m3/h
Min. Opening dierential pressure [bar]
0.2 bar
Max. Opening dierential pressure [bar]
Up to 10 bar
Max. working pressure [bar]
Up to 10 bar (Equal to max. dierential pressure)
Max. test pressure [bar]
25 bar (UL 429: 24.1 bar)
Viscosity [cSt]
Max. 50 cSt
Solenoid valve, type EV225B
4 Product specication
4.1 Technical data
Table 3: Technical data
Steam capacity diagrams
Example:
Capacity for EV225 10BD inlet pressure (p1) of 6 bar absolute, at dierential pressure at 1 bar. Approx. 100kg/h/80kW
Figure 3: Steam capacity diagrams
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 5
Connection ISO228/1
Coil type BQ AC
Coil type BN DC
Coil type BB AC
Coil type BB DC
[Bar]
[Bar]
[Bar]
[Bar]
G1/4 - G1
0.2 - 10
0.2 - 5
0.2 - 5
0.2 - 3.6
Main type
EV225B 6 – EV225B 25
Time to open [ms]
(1)
Max. 0.2 s
Time to close [ms]
(1)
Max. 0.2 s
Components
Materials
Specications
Valve body
DZR brass
Armature/armature stop
Stainless steel
W. no. 1.4105 / AISI 430FR
Spring
Stainless steel
W. no. 1.4306 / AISI 304L
Armature tube
Stainless steel
W. no. 1.4310 / AISI 301
Diaphragm
PTFE
Valve plate
PTFE
Valve seat
Stainless steel
External gaskets
O-ring: AFLAS
Type
LBH
H1H
2
Weight gross valve body
with coil BQ, BB
Weight gross valve body
with coil BN
[mm]
[mm]
[mm]
[mm]
[mm]
[kg]
[kg]
EV225B 6 BD
6246981385
0.75
1.03
EV225B 10 BD
6246981385
0.72
1.00
EV225B 15 BD
81561021587
0.86
1.14
EV225B 20 BD
98721101892
1.4
1.68
EV225B 25 BD
106721172196
1.7
1.98
Solenoid valve, type EV225B
Dierential pressure range, NC
Table 4: Dierential pressure range
Time to open/close
Table 5: Time to open/close
(1)
(1)
The times are indicative. The exact times will depend on the pressure conditions.
The times are indicative. The exact times will depend on the pressure conditions.
Materials
Table 6: Materials
4.2 Dimension and weight
Table 7: Dimension and weight
Figure 4: Dimension
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 6
Solenoid valve, type EV225B
4.3 Mounting
Figure 5: Mounting angle
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 7
ISO228/1 connection
Orice
Kv value
Seal
material
Code no.
without coil
Code no. valve body with coil and power connector
[mm]
[m3/h]
PTFE
Coil type
BQ024CS 24 V 60 Hz 24 V 50 Hz
Coil type
BQ120BS
110-120 V 60 Hz
Coil type
BQ024 CS
208-240 V 60 Hz
230 V 50 Hz
Coil type
BN024DS
24V DC
G1/460.9
PTFE
032U3802
G3/8102.2
032U3803
G1/2102.2
032U3804
032U380416
032U380420
032U380431
032U380402
G1/2153.0
032U3805
032U380516
032U380520
032U380531
032U380502
G3/4205.0
032U3806
032U380616
032U380620
032U380631
032U380602
G1256.0
032U3807
032U380716
032U380720
032U380731
032U380702
Type
Tambient
Supply voltage
Voltage variation
Frequency
Power consumption
Approval
Code no.
[°C]
[V]
[Hz]
[W]
[VA]
BQ024CS
-40 – 40 24
-15%, 10%5010
17
018F4517
24
-15%, 10%609.0
16
BQ120BS
40 – 40
110 / 120
-15%, 6%6013.519018F4519
BQ240CS
-40 – 40
230
-15%, 6%5010
17
018F4511 208 / 240
-6%, 6%609.5
16
Solenoid valve, type EV225B

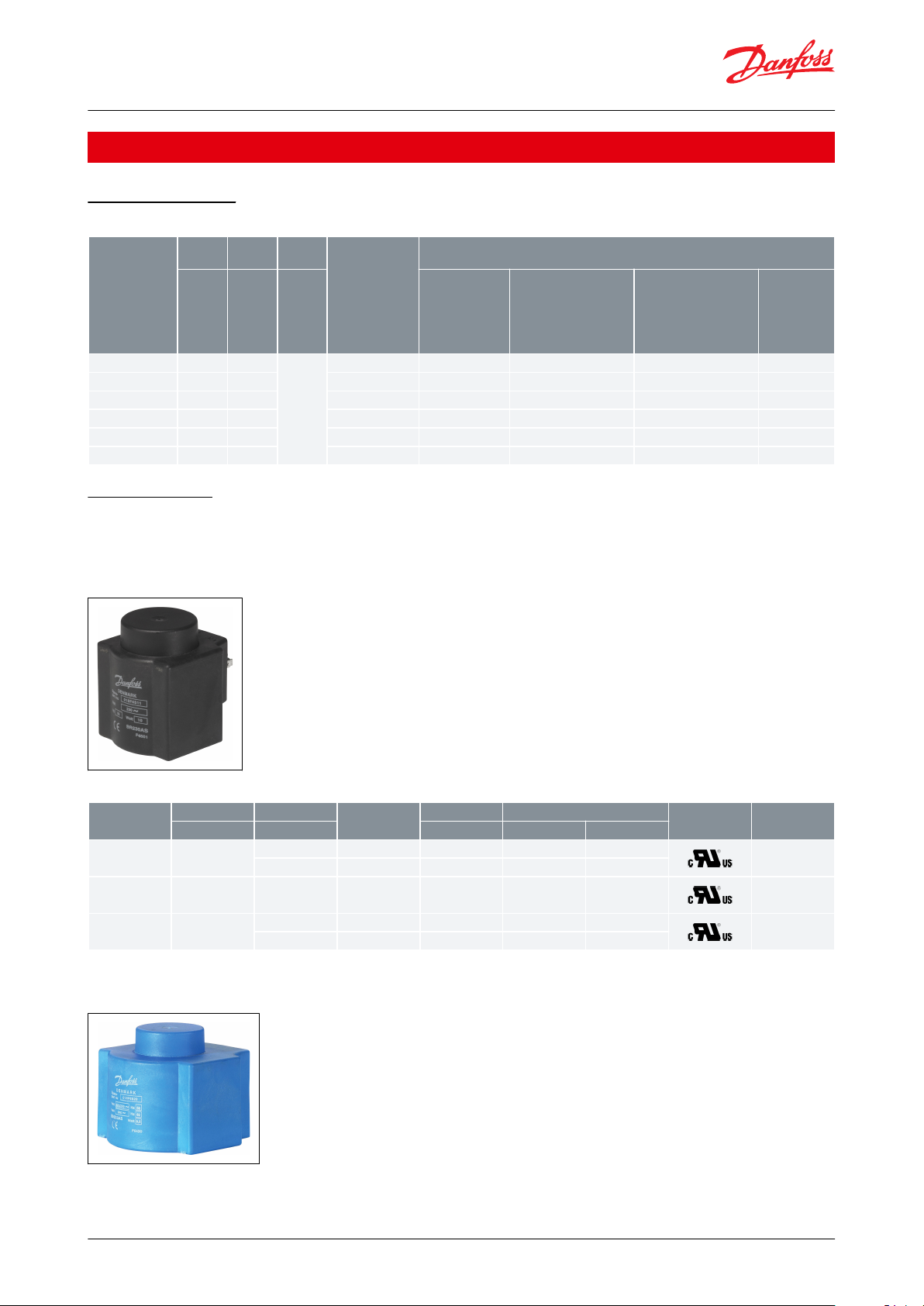

5 Ordering
5.1 Parts program
Table 8: DZR brass, valve body NC
5.2 Accessories
Coil
Coil type BQ AC Steam coil to 185 °C
Figure 6: Coil type BQ AC
Table 9: Coil type BQ AC Steam coil to 185 °C
Coil type BN DC Steam coils to 160 °C
Figure 7: Coil type BN DC
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 8
Type
Tambient
Supply voltage
Voltage
variation
Frequency
Power consumption
Approval
Code no.
[°C]
[V]
[Hz]
[W]
[VA]
BN024DS
-40 – 5024±10%DC20
018F6968
Type
T ambient
Supply voltage
Voltage variation
Frequency
Power consumption
Code no.
[°C]
[V]
[Hz]
[W]
[VA]19
BB024AS
-40 – 80
24
-15%, 10%5011
018F7358
BB115AS
-40 – 50
115
-15%, 10%501119018F7361
BB230AS
-40 – 80
220 / 230
-15%, 10%501119018F7351
BB240AS
-40 – 80
240
-15%, 10%501119018F7352
BB440CS
-40 – 80 400
±10%5014
24
018F7353
440
±10%601524BB024BS
-40 – 80
24
-15%, 10%601423018F7365
BB110CS
-40 – 50 110
±10%5015
28
018F7360
110
±10%6013
22
BB230CS
-40 – 50
220 / 230
±10%6013
24
018F7363
220 / 230
±10%5016
31
Type
T ambient
Supply voltage
Voltage
variation
Frequency
Power consumption
Code no.
[°C]
[V]
[Hz]
[W]
[VA]
BB012DS
-40 – 5012±10%DC14–018F7396
BB024DS
-40 – 5024±10%DC16–018F7397
Cable plug size
Description
Code no
DIN 18
Cable plug IP67
042N1256
Solenoid valve, type EV225B
Table 10: Coil type BN DC Steam coils to 160 °C
Coil type BB AC Steam coils to 160 °C
Figure 8: Coil type BB AC
Table 11: Coil type BB AC Steam coils to 160 °C
Type BB DC Steam coils to 140 °C
Table 12: Type BB DC Steam coils to 140 °C
Cable plug
Figure 9: Cable plug
Table 13: Cable plug
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 9
1.
2.
3.
4.
Type
Voltage
Suitable for coil types
Code no.
[V]
BA024A
24 - 240
AL, AM, AS, AZ, BA, BD, BB
042N0185
Type
Actuator/diaphragm kit
Sealing
PTFE
EV225B 6 – 10
032U3171
EV225B 15
032U3172
EV225B 20 – 25
032U3173
1
2
3
4
Armature with valve plate and spring Closing spring Diaphragm O-ring
Solenoid valve, type EV225B

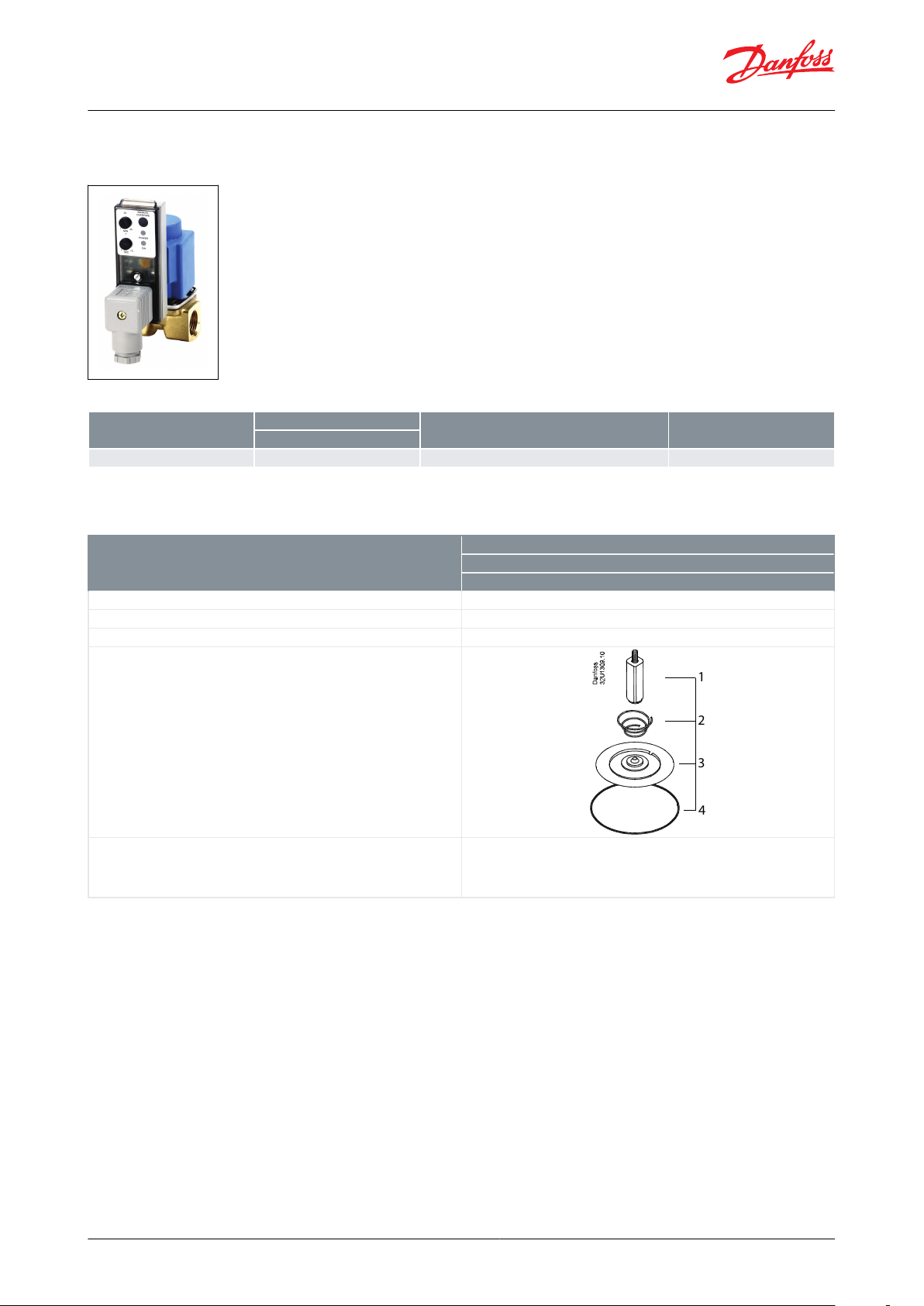

Universal electronic multi-timer, Type ET 20 M
Figure 10: Type ET 20 M
Table 14: Universal electronic multi-timer, Type ET 20 M
Spare parts
Table 15: Actuator/diaphragm kit
© Danfoss | Climate Solutions | 2021.06 AI250386497491en-000701 | 10
