Danfoss ECL Comfort 301 Quick Manual
–A
–B
–C
–1
–2
–3
–4
A
B
C
–A
–B
–C
–1
–2
–3
–4
A
B
C
Temperature / Mode selectionTemperature / Mode selection
*087R8279*
*VIJEL202*
*087R8279*
*VIJEL202*
Arrow buttons
change display
(move between
the lines on the
ECL Card)
Shift button
move between items in
display
Minus and plus buttons
adjust temperature or time
Mode selector
change mode of operation
Circuit selector
changes
between
heating (I) and
hot water (II)
Arrow buttons
change display
(move between
the lines on the
ECL Card)
Shift button
move between items in
display
Minus and plus buttons
adjust temperature or time
Mode selector
change mode of operation
Circuit selector
changes
between
heating (I) and
hot water (II)

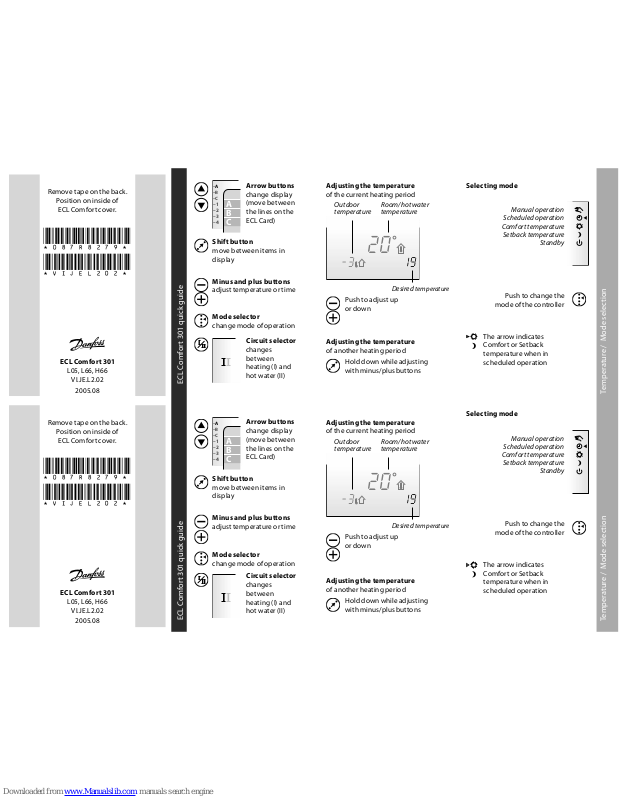

ECL Comfort 301 quick guideECL Comfort 301 quick guide
Remove tape on the back.
Position on inside of
ECL Comfort cover.
ECL Comfor t 301
L05, L66, H66
VI.JE.L2.02
2005.08
Remove tape on the back.
Position on inside of
ECL Comfort cover.
ECL Comfor t 301
L05, L66, H66
VI.JE.L2.02
2005.08
Adjusting the tempe rature
of the current heating period
Outdoor Room/hot water
temperature temp erature
913-
20
Desired tempe rature
Push to adjust up
or down
Adjusting the tempe rature
of another heating period
Hold down while adjusting
with minus/plus buttons
Adjusting the tempe rature
of the current heating period
Outdoor Room/hot water
temperature temp erature
913-
20
Desired tempe rature
Push to adjust up
or down
Adjusting the tempe rature
of another heating period
Hold down while adjusting
with minus/plus buttons
Selecting mode
Manual operatio n
Scheduled ope ration
Comfort temperat ure
Setback temperatu re
Standby
Push to change the
mode of the controller
The arrow indicates
Comfort or Setback
temperature when in
scheduled operation
Selecting mode
Manual operatio n
Scheduled ope ration
Comfort temperat ure
Setback temperatu re
Standby
Push to change the
mode of the controller
The arrow indicates
Comfort or Setback
temperature when in
scheduled operation
Changing Comfort
Changeover time
00
6
0 3 6 9 12 15 18 21 24
Select changeover time
Adjust backward or
forward
Removing a period
Push both at the same
time for 2 seconds
Changing Comfort
Changeover time
00
6
0 3 6 9 12 15 18 21 24
Select changeover time
Adjust backward or
forward
Removing a period
Push both at the same
time for 2 seconds
Adding an ex tra period
New period
0 3 6 9 12 15 18 21 24
Push both at the same time
Adjust the first
changeover time
Shift to second
changeover time
and adjust
Restoring factor y set schedule
Push both at the same
time for 2 seconds
Adding an ex tra period
New period
0 3 6 9 12 15 18 21 24
Push both at the same time
Adjust the first
changeover time
Shift to second
changeover time
and adjust
Restoring factor y set schedule
Push both at the same
time for 2 seconds
The factory set schedule
Heating ( I)
Monday - Friday
Saturday - Sunday
6:00 - 8:00
16:00 - 22: 00
8:00 - 23:00
DHW (II)
Monday - Friday
Saturday - Sunday
5:00 - 22:00
6:00 - 23:00
Storing a new schedule on your
ECL Card
Push to line 9: CPY
Update your ECL Card
The factory set schedule
Heating ( I)
Monday - Friday
Saturday - Sunday
6:00 - 8:00
16:00 - 22: 00
8:00 - 23:00
Hot water (II)
Monday - Friday
Saturday - Sunday
5:00 - 22:00
6:00 - 23:00
Storing a new schedule on your
ECL Card
Push to line 9: CPY
Update your ECL Card
Checking your schedules
1
2
4
3
Mondays
Tuesdays
Wednesdays
Thursdays
etc.…
Push to move between week day,
weekend or single day plans
Return to display A, B or C
Checking your schedules
1
2
4
3
Mondays
Tuesdays
Wednesdays
Thursdays
etc.…
Push to move between week day,
weekend or single day plans
Return to display A, B or C
Comfort periods / Schedule Comfort periods / Schedule
