Danfoss ECL Comfort 210 Controller Data sheet

Data sheet
ECL Comfort 210 Controller,
Designed in Denmark
Remote Control Units ECA 30 / 31 and Application Keys
Description
ECL Comfort 210 controller series
ECL Comfort 210
The ECL Comfort 210 is an electronic weather compensated temperature controller in the ECL Comfort controller family for use in district heating, central heating and cooling systems. Energy savings can be achieved by correct control of the flow tem­perature in heating and cooling systems. Up to 3 circuits can be controlled. The weather compen­sation function in the ECL Comfort controllers measures the outdoo r temperature and controls the flow temperature to the h eating system accordingly. The weather compe nsated heating system increases the comfort level and saves energy. The ECL Comfort 210 controller is configured with a selecte d application by means of an ECL application key.
ECL Comfort 210 is designed for comfortable temperatures, optimum energy consumption, easy installation by means of the ECL application key (plug-and-play) and user friendly operation. Improved energy savings are facilitated by weather compensation, a djustment of temperature according to schedule, optimization as well as limitation of return temperat ure, flow and power. Functionalities such as data logging and alarm functions are implemented in the controller.
The ECL Comfort 210 is easily operated by means of a dial (multi-functional knob) or a Remote Control Unit (RCU). The dial and the backlighted display guide the user through the text menus in the selected language.
The ECL Comfort 210 controller has elec tronic output for motorized valve control (3-point control), relay outputs for circulation pump / changeover valve control among others, as well as alarm output.
6 Pt 1000 temperature sensors can b e connected. In addition, 2 inputs are configured when uploading the application. The configuration can be Pt 1000 temperature sensor input, analog input (0 – 10 V) or digital input.
The enclosure is desi gned for mounting on wall and DIN rail. A variant ECL Comfo rt 210B (without display and dial) is available. It can be used for mounting inside a panel and is operated by means of the RCU ECA 30 / 31 which can be placed in fro nt of the panel.
The ECL Comfort 210 is a stand-alone controller which communicates with the RCU and other ECL Comfort 210 / 296 / 310 controllers via the ECL 485 communication bus.
Remote Control Unit (RCU):
The RCUs ECA 30 and ECA 31 are used for room temperature control a nd override of the ECL Comfort
210. The display has backlight. The RCUs are connected to the ECL Comfort controll ers by means of 2 × twisted pair cable for communication and power supply (ECL 485 communication bus).
The ECA 30 / 31 has a built-in room temperature sensor. An external room temperature sensor can be connected substituting the built-in temperature sensor. Furthermore, the ECA 31 has a built-in humidity sensor and the relative humidity signal is used in relevant applications. It is possible to connect up to 2 RCUs on th e ECL 485 communication bus. One RCU can monitor max. 10 ECL Comfort controllers (master / slave system).
© Danfoss | 2020.01
AI155886469487en-000801 | 1
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Description (continued) ECL application key and applications:
Different ECL application keys make it easy for the ECL Comfort 210 hardware to run different applications. The ECL Comfort 210 controller is loaded with the desired application by means of the ECL application key, which contains information about applications (simple application sketches are shown in the display), languages, factory settings and firmware.
The ECL application keys for ECL Comfor t 210 can also be used in ECL Comfort 296 / 310.
The relevant ECL application keys for the ECL Comfort 210 controller can be found in the ordering section.
For information, ECL Comfort 296 and ECL Comfort 310 have built-in M-bus communication and TCP/ IP connection for internet in order to connect to the ECL Portal.
Furthermore, ECL Comfort 310 can be equipped with extension mo dule ECA 32 for control of 0 - 10 Volt (modulated) controlled actuators.
The application parameters are stored in the controller and are not affected by power break.
Application examples All mentioned components (S = temperature sensor, P = pump, M = Motorized control valve and so
on) are wired to the ECL Comfort 210.
A214.1, ex. a: Cooling application, duct temperature based on room temperature
Further application examples can be found on http://heating.danfoss.com
S1
ECL 210 / 296 / 310
A1
Danfoss
87H2113.13
M2
P2
X3
S5
F1
S3
S8S8S8
A214.2, ex. a: Heating application, heating temperature based on duct temperature
S1
P2
ECL 210 / 296 / 310
A1
S3
X3
S6
S5
M1
F1
S4
S4
Danfoss
87H2118.12
2 | © Danfoss | 2020.01
S7
S8S8S8
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A214.3, ex. a: Heating application, duct temperature based on room temperature
S1
ECL 210 / 296 / 310
A1
M1
X3
S5
P2
S6
S7
F1
S3
S8S8S8
A214.5, ex. a: Heating / cooling application, duct temperature based on room temperature
S4
Danfoss
87H2120.12
S1
P2
X3
ECL 210 / 296 / 310
M1
S5
S6
S7
A1
F1
M2
S8S8S8
S3
S4
Danfoss
87H2124.12
AI155886469487en-000801
© Danfoss | 2020.01 | 3
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A217.1, ex. a: DHW tank charging application
A217.1, ex. b: DHW tank heating application
S1
ECL 210 / 296 / 310
S2
M1
S5
A217.2, ex. a: DHW tank charging with preheating circuit
S1
S2 S3
S3
P1
ECL 210 / 296 / 310
S4
A1
A1
S6
S6
S8
P3
Danfoss
87H2068.13
Danfoss
87H2071.13
4 | © Danfoss | 2020.01
M1
S5
P1
A
S8
B
P2
P3
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A217.3, ex. a: DHW heating
A217.3, ex. c: DHW heating on demand (flow switch). With or without circulation
A230.1, ex. a: Indirectly connected heating system. Wind compensation as option
AI155886469487en-000801
© Danfoss | 2020.01 | 5
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A230.2, ex. a: Indirectly connected cooling system (district cooling)
A230.3, ex. a: Indirectly connected heating system. Optional wind compensation and protection against condensation in thermal heavy buildings
A230.4, ex. a: Indirectly connected heating system. Optional pressure monitoring and temperature monitoring of DHW and Cold Water temperatures
0 - 10 Volt control (modulated control) of actuator is only possible with ECL Comfort 310 with built-in extension module ECA 32.
6 | © Danfoss | 2020.01
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A231.2: Indirectly connected heating system with 2-pump control and refill water function
A232.1, ex. a: Control of flow temperature (heating in floor / cooling in ceiling) in relation to outdoor, room and dew point temperature
AI155886469487en-000801
© Danfoss | 2020.01 | 7
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A237.1, ex. a: Indirectly connected heating and DHW system
A237.2, ex. a: Indirectly connected heating and DHW charging system
8 | © Danfoss | 2020.01
A247.1, ex. a: Indirectly connected heating and DHW tank charging system. Parallel mode or DHW priority
(S7*) = optional in ECL Comfort 310
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A247.2, ex. a: Indirectly connected heating and DHW tank charging system with preheating circuit. Parallel mode or DHW priority
(S7*) = optional in ECL Comfort 310

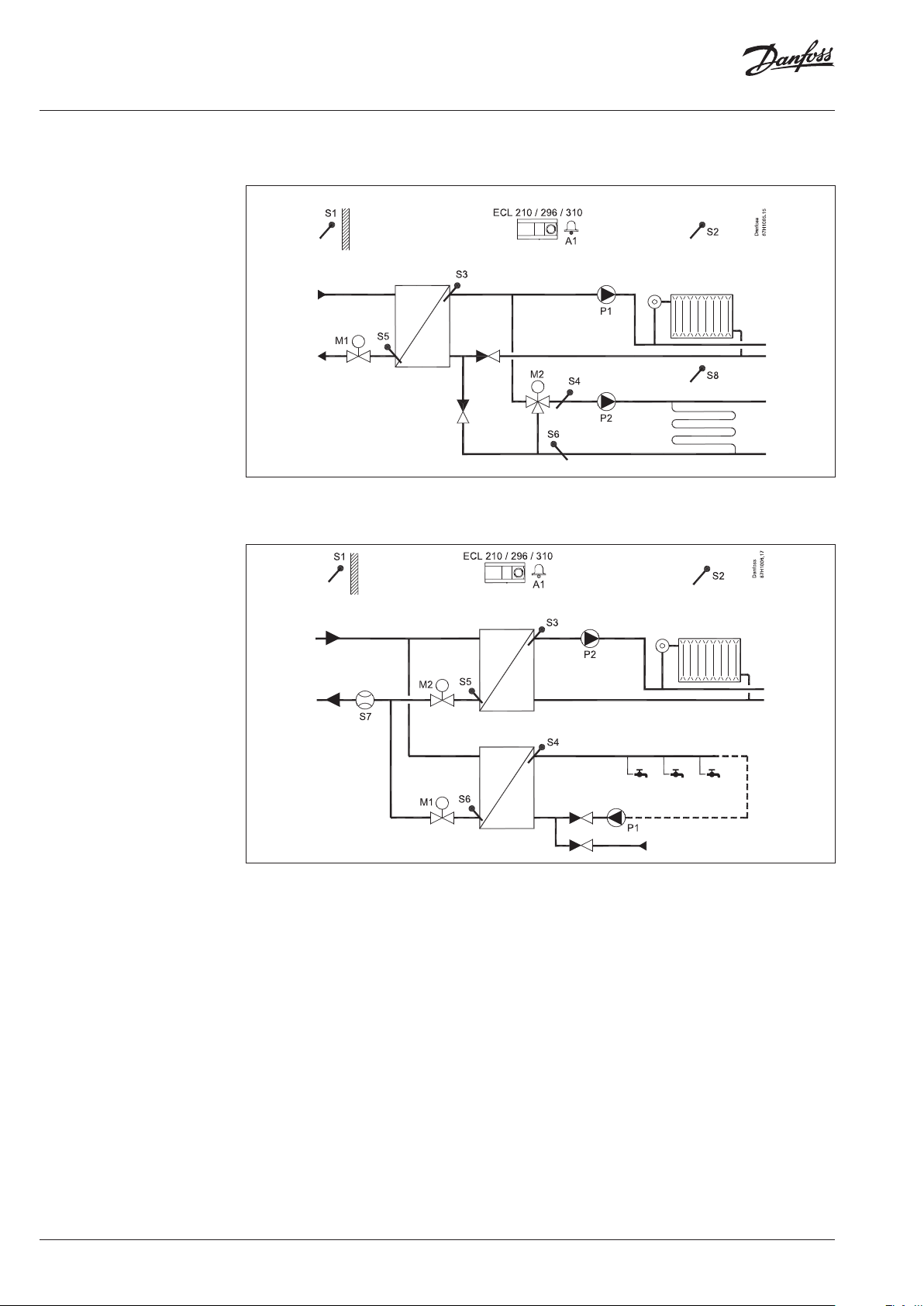

A260.1, ex. a: Two heating systems
AI155886469487en-000801
© Danfoss | 2020.01 | 9
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A260.1, ex. d: Two heating systems. Circuit 2 is a sub-circuit of circuit 1
A266.1, ex. a: Heating and direct DHW heating system. Parallel mode or DHW priority
10 | © Danfoss | 2020.01
0 - 10 Volt control (modulated control) of actuator is only possible with ECL Comfort 310 with built-in extension module ECA 32.
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A266.2: Heating and direct DHW heating system. Parallel mode or DHW priority. DHW heating on demand (flow switch)
A275.1, ex. a: Heating system with 1-stage boiler
S1
S3
S5
B1
ECL 210 / 296 / 310
P1
Danfoss
A1
S7
*
87H2163.13
1
AI155886469487en-000801
© Danfoss | 2020.01 | 11
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
A275.2, ex. a: Heating system with 1-stage boiler and DHW tank
S1
ECL 210 / 296 / 310
Danfoss
A1
87H2165.12
S3
S7
1
S5
P1
*
B1
S6
2
P3
A275.3, ex. a: Heating system with 1-stage boiler, mixing circuit and DHW tank
S1
S3
S5
B1
ECL 210 / 296 / 310
M2
S4
S2
P1
P4
*
S6
S8
S7
Danfoss
87H2169.13
2
1
3
12 | © Danfoss | 2020.01
P3
Modulated burner control (0 - 10 Volt) is only possible with ECL Comfort 310 with built-in extension module ECA 32.
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Ordering Controller, base parts and accessories:
Typ e Designation Code no.
ECL Comfort 210 Universal hardware - 230 V a.c.
ECL Comfort 210B Universal hardware - 230 V a.c.
ECL Comfort 210 base part For mounting on wall or DIN rail (35 mm). Installation guide (no text) and
ECL Comfort 310 base part For mounting on wall or DIN rail (35 mm). ECL Comfort 210 can be mounted
Base part is not included. Installation guide (no text) is included.
Without display and dial. Requires a Remote Control Unit. Base part is not included. Installation guide (no text) is included.
cable inlet accessories are included.
in an ECL Comfor t 310 base part (for future upgrade). Installation guide (no text) and cable inlet accessories are included.
Remote Control Units and accessories
Typ e Designation Code no.
ECA 30 Remote Control Unit with an integrated room temperature sensor and
ECA 31 Remote Control Unit with an integrated room temperature sensor and a
ECA 30 / 31 frame kit for mounting in panel front
possibility for connecting an external Pt 1000 room temperature sensor. Base part for mounting on wall included. Installation guide (no text) is included.
humidity sensor. Possibility for connecting an external Pt 1000 room temperature sensor. Used for dedicated applications. Base par t for mounting on wall included. Installation guide (no text) is included.
For mounting in a panel cut-out. Format 144 × 96 mm, actual cut-out 139 × 93 mm. Installation guide (no text) is included.
087H3020
087H3030
087H3220
087H3230
087H3200
087H3201
087H3236
Accessories:
Typ e Designation Code no.
ECA 99 230 V a.c. to 24 V a.c. transformer (35 VA) 087 B115 6
ECL Application Keys
Typ e Application type description Controller output
A214
A217
A230
A231
• Temperature cont rol (heating / cool ing) of ventilation sy stems. Duct / ro om temperature control. Return temperature limitation. Flow / power limitation. Fire and frost protection as well as alarm function.
• The A214 applicatio n key contains applic ations related to ECL Com fort 310 for increased functionalities (control of rotating heat-exchanger).
• The A214 applicatio n key contains applic ations related to ECL Co mfort 296/ 310 for increased functionalities (M-bus and ECL Por tal).
• Advanced tem perature control o f DHW (Domestic H ot Water) circuit with/ without storage charging system. Circulation pump control. Return temperature limitation. Frost protection and alarm function.
• The A217 application ke y contains applica tions related to ECL Com fort 296/ 310 for increased functionalities (M-bus and ECL Por tal).
• (A230.1) Weather compensated flow temperature control of heating systems. Circulation pump control. Room temperature control and sliding return temp erature limita tion. Flow / power lim itation. Wind com pensation, frost protection and alarm function.
• (A230.2) Flow temperature control of cooling systems . Compensation for outdoor and room temperatures. Return temperature limitation.
• (A230.3) Hea ting system with o ptional wind comp ensation and prot ection against condensation in thermal heavy buildings.
• (A230.4) Heating system. Optional pressure monitoring and temperature monitoring of DHW and Cold Water temperatures.
• The A230 application key works in ECL Comfort 296 / 310 for increased functionalities (M-bus and ECL Portal).
• The A230 ap plication key work s in ECL Comfort 310 (incl. ECA 32) fo r control of 0 - 10 Volt controlled (modulated) actuator.
• Weather compensated flow temperature control of heating systems. 2-pump control for circulation and refill water function. Sliding return temperature limitation. Frost protection and alarm function.
• The A231 applic ation key contains app lications relate d to ECL Comfort 310 for increased functionalities (2 pumps for refill water).
• The A231 application key contains applications related to ECL Comfort 296/ 310 for increased functionalities (M-bus and ECL Portal).
signals
2 x 3-point, 2 x 2-point 087 H3 811
1 x 3-point, 3 x 2-point 087H38 07
1 x 3-point, 2 x 2-point 087H3802
1 x 3-point, 3 x 2-point 087H3805
Code no.
AI155886469487en-000801
© Danfoss | 2020.01 | 13
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Ordering ECL Application Keys (continued):
Typ e Application type description Controller output
A232
A237
A247
A260
A266
A275 • Weather compensated flow temperature control of 1-stage boiler based
• Weather compensated flow temperature control of heating / cooling circuit(s). Automati c change-ove r between hea ting and cooling. Ci rculation pump control. Dew point (cooling mode only) and sur face temperature compensation.
• The A232 appli cation key contains a pplications rel ated to ECL Comfort 310 for increased functionalities (return temperature limitation and separated control of heating and cooling circuits).
• The A232 application key contains applications related to ECL Comfort 296 /310 for increased functionalities (M-bus and ECL Portal).
• Weather compensated flow temperature control of heating systems. Circulation pump control. Room temperature control and sliding return temperature limitation. Flow / power limitation. Temperature control of secondar ily connected DHW circuit with storage tank charging s ystem or storage tank with internal heat exchanger. Optional ON / OFF control of the DHW circu it in connectio n with primarily con nected stora ge tank with internal heat exchanger. DHW circulation pump control. Frost protection and alarm function.
• The A237 appli cation key contains ap plications rel ated to ECL Comfort 29 6 / 310 for increased functionalities (M-bus and ECL Por tal).
• Weather compensated flow temperature control of heating systems. Circulation pump control. Sliding return temperature limitation. Flow / power limitation. Temperature control of DHW circuit with storage tank charging system. DHW circulation pump control through the storage tank or the heat-exchanger. Frost protection and alarm function.
• The A247 applicat ion key contains app lications relate d to ECL Comfort 310 for increased functionalities (room temperature sensor).
• Weather compensated flow temperature control of heating systems. Circulation pump control, room temperature control and sliding return temperat ure limitation fo r two independ ent heating circuit s. Flow / power limitation, frost protection and alarm function.
• The A260 application key works in ECL Comfort 296 / 310 for increased functionalities (M-bus and ECL Portal).
• Weather compensated flow temperature control of heating systems. Circulation pump control, room temperature control and sliding return temperature limitation.
• Temperature control of DHW circuit with DHW circulation. Return temperature limitation, sliding DHW priority, frost protection and alarm function. Optional control of DHW heating based on DHW demand.
• The A266 application key works in ECL Comfort 296 / 310 for increased functionalities (M-bus and ECL Portal).
• The A266 ap plication key work s in ECL Comfort 310 (incl. EC A 32) for control of 0 - 10 Volt controlled (modulated) actuator for some subtypes.
heating systems. One direct heating circuit and one mixing circuit. Circulation pumps control, room temperature control and sliding return temperature limitation.
• Temperature control of DHW storage tank with internal heat exchanger. Frost protection and alarm function.
• The A275 applica tion key contains app lications relate d to ECL Comfort 310 for increased functionalities (multiple boiler stages).
• The A275 application key work s in ECL Comfort 296 / 310 for increased functionalities (ECL Portal).
signals
1 x 3-point, 3 x 2-point 08 7H38 12
1 x 3-point, 3 x 2-point 087H3806
2 x 3-point, 3 x 2-point 087H3808
2 x 3-point, 2 x 2-point 087H3801
2 x 3-point, 2 x 2-point 087H380 0
1 x 3-point, 4 x 2-point 087H3 814
Code no.
14 | © Danfoss | 2020.01
Each of the above-mentioned code nos. comprises 1 ECL application key, 1 installation guide and 1 set of multi-lingual user guides.
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Ordering Pt 1000 temperature sensors (IEC 751B, 1000 Ω / 0 °C):
Typ e Designation Code No.
ESMT Outdoor temperature sensor 08 4N1012
ESM-10 Room temperature sensor 087 B116 4
ESM -11 Pipe surface temperature sensor 087 B116 5
ES MB-12 Universal temperature sensor 087 B118 4
ESMC Pipe sur face temperature sensor incl. 2 m cable 087N0011
ESMU -100 Immersion sensor, 100 mm, copper 087 B118 0
ESM U-250 Immersion sensor, 250 mm, copper 087 B1181
ESMU -100 Immersion sensor, 100 mm, stainless steel 087B1182
ESM U-250 Immersion sensor, 250 mm, stainless steel 087 B118 3
Accessories and spare parts:
Pocket Immersion, stainless steel 100 mm, for ESMU -100, Cu (087B1180) 0 87B1190
Pocket Immersion, stainless steel 250 mm, for ESMU-250, Cu (087B1181) 0 87 B1191
Pocket Immersion, stainless steel 100 mm, for ESMB -12, (087B1184) 087 B119 2
Pocket Immersion, stainless steel 250 mm, for ESMB-12, (087B1184) 087B1193
Typical ordering, types:
ECL Comfort Controller Base part Appl. key Remote Control Unit Temperature sensors Actuators /
ECL 210, 230 V a.c. ECL 210 B, 230 V a.c.
for ECL 210 for ECL 310
A2xx ECA 30
ECA 31
ESMT (outdoor) ESM-11 (pipe surface) ESMC (pipe surface) ESMU (immersion) ESM-10 (r oom) ESMB-12 (universal)
valves
see dedicated literature
AI155886469487en-000801
© Danfoss | 2020.01 | 15
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Operation
A
B
The graphical monochrome display (A) shows all temperature values as well as status information and is used for the setting of control parameters. The display has backlight. Different favorite displays can be selected. Navigation, browsing and selecting the current item in the menus is done by means of the dial (multi-func tional knob (B)).
Examples of favorite displays:
The RCUs ECA 30 / 31 are used for remote setting and override of ECL Comfort controller. By means of the built-in room temperature sensor, the flow temperature can be corrected to keep a constant room temperature at comfort or saving temperature. The ECA 30 / 31 is operated as an ECL Comfort 210 with dial and backlighted display.
16 | © Danfoss | 2020.01
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Functions General functions:
• The ECL Comfort 210 has all the required functions of a modern electronic temperature controller for heating, cooling, ventilation and DHW applications.
• The controller can be used as master or slave in systems with master / slave ECL Comfort 210 / 296 / 310 controllers.
• The ECL application key contains the application software for flexible configuration. Furthermore, an update of the controller software is done automatically, if required.
• The ECL Comfort 210 contains, besides the standard functions, log and alarm functions.
• The built-in real time clock gives automatic summer / winter time changeover, week and holiday schedule.
• Motor protection, which ensures stable control and a long life of the motorized control valve, is available for most of the applications. In periods without heat demand, the motorized control valve can be exercised to avoid blocking.
• Scheduled control (comfort and saving mode) is based on a week program. A holiday program gives the possibility to select days with comfor t or saving mode.
• The ECL Comfort 210 can receive pulses from a heat or flow meter to limit the power or the flow.
• In many applications analog input (0 – 10 V) is configured for pressure measuring among others. The scaling is set in the controller.
• Some applications are configured to handle digital input. This function can be used to have an external switch to run comfort or saving mode or react on a flow switch signal.
• The control parameters, proportional band (Xp), integration time (Tn), running time of the motorized control valve and neutral zone (Nz) can be set individually for each output (3-point control).
Heating functions:
• The heat curve (relationship between outdoor temperature and desired flow temperature) is set by means of 6 coordinate points or a slope value. Max. / min. limitation of the desired flow temperature can be set.
• The return temperature limitation can work in relation to the outdoor temperature or be a fixed value.
• The heating cut-out function can switch OFF the heating and stop the circulation pump at high outdoor temperatures.
• Based on the room temperature the ECL Comfort 210 can correct the desired flow temperature in order to increase the comfort level.
• The optimizer function ensures heating in the desired periods (the lower outdoor temperature, the earlier cut-in of the heating).
• The ramping function makes a smooth cut-in of the heating valuable (district heating installations).
• The boost function makes a powerful cut-in of the heating (boiler based installations).
• The circulation pump is controlled in relation to heat demand and frost protection. In periods without heat demand, the circulation pump can be exercised to avoid blocking.
• The saving function gives two possibilities:
· reduced flow temperature with fixed reduction or reduction in relation to outdoor temperature (the lower the outdoor temperature, the less the reduction),
· heating off, still with active frost protection.
DHW functions:
• The auto tuning function with automatic setting of control parameters for constant DHW temperature is integrated in the application A217 and A266. However, auto tuning is only applicable with valves that are approved for auto tuning, i.e. the Danfoss types VB 2 and VM 2 with split characteristic as well as logarithmic valves such as VF and VFS.
• T he anti-bacteria function c an follow a dedicated schedule program.
• The heating circuit can have sliding DHW priority.
Communication
AI155886469487en-000801
The ECL Comfort 210 has an ECL 485 communication bus (non-galvanically separated), which is used for closed communication between master, slave and RCUs.
Additionally, the ECL Comfort 210 has a non­galvanically separated RS 485 bus for limited (cable length) Modbus communication. A USB connection (type B) can be used for the ECL Tool.
Master / slave connections The ECL Tool can be downloaded for free from the internet: https://www.danfoss.com/en/service-and-support/downloads
If M-bus is required, this option is available in ECL Comfort 296 / 310.
If communication to ECL Portal is required, this option is available in ECL Comfort 296 / 310.
© Danfoss | 2020.01 | 17
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Languages
Menu languages are selectable among approx. 20 languages. See “Language list”.
General data ECL Comfort controller and RCU data:
ECL Com fort 210 / 210B ECA 30 / 31
Ambient temperature 0 - 55 °C
Storage and transportation temperature -40 - 70 °C
Mounting Vertically, on wall or DIN rail (35 mm) Vertically, on wall or in panel cut-out
Connections Terminals in base part Terminals in base part
Number of inputs 8 in total:
Temperature sensor type Pt 1000 (1000 ohm at 0 °C), IEC 751B
Digital input 12 V pull-up possible
Analog input 0 - 10 V, resolution 9 bits -
Pulse input, frequency range (selected applications)
Weight 0.46 / 0.42 kg 0 .14 kg
Display (ECL Comfort 210 and ECA 30 / 31 only)
Setting (ECL Comfort 210 and ECA 30 / 31 only)
Setting (ECL Comfort 210 B) ECA 30 / 31
Min. backup time for time and date 72 hours -
Backup of settings and data Storage in EEPROM (timeless) -
Grade of enclosure IP 41 IP 20
-marking in accordance with the
standards
*) Configured at application upload.
6 temperature sensors 2*) Pt 1000 sensor, digital, analog or pulse
Range: -60 – 150 °C
Activation of a digital input must be done with a potential free switch / contact.
For monitoring: 0.01 - 200 Hz For limitation: Minimum 1 Hz (recommended) and regular pulses for having a stable control.
Graphical monochrome with backlight 128 × 96 dots Display mode: Black background, white text
Dial with intuitive push and turn function
EMC directive LVD directive RoHS directive
Furthermore, English is always uploaded in parallel to the selected language.
-
Alternative to built-in room temperature sensor: P t 1000 (1000 ohm at 0 °C), IEC 751B
-
-
ECL application key:
Storage type EEPROM
Segmentation Part 1: Application data, not changeable
Applications A2xx keys work in ECL Comfort 210, 296 and ECL Comfort 310
Lock function If the application key is not inserted in the ECL Comfort controller, all settings can
Part 2: Factory set tings, not changeable Part 3: Updating firmware for the ECL Comfort controller, not changeable Part 4: User settings, changeable
A3xx keys work in ECL Comfort 310 only
be seen, but not changed
18 | © Danfoss | 2020.01
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
ECL 485 communication bus data:
Purpose For internal ECL Comfort 210 / 296 / 310 and ECA 30 / 31 use
Connection Terminals in base part
Cable type 2 × twisted pair
Max. total cable length (bus cable + sensor cables) 200 m in total (inclusive sensor cables)
Max. number of ECL slaves connected Units with unigue address (1 - 9): 9
Max. number of Remote Control Units connec ted 2
Data sent from master Date
Data sent from addressed slave controller Desired flow temperature from each circuit
Data sent from ECA 30 / 31
only (Danfoss proprietary bus)
Non-galvanically isolated
Units with address “0”: 5
Time Outdoor temperature Desired room temperature DHW-priority signal
Actual and desired room temperature
Function selector mode
(ECA 31) Relative humidit y
Modbus communication data:
Modbus RS 4 85 For service purposes
Connection Terminals in base part
Cable type 2 × twisted pair
Max. bus cable length 20 m
Non-galvanically isolated
USB communication data:
Languages
References
USB CDC (Communication Device Class) For service purposes
Modbus over USB Similar to the serial Modbus, but with relaxed timing
Connection, cable type Standard USB cable (USB A ---- ---- USB B)
(Windows driver is needed, to enable that Windows recognize the ECL as a virtual COM por t)
A port: USB (type B female plug)
C port: ECL application key
Bulgarian Estonian Italian Russian
Croatian Finnish Latvian Serbian
Czech French Lithuanian Slovak
Danish German Polish Slovenian
English Hungarian Romanian Swedish
Dutch Spanish
The selected language + English is uploaded at application upload.
M-bus communication (non-galvanically separated)
Modbus connection (galvanically separated)
Ethernet ECL Comfort 296 / 310 has Ethernet connection, RJ45, Modbus / TCP. For SCADA
Extension of input / outputs ECL Comfort 310 (2 extra inputs, 1 extra output for actuator, 2 extra relays)
ECL Comfort 296 / 310
ECL Comfort 296 / 310
solutions and ECL Portal
ECL Comfort 310 + ECA 32 (6 inputs, 2 pulse inputs, 3 analog outputs (0 - 10 V) and 4 relays) The analog outputs (0 - 10 V) can in some applications be used for control of analog controlled actuators, fan speed and pump speed.
AI155886469487en-000801
© Danfoss | 2020.01 | 19
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Wiring - 230 V a.c.
ECL Comfort 210 wiring example: Application A266.1
Supply voltage 230 V a.c. - 50 Hz
Voltage range 207 to 244 V a.c. (IEC 60038)
Power consumption 5 VA
Max. load on relay outputs 4(2) A - 230 V a.c. (4 A for ohmic load,
Relay contact material Silver alloy
Max. load on triac outputs for actuators (a.c. load only) 0.2 A - 230 V a.c.
2 A for inductive load)
Warning:
Electric conductors on PCB (Printed Circuit Board) for supply voltage, relay contacts and triac outputs do not have mutual safety distance of minimum 6 mm. The outputs are not allowed to be used as galvanic separated (volt free) outputs. If a galvanic separated output is needed, an auxiliary relay is recommended.
24 Volt controlled units, for example actuators, are to be controlled by means of ECL Comfort 310, 24 Volt version.
20 | © Danfoss | 2020.01
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Wiring - input
Wiring - ECA 30 / 31 Remote Control Unit
Base part
Wiring of ECL Comfort 210 and ECA 30 / 31, 230 V a.c.
Supply voltage From ECL 485 communication bus
Power consumption 1 VA
External room temperature sensor Pt 100 0 (ESM-10), substitutes the built-in room temperature
sensor
ECA 31 only Contains humidity sensor, used for special applications
ECL Comfort 210 base part
AI155886469487en-000801
© Danfoss | 2020.01 | 21
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Base part, continued
ECL Comfort 310 base part (can be used for ECL Comfort 210 too).
Dimensions
ECL Comfort 210
ECL Comfort 210B
22 | © Danfoss | 2020.01
ECA 30 / 31
AI155886469487en-000801
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
ECA 30 / 31 cut-out for mounting in panel front
Tender text Electronic controller for heating and domestic hot water applications
1a
Electronic weather compensator for flow temperature control in heating and domestic hot water installations. Turn-push-dial, backlighted graphic display and menu-based operation in local languages. The controller can operate multiple application uploaded by means of application software keys.
1b
• Heat curve setting in 6 coordinates or as slope.
• Flow temperature limitations.
• Room temperature compensation and comfort / saving periods according to week schedule.
• Holiday schedule.
• Return temperature limitation as a set value (DHW) or in relation to outdoor temperature (heating).
• Pumps controlled in relation to heat demand and frost protection.
• Alarm functions and log pictures for all sensors.
• Manuel override of the individual outputs.
• Communication: Modbus (max. 20 m), ECL 485 (internal data bus).
• Connection for commissioning / service via PC
• 6 temperature sensor (Pt 1000) inputs.
• 2 application related and configured inputs.
• 4 relay outputs.
• 2 pairs of electronic output for noiseless operation of the motorized control valve.
A frame (code no. 087H3236) is placed in the
cut-out (139 × 93 mm) in which the ECA 30 / 31
is placed.
Remote control unit ECA 30 / 31:
• Turn-push-dial, backlighted graphic display
• Integrated room temperature sensor
• Integrated humidity sensor (ECA 31 only)
1c
Main data:
• Supply voltage, 230 V a.c., 50 Hz: ECL 210 and ECL 210 B
• Power consumption: max. 5 VA
• Ambient temperature: 0 – 55 °C
• Storage temperature: -40 – 70 °C
2
Product characteristics:
• Protection class: IP 41
• DIN rail adaptor integrated
• Dimension (inclusive base part) L*W*H, 220*110*80 mm
• Ordering code no.: ECL Comfort 210, 230 V: 087H3020
• Ordering code no.: ECL Comfort 210B, 230 V: 087H3030
• Ordering code no.: Base part for ECL Comfort 210 / 210B: 087H3220
• Ordering code no.: ECA 30: 087H3200
• Ordering code no.: ECA 31: 087H3201
• Ordering code no. for application key depends on preferred application
AI155886469487en-000801
© Danfoss | 2020.01 | 23
Data sheet ECL Comfort 210 Controller, Remote Control Units ECA 30 / 31 and Application Keys
Additional documentation for ECL Comfort 210, modules and accessories is available on http://heating.danfoss.com/ or http://store.danfoss.com/
24 | © Danfoss | DHS-SMT/DK | 2020.01
AI155886469487en-000801
Loading...
