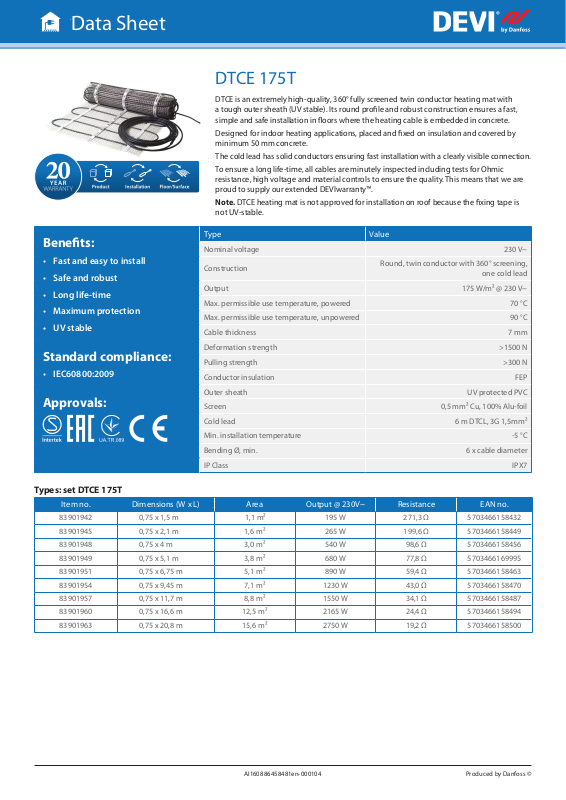

Data Sheet

DTCE

DTCE 175T

DTCE is an extremely high-quality, 360° fully screened twin conductor heating mat with a tough outer sheath (UV stable). Its round proﬁle and robust construction ensures a fast, simple and safe installation in ﬂoors where the heating cable is embedded in concrete.

Designed for indoor heating applications, placed and ﬁxed on insulation and covered by minimum 50 mm concrete.

The cold lead has solid conductors ensuring fast installation with a clearly visible connection. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic

resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our extended DEVIwarranty™.

Note. DTCE heating mat is not approved for installation on roof because the ﬁxing tape is not UV-stable.

Beneﬁts:

• Fast and easy to install

Type

Nominal voltage 230 V~

Construction

Value

Round, twin conductor with 360° screening,

• Safe and robust

• Long life-time

• Maximum protection

• UV stable

Standard compliance:

• IEC60800:2009

Approvals:

Output 175 W/m² @ 230 V~

Max. permissible use temperature, powered 70 °C

Max. permissible use temperature, unpowered 90 °C

Cable thickness 7 mm

Deformation strength >1500 N

Pulling strength >300 N

Conductor insulation FEP

Outer sheath UV protected PVC

Screen 0,5 mm² Cu, 100% Alu-foil

Cold lead 6 m DTCL, 3G 1,5mm²

Min. installation temperature -5 °C

Bending Ø, min. 6 x cable diameter

IP Class IPX7

Types: set DTCE 175T

Item no. Dimensions (W x L) Area Output @ 230V~ Resistance EAN no.

83901942 0,75 x 1,5 m 1,1 m² 195 W 271,3 Ω 5703466158432 83901945 0,75 x 2,1 m 1,6 m² 265 W 199,6 Ω 5703466158449 83901948 0,75 x 4 m 3,0 m² 540 W 98,6 Ω 5703466158456 83901949 0,75 x 5,1 m 3,8 m² 680 W 77,8 Ω 5703466169995 83901951 0,75 x 6,75 m 5,1 m² 890 W 59,4 Ω 5703466158463 83901954 0,75 x 9,45 m 7,1 m² 1230 W 43,0 Ω 5703466158470 83901957 0,75 x 11,7 m 8,8 m² 1550 W 34,1 Ω 5703466158487 83901960 0,75 x 16,6 m 12,5 m² 2165 W 24,4 Ω 5703466158494 83901963 0,75 x 20,8 m 15,6 m² 2750 W 19,2 Ω 5703466158500

one cold lead
