Data sheet
Pressure transmitter
CANopen & SAE J1939
DST P92C
The DST P92C OEM pressure transmitter is
designed for use in harsh environments as Mobile
hydraulic applications.
Danfoss DST P92C is designed to comply with
CANopen as well as SAE J1939.
It is a cost effective way to control complex
machines and make also replacements
cost- effiient while offering additional benefits
such as diagnostic and communication. The
DST P92C is with E1 type approval (vehicles and
vehicle parts according to European directives for
use on public roads).
The DST P92C is offered in a wide range of
pressure ranges. For the pressure range 10 to
1200 bar the measuring element is made of
stainless steel and covers a media temperature
range of -40 to
150 °C.
Features
Conformity
• Designed for use in off-highway vehicles.
• For ambient temperature up to 125 °C
• Pressure range 0–10 bar to 0-1200 bar
• Output signal:
CANopen
SAE J1939
• Wetted parts made of stainless steel
• Fully welded design and, therefore, no use of
gasket in combination with wetted parts
• CE marked
• E1 type approval
•
Note: In respect to Customer Change Notification, only changes in relation to Form Fit and
Function can be informed upon!
© Danfoss | DCS (im) | 2018.08 IC.PD.P21.4E.02 | AI267730026297en-000401| 1
Data sheet | Pressure transmitter CANopen & SAE J1939, DST P92C
Technical data
Overall accuracy @ operating temperature
Thereof linearity, hysteresisi and repeatability <0.25%
Long-run stability <0,2%FS p.a.
+/- 0.5 %FS [0-105°C]
+/- 1.5 %FS [-40 - 0 °C and 105 - 125 °C]
Overload and burst pressure
Standard pressure [bar] 10 40 60 100 160 250 400 600 1200
Overload pressure [bar] 40 100 200 200 500 500 800 1000 1600
Burst pressure [bar] 70 500 1000 1000 2500 2500 4000 >4000 >4000
Environmental conditions
Media temperature range -40 – 150 °C
Ambient temperature range -40 – 125 °C
Storage temperature range -40 – 125 °C
Voltage supply 9 … 36 V
Electrical Protection
EMC
Short circuit protected, signal on GND/VCC and
reverse polarity protection
EN 61000-6-2
EN 61000-6-4
Vibration stability 20 g EN 60068-2-6
Shock mechanical 500 g EN60068-2-27
Enclosure 1.4301, PBT-GF30
Material with medium contact 1.4542, FKM
Weight 50 g
Enclosure IP 67
Sample rate 1000 samples/s (max.)
Digital filter averaging adjustable
CAN
Output protocol Danfoss-CAN, CANopen, SAE J1939
Electrical connection
M12 connector, DIN Bayonet (per DIN 72585),
DT04-4 p
2 | IC.PD.P21.4E.02 | AI267730026297en-000401
© Danfoss | DCS (im) | 2018.08
Data sheet | Pressure transmitter CANopen & SAE J1939, DST P92C
Ordering
DST P92C – - – -
Without pulse-snubber ····················· 00
With pulse-snubber (standard)
······ 50
Measuring range
0 – 40 bar ······························································-···
0 – 60 bar ······························································-···
0 – 100 bar ······························································-···
0 – 160 bar ······························································-···
0 – 250 bar ······························································-···
0 – 400 bar ··································································
0 – 600 bar ······························································-···
Other ······························································-··············
26
28
30
32
34
36
38
99
GB04
BD08
BD11
External sealing
Fluorocarbon FKM ≥ -20°C to
···
1
≤ 125°C( Viton)
Pressure connection
G ¼ A DIN 3852-E
·······
·······
SAE4, ⁄ - 20 UNF
SAE6, ⁄ - 18 UNF
·······
Pressure reference
Gauge (relative) ·········································································
For other variants please contact Danfoss
Electrical connection
·······
EA
EB
B3
1
M12x1, 5-pole
Deutch, DT04-4 p
·······
·······
Bayonet, DIN72585, 4-pole
Output signal
Z
S
···············
···············
CANopen
SAE J1939
© Danfoss | DCS (im) | 2018.08
IC.PD.P21.4E.02 | AI267730026297en-000401 | 3
Data sheet | Pressure transmitter CANopen & SAE J1939, DST P92C
43.7
ø21.3
35.6
Danfoss
20.5
30.8
ø21.3
Dimensions/Combinations
Type code EA B3 EB
M12x1, 5-pol Bayonet, DIN 82855,
Deutsch, DT04-4 p
4pole
ø23.5
ø21.3
Danfoss
A78G05
7/16-20 UNF
(SAE4)
SAE 4, 7/16-20 UNF
O-ring
21.5
9/16-18 UNF
(SAE6)
SAE 6, 9/16-18 UNF
O-ring
HEX 22
Type code
Recommend
1)
torque
Danfoss
A78G03
M12 x 1
A78G07
22.5
G1/4
Gasket
DIN 3869
G 1/4,
DIN 3852-E
GB04 BD08 BD11
22 Nm 22 Nm 22 Nm
Danfoss
A78G01
4 | IC.PD.P21.4E.02 | AI267730026297en-000401
© Danfoss | DCS (im) | 2018.08
Data sheet | Pressure transmitter CANopen & SAE J1939, DST P92C
5
3
2
Danfoss
14
120 Ohm
VCC
CAN_H
CAN_L
GND
CAN

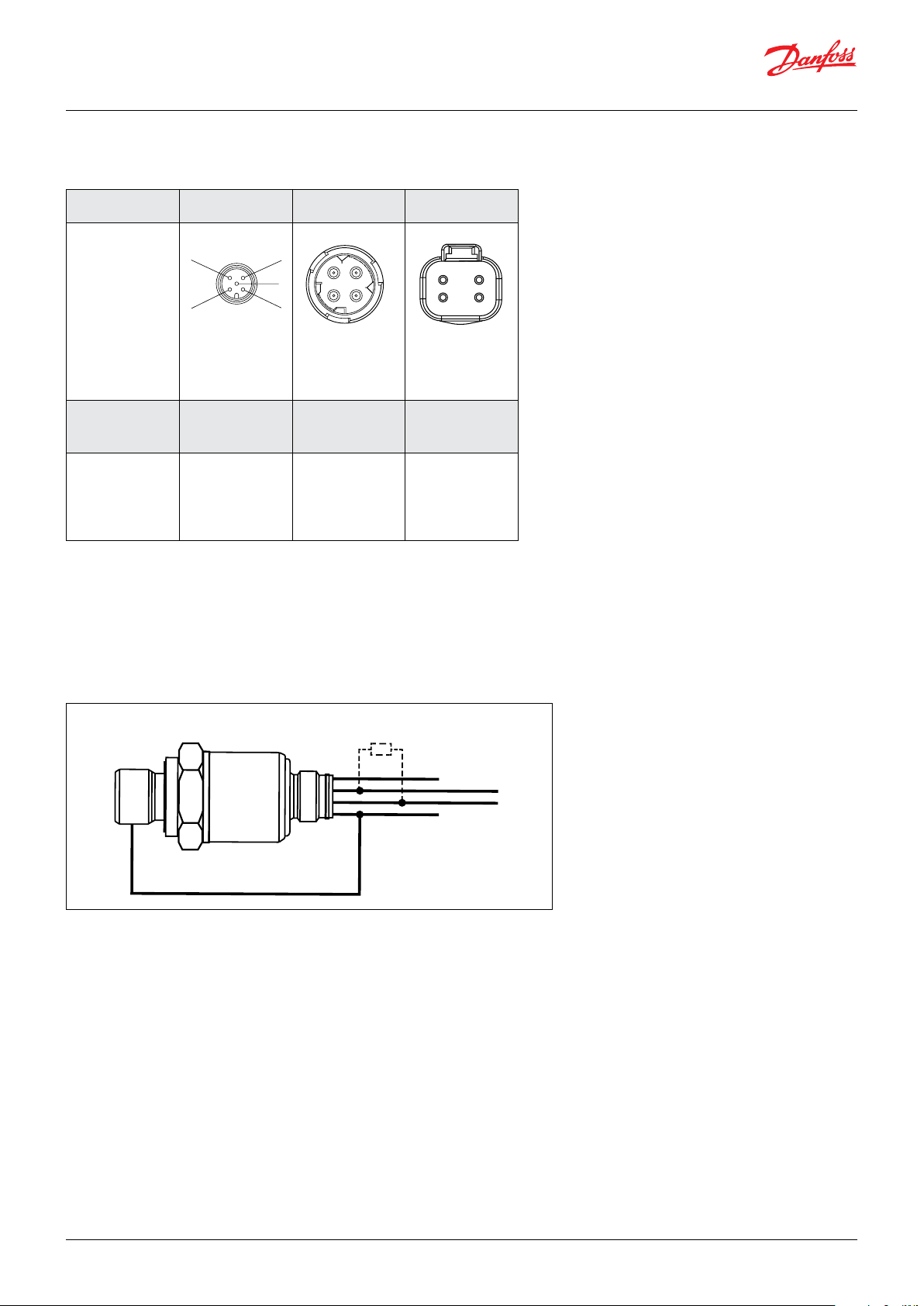

Electrical connections
Type code
EA B3 EB
4
A78G09
1
M12x1, 5-pole Bayonet
Pin-plating Au plating on
Nickel
CAN Pin 1: PE, Housing
Pin 2: VCC
Pin 3: GND
Pin 4: CAN_H
Pin 5: CAN_L
23
PBT OF 30
DIN 72585, 4-pole
Tin plating on
Nickel
Pin 1: VCC
Pin 2:GND
Pin 3: CAN_H
Pin 4: CAN_L
4 1
3 2
Deutsch
DT04-4P, 4-Pole
Tin plating on
Nickel
Pin 1: CAN_L
Pin 2: VCC
Pin 3: GND
Pin 4: CAN_H
Recommended terminal layout
© Danfoss | DCS (im) | 2018.08
IC.PD.P21.4E.02 | AI267730026297en-000401 | 5
