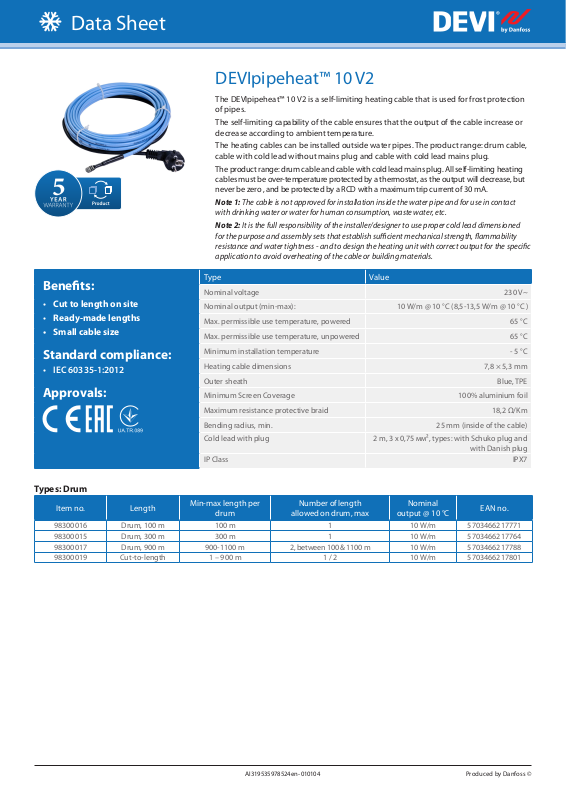

Data Sheet
DEVIpipeheat™ 10 V2
The DEVIpipeheat™ 10 V2 is a self-limiting heating cable that is used for frost protection of pipes.
The self-limiting capability of the cable ensures that the output of the cable increase or decrease according to ambient temperature.
The heating cables can be installed outside water pipes. The product range: drum cable, cable with cold lead without mains plug and cable with cold lead mains plug.
The product range: drum cable and cable with cold lead mains plug. All self-limiting heating cables must be over-temperature protected by a thermostat, as the output will decrease, but never be zero , and be protected by a RCD with a maximum trip current of 30 mA.
Note 1: The cable is not approved for installation inside the water pipe and for use in contact with drinking water or water for human consumption, waste water, etc.
Note 2: It is the full responsibility of the installer/designer to use proper cold lead dimensioned for the purpose and assembly sets that establish sufficient mechanical strength, flammability resistance and water tightness - and to design the heating unit with correct output for the specific application to avoid overheating of the cable or building materials.
Benefits:
•Cut to length on site
•Ready-made lengths
•Small cable size
Standard compliance:
• IEC 60335-1:2012
Approvals:
Type |
Value |
Nominal voltage |
230 V~ |
Nominal output (min-max): |
10 W/m @ 10 °C (8,5-13,5 W/m @ 10 °C ) |
Max. permissible use temperature, powered |
65 °C |
Max. permissible use temperature, unpowered |
65 °C |
Minimum installation temperature |
- 5 °C |
Heating cable dimensions |
7,8 × 5,3 mm |
Outer sheath |
Blue, TPE |
Minimum Screen Coverage |
100% aluminium foil |
Maximum resistance protective braid |
18,2 Ω/Km |
Bending radius, min. |
25 mm (inside of the cable) |
Cold lead with plug |
2 m, 3 х 0,75 мм², types: with Schuko plug and |
|
with Danish plug |
IP Class |
IPX7 |
Types: Drum
Item no. |
Length |
Min-max length per |
Number of length |
Nominal |
EAN no. |
|
drum |
allowed on drum, max |
output @ 10 °C |
||||
|
|
|
||||
|
|
|
|
|
|
|
98300016 |
Drum, 100 m |
100 m |
1 |
10 W/m |
5703466217771 |
|
98300015 |
Drum, 300 m |
300 m |
1 |
10 W/m |
5703466217764 |
|
98300017 |
Drum, 900 m |
900-1100 m |
2, between 100 & 1100 m |
10 W/m |
5703466217788 |
|
98300019 |
Cut-to-length |
1 – 900 m |
1 / 2 |
10 W/m |
5703466217801 |
AI319535978524en-010104 |
Produced by Danfoss © |
Types: Ready-made with Schuko plug
Item no. |
Length |
Nominal output @ 10 °C |
Cold lead |
EAN no. |
98300071 |
2 m |
20 W |
2 m |
5703466217924 |
98300072 |
4 m |
40 W |
2 m |
5703466217931 |
98300073 |
6 m |
60 W |
2 m |
5703466217948 |
98300074 |
8 m |
80 W |
2 m |
5703466217955 |
98300075 |
10 m |
100 W |
2 m |
5703466217962 |
98300076 |
12 m |
120 W |
2 m |
5703466217979 |
98300077 |
14 m |
140 W |
2 m |
5703466217986 |
98300078 |
16 m |
160 W |
2 m |
5703466217993 |
98300079 |
19 m |
190 W |
2 m |
5703466218006 |
98300080 |
22 m |
220 W |
2 m |
5703466218013 |
98300081 |
25 m |
250 W |
2 m |
5703466218020 |
Types: Ready-made with plug, Danish version
Item no. |
Length |
Nominal output @ 10 °C |
Cold lead |
EAN no. |
98300082 |
2 m |
20 W |
2 m |
5703466218037 |
98300083 |
4 m |
40 W |
2 m |
5703466218044 |
98300084 |
6 m |
60 W |
2 m |
5703466218051 |
98300085 |
8 m |
80 W |
2 m |
5703466218068 |
98300086 |
10 m |
100 W |
2 m |
5703466218075 |
98300087 |
12 m |
120 W |
2 m |
5703466218082 |
98300088 |
14 m |
140 W |
2 m |
5703466218099 |
98300089 |
16 m |
160 W |
2 m |
5703466218105 |
98300090 |
19 m |
190 W |
2 m |
5703466218112 |
98300091 |
22 m |
220 W |
2 m |
5703466218129 |
98300092 |
25 m |
250 W |
2 m |
5703466218136 |
Maximum heating circuit length on a pipe, with circuit breaker with C-characteristic
Switch on |
DEVIpipeheat™ 10 V2 |
||
temperature |
10 A |
16 A |
|
10 |
°C |
100 m |
- |
0 |
°C |
96 m |
- |
-20 |
°C |
77 m |
- |
Power output characteristic
Output of heating cable installed and measured on a pipe.
W/m
40
35 |
DEVIpipeheat 10 V2 |
30
25
20
15
10
5
0
0 10 20 30 40 50 60 Pipe temperature (°C)
