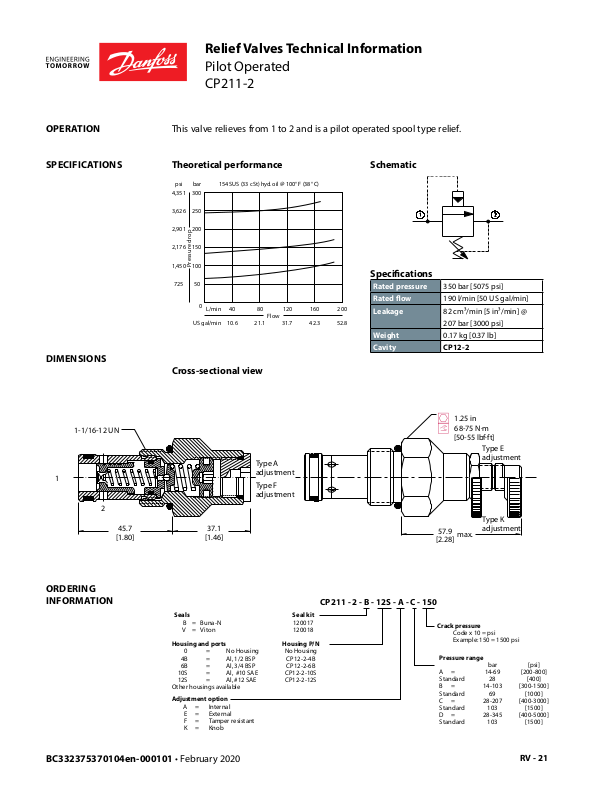

OPERATION
SPECIFICATIONS
DIMENSIONS
1-1/16-12 UN
1
2
45.7
[1.80]
ORDERING INFORMATION
Relief Valves Technical Information
Pilot Operated
CP211-2
This valve relieves from 1 to 2 and is a pilot operated spool type relief.
Theoretical performance
psi |
bar |
154 SUS (33 cSt) hyd. oil @ 100° F (38° C) |
|
|
|||||||||||
4,351 |
|
300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
3,626 |
|
250 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
2,901 |
|
200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
| <![if ! IE]> <![endif]>drop |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>Pressure |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2,176 |
|
150 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1,450 |
|
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
725 |
|
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L/min |
40 |
80 |
|
120 |
160 |
200 |
|||||||
|
|
|
|
|
|
|
|
|
Flow |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
US gal/min |
10.6 |
21.1 |
31.7 |
42.3 |
52.8 |
||||||||
Schematic
Specifications
Rated pressure |
350 bar [5075 psi] |
Rated flow |
190 l/min [50 US gal/min] |
Leakage |
82 cm³/min [5 in³/min] @ |
|
207 bar [3000 psi] |
Weight |
0.17 kg [0.37 lb] |
Cavity |
CP12-2 |
Cross-sectional view
|
h 1.25 in |
|
||
|
t 68-75 N.m |
|||
|
|
[50-55 lbf.ft] |
||
|
|
|
|
Type E |
|
Type A |
|
|
adjustment |
|
|
|
|
|
|
adjustment |
|
|
|
|
Type F |
|
|
|
|
adjustment |
|
|
|
37.1 |
|
|
|
Type K |
57.9 |
|
max. |
adjustment |
|
[1.46] |
|
|
||
[2.28] |
|
|
||
|
|
|
||
CP211 - 2 - B - 12S - A - C - 150
Seals |
|
|
|
|
Seal kit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
B |
= |
Buna-N |
|
|
120017 |
|
|
|
|
|
|
|
|
|
|
V |
= |
Viton |
|
|
120018 |
|
|
|
|
|
|
|
|
|
|
Housing and ports |
|
|
Housing P/N |
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||||||
0 |
|
= |
No Housing |
No Housing |
|
||||||||||
4B |
|
= |
Al, 1/2 BSP |
CP12-2-4B |
|
||||||||||
6B |
|
= |
Al, 3/4 BSP |
CP12-2-6B |
|
||||||||||
10S |
|
= |
Al, #10 SAE |
CP12-2-10S |
|
||||||||||
12S |
|
= |
Al, #12 SAE |
CP12-2-12S |
|
||||||||||
Other housings available |
|
|
|
|
|
|
|
|
|
|
|
||||
Adjustment option |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||||
A |
= |
Internal |
|
|
|
|
|
|
|
|
|
|
|
||
E |
= |
External |
|
|
|
|
|
|
|
|
|
|
|
||
F |
= |
Tamper resistant |
|
|
|
|
|
|
|
|
|
|
|
||
K |
= |
Knob |
|
|
|
|
|
|
|
|
|
|
|
|
|
Crack pressure
Code x 10 = psi
Example: 150 = 1500 psi
Pressure range |
|
||
|
|
bar |
[psi] |
A |
= |
14-69 |
[200-800] |
Standard |
28 |
[400] |
|
B |
= |
14-103 |
[300-1500] |
Standard |
69 |
[1000] |
|
C |
= |
28-207 |
[400-3000] |
Standard |
103 |
[1500] |
|
D |
= |
28-345 |
[400-5000] |
Standard |
103 |
[1500] |
|
BC332375370104en-000101 • February 2020 |
RV - 21 |
