Danfoss Concrete Pump Truck Application guide

Hydraulic and Electronic Control Solutions

Concrete Pump Truck

Best

Partner

for a future of intelligence

Quality products and systems indicate lower maintenance cost and longer service life. Our global network and quick response will support smooth running of your equipment.

powersolutions.danfoss.com

Hydraulic and Electronic Control Solutions

Concrete Pump Truck

I N Q U I R Y		P R O J E C T S P E C I F I C A T I O N			C O N C E P T P H A S E
		•	Detailed project plan		•	Different system proposals
		•	Technical system specification		•	Evaluation and selection of approach

Focus on Customer and

Join hands for a Better Future

With decades of development, China has become the largest market for concretes pump equipment in the world, where a number of suppliers are competing fiercely.

The customers have increasingly higher expectation for the equipment. In addition to low fuel consumption, high performance and high reliability, intelligent and precise controls are playing more important roles in this market.

Faced with a more competitive market and ever growing expectations from end users, pump equipment manufacturers need to integrate resource and focus

on customers to meet the market demands constantly.

As the global leader in mobile hydraulics, Danfoss Power Solution started to work with the leading pump truck enterprise in Germany over three decades ago.The quality hydraulic and electronic control products and solutions provided by Danfoss will enable you to develop more competitive systems to fulfill needs of specific customers.

D E S I G N		I M P L E M E N T A T I O N		R E L E A S E
• Sizing and selection of		• Installation in prototype		•	Final review
compatible components		• Real-life work condition tests at		•	Final report
• Advanced simulation tests and system FMEA		Danfoss’on-site test-track		•	Documentation
		• Careful system performance analysis for		•	Start-up help
		optimization and trouble-shooting

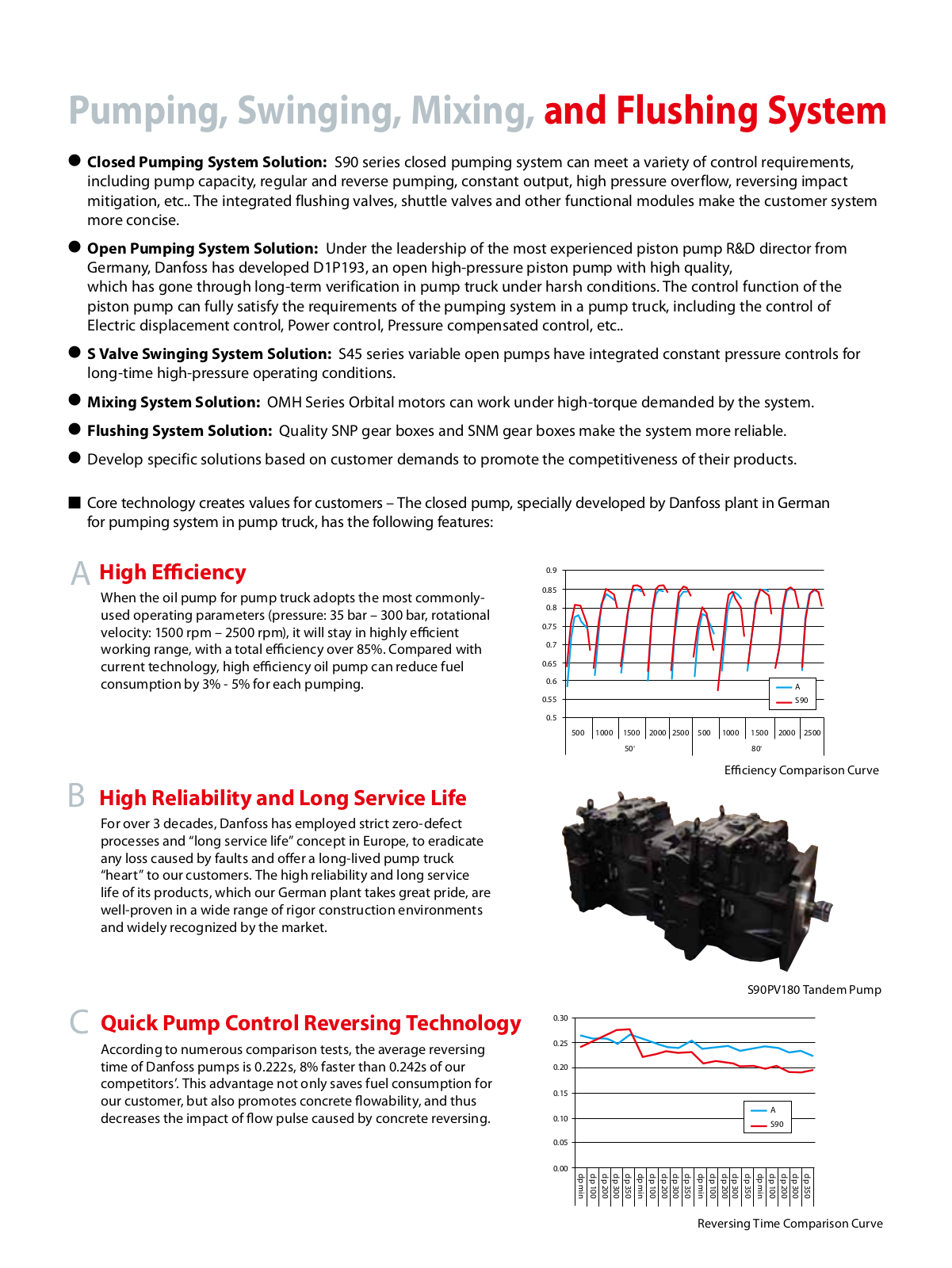

Closed Pumping System

DP700

Graphic Display

PLUS+1®

MC050 Microcontroller

PVG 32

Load Sensing

Proportional

Valve

xxx

OMH 500

Orbital

Sensor

(Temperature and Pressure)

VMR

Orbital Motor

SGM

Fan Drive

Gear Motor

Control Valve

for Flushing

SNM and Mixing

Flushing

Drive Gear

Motor

SNP

Gear Motor

45 Piston

Circuit Pump

Series 90

Axial Piston Tandem Pump (180+180cc/ 130cc)

© Blue Graphics Concept by Danfoss
