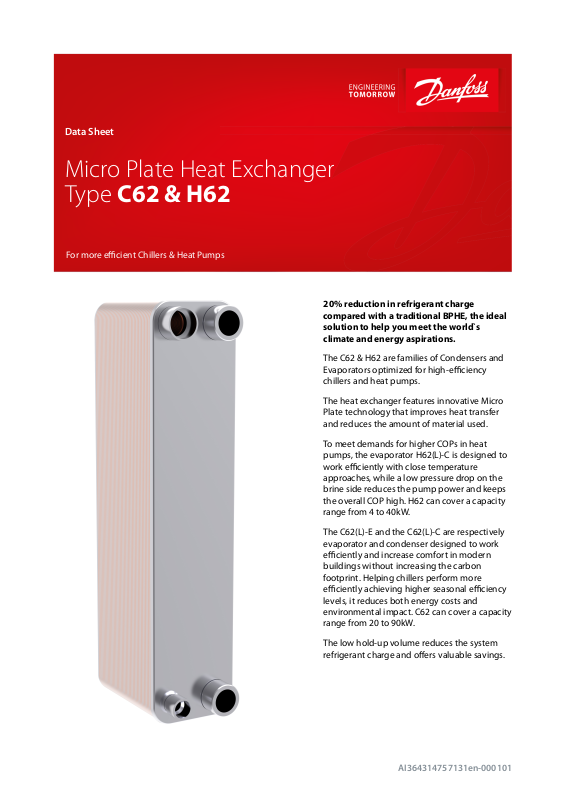

Danfoss C62, H62 Data sheet
Data Sheet
Micro Plate Heat Exchanger
Type C62 & H62
For more efficient Chillers & Heat Pumps
20% reduction in refrigerant charge compared with a traditional BPHE, the ideal solution to help you meet the world`s climate and energy aspirations.
The C62 & H62 are families of Condensers and Evaporators optimized for high-efficiency chillers and heat pumps.
The heat exchanger features innovative Micro Plate technology that improves heat transfer and reduces the amount of material used.
To meet demands for higher COPs in heat pumps, the evaporator H62(L)-C is designed to work efficiently with close temperature approaches, while a low pressure drop on the brine side reduces the pump power and keeps the overall COP high. H62 can cover a capacity range from 4 to 40kW.
The C62(L)-E and the C62(L)-C are respectively evaporator and condenser designed to work efficiently and increase comfort in modern buildings without increasing the carbon footprint. Helping chillers perform more efficiently achieving higher seasonal efficiency levels, it reduces both energy costs and environmental impact. C62 can cover a capacity range from 20 to 90kW.
The low hold-up volume reduces the system refrigerant charge and offers valuable savings.
AI364314757131en-000101
Micro plate heat exchanger, type C62 & H62
Features
•Minimal hold-up volume: Less refrigerant charge
•Reduced pressure drop: For a more efficient system
•Smaller footprint: Enabling more compact system
•Reduced CO2 footprint: Environmentally friendly with high heat transfer and minimal refrigerant charge
Portfolio overview
C62L-E: Evaporator optimized for R410A in chiller application, from 20 to 90kW.
C62-E: Evaporator for medium density refrigerants in chiller application, from 20 to 90kW. C62L-C: Condenser optimized for high density refrigerants in chiller application, from 20 to 90kW.
C62-C: Condenser optimized for medium density refrigerants in chiller application, from 20 to 90kW. H62L-C: Condenser optimized for high density refrigerants in heat pump application, from 4 to 40kW. H62-C: Condenser optimized for medium density refrigerants in heat pump application, from 4 to 40kW.
Table 1: Designation
|
|
|
|
a |
d |
e |
|
Applications |
Specific duty |
Distributor version |
|
C: chiller |
E= evaporator |
Omit |
|
H: heat pump |
C= condenser |
B |
|
HDW: heat pump double wall |
|
F |
|
|
Plate design |
…... |
|
b |
Omit |
Plate stacking sequence |
|
Platform(1) 22,30,55,62,118… |
L: L-type |
Omit: a-b-a… |
|
|
M: M-type |
R: b-a-b… |
|
|
H: H-type |
|
|
|
|
||
|
W: W-type |
|
|
c |
X: Asymmetric |
|
|
Z: Z ƒow |
|
||
Pressure Service |
f |
||
|
|||
Omit: 30bar |
Configuration |
Number of plates(2) |
|
L: 45/49bar |
|
||
Omit: single |
|
||
|
|
||
|
D: Dual circuit |
|
|
|
U: Mixing chamber |
|
|
|
|
|
(1)Heat exchanging surface per plate 1/1000 m².
(2)Rule:
•Single: even number
•Dual: even number not multiple of 4
Application
The C62 & H62 are families of Condensers and Evaporators speci†cally optimized for high-efficiency chillers and heat pumps, dedicated to comfort applications, cooling-industrial process, data centers. The evaporators are design to operate also in reversable systems in condenser mode, in co or counter current ƒow con†guration; as well as the condensers are veri†ed with regards to the defrost operation cycle.
Media
Refrigerants
R410A, R407C, R452B, R454B, R290
For other refrigerants please contact your Danfoss Sales representative.
© Danfoss | Climate Solutions | 2021.02 |
AI364314757131en-000101 | 2 |
