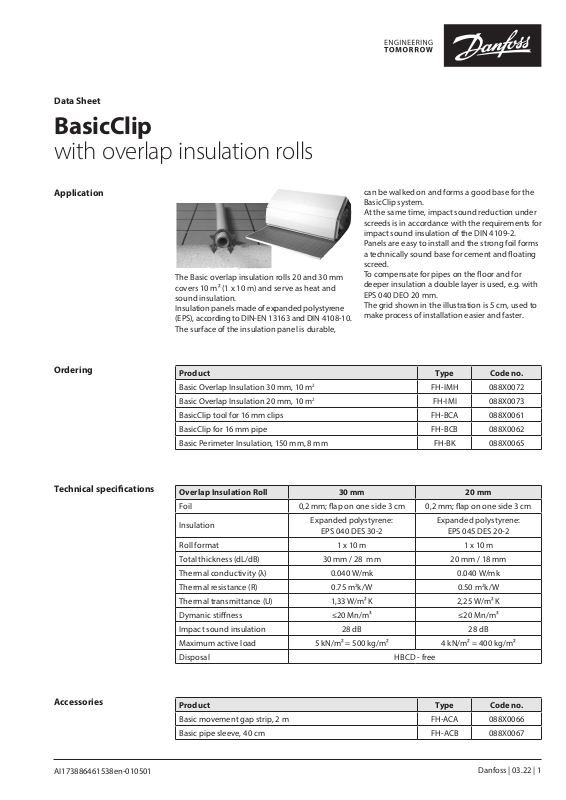

Data Sheet
BasicClip
with overlap insulation rolls
Application
Ordering
The Basic overlap insulation rolls 20 and 30 mm covers 10 m² (1 x 10 m) and serve as heat and sound insulation.
Insulation panels made of expanded polystyrene (EPS), according to DIN-EN 13163 and DIN 4108-10. The surface of the insulation panel is durable,
can be walked on and forms a good base for the BasicClip system.
At the same time, impact sound reduction under screeds is in accordance with the requirements for impact sound insulation of the DIN 4109-2. Panels are easy to install and the strong foil forms a technically sound base for cement and floating screed.
To compensate for pipes on the floor and for deeper insulation a double layer is used, e.g. with EPS 040 DEO 20 mm.
The grid shown in the illustration is 5 cm, used to make process of installation easier and faster.
Product |
Type |
Code no. |
|
|
|
Basic Overlap Insulation 30 mm, 10 m2 |
FH-IMH |
088X0072 |
Basic Overlap Insulation 20 mm, 10 m2 |
FH-IMI |
088X0073 |
BasicClip tool for 16 mm clips |
FH-BCA |
088X0061 |
|
|
|
BasicClip for 16 mm pipe |
FH-BCB |
088X0062 |
|
|
|
Basic Perimeter Insulation, 150 mm, 8 mm |
FH-BK |
088X0065 |
|
|
|
Technical specifications |
|
|
|
|
|
|
|
|
Overlap Insulation Roll |
|
30 mm |
|
|
|
20 mm |
||
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
Foil |
|
0,2 mm; flap on one side 3 cm |
|
0,2 mm; flap on one side 3 cm |
|||
|
|
|
|
|
|
|
|
|
|
Insulation |
|
Expanded polystyrene: |
|
|
Expanded polystyrene: |
||
|
|
EPS 040 DES 30-2 |
|
|
EPS 045 DES 20-2 |
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Roll format |
|
1 x 10 m |
|
|
|
1 x 10 m |
|
|
|
|
|
|
|
|
|
|
|
Total thickness (dL/dB) |
|
30 mm / 28 mm |
|
|
20 mm / 18 mm |
||
|
|
|
|
|
|
|
|
|
|
Thermal conductivity (λ) |
|
0.040 W/mk |
|
|
0.040 W/mk |
||
|
|
|
|
|
|
|
|
|
|
Thermal resistance (R) |
|
0.75 m2k/W |
|
|
0.50 m2k/W |
||
|
Thermal transmittance (U) |
|
1,33 W/m² K |
|
|
2,25 W/m² K |
||
|
|
|
|
|
|
|
|
|
|
Dymanic stiffness |
|
≤20 Mn/m³ |
|
|
≤20 Mn/m³ |
||
|
|
|
|
|
|
|
|
|
|
Impact sound insulation |
|
28 dB |
|
|
|
28 dB |
|
|
|
|
|
|
|
|
|
|
|
Maximum active load |
|
5 kN/m² = 500 kg/m² |
|
|
4 kN/m² = 400 kg/m² |
||
|
|
|
|
|
|
|
|
|
|
Disposal |
|
|
HBCD - free |
|
|
||
Accessories |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product |
|
|
|
Type |
|
Code no. |
||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Basic movement gap strip, 2 m |
|
|
|
FH-ACA |
|
088X0066 |
|
|
|
|
|
|
|
|
|
|
|
Basic pipe sleeve, 40 cm |
|
|
|
FH-ACB |
|
088X0067 |
|
|
|
|
|
|
|
|
|
|
