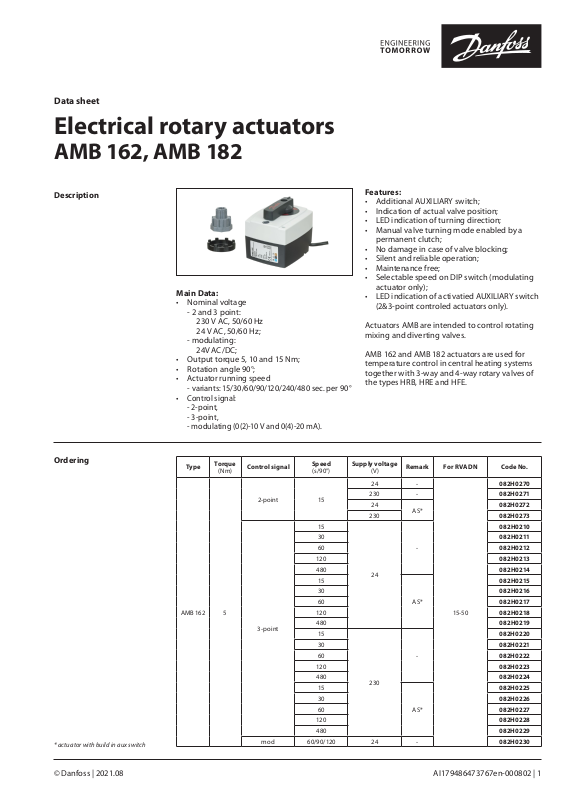

Data sheet
Electrical rotary actuators
AMB 162, AMB 182
Description
Ordering
* actuator with b uild in aux switch
Main Data:
• Nominal voltage
- 2 and 3 point:
230 V AC, 50/60 Hz
24 V AC, 50/60 Hz;
- modulating:
24V AC/DC;
• Output torque 5, 10 and 15 Nm;
• Rotation angle 90°;
•
Actuator running speed
- variants: 15/30/60/90/120/240/480 sec. per 90°
•
Control signal:
- 2-point,
- 3-point,
- modulating (0(2)-10 V and 0(4)-20 mA)
Typ e
AMB 162 5
Torque
(Nm)
Control signal
2-point 15
3-point
mod 60/90/120 24 - 082H0230
.
Speed
(s/90°)
15
30 08 2H 0211
60 082 H0212
120 08 2H0213
480 08 2H0214
15
30 082 H0216
60 0 82H 0217
120 082 H0218
480 082 H0219
15
30 0 82H0221
60 082H0222
120 082H0223
480 082H0224
15
30 082H0226
60 082 H0227
120 082H0228
480 082H0229
Features:
• Additional AUXILIARY switch;
• Indication of actual valve position;
• LED indication of turning direction;
• Manual valve turning mode enabled by a
permanent clutch;
• No damage in case of valve blocking;
• Silent and reliable operation;
• Maintenance free;
• Selectable speed on DIP switch (modulating
actuator only);
• LED indication of activatied AUXILIARY switch
(2&3-point controled actuators only).
Actuators AMB are intended to control rotating
mixing and diverting valves.
AMB 162 and AMB 182 actuators are used for
temperature control in central heating systems
together with 3-way and 4-way rotary valves of
the types HRB, HRE and HFE.
Supply voltage
(V)
24 -
230 - 082H 0271
24
230 082H0273
24
230
Remark For RVA DN Code No.
082H0270
AS*
-
AS*
15- 50
-
AS*
082H0272
082 H0210
082H0215
082H0220
082H0225
© Danfoss | 2021.08 AI179486473767en-000802 | 1
Data sheet AMB 162, AMB 182
Ordering (continuous)
* actuator with b uild in aux switch
Typ e
AMB 182
Torque
(Nm)
Control signal
15 2-point
10
15
3-point
mod 60/90/120 24 - 15-150 082H0241
Speed
(s/90°)
60
240 082H0234
60
240 082H0236
60
240 082H0238
60
240 082H0240
Supply voltage
(V)
24
230 082H 0275
24
230 082H0277
24
230 082H0232
24
230
Remark For RVA DN Code No.
15-15 0
AS*
15-100
-
AS*
15-15 0
-
AS*
08 2H0274
082H0276
082 H0231
082H0233
082H0235
082H0237
082H0239
AMB linkage kits
Description Code No.
for Danfoss HFE, ESBE (old type), Seltron, Somatherm, Hora, WIP, PAW, Acaso, BRV, IMIT, IMP, IVAR 082H0250
for Centra - Type DR /ZR
for Centra - Type DRU
for Meibes, Wita 082H0252
for Honey well - Type V5442.., Type V5433.. 082H0253
for old Danfoss RVA, Esbe VRG 082H0254
for Danfoss HRB, HRE 082H0255
082 H0251
Technical data
* selectable o n DIP switch
2-point
Power supply
Power consumption VA
Frequency Hz 50/60
Running speed
Control input
Operating torque Nm 5, 10 or 15
Rotation angle 90°
Auxiliar y switch adjustable 0-90° (only 2 and 3 point actuators)
Max. medium temperature
Ambient temperature 0 … 50
Storage and transport temperature −10 … 80
Protection Class
Grade of enclosure IP42 according to EN 60529
Wire lenght m 2
Weight g 300
Color / material dark grey/PC
- marking in accordance with standards
3-point
modulating
2-point
3-point 15/30/60/120/240/480
modulating 60/90/120*
24 V III according to EN 60730-1
230 V II according to EN 60730-1
V
sec/90°
°C
Restric tion of Hazardous Substances Directive (RoHS2) 2011/65/EU
Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
24 AC or 230 AC; ±10%
24 AC/DC; ±10%
AMB 162: 2.5
AMB 182: 3.5
15/60
2&3-point
modulating (0(2)-10 V and 0(4)-20 mA)
110
2 | AI179486473767en-000802 © Danfoss | 2021.08
Data sheet AMB 162, AMB 182
5
7
Application principle
Boiler system with ECL electronic controller and HRB
rotary valve.
HRB 3
HRB 4
The reverse function is obtained by turning the
actuator's direction of rotation and the valve's sign.
Installation procedure
1. Rotary valve
2. Anti-rotation spacer
3. Valve adapter
4. Actuator
5. Manual operating clutch
6. Position indicator
7. Handle
8. Fixing screw
The reverse function is obtained by turning the actuator's direction of rotation and the valve's sign.
1
2
6
3
4
8
AI179486473767en-000802 | 3© Danfoss | 2021.08
Data sheet AMB 162, AMB 182
Installation
Hydraulic installation
The actuator can be mounted directly to the
rotary valve.
Rotating angle is limited to 90° and when the
actuator reaches the limit, the voltage supply to
the actuator is disconnected.
Recommended installation of the eletric actuated valve
1. Ball valve
2. Strainer
3. AMB
Manual override
❶
❷
Open Close
4 | AI179486473767en-000802 © Danfoss | 2021.08
Data sheet AMB 162, AMB 182
NL
230 V(24V)~
AC 24V
NL
230 V(24V)~
230 V(24V)~
1
0
LED signalling
Wiring
LED orange (Rotate Left)
LED red / green
LED orange (Rotate Right)
L
4
AUX
5
4
5
12
1
3
2
3
2-point/2-point+switch
AMB 162/182
LED color 2-point 3-point Modulating
orange Rotation Left / Right
green - -
red
AUX switch
activation
AUX switch
activation
Under cover
1
0
1
0
Direct/Inverse function
Jumper Wiring Rotation
6
0
1
L = 2 Left
DIR
L = 2 & 3 Right
L = 2 Right
INV
L = 2 & 3 Left
Status OK
-
3-point/3-point+switch
2/3-point + switch
12
1
2
3
230 V(24V)~
3
4
AUX
DC 24V
YDC0(2)...10V
L
5
4
6
5
12
1234
YX
X DC 0(2)…10 V
3
4
5
6
Modulating
AUX - SWITCH
4 56
2
1
4 56
AI179486473767en-000802 | 5© Danfoss | 2021.08
Data sheet AMB 162, AMB 182
DIP switch setting
(modulating actuators only)
S1 S2 SIG.
0 0 U
1 1 I
S3 U/I
0 0-10 V/0-20 mA
1 2-10 V/4-20 mA
S4
0
1
S5 S6
0 0 60 s
0 1 90 s
1 0 120 s
1 1 120 s
S4:
S3:
S7:
Dimensions
S7 Valve blockage
0 -
1
with handle
without handle
6 | AI179486473767en-000802 © Danfoss | 2021.08
Data sheet AMB 162, AMB 182
AI179486473767en-000802 | 7© Danfoss | 2021.08
Data sheet AMB 162, AMB 182
© Danfoss | DCS-S/SI | 2021.088 | AI179486473767en-000802
