Danfoss AKD 2800 Installation guide

Download

■ Contents

AKD 2800

Quick Setup

General warning ..................................................................................................... 3

Mechanical Installation ........................................................................................... 3

Electrical Installation, power ................................................................................... 3

Electrical Installation, control cables ....................................................................... 3

Programming ......................................................................................................... 3

Motor start ............................................................................................................. 4

AKD Lon card ........................................................................................................ 4

Safety regulations .................................................................................................. 4

Warning against unintended start ........................................................................... 5

....................................................................................................... 3

Introduction to AKD 2800 ........................................................................... 7

Order form ............................................................................................................. 7

High voltage warning ............................................................................................. 9

These rules concern your safety ............................................................................. 9

Warning against unintended start ........................................................................... 9

Control unit ............................................................................................................ 10

Manual initialisation ................................................................................................. 10

Automatic motor tuning ......................................................................................... 11

Programming .................................................................................................... 13

Operation & Display ............................................................................................... 13

Load and Motor ..................................................................................................... 20

References & Limits ............................................................................................... 27

Inputs and outputs ................................................................................................. 33

Special functions .................................................................................................... 40

Serial communication ............................................................................................. 45

Technical functions ................................................................................................ 49

Installation ......................................................................................................... 53

Mechanical dimensions .......................................................................................... 53

Mechanical installation ........................................................................................... 54

General information about electrical installation ...................................................... 55

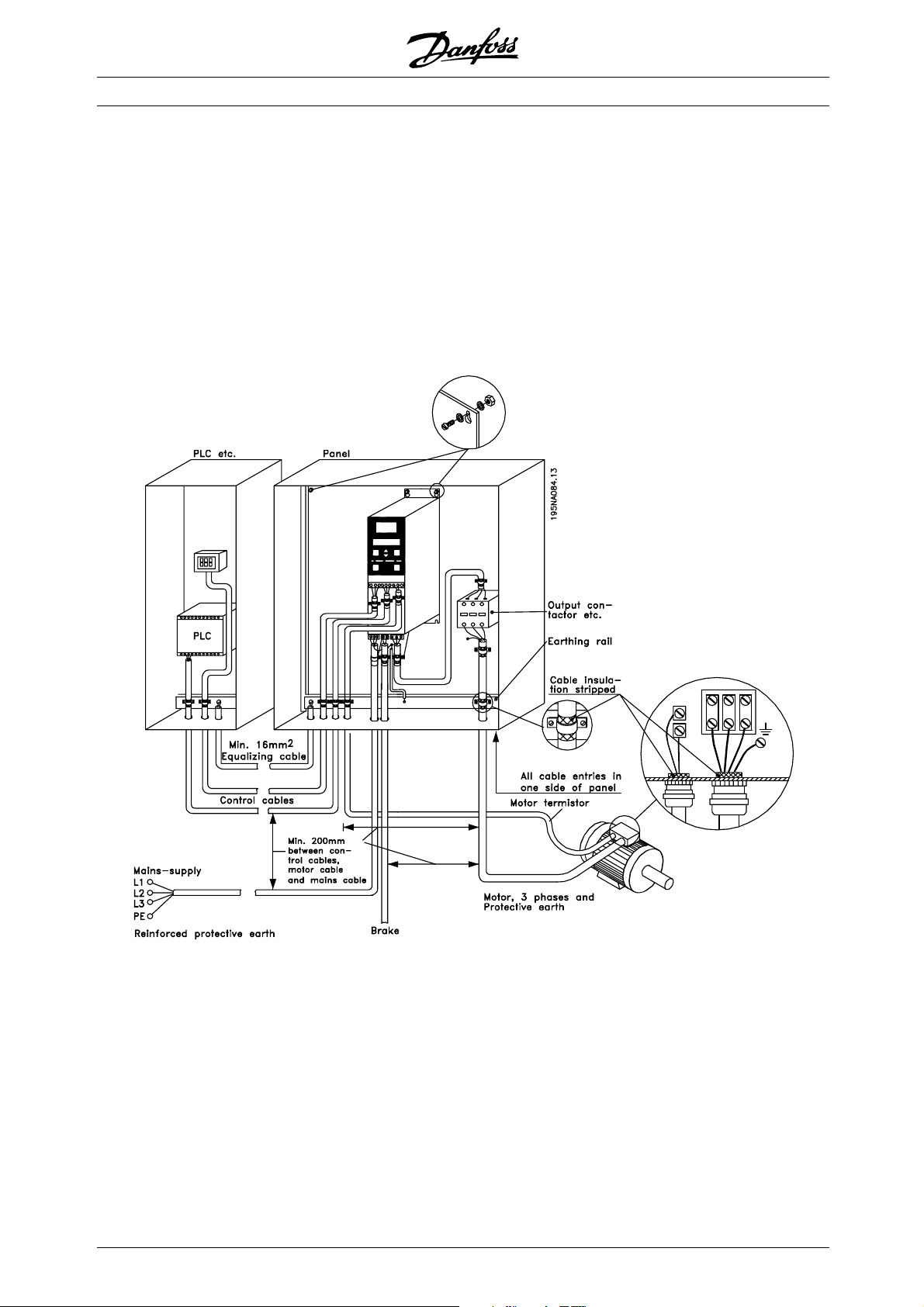

EMC-correct electrical installation .......................................................................... 56

Electrical installation ............................................................................................... 57

Safety clamp .......................................................................................................... 59

Pre-fuses ................................................................................................................ 59

Mains connection ................................................................................................... 59

Motor connection ................................................................................................... 59

RFI switch .............................................................................................................. 60

Direction of motor rotation ..................................................................................... 60

Parallel connection of motors ................................................................................. 60

Motor cables .......................................................................................................... 60

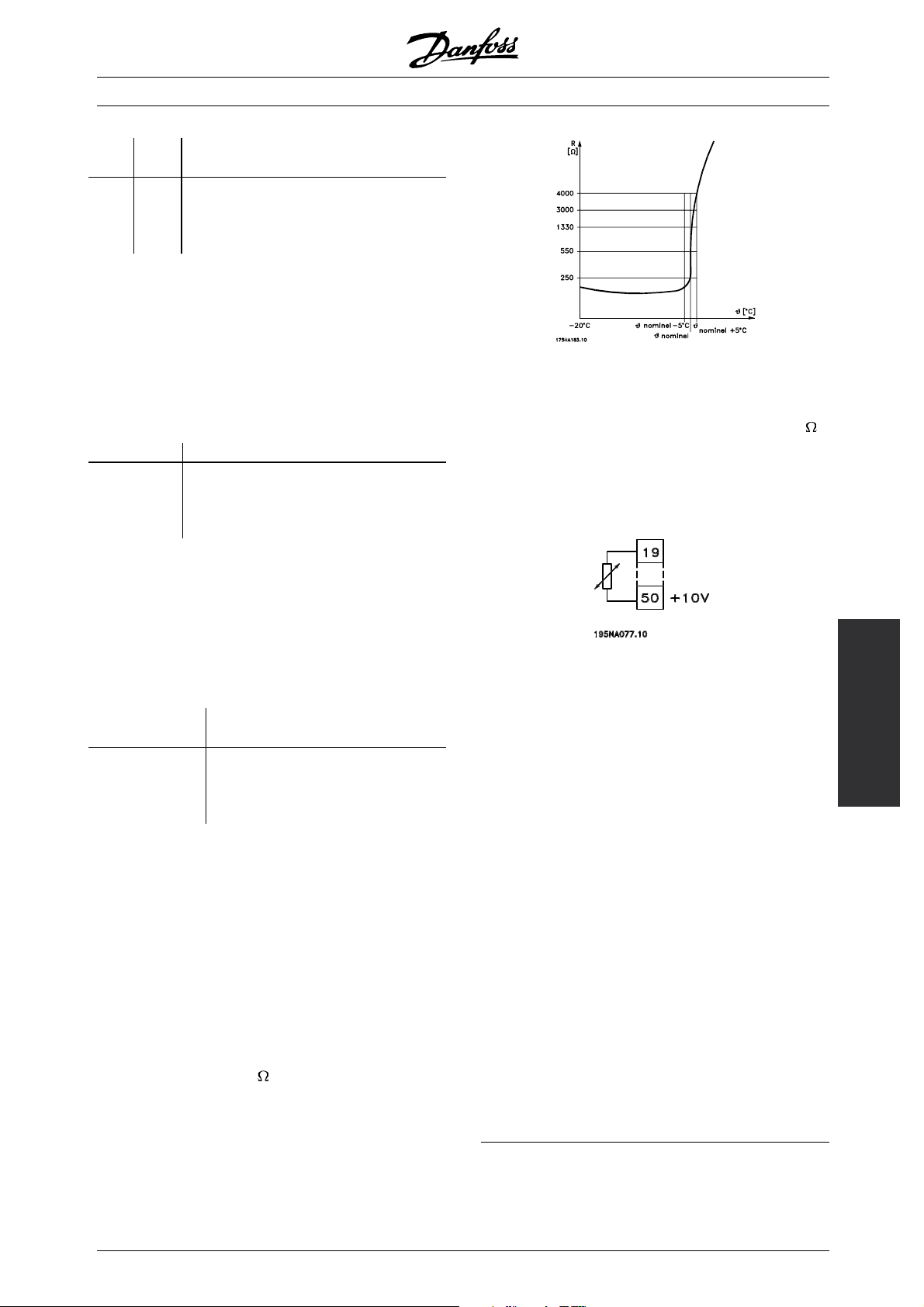

Motor thermal protection ....................................................................................... 61

Earth connection .................................................................................................... 61

Load sharing .......................................................................................................... 62

Tightening Torque, Power Terminals ...................................................................... 62

Access to control terminals .................................................................................... 62

Electrical installation, control cables ....................................................................... 63

Tightening torques, control cables .......................................................................... 64

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

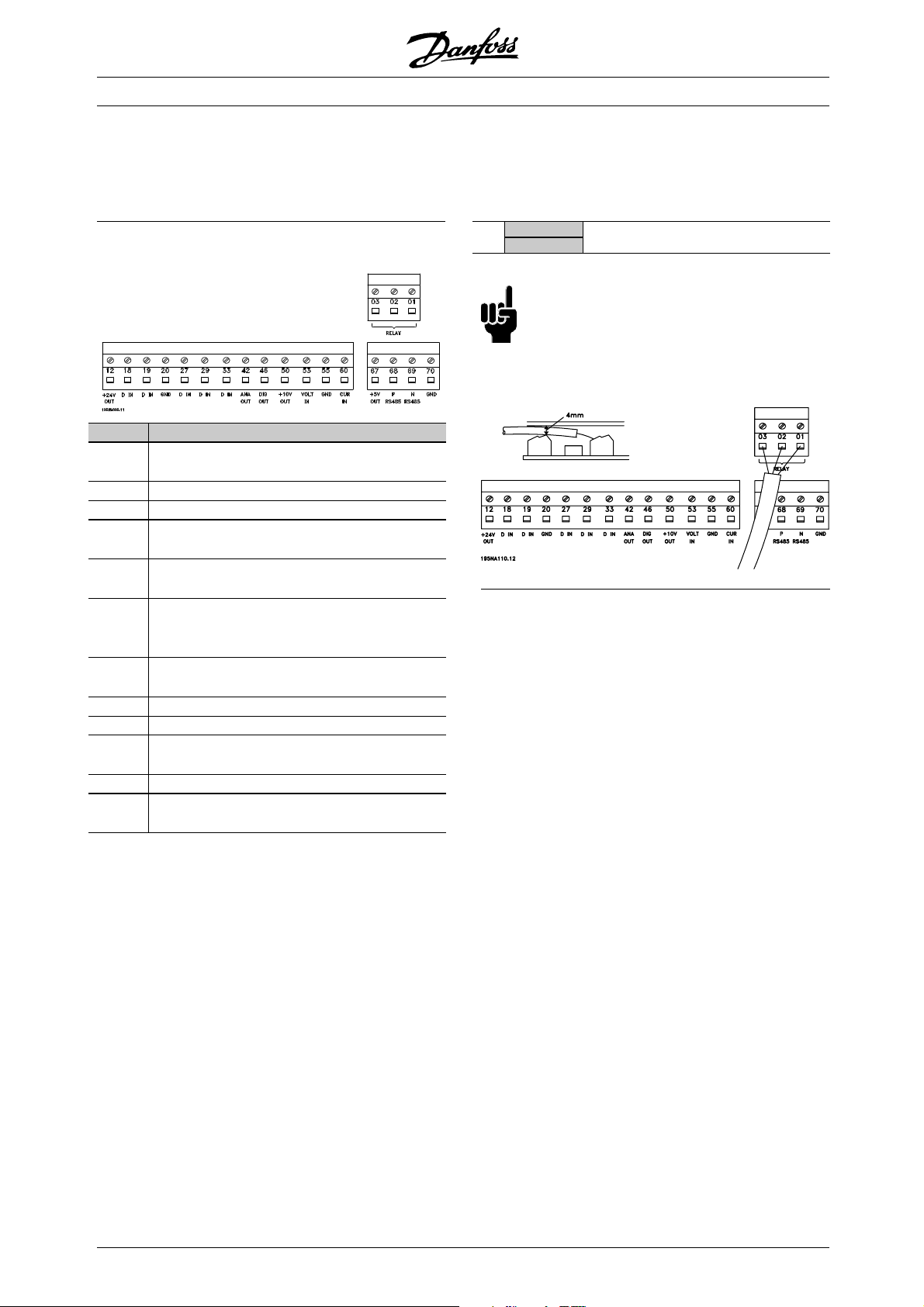

Electrical installation, control terminals ................................................................... 64

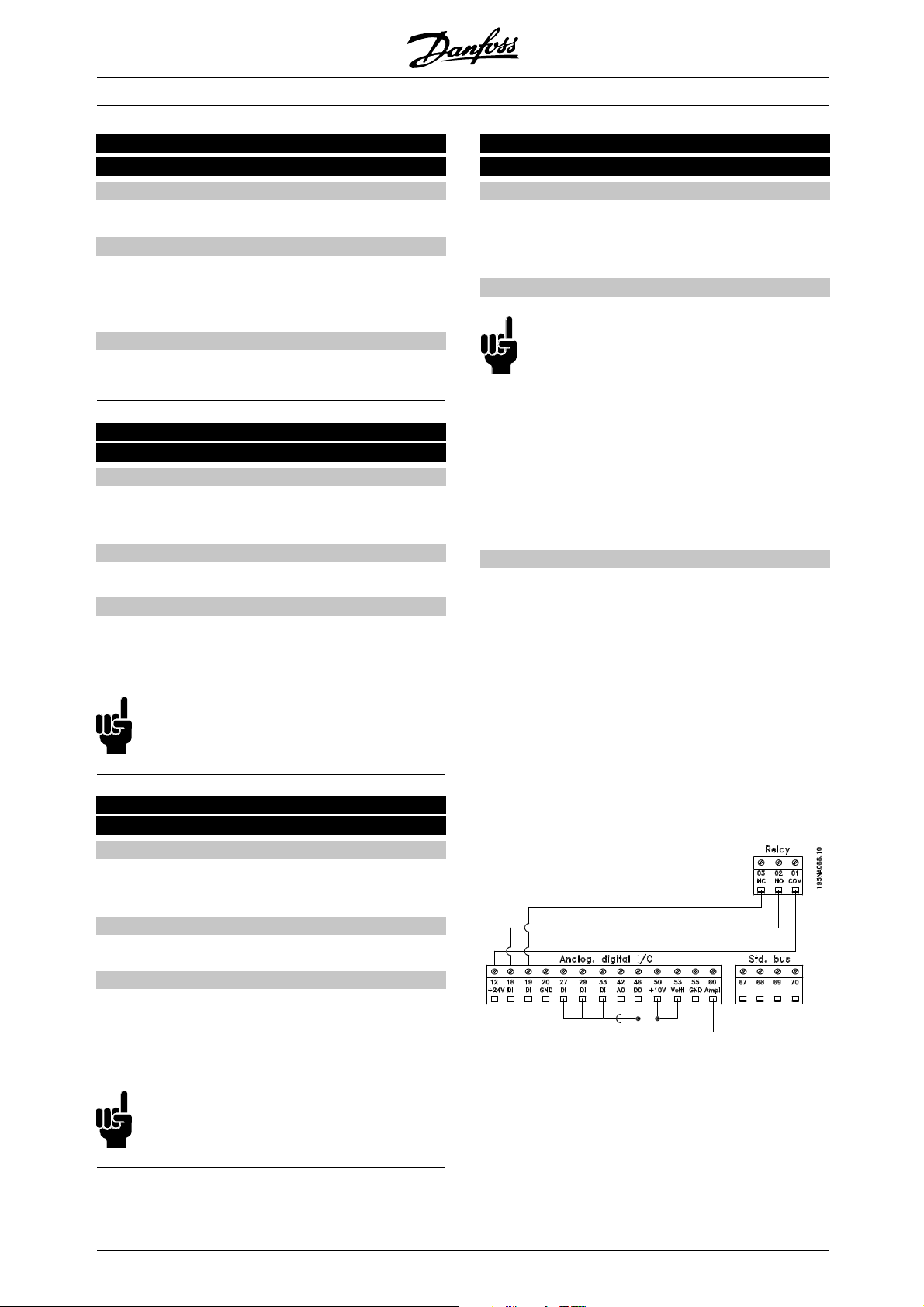

Relay connection ................................................................................................... 64

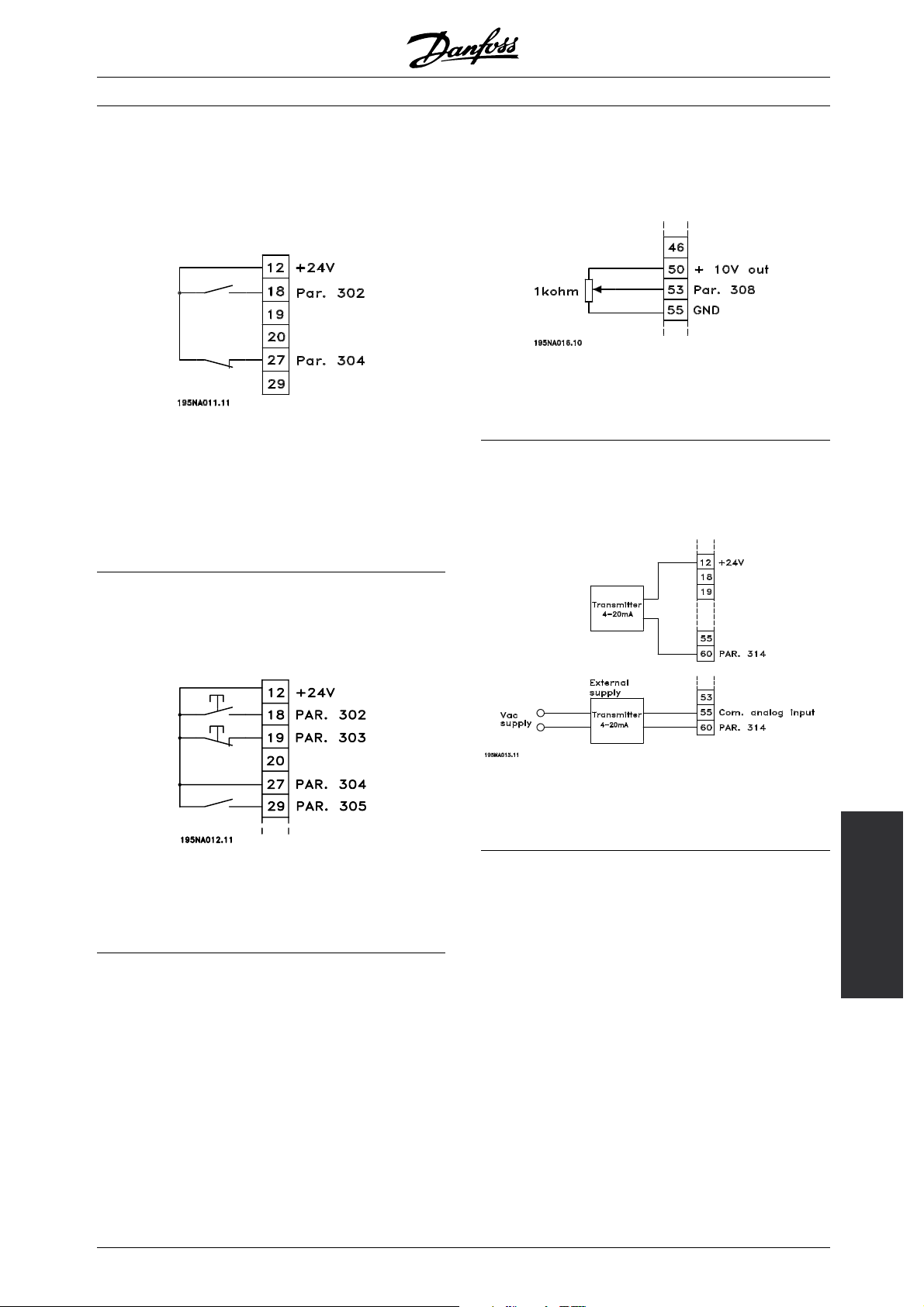

Connection examples ............................................................................................ 65

All about AKD 2800 ........................................................................................ 66

Display readout ...................................................................................................... 66

Warnings/alarm messages ..................................................................................... 66

Special conditions .................................................................................................. 70

Aggressive environments ........................................................................................ 70

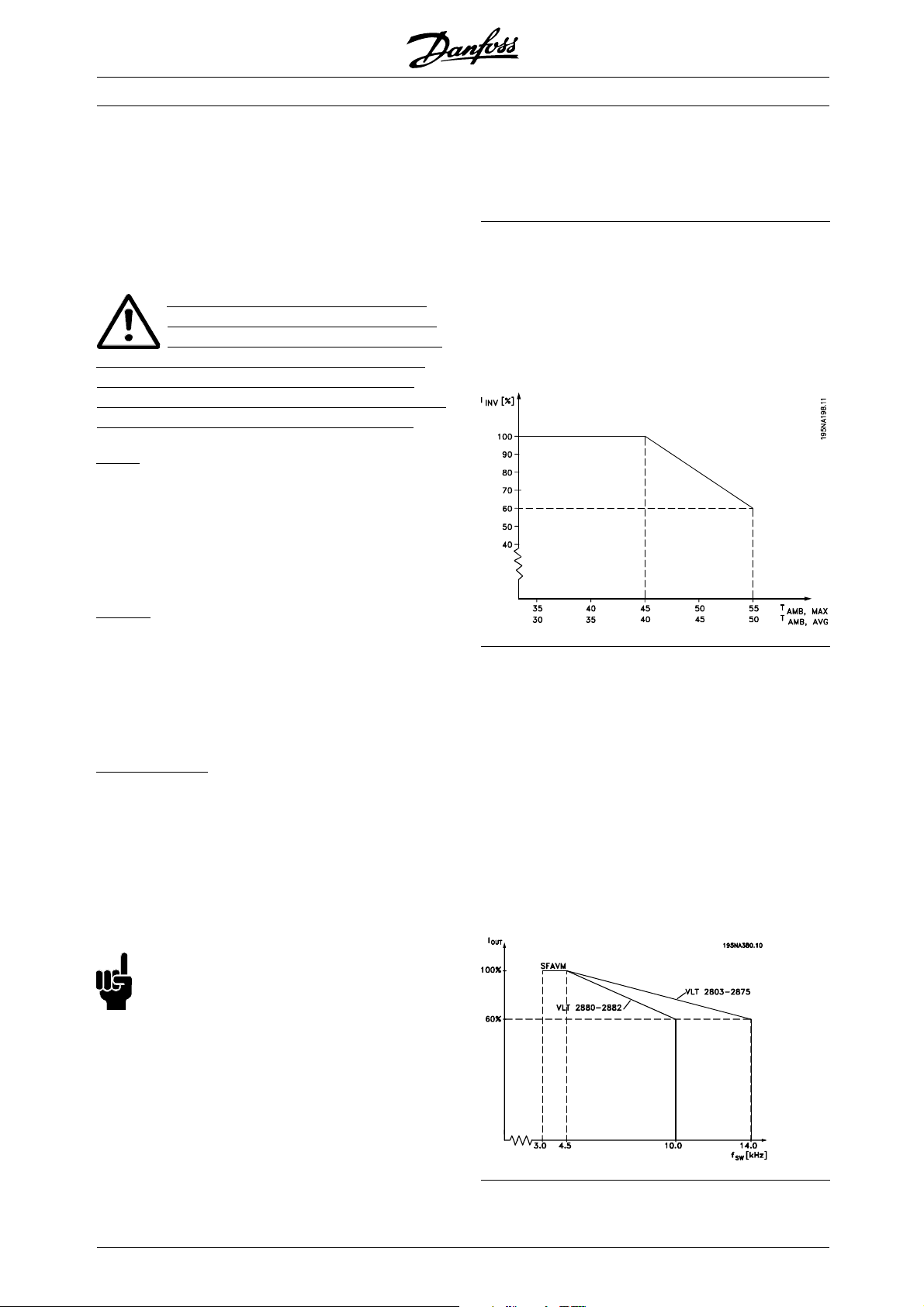

Derating for high switching frequency - VLT 2800 .................................................. 70

Derating for long motor cables ............................................................................. 70

Galvanic Isolation (PELV) ........................................................................................ 71

EMC emission ........................................................................................................ 72

UL Standard .......................................................................................................... 72

General technical data ........................................................................................... 73

Technical data, mains supply 1 x 220 - 240 V/3 x 200-240 V ............................... 77

Technical data, mains supply 3 x 380 - 480 V ....................................................... 78

Factory Settings ..................................................................................................... 79

Index ...................................................................................................................... 85

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Quick Setup

AKD 2800

■General warning

Using this Quick Setup, you can carry out quick and EMC-correct installation of the frequency converter in five steps. The Operating Instructions, which are also enclosed, give other examples of installation and describe all functions in detail.

Read the safety instructions on the next page before installing the unit.

■Mechanical Installation

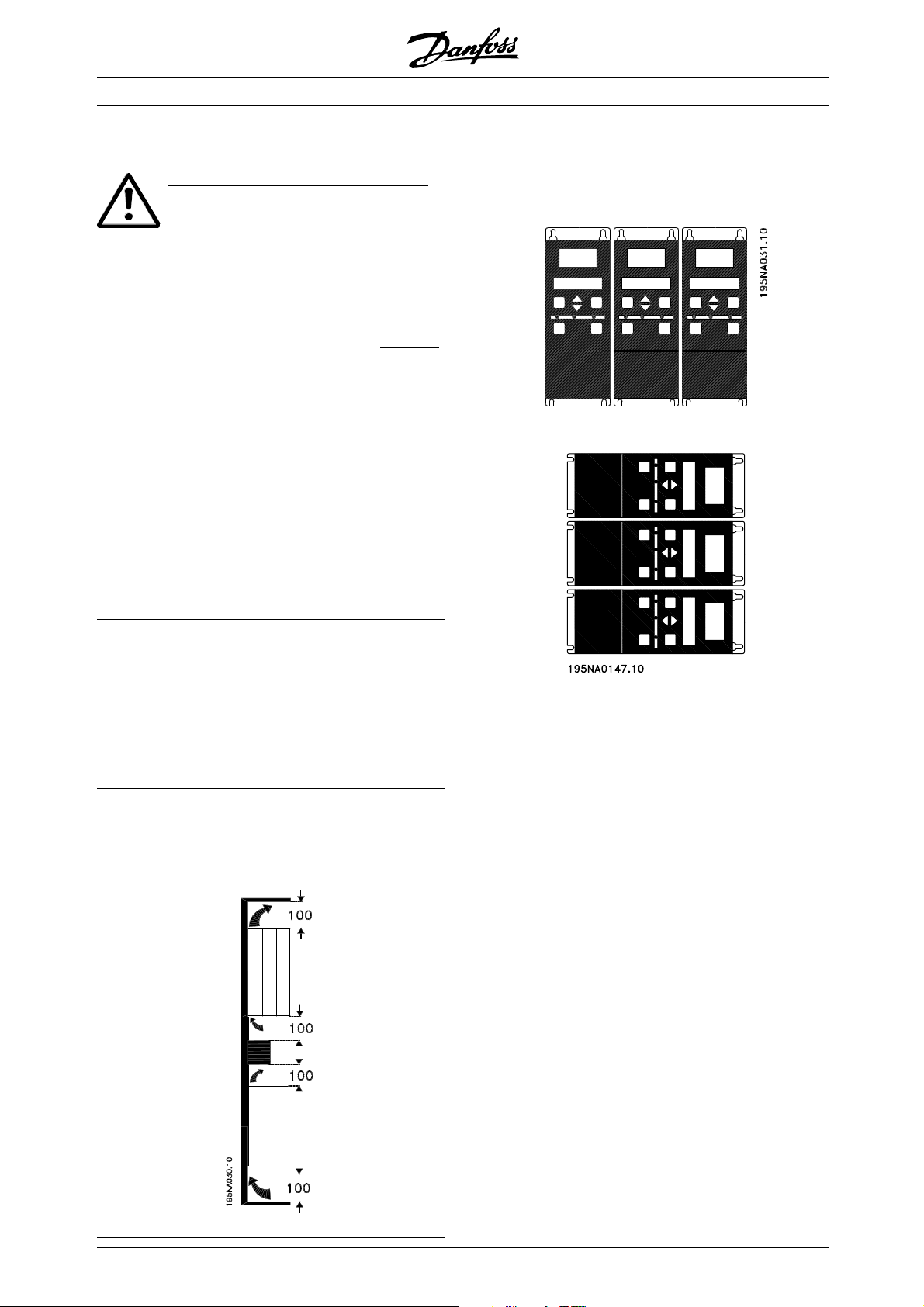

Frequency converters allow side-by-side installation. Because of the need for cooling, there must be 10 cm free air passage above and below the frequency converter. Drill holes in accordance with the measurements given in section Mechanical dimensions. Retighten all four screws.

■Electrical Installation, control cables

Remove the front cover underneath the control panel. Place a jumper between terminals 12 and 27.

■Programming

Carry out programming on the control panel. Press the [QUICK MENU] key to enter the Quick menu. In this menu, parameters can be selected by means of the [+] and [-] keys. The parameter values can be changed by pressing [CHANGE DATA]. Changes are programmedusingthe[+]and[-]keys. Finishthe change of a parameter setting by pressing [CHANGE DATA]. A change of parameter values is saved automatically after a mains failure. If the display shows three dots at the right, the parameter value has more than three digits. In order to see the value, activate [CHANGE DATA]. Press [QUICK MENU]: Set the motor parameters that are on the nameplate of the motor:

Motor power [kW] parameter 102 Motor voltage [V] parameter 103 Motor frequency [Hz] parameter 104 Motor current [A] parameter 105 Rated motor speed parameter 106

Quick

Setup

Fit the decoupling plate to the power cables and the earth screw (terminal 95).

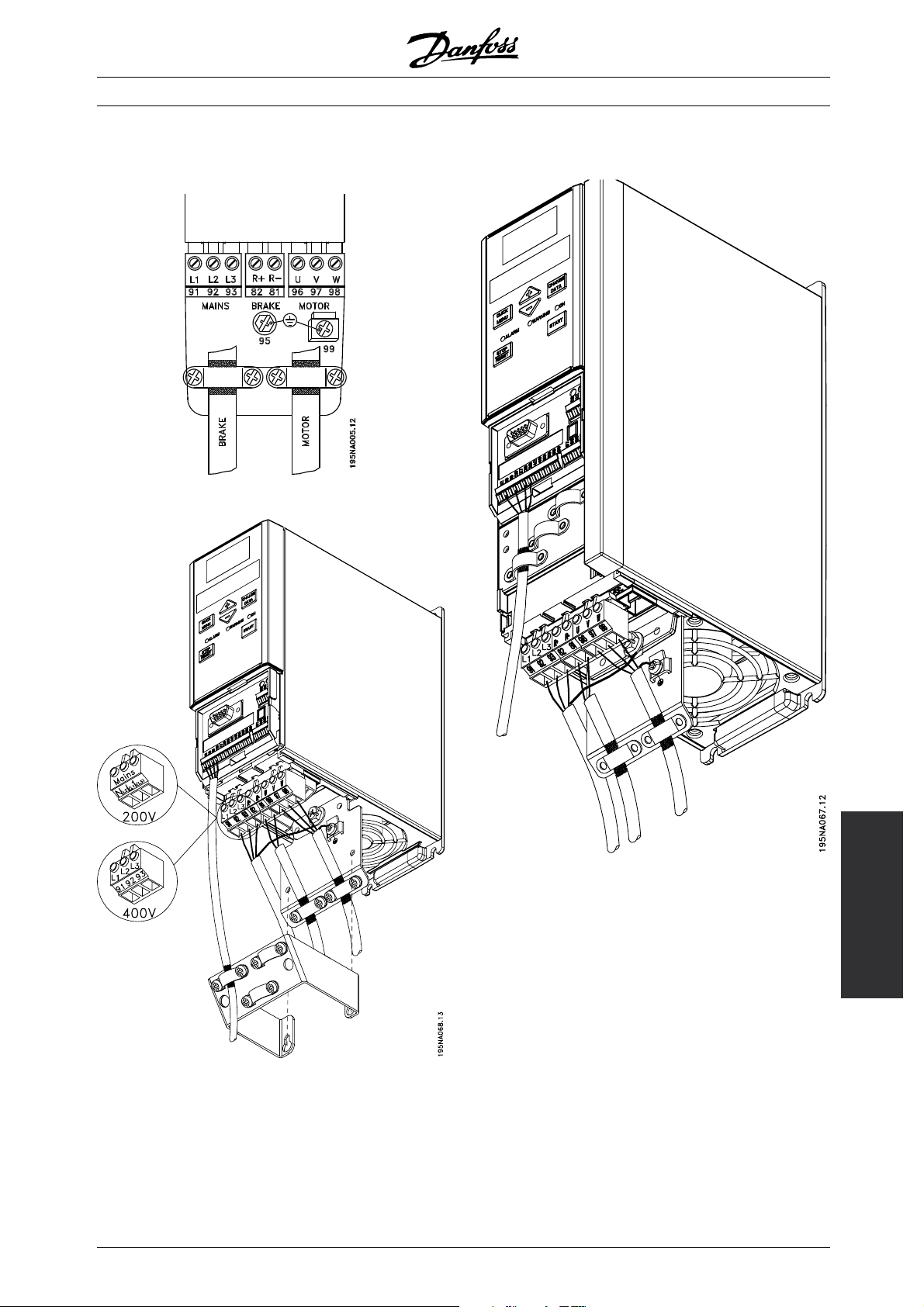

■Electrical Installation, power

Please note that the power terminals can be removed. Connect mains to the mains terminals of the frequency converter, i.e. 91, 92, 93 and the earth connection to terminal 95. Fit a screened/armoured cable from the motor to the motor terminals of the frequency converter, i.e. U, V, W. The screen ends in a screen connector.

MG.28.H3.02 - VLT is a registered Danfoss trademark

Activate AMT:

Automatic motor tuning parameter 107

Set reference range

Min. reference, Ref Max. reference, Ref

MIN

MAX

parameter 204 parameter 205

Ramp-up time [s] parameter 207 Ramp-down time [s] parameter 208

In parameter 002 Local/remote control, the frequency converter mode can be selected as Remote

AKD 2800

operation [0], i.e. via the control terminals, or Local [1], i.e. via the control unit.

Set the control location to Local [1].

Local/remote operation = Local [1] Par. 002

Set the motor speed by adjusting the Local reference

Local reference Parameter 003

■AKD Lon card

Requirements:

AKD 2800 must have software version (par

624) 1.32 or higher

AKD 5000 must have software version (par

624) 1.52 or higher

The AKD Lon card is RS485 based and must connect to an RS485 Adap-Kool Lon network.

■Motor start

Press [Start] to start the motor. Set the motor speed by adjusting parameter 003 Local reference.

Check whether the direction of rotation of the motor shaft is clockwise. If not, exchange any two phases on the motor cable. Press [STOP/RESET] to stop the motor. Press [QUICK MENU] to return to display mode. [QUICKMENU]+[+]keysmustbepressed simultaneously to give access to all parameters.

The card can be ordered as build-in with the AKD5000 and comes in an external box for the AKD2800.

AKD Lon connections:

The Lon card has two connections.

A 6-pole connector (only 1-4 is used) that connects to the AKD. Connections are as follows:

AKD-Connections:

Lon card terminals 1

(Red +24V)

(White or Yellow

(Black Com)

(Green TX+, RX+)

TX-, RX-)

AKD terminals 12 69 39 or 20 68

The 3-pole connector for the Lon Communication:

Lon card terminals 1 2 3 Adap-Kool Lon A B Shield

Connect the Adap-Kool Lon network to the removable 3-postion connector. Be careful to route the network wires away from the AC power and motor wires.

Commissioning

Upon power up the lower red LED of the double LED’s,

next to the Lon connectors will initially be flashing red.

1. Set AKD address in parameter 500 in the AKD (1 to 60)

2. Wait for about 1 min until the red LED goes off. (card initialisation)

3. Press one of the service pin buttons

4. Wait for about 2 minutes (upload of parameters to gateway)

5. Perform a "Net configuration" upload in AKM and you should now find the AKD. Perform a "AKC description" upload in AKM

6. Go to menu AKC -> Controllers in AKM and you should find the AKD

■Safety regulations

The voltage of the frequency converter can be fatal whenever it is connected to

mains. Incorrect installation of the motor or the frequency converter may lead to damage to the equipment, serious personal injury or death.

Consequently, the provisions of this Quick Setup, as well as national and local rules and safety regulations, must be complied with.

Touching the electrical parts may be fatal, even after the equipment has been disconnected from mains: wait at least 4 min.

1. The mains supply to the frequency converter must

be disconnected if repair work is to be carried out.

2. The [STOP/RESET] key on the control panel of the

frequency converter does not disconnect the mains supply and is thus not to be used as a safety switch.

MG.28.H3.02 - VLT is a registered Danfoss trademark

3. Correct protective earthing of the unit must be established, the user must be protected against supply voltage, and the motor must be protected against overload in accordance with applicable national and local regulations.

4. The earth leakage current is higher than 3.5 mA.

5. Protection against motor overload is not included in the factory setting. If this function is required, set parameter 128 Motor thermal protection to data value ETR Trip or ETR Warning.

6. Check that the mains supply has been disconnected before removing the motor and mains plugs.

■Warning against unintended start

The motor can be brought to a stop by means of digital commands, bus

commands, references or local stop, while the frequency converter is connected to mains. If personal safety considerations make it necessary to ensure that no unintended start occurs, these stops are not sufficient. While parameters are being programmed, the motor may start. Consequently, the stop key [STOP/RESET] must always be activated, following which data can be modified. A motor that has been stopped may start if faults occur in the electronics of the frequency converter, or if a temporary overload, a fault in the supply mains or a fault in the motor connection ceases.

AKD 2800

Quick

Setup

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

AKD 2803-2815 200-240 V AKD 2805-2815 380-480 V

AKD 2822 200-240 V

AKD 2840 200-240 V AKD 2855-2875 380-480 V

AKD 2822-2840 380-480 V

AKD 2880-2882 380-480 V

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

2800

Introduction to AKD

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Operating instructions Software version: 1.4x

These operating instructions can be used for all series frequency converters with software version 1.4x. The software version number can be seen from parameter 640 Software version no.

195NA299.12

NB!:

Indicates something to

Indicates a general warning.

Indicates a high-voltage warning.

be noted by the reader.

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■High voltage warning

The voltage of the frequency converter

is dangerous whenever the converter

is connected to mains. Incorrect fitting of the motor or frequency converter may cause damage to the equipment, serious injury or death. Consequently, it is essential to comply with the instructions in this manual as well as local and national rules and safety regulations.

■These rules concern your safety

1. The frequency converter must be disconnected

from the mains if repair work is to be carried out. Check that the mains supply has been disconnected and that the prescribed time has passed before removing motor and mains plugs.

2. The [STOP/RESET] key on the control panel of

the frequency converter the equipment from mains and is thus n to be used as a safety switch.

3. The unit must be properly connected to the

earth, the user must be protected against the supply voltage and the motor must be protected against overloading pursuant to prevailing national and local regulations.

4. The earth leakage currents are higher than 3.5 mA.

5. Protection against motor overload is not included

in the factory setting. If this function is required, set parameter 128 Motor thermal protection to data value ETR trip or data value ETR warning.For the North American market: The ETR functions

does not disconnect

provide overload protection of the motor, class 20, in accordance with NEC.

6. Do n

7. Note that the frequency converter has more voltage

■Warning against unintended start

1. The motor can be brought to a stop by

2. While parameters are being changed, the

3. A motor that has been stopped may start if faults

ot remove the plugs for the motor - and mains supply while the frequency converter is connected to mains. Check that the mains supply has been disconnected and that the prescribed time has passed before removing motor and mains plugs.

inputs than L1, L2 and L3 when the DC bus terminals are used. Check that all voltage inputs are disconnected and that the prescribed time has passed before repair work is commenced.

means of digital commands, bus commands, references or a local stop, while the frequency converter is connected to mains. If personal safety considerations make it necessary to ensure that no unintended start occurs, stop functions are not sufficient.

motor may start. Consequently, t [STOP/RESET] must always be activated, following which data can be modified.

occur in the electronics of the frequency converter, or if a temporary overload or a fault in the supply mains or the motor connection ceases.

he stop key

these

2800

Introduction to AKD

Warning:

It can be extremely dangerous to touch the electrical parts even when the mains

supply has been disconnected.

Also ensure that other voltage inputs are disconnected from load sharing through the

DC bus.

Wait at least 4 minutes after the input power has been removed before servicing the

drive.

195NA139.10

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Control unit

On the front of the frequency converter there is a control panel.

The control panel is divided into four function groups:

1. Six-digit LED display.

2. Keys for changing parameters and shifting display function.

3. Indicator lamps.

4. Keys for local operation.

All displays of data are in the form of a six-digit LED display capable of showing one item of operating data continuously during normal operation. As a supplement to the display, there are three indicator lamps for indication of mains connection (ON), warning (WARNING) and alarm (ALARM). Most of

the frequency converter’s parameter Setups can be

changed immediately via the control panel, unless this function has been programmed as Locked [1] via parameter 018 Lock for data changes.

These keys are also used in Display mode for selecting the display of an operating value.

The [QUICK MENU] + [+] keys must be

pressed at the same time to give access to all parameters. See Menu mode.

[STOP/RESET] is used for stopping the

connected motor or for resetting the frequency converter after a trip. Can be selected as Active [1] or Not active [0] via parameter 014 Local stop/reset. In Display mode, the display will flash if the stop function is activated.

NB!:

If the [STOP/RESET] key is set at Not active [0] in parameter 014 Local stop/reset,and

there is no stop command via the digital inputs or serial communication, the motor can only be stopped by disconnecting the mains voltage to the frequency converter.

[START] is used for starting the frequency

converter. It is always active, but the [START] key cannot override a stop command.

■Manual initialisation

Disconnect mains voltage. Hold the [QUICK MENU] + [+] + [CHANGE DATA] keys down while simultaneously reconnecting the mains voltage. Release the keys; the frequency converter has now been programmed for the factory setting.

■Control keys

[QUICK MENU] allows access to the parameters

used for the Quick menu. The[QUICK MENU] key is also used if a change to a parameter value is not to be implemented. See also [QUICK MENU] + [+].

[CHANGE DATA] is used for changing a setting.

The [CHANGE DATA] key is also used for confirming a change of parameter settings.

[+] / [-] are used for selecting parameters and

for changing parameter values.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Display readout states

Display mode

In normal operation, one item of operating data can

be displayed continuously at the operator’sown

choice. By means of the [+/-] keys the following options can be selected in Display mode:

-Outputfrequency[Hz]

- Output current [A]

-Outputvoltage[V]

- Intermediate circuit voltage [V]

-Outputpower[kW]

- Scaled output frequency f

out

x p008

Menu mode

In order to enter the Menu mode [QUICK MENU] + [+] must be activated at the same time. In Menu mode, most of the frequency converter parameters can be changed. Scroll through the parameters using the [+/-] keys. While scrolling in the Menu mode proceeds, the parameter number will flash.

The display shows that the setting in parameter 102 Motor power P

is 0.75. In order to change

M,N

the value of 0.75, [CHANGE DATA] must first be activated; the parameter value can then be changed using the [+/-] keys.

AKD 2800

The display shows that in parameter 128 Motor thermal protection the selection made is Thermistor trip [2].

Quick menu

Using the [QUICK MENU] key, it is possible to access the 12 most important parameters of the frequency converter. After programming, the frequency converter is in most cases ready for operation. When the [QUICK MENU] key is activated in Display mode, the Quick menu starts. Scroll through the quick menu using the [+/-] keys and change the data values by first pressing [CHANGE DATA] and then changing the parameter value with the [+/-] keys. The Quick menu parameters are:

• Par. 100 Configuration

• Par. 101 Torque characteristic

• Par. 102 Motor power P

• Par. 103 Motor voltage U

• Par. 104 Motor frequency f

• Par. 105 Motor current I

• Par. 106 Rated motor speed n

• Par. 107 Automatic motor adaptation

• Par. 202 Output frequency high limit f

• Par. 203 Reference range

• Par. 204 Minimum reference Ref

• Par. 205 Maximum reference Ref

• Par. 207 Ramp-up time

• Par. 208 Ramp-down time

• Par. 002 Local/remote operation

• Par. 003 Local reference

Parameter 102 - 106 can be read out from

the motor’s nameplate.

M,N

MAX

MIN

MAX

2800

Introduction to AKD

If for a given parameter the display shows three dots at the right, it means that the parameter value has more than three digits. In order to see the value, activate [CHANGE DATA].

MG.28.H3.02 - VLT is a registered Danfoss trademark

Automatic motor tuning

Automatic motor tuning (AMT) is performed as follows:

1. In parameter 107 Automatic motor tuning

select data value [2]. "107" will now flash, and "2" will not flash.

2. AMT is activated by pressing start. "107" will now flash and dashes will move from left to right in the data value field.

3. When "107" appears once more with the data value [0], AMT is complete. Press [STOP/RESET] to save the motor data.

4. "107" will then continue to flash with the data value [0]. You can now proceed.

NB!:

VLT 2880-2882 do not have AMT function.

AKD 2800

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Operation & Display

is set at Local control and open loop [1] or Local control as parameter 100 [3]. Parameter 200

001 Language

(LANGUAGE)

Value:

✭English (ENGLISH)

German (DEUTSCH) French (FRANCAIS) Danish (DANSK) Spanish (ESPANOL) Italian (ITALIANO)

[0] [1] [2] [3] [4] [5]

Output frequency range is set at Both directions.

4. parameter 003 Local reference where the reference can be set using the [+] and [-] keys.

5. an external control command that can be connected to the digital inputs (see parameter 013 Local control).

NB!:

The [JOG] and [FWD/REV] keys are located on the LCP control unit.

Function:

This parameter is used to choose the language to be shown in the display whenever the LCP control unit is connected.

003 Local reference

(LOCAL REFERENCE)

Value:

Description of choice:

There is a choice of the languages shown.

Par. 013 Local control must be set to [1] or [2]:

0-f

MAX

(par. 202)

The factory setting may vary.

Par. 013 Local control must be set to [3] or [4].

002 Local/remote operation

Ref

MIN

-Ref

MAX

(OPERATION SITE)

Value:

✭Remote operation (REMOTE)

Local operation (LOCAL)

[0] [1]

Function:

In this parameter, the local reference can be set manually. The unit of the local reference depends on the

Function:

configuration selected in parameter 100 Configuration.

There is a choice of two different modes of operation of the frequency converter; Remote operation [0] or

Local operation [1]. See also parameter 013 Loc al control if Local operation [1] is selected.

Description of choice:

In order to protect the local reference, parameter 002 Local/remote operation must be set to Local operation [1]. Local reference cannot be

Description of choice:

set via serial communication.

If Remote operation [0] is selected, the frequency converter is controlled via:

1. the control terminals or via serial communication.

2. the [START] key. This cannot, however, override stop commands transmitted via the digital inputs or via serial communication.

3. the [STOP/RESET] and [JOG] keys, on the condition that these are active.

004 Active Setup

(ACTIVE SETUP)

Value:

Factory Setup (FACTORY SETUP)

✭Setup 1 (SETUP 1)

Setup 2 (SETUP 2)

If Local operation [1], is selected, the frequency converter is controlled via:

1. the [START] key. This cannot, however, override

Setup 3 (SETUP 3) Setup 4 (SETUP 4) Multi Setup (MULTI SETUP)

stop commands via the digital inputs (see parameter 013 Local control).

2. the [STOP/RESET] and [JOG] keys, on the condition that these are active.

3. the [FWD/REV] key, on the condition that is has been selected as active in parameter 016 Local reversing, and that parameter 013 Local control

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

Function:

The active parameter Setup is selected here. All parameters can be programmed in four individual parameter Setups. Shifts between Setups can be made in this parameter via a digital input or via serial communication.

(par. 204-205)

✭ 50 Hz

✭ 0,0

Programming

[0] [1] [2] [3] [4] [5]

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Description of choice:

Factory Setup [0] contains the factory-set parameter values. Setup 1-4 [1]-[4] are four individual Setups which can be selected as required. Multi Setup [5] is used where remote-controlled shifts between the four Setups via a digital input or via serial communication is required.

005 Programming Setup

(EDIT SETUP)

Value:

Factory Setup (FACTORY SETUP) Setup 1 (SETUP 1) Setup 2 (SETUP 2) Setup 3 (SETUP 3) Setup 4 (SETUP 4)

✭Active Setup (ACTIVE SETUP)

Function:

You can select which Setup you want to programme during operation (applies both via the control panel and the serial communication port). It is, for example, possible to programme Setup 2 [2], while the active Setup is set to Setup 1 [1] in parameter 004 Active Setup .

[0] [1] [2] [3] [4] [5]

Copy to all Setups from # (COPY TO ALL)

Function:

You can copy from the selected active Setup in parameter 005 Programming setup to the selected Setup or Setups in this parameter.

NB!:

Copying is only possible in Stop (motor stopped in connection with a stop command).

Description of choice:

Copying begins when the required copying function has been selected and the [OK]/[CHANGE DATA] key has been pushed. The display indicates when copying is in progress.

007 LCP copy

(LCP COPY)

Value:

✭No copying (NO COPY)

Upload all parameters (UPL. ALL PAR.) Download all parameters (DWNL. ALL PAR.) Download size-independent parameters (DWNL.OUTPIND.PAR.)

[5]

[0] [1] [2]

[3]

Description of choice:

Factory Setup [0] contains the factory-set data and can be used as a source of data if the other Setups are to be reset to a known status. Setup 1-4 [1]-[4] are individual Setups that can be programmed freely during operation. If Active Setup [5] is selected, the programming Setup will be equal to parameter 004 Active Setup.

NB!:

If data is modified or copied to the active Setup, the modifications have an immediate

effect on the unit’soperation.

006 Setup copying

(SETUP COPY)

Value:

✭No copying (NO COPY)

Copy to Setup 1 from # (COPY TO SETUP 1) Copy to Setup 2 from # (COPY TO SETUP 2) Copy to Setup 3 from # (COPY TO SETUP 3) Copy to Setup 4 from # (COPY TO SETUP 4)

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

[0]

[1]

[2]

[3]

[4]

Function:

Parameter 007 LCP copy is used if yo u w a n t to use

the LCP 2 control panel’s integral copy function. The

function is used if you want to copy all parameter setups from one frequency converter to another by moving the LCP 2 control panel.

Description of choice:

Select Upload all parameters [1] if you want all parameter values to be transferred to the control panel. Select Download all parameters [2] if all parameter values transferred are to be copied to the frequency converter to which the control panel is attached. Select Downloa d size-independent par. [3] if you only want to downloade the size-independent parameters. This is used when downloading to a frequency converter with a different rated power size than that from which the parameter setup originates.

NB!:

Upload/download can only be performed in stop mode. Download can o

performed to a frequency converter with the same software version number, see parameter 626 Database ident ification no.

nly be

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

008 Display scaling of output frequency

(FREQUENCY SCALE)

Value:

0.01 - 100.00

✭ 1.00

(HEATSINK TEMP [°C]) Alarm word [Hex] (ALARM WORD [HEX]) Control word [Hex] (CONTROL WORD [HEX]) Warning word [Hex] (WARNING WORD [HEX])

Function:

In this parameter, the factor is selected by which the output frequency is to be multiplied. The value is shown in the display, provided parameters 009-012 Display readout have been set to Output frequency x scaling [5].

Extended status word [Hex] (EXT. STATUS [HEX]) Communication option card warning (COMM OPT WARN [HEX]) Pulse count (PULSE COUNTER)

Description of choice:

Set the required scaling factor.

Function:

In this parameter you can select the data value that you wis h to display in th e L C P 2 control unit display

009 Large display readout

(DISPLAY LINE 2)

Value:

No readout (NONE)

[0]

line 2 when the frequency converter is switched on. The display will also be included in the scrollbar in display mode. In parameters 010-012 Display readout you can select a further three data values, which are displayed in display line 1.

Resulting reference [%] (REFERENCE [%]) Resulting reference [unit] (REFERENCE [UNIT]) Feedback [unit] (FEEDBACK [UNIT])

✭Frequency [Hz] (FREQUENCY [HZ])

Output frequency x scaling (FREQUENCY X SCALE) Motor current [A] (MOTOR CURRENT [A]) Torque [ %] (T ORQUE [%]) Power [kW] (POWER [KW]) Power [HP] (POWER [HP][US]) Motor voltage [V] (MOTOR VOLTAGE [V]) DC link voltage [V] (DC LINK VOLTAGE [V]) Thermal load motor [%] (MOTOR THERMAL [%])

[1]

[2] [3] [4]

[5] [6] [7] [8] [9]

[11]

[12]

[13]

Description of choice:

No readout can only be selected in parameters 010-012 Small display readout.

Resulting reference [%] gives, as a percentage, the resulting reference in the range from Minimum reference, Ref

to Maximum reference, Ref

MIN

Reference [unit] gives the resulting reference with unit Hz in Open loop.InClosed loop the reference unit is selected in parameter 416 Process units.

Feedback [unit] gives the resulting signal value using the unit/scaling selected in parameter 414

Minimum feedback, FB FB

and 416 Process units.

HIGH

LOW

Frequency [Hz] gives the output frequency of

the frequency converter.

Thermal load [%] (FC. THERMAL[%]) Running hours [Hours] (RUNNING HOURS])

[14]

[15]

Output frequency x scaling [-] equals the present output frequency f

multiplied by the factor set in

parameter 008 Display scaling of output frequency .

Digital input [Bin] (DIGITAL INPUT[BIN])

[16] Analog input 53 [V] (ANALOG INPUT 53 [V])

[17] Analog input 60 [mA] (ANALOG INPUT 60 [MA])

[19] Pulse reference [Hz] (PULSE REF. [HZ])

[20] External reference [%] (EXTERNAL REF. [%]) Status word [Hex] (STATUS WORD [HEX])

[21]

[22] Heatsink temperature [°C]

✭

= factory setting. () = display text [] = value for use in communication via serial communication port

Motor current [A] gives the phase current of the motor measured as an effective value.

Torque [%] denotes the motor’s present load in relation to the motor’s rated torque.

Power [kW] gives the present power that the motor is absorbing in kW.

Power [HP] gives the present power that the motor is absorbing in HP.

Motor voltage[V] gives the voltage supplied to the motor.

[25] [26] [27]

[28]

[29]

[30]

[31]

MAX

, 415 Maximum feedback,

Programming

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

DC link voltage [V] gives the intermediate circuit voltage of the frequency converter.

Thermal load motor [%] gives the calculated/estimated load on the motor. 100 % is the cut-out limit.

Thermal load [%] gives the calculated/estimated thermal load on the frequency converter. 100 % is the cut-out limit.

Running hours [Hours] gives the number of hours that the motor has tun since the last reset in parameter 619 Reset of running hours c ounter.

Digital input [Binary code] gives the signal status from the 5 digital inputs (18, 19, 27, 29 and 33). Terminal 18 corresponds to the bit on the extreme

left. ‘0’ =nosignal,‘1’ = signal connected.

Analog input 53 [V] gives the voltage value of terminal 53.

Analog input 60 [mA] gives the present value of terminal 60.

Pulse reference [Hz] gives the reference in Hz connected to terminal 33.

External reference [%] gives the sum of external references as a percentage (sum of analogue/pulse/serial communication) in the range from Minimum reference, Ref Maximum reference, Ref

MAX

MIN

Status word [Hex] gives one or several status conditions in a Hex code. See Serial communication in the Design Guide for further information.

Heatsink temp.[°C] gives the present heatsink temperature of the frequency converter. The cut-out limit is 90-100°C, while cutting back in occurs at 70 ± 5°C.

Communication option card warning [Hex] gives a warning word if there is a fault in the communication bus. Only active if communication options are installed. If there are no communication options 0 Hex is displayed.

Pulse count gives the number of pulses that the unit has registered.

010 Small display line 1.1

(DISPLAY LINE 1.1)

Value:

See par. 009 Large display readout

✭ Analog input 53 [V] [17]

Function:

In this parameter, the first of three data values can be selected that is to be displayed in the LCP control unit display, line 1, position 1. This is a useful function, e.g. when setting the PID regulator, as it gives a view of process reactions to reference changes. The display readout is activated by pushing the [DISPLAY STATUS] key.

Description of choice:

See parameter 009 Large display readout.

011 Small display readout 1.2

(DISPLAY LINE 1.2)

Value:

See parameter 009 Large display readout

✭ Motor current [A][6]

Function:

See the functional description given under parameter 010 Small display readout.

Alarm word [Hex] gives one or several alarms in hex code. See Serial communication in the

Description of choice:

See parameter 009 Large display readout.

Design Guide for further information.

Control word [Hex] gives the control word for the

frequency converter. See Serial communication in the Design Guide for further information.

Warning word [Hex] gives one or several warnings in hex code. See Serial communication in the

012 Small display readout 1.3

(DISPLAY LINE 1.3)

Value:

See parameter 009 Large display readout

Design Guide for further information.

Extended status word [Hex] gives one or several status

modes in Hex code. See Se rial communication in the Design Guide for further information.

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

Function:

See the functional description given under parameter 010 Small display readout.

MG.28.H3.02 - VLT is a registered Danfoss trademark

✭ Feedback [unit] [3]

AKD 2800

Description of choice:

See parameter 009 Large display readout.

013 Local control

(LOC CTRL/CONFIG.)

Value:

Local not active (DISABLE) Local control and open loop without slip

compensation

(LOC CTRL/OPEN LOOP) Remote-operated control and open loop

without slip compensation

(LOC+DIG CTRL) Local control as parameter 100 (LOC CTRL/AS P100)

✭Remote-operated control as parameter 100

(LOC+DIG CTRL/AS P100)

Function:

This is where the required function is selected if, in parameter 002 Local/remote operation, Local operation [1] has been chosen.

[0]

[1]

[2]

[3]

[4]

and open loop [1]: The present motor frequency and direction of rotation will be maintained. If the present direction of rotation does not respond to the reversing signal (negative reference), the reference will be set to 0.

Shifting from Local operation to Remote operation in parameter 002 Local/remote control, while this parameter has been set to Remote-operated control and open loop [1]: The configuration selected in parameter 100 Configuration will be active. The shift will be smooth.

Shifting from Remote control to Local control in parameter 002 Local/remote operation, while this parameter has been set to Remote-operated control as parameter 100 [4]: the present reference will be maintained. If the reference signal is negative, the local reference will be set to 0.

Shifting from Local operation to Remote operation in parameter 002 Local/remote operation,while this parameter has been set to Remote operation: The local reference will be replaced by the remote-operated reference signal.

Description of choice:

If Local not active [0] is selected, it is not possible to set a reference via parameter 003 Local reference. In order to enable a shift to Local not active [0], parameter 002 Local/remote operat ion must be set to Remote operation [0].

Local control and open loop [1] is used if the motor speed is to be set via parameter 003 Local reference. When this choice is made, parameter 100 Configuration automatically shifts to Speed regulation, open loop [0].

Remote-operated control and open loop [2] functions in the same way as Local control and open loop [1]; however, the frequency converter can also be controlled via the digital inputs.

Local control as parameter 100 [3] is used when the motor speed is to be set via parameter 003 Local reference,butw

Configuration automatically shifting to Speed regulation, open loop [0].

Remote-operated control as parameter 100 [4] works the same way as Local control as parameter 100 [3]; however, the frequency converter can also

be controlled via the digital inputs.

Shifting from Remote operation to Local operation in parameter 002 Local/remote operation,whilethis parameter has been set to Remote-operated control

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

ithout parameter 100

014 Local stop

(LOCAL STOP)

Value:

Not active (DISABLE)

✭Active (ENABLE)

Function:

In this parameter, the local [STOP]-key can be engaged or disengaged on the control panel and on the LCP control panel.

Description of choice:

If Not active [0] is selected in this parameter, the[STOP]-keywillbeinactive.

NB!:

If Not active [0] is selected, the motor cannot be stopped by means of the [STOP]-key.

017 Local reset of trip

(LOCAL RESET)

Value:

Not active (DISABLE)

✭Active (ENABLE)

Function:

In this parameter, the reset function on the control panel can be engaged/disengaged.

[0] [1]

Programming

[0] [1]

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Description of choice:

If Not active [0] is selected in this parameter, the reset function will be inactive.

NB!:

Select Not active [0], only if an external reset signal has been connected via the digital inputs.

018 Lock for data changes

(DATA CHANGE LOCK)

Value:

✭Not locked (NOT LOCKED)

Locked (LOCKED)

Function:

In this parameter, it is possible to ’lock’ the controls

to disable data changes via the control keys.

Description of choice:

If Locked [1] is selected, data changes in the parameters cannot be made; however, it will still be possible to make data changes via serial communication. Parameter 009-012 Display readout can be changed via the control panel.

019 Operating mode at power-up, local

operation

(POWER UP ACTION)

Value:

✭Auto restart, use saved reference

(AUTO RESTART) Forced stop, use saved reference (LOCAL=STOP) Forced stop, set ref. to 0 (LOCAL=STOP, REF=0)

Function:

Setting of the required operating mode when the mains voltage is engaged. This function can only be active if Local operation [1] has been selected in parameter 002 Local/remote operation.

Description of choice:

Auto restart, use saved ref. [0] is selected if the frequency converter is to start using the local reference (set in parameter 003 Local reference)andthe start/stop state given via the control keys immediately prior to the mains voltage being cut out. Forced stop, use saved ref. [1] is selected if the frequency converter is to remain stopped when the mains voltage is engaged, until the [START]-key is activated. After a start command the motor

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

[0] [1]

[0]

[1]

[2]

speed is ramped up to the saved reference in parameter 003 Local reference. Forced stop, set ref. to 0 [2] is selected if the frequency converter is to remain stopped when the mains voltage is cut back in. Parameter 003 Local reference is t o be ze r o e d .

NB!:

In remote operation (parameter 002 Local/remote operation) the start/stop state

at the time of mains connection will depend on the external control signals. If Pulse start [8] is selected in parameter 302 Digital input,themotor will remain stopped after mains connection.

024 Userdefined Quick Menu

(USER QUICKMENU)

Value:

✭Not active (DISABLE)

Active (ENABLE)

Function:

In this parameter you can select the standard setup of the Quick menu key on the control panel and the LCP 2 control panel. Using this function, in parameter 025 Quick Menu setup the user can select up to 20 parameters for the Quick Menu key.

Description of choice:

If not act ive [0] is selected, the standard setup of the Quick Menu key is active. If Active [1] is selected, the user-defined Quick Menu is active.

025 Quick Menu setup

(QUICK MENU SETUP)

Value:

[Index 1 - 20] Value: 0 - 999

Function:

In this parameter you define which parameters are required in the Quick Menu when parameter 024 User-defined Quick Menu is se t to Active [1]´. Up to 20 parameters can be selected for the user-defined Quick Menu.

NB!:

Please note that this parameter can only be set

using an LCP 2 control panel. See Order form.

[0] [1]

✭ 000

MG.28.H3.02 - VLT is a registered Danfoss trademark

Description of choice:

The Quick Menu is set up as follows:

1. Select parameter 025 Quick Menu setup and press [CHANGE DATA].

2. Index 1 indicates the first parameter in Quick Menu. You can scroll between the index numbers using the [+ / -] keys. Select Index 1.

3. Using [< >] you can scroll between the three figures. Press the [<] key once ad the last number in the parameter number can be selected using the [+ / -] keys. Set Index 1 to 100 for parameter 100 Configuration.

4. Press [OK] when Index 1 has been set to 100.

5. Repeat steps 2 - 4 until all parameters required have been set to the Quick Menu key.

6. Press [OK] to complete the Quick Menu setup.

If parameter 100 Configuration is selected at Index 1, Quick Menu will start with this parameter every time Quick Menu is activated.

AKD 2800

Please note that parameter 024 User-defined Quick Menu and parameter 025 Quick Me nu setup are

reset to the factory setting during initialisation.

Programming

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Load and Motor

100 Configuration

(CONFIGURATION)

Value:

✭Speed control, open loop

(SPEED OPEN LOOP) Process control, closed loop (PROCESS CLOSED LOOP)

Function:

This parameter is used to select the configuration to which the frequency converter is to be adapted. This makes adaptation to a given application simple, since the parameters not used in a given configuration are hidden (not active).

Description of choice:

If Speed control, open loop [0] is selected, normal speed control is obtained (without feedback signal) with automatic load and slip compensation to ensure a constant speed at varying loads. Compensations are active, but may be disabled in parameter 134 Load compensation and parameter 136 Slip compensation as required.

[0]

[1]

Function:

This parameter enables a choice of principle for adaptation of the U/f ratio of the frequency converter tothetorquecharacteristicoftheload.

Description of choice:

If Compressor CT [1] is selected, a load-dependent U/f characteristic is obtained, in which output voltage and output frequency are increased at increasing loads in order to maintain constant magnetization of the motor.

Select Fan/Pump VT [2], if the load is square (centrifugal pumps, fans). High with CT start [3], are selected if you need a greater breakaway torque than can be achieved with the three first characteristics.

NB!:

Load and slip compensation are not active if variable torque or special motor mode have been selected.

Select Special motor mode [4], if a special U/f setting is needed that is to be adapted to the present motor. The break points are set in parameters 423-428 Voltage/frequ ency .

If Process control, closed loop [3] is selected, the internal process regulator is activated to enable precise control of a process in relation to a given process signal. The process signal can be set to the relevant process unit or as a percentage. A feedback signal must be added from the process and the process regulator must be set in parameter group 400 Special functions. Process closed loop is not active if a DeviceNet card is mounted and Instance 20/70 or 21/71 is chosen in parameter 904 Instance types.

101 Torque characteristic

(TORQUE CHARACT)

Value:

Compressor CT

✭Fan/Pump VT

Variable torque high with CT start (VTHIGHCTSTART) Special motor mode (SPECIAL MOTOR MODE)

[1] [2]

[3]

[4]

Select Constant Torque [1] for use with compressors. Select Variable torque high [2] for use with condenser fans or pumps. Use Special motor mode [4] if several fans are connected in parallel.

NB!:

Please note that if a value set in the nameplate parameters 102-106 is changed, there will be an automatic change of parameter 108

Stator resistance and 109 Stator reactan

102 Motor power P

M,N

ce.

(MOTOR POWER)

Value:

0.25 - 22 kW

✭ Depends on unit

Function:

Here you must set a power value [kW] P

M,N

corresponding to the motor’s rated power. The

factory sets a rated power value [kW] P

M,N

that depends on the type of unit.

CT = Constant torque VT = Variable torque

Description of choice:

Set a value that matches the nameplate data on the motor. Settings between one size below and one size over the factory setting are possible.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

103 Motor voltage U

M,N

(MOTOR VOLTAGE)

Value:

For 200 V units: 50 - 999 V

For 400 V units: 50 - 999 V

✭ 230 V

✭ 400 V

Function:

This is where to set the rated motor voltage U

foreitherstarYordelta .

M,N

Description of choice:

Select a value that corresponds to the nameplate data on the motor, regardless of the frequency

converter’s mains voltage.

104 Motor frequency f

M,N

(MOTOR FREQUENCY)

Value:

24-1000 Hz

✭ 50 Hz

Function:

This is where to select the rated motor frequency f

Description of choice:

Select a value that corresponds to the nameplate data on the motor.

M,N

106 Rated motor speed

(MOTOR NOM. SPEED)

Value:

100 - f

x 60 (max. 60000 rpm)

M,N

✭ Depends on parameter 104 Motor frequency, f

Function:

This is where to set the value that corresponds to the rated motor speed n

that can be

M,N

seen from the nameplate data.

Description of choice:

Select a value that corresponds to the nameplate data on the motor.

NB!:

The max. value equals f

M,N

set in parameter 104 Motor frequency, f

107 Automatic motor tuning, AMT

(AUTO MOTOR TUN.)

Value:

✭Optimisation off (AMT OFF)

Optimisation on (AMT START)

Function:

NB!:

AMT is not possible on AKD 2880-82.

x 60. f

M,N

to be

M,N

[0] [1]

105 Motor current I

M,N

(MOTOR C URRENT)

Value:

0,01 - I

MAX

✭ Depends on choice of motor

Function:

The nominal, rated current of the motor I

M,N

forms part of the frequency converter calculation of features such as torque and motor thermal protection.

Description of choice:

Setavaluethatcorrespondstothenameplate data on the motor. Set the motor current

taking into account whether the motor is

M,N

star-connected Y or delta-connected

Automatic motor tuning is an algorithm that measures stator resistance R

without the motor axle turning.

This means that the motor is not delivering any torque. AMT can be used with benefit when initialising units where the user wishes to optimise adjustment of the frequency converter to the motor being used. This is used in particular when the factory setting does not sufficiently cover the motor.

For the best possible tuning of the frequency converter it is recommended that AMT is performed on a cold motor. It should be noted that repeated AMT runs can cause heating of the motor, resulting in an increase in the stator resistance R

.Asa

rule, however, this is not critical.

AMT is performed as follows:

tart AMT:

1. Give a STOP signal.

2. Parameter 107 Automatic motor tuning is set at value [2] Optimisation on.

Programming

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

3. A START signal is given and parameter 107 Automatic motor tuning is r e set to [0] when AMT has been completed.

omplete AMT:

C AMT is completed by giving a RESET signal. Parameter 108 Stator resistance, Rs is updated with the optimised value.

nterrupting AMT:

I AMT can be interrupted during the optimisation procedure by giving a STOP signal.

When using the AMT function the following points should be observed:

- For AMT to be able to define the motor parameters as well as possible, the correct type plate data for the motor connected to the frequency converter must be keyed into parameters 102 to 106.

- Alarms will appear in the display if faults arise during tuning of the motor.

- As a rule the AMT function will be able to measure

values for motors that are 1-2 times larger or

the R

smaller than the frequency converter’snominalsize.

- If you wish to interrupt automatic motor tuning, press the [STOP/RESET] key.

NB!:

AMT may not be performed on motors connected in parallel, nor may setup changes be made while AMT is running.

he procedure for AMT controlled from the SLCP:

T See section entitled Control unit.

Description of choice:

Select Optimisation on [2] if you want the frequency converter to perform automatic motor tuning.

NB!:

Parameters 108 Stator resistance R Stator reactance X

are normally not to be

and 109

changed if nameplate data has been set.

Description of choice:

can be set as follows:

1. Use the factory settings of R

which the

frequency converter itself chooses on the basis of the motor nameplate data.

2. The value is stated by the motor supplier.

3. The value is obtained through manual measurements: R theresistanceR terminals. Where R

can be calculated by measuring

PHASE-PHASE

between two phase

is lo wer th an 1-2 Ohms (typical for motors > 5.5 kW, 400 V), a special Ohm-meter should be used (Thomson-bridge or

similar). R

4. R

=0.5xR

is set automatically when AMT has

PHASE-PHASE

been completed. See parameter 107

Auto motor adaption.

109 Stator reactance X

(STATOR REACTANCE)

Value:

0.00 - X,XX

✭ Depends on choice of motor

Function:

After setting of parameters 102-106 Nameplate data, a number of adjustments of various parameters are made automatically, including stator reactance

. The shaft performance can be improved by

fine-tuning R

and XS, see procedure below.

Description of choice:

can be set as follows:

108 Stator resistance R

(STATOR RESISTAN)

Value:

0.000 - X.XXX

1. The value is stated by the motor supplier.

2. The value is obtained through manual measurements X

is obtained by connecting a

motor to mains and measuring the phase-phase voltage U

and the idle current .

✭ Depends on choice of motor

Function:

After setting of parameters 102-106 Nameplate data, a number of adjustments of various parameters is carried out automatically, including stator resistance

. A manually entered RSmust apply to a cold

XL: See parameter 142.

3. Use the factory settings of X frequency converter itself chooses on the basis of the motor nameplate data.

motor. The shaft performance can be improved by fine-tuning R

and XS, see procedure below.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

which the

AKD 2800

117 Resonance damping

(RESONANCE DAMPING)

Value:

OFF - 100%

✭OFF %

[OFF - 100]

[OFF]

Function:

It is possible to optimise the resonance damping in CT mode. The grade of the influence is adjusted in this parameter. The value may be set between 0% (OFF) and 100%. 100% corresponds to 50% reduction of U/F ratio. Default value is OFF.

Internal settings (fixed): The resonance filter is active from 10% of nominal speed and above. In this case 5Hz and above. Speed to go from 0 to nominal flux level: 500ms Speed to go from nominal to 0 flux level: 500ms

Description of functionality: The filter monitors the active motor current and changes the motor voltage according to the figure below. The filter reacts on levels referring to the nominal motor current.

Description of choice:

Set the grade of Motor current [Imact] influence on the U/F ratio between 0% (OFF) and 100%. 100% corresponds to 50% reduction of U/F ratio. Default value is OFF.

119 High star t torque

(HIGH START TORQ.)

Value:

0.0 - 0.5 sec.

✭ 0.0 sec.

Function:

To ensure a high start torque approx. 1.8 x I

INV.

can be

permitted for max. 0.5 sec. The current is, however,

limited by the frequency converter’s(inverter’s) safety

limit. 0 sec. corresponds to no high start torque.

Description of choice:

Set the necessary time for which a high start torque is required.

123 Min. frequency for activation of

function at stop

(MIN.F.FUNC.STOP)

Value:

0.1 - 10 Hz

✭ 0.1 Hz

If the active motor current is below 10%, the motor voltage will be decreased by the speed mentioned above until the voltage reaches the setting for Par. 117. If the active motor current comes over 20% the voltage will be increased by the above mentioned speed. If the active motor current reaches 40% the motor voltage will be increased immediately to normal motor voltage. The reduction in motor voltage depends on the parameter 117 setting.

Function:

In this parameter, the output frequency is set at which function is selected in parameter 122 Function at stop is to be activated.

Description of choice:

Set the required output frequency.

NB!:

If parameter 123 is set too high, and DC hold has been chosen in parameter 122,

the output frequency will jump to the value in parameter 123 without ramping up. This may cause an overcurrent warning / alarm.

126 DC brake time

(DC BRAKING TIME)

Value:

0-60sec.

✭ 10 sec

Function:

In this parameter, the DC brake time is set at which parameter 132 DC brake voltage is to be active.

Programming

✭

= factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

Description of choice:

Set the required time.

127 DC brake cut-in frequency

(DC BRAKE CUT-IN)

Value:

0.0 (OFF) - par. 202

Output frequency high limit, f

MAX

Function:

In this parameter, the DC brake cut-in frequency is set at which the DC brake is to be activated in connection with a stop command.

Description of choice:

Set the required frequency.

128 Thermal motor protection

(MOT.THERM PROT EC )

Value:

✭No protection (NO PROTECTION)

Thermistor warning (THERMISTOR WARN) Thermistor trip (THERMISTOR TRIP) ETR warning 1 (ETR WARNING 1) ETR trip 1 (ETR TRIP 1) ETR warning 2 (ETR WARNING 2) ETR trip 2 (ETR TRIP 2) ETR warning 3 (ETR WARNING 3) ETR trip 3 (ETR TRIP 3) ETR warning 4 (ETR WARNING 4) ETR trip 4 (ETR TRIP 4)

✭ OFF

[0]

[1] [2] [3] [4] [5] [6] [7] [8] [9]

[10]

AKD 2800

ETR functions 1-4 do not begin to calculate the load until you switch to the Setup in which they have been selected. This means that you can use the ETR function even when changing between two or more motors.

Description of choice:

Select No protection [0] if you do not want a warning or trip when a motor is overloaded. Select Thermistor warning [1] if you want a warning when the connected thermistor becomes too hot. Select Thermistor trip [2] if you want a trip when the connected thermistor becomes too hot. Select ETR wa rning 1-4 if you want a warning when the motor is overloaded according to the calculations. You can also programme the frequency converter to give a warning signal via one of the digital outputs. Select ETR Trip 1-4 if you want a trip when the motor is overloaded according to the calculations.

NB!:

This function cannot protect the individual

motors in the case of motors linked in parallel.

Function:

The frequency converter can monitor the motor temperature in two different ways:

130 Start frequency

(START FREQUENCY)

Value:

0.0 - 10.0 Hz

- Via a PTC thermistor that is mounted on the motor. The thermistor is connected between terminal 50 (+10V) and one of the digital input terminals 18, 19, 27 or 29. See parameter 300 Digital inputs.

- Thermal load calculation (ETR - Electronic Thermal Relay), based on present load and time. This is compared with the rated motor current I

and rated motor frequency f

M,N

The calculations take into account the need for

lower loading at low speeds due to the motor’s

Function:

Thestartfrequencyisactiveforthetimesetin parameter 120 Start delay, after a start command.

The output frequency will ’jump’ to the next preset

frequency. Certain motors, such as conical anchor motors, need an extra voltage/start frequency (boost) at start to disengage the mechanical brake. To achieve this parameters 130 Start frequency and 131 Initial voltage are used.

internal ventilation being reduced.

Description of choice:

Set the required start frequency. It is a precondition that parameter 121 Start funct

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

✭ 0.0 Hz

ion,issetto

AKD 2800

Start frequency/voltage clockwise [3] or Start frequency voltage in reference direction [4] and

that in parameter 120 Start delay atimeisset and a reference signal is present.

NB!:

If parameter 123 is set higher than parameter 130, the start delay function (parameter 120 and 121) will be skipped.

132 DC brake voltage

(DC BRAKE VOLTAGE)

Value:

0 - 100% of max. DC brake voltage

✭ 0%

Function:

In this parameter, the DC brake voltage is set which is to be activated at stop when the DC brake frequency set in parameter 127 DC brake cut-in frequency is reached, or if D C braking inverse is active via a digital input or via serial communication. Subsequently, the DC brake voltage will be active for the time set in parameter 126 DC brake time.

Description of choice:

To be set as a percentage value of the max. DC brake voltage, which depends on the motor.

Warning: If the use of start voltage is exaggerated, this may lead to over-energizing and overheating of the

motor and the frequency converter may cut out.

134 Load compensation

(LOAD COMPENSATIO)

Value:

0.0 - 300.0%

✭ 100.0%

Function:

In this paramete r, the load characteristic is se t. By increasing the load compensation, the motor is given an extra voltage and frequency supplement at increasing loads. This is used e.g. in motors/applications in which there is a big difference between the full-load current and idle-load current of the motor.

NB!:

If this value is set too high, the frequency converter may cut out because of overcurrent.

Description of choice:

If the factory setting is not adequate, load compensation must be set to enable the motor tostartatthegivenload.

Warning: Should be set to 0% in connection with synchronous and

133 Start voltage

(START VOLTAGE)

Value:

0.00 - 100.00 V

✭ Depends on unit

Function:

A higher start torque can be obtained by increasing the start voltage. Small motors (< 1.0 kW) normally require a high start voltage.

case of quick load changes. Too high load compensation may lead to instability.

136 Slip compensation

Value:

-500 - +500% of rated slip compensation

parallel-coupled motors and in the

(SLIP COMP.)

Function:

Slip compensation is calculated automatically, on the basis of such data as the rated motor speed

. In this parameter, the slip compensation can be

M,N

fine-tuned, thereby compensating for tolerances on the value for n

. Slip compensation is only active if

M,N

a selection has been made of Speedregulation, open

loop [0] in parameter 100 Configurat ion and Constant torque [1] in parameter 101 Torque c haracteristic.

Description of choice:

The factory setting will be suitable for must applications, the value may need to be increase

Description of choice:

Key in a % value.

gradually for high torque application.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

Programming

✭ 100%

MG.28.H3.02 - VLT is a registered Danfoss trademark

137 DC hold voltage

(DC HOLD VOLTAGE)

Value:

0 - 100% of max. DC hold voltage

Function:

This parameter is used to keep the motor (holding torque) at start/stop.

Description of choice:

This parameter can only be used if a selection has been made of DC hold in parameter 121 Start function or 122 Function at stop . To be set as a percentage value of the max. DC hold voltage, which depends on the choice of motor.

✭ 0%

AKD 2800

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■References & Limits

200 Output frequency range

(OUT FREQ. RNG/ROT)

Value:

✭Only clockwise, 0 - 132 Hz

(132 HZ CLOCKWISE) Both directions, 0 - 132 Hz (132 HZ BOTH DIRECT) Anti-clockwise only, 0 - 132 Hz (132 HZ COUNTER CLOCK) Clockwise only, 0 - 1000 Hz (1000 HZ CLOCK WISE) Both directions, 0 - 1000 Hz (1000 HZ BOTH DIRECT) Anti-clockwise only, 0 - 1000 Hz (1000 HZ COUNTER CLOCK)

Function:

This parameter guarantees protection against unwanted reversing. Furthermore, the maximum output frequency can be selected that is to apply regardless of the settings of other parameters. This parameter has no function if Process regulation, closed loop has been selected in parameter 100 Configuration.

Description of choice:

Select the required direction of rotation as well as the maximum output frequency. Please note that if Clockwise only [0]/[3] or Anti-clockwise only [2]/[5] is selected, the output frequency will be limited to the range f

MIN-fMAX

.IfBoth directions [1]/[4] is selected,

the output frequency will be limited to the range ± f

(the minimum frequency is of no significance).

MAX

[0]

[1]

[2]

[3]

[4]

[5]

201 Output frequency low limit, f

MIN

(MIN OUTPUT FREQ)

Value:

0.0 - f

MAX

✭ 30.0 Hz

Function:

In this parameter, a minimum motor frequency limit can be selected that corresponds to the minimum speed at which the motor is allowed to run.

Description of choice:

The value chosen can range from 0.0 Hz to the frequency set in parameter 202 Output

frequency high limit, f

202 Output frequency high limit, f

MAX

(MAX. OUTPUT FREQUENCY)

Value:

- 132 Hz

MIN

✭ 60.0 Hz

Function:

In this parameter, a maximum output frequency limit can be selected that corresponds to the highest speed at which the motor is allowed to run.

Description of choice:

A value can be selected from f

204 Minimum reference, Ref

to 132 Hz.

MIN

(MIN.REFERENCE)

Value:

Par. 100 Config. = Open loop [0]. 0 - par. 205 Ref

MAX

✭ 30.0 Hz

Programming

Par. 100 Config. = Closed loop [1].

-Par. 414 Minimum feedback - par. 205 Ref

Function:

Minimum reference is an expression of the minimum possible value of the total of all references. If in parameter 100 Configuration or Process regulation, closed loop [1] is selected, the minimum reference is limited by parameter 414 Minimum feedback.Minimum reference is ignored if the local reference is active.

The reference unit can be defined from the following table:

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

MAX

✭ 0.000 bar/par 416

AKD 2800

Par. 100 Configuration Unit Open loop [0] Hz Process reg, closed loop [1] Par. 416

Description of choice:

The minimum reference is preset if the motor has to run at a minimum speed, regardless of whether the resulting reference is 0.

205 Maximum reference, Ref

MAX

(MAX.REFERENCE)

Value:

Par. 100 Config. = Open loop [0]. Par. 204 Ref

- 1000.000 Hz

MIN

✭ 60.0 Hz

Par. 100 Config. = Closed loop [1]. Par. 204 Ref

- Par. 415 Max. feedback

MIN

✭ 32.000 bar/par 416

Function:

Themaximumreferencegivesthehighestvalue that can be assumed by the sum of all references. If Closed loop [1] is selected in parameter 100 Configuration the maximum reference cannot exceed the value in parameter 415 Maximum feedback. Maximum reference is ignored if the local reference is active.

The reference unit can be defined from the following table:

output current will not reach the current limit (set in parameter 221 Current limit I

LIM

Description of choice:

Set the required ramp-up time.

208 Ramp-down time 1

(RAMPDOWNTIME1)

Value:

0.02 - 3600.00 sec

✭ 1.00 sec

Function:

The ramp-down time is the deceleration time from the rated motor frequency f 104 Motor frequency, f

)to0Hz,provided

M,N

(parameter

M,N

no overvoltage arises in the inverter because of generating operation of the motor.

Description of choice:

Set the required ramp-down time.

Par. 100 Configuration Unit Open loop [0] Hz Process reg, clo

sedloop[1]

Par. 416

209 Ramp-up time 2

(RAMPUPTIME2)

Value:

Description of choice:

0.02 - 3600.00 sec.

✭ 3.00 sec (VLT 2803-2875)

10.00 sec (VLT 2880-2882)

Maximum reference is set, if the speed of the motor is to be max. the set value, regardless of the whether the resulting reference is greater

Function:

See description of parameter 207 Ramp-up time 1.

than the maximum reference.

Description of choice:

Set the required ramp-up time. Shift from ramp 1 to

207 Ramp-up time 1

ramp 2 by activating Ramp 2 viaadigitalinput.

(RAMP-UP TIME 1)

Value:

0.02 - 3600.00 sec

✭ 0.70 sec

Function:

The ramp-up time is the acceleration time from 0 Hz to the rated motor frequency f 104 Motor frequency, f

). It is assumed that the

M,N

(parameter

M,N

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

210 Ramp-down time 2

(RAMPDOWNTIME2)

Value:

0.02 - 3600.00 sec.

✭ 3.00 sec (VLT 2803-2875)

10.00 sec (VLT 2880-2882)

Function:

See description of parameter 208 Ramp-down time 1.

Description of choice:

Set the required ramp-down time. Shift from ramp 1 to ramp 2 by activating Ramp 2 via a digital input.

211 Jog r amp time

(JOG RAMP TIME)

Value:

0.02 - 3600.00 sec.

✭ 3.00 sec (VLT 2803-2875)

10.00 sec (VLT 2880-2882)

Function:

The jog ramp time is the acceleration/deceleration time from 0 Hz to the rated motor frequency f (parameter 104 Motor frequency, f

). It is assumed

M,N

that the output current will not reach the current limit (set in parameter 221 Current limit I

LIM

213 Jog frequency

(JOG FREQUENCY)

Value:

0.0 - Par. 202 Output frequency high limit, f

✭ 0.1 Hz

MAX

Function:

Jog frequency f

means a fixed output frequency

JOG

that the frequency converter supplies to the motor when the Jog function is activated. Jog can be activated via the digital inputs or serial communication.

Description of choice:

Set the required frequency.

214 Reference fun ction

(REF FUNCTION)

Value:

✭Sum (SUM)

Relative (RELATIVE) External/preset (EXTERNAL/PRESET)

Function:

It is possible to define how preset references are to be added to the other references; for this purpose, use Sum or Relative.Itisalsopossiblebyusingthe External/preset to select whether a shift between external references and preset references is required. External reference is the sum of the analogue references, pulse references and any references from serial communication.

[0] [1] [2]

Programming

The jog ramp time starts if a jog-signal is given via the LCP control panel, one of the digital inputs or the serial communication port.

Description of choice:

Set the required ramp time.

Description of choice:

If Sum [0] is selected, one of the adjusted preset references (parameters 215-218 Preset reference)issummarizedasapercentageof the reference range (Ref

MIN

-Ref

MAX

), added to the other external references. If Relative [1] is selected, one of the added preset references (parameters 215-218 Preset reference)issummarizedasapercentageofthe sum of present external references. If External/preset [2] is selected, it is possible via a digital input to shift between external references or preset references. Preset references will be a percentage value of the reference range.

NB!:

If Sum or Relative is selected, one of the preset references will always be active. If the preset references are to be without influence,

they must be set to 0% (factory setting).

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

215 Preset reference 1 (PRESET REF. 1) 216 Preset reference 2 (PRESET REF. 2) 217 Preset reference 3 (PRESET REF. 3) 218 Preset reference 4 (PRESET REF. 4)

Value:

-100.00% - +100.00%

✭ 0.00%

of the reference range/external reference

Function:

Four different preset references can be programmed in parameters 215-218 Preset reference. The preset reference is stated as a percentage of the reference range (Ref

MIN

-Ref

) or as a percentage

MAX

of the other external references, depending on the choice made in parameter 214 Reference function. The choice between preset references can be made via the digital inputs or via serial communication.

Preset ref., msb Preset ref. lsb

0 0 Preset ref. 1 0 1 Preset ref. 2 1 0 Preset ref. 3 1 1 Preset ref. 4

223 Warning: Low current, I

LOW

(WARN. CURRENT LO)

Value:

0.0 - par. 224 Warning: High current, I

HIGH

✭ 0.0 A

Function:

If the output current falls below the preset limit I

a warning is given.

LOW

Parameters 223-228 Warning functions are out of function during ramp-up after a start command and after a stop command or during stop.The warning functions are activated when the output frequency has reached the resulting reference. The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output.

Description of choice:

The lower signal limit of the output current I

LOW

must be programmed within the normal working range of the frequency converter.

Description of choice:

Set the preset reference(s) that is/are to be the options.

221 Current limit, I

LIM

(CURRENT LIMIT)

Value:

0 - XXX.X % of par. 105

✭ 160 %

Function:

In this parameter, the maximum output current I

LIM

is set. The factory-set value corresponds to the maximum output current I

. If the current limit

MAX

is to be used as motor protection, set the rated motor current. If the current limit is set above 100% (the rated output current of the frequency converter,

), the frequency converter can only handle a load

INV.

intermittently, i.e. for short periods at a time. After the load has been higher than I for a period the load is lower than I if the current limit is set at a lower value than I

, it must be ensured that

INV.

Please note that

INV.

,the

acceleration torque will be reduced to the same extent.

Description of choice:

Set the required maximum output current I

LIM

224 Warning: High current, I

HIGH

(WARN. CURRENT HI)

Value:

0-I

MAX

✭ I

MAX

Function:

If the output current exceeds the preset limit I

a warning is given.

HIGH

Parameters 223-228 Warning functions do not work during ramp-up after a start command and after stop command or during stop. The warning functions are activated when the output frequency has reached the resulting reference. The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output.

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Description of choice:

The output current’s upper signal limit I

HIGH

must

be programmed within the frequency converter’s

normal operating range. See drawing at parameter 223 Warning: Low current, I

225 Warning: Low frequency, f

LOW

(WARN.FREQ. LOW)

Value:

0.0 - par. 226 Warn.: High frequency, f

✭ 0.0 Hz

HIGH

Function:

If the output frequency falls below the preset limit f

,awarningisgiven.

LOW

The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output.

Description of choice:

The lower signal limit of the output frequency f

LOW

must be programmed within the normal operating range of the frequency converter.

226 Warning: High frequency f

HIGH

(WARN.FREQ.HIGH)

Value:

Par. 225 f

LOW

- 132 Hz

✭ 132.0 Hz

Function:

If the output frequency exceeds the preset limit f

a warning is given.

HIGH

The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output.

reached the resulting reference.The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output.The unit for feedback in Closed loop is programmed in parameter 416 Process units.

Description of choice:

Set the required value within the feedback range (parameter 414 Minimum feedback, FB 415 Maximum feedback, FB

MAX

228 Warning: High feedback, FB

MIN

HIGH

and

(WARN.FEEDB HIGH)

Value:

Par. 227 Warn.: FB

- 100,000.000

LOW

✭ 4000.000

Function:

If the feedback signal gets above the preset limit FB

,awarningisgiven.

HIGH

Parameters 223-228 Warning functions are out of function during ramp-up after a start command and after a stop command or during stop. The warning functions are activated when the output frequency has reached the resulting reference. The signal outputs can be programmed to give a warning signal via terminal 46 and via the relay output. The unit for feedback in Closed loop is programmed in parameter 416 Process units.

Description of choice:

Set the required value within the feedback range (parameter 414 Minimum feedback, FB 415 Maximum feedback, FB

MAX

MIN

and

Programming

Description of choice:

The output frequency’s upper signal limit f

must be programmed within the frequency

converter’s normal operating range.

HIGH

229 Frequence bypass, bandwidth

(FREQ BY PASS B.W.)

Value:

0 (OFF) - 100 Hz

Function:

227 Warning: Low feedback, FB

(WARN.FEEDB. LOW)

Value:

-100,000.000 - par. 228 Warn.:FB

LOW

✭ -4000.000

HIGH

Some systems call for some output frequencies to be avoided because of mechanical resonance problems in the system. In parameters 230-231 Frequency bypass these output frequencies can be programmed. In this parameter a bandwidth can be defined on either side of these frequencies.

Function:

If the feedback signal falls below the preset limit FB

,awarningisgiven.

LOW

Parameters 223-228 Warning functions are out of function during ramp-up after a start command and

Description of choice:

The frequency set in this parameter will be centered around parameters 230 Frequency bypass 1 and 231 Frequency bypass 2.

after a stop command or during stop. The warning functions are activated when the output frequency has

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

✭ 0Hz

230 Frequency bypass 1 (FREQ. BYPASS 1) 231 Frequency bypass 2 (FREQ. BYPASS 2)

Value:

0 - 1000 Hz

Function:

Some systems call for some output frequencies to be avoided because of mechanical resonance problems in the system.

Description of choice:

Enter the frequencies to be avoided. See also parameter 229 Frequency bypass, bandwidth.

✭ 0.0 Hz

AKD 2800

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Inputs and outputs

AKD 2800

Digital inputs Term. no. 18

27 29 33

par. no. 302 303 304 305 307

Value:

No function (NO OPERATION) [0] [0] [0] [0] ✭[0]

Reset (RESET) [1] [1] [1] [1] [1] Coasting stop inverse (MOTOR COAST INVERSE) [2] [2] [2] [2] [2]

Reset and coasting inverse (RESET AND COAST INV.) [3] [3] ✭[3] [3] [3]

Quick-stop inverse (QUICK-STOP INVERSE) [4] [4] [4] [4] [4] DC braking inverse (DC-BRAKE INVERSE) [5] [5] [5] [5] [5] Stop inverse (STOP INVERSE) [6] [6] [6] [6] [6]

Start (START) ✭[7] [7] [7] [7] [7]

Pulse start (LATCHED START) [8] [8] [8] [8] [8]

Reversing (REVERSING) [9] ✭[9] [9] [9] [9]

Reversing and start (START REVERSING) [10] [10] [10] [10] [10] Start clockwise (ENABLE FORWARD) [11] [11] [11] [11] [11] Start anti-clockwise (ENABLE REVERSE) [12] [12] [12] [12] [12]

Jog (JOGGING) [13] [13] [13] ✭[13] [13]

Freeze reference (FREEZE REFERENCE) [14] [14] [14] [14] [14] Freeze output frequency (FREEZE OUTPUT) [15] [15] [15] [15] [15] Speed up (SPEED UP) [16] [16] [16] [16] [16] Speed down (SPEED DOWN) [17] [17] [17] [17] [17] Catch-up (CATCH-UP) [19] [19] [19] [19] [19] Slow-down (SLOW-DOWN) [20] [20] [20] [20] [20] Ramp 2 (RAMP 2) [21] [21] [21] [21] [21] Preset ref, LSB (PRESET REF, LSB) [22] [22] [22] [22] [22] Preset ref, MSB (PRESET REF, MSB) [23] [23] [23] [23] [23] Preset reference on (PRESET REFERENCE ON) [24] [24] [24] [24] [24] Thermistor (THERMISTOR) [25] [25] [25] [25] Precise stop, inverse (PRECISE STOP INV.) [26] [26] Precise start/stop (PRECISE START/STOP) [27] [27] Pulse reference (PULSE REFERENCE) [28] Pulse feedback (PULSE FEEDBACK) [29] Pulse input (PULSE INPUT) [30] Selection of Setup, lsb (SETUP SELECT LSB) [31] [31] [31] [31] [31] Selection of Setup, msb (SETUP SELECT MSB) [32] [32] [32] [32] [32] Reset and start (RESET AND START) [33] [33] [33] [33] [33] Pulse counter start (PULSE COUNTER START) [34] [34]

1. All functions on terminal 18 and 19 are controlled by an interrupter, which means that the repetitive accuracy of the response time is constant. Can be used for start/stop, setup switch and especially for changing digital preset, i.e. to obtain a reproducable stop point when using creep speed.

Programming

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

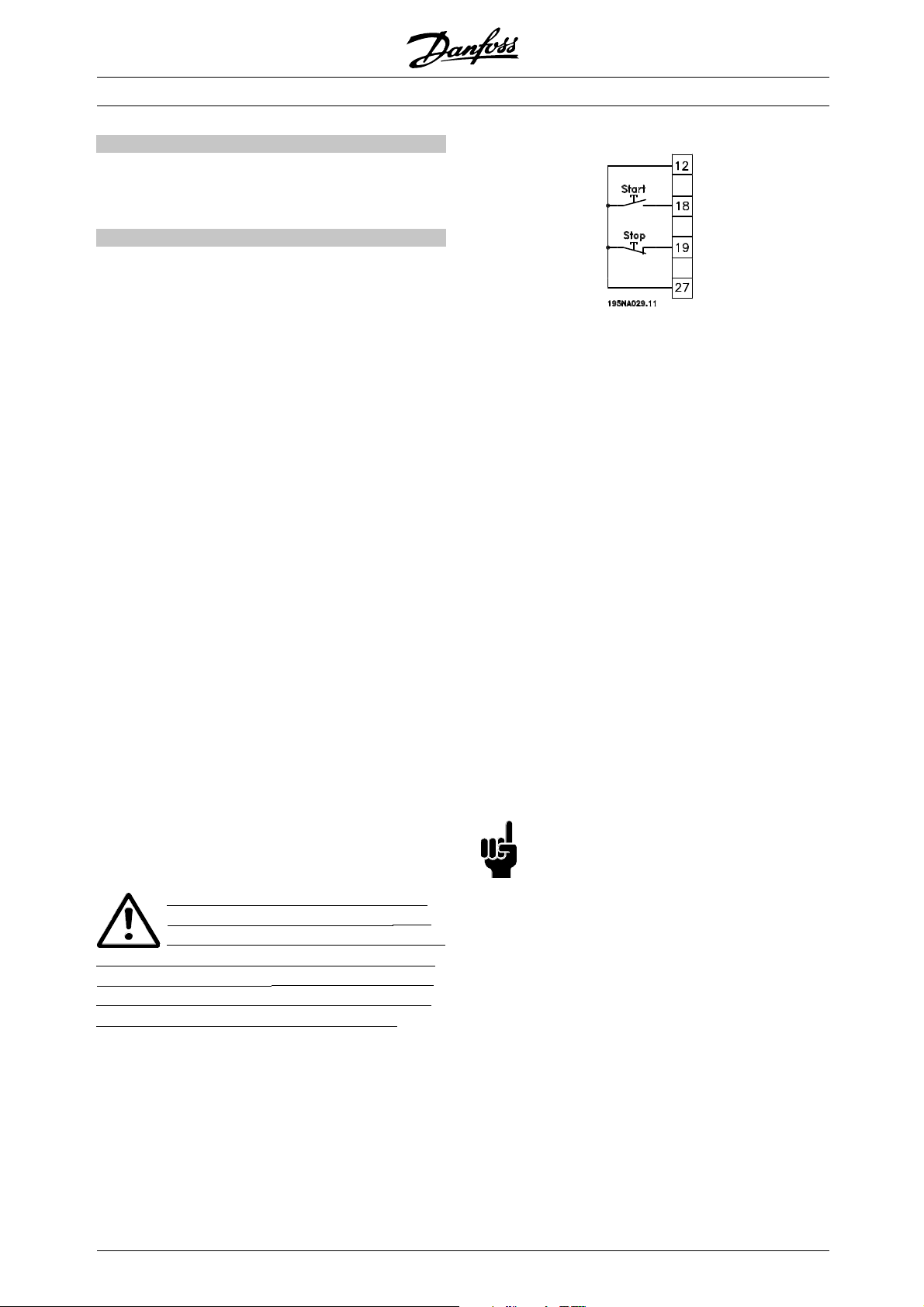

Function:

In these parameters 302-307 Digital inputs it is possible to choose between the different enabled functions related to the digital inputs (terminals 18-33).

Description of choice:

No operation is selected if the frequency converter is not to react to signals transmitted to the terminal.

Reset resets the frequency converter after an alarm; however, a few alarms cannot be reset (trip locked) without first disconnecting the mains supply and reconnecting it. See table under List of warnings and alarms. Reset is activated on the leading edge of the signal.

Coasting stop inverse is used for making the frequency converter "let go" of the motor immediately (output transistors are "turned off"), which means that the motor

runs freely to stop. Logic ’0’ leadstocoastingtostop.

Reset and coasting inverse are used to activate motor coast simultaneously with reset. Logical

’0’ means motor coast stop and reset. Reset

is activated on the falling edge.

AKD 2800

Latched start, if a pulse is applied for min. 14 ms, the frequency converter will start the motor, provided no stop command has been given. The motor can be stopped by briefly activating Stop inverse.

Reversing:NotusedinAKD.

Reversing and start:NotusedinAKD.

Start clockwise is used if you want the motor shaft only

to be able to rotate clockwise when started. Should notbeusedforProcess regulation, closed loop.

Start anticlockwise:NotusedinAKD.

Jog:NotusedinAKD.

Quick stop inverse is used for activating the quick-stop ramp down set in parameter 212 Quick stop

ramp-down time. Logic ’0’ leads to quick stop.

DC-braking inverse is used for stopping the motor by

energizing it with a DC voltage for a given time, see parameters 126, 127 and 132 DC brak e. Please note that this function is only active if the value i 126 DC braking time and 132 DC brake voltage is

different from 0. Logic ’0’ leads to DC braking. Stop inverse, a logic ’0’ means that the motor speed

is ramped down to stop via the selected

None of the stop commands mentioned above are to be used as repair switches.

Note that the frequency converter has more voltage inputs than L1, L2 and L3 terminals are used. Check that all voltage inputs are disconnected and that the prescribed time (4 mins.) has passed before repair w

Start is selected if a start

Logic ’1’ = start, logic ’0’ =stop.

ork is commenced.

/stop command is required.

when the DC bus

n parameter

ramp.

Freeze reference freezes the present reference. The reference can now only be changed via Speed up and Speed down.Iffreeze reference is active, it will be saved after a stop command and in the event of mains failure.

Freeze output freezes the present output frequency (in Hz). The output frequency can now only be changed via Speed up and Speed down .

NB!:

If Freeze output is active the frequency converter can only be stopped if you select Motor

Quick stop or DC braking via a digital input.

Speed up and Speed down are selected if digital

control of the up/down speed is required. This function is only active if Freez output frequency has been selected. If Speed up is active the reference or output frequency will be increased, a is active the reference or output frequency will be reduced. The output frequency is changed via the preset ramp times o

One pulse (logic ’1’ minimum high for 14 ms

and a minimum break time of 14 ms) will lead to a speed change of 0.1 % ( Hz (output frequency). Example:

e reference or Freeze

nd if Speed down

f 3 sec.

reference) or 0.1

coast,

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Term.29Term.33Freeze ref/

Function

freeze outp. 0 0 1 No speed change 0

1 1Speedup

0 1 Speed down

1 1 Speed down

Freeze reference can be changed even if the frequency converter has stopped. The reference will also be saved if the mains are disconnected.

Catch-up/Slow-down is selected if the reference value is to be increased or reduced by a programmable percentage value set in parameter 219 Catch-up/Slow-down refere nce .

Slow-down Catch-up Function

0 0 Unchanged speed 0 1 1

Ramp 2 is selected if a shift between ramp 1 (parameters 207-208) and ramp 2 (3 sec.) is required.

Logic ’0’ leads to ramp 1 and logic ’1’ leads to ramp 2.

1Increaseby%value 0Reduceby%value 1Reduceby%value

If a motor features a Klixon thermal switch instead, this can also be connected to the input. If motors operate in parallel, the thermistors/thermal switches can be connected in series (total resistance lower than 3 k Parameter 128 Motor thermal protection must be programmed for Thermistor warning [1] or Thermistor trip [2] and the thermistor is to be connected between a digital input and terminal 50 (+ 10 V supply).

Preset reference, lsb and Preset reference, msb makes it possible to select one of the four preset references, see the table below:

Preset ref.

msb

Preset ref.

lsb

Function

0 0Presetref.1 0 1 1

Preset reference on is used for shifting between remote-controlled reference and preset reference. It is assumed that External/preset [2] has been selected in parameter 214 Reference function. Logic

’0’ = remote-controlled references are active, logic ’1’ = one of the four preset references is active,

as can be seen from the table above.

Thermistor is to be selected if a possibly integrated thermistor in the motor is to be able to stop the frequency converter if the motor overheats. The cut-out value is 3 k

1Presetref.2 0Presetref.3 1Presetref.4

Precise stop, inverse is selected to obtain a high degree of accuracy when a stop command is repeated. A logic 0 means that the motor speed is ramped down to stop via the selected ramp.

Precise start/stop is selected to obtain a high degree of accuracy when a start and stop command is repeated.

Pulse reference:NotusedinAKD.

Pulse feedback:NotusedinAKD.

Pulse input:NotusedinAKD.

Selection of Setup, lsb and Selection of Setup, msb gives the possibility to select one of the

four setups. It is, however, a condition that parameter 004 is set to Multisetup.

Reset and start can be used as a start function. If 24 V are connected to the digital input, this will cause the frequency converter to reset and the motor will ramp up to the preset reference.

Programming

Pulse counter start:NotusedinAKD.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

308 Terminal 53, analogue input voltage

(AI [V]53FUNCT.)

Value:

No function (NO OPERATION)

✭Reference (REFERENCE)

Feedback (FEEDBACK)

Function:

In this parameter it is possible to select the function required to be connected to terminal 53. Scaling of the input signal is made in parameter 309 Terminal 53, min. scaling and parameter 310 Terminal 53, max. scaling.

Description of choice:

No function [0]. Is selected if the frequency converter is not to react to signals connected to the terminal. Reference [1]. If this function is selected, the reference can be changed by means of an analogue reference signal. If reference signals are connected to more than one input, these reference signals must be added up. If a voltage feedback signal is connected, select Feedback [2] on terminal 53.

309 Terminal 53 Min. scaling

(AI 53 SCALE LOW)

Value:

0.0 - 10.0 Volt

✭ 0.0 Volt

Function:

This parameter is used for setting the signal value that is to correspond to the minimum reference or the minimum feedback, parameter 204 Minimum

reference, Ref

/ 414 Minimum feedback, FB

MIN

Description of choice:

Set the required voltage value. For reasons of accuracy, compensation should be made for voltage loss in long signal cables. If the Time out function is to be used (parameter 317 Time out and 318 Function after t ime out), the value set must be higher than 1 Volt.

[0] [1] [2]

Description of choice:

Set the required voltage value. For reasons of accuracy, compensation should be made for voltage losses in long signal cables.

314 Terminal 60, analogue input current

(AI [MA] 60 FUNCT)

Value:

No function (NO OPERATION) Reference (REFERENCE)

✭Feedback (FEEDBACK)

Function:

This parameter allows a choice between the different functions available for the input, terminal 60. Scaling of the input signal is effected in parameter 315 Terminal 60, min. scaling and parameter 316 Terminal 60, max. scaling.

Description of choice:

No function [0]. Is selected if the frequency converter is not to react to signals connected to the terminal. Reference [1]. If this function is selected, the reference can be changed by means of an analogue reference signal. If reference signals are connected to more than one input, these reference signals must be added up. If one current feedback signal is connected, select Feedback [2] on terminal 60.

315 Terminal 60 Min. scaling

(AI 60 SCALE LOW)

Value:

0.0 - 20.0 mA

✭ 4.0 mA

Function:

In this parameter you can set the signal value that will correspond to the minimum reference or minimum feedback, parameter 204 Minimum reference,

/414Minimum feedback, FB

Ref

MIN

[0] [1] [2]

Description of choice:

310 Terminal 53 Max. scaling

(AI 53 SCALE H IGH)

Value:

0 - 10.0 Volt

✭ 10.0 Volt

Set the required current value. If the Time out function is to be used (parameter 317 Time out and 318 Function after time out )thevalue setmustbehigherthan2mA.

Function:

This parameter is used for setting the signal value that is to correspond to the maximum reference value or maximum feedback, parameter 205 Maximum

reference, Ref

/ 414 Maximum feedback, FB

MAX

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

316 Terminal 60 Max. scaling

(AI 60 SCALE H IGH)

Value:

0.0 - 20.0 mA

✭ 20.0 mA

- frozen at the present frequency [1]

-overruledtostop[2]

- overruled to jog frequency [3]

- overruled to max. output frequency [4]

- overruled to stop with subsequent trip [5]

Function:

This parameter is used for setting the signal value that is to correspond to the maximum reference value, parameter 205 Maximum reference value, Ref

MAX

Description of choice:

Set the required current value.

319 Analogue output terminal 42

(AO 42 FUNCTION)

Value:

No function (NO OPERATION) External reference min.-max. 0-20 mA (REF MIN-MAX = 0-20 MA)

317 Time out

(LIVE ZE RO TIME O)

Value:

1 - 99 sec.

✭ 10 sec.

Function:

If the signal value of the reference or feedback signal connected to one of the input terminals 53 or 60 falls below 50 % of the minimum scaling for a period longer than the time set, the function selected in parameter 318 Functi on after time out will be activated. This function is only active if in parameter 309 Terminal 53, min. scaling a value higher than 1 Volt has been selected, or if in parameter 315 Terminal 60, min. scaling a value higher than 2 mA has been selected.

Description of choice:

Set the required time.

External reference min.-max. 4-20 mA (REF MIN-MAX = 4-20 MA) Feedback min.-max. 0-20 mA (FB MIN-MAX = 0-20 MA) Feedback min.-max. 4-20 mA (FB MIN-MAX = 4-20 MA) Output frequency 0-max 0-20 mA (0-FMAX = 0-20 MA) Output frequency 0-max 4-20 mA (0-FMAX = 4-20 MA)

✭Output current 0-I

MAX.

0-20 mA (0-IMAX = 0-20 MA) Output current 0-I

MAX.

(0-IMAX = 4-20 MA) Output power 0-P

M,N

0-20 mA (0-PNOM = 0-20 MA) Output power 0-P

M,N

4-20 mA (0-PNOM = 4-20 MA) Inverter temperature 20-100 °C 0-20 mA (TEMP 20-100 C=0-20 MA)

318 Function after time out

(LIVE ZERO FUNCT.)

Value:

✭No operation (NO OPERATION)

Freeze output frequency (FREEZE OUTPUT FREQ.) Stop (STOP) Jog (JOG) Max. speed (MAX SPEED) Stopandtrip(STOP AND TRIP)

[0] [1] [2] [3] [4] [5]

Inverter temperature 20-100 °C 4-20 mA (TEMP 20-100 C=4-20 MA)

Function:

The analogue output can be used for stating a process value. It is possible to choose two types of output signals 0 - 20 mA or 4 - 20 mA. If used as a voltage output (0 - 10 V), a pull-down resistor of 500

must be fitted to common (terminal 55). If the output is used as a current output the resulting resistance from the equipment

Function:

connected may not exceed 500

This parameter allows a choice of the function to be activated after the expiry of the Time out (parameter 317 Time out ). If a time-out function occurs at the same time as a bus time-out function (parameter 513 Bus time interval function ), the time-out function in parameter 318 will be activated.

Description of choice:

No function. Is selected if the analogue output is not to be used.

External Ref

MIN

-Ref

MAX

An output signal is obtained, which is proportional to the resulting reference value in the interval

The output frequency of the frequency converter can be:

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

4-20 mA

0-20 mA/4-20 mA.

[0]

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

Programming

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Minimum reference, Ref Ref

(parameters 204/205).

MAX

- Maximum reference,

MIN

Output current lower than I (BELOW CURRENT HIGH) Feedback higher than FB

-FB

MIN

An output signal is obtained, which is proportional to the feedback value in the interval Minimum feedback, FB

- Maximum feedback, FB

0-f

MAX

An output signal is obtained, which is proportional to the output frequency in the interval 0 - f 202 Output frequency, high limit, f

0-20 mA/ 4-20 mA.

MAX

0-20 mA/4-20 mA.

(parameter 414/415).

MAX

MIN

(parameter

(ABOVE FEEDBACK LOW) Feedback lower than FB (UNDER FEEDBACK HIGH) Relay 123 (RELAY 123) Reversing (REVERSE) Thermal warning (THERMAL WARNING) Local operation (LOCAL MODE) Out of frequency range par. 225/226 (OUT OF FREQ RANGE)

0-I

An output signal is obtained, which is proportional to the output current in the interval 0 - I

0-P

An output signal is obtained, which is proportional to the present output power. 20 mA corresponds to the value set in parameter 102 Motor power, P

0-Temp.

An output signal is obtained, which is proportional to the present heatsink temperature. 0/4 mA corresponds to a heatsink temperature of less than 20 °C, and 20 mA corresponds to 100 °C.

0-20 mA/4-20 mA.

MAX.

0-20 mA/4-20 mA.

M,N

0-20 mA/4-20 mA.

MAX

MAX.

M,N

Out of current range (OUT OF CURRENT RANGE) Out of feedback range (OUT OF FDBK. RANGE) Mechanical brake control (MECH. BRAKE CONTROL)

Control word bit 11 (CONTROL WORD BIT 11)

Function:

The relay output can be used for giving the present status or warning. The output is activated (1-2 make) when a given condition is fulfilled.

Description of choice:

No function. Is selected if the frequency converter

323 Relay output 1-3

(RELAY 1-3 FUNCT.)

Value:

No function (NO OPERATION)

✭Unit ready (UNIT READY)

Enable/no warning (ENABLE/NO WARNING) Running (RUNNING)

[0] [1] [2]

[3] Running in reference, no warning ( RUN ON REF/NO WARN)

[4] Running, no warnings (RUNNING/NO WARNING)

[5] Running in reference range, no warnings (RUN IN RANGE/ NO WARN)

[6] Ready - mains voltage within range (RDY NO OVER/UNDERVOL)

[7] Alarm or warning (ALARM OR WARNING)

[8] Current higher than current limit, par. 221 (CURRENT LIMIT) Alarm (ALARM) Output frequency higher than f

LOW

par. 225 (ABOVE FREQUENCY LOW) Output frequency lower than f

HIGH

par. 226 (BELOW FREQUENCY HIGH) Output current higher than I

LOW

par. 223

(ABOVE CURRENT LOW)

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

[9]

[10]

[11]

[12]

[13]

is not to react to signals.

Unit ready, there is a supply voltage on the control card of the frequency converter, and the frequency converter is ready for operation.

Enable, no warning, the frequency converter is ready for operation, but no start command has been given. No warning.

Running is active when there is a start command ortheoutputfrequencyisabove0.1Hz. Also active during ramp-down.

Running in reference, no warning speed according to reference.

Running, no warning, a start command has been given. No warning.

Ready - mains voltage within range, the frequency converter is ready for use; the control card is receiving a supply voltage; and there are no active control signals on the inputs. The mains voltage lies within the voltage limits.

Alarm or warning, the output is activated by an alarm or warning.

LOW

HIGH

par. 227

par. 228

par. 224

[14]

[15]

[16] [17] [18] [19] [20]

[22]

[23]

[24]

[25]

[26]

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Current limit, the output current is higher than the value programmed in parameter 221 Current limit I

Alarm, The output is activated by an alarm.

Output frequency higher than f

,theoutput

LOW

frequency is higher than the value set in parameter 225 Warning: Low frequency, f

Output frequency lower than f

LOW

, the output

HIGH

frequency is lower than the value set in parameter 226 Warning: High frequency, f

Output current higher than I

LOW

HIGH

, the output current is higher than the value set in parameter 223 Warning: Low current, I

Output current lower than I

LOW

, the output current

HIGH

is lower than the value set in parameter 224

Warning: High current, I

Feedback highe r than FB

HIGH

, the feedback value

LOW

is higher than the value set in parameter 227

Warning: Low feedback, FB

LOW

LIM

341 Digital / pulse output terminal 46

(DO 46 FUNCTION)

Value:

Unit ready (UNIT READY) Parameter [0] - [20] see parameter 323

Function:

The digital output can be used for giving the present status or warning. The digital output (terminal 46) gives a 24 V DC signal when a given condition is fulfilled. Terminal can also be used for frequency output.

Description of choice:

Pulse reference Ref

MIN

-Ref

MAX

An output signal is obtained, which is proportional to the resulting reference value in the interval Minimum reference, Ref Ref

Pulse feedback FB

(parameters 204/205).

MAX

MIN

- Maximum reference,

MIN

-FB

MAX

An output signal is obtained, which is proportional to the feedback value in the interval Minimum feedback, FB

- Maximum feedback, FB

(parameter 414/415).

MAX

[0]

MIN

Feedback lower than FB

, the feedback value

HIGH

is lower than the value set in parameter 228

Warning: High current, I

HIGH

Relay 123 is only used in connection with Profidrive.

Reversing, The relay output is activated when

the direction of motor rotation is anti-clockwise. When the direction of motor rotation is clockwise, the value is 0 V DC.

Thermal warning, above the temperature limit in either the motor or the frequency converter, or from a thermistor connected to a digital input.

Local operation, theoutputisactivewhenin parameter 002 Local/remote operation, Local

operation [1] has been selected.

Out of the frequency range, the output frequency

is out of the programmed frequency range in parameters 225 and 226.

Out of the current range, the motor current is out of the programmed range in parameters 223 and 224.

Output frequency 0-f

MAX

An output signal is obtained, which is proportional to the output frequency in the interval 0 - f 202 Output frequency, high limit, f

Pulse current 0 - I

INV.

MAX

(parameter

An output signal is obtained, which is proportional to the output current in the interval 0 - I

Pulse power 0 - P

M,N

INV

An output signal is obtained, which is proportional to the present output power. 5000 Hz corresponds to the value set in parameter 102 Motor power, P

Pulse temperature 0 - Temp.

MAX

M,N

An output signal is obtained, which is proportional to the present heatsink temperature. 0 Hz corresponds to a heatsink temperature of less than 20° C, and 5000 Hz corresponds to 100° C.

Programming

Out of the feedback range, the feedback signal is out of the programmed range in parameters 227 and 228.

Mechanical brake control, enables you to control an external mechanical brake (see section about control of mechanical brake in the Design Guide).

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Special functions

405 Reset function

(RESET MODE)

Value:

Manual reset (MANUAL RESET) Automatic reset x 1 (AUTOMATIC X 1)

✭Automatic reset x 3

(AUTOMATIC X 3) Automatic reset x 10 (AUTOMATIC X 10) Reset at power-up (RESET AT POWER UP)

Function:

This parameter makes it possible to select whether reset and restart after a trip are to be manual or whether the frequency converter is to be reset and restarted automatically. Furthermore, it is possible to select the number of times a restart is to be attempted. The time between each attempt is set in parameter 406 Automatic restart time.

Description of choice:

If Manual reset [0]isselected,resetistobecarried out via the [STOP/RESET] key, a digital input or serial communication. If the frequency converter is to carry out an automatic reset and restart after a trip, select data value [1], [2] or [3]. If Reset at power-up [4] is selected, the frequency converter will carry out a reset if there has been a fault in connection with the mains failure

The motor may start without warning.

[0]

[1]

[2]

[3]

[4]

409 Trip delay overcurrent, I

LIM

(TRIP DELAY CUR.)

Value:

0 - 60 sec. (61=OFF)

✭ OFF

Function:

When the frequency converter registers that the output current has reached the current limit I

LIM

(parameter 221 Current limit) and remains there for the preset time, it is disconnected. Can be used to protect the application, like the ETR will protect the motor if selected.

Description of choice:

Select how long the frequency converter should maintain the output current at the current limit

before it disconnects. At OFF parameter 409

LIM

Trip delay overcurrent, I

is not working, i.e.

LIM

disconnection will not take place.

411 Switching frequency

(SWITCH FREQ.)

Value:

3000 - 14000 Hz (VLT 2803 - 2875) 3000 - 10000 Hz (VLT 2880 - 2882)

✭ 4500 Hz ✭ 4500 Hz

Function:

The set value determines the switching frequency of the inverter. If the switching frequency is changed, this may help to minimise possible acoustic noise from the motor.

NB!:

The output frequency of the frequency converter can never assume a value higher than 1/10 of the switching frequency.

Description of choice:

406 Automatic restart time

(AUTORESTART TIME)

Value:

0-10min.

✭ 5min.

When the motor is running, the switching frequency is adjusted in parameter 411 Switching frequency until the frequency has been obtained at which themotorisaslow-noiseaspossible.

NB!:

Function:

This parameter allows setting of the time from tripping until the automatic reset function begins. It is assumed that automatic reset has been selected in parameter 405 Reset function.

Description of choice:

The switching frequency is reduced automatically as a function of the load.

See Temperature-Dependent Switching Frequency under Spec ial Conditions . When LC-filter connected is selected in parameter 412, the minimum switching frequency is 4.5 kHz.

Set the required time.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

412 Variable switching frequency

(VAR CARRIER FREQ.)

Value:

✭Without LC-filter (WITHOUT LC-FILTER)

LC-filter connected (LC-FILTER CONNECTED)

Function:

The parameter must be set to LC-filter connected if an LC-filter is connected between the frequency converter and the motor.

Description of choice:

The LC-filter connected [3]mustbeusedifan LC-filter is connected between the frequency converter and the motor, as otherwise the frequency converter cannot protect the LC-filter.

NB!:

When the LC filter is selected the switching frequency is changed to 4.5 kHz.

414 Minimum feedback, FB

MIN

(MIN. FEEDBACK)

Value:

-100,000.000 - par. 415 FB

MAX

✭ 0.000

Function:

Parameter 414 Minimum feedback, FB Maximum feedback, FB

are used to scale the

MAX

MIN

and 415

display text to make it show the feedback signal in a process unit proportionally to the signal on the input.

Description of choice:

Set the value to be shown on the display as the minimum feedback signal value on the selected feedback input (parameters 308/314 Analogue inputs).

415 Maximum feedback, FB

MAX

(MAX. FEEDBACK)

Value:

- 100,000.000

MIN

✭ 1500.000

Function:

See description of parameter 414 Minimum feedback, FB

MIN

[0]

[1]

Description of choice:

Setthevaluetobeshownonthedisplaywhenthe maximum feedback has been obtained on the selected feedback input (parameter 308/314 Analogue inputs).

416 Process units

(REF/FEEDB. UNIT)

Value:

No unit (NO UNIT) %(%) ppm (PPM) rpm (RPM)

✭bar (BAR)

Cycles/min (CYCLE/MI) Pulses/s (PULSE/S) Units/s (UNITS/S) Units/min. (UNITS/MI) Units/h (UNITS/H) °C (°C) Pa (PA) l/s (L/S)

/s (M3/S)

m l/min. (L/M)

/min. (M3/MIN)

m l/h (L/H)

/h (M3/H)

m Kg/s (KG/S) Kg/min. (KG/MIN) Kg/hour (KG/H) Tons/min. (T/MIN) Tons/hour (T/H) Metres (M) Nm (NM) m/s (M/S) m/min. (M/MIN) °F (°F) In wg (IN WG) gal/s (GAL/S)

/s (FT3/S)

Ft Gal/min. (GAL/MIN)

/min. (FT3/MIN)

Ft Gal/h (GAL/H)

/h (FT3/H)

Ft Lb/s (LB/S) Lb/min. (LB/MIN) Lb/hour (LB/H) Lb ft (LB FT) Ft/s (FT/S) Ft/min. (FT/MIN)

[10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39] [40]

[0] [1] [2] [3] [4] [5] [6] [7] [8] [9]

Programming

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Function:

Select among different units to be shown on the display. The unit is read out if an LCP control unit can be connected, and if Reference [unit] [2] or Feedback [unit] [3] has been selected in one of parameters 009-012 Display read-out,andin Display mode. The unit is used in Closed loop also as a unit for Minimum/Maximum reference and Minimum/Maximum feedback.

Description of choice:

Select the required unit for the reference/feedback signal.

423 U1 voltage

(U1 VOLTAGE)

Value:

0.0 - 999.0 V

Function:

Parameters 423-428 are used when in parameter 101 Torque characteristic a selection has been made of Special motor characteristic [8]. It is possible to determine a U/f characteristic on the basis of four definable voltages and three frequencies. The voltage at 0 Hz is set in parameter 133 Start voltage.

✭ par. 103

Description of choice:

Set the output frequency (F1) that is to match the first output voltage (U1), parameter 423 U1 voltage .

425 U2 voltage

(U2 VOLTAGE)

Value:

0.0 - 999.0 V

Function:

See parameter 423 U1 voltage.

Description of choice:

Set the output voltage (U2) that is to match the second output frequency (F2), parameter 426 F2 frequency.

426 F2 frequency

(F2 FREQUENCY)

Value:

Par. 424 F1 frequency - par. 428 F3 frequency

✭ Par. 104 Motor frequency

Function:

See parameter 423 U1 voltage.

✭ par. 103

Description of choice:

Set the output voltage (U1) that is to match the first output frequency (F1), parameter 424 F1 frequency.

424 F1 frequency

(F1 FREQUENCY)

Value:

0.0 - par. 426 F2 frequency

✭ Par. 104 Motor frequency

Function:

See parameter 423 U1 voltage .

Description of choice:

Set the output frequency (F2) that is to match the second output voltage (U2), parameter 425 U2 voltage .

427 U3 voltage

(U3 VOLTAGE)

Value:

0.0 - 999.0 V

Function:

See parameter 423 U1 voltage.

Description of choice:

Set the output voltage (U3) that is to match the third output frequency (F3), parameter 428 F3 frequency .

✭ par. 103

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

428 F3 frequency

(F3 FREQUENCY)

Value:

Par. 426 F2 frequency - 1000 Hz

✭ Par. 104 Motor frequency

Function:

See parameter 423 U1 voltage.

Description of choice:

Set the output frequency (F3) that is to match the third output voltage (U3), parameter 427 U3 voltage .

NB!:

Parameters 437-444 are only used if in parameter 100 Configuration a selection has been made of Process

regulation, closed loop. [1].

437 Process PID normal/inverse control

(PROC NO/INV CTRL)

Value:

✭Normal (NORMAL)

Inverse (INVERSE)

Function:

It is possible to choose whether the process regulator is to increase/reduce the output frequency if there is a deviation between the reference/setpoint and the actual process mode.

Description of choice:

If the frequency converter is to reduce the output frequency in case the feedback signal increases, select Normal [0]. If the frequency converter is to increase the output frequency in case the feedback signal increases, select Inverse [1].

438 Proces PID anti windup

(PROC ANTI WINDUP)

Value:

Not active (DISABLE)

✭Active (ENABLE)

Function:

It is possible to select whether the process regulator is to continue regulating on a deviation even if it is not possible to increase/reduce the output frequency.

[0] [1]

Description of choice:

The factory setting is Enable [1], which means that the integration link is initialised in relation to the actual output frequency if either the current limit, the voltage limit or the max./min. frequency has been reached. The process regulator will not engage again until either the error is zero or its sign has changed. Select Disable [0] if the integrator is to continue integrating on the deviation, even if it is not possible to remove the fault by such control.

NB!:

If Disable [0] is selected, it will mean that when

the deviation changes its sign, the integrator

will first have to integrate down from the level obtained as a result of the former error, before any change in output frequency occurs.

439 Process PID start frequency

(PROC START VALUE)

Value:

MIN-fMAX

(parameter 201/202)

✭ Par. 201 Output frequency, low limit, f

MIN

Function:

When the start signal comes, the frequency converter will react in the form of Open loop and will not change to Closed loop until the programmed start frequency is reached. This makes it possible to set a frequency that corresponds to the speed at which the process normally runs, which will enable the required process conditions to be reached sooner.

Description of choice:

Set the required start frequency.

NB!:

If the frequency converter is running a the

current limit before the required start frequency

is obtained, the process regulator will not be activated. For the regulator to be activated anyway, the start frequency must be lower to the required output frequency. This can be done during operation.

440 Proces PID proportioanl gain

(PROC. PROP. GAIN)

Value:

0.0 - 10.00

✭ 0.01

Function:

The proportional gain indicates the number of times the deviation between the setpoint and the feedback signal is to be applied.

Programming

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

Description of choice:

Quick regulation is obtained by a high gain, but if the gain is too high, the process may become unstable due to overshoot.

441 Process PID integration time

(PROC. INTEGR. T.)

Value:

0.01 - 9999.99 (OFF)

Function:

The integrator provides an increasing gain at a constant error between the reference/setpoint and the feedback signal. The greater the error, the quicker the integrator frequency contribution will increase.The integral time is the time needed by the integrator to make the same change as the proportional gain.

Description of choice:

Quick regulation is obtained at a short integral time. However, this time may become too short, which can make the process unstable due to overswing. If the integral time is long, major deviations from the required setpoint may occur, since the process regulator will take a long time to regulate in relation to a given error.

✭ OFF

AKD 2800

444 Process PID lowpass filter time

(PROCFILTERTIME)

Value:

0.02 - 10.00

Function:

Noise in the feedback signal is dampened by a first

order lowpass filter to reduce the noise’simpacton

the process regulation. This can be an advantage e.g. if there is a lot of noise on the signal.

Description of choice:

Select the required time constant (t). If a time constant (t) of 0.1 s is programmed, the cut-off frequency for the lowpass filter will be 1/0.1 = 10 RAD/sec.,

corresponding to (10 / 2 x π) = 1.6 Hz. The process

regulator will thus only regulate a feedback signal that varies by a frequency lower than 1.6 Hz. If the feedback signal varies by a higher frequency than 1.6 Hz, it will be dampened by the lowpass filter.

✭ 0.02

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Serial communication

500 Address

(BUS A DDRESS)

Value:

Parameter 500 Protocol = FC protocol [0]

0 - 247

Parameter 500 Protocol = Metasys N2 [1]

1 - 255

Parameter 500 Protocol = MODBUS RTU [3]

1 - 247

Function:

This parameter allows the allocation of an address to each frequency converter in a serial communication network.

Description of choice:

The individual frequency converter must be allocated a unique address. If the number of units connected (frequency converters + master) is higher than 31, a repeater must be used. Parameter 500 Address cannot be selected via the serial communication, but must be preset via the control unit.

✭ 1

Digital input [0]

Setup msb Setup lsb Function

0 0 Setup 1

0 1 Setup 2

1 0 Setup 3

1 1 Setup 4

Serial communication [1]

Setup msb Setup lsb Function

0 0 Setup 1

0 1 Setup 2

1 0 Setup 3

1 1 Setup 4

Logic and [2]

Bus

Setup

msb

Bus

Setup

lsb

Dig.

Setup

msb

Dig.

Setup

lsb

0 0 0 0 1

Setup

no.

507 Selection of Setup

(SETUP SELECT)

Value:

Digital input (DIGITAL INPUT) Serial communication (SERIAL PORT) Logic and (LOGIC AND)

✭Logic or (LOGIC OR)

Function:

Parameter 507 allows a choice between controlling the frequency converter via the digital inputs and/or via the serial port. If Serial port [1] is selected, the relevant command can only be activated if a command is given via the serial port. In the case of Logic and [2] the function must also be activated via a digital input.

Description of choice:

The table below shows which Setup (parameter 004 Active Setup) is selected for each of the following: Digital input [0], Serial communication [1], Logic and [2] or Logic or [3].

[0] [1] [2] [3]

0 0 1 1

0 1 0 1

0 1 1 1

0 1 0 0 1

1 0 1 2

1 1 0 1

1 1 1 2

1 0 0 0 1

0 0 1 1

0 1 0 3

0 1 1 3

1 1 0 0 1

1 0 1 2

1 1 0 3

1 1 1 4

Programming

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Logic or [3]

Bus

Setup

msb

Bus

Setup

lsb

Dig.

Setup

msb

Dig.

Setup

lsb

0 0 0 0 1

0 0 1 2

0 1 0 3

0 1 1 4

0 1 0 0 2

1 0 1 2

1 1 0 4

1 1 1 4

1 0 0 0 3

0 0 1 4

0 1 0 3

0 1 1 4

1 1 0 0 4

Setup

no.

Jogging (JOGGING) Max. speed (MAX SPEED) Stop and trip (STOP AND TRIP)

Function:

In this parameter you can select the required reaction for the frequency converter when the preset time in parameter 513 Bus time interval has been exceeded. If choices [1] to [5] are activated the output relay will be deactivated.

Description of choice:

The output frequency of the frequency converter can be frozen at the present value, stop the motor, be frozen at Jogging frequency (10 Hz), be frozen at parameter 202 Output frequency, high limit

or stop and activate a cut out.

MAX

[3] [4] [5]

513 Bus time interval

(BUS TIMEOUT TIME)

Value:

1 - 99 sec.

Function:

In this parameter it is possible to preset the maximum time expected to elapse between receipt of two consecutive telegrams. If this time is exceeded, the serial communication is assumed to have stopped and the desired reaction is preset in parameter 514 Bus time interval function.

Description of choice:

Preset the required time.

1 0 1 4

1 1 0 4

1 1 1 4

✭ 1 sec.

514 Bus time interval func

(BUS TIMEOUT FUNC)

Value:

✭Off (OFF)

Freeze output frequency (FREEZE OUTPUT) Stop (STOP)

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

tion

[0] [1] [2]

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

515-541 Data readout

Value: Par. no. 515 Res. reference (REFERENCE %) % 516 Res. reference [Unit] (REFERENCE [UNIT]) Hz, rpm 517 Feedback [Unit] (FEEDBACK [UNIT]) Par. 416 518 Frequency (FREQUENCY) Hz 520 Motor current (MOTOR CURRENT) Amp 522 Power[kW] (POWER (KW)) kW 523 Power[HP] (POWER (HP)) HP 524 Motor voltage (MOTOR VOLTAGE) V 525 DC-link voltage (DC LINK VOLTAGE) V 526 Thermal load motor (MOTOR THERMAL) % 527 Thermal load inverter (INV. THERMAL) % 528 Digital input (DIGITAL INPUT) Bin 529 Term.53, analogue input (ANALOG INPUT 53) V 531 Term.60, analogue input (ANALOG INPUT 60) mA 533 External ref. (EXT. REF.%) % 534 Status word, Hex (STATUS WORD) Hex 537 Inverter temperature (INVERTER TEMP.) °C 538 Alarm word (ALARM WORD) Hex 539 Control word (CONTROL WORD) Hex 540 Warning word (WARN. WORD) Hex 541 Extended status word (STATUS WORD) Hex

Description Display text Unit Update

interval

Function:

These parameters can be read out via the serial communication port and the LCP display. See also parameters 009-012 Display readout.

NB!:

Parameters 515-541 can only be read out via an LCP control unit.

Description of choice:

Resulting reference %, parameter 515:

Gives the resulting reference as a percentage in the range from Minimum reference, Ref reference, Ref

Resulting reference [unit], parameter 516:

Gives the resulting reference in Hz in Open loop (parameter 100). In a closed loop the reference unit is selected in parameter 416 Process units.

Feedback [unit], parameter 517:

Gives the resulting feedback value with the unit/scaling selected in parameters 414, 415 and

416. See also dealing with feedback.

. See also Dealing with references.

MAX

to Maximum

MIN

Frequency [Hz], parameter 518:

Gives the output frequency from the frequency converter.

Motor current [A], parameter 520:

Gives the motor’s phase current measured

as an effective value.

Power [kW], parameter 522:

Gives the present power absorbed by the motor in kW.

Power [HP], parameter 523:

Gives the present power absorbed by the motor in HP.

Motor voltage, parameter 524:

Gives the voltage being supplied to the motor.

DC link voltage, parameter 525:

Gives the intermediate circuit voltage in the frequency converter.

Thermal load, motor [%], parameter 526:

Gives the calculated/estimated thermal load on the motor. 100% is the cut-out limit. See also parameter 128 Thermal motor protection.

Programming

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

MG.28.H3.02 - VLT is a registered Danfoss trademark

Thermal load INV [%], parameter 527:

Gives the calculated/estimated thermal load on the frequency converter. 100% is the cut-out limit.

Digital input, parameter 528:

Gives the signal status from the 5 digital inputs (18, 19, 27, 29 and 33). Input 18 corresponds to the bit on the

extreme left. ’0’ =nosignal,’1’ = connected signal.

Terminal 53 analogue input [V], parameter 529:

Gives the voltage value for the signal on terminal 53.

Terminal 60 analogue input [mA], parameter 531:

Gives the present value for the signal on terminal 60.

External reference, parameter 533:

Gives the sum of external references as a percentage (sum of analogue/pulse/serial communication) in the range from Minimum reference, Ref to Maximum reference, Ref

MAX

MIN

AKD 2800

Status word, parameter 534:

Gives the present status word for the frequency converter in Hex. See Serial communication

for the AKD 2800.

Inverter temperature, parameter 537:

Gives the present inverter temperature on the frequency converter. The cut-out limit is 90-100 °C, with cut back in at 70 ± 5 °C.

Alarm word, parameter 538:

Gives in Hex code which alarm is on the frequency converter. See Warning word, extended

status word and alarm word.

Control word, parameter 539:

Gives the present control word on the frequency converter in Hex. See Serial communication

for the AKD 2800.

Warning word, parameter 540:

States whether there is a warning on the frequency converter in Hex. See Warning word, extended

status word and alarm word.

Extended status word, parameter 541:

States whether there is a warning on the frequency converter in Hex code. See Warning word,

extended status word and alarm word.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Technical functions

600-605 Operating Data

Value: Par. no. Description Display text Unit Range 600 Operating hours (OPERATING HOURS) Hours 0-130,000.0 601 Hours run (RUNNING HOURS) Hours 0-130,000.0 602 kWh counter (KWH COUNTER) kWh Depends on unit

603 Number of power-up’s(POWERUP’S) Number of times 0-9999

604 Number of

overtemperatures

605 Number of overvoltages (OVER VOLT’S) Number of times 0-9999

(OVER TEMP’S) Number of times 0-9999

Function:

These parameters can be read out via the serial communication port and the LCP control unit.

Description of choice:

Parameter 600, Operating hours:

Gives the number of hours the frequency converter has been operating. The value is saved every hour and when there is a mains failure. This value cannot be reset.

Parameter 601, Hours run:

Gives the number of hours the motor has been operating since the reset in parameter 619 Reset of hours-run counter. The value is saved every hour and when there is a mains failure.

Parameter 602, kWh counter:

Gives the frequency converter’soutputenergyi

kWh. The calculation is based on the mean kW value over one hour. This value can be reset using parameter 618 Reset of kWh counter. Range: 0 - depends on unit.

Parameter 603, Number of power-ups:

Gives the number of power-ups of the supply voltage undertaken on the frequency converter.

Parameter 604, Number of overtemperatu

Gives the number of overtemperature faults that have

been registered on the frequency converter’s heat sink.

Parameter 605, Number of overvoltages:

Gives the number of overvoltages of t circuit voltage in the frequency converter. This is only counted when Alarm 7 Overvoltage is active.

he intermediate

res:

615 Fault log: Error code

(F.LOG: ERROR COD)

Value:

[Index 1 - 10] Error code: 0 - 99

Function:

In this parameter it is possible to see the reason for a trip (cut-out of the frequency converter) occurring. 10 [1-10] log values are defined. The lowest log number [1] contains the latest/most recently saved data value. The highest log number [10] contains the oldest data value saved. If a trip occurs, it is possible to see the cause, time and a possible value of the output current or output voltage.

Description of choice:

Given as a fault code, in which the number refers to a table. See the table in Warnings/alarm messages.

Programming

616 Fault log: Time

(F.LOG: TIME)

Value:

[Index 1 - 10] Hours: 0 - 130,000.0

Function:

In this parameter it is possible to see the total number of operating hours in connection with the last 10 trips. 10 [1-10] log values are denoted. The lowest log number [1] contains the latest/most recently saved data value, and the highest log number [10] contains the oldest data value.

Description of choice:

Read out as one value.

NB!:

Parameters 615-617 Fault log c out via the integral control unit.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

annot be read

AKD 2800

617 Fault log: Value

(F.LOG: VALUE)

Value:

[Index 1 - 10] Value: 0 - 9999

Function:

In this parameter it is possible to see at which value a trip occurred. The unit of the value depends on which alarm is active in parameter 615 Fault log: Fault code .

Description of choice:

Read out as one value.

618 Reset of kWh counter

(RESET KWH COUNT)

Value:

✭No reset (DO NOT RESET)

Reset (RESET COUNTER)

Function:

Resetting parameter 602 kWh counter to zero.

Description of choice:

If Reset [1]is selected and you press the [OK] key, the

frequency converter’s kWh counter is reset to zero. This

parameter cannot be selected via serial communication.

NB!:

When the [OK] key is activated, the counter is reset to zero.

619 RESET RUNNING HOURS COUNTER

(RESET RUN. HOUR)

Value:

✭No reset (DO NOT RESET)

Reset (RESET COUNTER)

[0] [1]

620 Operation Mode

(OPERATION MO DE)

Value:

✭Normal operation (NORMAL OPERATION)

Control card test (CONTROL CARD TEST) Initialise (INITIALIZE)

Function:

NB!:

Please note, that the control card will be

different on DeviceNet units.

In addition to its normal function, this parameter can be used to test the control card. There is also the opportunity to perform an initialisation at the factory setting for all parameters in all Setups, with the exception of parameters 500 Address, 501 Baudrate, 600-605 Operating data and 615-617 Fault log.

Description of choice:

Normal function [0] is used for normal operation of the motor.

Control card test [2] is selected if you wish to check

the control card’s analog/digital inputs, analog/digital

outputs, relay outputs and 10 V and 24 V voltages. The test is performed as follows: 27-29-33-46areconnected. 50 - 53 are connected. 42 - 60 are connected. 12 - relay terminal 01 is connected. 18 - relay terminal 02 is connected. 19 - relay terminal 03 is connected.

[0] [1] [2]

Function:

Resetting of parameter 601 Hours run to zero.

Description of choice:

If Reset [1] is selected and you press the [OK]

key, the frequency converter’s parameter 601 is

reset to zero Hours run. This parameter cannot be selected via serial communication.

NB!:

When the [OK] key is activated the parameter is reset to zero.

= factory setting. () = display text [] = value for use in communication via serial communication port

✭

Use the following procedure for the control card test:

1. Select control card test.

2. Disconnect the mains voltage and wait until the

light in the display has disappeared.

3. Mount according to drawing and description.

4. Connect the mains voltage.

MG.28.H3.02 - VLT is a registered Danfoss trademark

5. The frequency converter automatically undertakes a test of the control card.

If the frequency converter displays a fault code from 37-45, the control card test has failed. Change the control card to start up the frequency converter. If the frequency converter comes into Display mode, the test is OK. Remove the test connector and the frequency converter is ready for operation. Parameter 620 Operating mode is automatically set to Normal operation [0].

Initialisation [3] is selected if you wish to use

the unit’sfactorysetting.

Procedure for initialisation:

1. Select Initialisation [3].

2. Disconnect the mains voltage and wait until the light in the display has disappeared.

3. Connect the mains voltage.

4. An initialisation is performed in all parameters in all Setups, with the exception of parameters 500 Address, 501 Baudrate, 600-605 Operating data and 615-617 Fault log.

AKD 2800

Programming

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

621-642 Nameplate

Value: Par. no 621 Unit type (DRIVE TYPE) 624 Software version (SOFTWARE VERSION) 625 LCP identification no. (LCP VERSION) 626 Database identification no. (DATABASE VER.) 627 Power parts version (POWER UNIT DB ID) 628 Application option type (APP. OPTION) 630 Communication option type (COM. OPTION) 632 BMC software identification (BMC-SOFTWARE ID) 634 Unit identification for communication (UNIT ID) 635 Software parts no. (SW. PART NO.) 640 Software version (SOFTWARE VERSION) 641 BMC-software identification (BMC2 SW) 642 Power card identification (POWER ID)

Function:

The unit’s main data can be read out from parameters

621 to 635 Nameplate using the LCP 2 control unit or serial communication. Parameters 640 - 642 can

also be seen on the unit’s integral display.

Description of choice:

Parameter 621 Nameplate: Unit type:

Gives unit size and mains voltage. Example: AKD2811 380-480 V.

Parameter 624 Nameplate: Software version no.

The unit’s present software version number

appears here. Example: V 1.00

Parameter 625 Nameplate: LCP 2 ID number:

The ID number of the unit’s LCP 2 appears here.

Example: ID 1.42 2 kB

Parameter 626 Nameplate: Database ID number:

The ID number of the software’s database

appears here. Example: ID 1.14.

Description Nameplate

Display text

Parameter 628 Nameplate: Application option type:

Here you can see which types of application options are installed in the frequency converter.

Parameter 630 Nameplate: Communication option type:

Here you can see which types of communication options are installed in the frequency converter.

Parameter 632 Nameplate: BMC software identification:

The ID number of the BMC software appears here.

Parameter 634 Nameplate: Unit identification for communicat ion:

The ID number for communication appears here.

Parameter 635 Nameplate: Software section no.:

The software section number appears here.

Parameter 640 Nameplate: Software ve rsion:

The unit’s present software version number

appears here. Example: 1.00

Parameter 627 Nameplate: Power section version:

The ID number of the unit’s power section appears here.

Example: ID 1.15.

✭ = factory setting. () = display text [] = value for use in communication via serial communication port

Parameter 641 Nameplate: BMC software identification:

The ID number of the BMC software appears here.

Parameter 642 Nameplate: Power card identification:

The ID number of the unit’s power part appears

here. Example: 1.15

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Mechanical dimensions

The drawings below give the mechanical dimensions. All dimensions are in mm.

AKD 2803-2815 200-240 Volt AKD 2805-2815 380-480 Volt

AKD 2800

AKD 2840 200-240 Volt AKD 2855-2875 380-480 Volt

AKD 2822 200-240 Volt AKD 2822-2840 380-480 Volt

AKD 2880-2882 380-480 V

Installation

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Mechanical installation

Please pay attention to the requirements that apply to installation.

The frequency converter is cooled by means of air circulation. For the unit to be able to release its cooling air, the minimum free distance above and below the unit must be m 100 mm . To protect the unit from overheating, it must be ensured that the ambient temperature does not rise above the max. temperature stated for the frequency converter and that the 24-hour average temperature is not exceeded. The max. temperature and 24-hour average can be seen in General technical data. If the ambient temperature is in the range of 45 °C - 55 °C, derating of the frequency converter is to be carried out. See Derating for ambient temperature. Pleasenotethattheservicelifeofthe frequency converter will be reduced if no allowance is made for the derating for ambient temperature.

■Side-by-side

All units can be installed side-by-side and in any position, as the units to not require ventilation on the side.

inimum

■Integration

All units with enclosure IP 20 must be integrated in cabinets and panels. IP 20 is not suitable for remote mounting. In some countries, e.g. in the USA, units with enclosure NEMA 1 are approved for remote mounting.

■Spacing for mechanical installation

All units require a minimum of 100 mm air between other components and vents of the enclosure.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■General information about electrical installation

AKD 2800

■High voltage warning

The voltage of the frequency converter is dangerous whenever the equipment is

connected to mains. Incorrect installation of the motor or frequency converter may cause damage to the equipment, serious injury or death. Comply with the instructions in this manual, as well as national and local rules and safety regulations. Touching the electrical parts may be fatal - even after the equipment has been disconnected from mains: Wait at least 4 minutes for current dissipate.

NB!:

It is the responsibility of the user or installer to ensure correct earthing and protection in accordance with national and local standards.

■Earthing

Comply with the following at installation:

• Safety earthing: The drive has a high leakage

current and must be earthed properly for safety. Follow all local safety regulations.

• High frequency earthing: Keep earthing

connections as short as possible.

- Suitable for protecting equipment with a DC content in the faulty current (3-phase bridge rectifier).

- Suitable for a pulse-shaped, brief discharge on power-up.

- Suitable for a high leakage current.

N must be connected before L1 for single phase 200 V reduced leakage current units (type code R4).

■High voltage test

A high voltage test can be performed by short-circuitingterminalsU,V,W,L1,L2andL3, and applying max. 2160 V DC in 1 sec. between this short-circuit and terminal 95.

Connect all earthing systems to ensure the lowes possible conductor impedance. The lowest possible conductor impedance is achieved by keeping the conductor as short as possible and by groundin the greatest possible surface area. If multiple drives are installed in a cabinet, the cabinet backplate, which must be made of metal, should be used as earth reference plate. The drives must be fitted to the backplate at the lowest possible impedance.

To achieve low impedance, connect the drive to the backplate with the drive fastenin all paint from the contact points.

■Extra protection

RCD relays, multiple protective earthing or earthing can be used as extra protectio safety regulations are complied with. In the case of an earth fault, a DC content may develop in the faulty current. Never use an RCD it is not suitable for DC faulty currents. If RCD relays are used, local regulations must be complied with. If RCD relays are used,

they must be:

gbolts. Remove

n, provided that local

(ELCB relay), type A, as

ajoint

gwith

Installation

MG.28.H3.02 - VLT is a registered Danfoss trademark

■EMC-correct electrical installation

General points to be observed to ensure EMC-correct electrical installation.

- Use only screened/armoured motor cables and screened/armoured control cables.

- Connect the screen to earth at both ends.

- Avoid installation with twisted screen ends (pigtails), since this ruins the screening effect at high frequencies. Use cable clamps instead.

AKD 2800

- It is important to ensure good electrical contact from the installation plate through the installation screws to the metal cabinet of the frequency converter.

- Use starwashers and galvanically conductive installation plates.

- Do not use unscreened/unarmoured motor cables in the installation cabinets.

The illustration below shows EMC-correct electrical installation, in which the frequency converter has been fitted in an installation cabinet and connected to a PLC.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Electrical installation

AKD 2800

AKD 2803-2815 200-240 V, 2805-2815 380-480 V

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2822 200-240 V, 2822-2840

380-480 V

Installation

AKD 2800

AKD 2840 200-240 V, 2855-2875 380-480 V

AKD 2880-2882 380-480 V

Please note, that the units will be supplied with two bottom plates; one for and one for conduits.

metric glands

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Safety clamp

If the galvanic isolation (PELV) between control terminals and high-voltage terminals

is to be maintained, the accompanying safety clamp must be fitted to AKD 2803-2815, 200-240 V, and AKD 2805-2815, 380-480 V.

■Pre-fuses

For all unit types, external pre-fuses must be fitted in the mains supply to the frequency converter. For UL/cUL applications with a mains voltage of 200-240 Volt, use pre-fuses type Bussmann KTN-R (200-240 Volt) or Ferraz Shawmut type ATMR (max. 30A). For UL/cUL applications with a mains voltage of 380-480 Volt, use pre-fuses type Bussmann KTS-R (380-480 Volt). See Technical data for correct dimensioning of pre-fuses.

■Mains connection

Please note that at 1 x 220-240 Volt the neutral wire must be attached to terminal N wire must be connected to terminal L1

and the phase

(L2)

(L1)

400-Volt units with RFI-filters may not be connected to mains supplies in which the

voltage between phase and earth is more than 300 Volts. Please note that for the IT mains and the delta earth the mains voltage can exceed 300 Volts between phase and earth. Units with type code R5 can be connected to mains supplies with up to 400 V between phase and earth.

See Technical data for correct dimensioning of cable cross-section. See also the section entitled Galvanic isolation for further details.

■Motor connection

Connect the motor to terminals 96, 97, 98. Connect earth to terminal 99.

No. 96 97 98 Motor voltage 0-100% of

mains voltage.

UVW 3wiresofmotor

U1W2V1U2W1V26 wires out of motor, Delta

connected

U1 V1 W1 6 wires out of motor, Star

connected U2, V2, W2 to be interconnected separely (optional terminal block)

No. PE Earth connection

No. N

(L2)L1(L1) (L3)

NL1

No. 95 Earth connection

No. N

(L2)L1(L1) (L3)

L2 L1 L3

No. 95 Earth connection

No. 91 92 93 Mains voltage 3 x 380-480 V

L1 L2 L3

No. 95 Earth connection

Mains voltage 1 x 220-240 V

Mains voltage 3 x 220-240 V

NB!:

Please check that the mains voltage fits the mains voltage of the frequency converter, which can be seen from the nameplate.

MG.28.H3.02 - VLT is a registered Danfoss trademark

See Technical data for correct dimensioning of cable cross-section.

All types of three-phase asynchronous standard motors can be connected to a frequency converter. Normally, small motors are star-connected (230/400

/ Y). Large motors are delta-connected (400/690

/ Y). The correct connection mode and voltage

V, can be read from the motor nameplate.

NB!:

In motors without phase insulation paper, an LC filter should be fitted on the output of the frequency converter.

Installation

■RFI switch

ains supply isolated from earth:

M If the frequency converter is supplied from an isolated mains source (IT mains), the RFI switch can be turned off (OFF). In OFF position, the internal RFI capacities (filter capacitors) between the chassis and the intermediate circuit are cut off to avoid damage to the intermediate circuit and to reduce the earth capacity currents (according to IEC 61800-3).

NB!:

The RFI switch is not to be operated with mains connected to the unit. Check that the mains supply has been disconnected

before operating the RFI switch.

NB!:

The RFI switch disconnects the capacitors galvanically from ground.

The switch Mk9, placed next to terminal 96, should be removed to disconnect the RFI-filter. The RFI switch is only available on AKD 2880-2882.

■Direction of motor rotation

AKD 2800

Terminal 97 connected to V-phase.

Terminal 98 connected to W-phase.

The direction of rotation can be changed by switching two phases on the motor terminals.

■Parallel connection of motors

The frequency converter is able to control several motors connected in parallel. If the motors are to have different rpm values, use motors with different rated rpm values. Motor rpm is changed simultaneously, which means that the ratio between the rated rpm values is maintained across the range. The total current consumption of the motors is not to exceed the maximum rated output current

for the frequency converter.

INV

Problems may arise at the start and at low rpm values if the motor sizes are widely different.

is because the small motors’ relatively high ohmic

resistance in the stator calls for a higher voltage at the start and at low rpm values.

This

The factory setting is for clockwise rotation with the frequency converter transformer output connected as follows:

Terminal 96 connected to U-phase.

In systems with motors connected in par

allel, the electronic thermal relay (ETR) of the frequency converter cannot be used as motor protection for the individual motor. For th

is reason further motor protection must be used, e.g. thermistors in each motor or an individual thermal relay. (Circuit breakers are not suitable as p

rotection).

NB!:

Parameter 107 Automatic motor adaption, AMT cannot be used when motors are connected in parallel. Parameter

101 Torque characteristic must be set to Special motor characteristics [8] when motors are connected in parallel.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Motor cables

See Technical data for correct dimensioning of motor cable cross-section and length. Always comply with national and local regulations on cable cross-section.

NB!:

If an unscreened/unarmoured cable is used, some EMC requirements are not complied with.

If the EMC specifications regarding emission are to be complied with, the motor cable must be screened/armoured, unless otherwise stated for the RFI filter in question. It is important to keep the motor cable as short as possible so as to reduce the noise level and leakage currents to a minimum. The motor cable screen must be connected to the metal cabinet of the frequency converter and to the metal cabinet of the motor. The screen connections are to be made with the biggest possible surface area (cable clamp). This is enabled by different installation devices in different frequency converters. Mounting with twisted screen ends (pigtails) is to be avoided, since these spoil the screening effect at high frequencies. If it is necessary to break the screen to install a motor isolator or motor relay, the screen must be continued at the lowest possible HF impedance.

AKD 2800

■Motor thermal protection

The electronic thermal relay in UL-approved frequency converters has received the UL-approval for single motor protection, when parameter 128 Motor thermal protection has been set for ETR Trip and parameter 105 Motor current, I

has been programmed to

M, N

the rated motor current (see motor nameplate).

■Earth connection

As leak current to the earth is higher than 3.5 mA, the frequency converter must always be earthed according to prevailing national and local regulations. To guarantee that the earth cable has a good mechanical connection to terminal 95, the cable cross section

must be at least 10 mm

or 2 rated earth wires that are terminated separately. To increase safety you can install an RCD (Residual Current Device), which guarantees that the frequency converter trips when leak current becomes too high. See also RCD Application Note MN.90.GX.02.

Installation

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Load sharing

Load sharing provides the facility to connect several

frequency converters’ DC intermediate circuits.

This requires that the installation is extended using extra fuses and AC coils (see drawing below). For load sharing parameter 400 Brake function must be set to Load sharing [5].

Note that voltage levels of up to 850 V DC may occur between terminals 88 and 89.

■Tightening Torque, Power Terminals

Power and earth terminals must be tightened with the following torques:

Use 6.3 mm Faston Plugs for DC (Load Sharing). Contact Danfoss or see instructions no. MI.50.NX.02 for further information.

No. 88 89 Loadsharing

AKD Terminals Torque

[Nm]

Power mains brake 0.5-0.62803-

2875

Earth 2-3 Power mains brake 1.2-1.52880-

2882

■Access to control terminals

All terminals to the control cables are located underneath the protective plate on the front of the frequency converter. Remove the protective plate by pulling it downwards (see drawing).

Earth 2-3

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Electrical installation, control cables

Control cables must be screened/armoured. The screen must be connected to the frequency converter chassis by means of a clamp. Normally, the screen must also be connected to the chassis of the controlling unit (use the instructions for the unit in question). In connection with very long control cables and analogue signals, in rare cases depending on the installation, 50/60 Hz earth loops may occur because of noise transmitted from mains supply cables. In this connection, it may be necessary to break the screen and possibly insert a 100 nF capacitor between the screen and the chassis.

AKD 2800

MG.28.H3.02 - VLT is a registered Danfoss trademark

Installation

■Tightening torques, control cables

Control wires must be connected with a tightening torque of 0.22-0.25 Nm.

■Electrical installation, control terminals

No. Function 01-03 Relay outputs 01-03 can be used for

indicating status and alarms/warnings. 12 24 V DC voltage supply. 18-33 Digital inputs. 20, 55 Common frame for input

and output terminals. 42 Analogue output for displaying frequency,

reference, current or torque. 46 Digital output for displaying status,

warnings or alarms, as well as

frequency output. 50 +10 V DC supply

voltage for potentiometer or thermistor. 53 Analogue voltage input 0 - 10 V DC. 60 Analogue current input 0/4 - 20 mA. 67 + 5 V DC supply voltage

to Profibus. 68, 69 RS 485, Serial communication. 70 Frame for terminals 67, 68 and 69.

Normally this terminal is not to be used.

AKD 2800

■Relay connection

See parameter 323 Relay output for programming of relay output.

Nr. 01 - 02 1 - 2 make (normally open)

01 - 03 1-3break(normallyclosed)

NB!:

Please note that the cable jacket for the relay must cover the first row of control

card terminals - otherwise the galvanic isolation (PELV) cannot be maintained. Max. cable diameter: 4 mm. See drawing.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Connection examples

■Start/stop

Start/stop using terminal 18 and coasting stop using terminal 27.

Par. 302 Digital input = Start [7] Par. 304 Digital input = Coasting stop inverted [2]

For Precise start/stop the following settings are made:

Par. 302 Digital input = Precise start/stop [27] Par. 304 Digital input = Coasting stop inverted [2]

AKD 2800

■Potentiometer reference

Voltage reference via a potentiometer.

Par. 308 Analog input = Reference [1] Par. 309 Terminal 53, min. scaling =0Volt Par. 310 Terminal 53, max. scaling =10Volt

■Connection of a 2-wire transmitter

Connection of a 2-wire transmitter as feedback to terminal 60.

■Pulse start/stop

Pulse start using terminal 18 and pulse stop using terminal 19. In addition, the jog frequency is activated via terminal 29.

Par. 302 Digital input = Pulse start [8] Par. 303 Digital input = Stop inverted [6] Par. 304 Digital input = Coasting stop inverted [2] Par. 305 Digital input = Jog [13]

Par. 314 Analog input = Feedback [2] Par. 315 Terminal 60, min. scaling =4mA Par. 316 T erminal 60, max. scaling =20mA

Installation

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Display readout

The frequency converter shows the present output frequency in Hertz [Hz].

The frequency converter shows the present output current in Amps [A].

The frequency converter shows the present output voltage in Volt [V].

The frequency converter shows the intermediate circuit voltage in Volt [V].

The frequency converter shows the calculated output in kilowatt [kW].

notrun

This message is shown if an attempt is made to change a parameter value while the motor is running. Stop the motor to change the parameter value.

■Warnings/alarm messages

A warning or an alarm will appear in the display

as a numerical code Err. xx. A warning will

be shown on the display until the fault has been corrected, while an alarm will continue to flash until the [STOP/RESET] key is activated. The table shows the various warnings and alarms, and whether the fault locks the frequency converter. After a Trip locked the mains supply is cut off and the fault is corrected. The mains supply is reconnected and the frequency converter is reset. The frequency converter is now ready. A Trip can be reset manually in three ways:

1. Via the operating key [STOP/RESET].

2. Via a digital input.

3. Via serial communication.

It is also possible to choose an automatic reset in parameter 405 Reset function. When a cross appears in both warning and alarm, this can mean that a warning comes before an alarm. It can also mean that it is possible for the user to programme whether a warning or an alarm will appear for a given fault. For example, this is possible in parameter 128 Motor thermal protection.Afteratripthemotorwillcoast, and alarm and warning will blink on the frequency converter, but if the fault disappears only the alarm will blink. After a reset the frequency converter will be ready to start operation again.

No. Description Warning Alarm Trip

locked 2 Live zero error (LIVE ZERO ERROR) X X X 4 Mains phase loss (MAINS PHASE LOSS) X X X 5 Voltage warning high (DC LINK VOLTAGE HIGH) X 6 Voltage warning low (DC LINK VOLTAGE LOW) X 7 Overvoltage (DC LINK OVERVOLT) X X X 8 Undervoltage (DC LINK UNDERVOLT) X X X 9 Inverter overload (INVERTER TIME) X X 10 Motor overloaded ( MOTOR, TIME) X X 11 Motor thermistor (MOTOR THERMISTOR) X X 12 Current limit (CURRENT LIMIT) X X 13 Overcurrent (OVERCURRENT) X X X 14 Earth fault (EARTH FAULT) X X 15 Switch mode fault (SWITCH MODE FAULT) X X 16 Short-circuit (CURR. SHORT CIRCUIT) X X 17 Serial communication timeout (STD BUS TIMEOUT) X X 33 Out of frequency range (OUT FREQ RNG/ROT LIM) X 35 Inrush fault (INRUSH FAULT) X X 36 Overtemperature (OVERTEMPERATURE) X X 37-45 Internal fault (INTERNAL FAULT) X X 50 AMT not possible X 51 AMT fault re. nameplate data (AMT TYPE.DATA FAULT) X 54 AMT wrong motor (AMT WRONG MOTOR) X 55 AMT timeout (AMT TIMEOUT) X 56 AMT warning during AMT (AMT WARN. DURING AMT) X 99 Locked (LOCKED) X

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

LED indication

Warning yellow

Alarm red

Trip locked yellow and red

WARNING/ALARM 2: Live zero fault

The voltage or current signal on terminal 53 or 60 is below 50% of the preset value in parameter 309 or 315 Terminal, min . scaling.

WARNING/ALARM 4: Mains phase fault

No phase on mains supply side. Check the supply voltage to the frequency converter. This fault is only active in 3-phase mains supply. T occur when the load is pulsing. In this instance the pulses must be dampened, e.g. using an inertia disc.

WARNING 5: Voltage warning high

Iftheintermediatecirc Voltage warning high the frequency converter will give a warning and the motor will continue to run unchanged. If the UDC warning limit, the inverter will trip after a set time. The time depends on the device, and is set at 5 - 10 sec. Note: The alarm 7 (overvoltage). A voltage warning can occur when the connected mains voltage is too high. Check whether th converter, see Technical data. A voltage warning can also occur if the motor frequency is reduced too quic k

WARNI

If the intermediate circuit voltage (UDC) is lower than Voltage warning low the frequency converter will give a war A voltage warning can occur when the connected mains voltage is too low. Check whether the supply

oltage is suitable for the frequency converter, see

v Technical data. When the frequency converter is switched off a brief warning 6 (and warning 8) appears.

WARNING/ALARM 7: Overvoltage

If the intermediate voltage (UDC) goes over the

inverter’s Overvoltage limit theinverterwillbeswitched

off until the UDC has once more fallen below the overvoltage limit. If the UDC remains above the overvoltag limit the inverter will trip after a set time. The time depends on the device, and is set at 5

- 10 sec. An overvoltage in the UDC can occur when the motor frequency is reduced too quickly due to ramp down time being too short. When the inverter is switched off a trip reset is generated. Note: Voltage warning high (warning 5) will thus also be able to generate an alarm 7.

e supply voltage is suitable for the frequency

ly due to ramp down time being too short.

NG 6: Voltage warning low

ning and the motor will continue to run unchanged.

uit voltage (UDC) is higher than

remains above the voltage

frequency converter will trip with an

he alarm can also

WARNING/ALARM 8: Undervoltage

If the intermediate circuit voltage (UDC) is lower

than the inverter’s Undervoltage limit the inverter

will be switched off until the UDC once more goes above the undervoltage limit. If the UDC remains under the undervoltage limit, the inverter will trip after a set time. The time depends on the device, and is set at 2 - 15 sec. An undervoltage can occur when the connected mains voltage is too low. Check whether the supply voltage is suitable for the frequency converter, see Technical data.When the frequency converter is switched off a alarm 8 (and alarm 6) is displayed briefly and a trip reset is generated. Note: Voltage warning low (warning 6) will thus also be able to generate an alarm 8.

WARNING/ALARM 9: Inverter overload

Electronic thermal inverter protection indicates that the frequency converter is close to tripping due to overloading (output current too high for too long). The counter for electronic thermal inverter protection gives a warning at 98% and trips at 100% accompanied by an alarm. The frequency converter cannot be reset until the counter drops below 90%. This fault arises because the frequency converter has been overloaded for too long.

WARNING/ALARM 10: Motor overloaded

According to the electronic thermal inverter protection the motor is too hot. In parameter 128 the user can select whether the frequency converter should emit a warning or an alarm when the counter reaches 100%. This fault is due to the motor being overloaded by more than 100% for too long. Check that motor parameters 102-106 are set correctly.

WARNING/ALARM 11: Motor thermistor

The motor is too hot or the thermistor/thermistor connection has been disconnected. In parameter 128 Thermal motor protection the user can select whether the frequency transformer emits a warning or an alarm. Check that the PTC thermistor is correctly connected between terminals 18, 19, 27 or 29 (digital input) and terminal 50 (+ 10 V supply).

WARNING/ALARM 12: Current limit

The output current is greater than the value in parameter 221 Current Limit converter will trip after a set time, selected in parameter 409 Trip delay overcurrent.

WARNING/ALARM 13: Overcurrent

The inverter’s peak current limit (approx. 200%

of rated output current) has been exceeded. The warning will last approx. 1-2 sec, and the frequency

, and the frequency

LIM

2800

All about AKD

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

converter will then trip and emit an alarm. Switch off the frequency converter and check whether the motor shaft can be turned, and whether the size of the motor is suitable for the frequency converter.

ALARM 14: Earth fault

There is a discharge from the output phases to earth, either in the cable between the frequency converter and the motor, or in the motor. Turn off the frequency converter and remove the earth fault.

ALARM 15: Switch mode fault

Fault in switch mode power supply (internal supply). Contact your Danfoss supplier.

ALARM: 16: Short-circuit

There is a short-circuit on the motor terminals or in the motor. Disconnect the mains supply to the frequency converter and remove the short-circuit.

WARNING/ALARM 17: Serial communication timeout

There is no serial communication to the frequency converter. The warning will only be active when 514 Bus timeout function is set to a value other than OFF. If parameter 514 Bus t imeout function is set to Stop and trip [5], it will first give a warning and then ramp down and trip out accompanied by an alarm. Parameter 513 Bus timeout can if required be increased.

WARNING 33: Out of frequency range

This warning is active if the output frequency has reached Output frequency low limit (parameter 201) or Output frequency high limit (parameter 202). If the frequency converter is in Process regulation, closed loop (parameter 100) the warning will be active in the display. If the frequency converter is in another mode than Process regulation, closed loop, bit 008000 Out of frequency range in extended status word will be active, but there will not be a warning in the display.

fault cannot be reset until the temperature has dropped to below 70 °C. The tolerance is ± 5 °C. The temperature can be caused by the following:

- The ambient temperature too high.

- Motor cable too long.

- Too high mains voltage.

ALARM 37-45: Internal fault

If one of these failures occurs, please contact Danfoss.

Alarm 37, internal fault number 0: Communication fault between control card and BMC.

Alarm 38, internal fault number 1: Flash EEPROM fault on control card.

Alarm 39, internal fault number 2: RAM fault on control card.

Alarm 40, internal fault number 3: Calibration constant in EEPROM.

Alarm 41, internal fault number 4: Data values in EEPROM.

Alarm 42, internal fault number 5: Fault in motor parameter database.

Alarm 43, internal fault number 6: General power card fault.

Alarm 44, internal fault number 7: Minimum software version of control card or BMC.

Alarm 45, internal fault number 8: I/O fault (digital input/output, relay or analog input/output).

NB!:

When restarting after an alarm 38-45, the frequency converter will display an alarm 37. In parameter 615 the actual

alarm code can be read.

ALARM 35: Inrush fault

This alarm occurs when the frequency converter has been connected to the mains supply too many times within 1 minute.

WARNING/ALARM 36: Overtemperature

If the temperature inside the power module rises above 75 - 85 °C (depending on the device) the frequency converter will emit a warning, and the motor will continue to run unchanged. If the temperature continues to rise, the switch frequency is reduced automatically. See Temperature-dependent switching frequency. If the temperature inside the power module rises above 92 - 100 °C (depending on the unit) the frequency converter will cut out. The temperature

ALARM 50: AMT not possible

One of the following three possibilities can occur:

- The calculated R

value falls outside permitted limits.

- The motor current in at least one of the motorphasesistoolow.

- The motor in use is too small for AMT calculations to be performed.

ALARM 51: AMT Fault regarding nameplate data

There is inconsistency between the registered motor data. Check the motor data for the relevant setup.

ALARM 52: AMT missing motor phase

The AMT function has detected a missing motor phase.

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

A frequency converter warning is given while

ALARM 5 5: AMT timeout

Calculations are taking too long, possibly due to noise on the motor cables.

ALARM 56: AMT warning during AMT

Alarm/warning limits:

Without brake With brake Without brake With brake

AKD2800 1/3x200-240V

[VDC]

1 / 3 x 200 - 240 V

[VDC] Undervoltage 215 215 410 410 Voltage warning low 230 230 440 440 Voltage warning high 385 400 765 800 Overvoltage 410 410 820 820

AMT is being performed.

WARNING 99: Locked

See parameter 18.

3 x 380 - 480 V [VDC]

The voltages stated are the intermediate circuit voltage of the frequency converter with a tolerance

of ± 5 %. The corresponding line voltage is the intermediate circuit voltage divided by 1,35.

MG.28.H3.02 - VLT is a registered Danfoss trademark

2800

All about AKD

AKD 2800

■Special conditions

■Aggressive environments

As all other electronic equipment, a frequency converter contains a number of mechanical and electronic components, which to a varying extent are vulnerable to environmental impact.

Consequently, the frequency converter is not to be installed in environments, where

liquids, particles or gases are in the air that would impact and damage the electronics. Unless the necessary measures are taken to protect the frequency converter, there is a risk of stoppages, which reduce the service life of the frequency converter.

Liquids can be carried through the air and condense in the frequency converter. In addition, liquids may facilitate galvanic corrosion of components and metal parts. Steam, oil and brine may cause corrosion of components and metal parts. In these areas, it is recommended to fit units in cabinets. As a minimum, cabinets should be enclosure IP 54.

installations. Indicators that there are aggressive gases in the air are copper rails and cable ends that are black on existing electrical installations.

■Derating for ambient temperature

The ambient temperature (T

AMB,MAX

temperature allowed. The average (T

) is the maximum

AMB,AVG

measured over 24 hours, must be at least 5 °C lower. If the frequency converter operates at temperatures above 45 °C, a derating of the rated output current is necessary.

)

articles in the air, such as dust particles, may lead

P to mechanical, electrical and thermal faults on the frequency converter. Typical indicators that there are too many particles in the air are dust particles around the frequency converter fan. In very dusty areas, cabinet fitting of units is recommended. As

minimum, cabinets should be enclosure IP 54.

ggressive gases, such as sulphur, nitrogen and

A chlorine compounds, together with high humidity and temperature, facilitate possible chem

ical processes on the components of the frequency converter. These chemical processes quickly impact and damage the electronics. In these areas,

cabinet fitting with fresh-air circulation in the cabinet is recommended, thereby ensuring that aggressive gases are kept away from the frequency conver

ter.

NB!:

Fitting of frequency converters in aggressive environments increases the risk of stoppages, in addition to considera

bly reducing

the service life of the unit.

■ Derating for high switching frequency - VLT 2800

A higher switching frequency (to be set in parameter 411, Switching frequency) leads to higher losses in the electronics of the frequency converter.

VLT 2800 has a pulse pattern in which it is possible to set the switching frequency from 3.0- 10.0/14.0 kHz.

The frequency converter will automatically derate the rated output current I

when the switching

VLT,N,

frequency exceeds 4.5 kHz.

In both cases, the reduction is carried out linearly, down to 60% of I

VLT,N

Before the frequency converter is installed, it must be checked whether there are liquids, particles or gases in the air. Thi

s can be done by looking at existing installations in the same environment. Typical indicators of harmful airborne liquids are water or oil on metal parts

or corrosion of metal parts. Too many dust particles are typically observed on top of installation cabinets and on existing electrical

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Derating for long motor cables

The adjustable frequency drive has been designed for a 240 ft (75 m) unscreened/unarmored cable or a 80 ft (25 m) screened/armored cable and a motor cable with a rated cross-section. If a cable with a larger cross-section is required, it is recommended to reduce the output current by 5% for each step that the cable cross-section is increased. (Increased cable cross-section leads to increased capacitance to ground, and thus to an increased ground leakage current.)

■Galvanic Isolation (PELV)

PELV (Protective Extra Low Voltage) insulation is achieved by inserting galvanic isolators between the control circuits and circuits that are connected to the mains potential. The frequency converter is designed to meet the requirements for protective separation by means of having the necessary creepage and clearance distances. These requirements are described in standard EN 50 178. It is also a requirement that the installation is carried out as described in local/national regulations regarding PELV.

- TT network with maximum 300 Vrms between phase and earth.

- TN network with maximum 300 Vrms between phase and earth.

- IT network with maximum 400 Vrms between phase and earth.

In order to maintain PELV all connections made to the control terminals must be PELV, e.g. thermistor must be reinforced/double insulated.

All control terminals, terminals for serial communication and relay terminals are safely separated from the mains potential, i.e. they comply with the PELV requirements. Circuits that are connected to control terminals 12, 18, 19, 20, 27, 29, 33, 42, 46, 50, 53, 55 and 60 are galvanically connected to one another. Serial communication connected to fieldbus is galvanically insulated from the control terminals, although this is only a functional insulation. The relay contacts on terminals 1 - 3 are insulated from the other control circuits with reinforced/double isolation, i.e. PELV is observed for these, even though there is mains potential at the relay terminals.

The circuit elements described below form the safe electric separation. They fulfill the requirements for reinforced/double insulation and associated testing pursuant to EN 50 178.

1. Transformer and optical separation in voltage supply.

2. Optical insulation between Basic Motor Control and control card.

3. Insulation between the control card and the power part.

4. Relay contacts and terminals relating to other circuits on the control card.

2800

All about AKD

PELV insulation of the control card is guaranteed under the following conditions:

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■EMC emission

The following system results are achieved on a system consisting of a AKD Series 2800 with

AKD 2803-2875 Emission

Industrial environment Residential, commercial and light industry

EN 55011 class 1A EN 55011 class 1B

Setup Cable-borne

150kHz-30MHz

400Vversionwith1A RFI filter

screened/armoured 400Vversionwith1A RFI filter (R5: For IT mains) 200Vversionwith1A RFI filter

200Vversionwith1A RFI filter (R4: For use with RCD) 400 V version with 1A+1B RFI filter

200 V version with 1A+1B RFI filter

AKD 2880-2882 Emission

Setup Cable-borne

screened/armoured

Yes

25 m

Yes

40 m

Yes

20 m

Yes

50 m

Yes

100 m

Industrial environment Residential, commerce and light industry

EN 55011 class 1A EN 55011 class 1B

150kHz-30MHz

30 MHz - 1 GHz

25 m screened/ar-

5 m screened/ar-

40 m screened/ar-

20 m screened/ar-

50 m screened/ar-

screened/armoured

30 MHz - 1 GHz

screened/armoured control cable, control box with potentiometer, screened/armoured motor cable and screened/armoured brake.

Radiated

Yes

moured

Yes

moured

Yes

moured

Yes

moured

Yes

moured

Yes

100 m

Radiated

Cable-borne

150 kHz - 30 MHz

No No

Yes

15 m screened/ar-

moured

Yes

7 m screened/ar-

moured

Yes

25 m screened/ar-

moured

Yes

40 m screened/ar-

moured

Cable-borne

150 kHz - 30 MHz

Radiated

30 MHz - 1 GHz

Radiated

30 MHz - 1 GHz

400Vversionwith1B RFI filter

Yes

50 m

1. For AKD 2822-2840 3 x 200-240 V the same values apply as for the 400 V version with 1A RFI filter.

• EN 55011: Emi

ssion

Limits and methods of measurement of radio disturbance characteristics of industrial, scien-

d medical (ISM) high-frequency equipment.

tific an

Class 1A: Equipment used in an industrial environment.

Class 1B: Equipment used in areas with a public supply network

ntial, commerce and light industry).

(reside

Yes

50 m

Yes

50 m

NB!:

This is a product of the restricted sales distribution class according to IEC61800-3.

In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

■UL Standard

This device is UL-approved.

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■General technical data

Mains supply (L1, L2, L3):

Supply voltage AKD 2803-2815 220-240 V (N, L1) ..................................................... 1 x 220/230/240 V ±10%

Supply voltage AKD 2803-2840 200-240 V .................................................... 3 x 200/208/220/230/240 V ±10%

Supply voltage AKD 2805-2882 380-480 V .................................................... 3 x 380/400/415/440/480 V ±10%

Supply frequency ..................................................................................................................................... 50/60 Hz

Max. imbalance on supply voltage ........................................................................ ± 2.0% of rated supply voltage

True Power Factor (λ) ................................................................................................... 0.90 nominal at rated load

Displacement Power Factor (cos ϕ) ........................................................................................... near unity (> 0.98)

Number of connections at supply input L1, L2, L3 ........................................................................... 2 times/min.

Max. short-circuit value ......................................................................................................................... 100,000 A

Outputdata(U,V,W):

Output voltage ............................................................................................................. 0 - 100% of supply voltage

Output frequency .......................................................................................................... 0.2 - 132 Hz, 1 - 1000 Hz

Rated motor voltage, 200-240 V units ............................................................................. 200/208/220/230/240 V

Rated motor voltage, 380-480 V units ...................................................................... 380/400/415/440/460/480 V

Rated motor frequency ............................................................................................................................ 50/60 Hz

Switching on output ................................................................................................................................ Unlimited

Ramp times ................................................................................................................................. 0.02 - 3600 sec.

Torque characteristics:

Starting torque (parameter 101 Torque characteristic = Constant torque) ..................................... 160% in 1 min.

Starting torque (parameter 101 Torque characteristics = Variable torque) ..................................... 160% in 1 min.

Starting torque (parameter 119 High starting torque ) ................................................................ 180% for 0.5 sec.

Overload torque (parameter 101 Torque characteristic = Constant torque) ................................................... 160%

Overload torque (parameter 101 Torque characteristic = Variable torque) ..................................................... 160%

*Percentage relates to frequency converter’s nominal current.

Control card, digital inputs:

Number of programmable digital inputs .............................................................................................................. 5

Terminal number ....................................................................................................................... 18, 19, 27, 29, 33

Voltage level ........................................................................................................ 0 - 24 V DC (PNP positive logic)

Voltage level, logic ’0’ .............................................................................................................................. < 5VDC

Voltage level, logic ’1’ ............................................................................................................................ > 10 VDC

Maximum voltage on input ....................................................................................................................... 28 V DC

Input resistance, R

(terminals 18, 19, 27, 29) ................................................................................... approx. 4 k

Input resistance, Ri(terminal 33) ...................................................................................................... approx. 2 k

All digital inputs are galvanically isolated from the supply voltage (PELV) and other highvoltage terminals. See section entitled Galvanic Isolation.

Control card, analog inputs:

Number of analog voltage inputs .................................................................................................................. 1 pcs.

Terminal number ................................................................................................................................................ 53

Voltage level ...................................................................................................................... 0 - 10 V DC (scaleable)

Input resistance, R

........................................................................................................................ approx. 10 k

Max. voltage .................................................................................................................................................. 20 V

Number of analog current inputs .................................................................................................................. 1 pcs.

Terminal number ................................................................................................................................................ 60

Current level ...................................................................................................................... 0/4 - 20 mA (scaleable)

Input resistance, R

......................................................................................................................... approx. 300

Max. current ................................................................................................................................................ 30 mA

2800

All about AKD

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Resolution for analog inputs .......................................................................................................................... 10 bit

Accuracy of analog inputs ............................................................................................ Max. error 1% of full scale

Scan interval .......................................................................................................................................... 13.3 msec

The analog inputs are galvanically isolated from the supply voltage (PELV) and other highvoltage terminals. See section entitled Galvanic Isolation.

Control card, pulse inputs:

Number of programmable pulse inputs ................................................................................................................ 1

Terminal number ................................................................................................................................................ 33

Max. frequency at terminal 33 ................................................................................................ 67.6 kHz(Push-pull)

Max. frequency at terminal 33 ............................................................................................. 5 kHz (open collector)

Min. frequency at terminal 33 ......................................................................................................................... 4 Hz

Voltage level ........................................................................................................ 0 - 24 V DC (PNP positive logic)

Voltage level, logic ’0’ .............................................................................................................................. < 5VDC

Voltage level, logic ’1’ ............................................................................................................................ > 10 VDC

Maximum voltage on input ....................................................................................................................... 28 V DC

Input resistance, R

Scan interval .......................................................................................................................................... 13.3 msec

Resolution ...................................................................................................................................................... 10 bit

Accuracy (100 Hz- 1 kHz) terminal 33 ...................................................................... Max. error: 0.5% of full scale

Accuracy (1 kHz - 67.6 kHz) terminal 33 .................................................................. Max. error: 0.1% of full scale

The pulse input (terminal 33) is galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. See section entitled Galvanic Isolation.

.......................................................................................................................... approx. 2 k

Control card, digital/frequency output:

Number of programmable digital/pulse outputs .......................................................................................... 1 pcs.

Terminal number ................................................................................................................................................ 46

Voltage level at digital/frequency output ............................................................................ 0 - 24 V DC (O.C PNP)

Max. output current at digital/frequency output ......................................................................................... 25 mA.

Max. load at digital/frequency output ........................................................................................................... 1 k

Max. capacity at frequency output .............................................................................................................. 10 nF

Minimum output frequency at frequency output ........................................................................................... 16 Hz

Maximum output frequency at frequency output ........................................................................................ 10 kHz

Accuracy on frequency output ............................................................................... Max. error: 0.2 % of full scale

Resolution on frequency output ..................................................................................................................... 10 bit

The digital output is galvanically isolated from the supply voltage (PELV) and other highvoltage terminals. See section entitled Galvanic Isolation.

Control card, analog output:

Number of programmable analog outputs ............................................................................................................ 1

Terminal number ................................................................................................................................................ 42

Current range at analog output .......................................................................................................... 0/4 - 20 mA

Max. load to common at analog output ...................................................................................................... 500

Accuracy on analog output ..................................................................................... Max. error: 1.5 % of full scale

Resolution on analog output .......................................................................................................................... 10 bit

The analog output is galvanically isolated from the supply vo ltage (PELV) and other highvoltage terminals. See section entitled Galvanic Isolation.

Control card, 24 V DC output:

Terminal number ................................................................................................................................................ 12

Max. load .................................................................................................................................................. 130 mA

The 24 V DC supply is galvanically isolated from the supply voltage (PELV) , but has the same potential as the analogue and digital inputs and outputs. See section entitled Galvanic Isolation.

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Control card, 10 V DC output:

Terminal number ................................................................................................................................................ 50

Output voltage .................................................................................................................................. 10.5 V ±0.5 V

Max. load .................................................................................................................................................... 15 mA

The 10 V DC supply is galvanically isolated from the supply voltage (PELV) and other highvoltage terminals. See section entitled Galvanic Isolation.

Control card, RS 485 serial communication:

Terminal number ....................................................................................................... 68 (TX+, RX+), 69 (TX-, RX-)

Terminal number 67 ...................................................................................................................................... + 5 V

Terminal number 70 ................................................................................... Common for terminals 67, 68 and 69

Full galvanic isolation. See section entitled Galvanic Isolation.

Relay outputs:

Number of programmable relay outputs ............................................................................................................... 1

Terminal number, control card ............................................................................................ 1-3 (break), 1-2 (make)

Max. terminal load (AC1) on 1-3, 1-2, control card ...................................................... 250 V AC, 2 A, 500 V AC

Max. terminal load (DC1 (IEC 947)) on 1-3, 1-2, control card ......................... 25 V DC, 2 A /50 V DC, 1A, 50W

Min. terminal load (AC/DC) on 1-3, 1-2, control card .................................... 24 V DC 10 mA, 24 V AC 100 mA

The relay contact is separated from the rest of the circuit by strengthened isolation. See section entitled Galvanic Isolation.

1) Rated values for up to 300,000 operations. At inductive loads the number of operations are reduced by 50%, alternatively the current can be reduced by 50%, thus the 300,000 operations are maintained.

Cable lengths and cross sections:

Max. motor cable length, screened/armoured cable .................................................................................... 4

Max. motor cable length, unscreened/unarmoured cable ............................................................................ 75 m

Max. motor cable length, screened/armoured cable and motor coil ........................................................... 100 m

Max. motor cable length, unscreened/unarmoured

cable and motor coil .................................................. 200 m

Max. motor cable length, screened/armoured cable and RFI/1B filter ............................................ 200 V, 100 m

Max. motor cable length, screened/armoured cable and RFI/1B filter .............................................. 400 V, 25 m

Max. motor cable length, screened/armoured cable a

nd RFI 1B/LC filter ......................................... 400 V, 25 m

Max. cross section to motor, see next section.

Max. cross section to control wires, rigid wire ................................................ 1.5 mm

Max. cross section to control cables, flexible ca

ble .................................................................... 1 mm

Max. cross section to control cables, cable with enclosed core ............................................... 0.5 mm

/16AWG(2x0.75mm2)

/18 AWG

/20 AWG

When complying with EN 55011 1A and EN 55011 1B the motor cable must in certain instances be reduced. See EMC emission.

Control characteristics:

Frequency range ........................................................................................................... 0.2 - 132 Hz, 1 - 1000 Hz

Resolution of output frequency ........................................................................................ 0.013 Hz, 0.2 - 1000 Hz

Repeat accuracy of Precise start/stop(terminals 18, 19) ................................................................... ≤ ±0.5msec

System response time (terminals 18, 19, 27, 29, 33)

........................................................................ ≤ 26.6 msec

Speed control range (open loop) ................................................................................. 1:10 of synchronous speed

Speed control range (closed loop) ........................................................................... 1:120 of synchronous speed

Speed accuracy (open loop) .................................................................. 150 - 3600 rpm: Max. err

or of ±23 rpm

Speed accuracy (closed loop) ................................................................ 30 - 3600 rpm: Max. error of ±7.5 rpm

All control characteristics are based on a 4-pole asynchronous motor

MG.28.H3.02 - VLT is a registered Danfoss trademark

2800

All about AKD

AKD 2800

Surroundings:

Enclosure ....................................................................................................................................................... IP 20

Vibration test ................................................................................................................................................. 0.7 g

Max. relative humidity .................................................................................................. 5% - 85% during operation

Ambient temperature ........................................................................... Max. 45 °C (24-hour average max. 40 °C)

Min. ambient temperature during full-scale operation .................................................................................... 0 °C

Min. ambient temperature at reduced performance .................................................................................. - 10 °C

Temperature during storage/transport .......................................................................................... -25 - +65/70 °C

Max. altitude above sea level .................................................................................................................... 1000 m

EMC standards, Emission ............................................................................ EN 50081-2, EN 61800-3, EN 55011

EMC standards, Immunity ................................................................................................................................. EN

50082-1/2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61800-3

Safeguards:

• Electronic thermal motor protection against overload.

• Temperature monitoring of the power module ensures that the frequency converter cuts

out if the temperature reaches 100 °C. An overload temperature cannot be reset until the temperature of the power module is below 70 °C.

• The frequency converter is protected against short-circuits on motor terminals U, V, W.

• If a mains phase is missing, the frequency converter will cut out.

• Monitoring of the intermediate circuit voltage ensures that the frequency converter cuts out if

the intermediate circuit voltage is too low or too high.

• The frequency converter is protected against earth fault on motor terminals U, V, W.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Technical data, mains supply 1 x 220 -

240 V/3 x 200-240 V

AKD 2800

According to . international

Type 2803 2805 2807 2811 2815 2822 2840

standards

Output current I (3 x 200-240V) I

MAX

Output power (230 V) S Typical shaft output P Typical shaft output P Max. cable cross

[mm2/AWG]

[A] 2.2 3.2 4.2 6.0 6.8 9.6 16

INV.

(60s) [A] 3.5 5.1 6.7 9.6 10.8 15.3 25.6

[KVA] 0.9 1.3 1.7 2.4 2.7 3.8 6.4

INV.

[kW] 0.37 0.55 0.75 1.1 1.5 2.2 3.7

M,N

[HP] 0.5 0.75 1.0 1.5 2.0 3.0 5.0

M,N

section, motor

Input current I (1 x 220-240 V) I

L,MAX

Input current I (3 x 200-240 V) I Max. cable cross

L,MAX

[mm2/AWG]

[A] 5.9 8.3 10.6 14.5 15.2 - -

L,N

(60s) [A] 9.4 13.3 16.7 23.2 24.3 - -

[A] 2.9 4.0 5.1 7.0 7.6 8.8 14.7

L,N

(60s) [A] 4.6 6.4 8.2 11.2 12.2 14.1 23.5

section, power Max. pre-fuses [A]/UL2)[A] 20/20 20/20 20/20 20/20 20/20 20/20 25/25 Efficiency Power loss at 100%

[%]95959595959595

[W]2435486994125231 load Weight [kg] 2.0 2.0 2.0 2.0 2.0 3,7 6.0 Enclosure

type IP 20 IP 20 IP 20 IP 20 IP 20 IP 20 IP 20

1. American Wire Gauge. Max. cable cross section is the largest cable cross section that can be attached to the terminals. Always observe national and local regulations.

2. Type gG pre-fuses must be used. If you want to maintain UL/cUL you must use pre-fuses of the type Bussmann KTN-R 200 V, KTS-R 500 V or Ferraz Shawmut, type ATMR (max. 30A). The fuses must be placed for protection in a circuit that is capable of supplying a maximum of 100,000 amps RMS (symmetrical), 500 V maximum.

3. Measured using a 25 m screened/armoured motor cable with a rated load and rated frequency.

4. IP20 is standard for AKD 2805-2875, whereas NEMA 1 is an option.

4/10 4/10 4/10 4/10 4/10 4/10 4/10

MG.28.H3.02 - VLT is a registered Danfoss trademark

2800

All about AKD

AKD 2800

■Technical data, mains supply 3 x 380 - 480 V

According to international standards Type 2805 2807 2811 2815 2822 2830

Output current I

(3 x 380-480V) I

Output power (400 V) S

Typical shaft output P

Max. cable cross

sect ion, motor

MAX

[mm2/AWG]

[A] 1.7 2.1 3.0 3.7 5.2 7.0

INV.

(60s) [A] 2.7 3.3 4.8 5.9 8.3 11.2

[KVA] 1.1 1.7 2.0 2.6 3.6 4.8

INV.

[kW] 0.55 0.75 1.1 1.5 2.2 3.0

M,N

[HP] 0.75 1.0 1.5 2.0 3.0 4.0

M,N

4/10 4/10 4/10 4/10 4/10 4/10

Input current I

(3 x 380-480 V) I

Max. cable cross

sect ion, power

Max. pre-fuses [A]/UL2)[A] 20/20 20/20 20/20 20/20 20/20 20/20

Efficiency

Power loss at 100%

load

Weight [kg] 2.1 2.1 2.1 2.1 3.7 3.7

Enclosure

According to international standards Type 2840 2855 2875 2880 2881 2882

Output current I

(3 x 380-480V) I

Output power (400 V) S

Typical shaft output P

Max. cable cross

section, motor

Input current I

(3 x 380-480 V) I

Max. cable cross

section, power

Max. pre-fuses [A]/UL2)[A] 20/20 25/25 25/25 50/50 50/50 50/50

Efficiency

Power loss at 100%

load

Weight [kg] 3.7 6.0 6.0 18.5 18.5 18.5

Enclosure

L,MAX

[mm2/AWG]

MAX

[mm2/AWG]

L,MAX

[mm2/AWG]

1. American Wire Gauge. Max. cable cross section is the largest cab

le cross section that can

[A] 1.6 1.9 2.6 3.2 4.7 6.1

L,N

(60s)[A] 2.6 3.0 4.2 5.1 7.5 9.8

4/10 4/10 4/10 4/10 4/10 4/10

[%]96969696 9696

[W] 28 38 55 75 110 150

type IP 20 IP 20 IP 20 IP 20 IP 20 IP 20

[A] 9.1 12 16 24 32.0 37.5

INV.

(60s) [A] 14.5 19.2 25.6 38.4 51.2 60.0

[KVA] 6.3 8.3 11.1 16.6 22.2 26.0

INV.

[kW] 4.0 5.5 7.5 11.0 15.0 18.5

M,N

[HP] 5.0 7.5 10.0 15.0 20.0 25.0

M,N

4/10 4/10 4/10 16/6 16/6 16/6

[A] 8.1 10.6 14.9 24.0 32.0 37.5

L,N

(60s)[A] 13.0 17.0 23.8 38.4 51.2 60

4/10 4/10 4/10 16/6 16/6 16/6

[%]969696 97 97 97

[W] 200 275 372 412 562 693

type IP20 IP20 IP20 IP20/

NEMA 1

IP20/

NEMA 1

IP20/

NEMA 1

4. IP20 is standard for AKD 2805-2875, whereas NEMA 1 is an option

. be attached to the terminals. Always observe national and local regulations.

2. Type gG pre-fuses must

be used. If you want to maintain UL/cUL you must use pre-fuses of the type Bussmann KTN-R 200 V, KTS-R 500 V or Ferraz Shawmut, typ

e ATMR (max. 30A). The fuses must be placed for protection in a circuit that is capable of supplying a maximum of 100,000 amps RMS (symmetrical

), 500 V maximum.

3. Measured using a 25 m screened/armoured motor cable with a rated load and rated frequency.

MG.28.H3.02 - VLT is a registered Danfoss trademark

■Factory Settings

AKD 2800

PNU#Parameter

description

Factory setting 4-setup Conv.

index

Data

type 001 Language English No 0 5 002 Local/remote operation Remote-controlled Yes 0 5 003 Local reference 000,000.000 Yes -3 4 004 Active Setup Setup 1 No 0 5 005 Programming Setup Active Setup No 0 5 006 Setup copying No copying No 0 5 007 LCP copy No copying No 0 5 008 Display scaling 1.00 Yes -2 6 009 Large display readout Frequency [Hz] Yes 0 5 010 Small display line 1.1 Reference [%] Yes 0 5 011 Small display line 1.2 Motor current [A] Yes 0 5 012 Small display line 1.3 Power [kW] Yes 0 5 013 Local control Remote control

Yes 0 5

as par. 100 014 Local stop/reset Active Yes 0 5 017 Local reset of trip Active Yes 0 5 018 Data change lock Not locked Yes 0 5 019 Operating mode at power up,

Auto Restart

local control 024 User-defined Quick Menu Not active No 0 5 025 Quick Menu Setup 000 No 0 6

4-Setup:

’Yes’ means that the parameter can be programmed

individually in each of the four Setups, i.e. one single

parameter can have four different data values. ’No’

means that the data value will be the same in all Setups.

onversion index:

C This number refers to a conversion figure to be used when writing or reading via serial communication with a frequency converter. See Data character in Serial communication.

ata type:

D Data type shows the type and length of the telegram.

Data type Description 3 Integer 16 4Inte

ger 32 5 Unsigned 8 6 Unsigned 16 7Unsi

gned 32

9Textstring

MG.28.H3.02 - VLT is a registered Danfoss trademark

2800

All about AKD

AKD 2800

PNU#Parameter-

description

Factory setting 4-setup Conv.

index

Data-

type 100 Configuration Speed reg., open loop Yes 0 5 101 Torque characteristics Constant torque Yes 0 5 102 Motor power P

M,N

103 Motor voltage U 104 Motor frequency f 105 Motor current I

M,N

depends on unit Yes 1 6 depends on unit Yes 0 6 50 Hz Yes -1 6

depends on motor selected Yes -2 7 106 Rated motor speed depends on par. 102 Yes 0 6 107 Automatic motor adjustment Optimisation off Yes 0 5 108 Stator resistance R 109 Stator reactance X

depends on motor selected Yes -3 7

depends on motor selected Yes -2 7 117 Resonance dampening OFF 119 High Starting Torque 0.5 sec. 122 Function at stop Coast Yes 0 5 123 Min. frequency for activating

0.0 Hz

function at stop 126 DC braking time 10 sec. Yes -1 6 127 DC brake engaging frequency OFF Yes -2 6 128 Thermal motor protection No protection Yes 0 5 130 Start frequency 0.0 Hz 132 DC brake voltage 0% Yes 0 5 133 Start voltage depends on unit Yes -2 6 134 Load compensation 100% Yes -1 6 136 Slip compensation 100% Yes -1 3 137 DC hold voltage 0% Yes 0 5

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

PNU#Parameter

description

Factory setting 4-setup Conv.

index

Data

type 200 Frequency output - direction Only clockwise [0] 201 Output frequency,

low limit f

MIN

202 Output frequency,

high limit f

MAX

204 Minimum ref Ref 205 Maximum ref Ref

MIN

MAX

30 Hz Yes -1 6

60 Hz Yes -1 6

30 Hz Yes -3 4

60 Hz Yes -3 4 207 Ramp-up time 1 0.70 sec. Yes -2 7 208 Ramp-down time 1 1.00 sec. Yes -2 7 209 Ramp-up time 2 30 sec. 210 Ramp-down time 2 1 sec. 211 Jog ramp time 1 sec. 213 Jog frequency 0.1 Hz 214 Reference function Sum Yes 0 5 215 Preset reference 1 0.00% Yes -2 3 216 Preset reference 2 0.00% Yes -2 3 217 Preset reference 3 0.00% Yes -2 3 218 Preset reference 4 0.00% Yes -2 3 221 Current limit, I_lim 160% 223 Warning: Low Current 0.0 A 224 Warn. High current I

MAX

Yes -1 6 225 Warn. Low frequency 0.0 Hz Yes -1 6 226 Warn. High frequency 132.0 Hz Yes -1 6 227 Warn. Low Feedback -4000.000 Yes -3 4 228 Warn. High Feedback 4000.000 Yes -3 4 229 Frequency bypass,

0 Hz (OFF) Yes 0 6

bandwidth 230 Frequency bypass 1 0.0 Hz Yes -1 6 231 Frequency bypass 2 0.0 Hz Yes -1 6

PNU#Parameter

description

Factory setting 4-setup Conv.

index

Data

type 302 Digital input, term. 18 Start Yes 0 5 303 Digital input, term. 19 Reversing Yes 0 5 304 Digital input, term. 27 Reset and coast inverse Yes 0 5 305 Digital input, term. 29 Jog Yes 0 5 307 Digital input, term. 33 No function Yes 0 5 308 Term. 53, analogue input voltage Reference Yes 0 5 309 Term. 53, min scaling 0.0 V Yes -1 6 310 Term. 53, max scaling 10.0 V Yes -1 6 314 Term. 60, analogue input current No function Yes 0 5 315 Term. 60, min scaling 0.0 mA Yes -1 6 316 Term. 60, max scaling 20.0 mA Yes -1 6 317 Time out 10 sec. Yes 0 5 318 Function after timeout Nofunction Yes 0 5 319 Term. 42, analogue output 0-I

=0-20mA Yes 0 5

MAX

323 Relay 01, output Ready signal [1] 341 Terminal 46, output Ready signal [0]

4-Setup:

’Yes’ means that the parameter can be programmed

individually in each of the four Setups, i.e. one single

parameter can have four different data values. No’

means that the data value will be the same in all Setups.

2800

All about AKD

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Conversion index: This number refers to a conversion figure to be used when writing or reading via serial communication with a frequency converter. See Data character in Serial communication.

ata type:

D Data type shows the type and length of the telegram.

PNU#Parameter

Factory setting 4-setup Conv.

description

Data type Description 3 Integer 16 4 Integer 32 5 Unsigned 8 6 Unsigned 16 7 Unsigned 32 9Textstring

index

Data

type 405 Reset function Manual reset Yes 0 5 406 Aut. restart time 5 sec. Yes 0 5 409 Trip delay overcurrent OFF 411 Switching frequency 4.5 Hz 412 Var. carrier frequency No LC-filter Yes 0 5 414 Min. feedback 0.000 Yes -3 4 415 Max. feedback 1500.000 Yes -3 4 416 Process units bar Yes 0 423 U1 voltage par. 103 Yes -1 6

424 F1 frequency Par. 104 Yes -1 6 425 U2 voltage par. 103 Yes -1 6 426 F2 frequency par. 104 Yes -1 6 427 U3 voltage par. 103 Yes -1 6 428 F3 frequency par. 104 Yes -1 6 437 Proc. PID no/inv. Normal Yes 0 5 438 Proc. PID anti wind. Active Yes 0 5 439 Proc. PID start frequency Par. 201 Yes -1 6 440 Proc. PID start proportional ampl. 0.01 Yes -2 6 441 Proc. PID integration time Off (9999.99) Yes -2 7 444 Proc. PID lowpass filter time 0.02 s Yes -2 6

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

PNU#Parameter

description 500 Address 1 No 0 5 507 Selection of Setup Logic or Yes 0 5 513 Bus time interval 1 sec. Yes 0 5 514 Bus time interval function Off Yes 0 5 515 Data readout: Reference % No -1 3 516 Data readout: Reference [unit] No -3 4 517 Data readout: Feedback [unit] No -3 4 518 Data readout: Frequency No -1 3 520 Data readout: Motor current No -2 7 522 Data readout: Power [kW] No 1 7 523 Data readout: Power [HP] No -2 7 524 Data readout: Motor voltage [V] No -1 6 525 Data readout: DC Link voltage No 0 6 526 Data readout: Motor thermal load No 0 5 527 Data readout: Inverter thermal load No 0 5 528 Data readout: Digital input No 0 5 529 Data readout: Analogue input, term. 53 No -1 5 531 Data readout: Analogue input, term. 60 No -4 5 533 Data readout: External reference No -1 6 534 Data readout: Status word No 0 6 537 Data readout: Inverter temperature No 0 5 538 Data readout: Alarm word No 0 7 539 Data readout: Control word No 0 6 540 Data readout: Warning word No 0 7 541 Data readout: Extended status word No 0 7

Factory setting 4-setup Conv.

index

Data

type

PNU#Parameter

description 600 Operating hours No 73 7 601 Hours run No 73 7 602 kWh counter No 2 7 603 Number of cut ins No 0 6 604 Number of overtemperatures No 0 6 605 Number of overvoltages No 0 6 615 Fault log: Error code No 0 5 616 Fault log: Time No 0 7 617 Fault log: Value No 0 3 618 Reset of kWh counter No reset No 0 7 619 Reset of running hours counter No reset No 0 5 620 Operation mode Normal operation No 0 5 621 Nameplate: Unit type No 0 9 624 Nameplate: Software version No 0 9 625 Nameplate: LCP identification no. No 0 9 626 Nameplate: Database identification no. No -2 9 627 Nameplate: Power parts version No 0 9 628 Nameplate: Application option type No 0 9 630 Nameplate: Communication option type No 0 9 632 Nameplate: BMC software identification No 0 9 634 Nameplate: Unit identification for communication No 0 9 635 Nameplate: Software parts no. No 0 9 640 Software version No -2 6 641 BMC software identification No -2 6 642 Power card identification No -2 6

Factory setting 4-setup Conv.

index

Data type

2800

All about AKD

MG.28.H3.02 - VLT is a registered Danfoss trademark

4-Setup:

’Yes’ means that the parameter can be programmed

individually in each of the four Setups, i.e. one single

parameter can have four different data values. No’

means that the data value will be the same in all Setups.

onversion index:

C This number refers to a conversion figure to be used when writing or reading via serial communication with a frequency converter. See Data character in Serial communication.

ata type:

D Data type shows the type and length of the telegram.

Data type Description 3 Integer 16 4 Integer 32 5 Unsigned 8 6 Unsigned 16 7 Unsigned 32 9Textstring

AKD 2800

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

■Index

Active Setup ................................................................ 13

Address

...................................................................... 45

Aggressive environments

Analogue input

Analogue output

Automatic motor tuning

............................................................ 36

................................................ 70

........................................................... 37

............................................. 11, 21

Bus time interval........................................................... 46

control panel ............................................................... 10

CHANGE DATA

Compressor CT

Configuration

Connection of a 2-wire transmitter

Control cables

Control keys

Control terminals

Control unit

Current limit,

............................................................ 10

............................................................ 20

............................................................... 20

.................................... 65

........................................................ 63, 64

................................................................ 10

.......................................................... 62

................................................................. 10

................................................................ 30

DC brake time ............................................................. 23

DC brake voltage

DC hold voltage

Derating for ambient temperature

Derating for high switching frequency

Digital / pulse output

Digital inputs

Direction of motor rotation

Display

....................................................................... 10

Display mode

Display readout

Display scaling of output frequency

.......................................................... 25

........................................................... 26

..................................... 70

................................ 70

..................................................... 39

................................................................ 34

.............................................. 60

............................................................... 11

....................................................... 11, 66

................................... 15

Earth connection .......................................................... 61

Earthing

...................................................................... 55

Electrical installation, control cables

Electrical installation, control terminals

EMC emission

EMC-correct electrical installation

ETR - Electronic Thermal Relay

Extra protection

.............................................................. 72

............................................................ 55

.................................. 63

............................... 64

..................................... 56

........................................ 24

Fault log ..................................................................... 49

Feedback,

Four Setups

Frequence bypass, bandwidth

................................................................... 41

................................................................ 14

......................................... 31

Galvanic Isolation (PELV) ................................................ 71

High voltage test .......................................................... 55

High voltage warning

................................................ 9,55

Initialise ....................................................................... 50

Integration

................................................................... 54

Jog ramp time ............................................................. 29

Language.................................................................... 13

Large display readout

LCP copy

Load compensation

Load sharing

Local reference

Lock for data changes

Lon

................................................................... 14

............................................................................ 4

.................................................... 15

...................................................... 25

............................................................... 62

............................................................ 13

................................................... 18

Mains connection ......................................................... 59

Manual initialisation

Maximum reference

Mechanical dimensions

Mechanical installation

Menu mode

Minimum reference

Motor cables

Motor connection

Motor current

Motor frequency

Motor power

Motor thermal protection

Motor voltage

........................................................ 10

....................................................... 28

.................................................. 53

................................................... 54

............................................................ 11, 11

....................................................... 27

............................................................... 60

......................................................... 59

............................................................... 21

........................................................... 21

................................................................ 20

................................................ 61

.............................................................. 21

Index

MG.28.H3.02 - VLT is a registered Danfoss trademark

AKD 2800

Operating Data............................................................. 49

Operating mode at power-up, local operation

Order form

Output frequency

.................................................................. 7

.......................................................... 27

..................... 18

Parallel connection of motors .......................................... 60

Potentiometer reference

Pre-fuses

Preset reference

Process control, closed loop

Process PID

Process units

Programming Setup

Pulse start/stop

.................................................................... 59

................................................................ 43

............................................................... 41

................................................. 65

........................................................... 30

........................................... 20

...................................................... 14

............................................................ 65

Quick menu................................................................. 11

QUICK MENU

Quick Menu setup

Quick menu, userdefined

......................................................... 10, 11

........................................................ 18

................................................ 18

.......................................................................... 29

Sum

Switching frequency

...................................................... 40

Terminal 46 ................................................................. 39

Terminal 53

Terminal 60

Thermal motor protection

Thermistor

Time out

Torque characteristic

................................................................. 36

.............................................. 24

.............................................................. 24, 35

..................................................................... 37

..................................................... 20

UL Standard................................................................ 72

Warning functions ........................................................ 30

Warnings/alarm messages

.............................................. 66

Ramp-down time.......................................................... 28

Ramp-up time

Rated motor speed

RCD

.......................................................................... 61

RCD relays

Reference

Reference function

Relative

Relay connection

Relay output 1-3

Reset function

Resonance damping

RFI switch

.............................................................. 28

....................................................... 21

.................................................................. 55

................................................................... 27

........................................................ 29

....................................................................... 29

.......................................................... 64

.......................................................... 38

.............................................................. 40

...................................................... 23

................................................................... 60

Setup copying ............................................................. 14

Slip compensation

Spacing for mechanical installation

Special motor mode

Speed control, open loop

Start frequency

Start torque

Start voltage

Start/stop

Stator reactance

Stator resistance

STOP/RESET

.................................................................... 65

........................................................ 25

................................... 54

...................................................... 20

............................................... 20

............................................................. 24

................................................................. 23

................................................................ 25

........................................................... 22

............................................................... 10

MG.28.H3.02 - VLT is a registered Danfoss trademark

Danfoss AKD 2800 Installation guide

Specifications and Main Features

Frequently Asked Questions

User Manual
