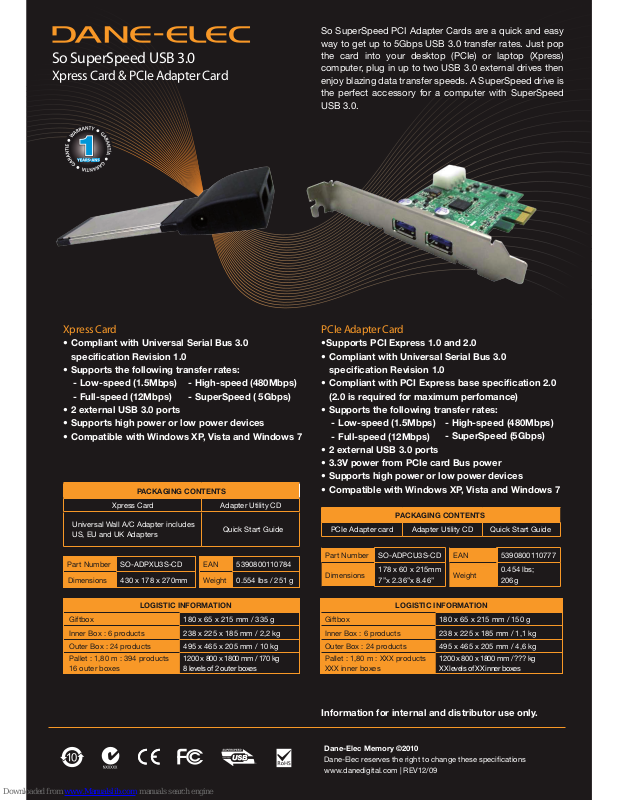

DANE-ELEC XPRESS CARD, So SuperSpeed Datasheet
Dane-Elec Memory ©2010
Dane-Elec reserves the right to change these specifications
www.danedigital.com | REV12/09
So SuperSpeed USB 3.0
Xpress Card & PCIe Adapter Card
PACKAGING CONTENTS
PCIe Adapter card Adapter Utility CD Quick Start Guide
Part Number SO-ADPCU3S-CD EAN 5390800110777
Dimensions
178 x 60 x 215mm
7”x 2.36”x 8.46”
Weight
0.454 lbs;
206g
Information for internal and distributor use only.
PACKAGING CONTENTS
Xpress Card Adapter Utility CD
Universal Wall A/C Adapter includes
US, EU and UK Adapters
Quick Start Guide
Xpress Card
• Compliant with Universal Serial Bus 3.0
specification Revision 1.0
• Supports the following transfer rates:
- Low-speed (1.5Mbps)
- Full-speed (12Mbps)
• 2 external USB 3.0 ports
• Supports high power or low power devices
• Compatible with Windows XP, Vista and Windows 7
- High-speed (480Mbps)
- SuperSpeed ( 5Gbps)
PCIe Adapter Card
•Supports PCI Express 1.0 and 2.0
• Compliant with Universal Serial Bus 3.0
specification Revision 1.0
• Compliant with PCI Express base specification 2.0
(2.0 is required for maximum perfomance)
• Supports the following transfer rates:
- Low-speed (1.5Mbps)
- Full-speed (12Mbps)
• 2 external USB 3.0 ports
• 3.3V power from PCIe card Bus power
• Supports high power or low power devices
• Compatible with Windows XP, Vista and Windows 7
- High-speed (480Mbps)
- SuperSpeed (5Gbps)
So SuperSpeed PCI Adapter Cards are a quick and easy
way to get up to 5Gbps USB 3.0 transfer rates. Just pop
the card into your desktop (PCIe) or laptop (Xpress)
computer, plug in up to two USB 3.0 external drives then
enjoy blazing data transfer speeds. A SuperSpeed drive is
the perfect accessory for a computer with SuperSpeed
USB 3.0.
Part Number SO-ADPXU3S-CD EAN 5390800110784
Dimensions 430 x 178 x 270mm Weight 0.554 lbs / 251 g
LOGISTIC INFORMATION
Giftbox 180 x 65 x 215 mm / 335 g
Outer Box : 24 products 495 x 465 x 205 mm / 10 kg
Inner Box : 6 products 238 x 225 x 185 mm / 2,2 kg
1200 x 800 x 1800 mm / 170 kg
8 levels of 2 outer boxes
Pallet : 1,80 m : 394 products
16 outer boxes
LOGISTIC INFORMATION
Giftbox 180 x 65 x 215 mm / 150 g
Outer Box : 24 products 495 x 465 x 205 mm / 4,6 kg
Inner Box : 6 products 238 x 225 x 185 mm / 1,1 kg
1200 x 800 x 1800 mm / ??? kg
XX levels of XX inner boxes
Pallet : 1,80 m : XXX products
XXX inner boxes
