TANDBERG
TFT-LCD Color Monitor
FS-S5201C&FS-P6501C
User Guide
General Specification
INFORMATION TO USER :
General Specification
TABLE OF CONTENTS
1. Product Drawing------- ------------------------------------------------------------------------------ 1
2. Column Specification- ----------------------------------------------------------------------------- 3
3. Standard signal Table ------------------------------------------------------------------------------4
4. Signal Connector Pin Assignments----------------------------------------------------------- -5
5. Specification ------------------------------------------------------------------------------------------6
General Specification
1. Product Drawing
1-1. FS-S5201C Product Drawing
General Specification
Unit : mm
1

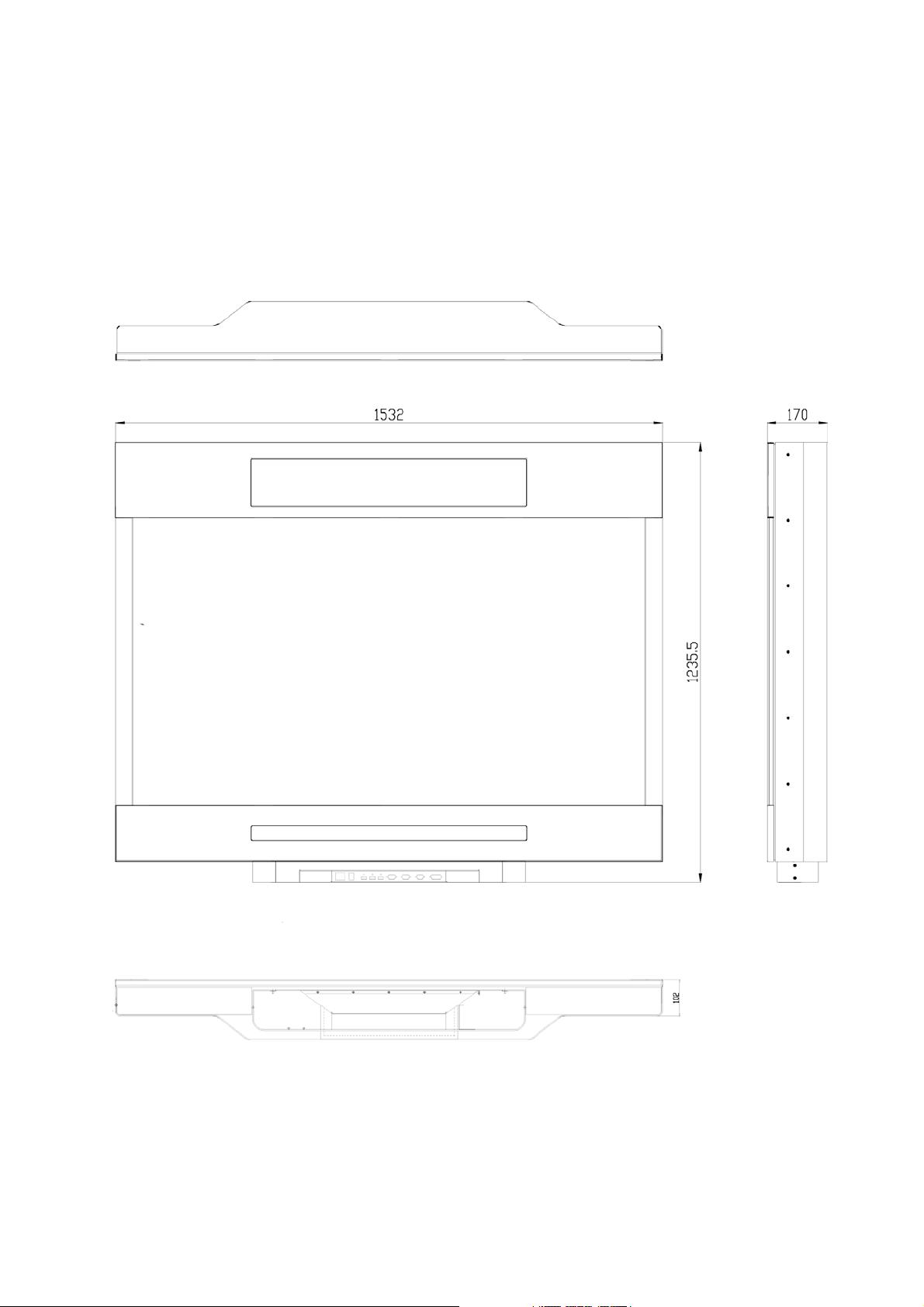

1-2. FS-P6501C Product Drawing
General Specification
Unit : mm
2
2. Column Specification
AC
General Specification
Power
switch
HDMI 1 HDMI 2 HDMI 3 RS-232
VGA
Input
3
RS-232
Output
Specker
Input
3. Standard signal Table
PC Supported Mode
Resolution
PAL
NTSC
640x480
800x600
800x600
1024x768
720p(1280x720)
720p(1280x720)
720p(1280x720)
720p(1280x720)
1280x1024
1280x768
1360x768
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
Clock
Frequency(MHz)
13.55015.6
13.56015.7
23.6256029.5
35.43755031.5
35.56037800x600
48.8757547
566047.3
74.255037.5
74.256045
148.510075
148.512090
1086964
79.56047.7
726047.3
1920x1200
General Specification
87.756048.31366x768
1016064.71400x1050
119.1256064.71680x1050
130.37560741600x1200
74.2524271080p(1920x1080)
74.252528.121080p(1920x1080)
74.253033.751080p(1920x1080)
148.548521080p(1920x1080)
1485056.251080p(1920x1080)
148.56076.51080p(1920x1080)
15.46074
4
4. Signal Connector Pin Assignments
1. HDMI1, HDMI2, HDMI3
Pin No.
1
2
Shield
3
4
5
Shield
6
7
8
Shield
10
TMDS Clock+
2. VGA(D-Sub 15p)
AssignmentPin No.Assignment
11TMDS Data2+
Ground_Clock
Shield
TMDS Clock-12Ground_Data2
No Connection13TMDS Data2-
No Connection14TMDS Data1+
TMDS SCL15Ground_Data1
TMDS SDA16TMDS Data1-
Ground17TMDS Data0+
TMDS Power18Ground_Data0
Hot Plug Detect19TMDS Data0-9
Pin No.
1
2
3
4
5
6
7
General Specification
Standby Cable
Connection
check
Ground-Blue8
AssignmentPin No.Assignment
9Red
D-Sub Power
EDID write prote
ct
Ground-Sync10Green
Ground11Blue
DDC Data12Ground
H sync13DDC 5V
V sync14Ground-Red
DDC Clock15Ground-Green
5
3. RS-232 input(D-Sub 9Pin)
1
Pin No.
1
2
3
4
Ground5
4. RS-232 Output(D-Sub 9Pin)
Pin No.
1
2
3
4
Ground5
AssignmentPin No.Assignment
No Connection6RS-232 ID
No Connection7RS-232 RXD Input
5V Power8RS-232 TXD Input
No Connection9No Connection
2
AssignmentPin No.Assignment
No Connection6No Connection
No Connection7RS-232 RXD Out
No Connection8RS-232 TXD Out
No Connection9No Connection
5. Speaker input(D-Sub 2Row 15Pin)
3
Pin No.
1
2
3
4
5
midrange)
6
midrange)
LOW- (Center bass) 8
Notes
1,2,3 - This port is only valid on system level assembly Do not use ehis port as
LEFT+ (Left speaker)9CABINET_VERSION1
LEFT- (Left speaker)10CABINET_VERSION0
RIGHT+ (Right speaker)11TW+ (Center tweeter)
RIGHT- (Right speaker)12TW- (Center tweeter)
LOWMOUNTED13MID+ (Center
GND 14MID- (Center
CABINET_VERSION215LOW+ (Center bass) 7
AssignmentPin No.Assignment
personnel usage.
General Specification
6
5. Specification
5-1. Specification
Model
LCD PANEL
nization
Consumption
Power
Approval Mark&
EMI
FS-S5201C
A-si TFT Active matrixType
106.7Cm (Diagonal)Screen size
1920X1080@60HzMaximum Resolution
0.6(H)mmX0.6(V)mmPixel pitch
16.7M (RGB 8-bit data)Display colors
1700:1Contrast Ratio(Typ.)
88/88/88/88Viewing Angle(Typ.)
8msResponse Time(Typ.)
600cd/m2Luminance(Typ.)
70KHzHorizontal FrequencySynchro
85KHzVertical Frequency
500WMaximumPower
Under 30Standby Mode
AC 100-240V~50-60Hz 5A Max
CE,CSAApproval Mark
CE,FCCEMI
General Specification
1206X170X926.5 /68KgSize and weightDimension
7
5-2. Specification
Model
LCD PANEL
nization
Consumption
Power
Approval Mark&
EMI
FS-P6501C
A-si TFT Active matrixType
163.9Cm (Diagonal)Screen size
1920X1080@60HzMaximum Resolution
0.744(H)mmX0.744(V)mmPixel pitch
16.7M (RGB 8-bit data)Display colors
2000:1Contrast Ratio(Typ.)
88/88/88/88Viewing Angle(Typ.)
6msResponse Time(Typ.)
450cd/m2Luminance(Typ.)
70KHzHorizontal FrequencySynchro
85KHzVertical Frequency
500WMaximumPower
Under 30Standby Mode
AC 100-240V~50-60Hz 5A Max
CE,CSAApproval Mark
CE,FCCEMI
General Specification
1532X170X1235.5/130.5KgSize and weightDimension
8
