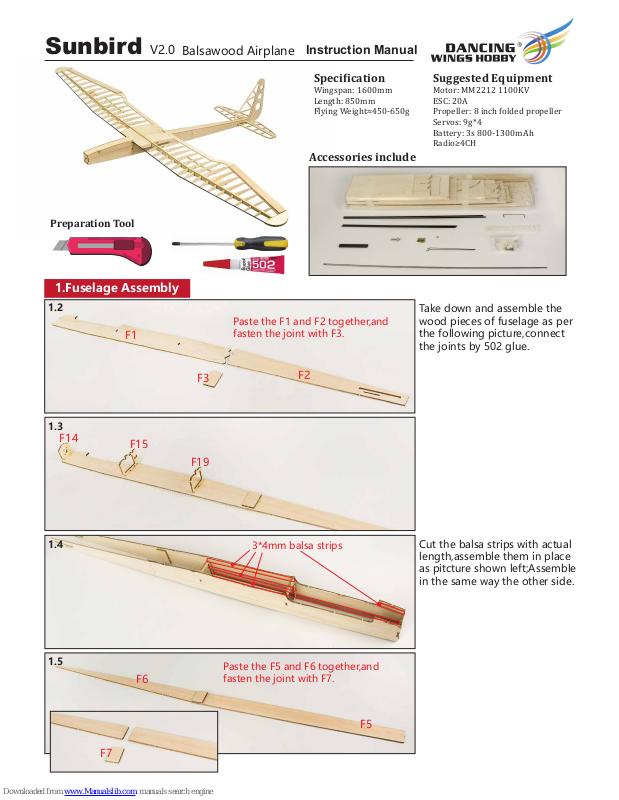

Dancing Wings Hobby Sunbird Instruction Manual

Sunbird

Instruction Manual

V2.0

Balsawood Airplane

Suggested Equipment

Motor: MM2212 1100KV
ESC: 20A
Propeller: 8 inch folded propeller
Servos: 9g*4
Battery: 3s 800-1300mAh

Radio≥4CH

Speci�ication

Wingspan: 1600mm
Length: 850mm

Flying Weight≈450-650g

Preparation Tool

F1

F2

F3

F15

F19

F14

F5

F6

F7

1.2

1.3

1.4

1.5

Take down and assemble the
wood pieces of fuselage as per
the following picture,connect
the joints by 502 glue.

Cut the balsa strips with actual
length,assemble them in place
as pitcture shown left;Assemble
in the same way the other side.

Paste the F1 and F2 together,and
fasten the joint with F3.

Paste the F5 and F6 together,and
fasten the joint with F7.

3*4mm balsa strips

1.Fuselage Assembly

Accessories include

Sunbird

Instruction Manual

V2.0

Balsawood Airplane

F9

F9

F12

F11

F10

F8

F4

F16

F13

Magnet

Magnet

Assemble the tail as per the 1:1 plan,and take care of the straightness of the tail.

Paste the finished board (picture

1.5 above) at the bottom of the
fuselage.

Assemble the cabin cover as
picture shown left.

Paste the cover F4 and F8 as
picture shown left,paste the
servo mount base F16.

Assemble the vertical and horizontal tail at the tail of
the fuselage,connect the two ailerons with U-shape
steel wire.

1.6

1.7

1.8

2.1 2.2

2.3

U-shape steel wire

2.Assembly of Wing and Tail
