Thank you for choosing Silhouette

We know you’re excited. We are too! However, the more familiar you are with your new appliance, the better experience you will have. We therefore strongly suggest that you read this Owner’s Manual before plugging in your new appliance. It contains important operational information that will help you make full use of the technical features available in your appliance. The manual also contains information designed to enhance operating reliability and safety, as well as tips to maintaining your new appliance so that it brings you happiness for years to come.

Please visit www.silhouetteappliances.com to access self-service tools, FAQs and more. Should you need additional assistance, please call 1-844-455-6097.

Note: You will need the below information to obtain service under warranty.

To receive service, you must provide the original receipt.

Model Number:

Serial Number:

Date of Purchase:

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner’s Manual:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

Tel: 1-844-455-6097

1

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

IMPORTANT WARNING

An empty unit is a very dangerous attraction to children. Remove either the gasket or lid from unused appliances, or take some other action that will guarantee it harmless.

DANGER: Risk of child entrapment. Before you throw away your old unit:

Take off doors.

Leave the shelves in place so that children may not easily climb in.

DON’T WAIT! DO IT NOW!

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

ELECTRICAL REQUIREMENTS

WARNING

ELECTRICAL RATING: The serial rating plate indicates the voltage and frequency the appliance is designed for.

Please ensure that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

To avoid installation / operation difficulties, read these instructions thoroughly.

This appliance must be grounded. Connect only to a properly grounded outlet. See “Grounding Instructions” section.

Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.

Never allow children to operate, play with, or crawl inside the appliance.

Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

Do not splice the power cord that is equipped with this appliance.

Keep power cord away from heated surfaces.

Do not immerse power cord, plug or the appliance itself in water.

Do not use this product near water for example, in a wet basement, near a swimming pool or near a sink.

Do not use corrosive chemicals or vapors in this appliance.

Use this appliance only for its intended use, as described in this manual.

Store beverages in sealed containers only.

See door surface cleaning instructions in the Care and Maintenance section of this manual.

Do not cover or block any openings on the appliance.

Do not store perishable food items such as (but not limited to) meats and dairy products in your cooler.

This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.

This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

This unit is not designed for outside installation, including installation anywhere that is not temperature controlled (garages, porches, carports, etc.).

2

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker

DO NOT USE AN EXTENSION CORD

Use an exclusive 115V wall outlet. Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the cord. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Do not use and adapter plug with this appliance.

SAVE THESE INSTRUCTIONS!

Installation Instructions

FOR YOUR SAFETY

While performing installations described in this section, gloves and goggles or safety glasses should be worn. Two people should be used when moving the cooler.

Remove interior and exterior packaging prior to installation.

Before connecting the appliance to a power source, let it stand upright for approximately 6 hours; this will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Place your cooler on a floor that is strong enough to support it when it is fully loaded. To level your cooler, adjust the front leveling leg at the bottom of the unit.

Locate the cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit to perform improperly.

Avoid locating the unit in moist areas.

Plug the cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service centre.

Do not cover shelves with aluminum foil or any other material which may prevent air circulation.

In order for the cabinet to remain efficient do not over load it.

Do not open the door unless necessary.

Should the cooler be stored without use for long periods, it is suggested, after careful cleaning, to leave the door ajar. This will allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold and odors.

3

Installation Instructions

LOCATION

Selecting the proper location will ensure peak performance levels for your appliance. Choose a location where the unit will not be exposed to heat emitting sources (e.g. a fireplace or a barbeque). The cooler should not be exposed to direct sunlight. Do not use product near water, for example in a wet basement, near a swimming pool or sink.

To achieve operating efficiency, the recommended (room ambient) operating temperatures should be between 16°C (61°F) to 32°C (90°F).

NOTE: This unit is front breathing. Do not block the front air vent. Blockage of the vent will result in high operating temperatures and

system failure.

Fig.G

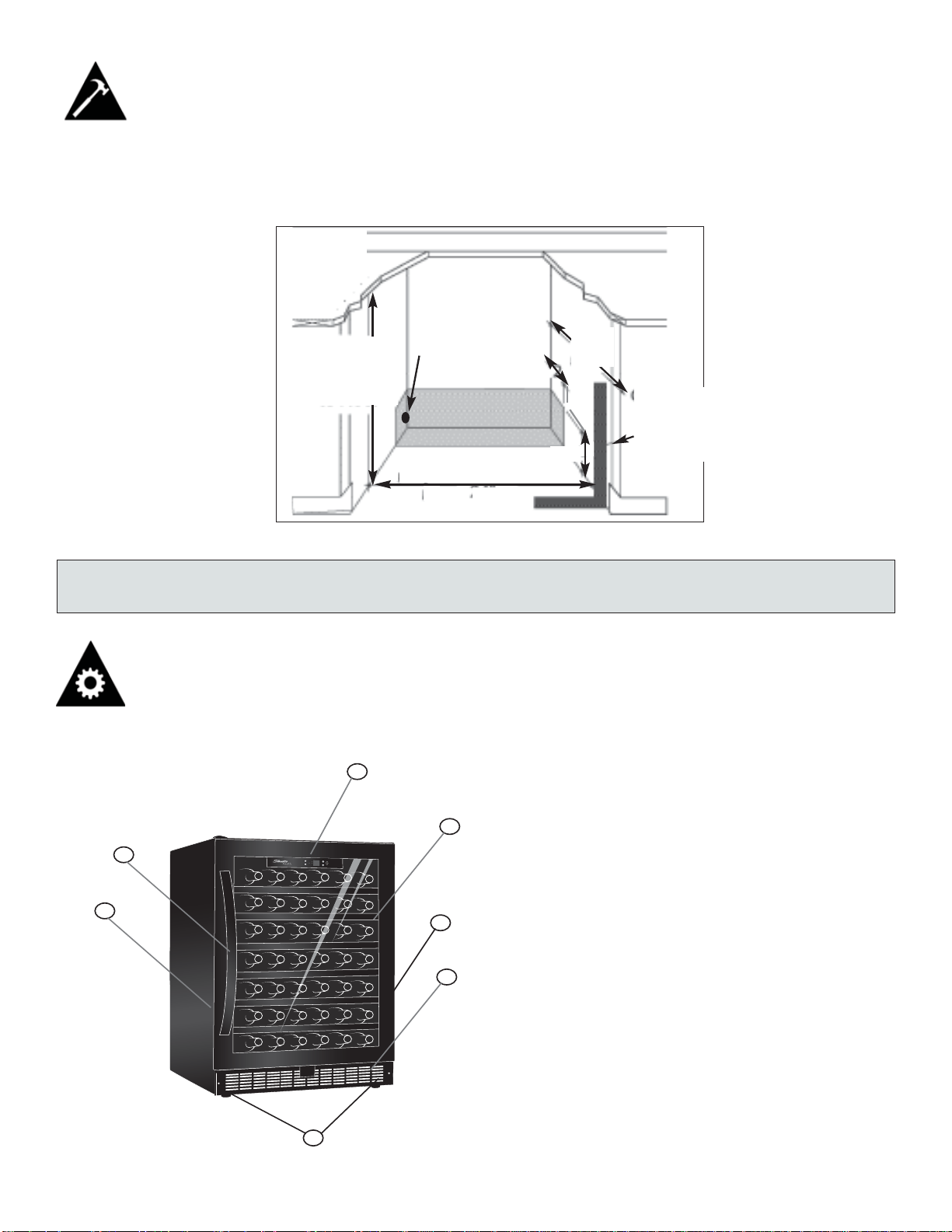

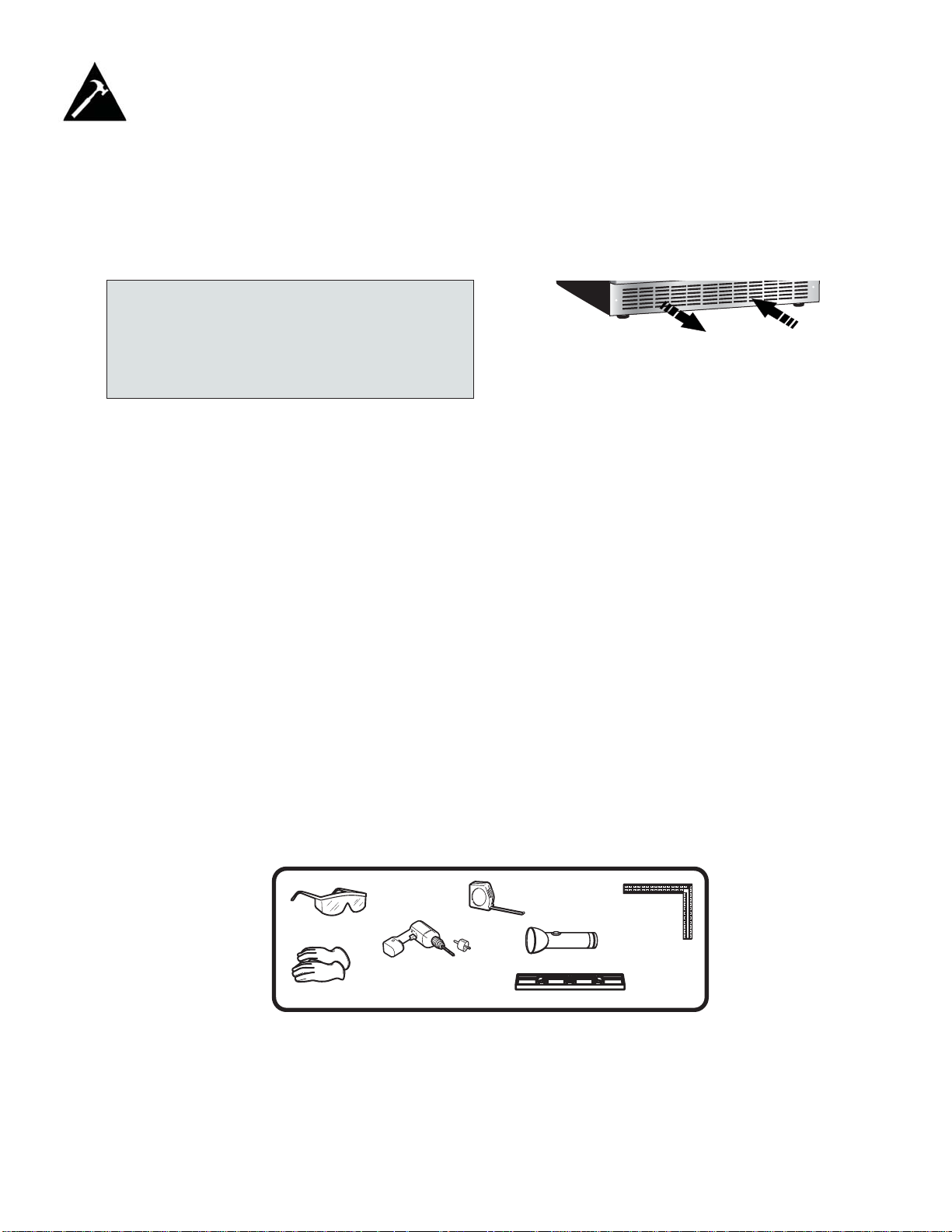

PREPARING THE ENCLOSURE

Tools you will need:

While performing installations described in this section, gloves and safety glasses or goggles should be worn.

Electrical Requirements:

The appliance must be connected to an individual, properly grounded electrical outlet, protected by a 15 or 20 ampere circuit breaker or time delay fuse.

It is recommended that you do not install the unit into a corner (i.e. directly beside a wall). This is to allow the door to have a greater than 90° opening swing. A limited door swing may lead to damaging the door gasket, however, if it is necessary to install the unit in a corner, be sure to allow 2-4 inches of clearance at each side.

The rough cabinet opening must be on a level floor area and at least 24” (60.96 cm) deep by 24” (60.96 cm)wide (min). The opening should also have a height of at least 34 3/4” (88.26 cm).

The electrical outlet may be positioned from within either side of the adjacent cabinetry, or the rear of the shaded area (as shown in Fig. 2).

If the electrical outlet is located inside the adjacent cabinetry, cut a 1-1/2” (3.81 cm) diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.



Tape measure



Carpenter square

Safety goggles



Electric drill with hole bit

Flashlight



Gloves

Level



4

Installation Instructions

PREPARING THE ENCLOSURE (continued)

Fig F















1-1/2” dia. hole











*if electrical outlet









is in adjacent



24”



34-3/4”

From

cabinetry









Min*



Underside of



2”



Countertop to





Cabinets

Floor

Electrical Access









Square





















and









6”

Plumb















24” min







Important: The listed depth requirement for the installation is assuming that the electrical outlet is located in the adjacent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

Operating Instructions

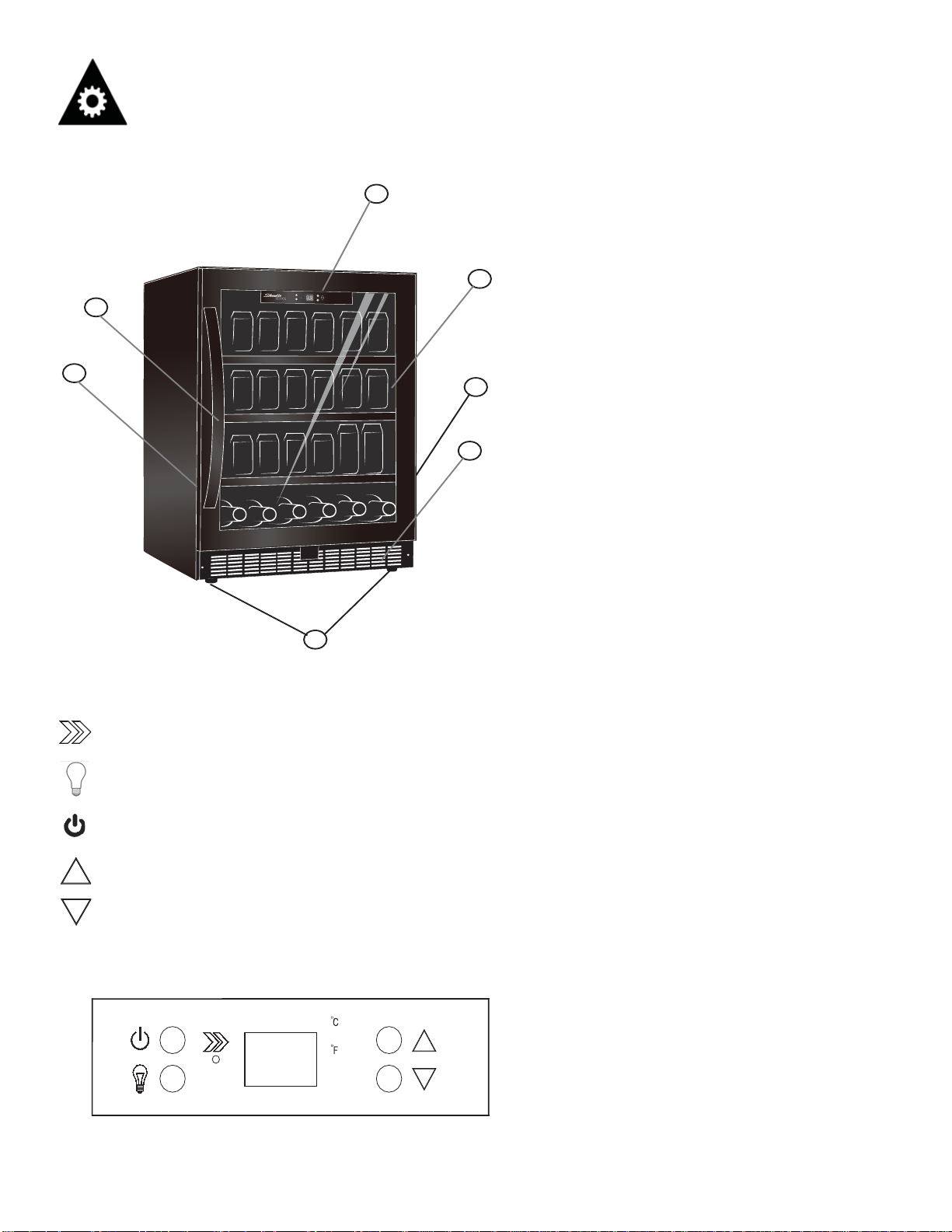

FEATURES

2



SSWC056D1B



4

5





8.8.









































































































1



















6























































































































































1.Tempered Glass Door: Low-E glass, used to reflect and absorb heat.

2.Electronic Display and Controls: For viewing and regulating the temperature of the wine cooler.

3.Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.

4.Shelves

5.Handle

6.Front Mounted Exhaust: Allows for integrated (built-in) applications.

7.Leveling Legs

8.Interior Light (not shown): LED lighting illuminates the interior without the heat of an incandescent bulb.

7

5

Operating Instructions

FEATURES



SSBC056D1B

2

SSBC056D2B





4

5



3

1





6



7

1.Tempered Glass Door: Low-E glass, used to reflect and absorb heat.

2.Electronic Display and Controls: For viewing and regulating the temperature of the Beverage Centre.

3.Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.

4.Shelves

5.Handle

6.Front Mounted Exhaust: Allows for integrated (built-in) applications.

7.Leveling Legs

8.Interior Light (not shown): LED lighting illuminates the interior without the heat of an incandescent bulb.

CONTROL PANEL

Indicator light illuminates to signify the cooling mode is currently in operation.

Control the interior light ON/OFF. (If you press this button, the inner light is not controlled by the Mechanical Switch, it is continuously lit).

To turn appliance on/off (press and hold this button for approximately 3 seconds).

Used to raise (warm) the temperature by 1° increments.

Used to lower (cool) the temperature by 1° increments.

°C / °F Adjacent indicator light denotes which scale of temperature is being displayed.

Setting the Temperature Controls

When you plug in your beverage centre for the first time the temperature will automatically be set to 12°C (54°F). The default setting is °F.

Each depression of the or button will allow you to adjust the temperature in 1° increments.

To switch the display between °F and °C, depress the and simultaneously for approximately 3-5 seconds.

6
