OWNER’S MANUAL

MANUEL DU PROPRIÉTAIRE

MANUAL DEL PROPIETARIO



































































BEVERAGE CENTER

1

- 10

































Owner’s Manual............................













































CENTRE DE BREUVAGES







MODEL • MODÈLE • MODELO





11

- 20

















Manuel du propriétaire................



SBC057D1BSS

















CENTRO DE BEBIDAS

21 - 30

















Manual del propietario................







































DANBY PRODUCTS LIMITED, ONTARIO, CANADA N1H 6Z9



DANBY PRODUCTS INC., FINDLAY, OHIO, USA 45840

2019.12.10

www.SilhouetteAppliances.com

Welcome

Welcome to the Silhouette family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.SilhouetteAppliances.com to access self service tools, FAQs and much more. For additional assistance call 1-844-455-6097.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: ________________________________________________

Serial Number: ________________________________________________

Date of Purchase: ______________________________________________

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner’s manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-844-455-6097

1

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

Do not use mechanical devices to defrost refrigerator.

Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.

Consult repair manual or owner’s guide before attempting to service this product. All safety precautions must be followed.

Dispose of properly in accordance with federal or local regulations.

Follow handling instructions carefully.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

Remove the door or lid.

Leave shelves in place so that children may not easily climb inside.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments;

Farm houses and by clients in hotels, motels and other residential type environments;

Bed and breakfast type environments;

Catering and similar non-retail applications.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAVE THESE INSTRUCTIONS!

2

INSTALLATION INSTRUCTIONS

LOCATION

Two people should be used when moving the appliance.

Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.

Place the appliance on a fl oor that is strong enough to support it when it is fully loaded.

Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption.

Extreme cold ambient temperatures may also cause the appliance to perform improperly.

Do not use the appliance near water, for example in a wet basement or near a sink.

This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).

Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a

malfunction in the cooling system from handling during transportation.

This appliance is 23.8 inches (60.5 cm) wide by 34.1 inches (86.6 cm) high by 23.7 inches (60.3 cm) deep.

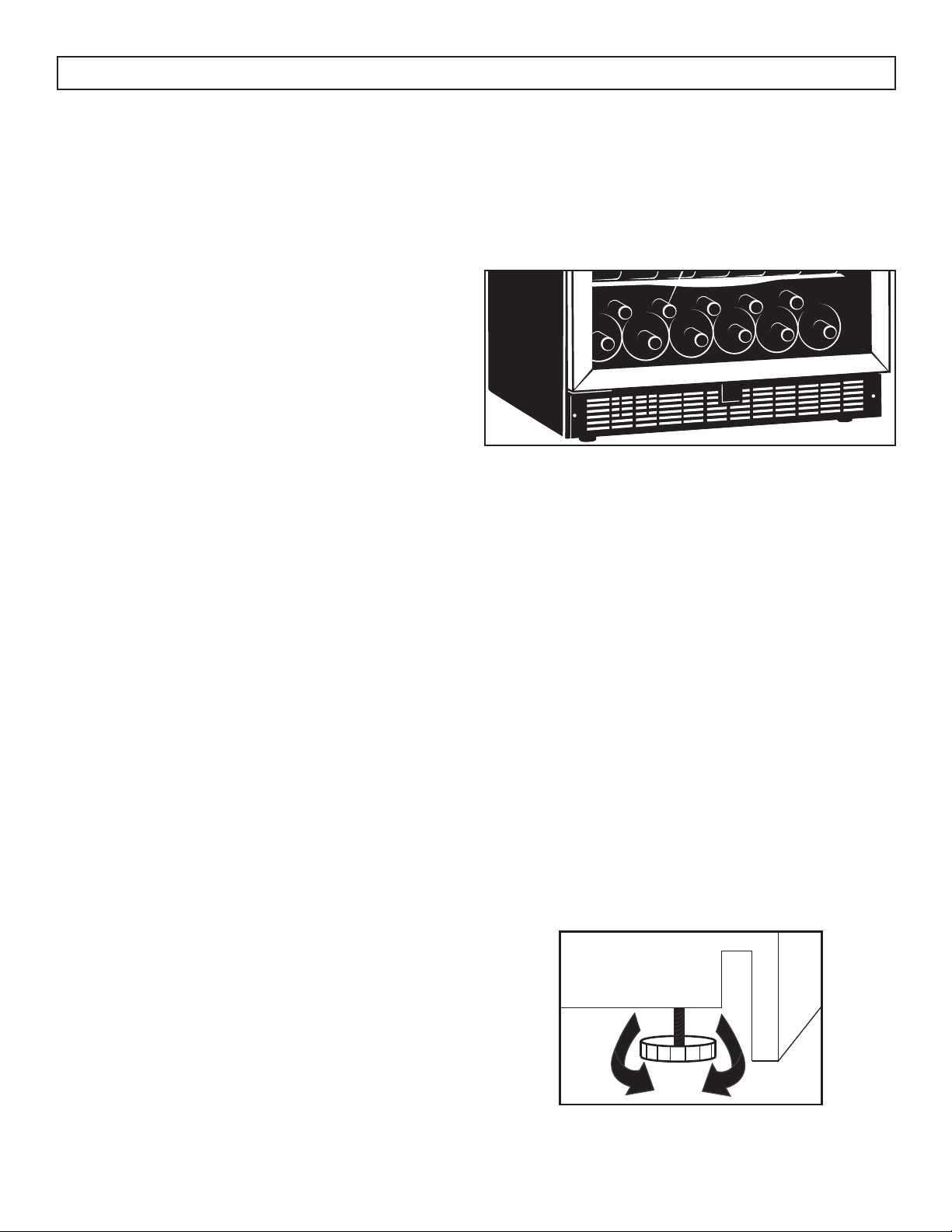

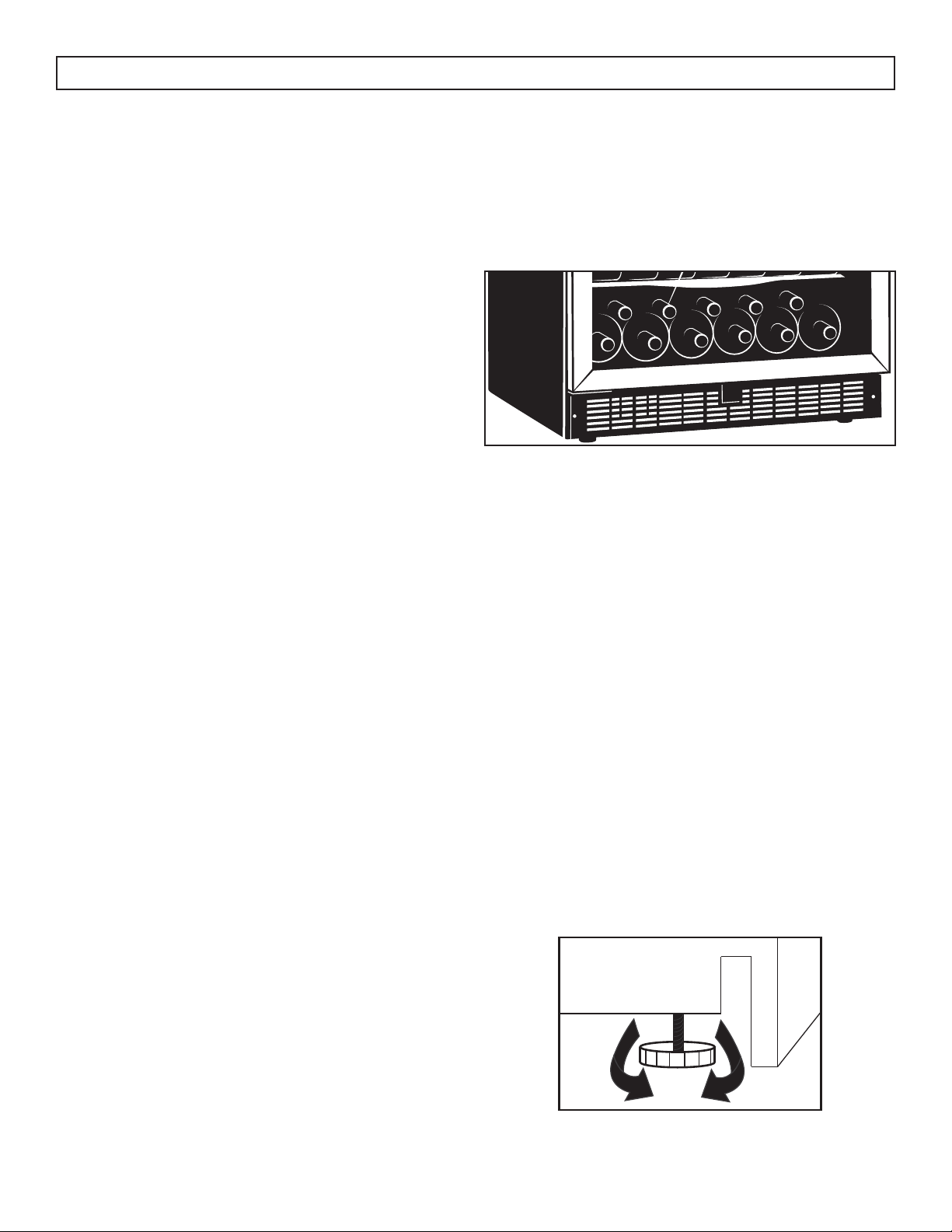

FRONT VENT

This appliance is front breathing. Do not block the front air vent as this will result in high operating temperatures, higher energy usage and possible system overheating and failure.

LEVELING INSTRUCTIONS

There is an adjustable leg on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. To level the appliance:

1.Move the appliance to its final location.

2.Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet.

3.Slowly turn the leveling leg clockwise until the appliance is level.

3

INSTALLATION INSTRUCTIONS

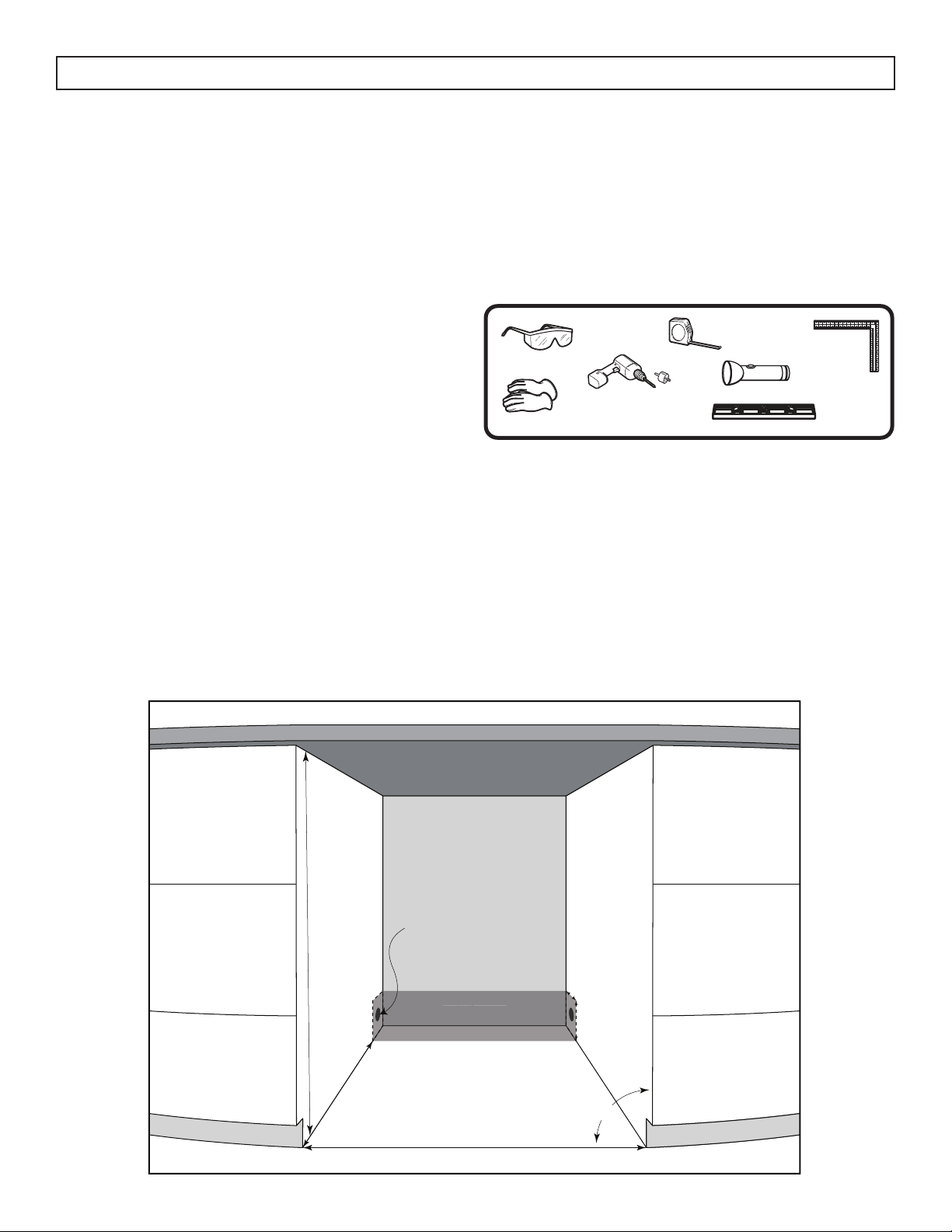

PREPARING THE ENCLOSURE

REQUIRED TOOLS

Gloves and safety goggles should be worn during installation.

It is not recommended to install the appliance into a corner or directly beside a wall. The door will need to be opened more than 90° to allow full extension of the shelves. If it is necessary to place the unit next to a wall or in a corner, leave at least 2-4 inches (5- 10 cm) of space between the wall and the appliance to allow for the door opening.

The cabinet opening must be at least 24 inches (61 cm) wide by 35 inches (88.9 cm) high by 25 inches (63.5 cm) deep.

Safety goggles

Gloves

Tape measure

Carpenter square

Level

Flashlight

Electric drill with hole bit

Tape measure

Carpenter square

Safety goggles

Flashlight

Electric drill with hole bit

Gloves

Level



Note: The listed depth requirement is assuming that the electrical outlet is located in the adjacent cabinetry or fl ush mounted in the rear wall, not surface mounted inside the enclosure.

If the electrical outlet is located inside adjacent cabinetry, cut a 1.5 inch (3.8 cm) diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.

35 in

1.5 in (3.8 cm) diameter

(88.9 cm)

*If electrical outlet in

adjacent cabinetry

2 in (5 cm)

Electrical Access

6 in (15.2 cm)

25 in

(63.5 cm)

90°

24 in (61 cm)

4

OPERATING INSTRUCTIONS

TEMPERATURE CONTROL

1.Power Button: Press the power button once to turn the appliance on. Press and hold the power button for 3 seconds to turn the appliance off.

2.Light Button

3.Power Light: Indicator light illuminates to signify that cooling mode is currently in operation.

4.°C / °F: Indicator lights signify which temperature scale is being displayed.

5.Temperature Display: Shows the set temperature.

6.Up and Down Buttons: Used to increase or decrease the set temperature in 1° increments.

3 °C °F 4

1

5 6

2

INTERIOR LIGHT

The interior light will default to turning on and off when the door is opened or closed.

Press the light button once to turn the light off while the door is open. The light will resume default functioning when the door is closed.

There are three light mode settings:

L1: The light will turn on and off when the door is opened and closed.

L2: The light will remain on indefinitely at 100% illumination.

L3: The light will remain on for 60 minutes at 100% illumination and then turn off.

L4: The light will remain on for 60 minutes at 50% illumination and then turn off.

To change the light mode, press and hold the light button for 3 seconds until L1 fl ashes on the display. Press the up or down button to change between modes. The display will fl ash the chose mode 3 times to confirm.

STORAGE INSTRUCTIONS

This appliance can hold a maximum of 11 750 ml wine bottles and 126 355 ml cans.

The 3 shelves can each hold a total of 42 cans.

The wine rack in the bottom of the appliance can hold a total of 11 wine bottles.

SHELF INSTRUCTIONS

Do not cover shelves with aluminum foil or any other material as this will impede air fl ow inside the cabinet and can adversely affect the interior cabinet temperature.

1.To remove a shelf, tilt up one side and pull outward.

2.To replace a shelf, ensure it is resting securely on the support brackets and push inward until it locks into place.

5

OPERATING INSTRUCTIONS

FUNCTION INSTRUCTION

The default temperature setting is 54°F (12°C). The default temperature scale is °F.

To switch the display between °F and °C, press and hold the up and down buttons at the same time for approximately 3-5 seconds.

The temperature can be set as low as 37°F (3°C) or as high as 64°F (18°C).

Actual temperature inside the appliance can vary based on ambient temperature, how often the door is opened and how many warm beverages have recently been added to the appliance.

Each depression of the up and down buttons will adjust the temperature in 1° increments.

Temperature Memory

If the appliance loses power, the control panel will remember the set temperature. Once power is restored, the appliance will return to normal functioning automatically.

Demo Mode

This mode can show what the appliance will look like when in use without engaging the compressor. The light will function normally, the fan will run on low speed and all alarms will be disabled.

To engage demo mode, press and hold the light button and the down button at the same time for 10 seconds. The display will fl ash “dE” and “on” five times to confirm.

To disengage demo mode, press and hold the light button and the down button at the same time for 10 seconds. The display will fl ash “dE” and “off” five times to confirm.

ALARM INSTRUCTION

Door Ajar Alarm

If the door is not closed completely for 5 minutes, an alarm will sound. Close the door to silence the alarm.

If the door is closed and the alarm continues to sound, check that the actuator at the bottom of the door is making contact with the switch on the appliance.

If the door alarm sounds when loading the appliance, it can be silenced by pressing the power button once.

Temperature Alarm

If the inner cabinet temperature is higher than 73°F (23°C) for one hour, the error code “HI” will show on the display panel and an alarm will sound.

If the inner cabinet temperature is lower than 32°F (0°C) the error code “LO” will show on the display panel and an alarm will sound.

If the inner cabinet temperature remains at 32°F (0°C) for more than 30 minutes, the error code “CL” will show on the display panel and an alarm will sound. The appliance will stop functioning to prevent the contents from freezing.

6

Danby SBC057D1BSS User Manual

OPERATING INSTRUCTIONS

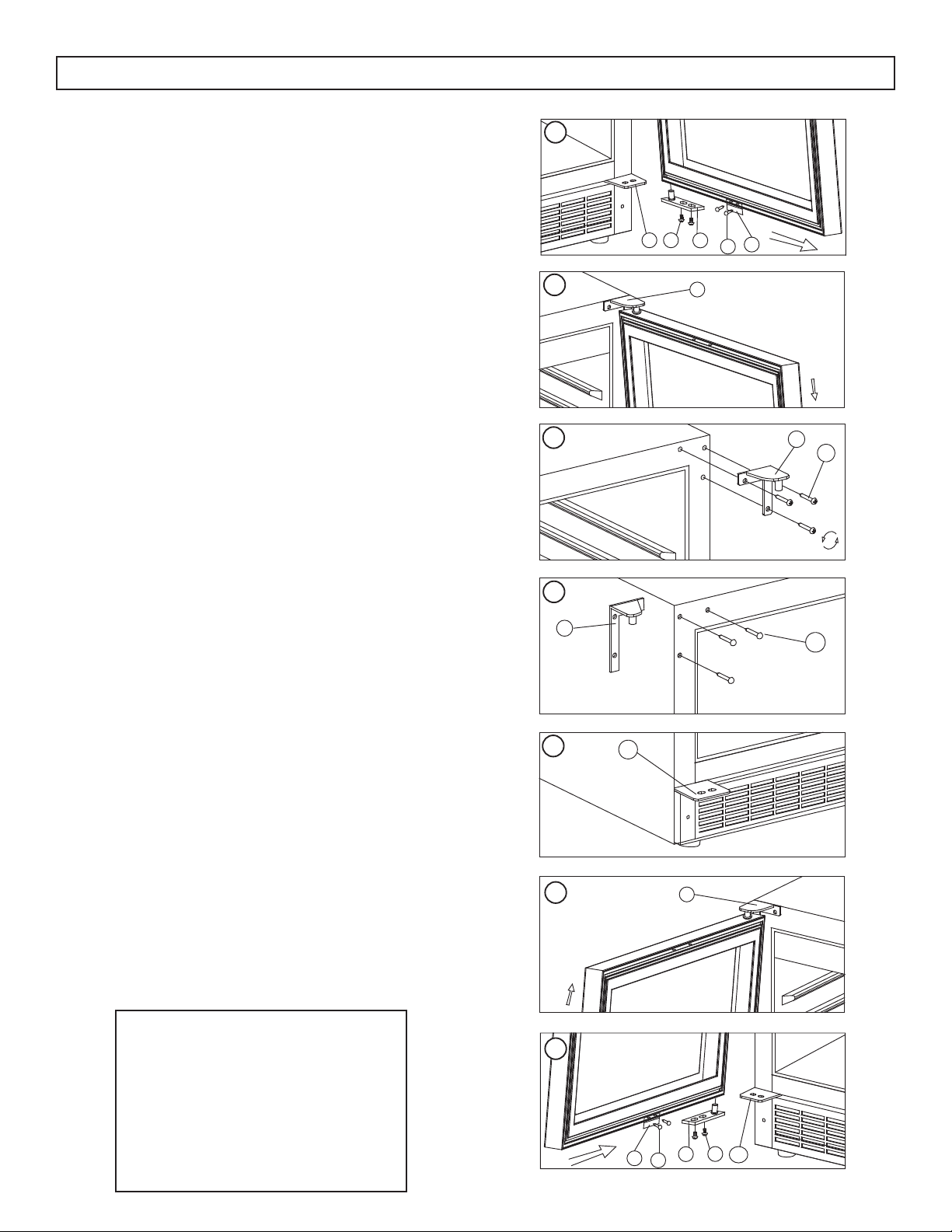

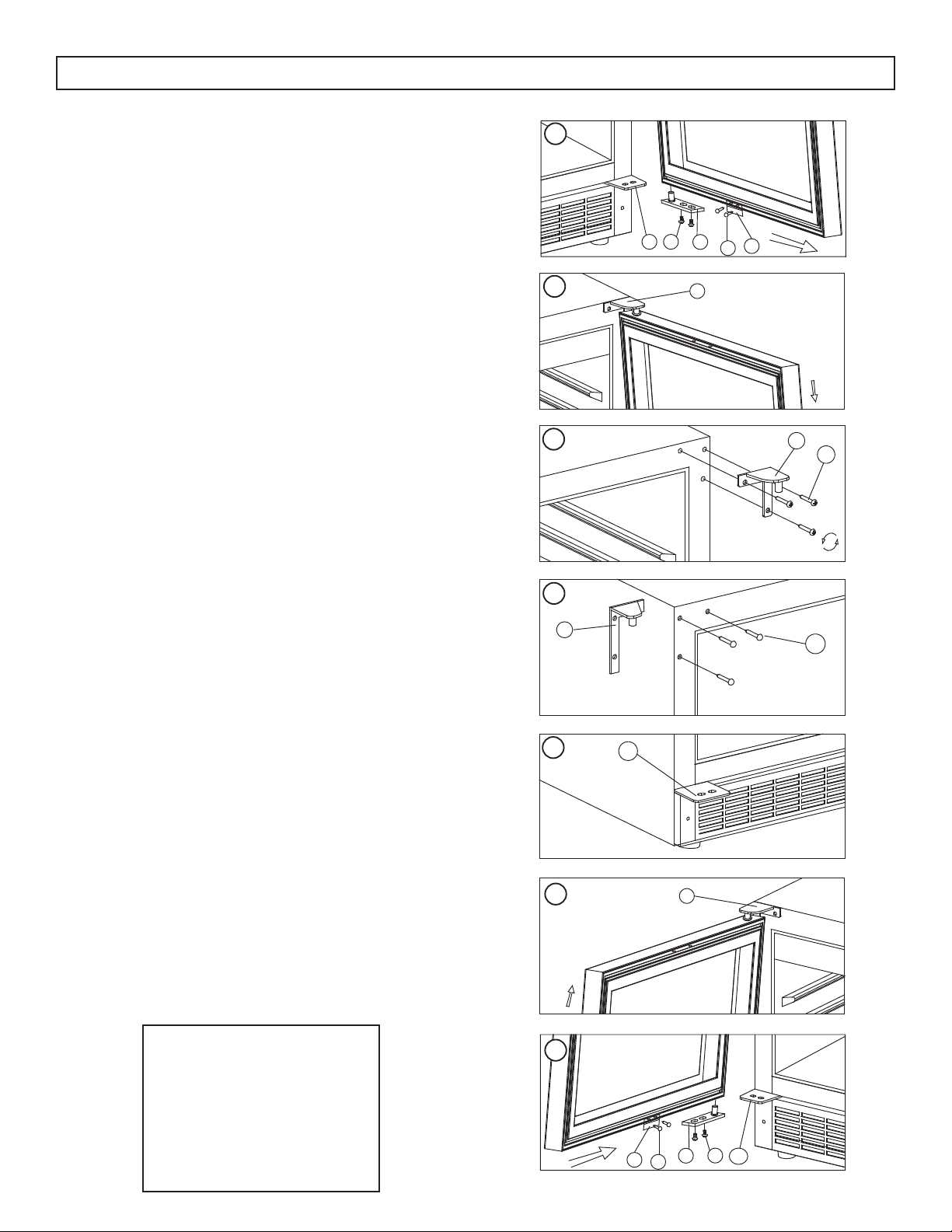

DOOR REVERSAL INSTRUCTIONS

If the appliance is placed on its back or side for any length of time during this process, it must be allowed to remain upright for 6 hours before plugging it in to avoid damage to the internal components.

1.Open the door to a 90° angle and remove two screws from the door axis. Slide the bottom of the door outward to remove it from the chassis. See figures A and B.

2.Remove two screws securing the actuator and remove it from the door. Install the actuator at the top of the door frame. Screw holes can be found at the top of the door frame by gently pulling back the rubber gasket. See figure A.

3.Remove three screws from the top right hinge and remove the right top hinge. See figure C.

4.Remove the screw hole covers from the top left of the cabinet and install the top left hinge at the top left of the cabinet with three screws. Block the holes at the top right of the cabinet with the screw hole covers. See figure D.

5.The lower left hinge is pre-installed on the cabinet. See figure E.

6.When reinstalling the door, it will need to be

ipped 180° from its original position to ensure that the handle is on the correct side and that the actuator is on the bottom. Install the door by sliding it onto the top hinge pin, then replace the door axis by placing the hinge pin in the bottom of the door and securing it to the bottom left hinge with two screws. Ensure the top of the door is properly aligned with the top of the cabinet, that the actuator is making contact with the switch on the chassis and that the rubber gasket makes a good seal with the cabinet all the way around. See figures F and G.

1.Bottom Right Hinge

2.Door Axis Screws

3.Door Axis

4.Actuator Screws

5.Actuator

6.Top Right Hinge

7.Hinge Screws

8.Top Left Hinge

9.Screw Hole Cover

10.Bottom Left Hinge

A

1

2

3

4

5







B



6





C

6



7

D





8



9

E

10

F

8

G

5 4 3 2 10

7

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.

Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.

Clean the outside with a soft, damp cloth and some mild detergent.

It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

Short vacations: Leave the appliance operating during vacations of less than three weeks.

Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

Make sure the appliance is empty.

Secure the shelves with tape.

Secure the door with tape.

Turn the adjustable foot up to avoid damage.

Protect the outside of the appliance with a blanket or similar item.

Be sure the appliance stays in the upright position during transportation.

If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to internal components.

ERROR CODES

If the “HI” or “LO” error codes appear on the display for more than 5 minutes, a power reset may rectify the issue. Unplug the appliance, wait 5 minutes and then plug the appliance back in. If the error code persists after a power reset, contact consumer care or an authorized service agent.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

8

TROUBLESHOOTING

Silhouette Consumer Care: 1-844-455-6097

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM



POSSIBLE CAUSE

No power

A fuse may be blown or the circuit breaker





tripped



• Plug not fully inserted into the wall outlet







Internal temperature not cold enough

Door is not shut properly or opened excessively

Appliance runs continuously

Exhaust vent is obstructed

Alarm sounding and “HI” on the display panel

Recently added a large quantity of warm bottles





to the cabinet



• Close proximity to heat source or direct sunlight



• Ambient temperature or humidity is very high



• Possible system leak, evaporator fan failure or





compressor failure







Condensation on the cabinet or door

Door is not shut properly or opened excessively



• Ambient temperature or humidity is very high







Alarm sounding and “LO” or “CL” on the display

Ambient temperature is excessively low

panel

Sensor failure





• Evaporator temperature is too low







9
