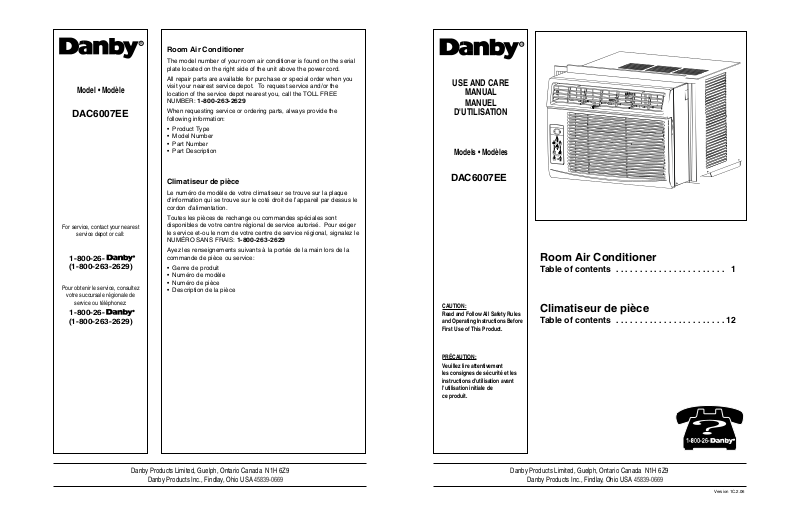

Danby DAC6007EE User Manual [en, fr]

USE AND CARE

MANUAL
MANUEL

D'UTILISATION

Models • Modèles

CAUTION:
Read and Follow All Safety Rules
and Operating Instructions Before
First Use of This Product.

PRÉCAUTION:
Veuillez lire attentivement

les consignes de sécurité et les
instructions d'utilisation avant
l'utilisation initiale de
ce produit.

Room Air Conditioner

Table of contents . . . . . . . . . . . . . . . . . . . . . . . 1

Climatiseur de pièce

Table of contents . . . . . . . . . . . . . . . . . . . . . . . 12

Danby Products Limited, Guelph, Ontario Canada N1H 6Z9

Version 1C.2.06

DAC

60

7EE

0

Danby Products Inc., Findlay, Ohio USA

45839-0669

Table of Contents

GARANTIE LIMITÉE DE CLIMATISEUR

Cet appareil de qualité est garantie exempt de tout vice de mat

ière première et de fabrication, s’il est utilisé dans les conditions normales recommandées par

le fabricant.
Cette garantie n’est offerte qu’à l’acheteur initial de l’appareil vendu par Danby ou par l’un des ses distributeurs agréés et

elle ne peut être transférée.

CONDITIONS

Les pièces en plastique sont garanties pour trente (30) jours s

eulement à partir de la date de l’achat, sans aucune prolongati

on prévue.

Première 12 Mois

Pendant les première douze (12) mois, toutes pièces électriques

de ce produit s’avèrent défectueuses, y compris les unités ayant

des systèmes obturés, seront réparées ou remplacées, selon le c

hoix du garant, sans frais à l’acheteur INITIAL.

Pour bénéficier du

Danby réserve le droit de limiter le rayon du “Service au domic

ile” selon la proximité d’un dépot de service autorisé. Le client sera

service sous garantie

responsable pour le transport et tous les frais d’expédition de tout appareil exigeant le service en dehors des limites du “Se

rvice au

domicile” au dépot de service autorisé le plus proche. S’adres

ser au détaillant qui a vendu l’appareil, ou à la station technique agréée de

service la plus proche, où les réparations doivent être effectu

ées par un technicien qualifié. Si les réparations sont effectuées par

quiconque autre que la station de service agréée où à des fins

commerciales, toutes les obligations de Danby en vertu de cette garantie

seront nulles et non avenues.

EXCLUSIONS

En vertu de la présente, il n’existe aucune autre garantie, condition ou représentation, qu’elle soit exprimée ou tacite, de f

açon manifeste ou intentionnelle, par

Danby Products Limitée (Canada) ou Danby Products Inc. (E.- U.

d’A.) ou ses distributeurs agréés. De même, sont exclues toutes les autres garanties, conditions

ou représentations, y compris les garanties, conditions ou repr

ésentations en vertu de toute loi régissant la vente de produits ou de toute autre législation ou

règlement semblables.
En vertu de la présente, Danby Products Limitée (Canada) ou Danby Products Inc. (E.- U. d’A.) ne peut être tenue responsable e

n cas de blessures corporelles ou

des dégâts matériels, y compris à l’appareil, quelle qu’en soit les causes. Danby ne peut pas être tenue responsable des domm

ages indirects dus au

fonctionnement défectueux de l’appareil. En achetant l’appareil, l’acheteur accepte de mettre à couvert et de dégager Danby P

roducts Limitée de toute

responsabilité en cas de réclamation pour toute blessure corpor

elle ou tout dégât matériel causé par cet appareil.

CONDITIONS GÉNÉRALES

La garantie ou assurance ci-dessus ne s’applique pas si les dég

âts ou réparations sont dus aux cas suivants:

1) Panne de courant;

2) Dommage subis pendant le transport ou le déplacement de l’appar

eil;

3) Alimentation électrique incorrecte (tension faible, câblage déf

ectueux, fusibles incorrects);

4) Accident, modification, emploi abusif ou incorrect de l’apparei

l;

5) Utilisation dans un but commercial ou industriel;

6) Incendie, dommage causés par l’eau, vol, guerre, émeute, hostil

ités, cas de force majeure (ouragan, inondation, etc.);

7) Visites d’un technicien pour expliquer le fonctionnement de l’a

ppareil au propriétaire.

Une preuve d’achat doit être présentée pour toute demande de ré

paration sous garantie. Prière de garder le reçu. Pour faire

honorer la garantie, présenter ce

document à la station technique agréée ou s’adresser à:

Service sous-garantie

En Atelier.

Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Notes & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

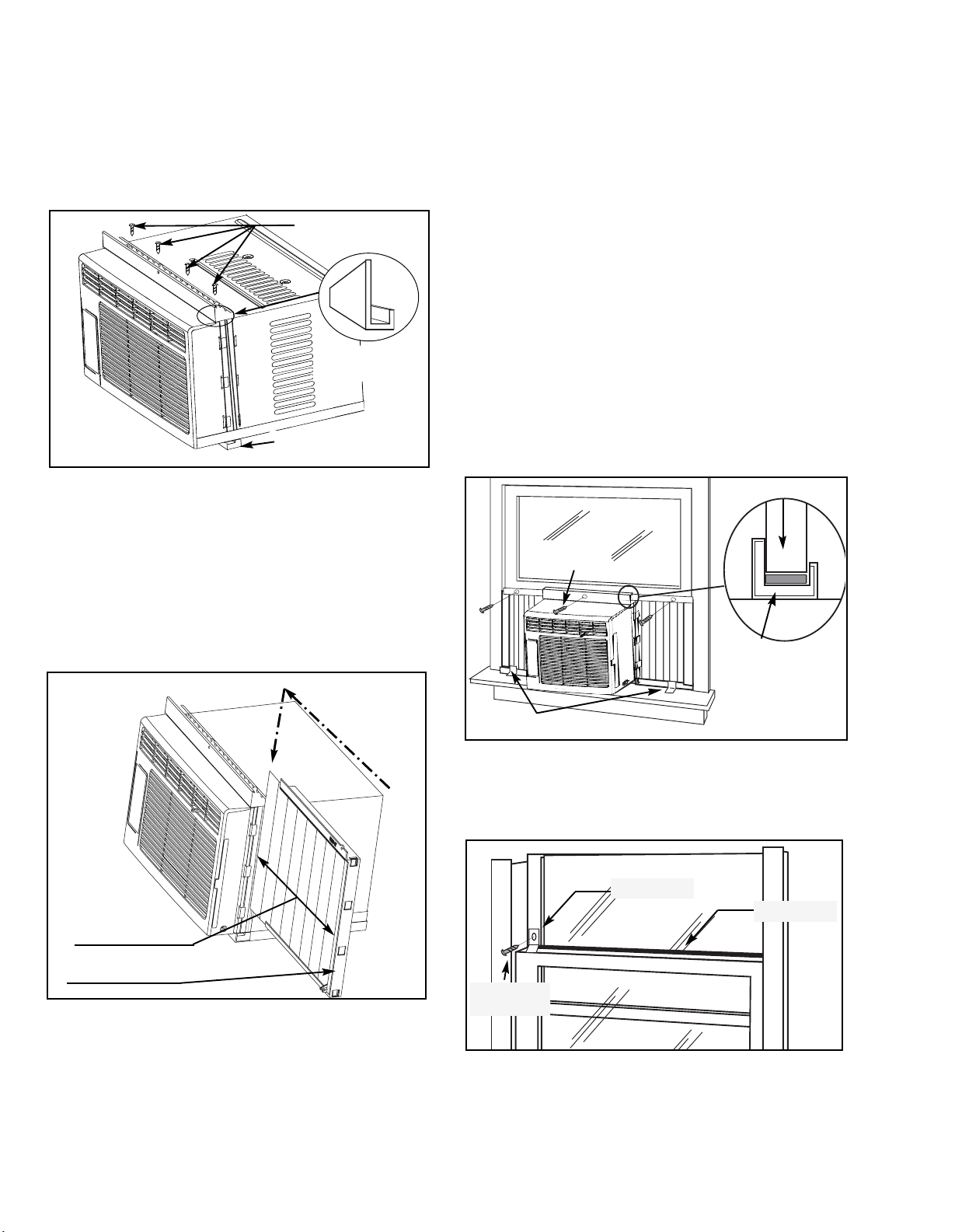

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

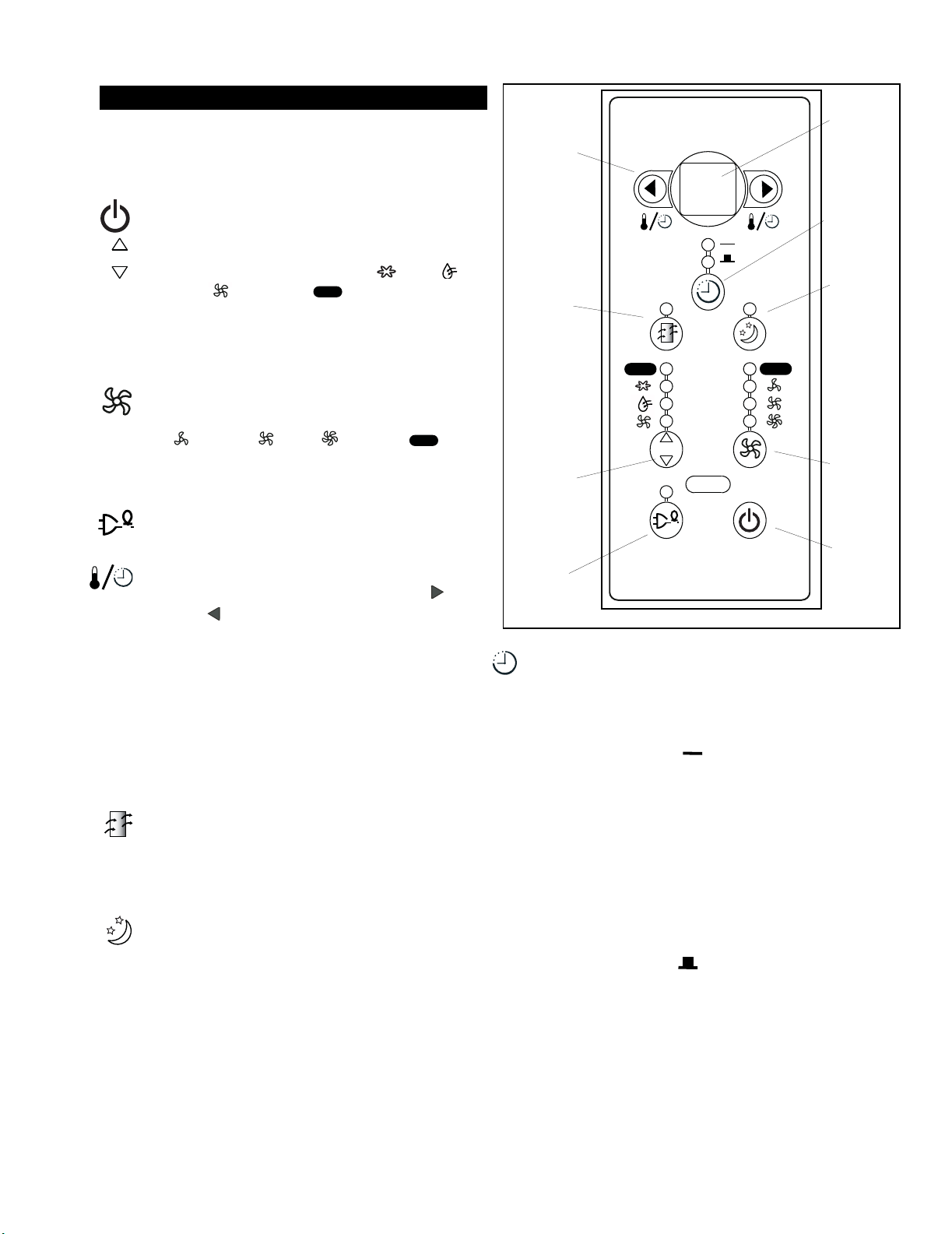

Key pad Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

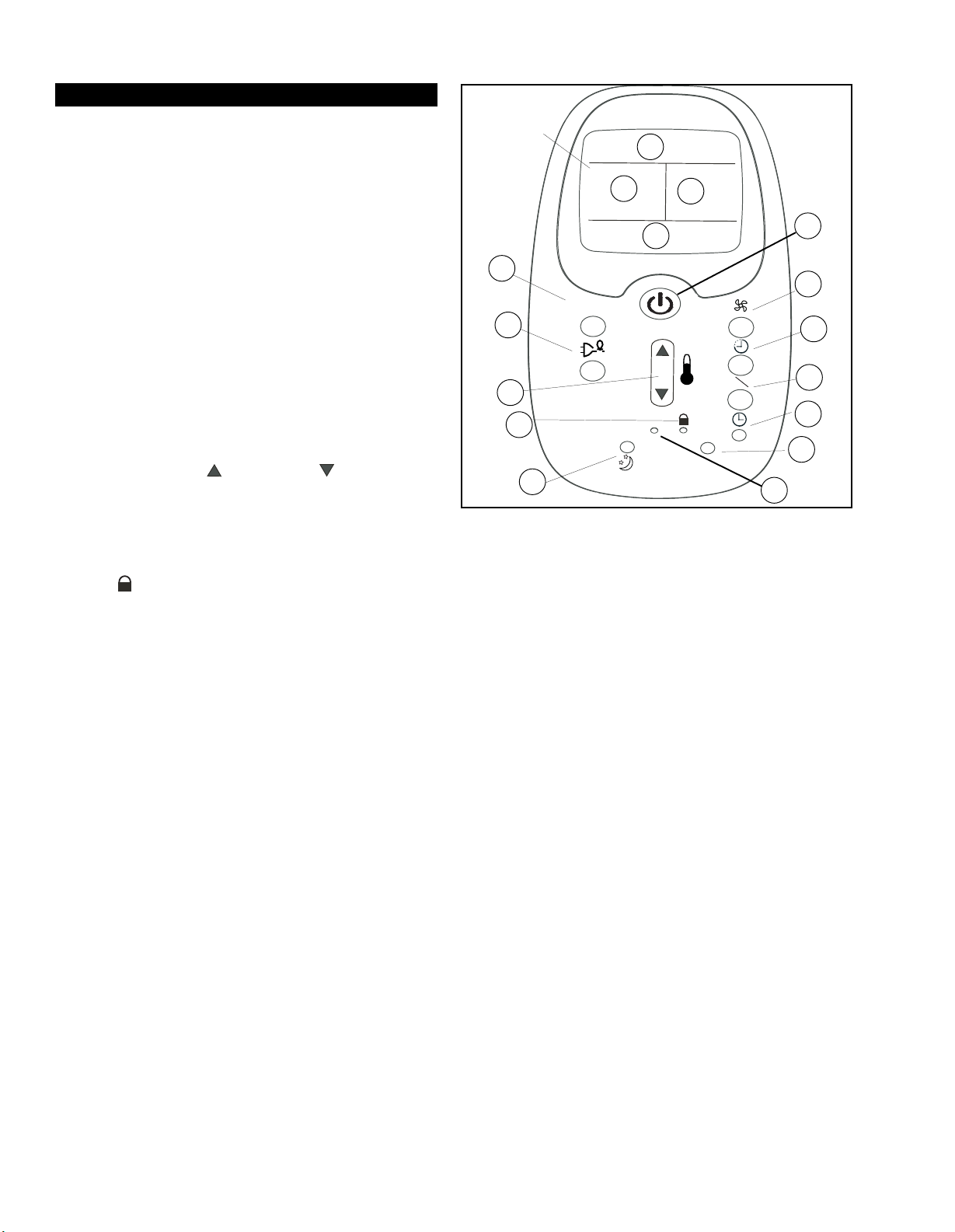

Remote Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trouble Shooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications

Voltage

Cooling Capacity (Btu/h)
Input Wattage
Energy Efficiency Rating (EER)
Fan/Cooling Speeds

Cooling Area Coverage (Sq.ft./M2)
Noise Level (dB)

Unit Dimensions (inch/cm) Width

Window Kit Dimensions (inch/cm)

Model

Interior
Air Outlet

Interior

Air Inlet

Control
Panel

Fresh Air Ventilation Switch
used during for Fan Only operation

Depth

Height

Maximum Width

Minimum Width

Minimum Height

Parts Identification

(some models only)

. . . . . . 5

Cabinet

DAC607EE

0

115V

/

6

0Hz

6000

560

10.7
3/3

200/18.6

53

18-1/2 / 47

5

16

/

41.

16-

/

12-5/8/ 32.1

2

34-1/

/ 87.6

21-1/2 / 54.6

3

/8 / 34

13-

Filter

5

Page

. . 1

. . . . . 2

. . 3

4

. . . 7

8

9

. 10

. . . . . 11

Exterior
Air Inlet

NOTE:

Specifications are subject to change without notice for further improvement.

1

2

Introduction

Thank you for choosing a Danby Room Air Conditioner to cool your home

. This Use and Care Manual

provides information necessary for the proper care and maintenance of y

our new Room Air Conditioner. If

properly maintained, your air conditioner will give you many years of trouble free oper

ation. To avoid

installation difficulties, read these instructions completely before installing/oper

ating your unit.

NOTE:

This unit is NOT

designed for through-the-wall installation.

For easy reference, you may want to attach a copy of your sales receipt to this page

. Note the following

information provided

(on the manufacturer’s nameplate located on the unit)

. This information will be needed

when you contact a Customer Service Representative.

Model Number:

Serial Number: ___________________________________________________

Date of Purchase: _________________________________________________

Dealer’s Name and Address: _________________________________________

________________________________________

Refer to the trouble shooting section of this Use and Care Manual if the unit is not oper

ating correctly.

If these suggestions do not solve the problem, contact an authorized ser

vice representative or

call Danby TOLL FREE:

1-800-26-Danby

This symbol denotes a caution or warning

CAUTION

Do not leave a room air conditioner unattended in
a space where people or animals who cannot
react to a failed unit are located. A failed unit can
cause extreme overheating and fire in an
enclosed, unattended space.

SAVE THESE INSTRUCTIONS!

DAC

60

7EE

0

Electrical Specifications

1. All wiring must comply with local and national
electrical codes and must be installed by a
qualified electrician. If you have any questions
regarding the following instructions, contact a
qualified electrician.

2. Check available power supply and resolve any
wiring problems BEFORE installing and
operating this unit.

3. This 115V air conditioner uses 10.1 or less
(depending on model) nameplate amps and may
be used in any properly wired, general purpose
household receptacle. See Table 1 for
specifications for individual branch circuit.

4. For your safety and protection, this unit is
grounded through the power cord plug when
plugged into a matching wall outlet.

If
you are not sure whether your wall outlet is
properly grounded, please consult a
qualified electrician.

5. The wall outlet (3-pin) must match the plug (3­pin) on the service cord supplied with the unit.
DO NOT use plug adapters. See Table 2 for
receptacle and fuse information. DO NOT USE
"REGULAR" EXTENSION CORDS WITH THIS
UNIT. If it is necessary to use an extension cord
to connect your air conditioner, use an approved
"air conditioner" extension cord only. (available at
most local hardware stores)

6. The rating plate on the unit contains electrical
and other technical data.

Table 1:

Suggested Individual Branch Circuit

Nameplate Amps AWG Wire Size*

4.9 to 10.1

14

AWG- American Wire Gage
* Based on copper wire at 60 °C temperature rating.

Table 2:

Receptacle and Fuse Types

Rated Volts

125

Amps

15

Wall Outlet

Fuse Size

15

Time Delay Fuse

Plug Type

(or circuit breaker)

3

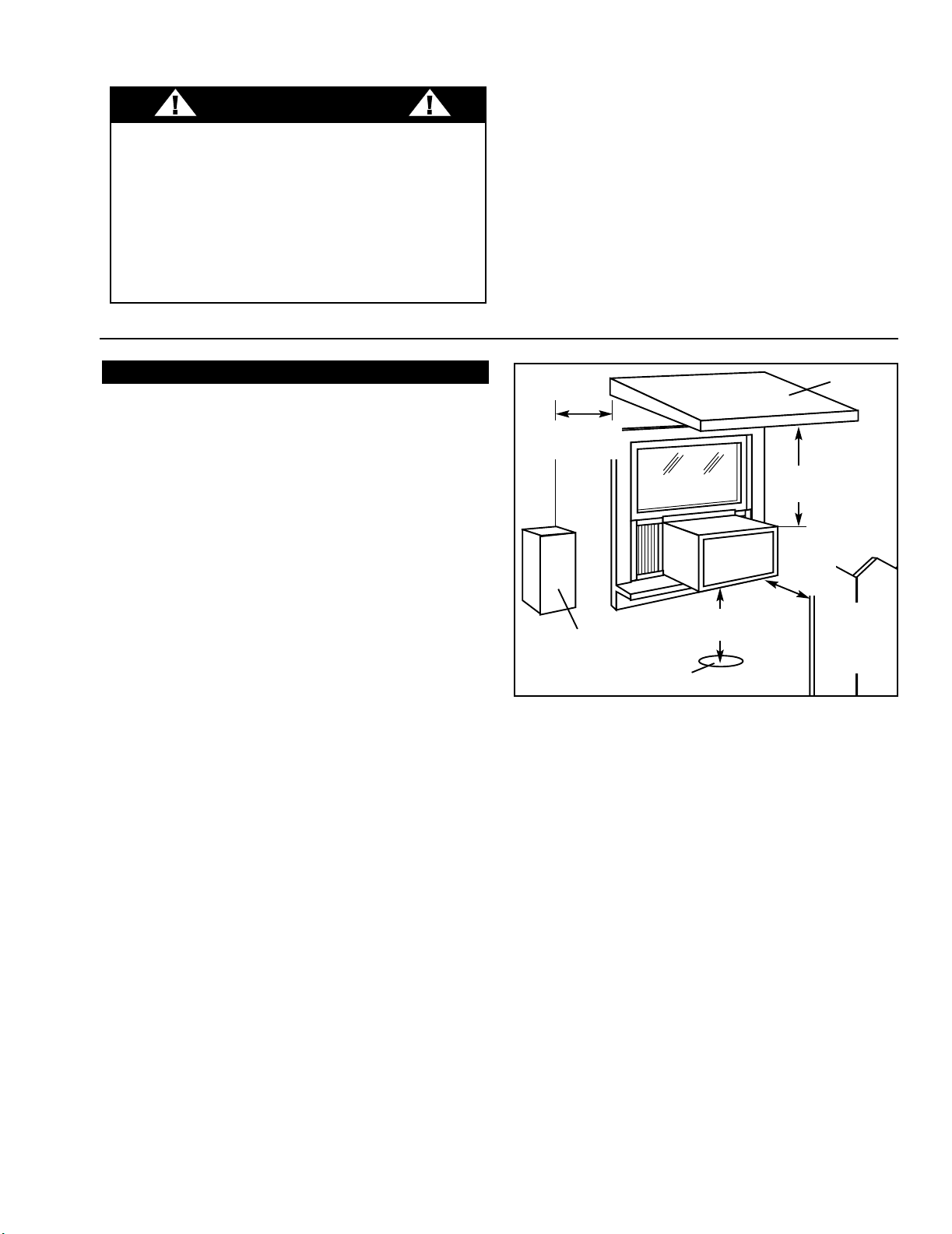

Installation Notes

Tools Needed for Installation

Screw Drivers:

Both Phillips and flat head

Power Drill:

1/8 inch (3.2 mm) diameter drill bit

Pencil
Measuring Tape
Scissors
Carpenters Level

Your Room Air Conditioner is designed for easy
installation in a single or double-hung window.This
unit is NOT designed for vertical (slider type)
windows and/or through-the-wall applications.

NOTE:

Save the shipping carton and packing
materials for future storage or transport of the unit.
Remove from carton, the plastic bag containing the
installation hardware kit necessary for the installation
of your air conditioner. Please check the contents of
hardware kit against the corresponding model check
list, prior to installation of the unit.

See

Fig. 1

4

CAUTION

To avoid installation/operation difficulties,

read these instructions thoroughly.

Electric Shock Hazard

To avoid the possibility of personal
injury, disconnect power to the unit
before installing or servicing.

Energy-Saving Tips

Your Room Air Conditioner is designed to be
highly efficient in energy savings

.

Follow these recommendations for greater efficiency.

1. Select thermostat setting that suits your
comfort needs and leave thermostat at that
chosen setting.

2. The filter is very efficient in removing airborne
particles. Keep air filter clean. Normally, filter
should be cleaned every 2 weeks. More
frequent cleaning may be necessary depending
on indoor air quality.

3. Use drapes, curtains, or shades to keep
direct sunlight from heating room, but

DO NOT

obstruct the air conditioner. Allow air to circulate
around the unit without obstruction.

4. Start your air conditioner before outdoor air
becomes hot and uncomfortable. This avoids an
initial period of discomfort while unit is cooling
off the room.

5. When outdoor temperatures are cool enough,
use HIGH

or LOW FAN only. This circulates

indoor air, providing some cooling comfort, and
utilizes less electricity than when operating on a
cooling setting.

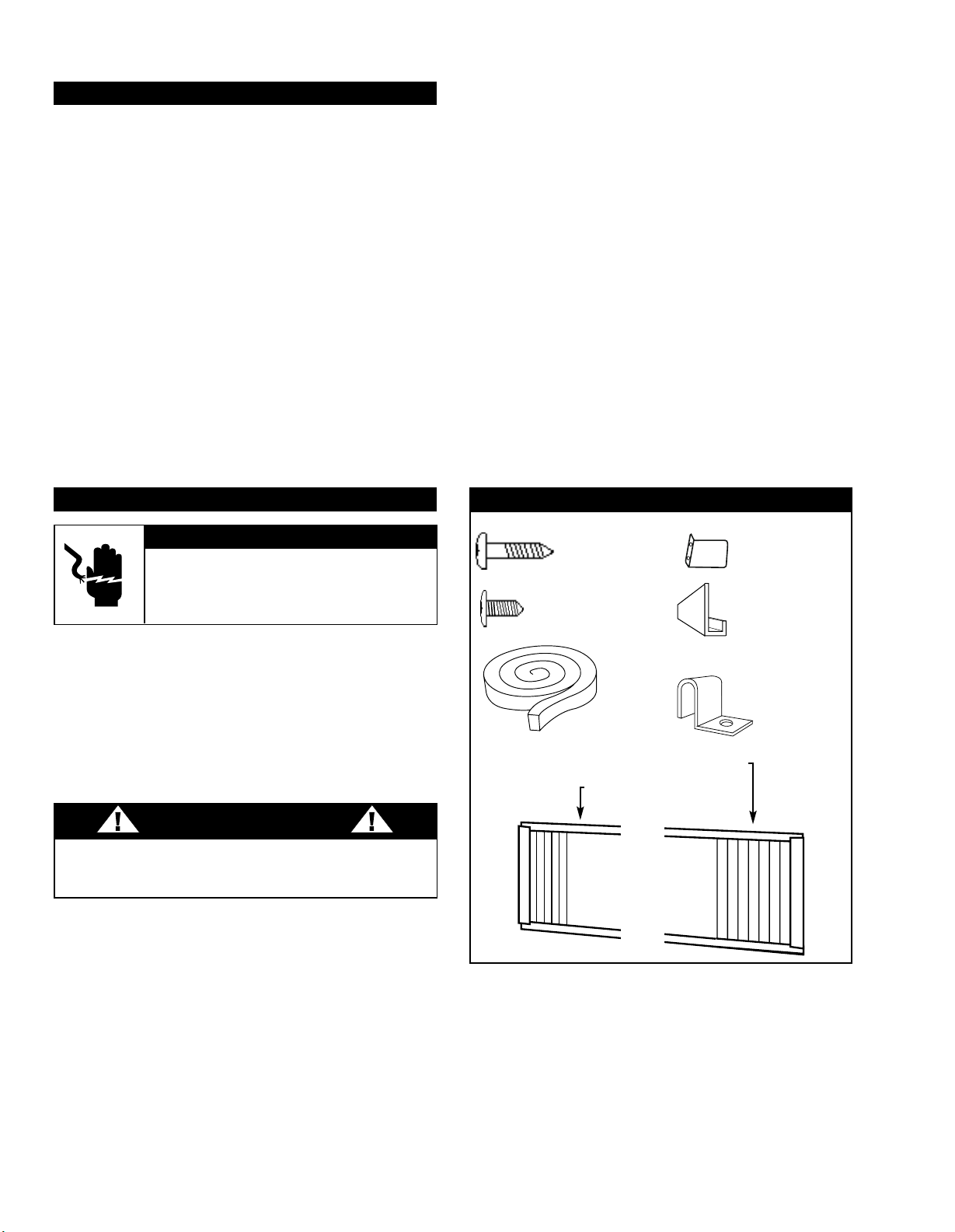

Installation Hardware

3/4" (19.1 mm)

*3/8" (9.5 mm) Screws
(4)

*Factory installed on
some models.

Safety Lock (1)

Side Curtain LH (1)

Adhesive

Foam Seal (1)

*“L” Shaped
mounting bracket
(1)

*Factory installed
on some models.

Fig. 1

Side Curtain RH (1)

Sash bracket (2)

S

c

re

w

s

(9

)

Your unit is designed to evaporate condensation
under normal conditions. However, under
extreme humidity conditions, excess condensation
may cause basepan to overflow to the outside.
The Unit should be installed where condensation
run-off cannot drip on pedestrians or neighboring
properties.

Select the Best Location

A. This room air conditioner is designed to fit easily

into a single or double hung window. However,
since window designs vary, it may be necessary
to make some modifications for safe, proper
installation.

B. Make sure window and frame are structurally

sound and free from dry and rotted wood.

C. For maximum efficiency, install the air conditioner

on a side of a house or building which favors
more shade than sunlight. If the unit is in direct
sunlight, it is advisable to provide an awning over
the unit.

D. Provide sufficient clearance around the cabinet to

allow for ample air circulation through the unit.
See

Fig. 2.

The rear of the unit should be
outdoors and not in a garage nor inside a
building. Keep unit as far away as possible from
obstacles/obstructions and at least 30"

(76.2 cm)

above the floor or ground. Curtains and other
objects within a room should be prevented from
blocking the air flow.

E. Be certain the proper electrical outlet is within

reach of the installation. Use only a single
outlet circuit rated at 15 amps. All wiring should
be in accordance with local and national
electrical codes.

F. DO NOT USE "REGULAR" EXTENSION CORDS

WITH THIS UNIT. If it is necessary to use an
extension cord to connect your air conditioner,
use an approved "air conditioner" extension cord
only. (available at most local hardware stores)

G. DO NOT install unit where leakage of combustible

gas is suspected. Your air conditioner may fail to
operate in air containing oils (including machine
oils), sulfide gas, near hot springs, etc...

Side

obstruction

Fig. 2

Ground

Fence,
wall, or

other

obstacle.

Awning

12"(30.5 cm)

Min.

30"(76.2 cm)

Min.

20" (50.8 cm)

Min.

5

CAUTION

Because the compressor is located towards the

rear of the unit, this side will be heavier and more

awkward to manipulate.Therefore, it is

recommended to have someone assist you

during the installation of this unit.

Installation

20"

(50.8 cm)

Min.

6

1. Assembly of the Upper Channel, to
Cabinet.

(

Factory installed on some models)

• "L" Shaped Top Channel:

Install the "L"
shaped channel to the top of the cabinet as
shown in Fig. 3 using four (4) 3/8"

(9.5mm)

screws.

2. Assembly of the Side Curtains to
Cabinet.

• Extend the shutter from the shutter frame and
slide it into the shutter guide on the side
channel of

the air conditioner as shown in Fig. 4.

• Slide the shutters into the top (“L” Shaped) and
bottom (“U” Shaped channels. The shutters are
identified (on frame) as left & right.

3.

Completing the Installation

•

Cut the foam (non adhesive) sealing strip

to
fit the area of the window sill that the air
conditioner will rest on.

3a.

Completing the Installation (cont’d)

• Carefully place the air conditioner into the

window with the “L” shaped mounting bracket

(on top) positioned in front of the upper window
sash. The bottom of the cabinet should be
positioned on the “recessed” portion of the
window frame. Pull the window down until it
rests just behind the front flange of the (top)

“L”

shaped mounting bracket.

See Fig. 5.

• Expand the shutter frames (fully) on each side
and secure the top of the frames to the window
sash using one 3/4" (19.1 mm) screw on each
side and one in the “L” shaped mounting
bracket.

Fig. 5

• Secure the shutter clamp on each side of the

(lower) shutter and secure to window sill using
one 3/4" (19.1mm) screw on each side.

Fig.5

• Place the second

foam sealing strip

to fit the
opening between the inside and outside windows
then attach the safety lock to the outside window
frame using one 3/4”

(19.1 mm)

screw.

See Fig. 6

.

PLEASE NOTE:

Window applications come in a
variety of different styles. Therefore, it may be
necessary to modify or improvise your particular
installation.

“L” Shaped
Mounting Bracket

Fig. 3

Shutter Frame

Shutter

Fig. 4

Slide down into guide

“U” Shaped Channel
(Factory Installed)

Fig. 5

“L” Shaped
Mounting
Bracket

Window Sash

Fig. 6

Foam Seal

Shutter clamps

Safety Lock

3/4" (19.1mm)
Screws

3/4" (19.1 mm)
Screw

3/8" (9.5mm) Screw

LED DISPLAY: Displays the following information
independently; Set Temperature, Ambient Room
Temperature and Auto Timer On/Off settings.

POWER: Turns unit On / Off.

MODE: Allows you to scroll through and select

the desired operating mode; Cool , Dry ,
Fan Only and *Auto .
The selected mode will be denoted by the
adjacent indicator light.

*‘Auto’ is a pre-set
factory program that automatically defines the
mode (Cool or Dry) and fan speed based on the
set temperature.

FAN SPEED: Select from four different fan settings;

Low , Medium , High

and

Auto

during Cool and Fan Only mode.

Please note

:

During ‘Dry’ mode the fan speed is automatically
defined .

ENERGY SAVER: Automatically cycles the fan on
and off while the compressor is not in use.

TEMP. /TIMER Control: Used to increase or
decrease the Temperature setting in 1°C / °F

increments.and Auto-Timer On/Off settings in 30
min./1hr. increments.

7

Mode
Selector

Temp/Timer
Control

Fan
Speed

Power
Button

Energy
Saver

Sleep
Mode

Check
Filter

Key Pad Features

Note

: This appliance allows you select the

temperature scale to be displayed in either “Celsius” or
Fahrenheit” according to your preference. To change
the temperature scale displayed on the electronic
display, press both the “Temp/Timer” adjust arrows
simultaneously to alternate between “Celsius” &
“Fahrenheit”.

CHECK FILTER : The adjacent indicator light will
illuminate as a reminder to clean the air conditioner
filter (see page 9) Once the filter has been
cleaned and replaced, depress the Check Filter
button in order to resume operation.

SLEEP MODE : When activated, the current set
temperature is gradually increased over a one (1)
hour period then maintained for seven (7) hours.
Once the program is complete, the air conditioner
will resume to it’s previous set temperature (before
sleep mode was activated). This feature is meant
to be used during the night time hours to prevent
the room from getting too cold (while you sleep)
and results in less compressor running time and
reduced energy consumption. Sleep mode may
be cancelled by depressing the Sleep Mode
button while the program is running.

Auto
Timer

LED

DISPLAY

AUTO-TIMER: Used to Initiate the Auto On and/or

Auto Off timer.

While the Air Conditioner is off (Auto-On):

1. Press the Auto-Timer button once and the adjacent
Auto-On indicator light ‘ ‘ will illuminate.

2. Use the Temp/Timer control cursors to select a
delayed

On

time of up to 24 hours.

3. Select the appropriate mode under which you want
the unit to operate (Auto-Cool-Dry-Fan Only)

4. Select the fan speed setting.

5. The time you selected will appear in the LED
display..

While the Air Conditioner is on (Auto-Off);

1. Press the Auto-Timer button twice and the adjacent
Auto-Off indicator light will illuminate.

2. Use the Temp/Timer control cursors to select a
delayed

Off

time of up to 24 hours.

3. The time you selected will appear in the LED display

The Auto On and Auto Off timer can operate during the
same program by defining the Auto-Off parameters
immediately after the Auto On parameters.

The Auto-Timer may be cancelled at any time by turning
the unit On/Off.

68

MODE

Auto

Auto

Auto

Auto

MODE

Remote Control Features

Electronic Display:

Displays the following

information;

A: Remote Control power On/Off and Mode Icons

B: Clock and Auto-Timer settings

C: Current set temperature

D: Fan speed setting

Control Buttons

1. Power switch.

2. Mode

3. Fan Speed

4. Energy Saver

5. Auto-Timer

6.

Used to increase or decrease temperature
settings in 1° increments on the Celsius or
Fahrenheit scale.

7. Cancels current Timer ON/OFF settings.

8. Lock prevents the remote control settings from

inadvertently being changed.

9. Clock: Depress the button for 3 seconds in order
to set the clock. Press the increase or decrease
arrow to adjust the clock in 1 minute intervals,
holding down the increase or decrease arrow will
adjust the time in 10 minute intervals.

10. Used to activate the SLEEP program.

11.

Toggle the LED backlight on/off.

12. Restore remote control default settings.

To operate the hand held remote control will require
two “AAA” Alkaline batteries (included ).

Batteries should be replaced when:

a) No signal (beep) is heard when attempting to

program the main unit.

b) The main unit does not respond to a command

issued by the remote control.

Battery replacement:

1. Slide the rear cover on the remote in the direction
of the arrow. Continue pulling (gently) until the
cover separates completely from the unit.

2. Insert (2) batteries (AAA) following the same
orientation (polarity) depicted inside the battery
chamber.(+/-)

3. Re-install rear cover.

4. If the remote control will not be used for extended
periods of time (vacations etc.), batteries should
be removed.

The remote operates within a range of 8 meters
(26 ft.) from the receiver located inside the main unit.
Any obstruction between the receiver and remote
may cause signal interference, limiting the ability to
program the main unit.

8

M

OD

E

©

1

2

3

4

5

6

7

8

9

10

11

A

B

C

D

Electronic
Display

12

Care and Maintenance

When cleaning the air conditioner, be sure to
turn the POWER OFF and disconnect the power
cord from the electrical outlet.

1. DO NOT use gasoline, benzine, thinner or other

chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.

2. Never attempt to pour water directly on unit as
this will cause deterioration of the electrical
insulation.

Air Filter Removal:

The air filter is located behind the air intake front
grill. To remove the air filter, grasp the sides of the
front grill and pull forward to open and access the
filter.

To reinstall the air filter, reverse the above
procedures. The air filter may be vacuumed or
washed by-hand in warm water. Dry thoroughly
before installing.

Cleaning Air Filter

1. Use a vacuum cleaner with soft brush
attachment.

2. Wash the filter in lukewarm water below 40°C
(104°F): To get better results, wash with soapy
water or a neutral cleaning agent.

3. Rinse the filter with clean water and
dry thoroughly before re-installing.

End-of-Season Care

1. Operate the fan alone for half a day to dry out the
inside of the unit.

2. Turn off power and remove plug from wall socket.

3. Clean filter.

4. Store (covered) air conditioner in a dry location.

CAUTION

When installing and/or removing the air

conditionner from the window, ensure that

caution is taken to prevent the unit from falling

backward. It is recommended that installtion

or removal of the airconditioner is done with

assitance to prevent injury to persons or

damage to the unit or property.

9

IMPORTANT

DO NOT forget to install the air filter. If the air

conditioner is left to operate without the air filter,
dust is not removed from the room air and may
result in machine failure.

When the air inlet grill and cabinet are dirty, wipe
with lukewarm water (below 40°C / 104°F). Use of
a mild detergent is recommended.

possible solution. If the unit continues to operate improperly, call

Danby’s Toll Free Number 1-800-263-2629

for

assistance, or call one of our service depots listed in the enclosed “Author

ized Service Depot” listing provided

with this unit.

Difficulty Possible Cause Suggested Solution

Air conditioner will No power to unit.

Check connection of power cord to

not operate.

power source.
Check fuse or circuit breaker.

Inefficient or no cooling. Dirty air filter.

Clean or replace air filter.

Unit size inappropriate

Check with dealer to determine proper unit

for application.

capacity for application.

Blocked air flow.

Remove obstruction from grill or
outdoor louvers.

Power interruption, settings Turn the unit off and wait 5 min

utes before

changed too quickly, or

attempting to re-start.

compressor overload tripped.

Noisy unit.

Loose parts.

Tighten loose parts.

Inadequate support.

Provide additional support to unit.

Odors.

Formation of mold, mildew, or Clean unit thoroughly.
algae on wet surfaces.

Place algaecide tablet in base pan.

Water dripping outside. Hot and humid weather. Condensation r

un-off is normal under these

conditions.

Water dripping inside. Unit is not properly angled to Unit must be installed on an angle f

or proper

allow water to drain outside. condensation run-off. Check the unit and

make any adjustments.

Ice or frost build-up. Low outside temperature. When outdoor temper

ature is approximately
65°F or below, frost may form when unit is in
cooling mode. Switch unit to FAN (only)
operation until frost melts.

Unit air filter is dirty.

Remove and clean filter.

NOTES: 1. If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a

qualified technician.

2. When unit is installed using proper installation steps, unit is properly tipped towards the outdoors
to allow for condensation run-off.

10

Trouble shooting Guide

Frequently, a problem is minor and a service call may not be neces

sary, use this trouble shooting guide for a

r

LIMITED AIR CONDITIONER WARRANTY

This quality product is warranted to be free from manufacturer’

s defects in material and workmanship, provided that the unit is used under the normal operating

conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby or by an authorized distributor of

Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First 12 Months

During the first twelve (12) months, any electrical parts of this product found to be defective, including any sealed syst

em units, will

be repaired or replaced, at warrantor’s option, at no charge to

the ORIGINAL purchaser.

To obtain

Danby reserves the right to limit the boundaries of “In Home Se

rvice” to the proximity of an Authorized Service Depot. Any appliance

Service

requiring service outside the limited boundaries of “In Home Se

rvice” ,

it will be the consumer’s responsibility to transport the appliance (at

their own expense) to the original retailer (point of purchase) or a service depot for repair. Contact your dealer from whom

your unit was

purchased, or contact your nearest authorized Danby service dep

ot, where service must be performed by a qualified service techn

ician.

If service is performed on the units by anyone other than an au

thorized service depot, or the unit is used for commercial application, all

obligations of Danby under this warranty shall be at an end.

EXCLUSIONS

Save as herein provided, Danby Products Limited (Canada) or Dan

by Products Inc. (U.S.A.), there are no other warranties, condi

tions, representations or

guarantees, express or implied, made or intended by Danby Produ

cts Limited or its authorized distributors and all other warranties, conditions, representations or

guarantees, including any warranties, conditions, representatio

ns or guarantees under any Sale of Goods Act or like legislatio

n or statue is hereby expressly

excluded. Save as herein provided, Danby Products Limited (Cana

da) or Danby Products Inc. (U.S.A), shall not be responsible fo

r any damages to persons or

property, including the unit itself, howsoever caused or any co

nsequential damages arising from the malfunction of the unit an

d by the purchase of the unit, the

purchaser does hereby agree to indemnify and save harmless Danb

y Products Limited from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power Failure.

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiri

ng or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as

inadequate air circulation in the room or abnormal operating conditions,

(extremely high or low room temperature).

5) Use for commercial or industrial purposes.

6) Fire, water damage, theft, war, riot, hostility, acts of God su

ch as hurricanes, floods etc.

7) Service calls resulting in customer education.

Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service i

s required, present this document to our

AUTHORIZED SERVICE DEPOT.

Warranty Service

Carry-in

Danby Products Limited
PO Box 1778, 5070 Whitelaw RD, Guelph, Ontario, Canada N1H 6Z9
Telephone: [phone] FAX: [phone]

06/06

PO Box 669, Findlay, Ohio, U.S.A. 4583

Telephone: [phone] FAX: [phone]

Danby Products Inc.

9-0669

Model • Modèle

For service, contact your nearest

service depot or call:

1-800-26-

Danby

(1-800-263-2629)

Pour obtenir le service, consultez

votre succursale régionale de

service ou téléphonez:

1-800-26-

Danby

(1-800-263-2629)

Room Air Conditioner

The model number of your room air conditioner is found on the serial
plate located on the right side of the unit above the power cord.

All repair parts are available for purchase or special order when you
visit your nearest service depot. To request service and/or the
location of the service depot nearest you, call the TOLL FREE
NUMBER:

1-800-263-2629

When requesting service or ordering parts, always provide the
following information:

• Product Type

• Model Number

• Part Number

• Part Description

Climatiseur de pièce

Le numéro de modèle de votre climatiseur se trouve sur la plaque
d'information qui se trouve sur le coté droit de l’appareil par dessus le
cordon d’alimentation.

Toutes les pièces de rechange ou commandes spéciales sont
disponibles de votre centre régional de service autorisé. Pour exiger
le service et-ou le nom de votre centre de service régional, signalez le
NUMÉRO SANS FRAIS:

1-800-263-2629

Ayez les renseignements suivants à la portée de la main lors de la
commande de pièce ou service:

• Genre de produit

• Numéro de modèle

• Numéro de pièce

• Description de la pièce

Danby Products Limited, Guelph, Ontario Canada N1H 6Z9

DAC

60

0

7EE

Danby Products Inc., Findlay, Ohio USA

45839-0669
