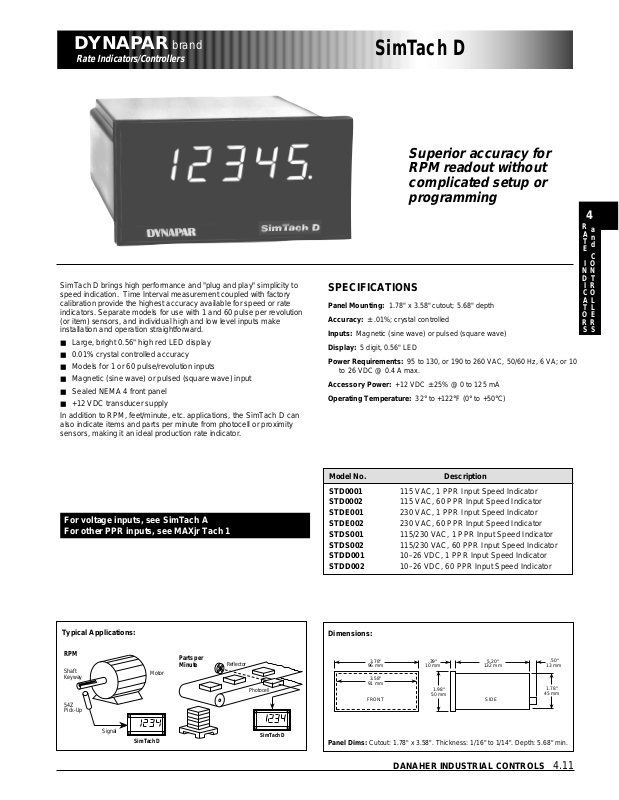

Danaher Controls SimTach D Data Sheet

DYNAPAR brand
3.78"
96 mm
FRONT SIDE
.39"
10 mm
5.20"
132 mm
1.98"
50 mm
.50"
13 mm
1.78"
45 mm
3.58"
91 mm
Rate Indicators/Controllers
SimTach D brings high performance and "plug and play" simplicity to speed indication. Time Interval measurement coupled with factory calibration provide the highest accuracy available for speed or rate indicators. Separate models for use with 1 and 60 pulse per revolution (or item) sensors, and individual high and low level inputs make installation and operation straightforward.
Large, bright 0.56" high red LED display
0.01% crystal controlled accuracy
Models for 1 or 60 pulse/revolution inputs
Magnetic (sine wave) or pulsed (square wave) input
Sealed NEMA 4 front panel
+12 VDC transducer supply
In addition to RPM, feet/minute, etc. applications, the SimTach D can also indicate items and parts per minute from photocell or proximity sensors, making it an ideal production rate indicator.
SimTach D
Superior accuracy for RPM readout without complicated setup or programming
SPECIFICATIONS
Panel Mounting: 1.78" x 3.58" cutout; 5.68" depth Accuracy: ± .01%; crystal controlled Inputs: Magnetic (sine wave) or pulsed (square wave) Display: 5 digit, 0.56" LED Power Requirements: 95 to 130, or 190 to 260 VAC, 50/60 Hz, 6 VA; or 10
to 26 VDC @ 0.4 A max.
Accessory Power: +12 VDC ± 25% @ 0 to 125 mA Operating Temperature: 32° to +122°F (0° to +50°C)
4
R
a
A
n
T
d
E
C O
I
N
N
T
D
R
I
O
C
L
A
L
T
E
O
R
R
S
S
For voltage inputs, see SimTach A For other PPR inputs, see MAXjr Tach 1
Typical Applications:
RPM
Shaft Keyway
54Z Pick-Up
Signal
Motor
SimTach D
Parts per Minute
Reflector
Photocell
SimTach D
Model No. Description STD0001 115 VAC, 1 PPR Input Speed Indicator
STD0002 115 VAC, 60 PPR Input Speed Indicator STDE001 230 VAC, 1 PPR Input Speed Indicator STDE002 230 VAC, 60 PPR Input Speed Indicator STDS001 115/230 VAC, 1 PPR Input Speed Indicator STDS002 115/230 VAC, 60 PPR Input Speed Indicator STDD001 10–26 VDC, 1 PPR Input Speed Indicator STDD002 10–26 VDC, 60 PPR Input Speed Indicator
Dimensions:
Panel Dims: Cutout: 1.78" x 3.58". Thickness: 1/16" to 1/14". Depth: 5.68" min.
4.11
