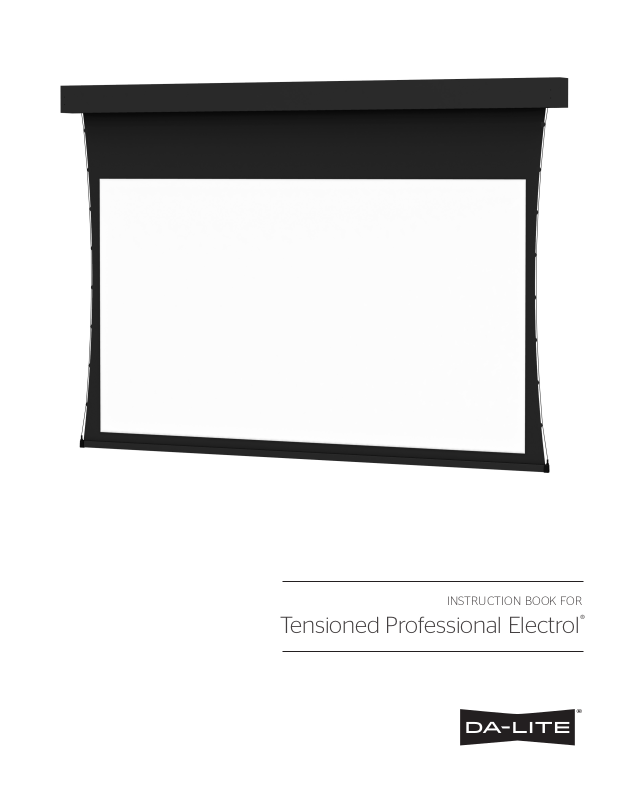

INSTRUCTION BOOK FOR
Tensioned Professional Electrol
®
Page 2
Important Safety Instructions
Pre-Installation
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating
at least equal to that of the appliance should be used. Cords
rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of ire, electric shock, or
injury to persons.
Save These Instructions
1. Carefully unpack screen.
2. Make sure to recheck measurements of screen location
before installation.
3. Remove instruction cover plate (Fig. 1). Do not remove
wrapping paper until screen is installed.
4. Remove the retainer screws from the slat bar before the
case has been installed (Fig. 2).
Instruction Cover
Case
Figure 1
(3 Screws)
1 On Bottom of Slat
2 On Inside of Case
Slat Retainer Bracket
Figure 2
2
Page 3
Installation
Hangers (If required)
1. See Figure 3 for hanger placement.
2. Make sure hangers are placed to it into notches of
ironing board..
Screens 22' Wide And Under
Case Length ÷ 2
Case Length ÷ 2
11 1⁄2"
11 1⁄2"
11 1⁄2"
(Case Length – 23") ÷ 3
(Case Length – 23") ÷ 3
(Case Length – 23") ÷ 3
11 1⁄2"
Screens Over 22' Wide
Figure 3
3
Page 4
Installation
1. Level unit lengthwise with a carpenter’s plum level.
CAUTION! Do Not completely seal in unit. Access room
must be allowed for motor repair or fabric replacement.
ATTENTION! Ne ixez pas complètement l'unité. Un
espace doit être laissé pour pouvoir réparer le moteur
ou remplacer la toile.
2. Remove shipping brace by removing 2 hex head screws
(Figure 4).
3. Use supplied 1/8” nex key and a 5/16” wrench to remove
silver shipping brackets attached to slat and screen case.
4. Remove wrapping paper.
CAUTION! Do not cut wrapping paper with knive or any
sharp tool. Remove by hand.
ATTENTION! Ne coupez pas le papier d'emballage ou le
ruban adhésif avec un couteau ou un outil tranchant.
Retirez à la main.
5. Install electrical hook up that applies to your unit. Make sure
to review your Electrical Installation Checklists and wiring
diagrams (included) for either 110 volt switch, 220/240 volt
switch, or DRC low voltage control.
6. Test installation by carefully running surface up and down
several times. Be prepared to stop screen.
NOTE: The picture surface, when rolled down, should have
at least a full wrap and a half around the roller. Do not allow
any part of the roller to become exposed.
Shipping Brace
(Not on 4 ½" Roller)
Slat
Figure 4
4
Page 5
Tensioned Professional Electrol® Installation
Reinforced
Top
Motor End
Electrical
Outlet Box
Suggested Methods of Installation
9 ½"
11 ⁄"
Ceiling Type Hanger
Surface
Wall Type Hanger
Surface
Wall or Ceiling Mount With Hangers
Wall type hangers and ceiling type hangers are
standard equipment. One set is supplied with
each screen. Useful for recessed installations.
Ceiling Mount
Without Hangers
Screen case is placed lush with
the wall and ceiling and held in
position by moulding securely
attached to the wall.
2" Moulding
Picture Surface
1" x 3" Cleat
Rafters
Surface
Recessed Above Ceiling
Other methods of installation
will suggest themselves in new
buildings where it would be an
easy matter to provide a recess
for the screen to conceal it when
not in use.
Do not seal in—allow access.
For Exposed Installation
If the screen is to be mounted in an exposed
position, it may be covered with inished
plywood, veneer, paneling, plastic wall covering
or a valance.
5
Page 6
Tensioned Professional Electrol® Installation
120V Wiring Diagram
In multiple control
installations the switch is
replaced by the low
voltage control,
operated
from push
button
stations.
Up
Of
Down
Side View Of
Switch & Box
To junction box mounted in screen
case, in which interal wiring terminates
in white, black, and red leads.
Black
(Down)
Black (Down)
Red (Up)
White (Common)
Red
Green (Ground)
(Up)
AC Common
AC Hot
115V. AC 60HZ
1 AMP. MAX.
Black With
Yellow
Red (Up)
Black (Down)
White (Common)
Green (Ground)
Green (Ground)
Operating switch,
switch box, and
plate furnished with
screen. (SPDT with
center of)
Green
(Ground)
Motor
This switch cannot be used with L.V.C.
NOTE: A single switch cannot be used to operate more than one
screen. Contract the factory for further information.
240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH:
Da-Lite ofers two styles of 240 volt wall switches for
standard operation. Please see wiring diagram in wall switch
box included with screen.
Screen Adjustment
Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.
CAUTION: Contact Da-Lite at 8006223737 or 5742678101 if screen motor needs adjustment.
ATTENTION: Contactez Da-Lite au 8006223737 ou au 5742678101 au cas le moteur de l'écran a besoin d'être ajusté.
6
Page 7
Troubleshooting
Visit www.da-lite.com to ind installation and troubleshooting
tutorials. You will also ind a link to Live Chat for interactive
support and you can contact us by email at info@da-lite.com or by
phone at (800) 6223737 or (574) 2678101 with any
troubleshooting questions.
Symptom Cause Solution
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
Check above. Tighten all loose wire connections.
Correct any improper connections.
No power to operating switch
or junction.
Screen will not operate
and motor does not hum.
Power at junction box.
“Down” Position
Check for power across black and white leads.
“Up” Position
Check for power across red and white leads.
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and reconnect.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.
Incorrect stopping position in
downward direction.
Incorrect stopping position in
upward direction.
Noise.
NOTE: Screen will operate with
a low pitched hum.
Coasting. Defective brake. Replace motor assembly.
Lost roller wrap. See instructions below.
“Down” limit switch out of adjustment. Contact Da-Lite at 8006223737 or 5742678101.
Lost roller wrap. See instructions below.
“Up” limit switch out of adjustment. Contact Da-Lite at 8006223737 or 5742678101.
Gear Noise. Replace motor assembly.
7
Page 8
LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: info@da-lite.com
www.da-lite.com
DL–0170 (Rev. 2) 10.14
© 2014 Milestone AV Technologies LLC. Printed in U.S.A.
33871
