LIMITED ONE YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be

free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the

original purchaser; provided they are properly operated according to Da-Lite's instructions and are not

damaged due to improper handling or treatment after shipment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or

which has been tampered with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective

part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the

dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the

purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation

expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND

MERCHANTABILITY. Any implied warranties of itness for use, or merchantability, that may be mandated by

statute or rule of law are limited to the one (1) year warranty period. This warranty gives you speciic legal

rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING

FROM INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR

CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales

Partners at PO Box 137, Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE BRANDED PRODUCTS SHALL NOT BE

BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DA-LITE

WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

A Milestone AV Technologies Brand

3100 North Detroit Street Warsaw, Indiana 46582 P: 574.267.8101 or 800.622.3737 F: 574.267.7804 or 877.325.4832 E: info@da-lite.com www.da-lite.com

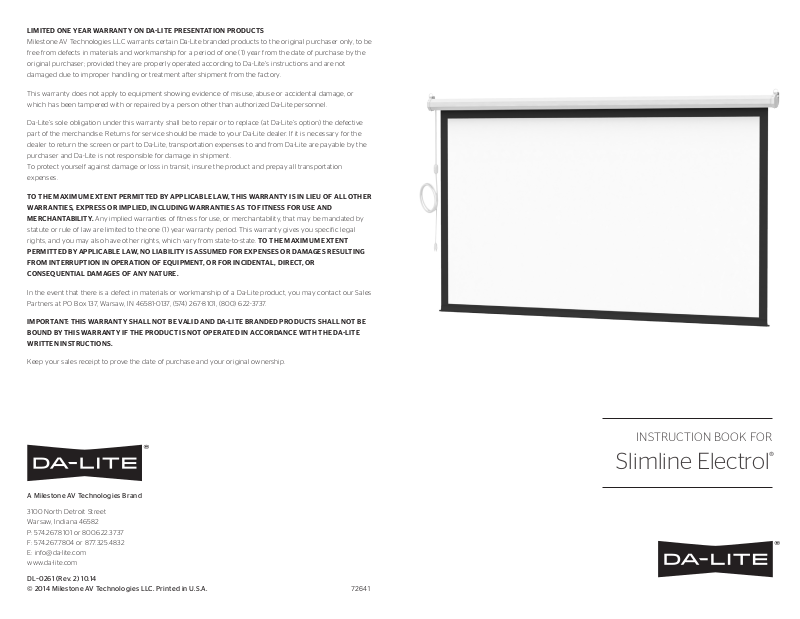

INSTRUCTION BOOK FOR

Slimline Electrol

72641

Important Safety Instructions

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

Suggested Methods Of Installation

Wall Mounting

Slip hanger eyes over screws well secured in wall.

Picture Surface

Operating Instructions

To Lower Screen Surface

Press lower end of slide switch. Screen will stop in the “DOWN” position automatically.

To Raise Screen Surface

Press upper end of slide switch. Screen will stop in the “UP” position automatically.

To Stop Screen

Screen may be stopped in any intermediate position by positioning slide switch to center “OFF” position.

NOTE: It is suggested that when screen is not in use, the slide switch should be positioned to center “OFF” position.

3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of ire, electric shock, or injury to persons.

Save These Instructions

3Position Switch

3Position Switch Complete with cable, is standard with the Slimline Electrol.

Ceiling Mounting

Place “D” rings over hooks well secured in ceiling.

Picture Surface

Wall Bracket

Use No. 6 brackets to hang from beam or valance

Care Of Screens

1. Examine surface to be sure it is free of insects, dirt or foreign matter before rolling into case.

2. Screen may be operated as frequently as necessary but should not be run up and down continuously. To do so will cause the motor to overheat and the thermal overload to cut out. Should this occur, it will be necessary to wait for the motor to cool suiciently to resume operation.

3. Motor does not require lubrication.

Accessories

No. 6 Wall Bracket

Non-adjustable permits screen to extend 6" from wall.

No. 11 Wall Bracket

Non-adjustable permits screen to extend 10" or 14" from wall.

Picture Surface

Concealed

Allow room for access
