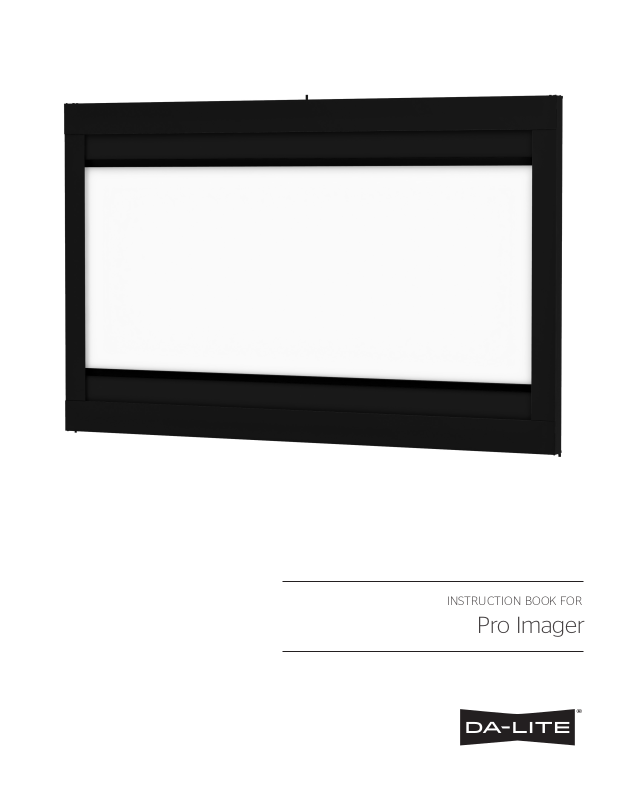

INSTRUCTION BOOK FOR
Pro Imager
Important Safety Instructions
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating
at least equal to that of the appliance should be used. Cords
rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of ire, electric shock, or
injury to persons.
Save These Instructions
2
Frame Assembly
Tools Required For Assembly
5/16" socket or wrench
Carpenters level
Tape Measure
1. Unpack frame pieces and lay them face down on the loor.
The top frame has the roller and motor assembly attached
to it. The side frames are the two short pieces.
2. Attach the side frame pieces to the top frame. See Figure 1.
Insert the slat bar into the small channel located on the
side frame. Fasten the frame pieces with four #10 x 3/4"
hex head screws.
NOTE: the top and bottom frame pieces will overlap the
side frame pieces.
3. HORIZONTAL MASK ONLY – Attach the bottom frame with
four #10 x 3/4" hex head screws. Attach the bottom brackets
with the two screws at the back of the frame as shown in
Figure 2.
VERTICAL MASK ONLY – Attach the pull straps to the bottom
slat bar by sliding the looped end of the pull straps over the
ends of the slat bar (See Figure 2 for pull strap attachment).
The bottom roller is spring loaded and has an internal lock to
keep it from retracting during shipping. To disengage the lock
pull on the slat bar to unroll the mask but DO NOT let go of
the slat bar. To lock the roller let the mask retract slowly and
the lock will engage. The lock will only engage when the
frame is laying face down on the loor. When the frame
assembly is hanging on the wall the lock will not engage.
Insert the slat bar into the small channel on the side frame.
Fasten the bottom frame with four #10 x 3/4" hex head screws.
Attach the bottom brackets with the two screws at the back
of the frame as shown in Figure 2.
#10 x ¾" Screws
Slat Bar
Channel
Figure 1
Pull Strap
Guide
1/8" Max.
Pull Strap
Slat Bar
Viewing
Surface
Bottom
Bracket
#10 x ¾" Screw
Figure 2
3
Installation (Continued)
1. To install the Pro Imager over a Da-Lite Perm-Wall screen you
will need to place the supplied wooden spacers between the
screen and the wall.
Da-Snap and Imager screens do not require any spacers.
2. Refer to Figure 3 for hanger bracket location. Dimension A
will vary depending on the type of screen you have.
Dimension A is measured from the top of the screen frame to
the top of the hanger bracket.
Screen Type Dimension A
Perm-Wall 37/8"
Imager 37/8"
Da-Snap 43/8"
Securely fasten the hanger bracket to the wall. It is
recommended that you use #10 x 13/4" wood screws
(not supplied) and fasten into the wall stud. Use a level
to make sure the bracket is level.
To provide easy access to the limit control switches (see
adjustment procedures) you will need at least 7" clearance
above the top of the Pro Imager.
3. Hang the frame assembly on the hanger bracket as shown
in Figure 3.
4. Fasten the bottom bracket to the wall with the appropriate
type fastener for your wall.
Figure 3
Hanger
Bracket
A
Spacer
Block
Screen
4
Pro Imager Installation
120V Wiring Diagram
To Motor
Red
Rocker
Switch
Up
Of
Down
Side View
Of Switch
And Box
220 / 240V
Wiring Diagram
Down Red
Up Black
Common
White
White
Black
Black With
Yellow
AC Common
AC Hot
120V. 60Hz 2.5 Max. Amp
This Switch Cannot Be Used With LVC.
NOTE: A single switch cannot be used to operate more than
one screen. Contact the factory for further information.
To Motor
Operating Switch,
Switch Box, And
Plate Furnished
With Screen
(SPDT With
Center Of)
In Multiple Control
Installations This Switch
Is Replaced By The Low
Voltage Control,
Operated From Push
Button Stations.
Black (Down)
Brown (Up)
Up
Of
Rocker
Switch
Down
Rear View Of DPDT,
With Center Of
NOTE: A single switch cannot be used to operate more than
one screen. Contact the factory for further information.
Blue (Common)
Brown/Yellow
Brown AC Hot
Blue AC Common
220/240V. AC 50Hz.
2 Amp. Max
Blue Jumper Wire
Operating Switch,
Switch Box, And
Plate Furnished
With Screen.
Junction
Box
In Multiple Control
Installations This Switch Is
Replaced By The Low
Voltage Control, Operated
From Push Button Stations.
NOTE:
Must Be Wired To Conform To
Local Wiring Code. This Switch
Cannot Be Used With L.V.C.
5
Adjustment
Masking travel is stopped automatically in the up and down positions by limit switches that are properly adjusted at the factory.
Should it be necessary to adjust the stop positions, proceed in the following manner using a small lat screwdriver or a 5/32"
allen wrench. Access to the switches is provided by holes on the top left side of the Pro Imager. Refer to Figure 4.
Up Limit Control
The up limit controls the stop position when the mask
is traveling up, or unmasking the screen. Set the Pro Imager
to the down, or masked position. Turn the up limit control
Clockwise to Decrease the up travel. Turn it Counter-
Clockwise to Increase the up travel. Turn the control a
quarter turn at a time and then run the Pro Imager to check
the stop position. Repeat the above steps until the desired
position is reached.
NOTE: The bottom of the slat bar should be no more than
1/8" above the edge of the frame while in the up position.
See Figure 2.
Down Limit Control
The down limit controls the stop position when the mask
is traveling down, or masking the screen. Set the Pro Imager
in the up position. Turn the down limit control Clockwise
to Decrease the down travel. Turn it Counter-Clockwise to
Increase the down travel. Turn the control a quarter turn at a
time and then run the Pro Imager to check the stop position.
Repeat the above steps until the desired position
is reached.
Viewing
Surface
Up Limit
Control
Figure 4
Down Limit
Control
6
Troubleshooting
Symptom Cause Solution
Screen will not operate or will
not go “down”.
Motor does not hum.
Motor hums.
Screen will not move “up”.
Motor does not hum.
Blown facility fuse. Replace facility fuse.
Tripped facility circuit breaker. Reset circuit breaker.
Check above. Tighten all loose wire connections.
No power to operating switch or junction.
Power at junction box.
Thermal overload tripped.
Defective motor, limit switch or capacitor.
Temporary binding. With power “o“ turn roller by hand to free binding.
Blown facility fuse. Replace facility fuse.
Tripped facility circuit breaker. Reset facility circuit breaker.
No power to operating switch to junction box.
Recheck wiring. See installation instructions.
“Down” Position
Check for power across black and white leads.
Let motor cool down for 15 minutes. Try again.
Replace motor assembly.
NOTE: Motor is a sealed assembly.
Check above. Tighten all loose wire connections. See above.
“Up” Position
Check for power across red and white leads.
Power at junction box.
Thermal overload tripped.
Motor hums.
Noise.
NOTE: Screen will operate with
a low-pitched hum.
Coasting. Defective brake. Replace motor assembly.
Roller displaced from
mounting brackets.
Mask hangs crooked.
Mask does not stop at
proper position.
Defective motor, limit switch or capacitor.
Temporary binding. With power “o”, turn roller by hand to free binding.
Grinding. Foreign object in screen rubbing
on roller or fabric.
Pin end slipped out of nylon bearing.
Screen not installed properly. Check for level and plumb.
Fabric is damaged. Replace fabric.
Limit switches out of adjustment. See adjustment procedures.
Let motor cool down for 15 minutes. Try again.
Replace motor assembly.
NOTE: Motor is a sealed assembly.
Remove.
Remove pin end mounting. Realign motor
in tube. Reattach pin end.
7
LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
