Page 1

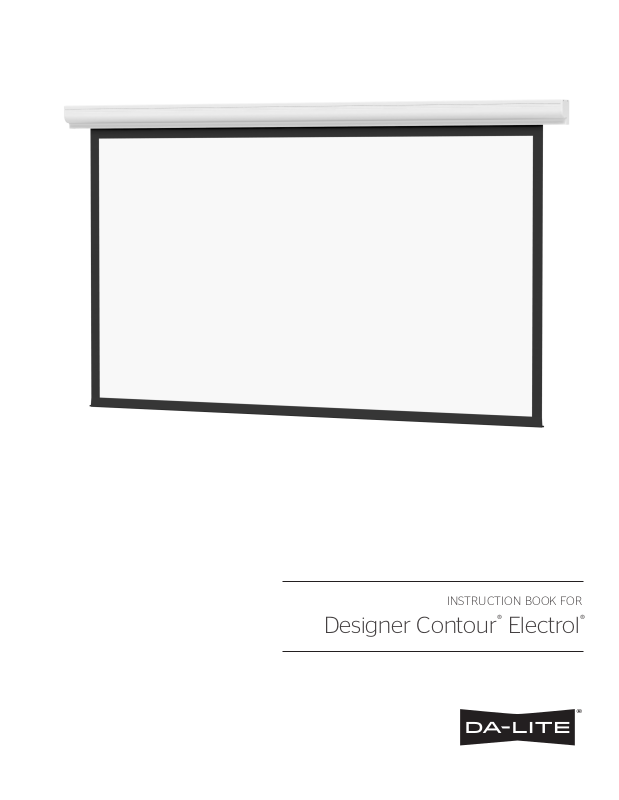

INSTRUCTION BOOK FOR

Designer Contour® Electrol

Page 2

Important Safety Instructions

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of ire, electric shock, or injury to persons.

Save These Instructions

Page 3

Installation

Carefully unpack screen and remove outer wrapping from case.

Remove the black tape from the slat bar after the case has been installed.

There are three ways to install the Designer Contour Electrol: Wall Mount, Ceiling Mount, or Ceiling Hook. Procedures for each method are as follows:

Wall Mount

1. Secure the wall mount bracket to the wall at the desired

height. Bracket should be fastened to wall studs or some reinforcement within the wall. Concrete or brick walls require special fasteners and anchors.

2. Make sure the bracket is level. See igure 1 for reference

dimensions.

4 ¼"

Case Hook

⁄"

⁄"

3. Keep in mind you will need at least 5/8" between the ceiling

and the top of the wall mount bracket to be able to position the case on the bracket.

4. Mount the screen case on the wall bracket as shown in igure 1.

Be sure the case is fully seated on the bracket. Tighten the stop screws against the wall bracket.

Ceiling Mount

1. Do not remove the wall mount bracket, even if you are not

using it for mounting. This provides structural stability to the case.

2. Be sure the ceiling has adequate reinforcement to attach the

screen brackets.

3. The top of the screen case has a channel that the ceiling

mount brackets slide into. Remove the end cap on the right end of the case and insert the brackets into the case channel. Lock the brackets in place by tightening two set screws. Refer to igure 2. Mount cannot be more than 12" from end of case.

4. Hold the screen case up to the ceiling and mark the hole

locations. Drill holes into the ceiling and attach screen with the appropriate fasteners for your ceiling.

4 ⅝"

Wall Mount Bracket

Stop Screw

Figure 1

Set Screws (2)

Ceiling Mount Holes

Endcap Screws (3)

Endcap

Ceiling Hook

1. Do not remove the wall mount bracket, even if you are not

using it for mounting. This provides structural stability to the case.

2. Be sure the ceiling has adequate reinforcement to attach

a hook anchor.

3. The top of the screen case has a channel that the ceiling

hook brackets slide into. Remove the end cap on the right end of the case and insert the brackets into the case channel. Lock the brackets in place by tightening two set screws. Refer to igure 3.

4. The brackets can be attached anywhere within 12" of the end

of the case.

5. Attach an S-hook or similar fastener to the large center hole

on the bracket.

Figure 2

Set Screws (2)

Hook Mount Hole

Endcap Screws (3)

Endcap

Figure 3

Page 4

Electrical Installation

Internal wiring has been completed at the factory. Installer must route power to the wall switch and to the junction box located on the left end of the screen case.

Standard installation is for a single 120VAC or 240VAC wall switch to control the screen. Optional Control units may have been ordered. Wiring diagrams for the built-in VPI and low voltage control are included in these instructions. Refer to additional instructions for the external VPI, external low voltage control, SCB100 and SCB200. Refer to the appropriate wiring diagram for your screen.

120V Wiring Diagram

For Standard

Wall Switch

Junction Box Located In Left Endcap

SPDT Switch with Center Of

White

Ground-Must Be Connected To Building Ground

Black (Down)

Red (Up)

AC (Common)

White Black Red Green

Ground To Case

Motor

Of

Down

This Switch Can Not be used with LVC.

240V Wiring Diagram

For Standard

Wall Switch

Junction Box Located In Left Endcap

Rear or DPDT Switch with Center Of

Black

AC HOT 120VAC 60HZ 1 AMP

Red

Black/Yellow

NOTE: A single switch cannot be used to operate more than one screen. Contact the factory for further information.

Blue Brown Black Green

Ground To Case

Ground-Must Be Connected To Building Ground

Blue

Brown (Down)

Black (Up)

Brown

Brown and Yellow AC HOT 220/240 VAC 50HZ 2 AMP.

MOTOR

Of

Down

BLUE JUMPER WIRE

Blue AC (Common)

Black

This Switch Can Not be used with LVC.

NOTE: A single switch cannot be used to operate more than one screen. Contact the factory for further information.

Page 5

Electrical Installation

120V Wiring Diagram

With Optional Built-In

Low Voltage Control

Motor

Red Black White (Common)

120VAC 60HZ

Ground-Must Be Connected To Building Ground

240V Wiring Diagram With Optional Built-In

Low Voltage Control

Motor

Ground To Case

White (Common)

Black (Hot)

Green

Black (Up) Brown (Down) Blue (Common)

Black White

Red

Stop

EYE AUX

Down

Low-Voltage

Optional RF

Wall Switch

or IR Remote Connector

Optional RF or IR Remote Connector

240VAC 50HZ

Ground-Must Be Connected To Building Ground

Ground To Case

Blue (Common)

Brown (Hot)

Green

Black

AUX EYE

Black White Red

Stop

Down

Low-Voltage

Wall Switch

Page 6

Screen Adjustment

Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory. If it’s necessary to adjust for more or less drop follow the steps below. The case cover must be removed to access the motor limit switches.

Remove the case cover screw from both ends of the screen. See igure 4. Be sure to hold the cover while removing the screws.

Rotate the cover up and away from the case until it can be removed.

SETTING THE DOWN LIMIT POSITION

To Reduce Screen Drop: Turn the red limit switch screw

clockwise to decrease the amount of screen drop. Run the screen down to test the stop position. If the screen drops too far, raise the screen about one foot and adjust the limit switch again. Repeat until the desired position is set.

To Increase Screen Drop: Turn the red limit switch screw counterclockwise to increase the amount of screen drop. Run the screen down to test the stop position. If the screen does not drop enough, raise the screen about one foot and adjust the limit switch again. Repeat until the desired position is set.

CAUTION: Do not adjust for more drop than what was

ordered. At least 11/2 wraps of fabric must remain on the roller. This screen comes standard with 0" or 2" black at top. See the speciication data sheet for details.

Hook

Rotate Up

Figure 4

Figure 5

Case Cover Screw

ATTENTION! N'efectuez pas de réglage pour obtenir un

déroulement supérieur à celui commandé. Au moins 1 à 1/2 tour de toile doit être maintenu sur le cylindre. Cet écran est doté de série d'une bande noire supérieure de 0 cm (0 po) ou 5 cm (2 po). Consultez la iche technique pour plus de renseignements.

Page 7

Troubleshooting

Symptom Cause Solution

Screen will not operate.

Motor does not hum.

Incorrect stopping position in downward direction.

Incorrect line voltage.

Blown fuse. Replace fuse.

Tripped circuit breaker. Reset circuit breaker.

No power to operating switch or junction.

Power at junction box

Thermal overload tripped.

Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and reconnect.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Lost roller wrap. See instructions below.

“Down” limit switch out of adjustment. See installation instructions.

Verify 115125V (or 220240V). If insuicient voltage, rewire incoming electric line.

Check above. Tighten all loose wire connections. Correct any improper connections.

Down Position Check for power across black and white leads.

Up Position Check for power across red and white leads.

Let motor cool down for 15 minutes. Try again.

Incorrect stopping position in upward direction.

Noise. NOTE: Screen will operate with a low pitched hum.

Coasting. Defective brake. Replace motor assembly.

Lost roller wrap. See instructions below.

“Up” limit switch out of adjustment. Adjust “up” limit switch. Call for information.

Gear noise. Replace motor assembly.

Restoring Lost Roller Wrap

1. Tape a strap to the bottom of the screen surface.

2. Push strap over back of roller.

3. Feed fabric as you pull strap to draw fabric over top of roller.

4. Remove tape and strap.

Page 8

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment. To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,

or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137, Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

A Milestone AV Technologies Brand

3100 North Detroit Street Warsaw, Indiana 46582 P: 574.267.8101 or 800.622.3737 F: 574.267.7804 or 877.325.4832 E: info@da-lite.com www.da-lite.com
