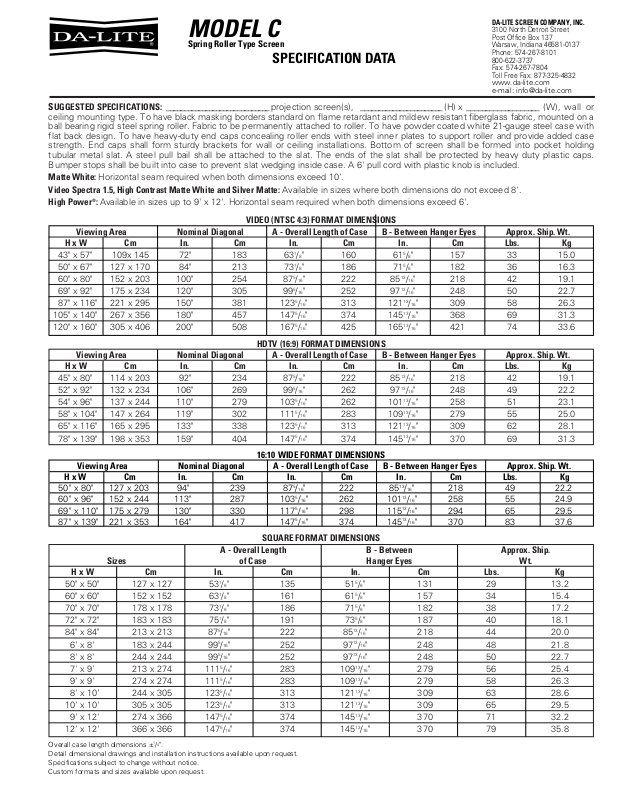

Da-Lite 98040 Specifications

SQUARE FORMAT DIMENSIONS

A - Overall Length B - Between Approx. Ship.

Sizes of Case Hanger Eyes Wt.

H x W Cm In. Cm In. Cm Lbs. Kg

50" x 50" 127 x 127 531/8" 135 515/8" 131 29 13.2
60" x 60" 152 x 152 631/8" 161 615/8" 157 34 15.4
70" x 70" 178 x 178 731/8" 186 715/8" 182 38 17.2
72" x 72" 183 x 183 751/8" 191 735/8" 187 40 18.1
84" x 84" 213 x 213 875/16" 222 8513/16" 218 44 20.0

6' x 8' 183 x 244 995/16" 252 9713/16" 248 48 21.8
8' x 8' 244 x 244 995/16" 252 9713/16" 248 50 22.7
7' x 9' 213 x 274 1115/16" 283 10913/16" 279 56 25.4
9' x 9' 274 x 274 1115/16" 283 10913/16" 279 58 26.3
8' x 10' 244 x 305 1235/16" 313 12113/16" 309 63 28.6

10' x 10' 305 x 305 1235/16" 313 12113/16" 309 65 29.5

9' x 12' 274 x 366 1475/16" 374 14513/16" 370 71 32.2

12' x 12' 366 x 366 147

5

/16" 374 14513/16" 370 79 35.8

HDTV (16:9) FORMAT DIMENSIONS

Viewing Area Nominal Diagonal A - Overall Length of Case B - Between Hanger Eyes Approx. Ship. Wt.

H x W Cm In. Cm In. Cm In. Cm Lbs. Kg

45" x 80" 114 x 203 92" 234 875/16" 222 8513/16" 218 42 19.1
52" x 92" 132 x 234 106" 269 995/16" 262 9713/16" 248 49 22.2
54" x 96" 137 x 244 110" 279 1035/16" 262 10113/16" 258 51 23.1
58" x 104" 147 x 264 119" 302 1115/16" 283 10913/16" 279 55 25.0
65" x 116" 165 x 295 133" 338 1235/16" 313 12113/16" 309 62 28.1
78" x 139" 198 x 353 159" 404 147

5

/16" 374 14513/16" 370 69 31.3

VIDEO (NTSC 4:3) FORMAT DIMENSIONS

Viewing Area Nominal Diagonal A - Overall Length of Case B - Between Hanger Eyes Approx. Ship. Wt.

H x W Cm In. Cm In. Cm In. Cm Lbs. Kg

43" x 57" 109x 145 72" 183 631/8" 160 615/8" 157 33 15.0
50" x 67" 127 x 170 84" 213 731/8" 186 715/8" 182 36 16.3
60" x 80" 152 x 203 100" 254 875/16" 222 8513/16" 218 42 19.1
69" x 92" 175 x 234 120" 305 995/16" 252 9713/16" 248 50 22.7

87" x 116" 221 x 295 150" 381 1235/16" 313 12113/16" 309 58 26.3
105" x 140" 267 x 356 180" 457 1475/16" 374 14513/16" 368 69 31.3
120" x 160" 305 x 406 200" 508 167

5

/16" 425 16513/16" 421 74 33.6

SUGGESTED SPECIFICATIONS: _____________________________ projection screen(s), _______________________ (H) x ___________________ (W), wall or

ceiling mounting type. To have black masking borders standard on flame retardant and mildew resistant fiberglass fabric, mounted on a
ball bearing rigid steel spring roller. Fabric to be permanently attached to roller. To have powder coated white 21-gauge steel case with
flat back design. To have heavy-duty end caps concealing roller ends with steel inner plates to support roller and provide added case
strength. End caps shall form sturdy brackets for wall or ceiling installations. Bottom of screen shall be formed into pocket holding
tubular metal slat. A steel pull bail shall be attached to the slat. The ends of the slat shall be protected by heavy duty plastic caps.
Bumper stops shall be built into case to prevent slat wedging inside case. A 6' pull cord with plastic knob is included.

Matte White: Horizontal seam required when both dimensions exceed 10'.
Video Spectra 1.5, High Contrast Matte White and Silver Matte: Available in sizes where both dimensions do not exceed 8'.
High Power

®

: Available in sizes up to 9' x 12'. Horizontal seam required when both dimensions exceed 6'.

MODEL C

Spring Roller Type Screen

SPECIFICATION DATA

DA-LITE SCREEN COMPANY, INC.

3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: [phone]
800-622-3737
Fax: [phone]
Toll Free Fax: [phone]
www.da-lite.com
e-mail: [e-mail]

Overall case length dimensions ±1/4".
Detail dimensional drawings and installation instructions available upon request.
Specifications subject to change without notice.
Custom formats and sizes available upon request.

16:10 WIDE FORMAT DIMENSIONS

Viewing Area Nominal Diagonal A - Overall Length of Case B - Between Hanger Eyes Approx. Ship. Wt.

H x W Cm In. Cm In. Cm In. Cm Lbs. Kg

50" x 80" 127 x 203 94" 239 875/16" 222 8513/16" 218 49 22.2
60" x 96" 152 x 244 113" 287 1035/16" 262 10113/16" 258 55 24.9
69" x 110" 175 x 279 130" 330 1175/16" 298 11513/16" 294 65 29.5
87" x 139" 221 x 353 164" 417 147

5

/16" 374 14513/16" 370 83 37.6

SUGGESTED METHODS OF INSTALLATION

OPTIONAL ACCESSORIES: to provide clearance: Furnish heavy extension wall brackets to mount screen 6" from wall. To provide for
keystone elimination: Furnish heavy extension wall brackets to mount screen 10" or 14" from wall or furnish heavy adjustable
extension wall brackets to mount screen 10", 14", 15

3

/4", 181/4", 20" or 24" from wall.

NOTE: Brackets also are used for mounting screen across a corner.

Rev. 2/08

PULL ROD - 38"

Zinc plated rod with black plastic
handle grip allows easy access
to screen when mounted out of
reach. Also can be used as a
pointer.

WHEN ORDERING, MARK APPROPRIATE SELECTIONS:

MODEL C

A - OVERALL LEN

GTH OF CASE

B - BETWEEN HANGER EYES

5/8"

5 7/8"

4 5/8"

o

/ 3/4"

EXTENSION WALL BRACKETS (75# PER PAIR MAXIMUM)

No. 23 ADJUSTABLE
WALL BRACKET

Screen can be extended 10",
14", 15

3

/4", 181/4", 20" or 24" from
wall by wing nut and bolt
adjustment.

No. 11 WALL BRACKET

Screen can be extended
10" or 14" from wall by
changing position of
bracket.

No. 6 WALL BRACKET

Screen can be extended
6" from wall.

(black or white)

(black or white)

Select size from charts on the other side.
Select viewing surface:

❏ Matte White ❏ High Contrast Matte White
❏ High Power
❏ Silver Matte

Greenguard

®

❏ Video Spectra 1.5

®

and Greenguard®Children and Schools Certified.

Options:

❏ Extra Drop available to lower picture area more than normal.

Specify total drop at top _____ (black or white) or at
bottom _____ (black or white). 13' maximum total surface

height including picture area (12' maximum on 200D).

❏ No. 6 Wall Bracket - extends 6" non-adjustable extension

brackets (75# per pair maximum) (black or white).

❏ No. 11 Wall Bracket - 10" or 14" non-adjustable extension

brackets (75# per pair maximum) (black or white).

❏ No. 23 Adjustable Wall Bracket – extends 10",14", 15

1

18

/4", 20" or 24" (75# per pair maximum) (black or white).

3

/4",

❏ Pull Rod - 38".
❏ No borders (Black masking borders standard)
❏ CSR (Controlled Screen Return)
❏ Floating Mounting Bracket (black or white). Recommended

for drywall installations.

❏ Ceiling Trim Kit.

Project:

Architect:

Phone:

Contractor:

Phone:

Supervisor:

Phone:

Date:

Revised:

❏ Floor Model Available.

❏ Floor Stand.
❏ Carpeted Floor Model Available (black or gray).
❏ Black case (white standard).
