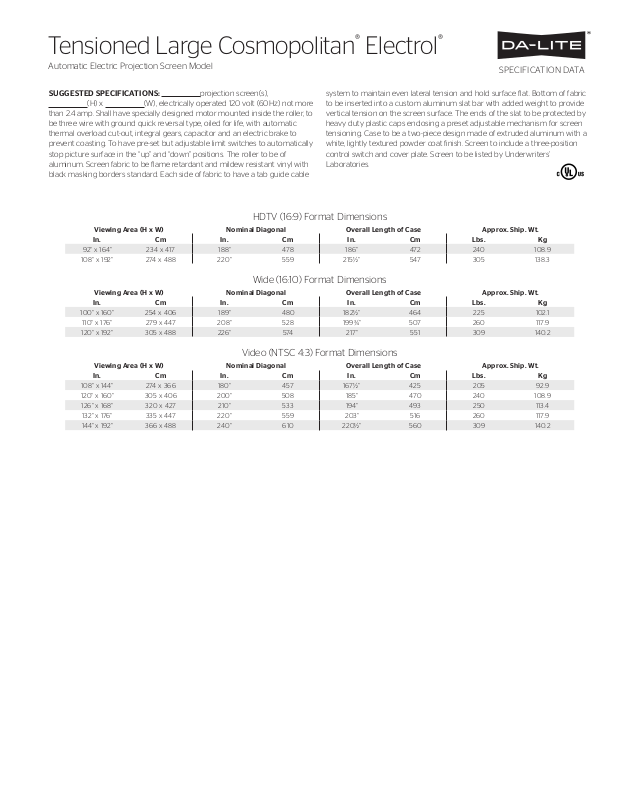

Da-Lite 97983 Specifications

Tensioned Large Cosmopolitan® Electrol

Automatic Electric Projection Screen Model

®

SPECIFICATION DATA

SUGGESTED SPECIFICATIONS: projection screen(s),
(H) x (W), electrically operated 120 volt (60Hz) not more
than 2.4 amp. Shall have specially designed motor mounted inside the roller, to
be three wire with ground quick reversal type, oiled for life, with automatic
thermal overload cut-out, integral gears, capacitor and an electric brake to
prevent coasting. To have pre-set but adjustable limit switches to automatically
stop picture surface in the “up” and “down” positions. The roller to be of
aluminum. Screen fabric to be lame retardant and mildew resistant vinyl with
black masking borders standard. Each side of fabric to have a tab guide cable

HDTV (16:9) Format Dimensions

Viewing Area (H x W) Nominal Diagonal Overall Length of Case Approx. Ship. Wt.

In. Cm In. Cm In. Cm Lbs. Kg

92" x 164" 234 x 417 188" 478 186" 472 240 108.9

108" x 192" 274 x 488 220" 559 215½" 547 305 138.3

Wide (16:10) Format Dimensions

Viewing Area (H x W) Nominal Diagonal Overall Length of Case Approx. Ship. Wt.

In. Cm In. Cm In. Cm Lbs. Kg

100" x 160" 254 x 406 189" 480 182½" 464 225 102 .1

110" x 176" 279 x 447 208" 528 199¾" 507 260 1 17.9

120" x 192" 305 x 488 226" 574 217" 551 309 140.2

Video (NTSC 4:3) Format Dimensions

Viewing Area (H x W) Nominal Diagonal Overall Length of Case Approx. Ship. Wt.

In. Cm In. Cm In. Cm Lbs. Kg

108" x 144" 274 x 366 180" 457 167½" 425 205 92.9

120" x 160" 305 x 406 200" 508 185" 470 240 108.9

126" x 168" 320 x 427 210" 533 194" 493 250 113.4

132" x 176" 335 x 447 220" 559 203" 516 260 11 7.9

144" x 192" 366 x 488 240" 610 220½" 560 309 140.2

system to maintain even lateral tension and hold surface lat. Bottom of fabric
to be inserted into a custom aluminum slat bar with added weight to provide
vertical tension on the screen surface. The ends of the slat to be protected by
heavy duty plastic caps enclosing a preset adjustable mechanism for screen
tensioning. Case to be a two-piece design made of extruded aluminum with a
white, lightly textured powder coat inish. Screen to include a three-position
control switch and cover plate. Screen to be listed by Underwriters’
Laboratories.

PRODUCT NOTES

• All viewing surfaces will be seamless.

• All viewing surfaces are standard with black

backing except for Da-Tex® and Dual Vision.

• All screens standard with 12" black drop at the top.

• Extra drop may alter case dimensions. Contact Da-Lite
for details.

• Overall case length dimensions +/- ¼" (6mm).

• Detail dimensional drawings, wiring diagrams and
installation instructions available upon request.

• Speciications subject to change without notice.

• Custom formats and sizes available upon request.

PRODUCT VIEWS

WHEN ORDERING, MARK APPROPRIATE SELECTIONS

1. Select size from charts on the other side.

2. Select viewing surface (All Da-Lite surfaces are GREENGUARD GOLD Certiied.):

HD Progressive 0.6

HD Progressive 0.9

HD Progressive 1.1

HD Progressive 1.1 Contrast

Da-Mat®

High Contrast Da-Mat®

Da-Tex® (Rear)

Dual Vision

HD Progressive 1.3

3. Options:

Single Motor Low Voltage Control

Black case (white standard).

System (LVC) - built-in.

220 Volt (50 Hz) Motor.

4. Optional accessories:

Single Motor Low Voltage Control

System (LVC) – external.

Wireless Remote Control for LVC.

Radio Frequency Remote.

Radio Frequency Range
Extender available

Infrared Remote.

Key Operated Switch for 120V only

(NOTE: Cannot be used with LVC).

Video Projector Interface

Control – external.

External SCB100 - RS232 Serial

Control Board.

NET100 Ethernet-Serial Adapter.

Key Locking Cover Plate for 120V

or LVC Switch.

A BRAND OF MILESTONE AV TECHNOLOGIES
www.milestone.com

P 800.622.3737 / 574.267.8101
F 877.325.4832 / 574.267.7804
E [e-mail]

In British Columbia, Milestone AV Technologies ULC carries on business as
MAVT Milestone AV Technologies ULC.

©2017 Milestone AV Technologies. DL0195 (Rev. 3) 12.17.
Da-Lite is a registered trademarks of Milestone AV Technologies. All other
brand names or marks are used for identiication purposes and are
trademarks of their respective owners. All patents are protected under
existing designations. Other patents pending.

Ceiling Mount Bracket

8¼"

7⅜"

6¾"

9"

Stop Screw

7⅞"

Integrated
Junction Box

Viewing Surface

⁄ x ¾" Bolt, Nut and

Lock Washer

Wall Mount Bracket
