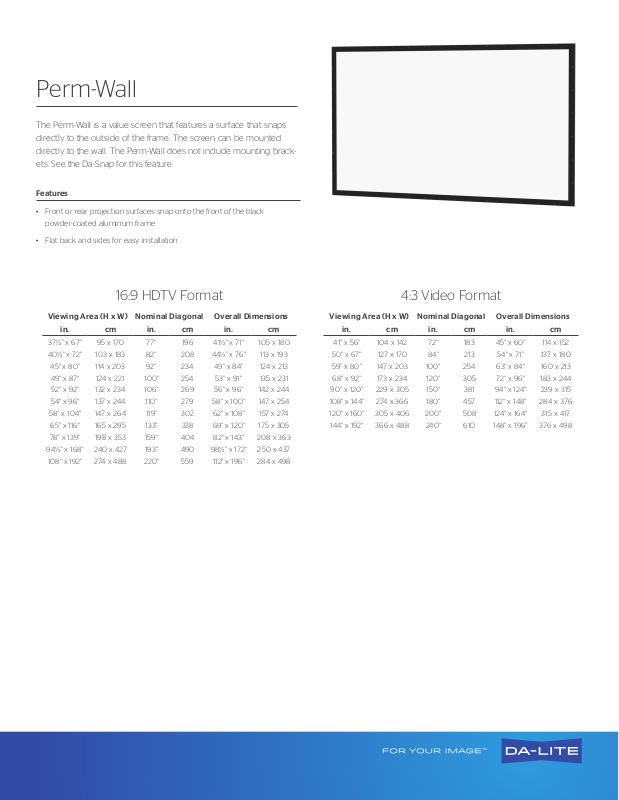

Perm-Wall
The Perm-Wall is a value screen that features a surface that snaps
directly to the outside of the frame. The screen can be mounted
directly to the wall. The Perm-Wall does not include mounting brackets. See the Da-Snap for this feature.
Features
• Front or rear projection surfaces snap onto the front of the black
powder-coated aluminum frame
• Flat back and sides for easy installation
16:9 HDTV Format
Viewing Area (H x W) Nominal Diagonal Overall Dimensions
in. cm in. cm in. cm
37½" x 67" 95 x 170 77" 196 41½" x 71" 105 x 180
40½" x 72" 103 x 183 82" 208 44½" x 76" 113 x 193
45" x 80" 114 x 203 92" 234 49" x 84" 124 x 213
49" x 87" 124 x 221 100" 254 53" x 91" 135 x 231
52" x 92" 132 x 234 106" 269 56" x 96" 142 x 244
54" x 96" 137 x 244 110" 279 58" x 100" 147 x 254
58" x 104" 147 x 264 119" 302 62" x 108" 157 x 274
65" x 116" 165 x 295 133" 338 69" x 120" 175 x 305
78" x 139" 198 x 353 159" 404 82" x 143" 208 x 363
94½" x 168" 240 x 427 193" 490 98½" x 172" 250 x 437
108" x 192" 274 x 488 220" 559 112" x 196" 284 x 498
4:3 Video Format
Viewing Area (H x W) Nominal Diagonal Overall Dimensions
in. cm in. cm in. cm
41" x 56" 104 x 142 72" 183 45" x 60" 114 x 152
50" x 67" 127 x 170 84" 213 54" x 71" 137 x 180
59" x 80" 147 x 203 100" 254 63" x 84" 160 x 213
68" x 92" 173 x 234 120" 305 72" x 96" 183 x 244
90" x 120" 229 x 305 150" 381 94" x 124" 239 x 315
108" x 144" 274 x 366 180" 457 112" x 148" 284 x 376
120" x 160" 305 x 406 200" 508 124" x 164" 315 x 417
144" x 192" 366 x 488 240" 610 148" x 196" 376 x 498
Available with the Following Screen Surfaces
Da-Mat
Half Angle: 60º Gain: 1.0
Audio Vision
Half Angle: 60º Gain: 1.0
Product images
High Contrast Da-Mat
Half Angle: 45º Gain: 0.8
High Contrast Audio Vision
Half Angle: 45º Gain: 0.8
Cinema Vision
Half Angle: 45º Gain: 1.3
High Contrast Cinema Perf
Half Angle: 50º Gain: 1.1
High Contrast Cinema Vision
Half Angle: 50º Gain: 1.1
Dual Vision
Half Angle: 65º Gain: 0.9
Frame
Pearlescent
Half Angle: 40º Gain: 1.5
Da-Tex
Half Angle: 30º Gain: 1.3
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: info@da-lite.com
www.da-lite.com
DL–0460 07.14
© 2014 Milestone AV Technologies LLC. Printed in U.S.A.
