Da-Lite 82436 Specifications

Rev. 2/07

Options:

❏ Radio Frequency Remote Control.
❏ Infrared Remote Control.
❏ Additional 3-button Wall Switch.
❏ 240V Model Available.
❏ Key Locking Cover Plate for 120 V Switch or LVC.

Specifications are subject to change without notice.

Project:

Architect:

Phone:

Contractor:

Phone:

Supervisor:

Phone:

Date:

Revised:

SUGGESTED SPECIFICATIONS: Electrical rating 115 VAC 60 Hz 10A. The dual motor LVC is used to operate the Da-Lite Dual Masking

Electrol

®

Screen or a single motor screen and a projector lift together from one or more locations, remote control, or for integration into
a control panel system. Operated by a 3-button momentary dry contact switch. Connections, including 115 volt input, switch input and
motor output, to control board provided by screw terminal blocks. Any combination of single or multiple 3-button switches, optional
radio frequency remote or infrared remote, or a control panel with momentary dry contacts may control unit. Control board to be
mounted in a painted steel housing measuring 4" H x 6" W x 8" L. Standard knockouts provided on housing for conduit connections.
Control to be listed by Underwriter's Laboratories.

NOTE: This control cannot be used with the Horizon Electrol

®

, Ascender®Electrol®, or Motorized Scenic Roller screens.

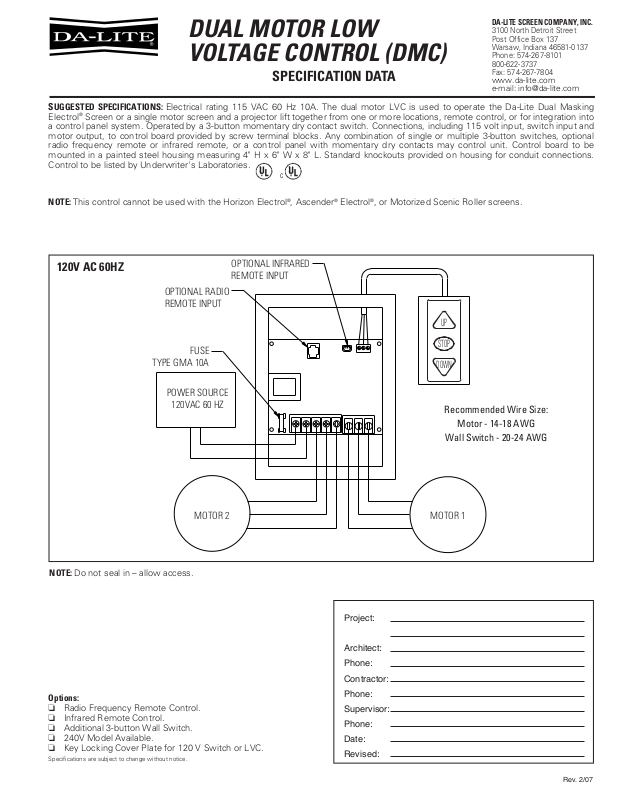

DUAL MOTOR LOW
VOLTAGE CONTROL (DMC)

SPECIFICATION DATA

DA-LITE SCREEN COMPANY, INC.

3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: [phone]
800-622-3737
Fax: [phone]
www.da-lite.com
e-mail: [e-mail]

C

Recommended Wire Size:

Motor - 14-18 AWG

Wall Switch - 20-24 AWG

OPTIONAL RADIO
REMOTE INPUT

OPTIONAL INFRARED
REMOTE INPUT

120V AC 60HZ

UP

STOP

DOWN

FUSE

TYPE GMA 10A

POWER SOURCE

120VAC 60 HZ

MOTOR 1MOTOR 2

NOTE: Do not seal in – allow access.
