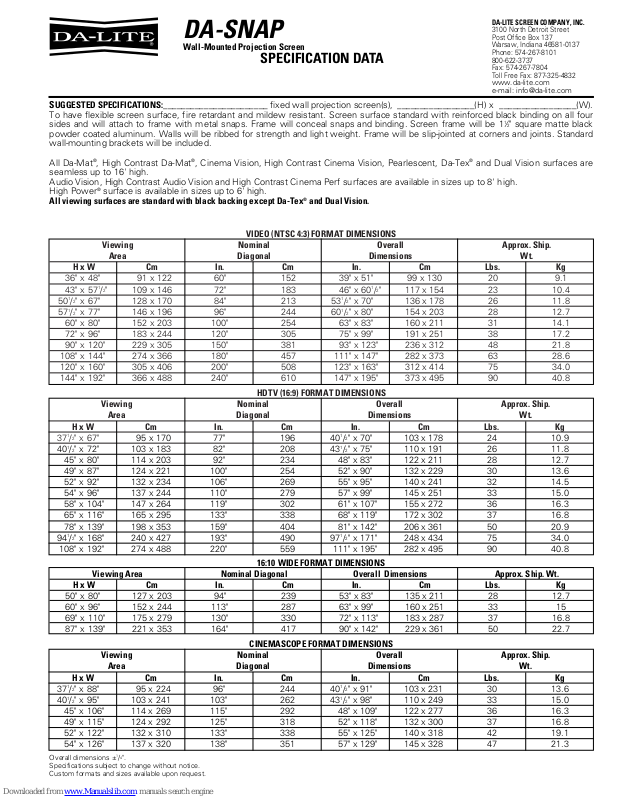

Da-Lite 79982, DA-SNAP Specifications
VIDEO (NTSC 4:3) FORMAT DIMENSIONS
Viewing Nominal Overall Approx. Ship.
Area Diagonal Dimensions Wt.
H x W Cm In. Cm In. Cm Lbs. Kg
36" x 48" 91 x 122 60" 152 39" x 51" 99 x 130 20 9.1
43" x 571/2" 109 x 146 72" 183 46" x 601/2" 117 x 154 23 10.4
501/2" x 67" 128 x 170 84" 213 531/2" x 70" 136 x 178 26 11.8
571/2" x 77" 146 x 196 96" 244 601/2" x 80" 154 x 203 28 12.7
60" x 80" 152 x 203 100" 254 63" x 83" 160 x 211 31 14.1
72" x 96" 183 x 244 120" 305 75" x 99" 191 x 251 38 17.2
90" x 120" 229 x 305 150" 381 93" x 123" 236 x 312 48 21.8
108" x 144" 274 x 366 180" 457 111" x 147" 282 x 373 63 28.6
120" x 160" 305 x 406 200" 508 123" x 163" 312 x 414 75 34.0
144" x 192" 366 x 488 240" 610 147" x 195" 373 x 495 90 40.8
HDTV (16:9) FORMAT DIMENSIONS
Viewing Nominal Overall Approx. Ship.
Area Diagonal Dimensions Wt.
H x W Cm In. Cm In. Cm Lbs. Kg
371/2" x 67" 195 x 170 77" 196 401/2" x 70" 103 x 178 24 10.9
401/2" x 72" 103 x 183 82" 208 431/2" x 75" 110 x 191 26 11.8
45" x 80" 114 x 203 92" 234 48" x 83" 122 x 211 28 12.7
49" x 87" 124 x 221 100" 254 52" x 90" 132 x 229 30 13.6
52" x 92" 132 x 234 106" 269 55" x 95" 140 x 241 32 14.5
54" x 96" 137 x 244 110" 279 57" x 99" 145 x 251 33 15.0
58" x 104" 147 x 264 119" 302 61" x 107" 155 x 272 36 16.3
65" x 116" 165 x 295 133" 338 68" x 119" 172 x 302 37 16.8
78" x 139" 198 x 353 159" 404 81" x 142" 206 x 361 50 20.9
941/2" x 168" 240 x 427 193" 490 971/2" x 171" 248 x 434 75 34.0
108" x 192" 274 x 488 220" 559 111" x 195" 282 x 495 90 40.8
SUGGESTED SPECIFICATIONS:_______________________ fixed wall projection screen(s), _________________(H) x _________________(W).
To have flexible screen surface, fire retardant and mildew resistant. Screen surface standard with reinforced black binding on all four
sides and will attach to frame with metal snaps. Frame will conceal snaps and binding. Screen frame will be 1
1
⁄2" square matte black
powder coated aluminum. Walls will be ribbed for strength and light weight. Frame will be slip-jointed at corners and joints. Standard
wall-mounting brackets will be included.
All Da-Mat
®
, High Contrast Da-Mat®, Cinema Vision, High Contrast Cinema Vision, Pearlescent, Da-Tex®and Dual Vision surfaces are
seamless up to 16' high.
Audio Vision, High Contrast Audio Vision and High Contrast Cinema Perf surfaces are available in sizes up to 8' high.
High Power
®
surface is available in sizes up to 6' high.
All viewing surfaces are standard with black backing except Da-Tex
®
and Dual Vision.
SPECIFICATION DATA
DA-SNAP
Wall-Mounted Projection Screen
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com
Overall dimensions ±1/4".
Specifications subject to change without notice.
Custom formats and sizes available upon request.
CINEMASCOPE FORMAT DIMENSIONS
Viewing Nominal Overall Approx. Ship.
Area Diagonal Dimensions Wt.
H x W Cm In. Cm In. Cm Lbs. Kg
371/2" x 88" 95 x 224 96" 244 401/2" x 91" 103 x 231 30 13.6
401/2" x 95" 103 x 241 103" 262 431/2" x 98" 110 x 249 33 15.0
45" x 106" 114 x 269 115" 292 48" x 109" 122 x 277 36 16.3
49" x 115" 124 x 292 125" 318 52" x 118" 132 x 300 37 16.8
52" x 122" 132 x 310 133" 338 55" x 125" 140 x 318 42 19.1
54" x 126" 137 x 320 138" 351 57" x 129" 145 x 328 47 21.3
16:10 WIDE FORMAT DIMENSIONS
Viewing Area Nominal Diagonal Overall Dimensions Approx. Ship. Wt.
H x W Cm In. Cm In. Cm Lbs. Kg
50" x 80" 127 x 203 94" 239 53" x 83" 135 x 211 28 12.7
60" x 96" 152 x 244 113" 287 63" x 99" 160 x 251 33 15
69" x 110" 175 x 279 130" 330 72" x 113" 183 x 287 37 16.8
87" x 139" 221 x 353 164" 417 90" x 142" 229 x 361 50 22.7
DA-SNAP
SHOWN FROM BACK SIDE
DA-SNAP
WALL MOUNT
Rev. 2/08
OVERALL HEIGHT -1/4"
OVERALL HEIGHT
WALL
WALL
WALL BRACKET
SNAP STUD
SIDE
#10 BLACK SCREW
SIDE
TOP
BOTTOM
SNAP STUD
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
Select size from chart.
Select viewing surface:
❏ Da-Mat
®
❏ High Contrast Da-Mat
®
❏ Cinema Vision
❏ High Contrast Cinema Vision
❏ High Contrast Cinema Perf
❏ Pearlescent
❏ High Power
®
❏ Audio Vision
❏ High Contrast Audio Vision
❏ Da-Tex
®
(Rear)
❏ Dual Vision
Greenguard
®
and Greenguard®Children and Schools Certified.
Options:
❏ T-Legs (must be ordered at the same time as screen).
❏ Velcro
®
Attachment (snaps standard).
❏ Pro-Trim
®
: Pro-Trim®is a fabric covering that aesthetically enhances the appearance of the installation. Pro-Trim®provides a stylish
masked border while absorbing the light that surrounds the viewing area.
❏ Wrap-Around fabric.
❏ Pro Imager Masking System (Refer to the Pro Imager specification data sheet for size availability and more details).
Project:
Architect:
Phone:
Contractor:
Phone:
Supervisor:
Phone:
Date:
Revised:
VIEWING SURFACE
(FRONT OF SCREEN)
HANGER BRACKET
FRAME
