Da-Lite 70284 Datasheet

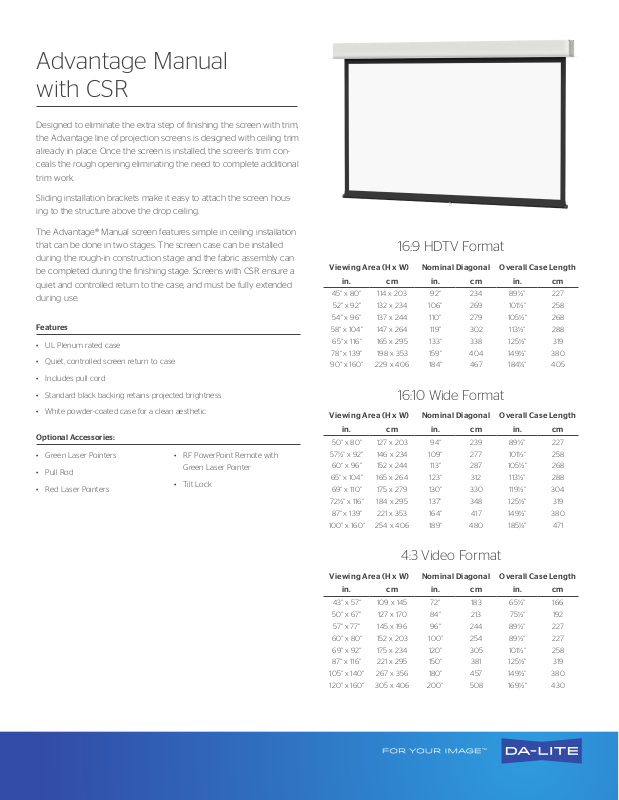

Advantage Manual with CSR

Designed to eliminate the extra step of inishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work.

Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

The Advantage® Manual screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the inishing stage. Screens with CSR ensure a quiet and controlled return to the case, and must be fully extended during use.

Features

• UL Plenum rated case

• Quiet, controlled screen return to case

• Includes pull cord

• Standard black backing retains projected brightness

• White powder-coated case for a clean aesthetic

Optional Accessories:

• Green Laser Pointers

• Pull Rod

• Red Laser Pointers

• RF PowerPoint Remote with

Green Laser Pointer

• Tilt Lock

16:9 HDTV Format

Viewing Area (H x W) Nominal Diagonal Overall Case Length

in. cm in. cm in. cm

45" x 80" 114 x 203 92" 234 89½" 227

52" x 92" 132 x 234 106" 269 101½" 258

54" x 96" 137 x 244 110" 279 105½" 268

58" x 104" 147 x 264 119" 302 113½" 288

65" x 116" 165 x 295 133" 338 125½" 319

78" x 139" 198 x 353 159" 404 149½" 380

90" x 160" 229 x 406 184" 467 184¼" 405

16:10 Wide Format

Viewing Area (H x W) Nominal Diagonal Overall Case Length

in. cm in. cm in. cm

50" x 80" 127 x 203 94" 239 89½" 227

57½" x 92" 146 x 234 109" 277 101½" 258

60" x 96" 152 x 244 113" 287 105½" 268

65" x 104" 165 x 264 123" 312 113½" 288

69" x 110" 175 x 279 130" 330 119½" 304

72½" x 116" 184 x 295 137" 348 125½" 319

87" x 139" 221 x 353 164" 417 149½" 380

100" x 160" 254 x 406 189" 480 185¼" 471

4:3 Video Format

Viewing Area (H x W) Nominal Diagonal Overall Case Length

in. cm in. cm in. cm

43" x 57" 109 x 145 72" 183 65½" 166

50" x 67" 127 x 170 84" 213 75½" 192

57" x 77" 145 x 196 96" 244 89½" 227

60" x 80" 152 x 203 100" 254 89½" 227

69" x 92" 175 x 234 120" 305 101½" 258

87" x 116" 221 x 295 150" 381 125½" 319

105" x 140" 267 x 356 180" 457 149½" 380

120" x 160" 305 x 406 200" 508 169½" 430

Available with the Following Screen Surfaces

Matte White

Half Angle: 60º Gain: 1.0

Product images

Case

High Contrast Matte White

Half Angle: 50º Gain: 1.1

Video Spectra 1.5

Half Angle: 35º Gain: 1.5

A Milestone AV Technologies Brand

3100 North Detroit Street Warsaw, Indiana 46582 P: 574.267.8101 or 800.622.3737 F: 574.267.7804 or 877.325.4832 E: info@da-lite.com www.da-lite.com

DL–0499 08.14
