The Da-Lite Difference.
Instruction Book for
LARGE COSMOPOLITAN® ELECTROL®
DA-LITE SCREEN COMPANY LLC
3100 North Detroit Street
Post Office Box 137
Warsaw, IN 46581-0137 USA
P 800-622-3737 / 574-267-8101
F 877-325-4832 / 574-267-7804
www.da-lite.com
e-mail: info@da-lite.com
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when
repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.
3. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock,
or injury to persons.
SAVE THESE INSTRUCTIONS
INSTALLATION
Carefully unpack screen and remove outer wrapping from case.
Remove the black tape and rubber bands from the slat bar after the
case has been installed.
The Large Cosmopolitan® Electrol® comes with brackets to allow for
wall mount or ceiling mount installations. Procedures for each
method are as follows:
Wall Mount
1. The wall mount bracket should be fastened to wall studs or
some reinforcement within the wall. Concrete or brick walls
require special fasteners and anchors.
2. The wall bracket has holes spaced at 16" and 24" to align with
most wall studs.
3. The bracket must be level and plumb.
4. Keep in mind you will need at least 2-3/4" between the ceiling
and the top of the wall mount bracket to be able to position
the case on the bracket.
5. Mount the screen case on the wall bracket as shown in
figure 1. Be sure the case is fully seated on the bracket.
Tighten the stop screws against the wall bracket.
Ceiling Mount
1. Be sure the ceiling has adequate reinforcement to attach the
screen brackets.
2. Attach the ceiling brackets to the wall mount bracket using
the supplied 5/16" x 3/4" bolts, washers and nuts.
3. Position the ceiling bracket assembly on the ceiling and
attach with 5/16" bolts (not supplied). The bolts should be
long enough to pass through the drywall or ceiling tile and
penetrate at least 1-1/2" into the reinforcement in the ceiling.
4. Mount the screen on the wall bracket as shown in figure 2.
Be sure the case is fully seated on the bracket. Tighten the
stop screws against the wall bracket.
CASE HOOK
WALL
MOUNT
BRACKET
STOP SCREW
CASE HOOK
CEILING
MOUNT
BRACKET
5/16x3/4" BOLT,
NUT AND
LOCK WASHER
WALL MOUNT
BRACKET
STOP SCREW
2"
VIEWING SURFACE
(AUDIENCE SIDE)
FIGURE 1
1-1/8"
VIEWING SURFACE
(AUDIENCE SIDE)
FIGURE 2
1
LARGE COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE
CONTROL
Internal wiring has been completed at the factory. Installer must route power to the wall switch and to the junction box
located on the left end of the screen case.
See wiring diagram below for wire connections.
NOTE: This screen can only be controlled by a single 120VAC or 240VAC wall switch. To use multiple switches, an optional low
voltage control must be used.

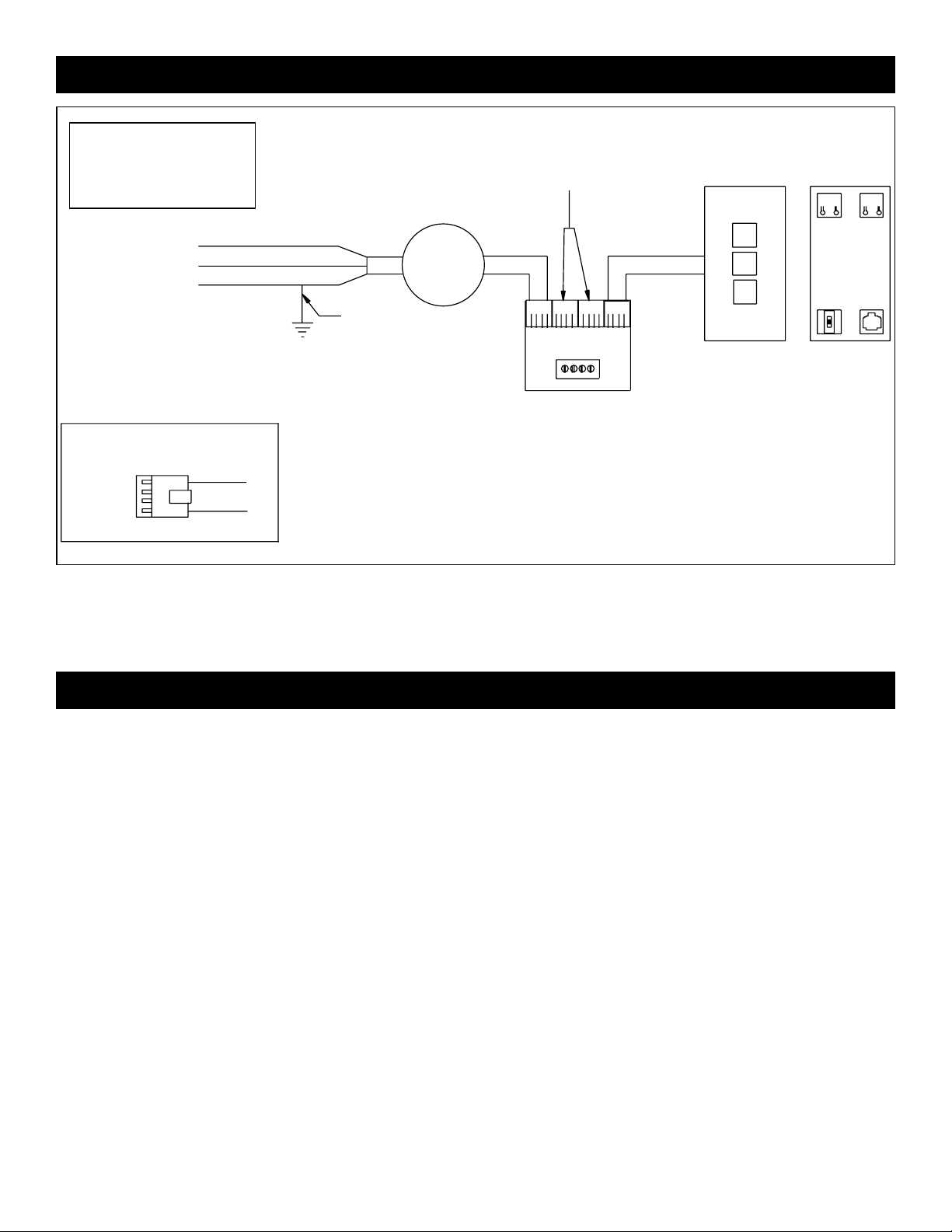

120V WIRING DIAGRAM FOR
STANDARD WALL SWITCH
JUNCTION BOX
LOCATED IN
LEFT ENDCAP
NOTE: A SINGLE SWITCH CANNOT BE
USED TO OPERATE MORE THAN
ONE SCREEN. CONTACT THE
FACTORY FOR FURTHER
INFORMATION.
WHITE
RED
BLACK
GREEN
MOTOR
SPDT SWITCH WITH
CENTER OFF
UP
OFF
DOWN
THIS SWITCH CAN NOT
BE USED WITH LVC.
Da-Lite offers two styles of 240 volt wall switches for standard operation.
WHITE
RED (UP)
BLACK (DOWN)
AC (COMMON)
BLACK
AC HOT 120VAC 60HZ 1 AMP
BLACK/YELLOW
RED
240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH:
Please see wiring diagram in wall switch boxes included with screen.
2
