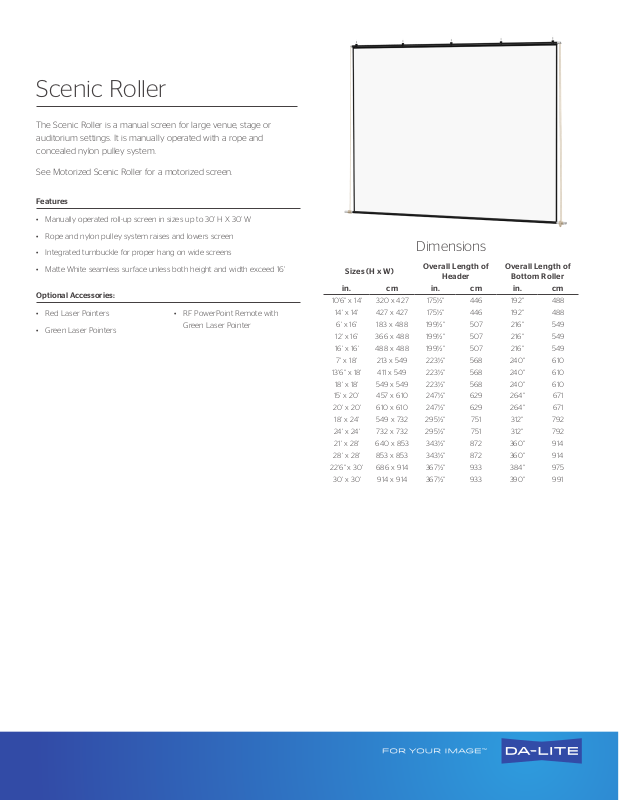

Scenic Roller

The Scenic Roller is a manual screen for large venue, stage or
auditorium settings. It is manually operated with a rope and
concealed nylon pulley system.

See Motorized Scenic Roller for a motorized screen.

Features

• Manually operated roll-up screen in sizes up to 30’ H X 30’ W

• Rope and nylon pulley system raises and lowers screen

• Integrated turnbuckle for proper hang on wide screens

• Matte White seamless surface unless both height and width exceed 16'

Optional Accessories:

• Red Laser Pointers

• Green Laser Pointers

• RF PowerPoint Remote with

Green Laser Pointer

Dimensions

Sizes (H x W)

in. cm in. cm in. cm

10'6" x 14' 320 x 427 175½" 446 192" 488

14' x 14' 427 x 427 175½" 446 192" 488

6' x 16' 183 x 488 199½" 507 216" 549

12' x 16' 366 x 488 199½" 507 216" 549

16' x 16' 488 x 488 199½" 507 216" 549

7' x 18' 213 x 549 223½" 568 240" 610

13'6" x 18' 411 x 549 223½" 568 240" 610

18' x 18' 549 x 549 223½" 568 240" 610

15' x 20' 457 x 610 247 ½" 629 264" 671

20' x 20' 610 x 610 247½" 629 264" 671

18' x 24' 549 x 732 295½" 751 312" 792

24' x 24' 732 x 732 295½" 751 312" 792

21' x 28' 640 x 853 343½" 872 360" 914

28' x 28' 853 x 853 343½" 872 360" 914

22'6" x 30' 686 x 914 367½" 933 384" 975

30' x 30' 914 x 914 367½" 933 390" 991

Overall Length of

Header

Overall Length of

Bottom Roller

Available with the Following Screen Surfaces

Matte White

Half Angle: 60º Gain: 1.0
