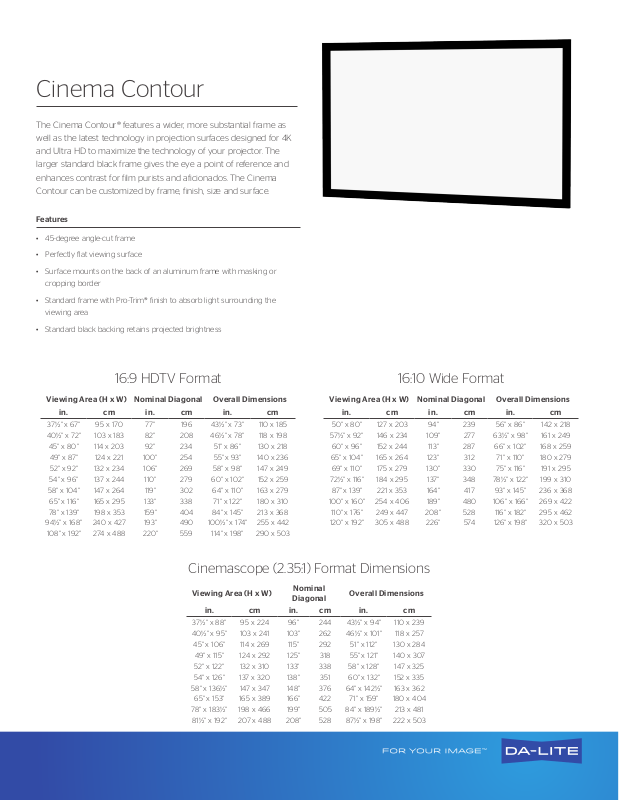

Da-Lite 39091V Data Sheet
Cinema Contour
The Cinema Contour® features a wider, more substantial frame as
well as the latest technology in projection surfaces designed for 4K
and Ultra HD to maximize the technology of your projector. The
larger standard black frame gives the eye a point of reference and
enhances contrast for ilm purists and aicionados. The Cinema
Contour can be customized by frame, inish, size and surface.
Features
• 45-degree angle-cut frame
• Perfectly lat viewing surface
• Surface mounts on the back of an aluminum frame with masking or
cropping border
• Standard frame with Pro-Trim® inish to absorb light surrounding the
viewing area
• Standard black backing retains projected brightness
16:9 HDTV Format
Viewing Area (H x W) Nominal Diagonal Overall Dimensions
in. cm in. cm in. cm
37½" x 67" 95 x 170 77" 196 43½" x 73" 110 x 185
40½" x 72" 103 x 183 82" 208 46½" x 78" 118 x 198
45" x 80" 114 x 203 92" 234 51" x 86" 130 x 218
49" x 87" 124 x 221 100" 254 55" x 93" 140 x 236
52" x 92" 132 x 234 106" 269 58" x 98" 147 x 249
54" x 96" 137 x 244 110" 279 60" x 102" 152 x 259
58" x 104" 147 x 264 119" 302 64" x 110" 163 x 279
65" x 116" 165 x 295 133" 338 71" x 122" 180 x 310
78" x 139" 198 x 353 159" 404 84" x 145" 213 x 368
94½" x 168" 240 x 427 193" 490 100½" x 174" 255 x 442
108" x 192" 274 x 488 220" 559 114" x 198" 290 x 503
Cinemascope (2.35:1) Format Dimensions
Viewing Area (H x W)
in. cm in. cm in. cm
37½" x 88" 95 x 224 96" 244 43½" x 94" 110 x 239
40½" x 95" 103 x 241 103" 262 46½" x 101" 118 x 257
45" x 106" 114 x 269 115" 292 51" x 112" 130 x 284
49" x 115" 124 x 292 125" 318 55" x 121" 140 x 307
52" x 122" 132 x 310 133" 338 58" x 128" 147 x 325
54" x 126" 137 x 320 138" 351 60" x 132" 152 x 335
58" x 136½" 147 x 347 148" 376 64" x 142½" 163 x 362
65" x 153" 165 x 389 166" 422 71" x 159" 180 x 404
78" x 183½" 198 x 466 199" 505 84" x 189½" 213 x 481
81½" x 192" 207 x 488 208" 528 87½" x 198" 222 x 503
Nominal
Diagonal
16:10 Wide Format
Viewing Area (H x W) Nominal Diagonal Overall Dimensions
in. cm in. cm in. cm
50" x 80" 127 x 203 94" 239 56" x 86" 142 x 218
57½" x 92" 146 x 234 109" 277 63½" x 98" 161 x 249
60" x 96" 152 x 244 113" 287 66" x 102" 168 x 259
65" x 104" 165 x 264 123" 312 71" x 110" 180 x 279
69" x 110" 175 x 279 130" 330 75" x 116" 191 x 295
72½" x 116" 184 x 295 137" 348 78½" x 122" 199 x 310
87" x 139" 221 x 353 164" 417 93" x 145" 236 x 368
100" x 160" 254 x 406 189" 480 106" x 166" 269 x 422
110" x 176" 249 x 447 208" 528 116" x 182" 295 x 462
120" x 192" 305 x 488 226" 574 126" x 198" 320 x 503
Overall Dimensions
Available with the Following Screen Surfaces
Front Projection
HD Progressive 0.6
Half Angle: 85º Gain: 0.6
HD Progressive 1.3
Half Angle: 75º Gain: 1.3
Rear Projection
Dual Vision
Half Angle: 65º Gain: 0.9
Product images
HD Progressive 0.9
Half Angle: 85º Gain: 0.9
Da-Mat
Half Angle: 60º Gain: 1.0
Da-Tex
Half Angle: 30º Gain: 1.3
HD Progressive 1.1
Half Angle: 85º Gain: 1.1
High Contrast Da-Mat
Half Angle: 45º Gain: 0.8
HD Progressive 1.1 Perf
Half Angle: 85º Gain: 1.1
HD Progressive 1.1
Contrast
Half Angle: 60º Gain: 1.1
Snap
HD Progressive 1.1
Contrast Perf
Half Angle: 60º Gain: 1.1
Pro-Trim Fabric (Standard)
A BRAND OF MILESTONE AV TECHNOLOGIES |
P 800.622.3737 / 574.267.8101 F 877.325.4832 / 574.267.7804
E info@da-lite.com
In British Columbia, Milestone AV Technologies ULC carries on business as MAVT Milestone
AV Technologies ULC.
©2018 Milestone AV Technologies. DL0457 (Rev. 3) 4.18.
Da-Lite is a registered trademarks of Milestone AV Technologies. All other brand names or
marks are used for identiication purposes and are trademarks of their respective owners.
All patents are protected under existing designations. Other patents pending.
www.milestone.com
Screen
Surface
Frame
3”
