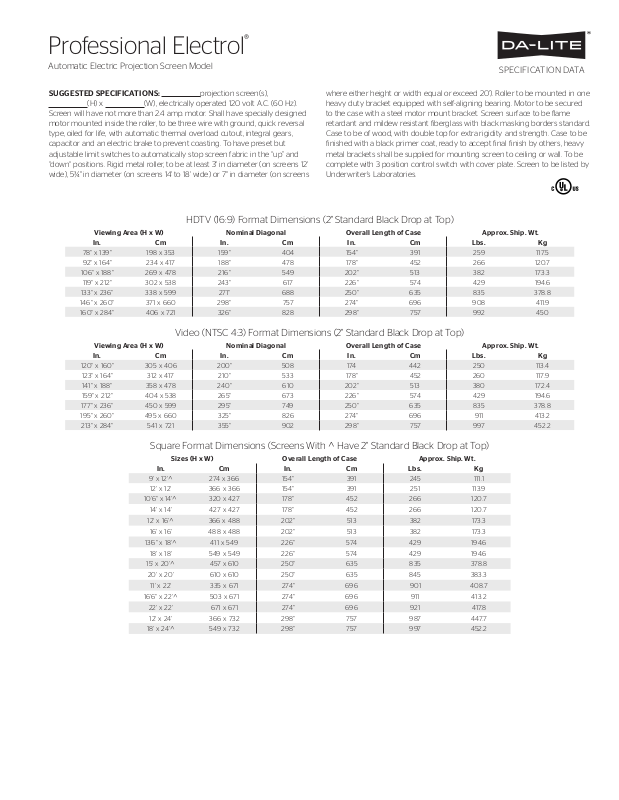

Professional Electrol
Automatic Electric Projection Screen Model
®
SPECIFICATION DATA
SUGGESTED SPECIFICATIONS: projection screen(s),
(H) x (W), electrically operated 120 volt A.C. (60 Hz).
Screen will have not more than 2.4 amp. motor. Shall have specially designed
motor mounted inside the roller, to be three wire with ground, quick reversal
type, oiled for life, with automatic thermal overload cutout, integral gears,
capacitor and an electric brake to prevent coasting. To have preset but
adjustable limit switches to automatically stop screen fabric in the “up” and
“down“ positions. Rigid metal roller, to be at least 3" in diameter (on screens 12'
wide), 5¾" in diameter (on screens 14' to 18' wide) or 7" in diameter (on screens
HDTV (16:9) Format Dimensions (2" Standard Black Drop at Top)
Viewing Area (H x W) Nominal Diagonal Overall Length of Case Approx. Ship. Wt.
In. Cm In. Cm In. Cm Lbs. Kg
78" x 139" 198 x 353 159" 404 154" 391 259 1 17. 5
92" x 164" 234 x 417 188" 478 178" 452 266 120.7
106" x 188" 269 x 478 216" 549 202" 513 382 173.3
119" x 212" 302 x 538 243" 617 226" 574 429 194.6
133" x 236" 338 x 599 271" 688 250" 635 835 378.8
146" x 260" 371 x 660 298" 757 2 74" 69 6 908 411.9
160" x 284" 406 x 721 326" 828 298" 757 992 450
Video (NTSC 4:3) Format Dimensions (2" Standard Black Drop at Top)
Viewing Area (H x W) Nominal Diagonal Overall Length of Case Approx. Ship. Wt.
In. Cm In. Cm In. Cm Lbs. Kg
120" x 160" 305 x 406 200" 508 174 442 250 113.4
123" x 164" 312 x 417 210" 533 178" 452 260 1 17. 9
141" x 188" 358 x 478 240" 610 202" 513 380 172.4
159" x 212" 404 x 538 265" 673 226" 574 429 194.6
177" x 236" 450 x 599 295" 749 250" 635 835 378.8
195" x 260" 495 x 660 325" 826 274" 696 911 413.2
213" x 284" 541 x 721 355" 902 298" 7 57 997 452.2
where either height or width equal or exceed 20'). Roller to be mounted in one
heavy duty bracket equipped with self-aligning bearing. Motor to be secured
to the case with a steel motor mount bracket. Screen surface to be lame
retardant and mildew resistant iberglass with black masking borders standard.
Case to be of wood, with double top for extra rigidity and strength. Case to be
inished with a black primer coat, ready to accept inal inish by others, heavy
metal brackets shall be supplied for mounting screen to ceiling or wall. To be
complete with 3 position control switch with cover plate. Screen to be listed by
Underwriter's Laboratories.
Square Format Dimensions (Screens With ^ Have 2" Standard Black Drop at Top)
Sizes (H x W) Overall Length of Case Approx. Ship. Wt.
In. Cm In. Cm Lbs. Kg
9' x 12'^ 274 x 366 154" 391 245 111.1
12' x 12' 366 x 366 154" 391 251 113.9
10'6" x 14'^ 320 x 427 178" 452 266 120.7
14' x 14' 427 x 427 178" 452 266 120.7
12' x 16'^ 366 x 488 202" 513 382 173.3
16' x 16' 488 x 488 202" 513 382 173.3
13'6" x 18'^ 411 x 549 226" 574 429 194.6
18' x 18' 549 x 549 226" 5 74 429 194.6
15' x 20'^ 457 x 610 250" 635 835 378.8
20' x 20' 610 x 610 250" 635 845 383.3
11' x 22' 335 x 671 274" 696 901 408.7
16'6" x 22'^ 503 x 671 274 " 696 911 413.2
22' x 22' 671 x 671 2 74" 69 6 921 417.8
12' x 24' 366 x 732 298" 757 9 87 447.7
18' x 24'^ 549 x 732 298" 757 997 452.2
PRODUCT NOTES:
(black or white)
(black or white)
• Matte White: Horizontal seam required when
both dimensions exceed 16'.
• Detailed dimensional drawings, wiring diagrams
and installation instructions available upon
request.
• DO NOT SEAL IN — ALLOW ACCESS – Recessed
installation requires access to screen roller.
• FOR EXPOSED INSTALLATION – If the screen is
to be mounted in an exposed position, it may be
covered with inished plywood, veneer, paneling,
plastic wall covering or a valance.
• Overall case length dimensions +/- ¼" (6mm).
• Speciications subject to change without notice.
• Custom formats and sizes available upon request.
WHEN ORDERING, MARK APPROPRIATE SELECTIONS
1. Select size from charts on other side.
2. Select viewing surface (All Da-Lite surfaces are GREENGUARD GOLD Certiied.):
Matte White
3. Optional accessories:
Extra Drop available to lower picture area
more than normal. Specify total drop at
top _____ (black or white) or at bottom _____
(black or white). 22' maximum total surface
height including picture area, except for 24'
wide, where maximum drop is 18'.
Single Motor Low Voltage Control (LVC) –
external.
Wireless Remote Control for LVC.
Radio Frequency Remote.
Radio Frequency Range
Extender available
Key Locking Cover Plate for 120V
or LVC Switch.
Key Operated Switch for 120V only
(NOTE: Cannot be used with LVC).
No Borders (Black masking borders
standard).
220 Volt (50 Hz) Motor.
Video Projector Interface Control – external.
External SCB100 - RS232 Serial Control Board
NET100 Ethernet-Serial Adapter
White box (black standard).
Infrared Remote.
PRODUCT VIEWS SUGGESTED METHODS OF INSTALLATION
Screens Up to 18' Wide
(Where Height is Less Than 20')
Length = Fabric Width
+10", All Sizes
Motor
End
Electrical
Outlet
Box
Screens Where Height or Width
Equals or Exceeds 20'
Motor
End
Electrical
Outlet Box
5"
Length = Fabric Width
+10", All Sizes
5"
11⅜"
12⅝"
2"
2"
1"
2⅞"
9½"
1"
2⅞"
10¾"
⅞"
⁄"
Ceiling Mount Without Hangers
¾"
14⅜"
⅞"
⁄"
¾"
15⅝"
Screen case is placed lush with the wall and ceiling and
held in position by moulding securely attached to the wall.
Recessed Above Ceiling
Other methods of installation will suggest themselves in
new buildings where it would be an easy matter to
provide a recess for the screen to conceal it when not in
use. Do not seal in — allow access.
Ceiling
Type
Hanger
Surface
2" Moulding
Picture Surface
1" x 3" Cleat
Rafters
Picture Surface
Wall
Type
Hanger
Surface
9½"
11⁄"
14⅜"
5"
10¾"
12⁄"
15⅝"
5"
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: info@da-lite.com
www.da-lite.com
DL–0191 (Rev. 1) 08.14
© 2014 Milestone AV Technologies LLC. Printed in U.S.A.
Wall Or Ceiling Mount With Hangers
Wall type hangers and ceiling type hangers are standard
equipment. One set is supplied with each screen. Useful
for recessed installations.
Project Name:
Architect: Phone:
Contractor: Phone:
Supervisor: Phone:
Supplier: Date:
Revised:
