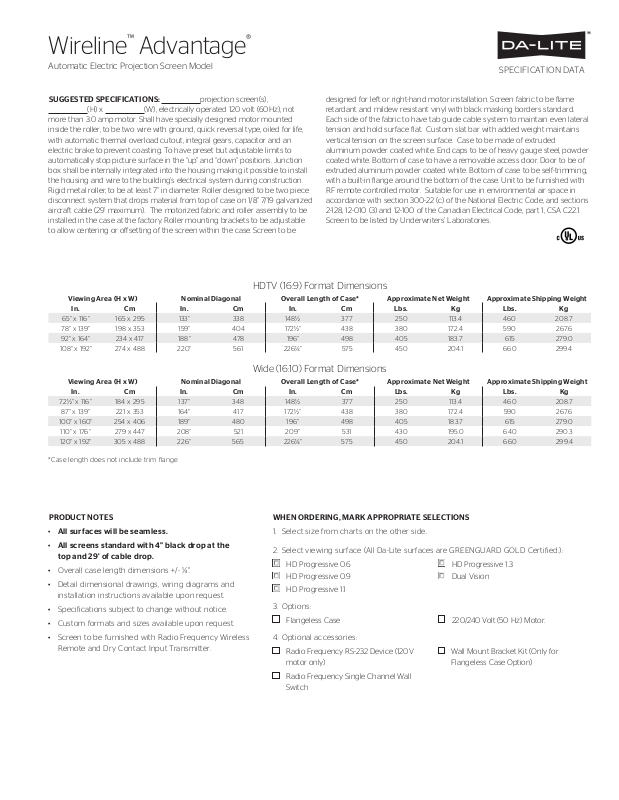

Wireline™ Advantage

Automatic Electric Projection Screen Model

®

SPECIFICATION DATA

SUGGESTED SPECIFICATIONS: projection screen(s),
(H) x (W), electrically operated 120 volt (60Hz), not
more than 3.0 amp motor. Shall have specially designed motor mounted
inside the roller, to be two wire with ground, quick reversal type, oiled for life,
with automatic thermal overload cutout, integral gears, capacitor and an
electric brake to prevent coasting. To have preset but adjustable limits to
automatically stop picture surface in the “up” and “down” positions. Junction
box shall be internally integrated into the housing making it possible to install
the housing and wire to the building’s electrical system during construction.
Rigid metal roller, to be at least 7” in diameter. Roller designed to be two piece
disconnect system that drops material from top of case on 1/8” 7/19 galvanized
aircraft cable (29’ maximum). The motorized fabric and roller assembly to be
installed in the case at the factory. Roller mounting brackets to be adjustable
to allow centering or ofsetting of the screen within the case. Screen to be

designed for left or right-hand motor installation. Screen fabric to be lame
retardant and mildew resistant vinyl with black masking borders standard.
Each side of the fabric to have tab guide cable system to maintain even lateral
tension and hold surface lat. Custom slat bar with added weight maintains
vertical tension on the screen surface. Case to be made of extruded
aluminum powder coated white. End caps to be of heavy gauge steel, powder
coated white. Bottom of case to have a removable access door. Door to be of
extruded aluminum powder coated white. Bottom of case to be self-trimming,
with a built-in lange around the bottom of the case. Unit to be furnished with
RF remote controlled motor. Suitable for use in environmental air space in
accordance with section 30022 (c) of the National Electric Code, and sections
2128, 12010 (3) and 12100 of the Canadian Electrical Code, part 1, CSA C22.1.
Screen to be listed by Underwriters’ Laboratories.

HDTV (16:9) Format Dimensions

Viewing Area (H x W) Nominal Diagonal Overall Length of Case* Approximate Net Weight Approximate Shipping Weight

In. Cm In. Cm In. Cm Lbs. Kg Lbs. Kg

65" x 116" 165 x 295 133" 338 148½ 377 250 113.4 460 208.7
78" x 139" 198 x 353 159" 404 172½" 438 380 172.4 590 267.6

92" x 164" 234 x 417 188" 478 196" 498 405 183.7 615 279.0

108" x 192" 274 x 488 220" 561 226¼" 575 450 204.1 660 299.4

Wide (16:10) Format Dimensions

Viewing Area (H x W) Nominal Diagonal Overall Length of Case* Approximate Net Weight Approximate Shipping Weight

In. Cm In. Cm In. Cm Lbs. Kg Lbs. Kg

72½" x 116" 184 x 295 137" 348 148½ 377 250 113.4 460 208.7

87" x 139" 221 x 353 164" 4 17 172½" 438 380 172.4 590 267.6

100" x 160" 254 x 406 189" 480 196" 498 405 183.7 615 279.0

110" x 176" 279 x 447 208" 521 209" 531 430 195.0 640 290.3
120" x 192" 305 x 488 226" 565 226¼" 575 450 204.1 660 299.4

*Case length does not include trim lange

PRODUCT NOTES

• All surfaces will be seamless.

• All screens standard with 4" black drop at the

top and 29' of cable drop.

• Overall case length dimensions +/- ¼".

• Detail dimensional drawings, wiring diagrams and
installation instructions available upon request.

• Speciications subject to change without notice.

• Custom formats and sizes available upon request.

• Screen to be furnished with Radio Frequency Wireless
Remote and Dry Contact Input Transmitter.

WHEN ORDERING, MARK APPROPRIATE SELECTIONS

1. Select size from charts on the other side.

2. Select viewing surface (All Da-Lite surfaces are GREENGUARD GOLD Certiied.):

HD Progressive 0.6

HD Progressive 0.9

HD Progressive 1.1

3. Options:

Flangeless Case 220/240 Volt (50 Hz) Motor.

4. Optional accessories:

Radio Frequency RS232 Device (120V

motor only)

Radio Frequency Single Channel Wall

Switch

HD Progressive 1.3

Dual Vision

Wall Mount Bracket Kit (Only for

Flangeless Case Option)

PRODUCT VIEWS - WITH TRIM FLANGE (STANDARD)

11½"

Electrical

Junction

Box

Variable
Position

Mounting

Brackets

10¼"

Case Length

11"

10¼"

Finished

Ceiling

Screen Roller

9⅛"

11"

Self-Trimming Flange

13⅛"

(Suggested) ½" Threaded
Rod (Not Included) Attached
to Mounting Bracket

12⁄"

11⁄"

Audience
Side

Self-Trimming

Flange

Access Door
