INSTRUCTION BOOK FOR
IDEA™ Screen
Preparation
Note: It requires two people to assemble an IDEA Screen. To
maintain optimal projected image geometry and screen
alignment, a lat and straight wall free from obstructions and
angular distortions should be used.
Tools Required For Assembly
Phillips Screwdriver
Rubber Mallet
Choose a clean work area for assembly using padded material or
other soft, clean materials. The work area should be larger than
the overall screen size and directly in front of the location where
the screen is to be installed.
Level
Measuring Tape
Hardware Provided
(7) #8 x ½” Screws
44” Wall Bracket
(2) 89”, 94¼”, 95¼” and 106” Wide Screens
28” Wall Bracket
(2) 57½”, 64”, 73½”, 80”, 81¾” and 84¾” Wide Screens
(2) LBrackets
2
Assembly Instructions for Screens with 24” Marker Tray
1. Carefully unpack unit and place assembly on top of the clean
work area. The viewing surface must face up.
2. Center aluminum tray to the bottom of frame and attach with (3)
of the provided #8 x ½” screws. Insert screws through the tray into
the groove (Figure 1).

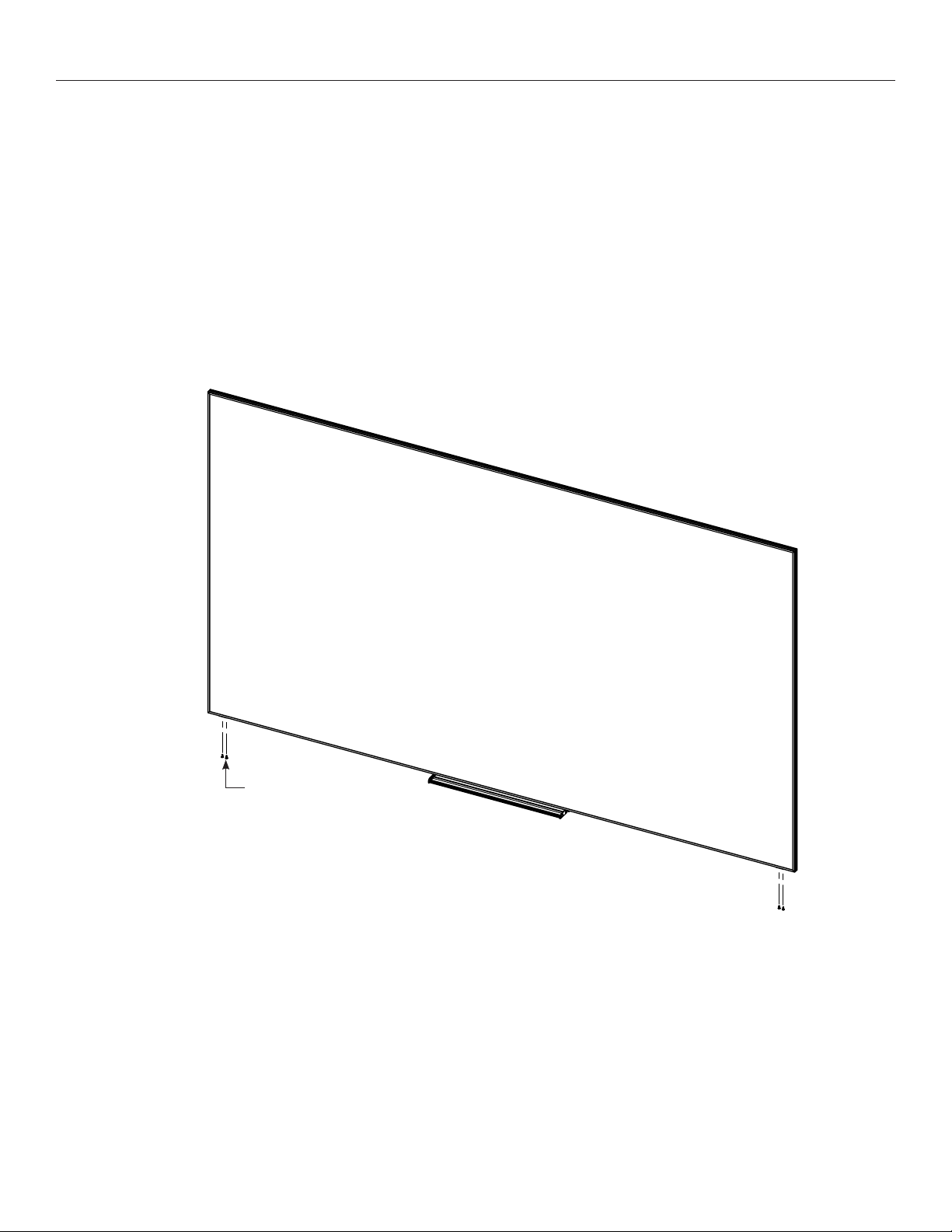

Figure 1
#8 X ½" Screws
3
Wall Mounting Instructions for Screens with 24” Marker Tray
NOTE: The screen is shipped with two wall brackets. Screens in
widths of 84 ¾” and below receive (2) 28” wall brackets. Screens
above 84 ¾” in width receive (2) 44” wall brackets. Use
appropriate mounting hardware for the wall type and to
accommodate for the screen’s hanging weight (Figure 2).
1. Secure the two wall brackets to wall studs at the desired height.
The outside edge of each wall bracket must be no greater than
5” away from the left and right edges of the frame. You will need
at least 1” clearance above the drilled holes to hang the screen
(Figure 2) .
No More
than 5”
2. To install the (2) L-brackets, you must measure the overall height
of the screen frame and subtract 1⅛”. Using that dimension,
measure down from the top edge of the wall brackets and mark
the wall for two screw holes. The outside edge of each L-bracket
must be no greater than 5” away from the left and right edges of
the screen frame (Figure 2).
3. Secure the two L-brackets to the wall at the marked locations. The
longest side of the two L-brackets should be pointing upwards
when secured in order to hide the L-brackets behind the screen
frame once the screen is installed.
Wall Brackets
Figure 2
Screws (Not Supplied)
No More
than 5”
LBracket
No More
than 5”
4
Wall Mounting Instructions for Screens with 24” Marker Tray (continued)
4. This step requires two people. Hang the screen on the wall
brackets. There is a lip on the back of the frame that wedges itself
into the wall brackets once fully installed. Ensure that the screen
clears the L-brackets and that the screen weight is on the wall
brackets, not the L-brackets.
5. Tap the bottom of the two L-brackets with the rubber mallet until
they make contact with the frame. Secure the two L-brackets to
the frame with the remaining (4) #8 x ½” screws (Figure 3).
6. Attach bottom of screen to wall through the mounting holes
located under the tray.
#8 X ½" Screws
Figure 3
5
Assembly Instructions for Screens with Full Length Tray
1. Carefully unpack unit and place frame assembly on top of the
clean work area. The viewing surface must face up.
2. Center the marker tray to the bottom of the frame and attach
with (7) of the provided #8 x ½” screws (Figure 4). Insert screws
through the tray into the groove.
Viewing Surface
Aluminum Tray
#8 X ½" Screws
Figure 4
6
Wall Mounting Instructions for Screens with Full Length Tray
NOTE: The screen is shipped with two wall brackets. Screens
in widths of 84¾” and below receive (2) 28” wall brackets.
Screens above 84¾” in width receive (2) 44” wall brackets. Use
appropriate mounting hardware for the wall type and to
accommodate for the screen’s hanging weight.
1. Secure the two wall brackets to wall studs at the desired
height. The outside edge of each wall bracket must be no
greater than 5” away from the left and right edges of the
screen frame. You will need at least 1” clearance above the
drilled holes to hang the screen.
No More
than 5”
2. This step requires two people. Hang the screen on the wall
brackets (Figure 5). There is a lip on the back of the frame that
wedges itself into the wall brackets once fully installed.
3. Attach bottom of screen to wall through the mounting holes
located under the tray (Figure 5).
Wall Brackets
No More
than 5”
Screws (Not Supplied)
Cleaning
The supplied cleaning cloth can be used to clean marks on the
screen surface made by everyday dry erase marker usage. To
clean persistent marks from dry erase markers, use the supplied
Da-Lite spray cleaner and cleaning cloth. To clean permanent
markers and other unintentional marks on the surface, use the
supplied Da-Lite spray cleaner and cleaning cloth or a melamine
foam cleaning pad.
Figure 5
7
