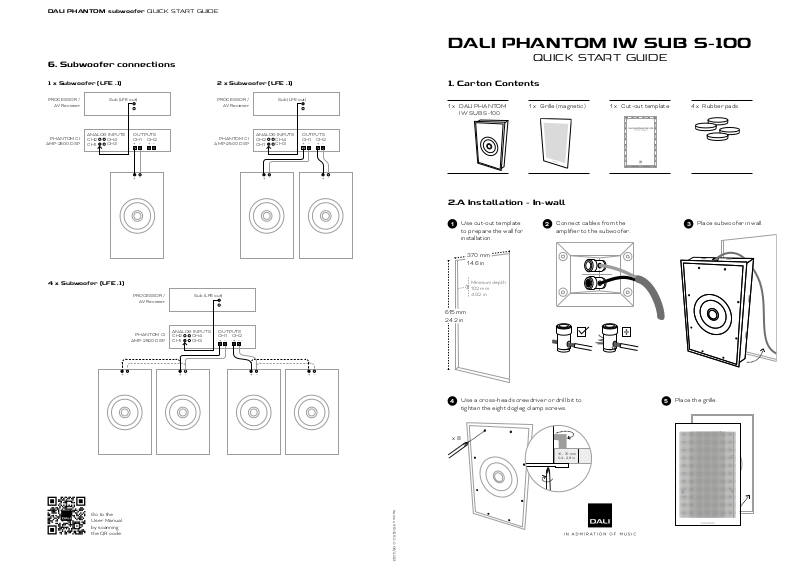

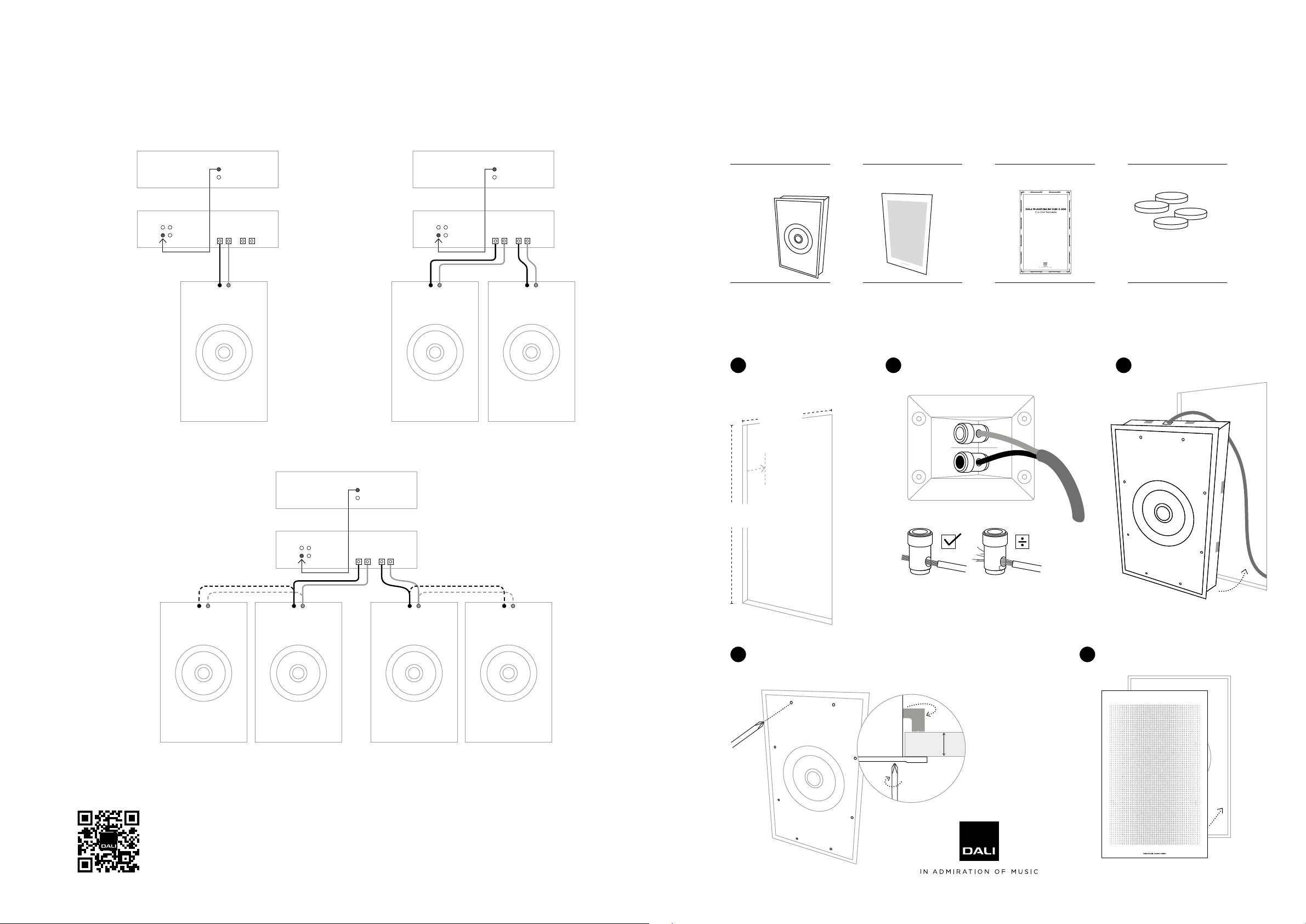

Page 1
DALI PHANTOM subwoofer QUICK START GUIDE
10 - 70 mm
0.4 - 2.8 in
6. Subwoofer connections
DALI PHANTOM IW SUB S-100
QUICK START GUIDE
1 x Subwoofer (LFE .1) 2 x Subwoofer (LFE .1)
PROCESSOR /
AV Reciever
PHANTOM CI
AMP-2500 DSP
Sub (LFE out)
ANALOG INPUTS
CH4
CH2
CH3
CH1
OUTPUTS
CH1 CH2
- -
- -
+ +
+ +
- -
+ +
PROCESSOR /
AV Reciever
PHANTOM CI
AMP-2500 DSP
ANALOG INPUTS
CH2
CH1
Sub (LFE out)
CH4
CH3
OUTPUTS
CH1 CH2
1. Carton Contents
1 x DALI PHANTOM
IW SUB S-100
-
+
1 x Grille (magnetic) 1 x Cut-out template 4 x Rubber pads
2.A Installation - In-wall
Use cut-out template
1 2 3
to prepare the wall for
Connect cables from the
amplifier to the subwoofer.
installation.
370 mm
14.6 in
Place subwoofer in wall.
4 x Subwoofer (LFE .1)
PROCESSOR /
AV Reciever
PHANTOM CI
AMP-2500 DSP
Sub (LFE out)
ANALOG INPUTS
CH4
CH2
CH3
CH1
-
+
OUTPUTS
CH1 CH2
-
+
+
Minimum depth
102 mm
4.02 in
615 mm
24.2 in
-
- --
+ ++
Use a cross-head screwdriver or drill bit to
4
Place the grille.
5
tighten the eight dogleg clamp screws.
x 8
Go to the
Item.no. 951125-0-0 06/2023
User Manual
by scanning
the QR code.

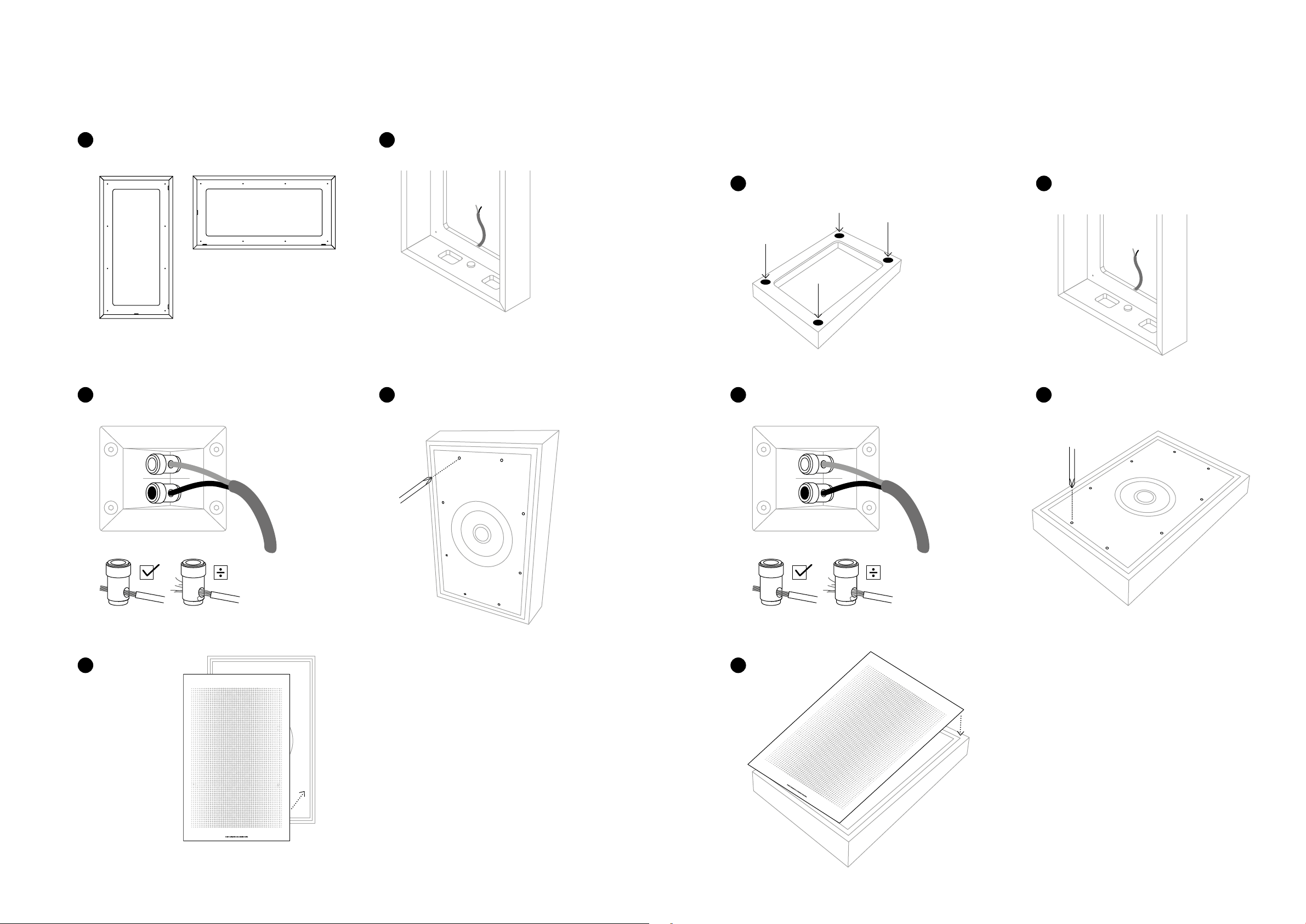

Page 2
DALI PHANTOM subwoofer QUICK START GUIDE
2.B Installation - On-wall frame 2.C Unmounted installation
Mount the DALI S-80 On-wall frame on the wall
1
in landscape or portrait position.
Landscape
Portrait
Connect cables from the
3 3
amplifier to the subwoofer.
Pass the cable from the amplifier unit
2
through the channels of the frame.
Use a cross-head screwdriver or drill bit to
4 4
tighten the eight dogleg clamp screws.
Enable unmounted installation by using the DALI S-80 On-wall frame as an
external cabinet for the subwoofer. For example for placement on floor.
Place the 4 rubber feet to the rear
1
side of the DALI S-80 On-wall frame.
Connect cables from the
amplifier to the subwoofer.
Pass the cable from the amplifier unit
2
through the channels of the frame.
Use a cross-head screwdriver or drill bit to
tighten the eight dogleg clamp screws.
x 8
Place the grille. Place the grille.
5 5
x 8
