DALI Loudspeakers

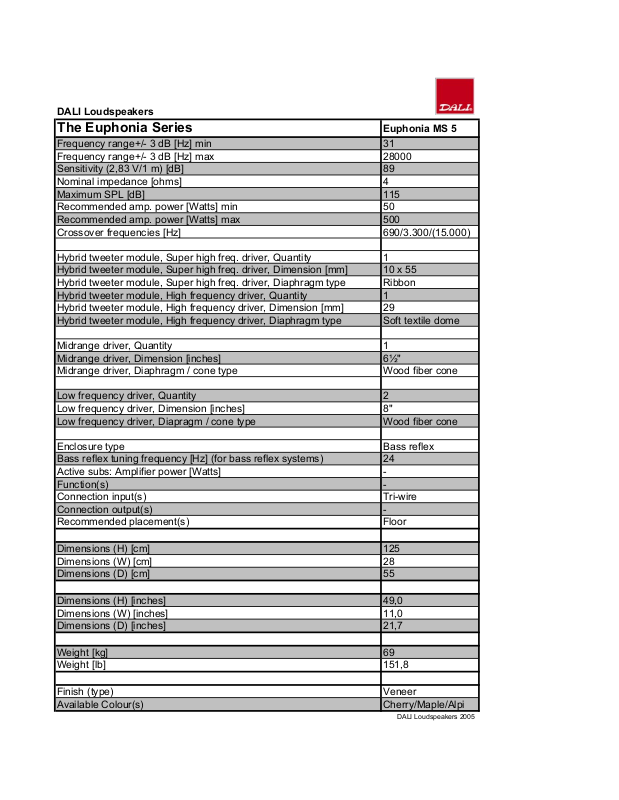

The Euphonia Series Euphonia MS 5
Frequency range+/- 3 dB [Hz] min 31
Frequency range+/- 3 dB [Hz] max 28000
Sensitivity (2,83 V/1 m) [dB] 89
Nominal impedance [ohms] 4
Maximum SPL [dB] 115
Recommended amp. power [Watts] min 50
Recommended amp. power [Watts] max 500
Crossover frequencies [Hz] 690/3.300/(15.000)
Hybrid tweeter module, Super high freq. driver, Quantity 1
Hybrid tweeter module, Super high freq. driver, Dimension [mm] 10 x 55
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1
Hybrid tweeter module, High frequency driver, Dimension [mm] 29
Hybrid tweeter module, High frequency driver, Diaphragm type Soft textile dome
Midrange driver, Quantity 1
Midrange driver, Dimension [inches] 6½"
Midrange driver, Diaphragm / cone type Wood fiber cone
Low frequency driver, Quantity 2
Low frequency driver, Dimension [inches] 8"
Low frequency driver, Diapragm / cone type Wood fiber cone
Enclosure type Bass reflex
Bass reflex tuning frequency [Hz] (for bass reflex systems) 24
Active subs: Amplifier power [Watts] Function(s) Connection input(s) Tri-wire
Connection output(s) Recommended placement(s) Floor
Dimensions (H) [cm] 125
Dimensions (W) [cm] 28
Dimensions (D) [cm] 55
Dimensions (H) [inches] 49,0
Dimensions (W) [inches] 11,0
Dimensions (D) [inches] 21,7
Weight [kg] 69
Weight [lb] 151,8
Finish (type) Veneer
Available Colour(s) Cherry/Maple/Alpi
DALI Loudspeakers 2005
