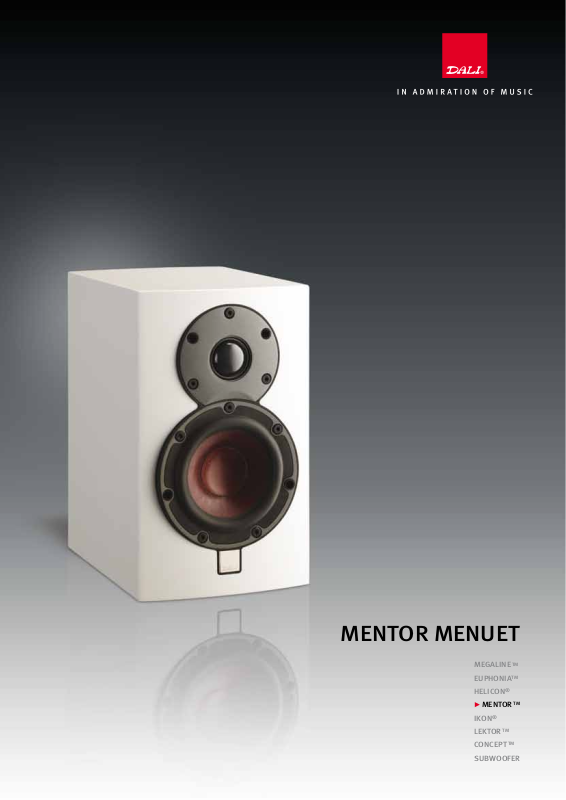

Dali MENTOR MENUET User Manual

MENTOR MENUET

MEGALINE

EUPHONIA

HELICON

®

MENTOR

®

IKON

TM

LEKTOR

CONCEPT

TM

SUBWOOFER

TM

TM

TM

N e w D A L I M E N T O R M E N U E T

It is with great pleasure that we introduce you to the newest and smallest
loudspeaker in our MENTOR series. The DALI MENTOR MENUET - a small,
yet powerful speaker that reveals great musicality that will set new standards
for sound and performance from a compact speaker.

Conceptually, MENTOR MENUET is a compact bass reflex loudspeaker
measuring only 25 x 15 x 23 cm/9.8 x 5.9 x 9.0”. Even though it is only
based on a 4.5” woofer and a 28 mm/1.1” soft dome it more than makes
the grade.
plenty of clean, undistorted bass, open and dynamic midrange and
detailed/crisp highs.

The 4.5” woofer is air flow optimized to achieve the best possible
coupling between the wood fiber cone and the real wood veneer cabinet.
Even the woofer cut-out in the cabinet is made larger than normal to optimise
openness and dynamic response. The oversized 28 mm/1.1” soft dome
tweeter is able to start and stop with great speed and precision due to
the very low mass of the dome assembly and a powerful motor system
(the dome is approximately 30% lighter than comparable standard domes
and the magnet in the motor system is made of the strongest neodymium
material available). The DALI designed drivers, sturdy binding posts and
high quality crossover is the key to achieving extraordinary performance
from such a compact loudspeaker.

Listen to these brilliant tiny loudspeakers and you will hear

For optimum performance, MENTOR MENUET should be positioned in a
bookshelf or mounted on the wall using an optional wall bracket. With
two threaded inserts on the rear of the cabinet, it is prepared for easy
installation of the wall bracket without any hassle. The bracket is designed
to ensure optimal clearance between the wall and the bass reflex port.

The neat and clean design - makes it very easy to place the tiny DALI
MENTOR MENUET anywhere around the house. Alternatively, combine
them with other speakers in the acclaimed MENTOR series for a
high-performance stereo set-up or home cinema system. Either way,
you’re in for an experience.

Technical Specifications:

Frequency Range [+/- 3dB, Hz]

Crossover Frequency [Hz]

Sensitivity [ 2.83V/1m, dB]

Nominal Impedance [ohm]

Maximum SPL [dB]

Enclosure Type

Recommended Amp. Power [W ]

Terminals

Dome Tweeter [mm]

Low Frequency Drivers [inch]

Dimensions [H x W x D ] [cm]

Dimensions [H x W x D ] [inch]

Weight [kg/lb]

Optional Accessories

Finish

Cherry Wood Veneer, Black Satin, White Satin

68 - 25,000

3,000

86

4.0

105

Bass Reflex (rear)

20 - 100

Single-wire

1 x 28

1 x 4½

25 x 15 x 23

9.8 x 5.9 x 9.0

4.0/8.2

Wall Bracket

Specifications are subject to change without notice
