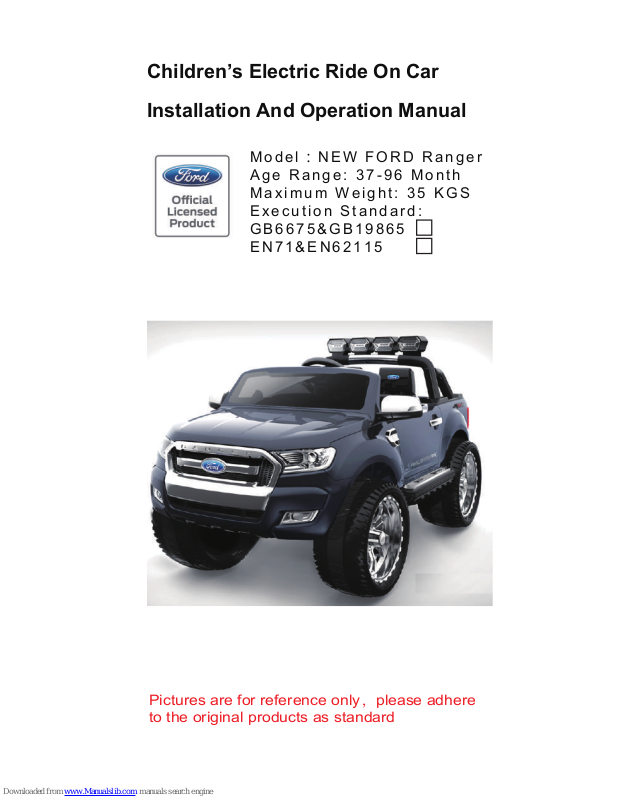

Children’s Electric Ride On Car
Installation And Operation Manual
Model： NEW FORD Ranger
Age Range: 37-96 Month
Maximum Weight: 35 KGS
Execution Standard:
GB6675&GB19865
EN71&EN62115
Pictures are for reference only，please adhere
to the original products as standard
1:All spare parts when opens the carton
2:Connecting the electricity
3:Installation of Steering Wheel:
Car Body 1 PC
Front Windowshield 1PC
Hood 1PC
Steering wheel 1 PC
One set of four lights Seat 1 PC Front Wheels 2 PCS Back Wheels 2 PCS
Wheel Covers 4 PCS Rear View Mirrors 1 Pair Charger 1 PC Remote Control 1 PC
(According to the picture)
Due to the reason of movement of steering tube,
sometimes there is possibility that the hole on the
steering wheel and the hole on the steering tube can
not match well. If this happens, please use one hand to
hold the hook under the car body in order to fix the
steering tube. (Referring to the picture)
WARNING:
If you want to use carry
handle under the specification
of four motors, please switch
to mode of 2*2
(Two motors drive).
4：Installation of one set of four lights
5：Installation of seat
Firstly, please make the line with
the SM plug insert to the car body
through right small hole, and then
connect to the SM plug in the
battery tank.
Put the seat on the car and use two screws to fix.
(According to the picture)
(According to the picture)
6.Installation of motor:
1-2). Please find the motors in the battery tank which are
connected well；
3). Disconnect the lines. (Referring to the picture).
4). Assemble the motor to the back wheel axle by
inserting the axle into the hole of motor, and then
connect the motor with lines to the car body well.
(Referring to the picture)
5). Re connect the motor. (Referring to the picture)
6). Assembling the back whee
7：Installation of back wheels
8：Installation of front wheels
9：Installation of window shield
10：Installation of hood
11：Installation of rear view mirrors
Attention: Installation must be done by adults.
otherwise it will rub against the wheels. Finally,
assemble the wheel cover and use the screw to fix.
Put one gasket first, and then put
front wheels at the front axle. And
then same as installation of back
wheels.
Choose back wheels and then put at the back axle, and
put one gasket, and then insert one cotter pin. Use the
tool to fix the cotter pin and make it into circle,
Please first insert the
window shield into the
car, and then use the screw to fix them.
Insert the hood to the car
and then use screw to fix.
Please aim the retaining grooves.
Make the rear view mirrors
aim at the neck and push nside.
(According to the picture)
(According to the picture)
Battery polarity cannot be reversed, please ensure the red wire
is connected to the red battery terminal and the black wire is
connected to the black battery terminal.
●Press the power switch to OFF position to turn the power off.
●Open the seat,connect the battery plug,red to red.
●Never drain battery completely or to a crawling speed,recharge the battery when a
decrease in speed and power is noticed warranty will be voided if misuse has occurred.
●Battery charging must be done by adults only.Never allow children to charge the
battery.A child could be injured by the electricity involved in charging the battery.
●Please don’t connect the wires to a short circuit.
The charger and the battery are not a toy.Do not allow children to play with the
charger and the battery.
Only operate the battery and charger specified according to the manual instructions.
●
Please do not open the battery and the charger.
●
To maintain safety of vehicle, always secure the battery with the
bracket.
●T
he battery must be handled and operated by adults only: the battery is heavy
and contains sulfuric acid(electrolyte).Dropping the battery could result in serious injury.
●
Before charging the battery check if wear or damage to the battery,charger ,
the connectors and other parts .If any damage is found , the charger should
be repaired or replaced immediately .Do not use a damaged charger.
●
It is normal for the adaptor to feel warm during charging,,but if the charger
feels too hot,stop charging immediately and check the battery and adaptor.
When charging turn of the power switch.
Please charge the battery for 8-10 hours after first use.
Subsequent charges should be 6-8 hours but not exceeding 10 hours.
If not being used batteries should still be charged at least once a month to keep the
cells active.
1.Plug the charge into the charging socket.
2.Plug the other end of the charger into your wall socket.
Batteries are perishable items that are subject to under and overcharging, please
observe the charging times.Charge Hole
Specifications
12V7AH/12V10AH/12V14AH
35W
■
CHARGING PRECAUTIONS
Item
Battery
Motor
Size
Speed
Charger
Charging Time
Remote Control Batteries
Available Ages Children from 37-96 month
35KGS
139*83*81cm
3-5km/h
8-12hours
2PCS of AA Batteries
Input:220V/110V
Output:DC12v1000MA
Maximum Weight
Specifications
USB
TF CARD
LIEN IN PREV/V-
PLAY/PAUSE
FM SEARCH
NEXT/V+
MODE
*
Story/V-: Mode of Story/V Pressing slightly and it will be prior music or broadcast channel. Pressing
for a longer time and it
will lower the volume.
*
Music/V+:Mode of Music/V+
Pressing slightlg and it will be next music or broadcast channel. Pressing
for a longer time and it
will higher the volume.
*
Song/XX: Mode of Songs
Pressing longer and it will search broadcasting station automaticly.
*
Education: Earlier education.
Mode: Radio, Bluetooth, SD Card, MP3, USB connector
Speaker: Horns of cars
■
TROUBLESHOOTING
Problem: The car will not move
Answer 1: Please make sure the charger has been removed
from the car charging point.
Answer 2: The battery is low on charger. Please charger for
6-8 hours but not exceeding 10hours.
Charge at least once a month to keep the cells activ
To avoid fuse cut off the power:
1.Max:35kgs, overload is forbidden
2.Do not drag ay item behind this
product
3.Do not allow water or other liquids dip
the electrical parts.
4. Do not change the line system
by yourself.
WARNING
For safe driving, please kindly pay attentions to the following warning matters.
The product must be assembled and adjusted by adult, please keep children
away from moving parts.
The product doesn’t apply to 36-month and younger children due to internal
small parts
During driving, a child must be fixed by seat belt properly. Do not close to an
fire!
Any child must be supervised by adult while using the product and such the
adult caregiver should not leave during driving process.
Do not allow your children to stand or play on the food pedal or in the electric
car.
The battery must be charged only by adult. Please charge the product before
using!
To avoid any harm to children, please keep plastic bags and other packaging
materials away from children! Such the materials may cause suffocation!
It is prohibited to use any parts from other manufacturers.
The charger should not be played as a toy.
The vehicle maximum load weight is 35KG, and please do not use on overload,
The product applies to children at 37-96 months.
The toy should not be connected to excessive powers (more than the quantity
specified herein), and it should not be operated during charging process.
Must with the protection device, can’t use as traffic tools.
This toy without braking device.
Instructions for remote controller batteries.
All batteries should be inserted with the correct polarity.
Non-rechargeable battery should not be charged, please remove any running off battery from the toy.
Do not use old and new batteries together, or mix different types of batteries.
Power terminals should not be short-circuited.
Any rechargeable battery must only be charged under adult’s supervision.
Rechargeable batteries should be removed from the toy before charging.
■
SAFETY PRECAUTIONS
■
TROUBLESHOOTING
Problem:The car only runs for a short time
WARNING:Vehicle must be charged fully before use.
Answer 1:The battery is low on charge. Please change for 6-8 hours
but not exceeding 10 hours.
Change at least once a month to keep the active.
Answer 2:Battery ageing
The battery may need to be replaced depending on it’s charging
history and age.
Problem: The sounds do not work.
Please ensure the volume is turned up and the Mp3 lead is not connecthed.
The steering wheel sounds will not work when the MP3 is plugged into the car.
Problem: Charger overheating
It is normal for the battery and charger to warn slightly during
Charging, if they feel excessively hot then please
Check for a current overload or battery short circuit
Please read manual carefully before use.
Adult assembly required.
This toy have no brake.
Not to be used in traffic
Always wear a helmet and protective
clothing when riding.
Continuous adult at all times.
Plsease keep the manual and packing for future
reference as it contains important information
The instructions for used should bear a reminder
that the toy should be used with caution since skill
Is require to avoid falls or collisions causing injury
to the user or third parties.
01. While riding , adult supervision is required all the time
02. Always wear a helmet when driving/
03. Please dont drive near road or on the footpath.
04. Itis not recommended to drive the vehicle on wet surface or on slope
greater than 15-degree.
05. It is recommended to drive this vehicle on smooth surface only.
06. Please dont driving this vehicle outdoors when it is raining.
07. Make sure that the vehicle stop completely before changing direction
from forward to reverse
08. Please dont allow children to operate the charger or play with the
battery
09. Clean the vehicle with a dry cloth only.
10. Please follow the correct weight and age limits allowed to drive this
vehicle.
11. It is prohibited to change the circuit or add other electric parts.
12. Adults must teach their children around safe driving procedures.
13. Please turn the power off when not in use.
14. Check the seat to ensure it has been fitted and secured with a bolt
before driving.
15. Inspect all wires and connection of the vehicle periodically.
16. Charging the battery should only be done by adults.
17. Charging plug is located underneath the seat.
18. In order to avoid accidents, please ensure the vehicle is safe before
driving.
19. Please dont let any child touch the wheels or be near them when the
car is moving.
20. Please mind fingers in opening and closing doors.
Operations Guide
First time to use(Or replace the battery)
select not to pair, the car can move after turning on power.
If select to be paired, please follow the bellows:
Step 1 Open the remote control battery compartment, put two AAA1.5V batteries
into the battery compartment (pay attention to the battery cavity polarity),
close the cap. the frequency lamp flashes if the battery is installed correctly
Step 2 Turn the car power, hold press the frequency key for 2-3 seconds.
Step 3 Then turn on car power immediately, the frequency lights off. Please
repeat steps 2-3 if the paring not in success of frequency.
General use
1 press buttons for forward, backward, left turn and right turn. Release the
buttons for stopping the car.
2 the remote controller has safety equipment. In emergency, press emergent
key for car stopping immediately.
3 remote control has energy-saving settings, the batteries will automatically cut
off if not use for 15 seconds.
Cautions
1 Do not make the remote controller wet, that affects to the operation.
2 Do not mix old and new or different types of batteries in using.
3 Do not mistake the battery positive and negative marks. Replace the exhausted
battery with new battery in time.
4 Take off the batteries if long time not to use the remote controller. Please do not
dump waste batteries into garbage bin please put trash barrel recycling of waste
batteries for protecting environment.
1.MP3 interface
2.TF interface
3.Monitor
4.USB interface
5.Forward/Stop/Backward
6.Key start
7.Story/v-
8.Music/v+
9.Song/
10.Education
11.Mode
12.Speaker
13.Horn＆Music Button
14.Choose Two motors or four motors
USING INSTRUCTION
1.Press the music button on the steering wheel for horn or music.
2.Attach the MP3 lead to your advice to play or own music through
the car.
Please note the steering wheel sounds wheel not work when the MP3
lead is connected.
Pictures are for reference only，please adhere to the original
products as standard
1 2 3 4
6
5
7
8
10
11
12
13
14
9
Loading...
