Daikin FXHQ32AVEB, FXHQ32AVEB9, FXHQ63AVEB, FXHQ63AVEB9, FXHQ100AVEB Installation manuals
...
SYSTEM Air Conditioners
MODELS
(Ceiling Suspended type)
FXHQ32AVEB FXHQ32AVEB9
FXHQ63AVEB FXHQ63AVEB9
FXHQ100AVEB FXHQ100AVEB9
INSTALLATION MANUAL
CAREFULLY READ THESE INSTRUCTIONS BEFORE INSTALLATION.
KEEP THIS MANUAL IN A HANDY PLACE FOR FUTURE REFERENCE.
LESEN SIE DIESE HINWEISE VOR DER INSTALLATION SORGFÄLTIG DURCH.
BEWAHREN SIE DIESE ANLEITUNG AN EINEM LEICHT ZUGÄNGLICHEN ORT FÜR
SPÄTERES NACHSCHLAGEN AUF.
VEUILLEZ LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT L'INSTALLATION.
CONSERVEZ CE MANUEL EN LIEU SÛR POUR POUVOIR VOUS Y REPORTER ULTÉRIEUREMENT.
LEA DETENIDAMENTE ESTAS INSTRUCCIONES ANTES DE LA INSTALACIÓN.
CONSERVE ESTE MANUAL PARA POSIBLES CONSULTAS FUTURAS.
PRIMA DELL'INSTALLAZIONE, LEGGERE ATTENTAMENTE LE PRESENTI ISTRUZIONI.
CONSERVARE IL PRESENTE MANUALE IN UN LUOGO FACILMENTE ACCESSIBILE PER
RIFERIMENTO FUTURO.
ΔΙΑΒΑΣΤΕ ΠΡΟΣΕΚΤΙΚΑ ΑΥΤΕΣ ΤΙΣ ΟΔΗΓΙΕΣ ΠΡΙΝ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ.
ΦΥΛΑΞΤΕ ΑΥΤΟ ΤΟ ΕΓΧΕΙΡΙΔΙΟ ΣΕ ΒΟΛΙΚΟ ΜΕΡΟΣ ΓΙΑ ΜΕΛΛΟΝΤΙΚΗ ΑΝΑΦΟΡΑ.
LEES DEZE INSTRUCTIES ZOGVULDIG DOOR VOORDAT MET DE INSTALLATIE WORDT
BEGONNEN.
BEWAAR DEZE HANDLEIDING VOOR TOEKOMSTIG GEBRUIK OP EEN GESCHIKTE
PLAATS ONDER HANDBEREIK.
LEIA ATENTAMENTE ESTAS INSTRUÇÕES ANTES DA INSTALAÇÃO.
MANTENHA ESTE MANUAL NUM LOCAL DE FÁCIL ACESSO PARA CONSULTA.
ПЕРЕД УСТАНОВКОЙ ВНИМАТЕЛЬНО ПРОЧИТАЙТЕ ДАННЫЕ ИНСТРУКЦИИ.
ХРАНИТЕ ДАННОЕ РУКОВОДСТВО В ЛЕГКО ДОСТУПНОМ МЕСТЕ ДЛЯ ЕГО
ПОСЛЕДУЮЩЕГО ИСПОЛЬЗОВАНИЯ.
MONTAJDAN ÖNCE BU YÖNERGELERİ DİKKATLİCE OKUYUN.
GELECEKTE BAŞVURMAK ÜZERE BU ELKİTABINI KOLAY ULAŞABİLECEĞİNİZ BİR YERDE
MUHAFAZA EDİN.
FXHQ32AVEB
WARNING
FXHQ63AVEB
FXHQ100AVEB
FXHQ32AVEB9
FXHQ63AVEB9
FXHQ100AVEB9
VRV SYSTEM Air Conditioners Installation manual
CONTENTS
1. SAFETY PRECAUTIONS ................................................1
2. BEFORE INSTALLATION.................................................2
3. SELECTION OF INSTALLATION LOCATION ..................3
4. PREPARATION BEFORE INSTALLATION.......................4
5. INSTALLATION OF THE INDOOR UNIT .........................5
6. REFRIGERANT PIPING WORK......................................6
7. DRAIN PIPING WORK.....................................................9
8. ELECTRIC WIRING WORK...........................................11
9. MOUNTING SUCTION GRILLE · DECORATION
SIDE PANEL ..................................................................15
10. FIELD SETTING AND TEST OPERATION....................15
11. WIRING DIAGRAM........................................................16
The original instructions are written in English. All other
languages are translations of the original instructions.
1. SAFETY PRECAUTIONS
Be sure to follow this “SAFETY PRECAUTIONS”.
This product comes under the term “appliances not accessible
to the general public”.
This is a class A product. In a domestic environment this
product may cause radio interference in which case the user
may be required to take adequate measures.
• This manual classifies the precautions into WARNINGS and
CAUTIONS.
Be sure to follow all the precautions below: They are all
important for ensuring safety.
WARNING .................... Indicates a potentially hazard-
ous situation which, if not
avoided, could result in death
or serious injury
CAUTION .....................Indicates a potentially hazard-
ous situation which, if not
avoided, may result in minor or
moderate injury.
It may also be used to alert
against unsafe practices.
After the installation is completed, test the air conditioner and
•
check if the air conditioner operates properly.
Give the user adequate instructions concerning the use and
cleaning of the indoor unit according to the Operation Manual.
Ask the user to keep this manual and the Operation Manual
together in a handy place for future reference.
• Ask your local dealer or qualified personnel to carry out
installation work.
Improper installation may result in water leakage, electric
shocks or a fire.
• Perform installation work in accordance with this installation
manual.
Improper installation may result in water leakage, electric
shocks or a fire.
.
• Consult your dealer regarding what to do in case of
refrigerant leakage.
When the air conditioner is installed in a small room, it is
necessary to take proper measures so that the amount of
any leaked refrigerant does not exceed the concentration
limit in the event of a leakage.
Otherwise, this may lead to an accident due to oxygen
deficiency.
• Be sure to use only the specified parts and accessories for
installation work.
Failure to use the specified parts may result in the air
conditioner falling down, water leakage, electric shocks, a
fire, etc.
• Install the air conditioner on a foundation that can withstand
its mass.
Insufficient strength may result in the air conditioner falling
down and causing injury.
In addition, it may lead to vibration of indoor units and cause
unpleasant chattering noise.
• Carry out the specified installation work in consideration of
strong winds, typhoons, or earthquakes.
Improper installation may result in an accident such as air
conditioner falling.
• Make certain that all electrical work is carried out by qualified
personnel according to the applicable legislation (note 1) and
this installation manual, using a separate circuit.
In addition, even if the wiring is short, make sure to use a
wiring that has sufficient length and never connect additional
wiring to make the length sufficient.
Insufficient capacity of the power supply circuit or improper
electrical construction may lead to electric shocks or a fire.
(note 1) applicable legislation means “All international,
national and local directives, laws, regulations and/
or codes which are relevant and applicable for a certain product or domain”.
• Earth the air conditioner.
Do not connect the earth wiring to gas or water piping,
lightning conductor or telephone earth wiring.
Incomplete earthing may cause electric shocks or a fire.
• Be sure to install an earth leakage breaker.
Failure to do so may cause electric shocks and a fire.
• Disconnect the power supply before touching the electric
components.
If you touch the live part, you may get an electric shocks.
• Make sure that all wiring is secure, using the specified
wirings and ensuring that external forces do not act on the
terminal connections or wirings.
Incomplete connection or fixing may cause an overheat or a
fire.
• When wiring between the indoor and outdoor units, and
wiring the power supply, form the wirings orderly so that the
control box lid can be securely fastened.
If the control box lid is not in place, overheat of the terminals,
electric shocks or a fire may be caused.
• If refrigerant gas leaks during installation work, ventilate the
area immediately.
Toxic gas may be produced if refrigerant gas comes into
contact with a fire.
• After completing the installation work, check to make sure
that there is no leakage of refrigerant gas.
Toxic gas may be produced if refrigerant gas leaks into the
room and comes into contact with a source of a fire, such as
a fan heater, stove or cooker.
• Never directly touch any accidental leaking refrigerant. This
could result in severe wounds caused by frostbite.
1 English
CAUTION
• Install drain piping according to this installation manual to
ensure good drainage, and insulate the piping to prevent
condensation.
Improper drain piping may cause water leakage, make the
furniture get wet.
• Install the air conditioner, power supply wiring, remote
controller wiring and transmission wiring at least 1 meter
away from televisions or radios to prevent image interference
or noise.
(Depending on the radio waves, a distance of 1 meter may
not be sufficient to eliminate the noise.)
• Install the indoor unit as far as possible from fluorescent
lamps.
If a wireless remote controller kit is installed, the transmission
distance may be shorter in a room where an electronic
lighting type (inverter or rapid start type) fluorescent lamp is
installed.
• Do not install the air conditioner in places such as the
following:
1. Where there is mist of oil, oil spray or vapour for example
a kitchen.
Resin parts may deteriorate, and cause them to fall out or
water to leak.
2. Where corrosive gas, such as sulfurous acid gas, is
produced.
Corrosion of copper pipings or brazed parts may cause
the refrigerant to leak.
3. Where there is machinery which emits electromagnetic
waves.
Electromagnetic waves may disturb the control system,
and cause malfunction of the equipment.
4. Where flammable gases may leak, where carbon fibre or
ignitable dust is suspended in the air or where volatile
flammables, such as thinner or gasoline, are handled.
If the gas should leak and remained around the air
conditioner, it may cause ignition.
• The air conditioner is not intended for use in a potentially
explosive atmosphere.
2. BEFORE INSTALLATION
When unpacking and moving the indoor unit after
unpacked, do not apply force to the piping (refrigerant and
drain) and resin parts.
• Make sure to check in advance that the refrigerant to be used
for installation work is R410A.
(The air conditioner will not properly operate if a wrong
refrigerant is used.)
• For installation of the outdoor unit, refer to the installation
manual attached to the outdoor unit.
• Do not throw away the accessories until the installation work
is completed.
• After the indoor unit is carried into the room, to avoid the
indoor unit from getting damaged, take measures to protect
the indoor unit with packing materials.
(1) Determine the route to carry the unit into the room.
(2) Do not unpack the unit until it is carried to the installation
location.
Where unpacking is unavoidable, use a sling of soft
material or protective plates together with a rope when
lifting, to avoid damage or scratches to the indoor unit.
• Have the customer actually operate the air conditioner while
looking at the operation manual.
Instruct the customer how to operate the air conditioner
(particularly cleaning of the air filters, operation procedures,
and temperature adjustment).
• For selection of installation location, use the installation
pattern paper (used in common with the packing case.) as
reference.
• Do not use the air conditioner where in the salty atmosphere
such as coastal areas, vehicles, vessels or the voltage
fluctuation is frequent such as factories.
• Take off static electricity from the body when carrying out
wiring and the control box lid is removed.
The electric parts may be damaged.
2-1 ACCESSORIES
Check if the following accessories are attached to the
indoor unit.
Name
Quantity 1 pc. 1 pc. 8 pcs. 7 pcs.
Shape
Name
Quantity 1 sheet 1 each 1 each 1 pc.
Shape
Name
Quantity 2 pcs. 2 pcs.
Shape
(1) Drain
hose
Installa-
(5)
tion pattern
paper
(11) Wiring
fixture
(2) Metal
clamp
Joint insulat-
ing material
(6) For gas
piping
(7) For liq-
uid piping
(12) Screw
for wiring fix-
ture
M4 × 12
(3) Washer
for hanger
Sealing mate-
rial
(8) Large
(9) Small
(Miscellaneous)
• Operation manual
• Installation manual
• Declaration of conformity
(4) Clamp
(10) Resin
bushing
2-2 OPTIONAL ACCESSORIES
• For this indoor unit, the remote controller is separately
required.
• There are 2 kinds of remote controller; wired type and wireless type.
Install the remote controller to the place where the customer
has given consent.
Refer to the catalog for the applicable model.
(Refer to the installation manual attached to the remote controller for how to install.)
English 2
CARRY OUT THE WORK GIVING CAUTION TO THE
In addition to the general usage, since the items in the
operation manual with the WARNING and CAUTION marks are likely to result in human bodily injuries
and property damages, it is necessary not only to
explain these items to the customer but also to have the
customer read them.
It is also necessary to explain the items of “NOT MALFUNCTION OF THE AIR CONDITIONER” to the customer
and have the customer read them carefully.
FOLLOWING ITEMS AND AFTER THE WORK IS
COMPLETED CHECK THESE AGAIN.
2. Items to be checked at delivery
Items to be checked
Check
column
1. Items to be checked after the installation work is completed
Items to be checked In case of defective
Are the indoor and outdoor units rigidly fixed?
Are the installation work
of the outdoor and indoor
units complete?
Have you carried out a
leakage test with the test
pressure specified in the
outdoor unit installation
manual?
Is the insulation of refrigerant piping and drain
piping completely carried
out?
Does the drain flow out
smoothly?
Is the power supply voltage identical to that
stated in the manufacturer’s label on the air
conditioner?
Are you sure that there is
no wrong wiring or piping
or no loose wiring?
Is earthing completed?
Are the sizes of electric
wiring according to the
specification?
Is any of air outlets or
inlets of the indoor and
outdoor units blocked
with obstacles?
(It may lead to capacity
drop due to fan speed
drop or malfunction of
equipment.)
Have you recorded the
refrigerant piping length
and the refrigerant
charge added?
Drop · vibration · noise
Does not operate ·
burnout
Does not cool / Does
not heat
Water leakage
Water leakage
Does not operate ·
burnout
Does not operate ·
burnout
Danger in case of
leakage
Does not operate ·
burnout
Does not cool / Does
not heat
Refrigerant charge
amount is not clear
Check
column
Make sure to recheck the items of “SAFETY PRECAUTIONS”.
Have you carried out field setting? (if necessary)
Are the control box lid, the air filter and the suction
grille attached?
Does the cool air discharge during the cooling
operation and the warm air discharge during
heating operation?
Have you explained how to operate the air conditioner showing the operation manual to the customer?
Have you explained the description of cooling,
heating, program dry and automatic (cooling/
heating) given in the operation manual to the customer?
If you set the fan speed at thermostat OFF, did
you explain the set fan speed to the customer?
Have you handed the operation manual and the
installation manual to the customer?
Points of the operation explanation
3. SELECTION OF INSTALLATION LOCATION
When unpacking and moving the indoor unit after
unpacked, do not apply force to the piping (refrigerant and
drain) and resin parts.
(1) Select the installation location that meets the following
conditions and get approval of the customer.
• Where the cool and warm air spreads evenly in the room.
• Where there is no obstacles in the air passage.
• Where drainage can be ensured.
• Where the ceiling lower surface is not remarkably
inclined.
• Where there is sufficient strength to withstand the mass
of the indoor unit. (If the strength is insufficient, the indoor
unit may vibrate and get in contact with the ceiling and
generate unpleasant chattering noise.)
• Where a space sufficient for installation and service can
be ensured. (Refer to Fig. 1 and Fig. 2)
• Where the piping length between the indoor and the outdoor units is ensured within the allowable length. (Refer
to the installation manual attached to the outdoor unit.)
• Where there is no risk of flammable gas leak.
3 English
NOTE
NOTENOTENOTE
CAUTION
Fig. 1
Discharge
300
or more
2500 or more
from floor level
Floor level
Obstacles
Suction
Required installation space (mm)
For high installation
Fig. 2
4. PREPARATION BEFORE INSTALLA-
*30 or more*30 or more
TION
(1) For the locations of indoor unit hanging bolts, piping
outlet holes, drain piping outlet hole, and electric
wiring inlet hole. (Refer to Fig. 3)
GH
Left back drain
piping outlet hole
200
Back side wiring
outlet location
J
View from the front
Wall hole for back side
piping outlet
(φ100 hole)
5
175
• If there is extra space required for * part, servicing can be
conducted more easily if 200mm or more is secured.
• Install the indoor and outdoor units, power supply wiring,
remote controller wiring and transmission wiring at least 1
meter away from televisions or radios to prevent image interference or noise. (Depending on the radio waves, a distance
of 1 meter may not be sufficient to eliminate the noise.)
• Install the indoor unit as far as possible from fluorescent
lamps. If a wireless remote controller kit is installed, the
transmission distance may be shorter in a room where an
electronic lighting type (inverter or rapid start type) fluorescent lamp is installed.
(2) Use hanging bolts for installation.
Investigate if the installation place can withstand the mass
of the indoor unit and, if necessary, hang the indoor unit
with bolts after it is reinforced by beams etc. (Refer to the
installation pattern paper (5) for the mounting pitch.)
(3) Ceiling height
This indoor unit can be installed up to 4.3m (for 32·63
model, 3.5m) of the ceiling.
A Unit dimension
B Hanging bolt pitch
C
D
E
210
260
Hanging bolt pitch
690 Unit dimension
Unit : mm
Model name
(FXHQ-)
Type 32 960 920 378 324 270 375 398 377 260
Type 63 1270 1230 533 479 425 530 553 532 415
Type 100 1590 1550 693 639 585 690 713 692 575
View from the ceiling
F
Discharge
Top panel wiring outlet position
Hanging bolt (4 pieces)
Top panel liquid side piping
Fig. 3
ABCDEFGHJ
connection positions
Top panel drain
piping connection
position
87
30
163
Top panel gas side
piping connection
position
189
English 4
(2) Make holes for hanging bolts, piping outlet, drain pip-
ing outlet and electric wiring inlet.
• Use the installation pattern paper (5).
• Determine the locations of hanging bolts, piping outlet,
drain piping outlet, and electric wiring inlet. And make the
hole.
(3) Remove the parts of the indoor unit.
CAUTION
CAUTION
NOTE
NOTENOTENOTE
Fixing knob
Suction
grille
Fig. 4
Decoration side panel
Accessories
Fixing screw for
decoration side panel
(M4)
Fig. 6
Resin bushing (10)
(accessory)
Resin bushing (10)
(accessory)
Removable part (for leading
in from the top-surface)
Removable part (for leading
in from the rear-face)
Hanger fixing screw (M5)
Hanger installing
bolt (M8)
Hanger
Loosen
Fig. 8
1) Remove the suction grille.
• Slide the suction grille fixing knobs (32 type: 2 places
for each, 63, 100 type: 3 places for each) toward
backward direction (as shown by an arrow) to open
the suction grille widely. (Refer to Fig. 4)
• Keeping the suction grille opened, hold the knob at
the back of the suction grille and at the same time,
pull the suction grille forward to remove.
(Refer to Fig. 5)
• Remove the fixture screw for hanger at the back side
(M5), pull the hanger backward (the arrow direction)
to remove. (Refer to Fig. 8)
Bolt (M8)
Indoor unit
Loosen within10mm
Rear knob
Fig. 5
2) Remove the decoration side panel (right, left).
• Remove the fixture screw of the decoration side
panel (one for each), pull forward (arrow direction) to
remove. (Refer to Fig. 6)
• Take out accessories. (Refer to Fig. 6)
Fig. 7
Hanger
Do not remove the tape (milky white) applied to the outside
of the indoor unit. It may cause electric shocks or a fire.
(4) Install the hanging bolts.
• Use M8 or M10 bolts for hanging the indoor unit.
• Adjust the length of the hanging bolt from the ceiling in
advance. (Refer to Fig. 9)
• Use hole-in-anchors for the existing bolts and embedded
inserts or foundation bolts for new bolts, and fix the unit
firmly to the building so that it may withstand the mass of
the unit.
In addition, adjust the distance from the ceiling in
advance.
• Open the knock hole at the wiring inlet side at the
rear surface or top surface, and install the attached
resin bushing (10).
3) Remove the hanger.
• Loosen 2 bolts for installing the hanger at both sides
(M8) (4 places at left and right) within 10mm.
(Refer to Fig. 7 and 8)
5 English
If the hanging bolt is too long, it may damage or break the
indoor unit or options.
Ceiling slab
Foundation bolt
25-55 mm
Ceiling surface
Fig. 9
Hanging bolt
• Parts shown Fig. 9 will be all field supply.
5. INSTALLATION OF THE INDOOR UNIT
It is easy to attach the optional parts before installing the
indoor unit. Refer to also the installation manual attached
to the optional parts.
For installation, use the attached installation parts and
specified parts.
(1) Fix the hanger to the hanging bolt. (Refer to Fig. 10)
CAUTION
For safety, make sure to use a washer for hanger (3)
CAUTION
WARNING
CAUTION
Hanger
Nut (field supply)
Hanging bolt
Washer for hanger (3)
(accessory)
Double nuts
Fig. 10
Hanger
fixing screw
(M5)
Attachment
part
Hanger
Reinforcing plate
When carrying the
indoor unit, do not
hold the reinforcing
plates.
Hanger installing
bolt (M8)
Fig. 11
A
A.B
B
≤1°
≤1°
≤1°
Fig. 12
(accessory) and fix by double nuts firmly.
(2) Lift up the indoor unit, slide from the front and put the
hanger installing bolt (M8) into the securely for temporary hanging. (Refer to Fig. 11)
(3) Tighten the hanger fixing screws (M5) at 2 places,
which were removed, as they were before.
(Refer to Fig. 11)
It is necessary to prevent misalignment of the indoor
unit.
(4) Tighten the hanger installing bolts (M8) at 4 places
securely. (Refer to Fig. 11)
A. When the drain piping is tilted to the right, or to the right
and back.
Place it level, or tilt it slightly to the right or the back. (Within
1°)
B. When the drain piping is tilted to the left, or to the left
and back.
Place it level, or tilt it slightly to the left or the back. (Within 1°)
(5) When hanging the indoor unit, make sure to use the
level to have better drainage and install it horizontally.
Also, if it is possible at the installation site, install so
that the drain piping side is slightly lower.
(Refer to Fig. 12)
• Setting the indoor unit at an angle opposite to the drain piping
might cause a water leakage.
• Do not insert materials other than that specified into the
clearance between the hanger and the washer for hanger
(3).
Unless the washers are properly attached, the hanging bolts
may come off from the hanger.
English 6
The indoor unit must be securely installed on a place that
can withstand the mass.
If the strength is insufficient, the indoor unit may fall down and
cause injuries.
6. REFRIGERANT PIPING WORK
• For the outdoor unit refrigerant piping, refer to the installation
manual attached to the outdoor unit.
• Carry out insulation of both gas and liquid refrigerant piping
securely. If not insulated, it may cause water leakage. For
gas piping, use insulation material of which heat resistant
temperature is not less than 120°C. For use under high
humidity, strengthen the insulation material for refrigerant
piping. If not strengthened, the surface of insulation material
may sweat.
• Before installation work, make sure that the refrigerant is
R410A. (Unless the refrigerant is R410A, the normal operation cannot be expected.)
This air conditioner is a dedicated model for new refrigerant R410A. Make sure to meet the requirements shown
below and carry out installation work.
• Use dedicated piping cutters and flaring tools for
R410A.
• When making a flare connection, coat the flared inner
surface only with ether oil or ester oil.
• Use only the flare nuts attached to the air conditioner.
If other flare nuts are used, it may cause refrigerant
leakage.
• To prevent contamination or moisture from getting
into the piping, take measures such as pinching or
taping the pipings.
Do not mix substance other than the specified refriger-
CAUTION
CAUTION
Torque wrench
Spanner
Flare nut
Union joint
Fig. 13
Coat the flared inner surface
only with ether oil or ester oil
Fig. 14
R0. 4-0.8
90°±2°
A
45°±2°
ant such as air into the refrigeration circuit.
If the refrigerant leaks during the work, ventilate the
room.
• Remove the stay for packing and delivering (reinforcing
plate) before refrigerant piping work. (Refer to Fig. 18)
• The refrigerant is pre-charged in the outdoor unit.
• When connecting the pipings to the air conditioner, make
sure to use a spanner and a torque wrench as shown in Fig.
13.
For the dimension of flared part, refer to the Table 1.
• When making a flare connection, coat the flared inner surface only with ether oil or ester oil. (Refer to Fig. 14)
Then, turn the flare nut 3 to 4 times with your hand and screw
in the nut.
• If there is no torque wrench, use Table 2 as a rule of thumb.
When tightening a flare nut with a spanner harder and
harder, there is a point where the tightening torque suddenly
increases. From that position, tighten the nut additionally the
angle shown in Table 2. After the work is finished, check
securely that there is no gas leak. If the nut is not tightened
as instructed, it may cause slow refrigerant leak and result in
malfunction (such as does not cool or heat).
Tabl e 2
Piping size
(mm)
6.4 60° – 90° Approximately 150mm
9.5 60° – 90° Approximately 200mm
12.7 30° – 60° Approximately 250mm
15.9 30° – 60° Approximately 300mm
Tightening angle
Recommended arm length of
tool used
Insulation of field piping must be carried out up to the
connection inside the casing.
If the piping is exposed to the atmosphere, it may cause
sweating, burn due to touching the piping, electric shocks or
a fire due to the wiring touching the piping.
• After leak test, referring to Fig. 15, insulate both the gas and
liquid piping connection with the attached joint insulating
material (6) and (7) to prevent the pipings from getting
exposed.
Then, tighten the both ends of insulating material with the
clamp (4).
• Wrap the sealing material (Small) (9) around the joint insulating material (6) (flare nut section), only the gas piping side.
• Make sure to bring the seam of joint insulating material (6)
and (7) to the top.
• For the tightening torque, refer to the Table 1.
Tabl e 1
Piping size
(mm)
6.4 15.7 ± 1.5 8.9 ± 0.2
9.5 36.3 ± 3.6 13.0 ± 0.2
12.7 54.9 ± 5.4 16.4 ± 0.2
15.9 68.6 ± 6.8 19.5 ± 0.2
Tightening
torque (N·m)
Do not have oil adhere to the screw fixing part of resin
parts.
If oil adheres, it may weaken the strength of screwed part.
Do not tighten flare nuts too tight.
If a flare nut cracks, the refrigerant may leak.
Dimension for
processing
flare A (mm)
Flare shape
7 English
Joint insulating material (6) (accessory)
Gas side piping insulating method
Piping insulating
material
(indoor unit side)
Do not leave
clearance
Wrap from the root of
the indoor unit
Sealing material (Small) (9)
(accessory)
Bring the seam
to the top
Flare nut
connection
Piping insulating material
(field supply)
For prevention of sweating,
do not expose the piping
Clamp (4)
(accessory)
Tighten the piping
insulating material
Liquid side piping insulating method
Joint insulating material (7)
(accessory)
Flare nut
connection
Piping insulating
material
(field supply)
For prevention of sweating,
do not expose the piping
Fig. 15
Bring the seam
to the top
Piping insulating material
(indoor unit side)
Do not leave clearance
Clamp (4)
(accessory)
Tighten the piping
insulating material
Gas piping
Liquid piping
Indoor unit
Thermistor lead
Horizontal blade motor lead
Top panel penetration
cover clamp part
Fig. 19
View from air inlet side
(1) For rear side piping
• Remove the rear piping penetration cover, and connect the
piping. (Refer to Fig. 16 and 18)
(2) For upward piping
• For upward piping, L-shaped connection piping kit (optional
accessory) will be required.
• Remove the top panel penetration cover, and use the Lshaped connection piping kit (optional accessory) to conduct
piping. (Refer to Fig. 16 and 17)
(3) For right side surface piping
• Remove the stay for packing and delivering (reinforcing
plate) at the right side, and put back the screw to the original
position of the indoor unit. (Refer to Fig. 18)
• Open the knockout hole at the decoration side panel (right),
and connect piping. (Refer to Fig. 18)
Rear piping penetration cover
Top panel
View from air inlet side
Cutoff
Top panel penetration cover
Screw
(put back to the indoor unit)
Decoration side panel (right)
Separating parts
Cut only this part
when laying only
the drain piping
on the right side.
Fig. 16
Upward refrigerant piping
L-shaped branch piping kit
(Optional accessory)
Stay for packing
and delivering
(reinforcing plate)
Fig. 18
Fig. 17
Rear side refrigerant piping
Right side
drain piping
Cutoff
Cut at the position
avoiding the knob
part of the
penetration cover
Rear side
drain piping
Right side
refrigerant
piping
• After piping is finished, cut the removed penetration cover
along the shape of piping, and install.
Also, for top panel penetration cover, as it was before
removed, put the horizontal blade motor and thermistor lead
through the clamp of the top panel penetration cover and fix.
(Refer to Fig. 16 and 19)
When doing this, block any gaps between the piping penetration cover and the piping using putty to prevent dust from
entering the indoor unit.
English 8
• Before brazing refrigerant piping, have nitrogen flow through
NOTE
NOTENOTENOTE
CAUTION
CAUTION
CAUTION
Pressure reducing valve
Brazing place
Taping
Stop valve
Nitrogen
Nitrogen
Refrigerant piping
Fig. 20
Protection net
Fixing
screw for
protection net
Fig. 22
the refrigerant piping and substitute air with nitrogen. Then,
carry out brazing (NOTE 2). (Refer to Fig. 20) After all the
brazing works are finished, carry out flare connection with the
indoor unit.
Back side (sheet metal)
Detach parts
Putty or insulation
(field supply)
Left side
Drain piping
1. The proper pressure for having nitrogen flow through the
piping is approximately 0.02MPa, a pressure that makes
one feel like breeze and can be obtained through a pressure
reducing valve.
2. Do not use flux when brazing refrigerant piping. Use phosphor copper brazing filler metal (BCuP-2: JIS Z 3264/BCu93P-710/795: ISO 3677) that does not require flux. (If
chlorinated flux is used, the piping will be corroded and, in
addition if fluorine is contained, the refrigerant oil will be
deteriorated and the refrigerant circuit will be affected
badly.)
3. When carrying out leakage test of refrigerant piping and the
indoor unit after the installation of indoor unit is finished,
confirm the connecting outdoor unit installation manual for
test pressure.
Refer to also the outdoor unit installation manual or technical document for refrigerant piping.
4. In case of refrigerant shortage due to forgetting additional
refrigerant charge etc., it will result in malfunction such as
does not cool or does not heat. Refer to the outdoor unit
installation manual or technical document for refrigerant
piping.
Do not use antioxidant when brazing piping.
It may result in malfunction of components and clogging of
piping due to residue.
Good
Wrong
Left rear side
Drain piping
Do not lift
Fig. 21
Fig. 23
Left side
Detach parts
1-1.5m
Downward inclination
of 1/100 or more
Make sure there
is no slack
Supports
7. DRAIN PIPING WORK
(1) Carry out drain piping.
• Carry out drain piping so that drainage can ensured.
• Drain piping can be connected from the following directions:
• When conducting left rear/left side drain piping, remove the
• Select the piping diameter equal to or larger than that of the
• Install the drain piping as short as possible with downward
9 English
For right rear/right side, refer to Fig. 18 of
“6. REFRIGERANT PIPING WORK”, and for left rear/left
side, refer to Fig. 21.
protection net. Then, remove the drain socket cap and insulation material applied to left side drain socket and apply
them to the right side drain socket.
When doing this, insert the drain socket cap all the way in to
prevent a water leakage.
After the drain hose (1) (accessory) installing, attach the protection net by reversing the steps taken to remove it.
(Refer to Fig. 22)
drain hose (1) (accessory) (polyvinyl chloride piping, nominal
diameter 20mm, outside diameter 26mm).
inclination of 1/100 or more and without where air may stagnate. (Refer to Fig. 23 and 24)
(It may cause abnormal sound such as bubbling noise)
Make sure it is
not in the water
Fig. 24
If drain stagnates in the drain piping, the piping may be
clogged.
• Make sure to use the attached drain hose (1) and metal
clamp (2). Also, insert the drain hose (1) into the root of the
drain socket, and tighten the metal clamp (2) at the root of the
drain socket tightly. (Refer to Fig. 25 and 26)
(Install the metal clamp (2) so that the tightening part is in the
range of about 45°as shown in the Fig. 26.)
(Do not bond the drain socket and drain hose. If so, maintenance and inspection for the heat exchanger and others cannot be conducted.)
If an old drain hose or an elbow or a clamp is used, it may
cause water leakage.
• Bend the tip of the metal clamp (2) so that the sealing mate-
CAUTION
Tightening
part
Sealing
material
(Large) (8)
(accessory)
Sealing
material
(Large) (8)
(accessory)
Metal
clamp (2)
(accessory)
Metal clamp (2)
(accessory)
Drain hose (1)
(accessory)
Drain hose (1)
(accessory)
(For left rear/
left side)
(For right back/
right side)
Inserting direction
for the screw driver
approx. 45°
approx. 45°
approx. 45°
Sealing material
(Large) (8)
Applying direction
Fig. 26
Bend the tip without
tearing the sealing
material (Large) (8)
Drain hose (1)
(accessory)
Metal clamp (2)
(accessory)
Do not deflect
Fig. 27
rial does not bulge. (Refer to Fig. 26)
• When performing insulation, wind the sealing material
(Large) (8) attached starting from the base of the metal
clamp (2) and drain hose (1) in the direction of the arrow.
(Refer to Fig. 25 and 26)
Metal clamp (2)
(accessory)
Drain hose (1)
(accessory)
Sealing material (Large) (8)
(accessory)
Do not make a gap to avoid
dew condensation.
Fig. 25
• Install supports at a distance of 1 to 1.5m so that the piping
may not deflect. (Refer to Fig. 23)
To prevent dust from entering the indoor unit, cover the gap
with the drain piping by putty or insulation (field supply) so
that no clearance is made.
However, when putting piping and remote controller wiring
through the same hole, cover the gap between the through
cover and the piping after 8. ELECTRIC WIRING WORK is
completed.
< CAUTION >
• To avoid the attached drain hose (1) getting excessive
force, do not bend nor twist it. (It may cause water leakage.)
• When conducting the centralized drain piping, follow the
instructions in Fig. 28. For the diameter of the centralized
drain piping, select the diameter matching the capacity of
the indoor unit to be connected. (Refer to the technical
document)
100mm
or more
Install with downward inclination
of 1/100 or more so that no air
will be stagnated.
Centralized drain piping
If water stagnates in the drain
piping, the piping may be
clogged.
Fig. 28
• Connecting drain piping.
Do not connect the drain piping directly to the sewage
that gives off ammonia odor. The ammonia in the sewage
may go through the drain piping and corrode the heat
exchanger of the indoor unit.
• When installing the drain pump kit (optional accessory),
also refer to the installation manual included to the drain
pump kit.
(2) After piping is finished, check if the drain flows
smoothly.
• Gradually put about 0.6 liter of water for drain confirmation
into the drain pan from the air outlet. (Refer to Fig. 29)
Air outlet
English 10
• Be sure to insulate all drain piping running indoors.
• Do not deflect the drain hose (1) inside of the indoor unit.
(Refer to Fig. 27)
(It may cause abnormal noise such as bubbling noise.)
(If the drain hose (1) is deflected, it may damage the suction
grille.)
100mm
or more
Fig. 29
Plastic container for
pouring water
(Tube length of 100mm
is necessary)
• After the drain piping work, install the stay for packing and
NOTE
NOTENOTENOTE
Screw
Stay for packing and delivering
(reinforcing plate)
Fig. 30
delivering (reinforcing plate), which was removed in the section of “6. REFRIGERANT PIPING WORK”.
However, it is not necessary to install the stay for packing and
delivering at the right side (reinforcing plate).
(Refer to Fig. 30)
8. ELECTRIC WIRING WORK

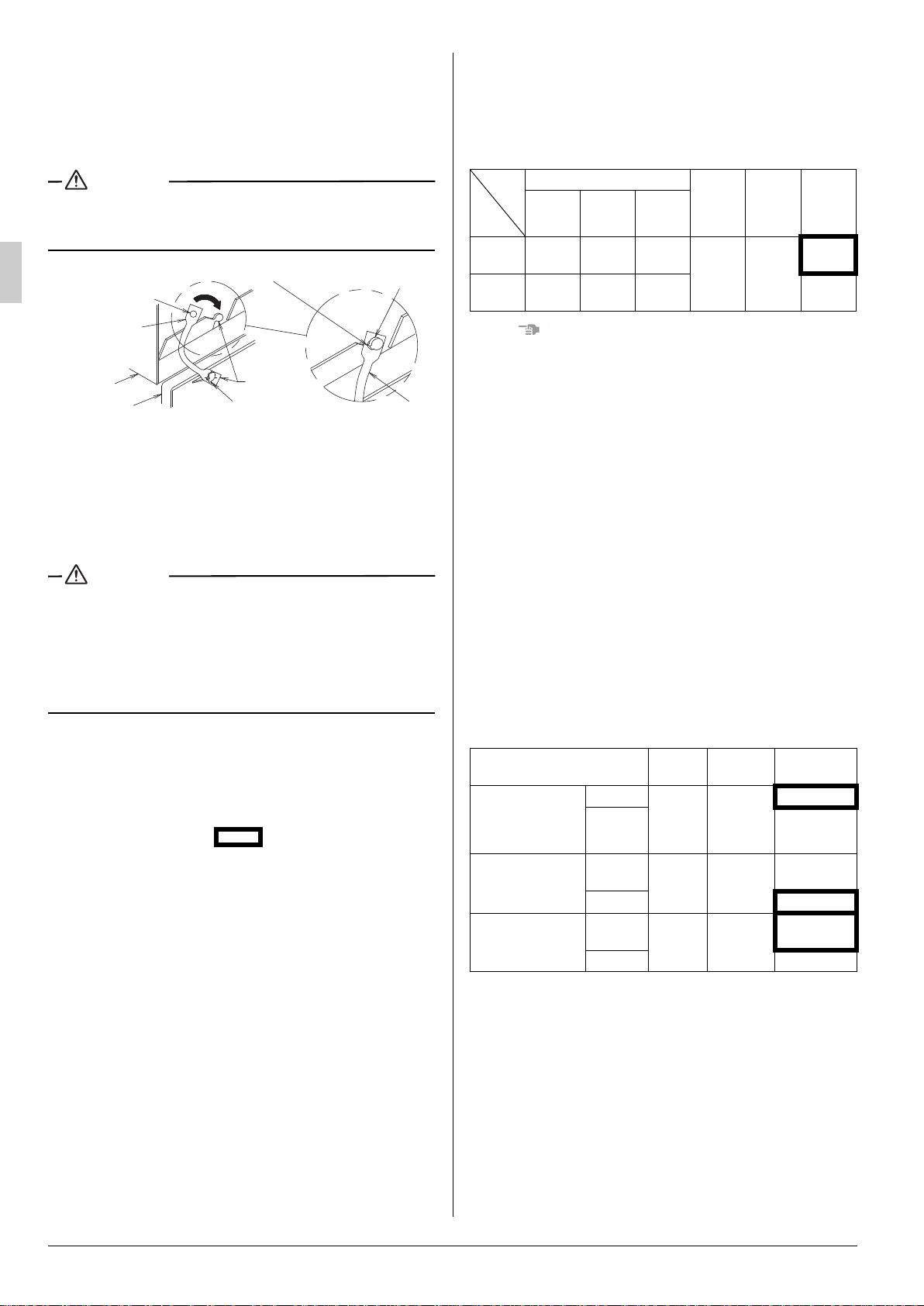

8-2 ELECTRICAL CHARACTERISTICS
Indoor unit
220
Voltage
range
Max. 264/242
Min. 198/198
Model Hz Volts
FXHQ32AVEB
FXHQ32AVEB9
FXHQ63AVEB
FXHQ63AVEB9
FXHQ100AVEB
FXHQ100AVEB9
50/60220-240/
MCA: Min. Circuit Amps (A) ; MFA: Max. Fuse Amps (A)
kW: Fan Motor Rated Output (kW) ; FLA: Full Load Amps (A)
Power
supply
MCA MFA kW FLA
0.8 16 0.060 0.6
0.8 16 0.091 0.6
1.6 16 0.150 1.3
Fan motor
8-3 SPECIFICATION FOR FIELD SUPPLY FUSES
AND WIRING
Remote controller
wiring
Transmission wiring
Model
Power supply wiring
Field
fuses
Wiring Size Wiring Size
8-1 GENERAL INSTRUCTIONS
• Make certain that all electric wiring work is carried out by
qualified personnel according to the applicable legislation
and this installation manual, using a separate circuit. Insufficient capacity of the power supply circuit or improper electrical construction may lead to electric shocks or a fire.
• Make sure to install an earth leakage breaker. Failure to do
so may cause electrical shocks and a fire.

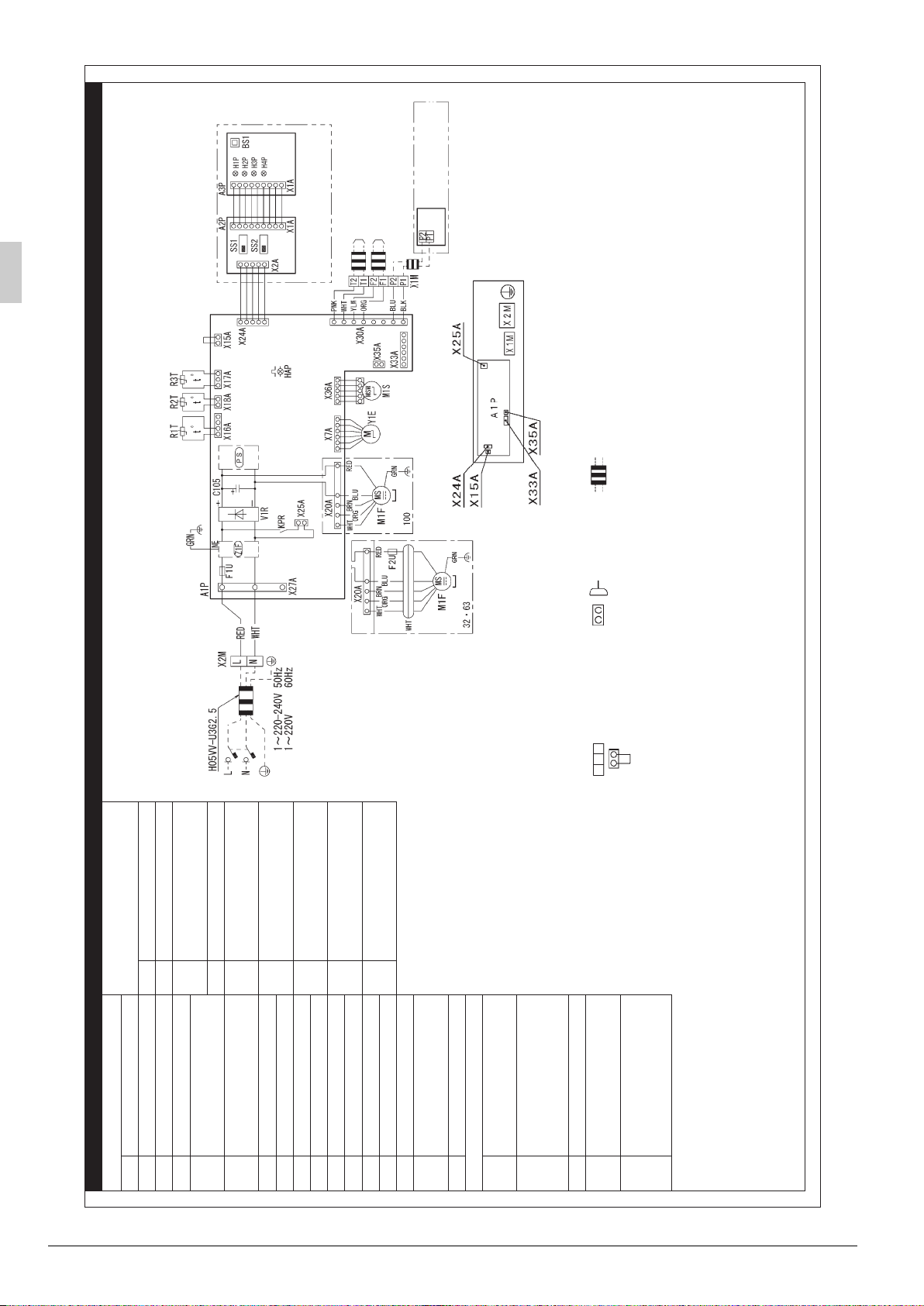

• For electric wiring work, refer to also the “WIRING DIAGRAM” attached to the control box lid.
• Carry out wiring between the outdoor units, indoor units and
the remote controllers according to the wiring diagram. Carry
out installation and wiring of the remote controller according
to the “installation manual” attached to the remote controller.
• Multiple number of indoor units are connected to one outdoor
unit. Name each indoor unit as A-unit, B-unit ….. and the like.
When these indoor units are wired to the outdoor unit and the
BS unit, always wiring the indoor unit to the terminal indicated with the same symbol on the terminal block. If the wiring and the piping are connected to the different indoor units
and operated, it will result in malfunction.
• Make sure to earth the air conditioner.
Earthing resistance should be according to applicable legislation.
• Do not connect the earth wiring to gas or water piping, lightning conductor or telephone earth wiring.
• Gas piping........ Ignition or explosion may occur if the gas
leaks.
• Water piping..... Hard vinyl tubes are not effective earths.
• Lightning conductor or telephone earth wiring................
Electric potential may rise abnormally if struck by a lightning bolt.
• Do not turn on the power supply (branch switch, branch overcurrent breaker) until all the works are finished.
• Carry out installation and wiring of the remote controller
according to the “installation manual” attached to the remote
controller.
• Do not touch the Printed Circuit Board assembly. It may
cause malfunction.
FXHQ32AVEB
FXHQ32AVEB9
FXHQ63AVEB
FXHQ63AVEB9
FXHQ100AVEB
FXHQ100AVEB9
16A
H05VV-
U3G
NOTE 1)
Wire size
and
length
must
comply
with local
codes.
Vinyl
cord with
sheath or
cable
(2 core)
NOTE 2)
0.75-
1.25mm
The maximum allowable lengths of remote controller wiring and
transmission wirings are as follows:
(1)Remote controller wiring (indoor unit - remote controller).......
...............................................................Max.500m
(2)Transmission wirings....... Total wiring length 2000m
• Outdoor unit - Indoor unit................. Max.1000m
• Outdoor unit - BS unit ......................Max.1000m
• BS unit - Indoor unit ......................... Max.1000m
• Indoor unit - Indoor unit....................Max.1000m
1. Shows only in case of protected piping. Use H07RN-F in
case of no protection.
2. Vinyl cord with sheath or cable (Insulated thickness : 1mm
or more)
8-4 WIRING CONNECTION METHOD
<<Caution for wiring>>
• The indoor units in the same system can be connected to the
power supply from one branch switch. However, selection of
branch switch, branch over current circuit breaker and wiring
size must be according to applicable legislation.
• For connection to the terminal block, use ring type crimp style
terminals with insulation sleeve or treat the wiring with insulation.
Insulation sleeve
Ring type crimp
style terminals
• If the above is not available, make sure to observe the following items.
• 2 wirings of different sizes to the terminal block for power
supply is prohibited.
Wiring
2
11 English
WARNING
Connection of 2
wirings of same size
must be carried out
on both sides.
Connection of
wirings of different
sizes is prohibited.
Connection of 2
wirings on one side
is prohibited.
Terminal block for remote
controller / transmission
wiring (X1M)
Forbidden
Never connect the
power supply wiring.
• Do not carry out
soldering finish.
(Abnormal heating may occur if the wirings are not tightened
securely.)
• Use the required wirings, connect them securely and fix
these wirings so that external force may not apply to the terminals.
• Use a proper screw driver for tightening the terminal screws.
If an improper screw driver is used, it may damage the screw
head and a proper tightening cannot be carried out.
• If a terminal is over tightened, it may be damaged. Refer to
the table shown below for tightening torque of terminals.
Tightening torque
(N·m)
Terminal block for remote controller and transmission wirings
Terminal block for power supply 1.47±0.14
Earth terminal 1.69±0.25
0.88±0.08
• Conduct wiring so that the earth lead comes out from the
notched part of the cup washer. (Otherwise, earth lead contact will be insufficient and grounding effect may be lost.)
• Do not carry out soldering finish when stranded wirings are
used.
Ring type crimp style terminal
Cup washer
R10 or more
Remote controller wiring
(no polarity)
<Low voltage wiring connection method>
Printed Circuit Board
Control
box
Transmission wiring
(no polarity)
Terminal block for power supply (X2M)
L
N
R10
or more
Power supply wiring
• Do not carry out soldering finish.
<High voltage wiring connection method>

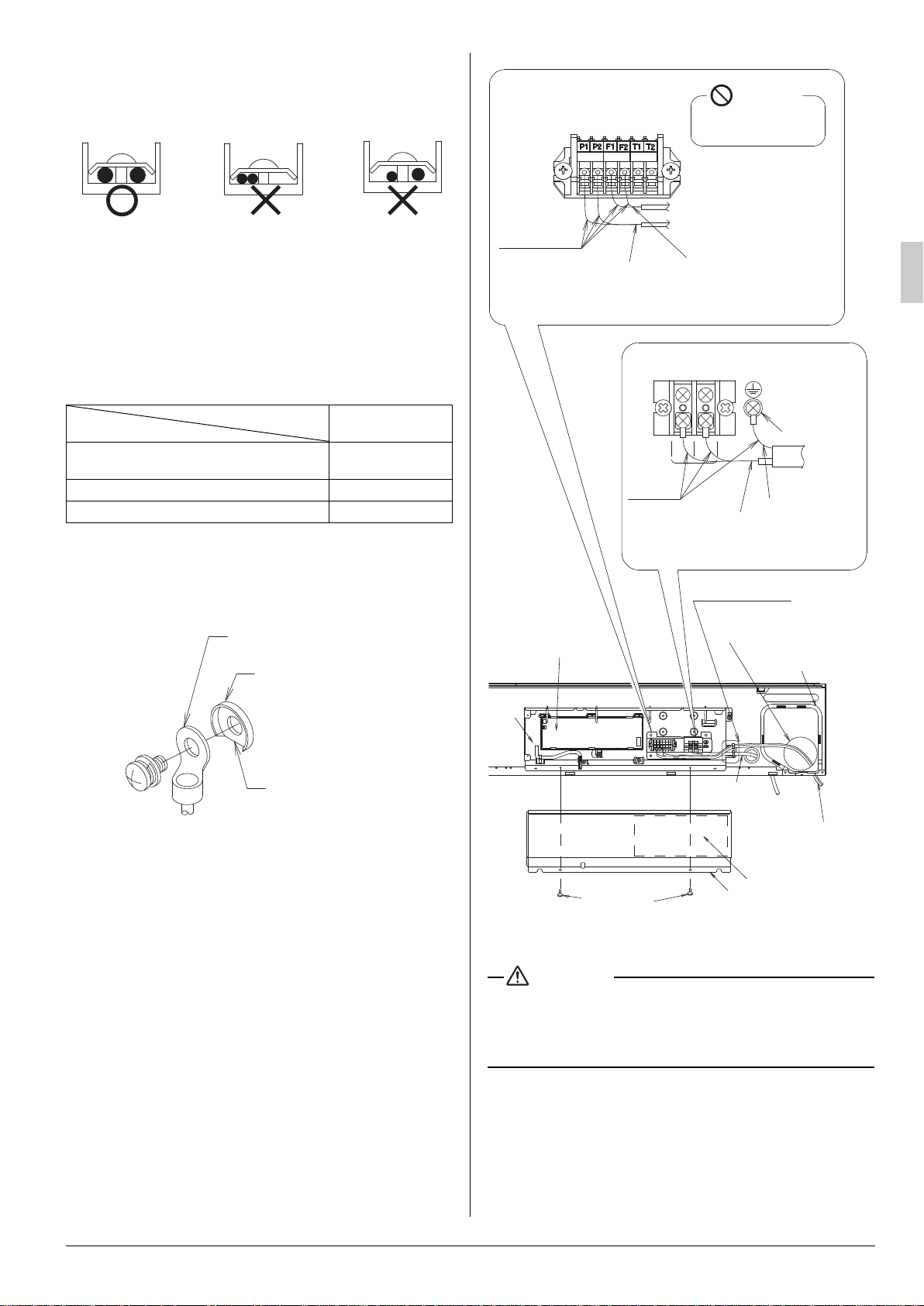

(Refer to Fig. 32)
Wiring penetration
hole
Earth terminal
Earth wiring
Rear piping
penetration cover
<Power supply wiring • earth wiring • remote controller wiring • transmission wiring connecting method>
(1) Hold the control box, loosen the fixing screws (2 pieces)
and remove the control box lid (Refer to Fig. 31).
(2) Open the knockout hole and put the resin bushing (10)
(accessory) on the rear or top side (sheet metal).
(3) Pull the power supply wiring through the penetration hole
and connect to the terminal block for power supply (X2M;
dipoles) (Refer to Fig. 31). Connect the earth wiring to the
earth terminal. Next, tie into a bundle and fix by the
attached the wiring fixture (11) and clamp (4) so that no tension will be given to the wiring. (Refer to Fig. 32)
(4) Pull the remote controller wiring and transmission wiring
through the penetration hole, and connect the remote controller wiring to [P1·P2] and transmission wiring to [F1·F2]
(no polarity) (Refer to Fig. 32). Next, tie into a bundle and
fix by the included the wiring fixture (11) and clamp (4) so
that no tension will be given to the wiring transmission part.
(Refer to Fig. 32)
Notched part
Power supply
wiring and
Control box lid
fixing screws (2 pieces)
Fig. 31
earth wiring
Remote controller
and transmission
wiring
Wiring diagram Label
Control box lid
• When wiring, form the wirings orderly so that the control
box lid can be securely fastened. If the control box lid is not
in place, the wirings may float up or be sandwiched by the
box and the lid and cause electric shocks or a fire.
English 12
CAUTION
Transmission wiring
Remote controller
wiring
Clamp (4)
(accessory)
Power supply
wiring and
Earth wiring
Wiring fixture (11) (accessory)/
Screw for wiring fixture (12)
(accessory)
Wiring fixture (11) (accessory)/
Screw for wiring fixture (12)
(accessory)
(1) Install the fixture at the wiring entrance side.
(2) Fix the wiring to the fixture by clamps so that no tension will
be given to the terminal connection.
(3) To avoid the loosing of the power supply wiring and Earth
wiring, band the clamp to tightly fit the fixture at terminal
block side.
Fig. 32
Power supply wiring
Indoor unit B
Most downstream
Indoor unit
Power supply
220-240V/220V
1 ~
50Hz/60Hz
Power supply
220-240V/220V
1 ~
50Hz/60Hz
Power supply
220-240V/220V
1 ~
50Hz/60Hz
Outdoor
unit
Remote controller
Indoor unit A
(option)
Remote controller
(option)
Remote controller
(option)
L
P2P1NF2
P1
N
F1
IN/D
OUT/D
F1
L
F2F1F2
T1 T2
NL
P2
P2P1 F2F1 T1 T2 P2P1 F2F1 T1 T2
LN LN LN
P1 P2
P1 P2
and earth wiring
Resin bushing (10)
(accessory)
Remote controller
and transmission wiring
Putty or insulation
(field supply)
Distance of
50mm between
• When conducting wiring work, do not touch the printed circuit
board. It may cause failure.
• Never connect the power supply wiring to the terminal block
for remote controller/transmission wiring. It may damage the
total system.
• Do not connect the remote controller/transmission wiring to
the wrong terminal block.
• In case the piping penetration cover is cut off and used as
wiring penetration hole, after the wiring connection is finished, mend the cover.
• Seal the clearance around the wirings with putty and insulating material (field supply).
(If insects and small animals get into the indoor unit, short circuiting may occur inside the control box.)
• If the low voltage wiring (remote controller wiring) and the
high voltage wiring (power supply wiring, earth wiring) are
brought into the indoor unit from the same place, they may be
affected by electric noise (outside noise) and cause malfunction or failure.
• Keep the distance of 50mm or more between the low voltage
wiring (remote controller wiring) and the high voltage wiring
(power supply wiring, earth wiring) at anywhere outside the
indoor unit. If both the wirings are laid down together, they
may be affected by electric noise (outside noise) and cause
malfunction or failure.
13 English
High voltage wiring
Low voltage wiring
8-5 EXAMPLE OF WIRING
<< No. 1 system: When 1 remote controller is used for 1
indoor unit. >>
<< No. 2 system: When carrying out group control or 2
remote controller control. >>
Power supply
220-240V/220V
1 ~
Outdoor
50Hz/60Hz
L
unit
IN/D
OUT/D
F1 F2 F1 F2
P1 P2 F2NF1
LN
Indoor
unit A
P1 P2
Remote controller
(option)
Note) It is not needed to set the indoor unit
address when using group control.
(It is automatically set when the
power is turned on.)
T1 T2 P1 P2 F2F1 T1 T2
NL
Indoor
unit B
NL
P1 P2 F2F1 T1 T2
Case of group
control
For use with 2
remote controllers
Most downstream
indoor unit
P1 P2 P1 P2
Remote
controller
(option)
Remote
controller
<< No. 3 system: When BS unit is used >>
WARNING
Remote controller 1
(Main)
Remote controller 2
(Sub)
Terminal for remote
controller wiring
Fig. 33
P1P
2
F2 T1
FORCED
OFF
T2
Input A
Power supply
220-240V/220V
1 ~
50Hz/60Hz
LN
Outdoor unit BS unit
IN/D
OUT/D OUT/D
F1
F2F1F2
IN/D
F1
F2F1F2
Indoor unit 1 Indoor unit 2 Indoor unit largest No.
Crossover wiring (Remote controller)
Remote controller 1 (Main) Remote controller 2 (Sub)
Fig. 34
P2P1 F2NF1LT1T2
Indoor unit A
P1P2
Remote controller
(option)
Be sure to install an earth leakage breaker.
Failure to do so may cause electric shocks and a fire.
8-6 FOR CONTROL WITH 2 REMOTE CONTROL-
LERS (TO CONTROL 1 INDOOR UNIT WITH
2 REMOTE CONTROLLERS)
• For control with 2 remote controllers, set one remote control-
ler as Main and the other remote controller as Sub.
<Changeover method from Main to Sub and vice versa>
Refer to the installation manual attached to the remote
controller.
<Wiring method>
(1) Remove the control box lid according to the wiring connec-
tion method.
(2) Carry out additional wiring from the remote controller 2
(Sub) to the terminals (P
on the terminal block (X1M) in the control box.
1, P2) for remote controller wiring
8-7 FOR CENTRALIZED CONTROL
• When centralized equipment (such as centralized controller)
is used for control, it is required to set the group No. on the
remote controller.
For details, refer to the manuals attached to the centralized
equipment.
• Connect the centralized equipment to the indoor unit connected to the remote controller.
8-8 FOR REMOTE CONTROL (FORCED OFF OR
ON/OFF OPERATION)
(1) Wiring method and specification
• Remote control is available by transmission the external
input to the terminals T1 and T2 on the terminal block for
remote controller and transmission wiring.
Wiring specification Sheathed vinyl cord or 2 core cable
Wiring size
Wiring length Max. 100m
External contact spec
0.75-1.25mm
Contact that can make and break the min.
load of DC15V · 1mA
2
< CAUTION >
When using the group control and the 2 remote controllers
control at the same time, connect the remote controller 2 (Sub)
to the indoor unit at the end of the crossover wiring (the largest
No.). (Refer to Fig. 34)
English 14
(2) Actuation
• Input A of FORCED OFF and ON/OFF OPERATION will
be as the table shown below.
In case of
FORCED
OFF
In case of ON/
OFF OPERA-
TION
FORCED OFF by input A of
“ON”
(Remote controller prohibited)
Operation by input A of “OFF”
“ON”
Remote controller
permitted by input A
of “OFF”
Stop by input A of
“ON” “OFF”
(3) How to choose FORCED OFF or ON/OFF OPERATION
• For choosing FORCED OFF or ON/OFF OPERATION,
setting by remote controller is required.
(Refer to 10. FIELD SETTING AND TEST OPERATION)
9. MOUNTING SUCTION GRILLE · DECO-
CAUTION
CAUTION
NOTE
NOTENOTENOTE
Strap
Strap
Round hole
Round hole
Hook
Hook
Cross hole
Indoor unit
Suction grille
Fig. 35
RATION SIDE PANEL
Install securely in the reverse order when decoration side panel
and suction grille were removed.
• When installing the suction grille, hang the string of the suction grille to the hanging part of the indoor unit shown Fig. 35.
When closing the suction grille, the strap may get caught.
Confirm that the strap does not stick out of the side of the
suction grille before closing.
10. FIELD SETTING AND TEST OPERATION
<<Refer to also the installation manual attached to the outdoor unit.>>
10-1 SETTING OF CEILING HEIGHT
• Set the SECOND CODE No. according to the ceiling height
as shown in the Table 3.
(The SECOND CODE No. is set at “01”, when shipping from
the factory.)
Tabl e 3
Standard
High
ceiling
Ceiling height (m)
less
Mode No.
13 (23) 0
Type 32 Type 63 Type 100
2.7 or
less
2.7-3.5 2.7-3.5 3.8-4.3 02
2.7 or
less
3.8 or
FIRST
CODE No.
SECOND
CODE No.
01
Do not set the SECOND CODE No. “03”.
10-2 SETTING WHEN AN OPTIONAL ACCESSORY
IS ATTACHED
• For setting when attaching an optional accessory, refer to the
installation manual attached to the optional accessory.
10-3 WHEN USING WIRELESS REMOTE CONTROL-
LER
• When using a wireless remote controller, it is necessary to
set the wireless remote controller address. Refer to the
installation manual attached to the wireless remote controller.
Before carrying out field setting, check the items mentioned
in the clause 2 “1. Items to be checked after the installa-
tion work is completed” on page 3.
• Check if all the installation and piping works for the air
conditioner are completed.
• Check if the control box lids of the air conditioner are
closed.
<FIELD SETTING>
<After turn on the power supply, carry out field setting from
the remote controller according to the installation state.>
• Carry out setting at 3 places, “Mode No.”, “FIRST CODE No.”
and “SECOND CODE No.”.
The settings shown by “ ” in the table indicate those
when shipped from the factory.
• The method of setting procedure and operation is shown in
the installation manual attached to the remote controller.
(Note) Though setting of “Mode No.” is carried out as a
group, if you intend to carry out individual setting by
each indoor unit or confirmation after setting, carry
out setting with the “Mode No.” shown in the
parenthesis ( ).
• In case of remote control, for changeover of input to
FORCED OFF or to ON/OFF OPERATION.
[1] Enter into the field setting mode with the remote controller.
[2] Select Mode No. “12”.
[3] Set the FIRST CODE No. to “1”.
[4-1] For FORCE OFF, set the SECOND CODE No. to “01”.
[4-2] For ON/OFF OPERATION, set the SECOND CODE
No. to “02”.
(It is set to FORCED OFF when shipped from the factory.)
• Ask your customer to keep the manual attached to the
remote controller together with the operation manual.
• Do not carry out setting other than those shown in the table.
10-4 SETTING FAN SPEED DURING THERMOSTAT
OFF
• Set the fan speed according to the using environment after
consultation with your customer.
(When shipping, the SECOND CODE No. “02” is set for the
fan speed during the cooler thermostat OFF, and other are
set at “01”.)
Tabl e 4
Setting
Fan operates/stops
during thermostat
OFF (Cooling ·
heating)
Fan speed during
cooling thermostat
OFF
Fan speed during
heating thermostat
OFF
Mode
No.
Operates
Stops 02
LL (Extra
low)
Setting 02
LL (Extra
low)
Setting 02
11 (21) 2
12 (22) 6
12 (22) 3
FIRST
CODE No.
SECOND
CODE No.
01
01
01
10-5 SETTING FILTER SIGN
• A message to inform the air filter cleaning time will be indi-
cated on the remote controller.
• Set the SECOND CODE No. to the number shown in the
Table 5 according to the amount of dust or pollution in the
room.
• Though the indoor unit is equipped with the long life filter, it is
necessary to periodically clean the filter to avoid clogging of
the filter. Please also explain the set time to the customer.
• The periodical filter cleaning time can be shortened depending on the environment.
15 English
Tabl e 5
CAUTION
To the operator carrying out test operation
Contamination
Normal
More contaminated
With indication
No indication* 02
Filter hours
(long life type)
Approx.
2500 hrs
Approx.
1250 hrs
Mode No.
10 (20)
FIRST
CODE No.
0
3
SECOND
CODE No.
01
02
01
* Use “No indication” setting when cleaning indication is not
necessary such as the case of periodical cleaning being
carried out.
<Test operation>
• After cleaning the indoor unit inside and the suction grille,
carry out test run according to installation manual attached to
the outdoor unit.
• When the remote controller operation lamp flashes, it shows
that something is abnormal. Check the malfunction codes on
the remote controller. The relation between the malfunction
codes and abnormal details is described in the operation
manual attached to the outdoor unit. Particularly, if the indication is one of those shown in the Table 6, it may be an error
in the electrical wiring or the power supply is disconnected.
Therefore, recheck Table 6.
Tabl e 6
Remote controller
indication
Though the centralized control is not
carried out, the
lamp “ ”
turns on.
“U4” turns on
“UH” turns on
No indication
• The terminals (T1 · T2) for FORCED OFF
on the indoor unit transmission terminal
block is short circuited.
• The power supply to the outdoor unit is not
made.
• The power supply work to the outdoor unit
is not carried out.
• The transmission wiring and the remote
controller wiring and FORCED OFF wiring
are connected wrongly.
• The transmission wiring is disconnected.
• The power supply to the indoor unit is not
made.
• The power supply work to the indoor unit is
not carried out.
• The remote controller wiring and the transmission wiring and FORCED OFF wiring
are connected wrongly.
• The remote controller wiring is disconnected.
Details
After test operation is completed, before delivering the air
conditioner to the customer, confirm that the control box lid, the
air filter and suction panel are attached.
In addition, explain the power supply status (power supply ON/
OFF) to the customer.
11. WIRING DIAGRAM
(Refer to Fig. 36)
1 (NOTE 6) 2 (NOTE 3)
WIRELESS REMOTE CONTROLLER
3
(RECEIVER/DISPLAY UNIT)
(OPTIONAL ACCESSORY)
TRANSMISSION WIRING
(NOTE 2)
5
CENTRAL REMOTE CONTROLLER
WIRED REMOTE CON-
7
TROLLER (OPTIONAL
ACCESSORY)
9 CLASS
INPUT FROM OUTSIDE
4
(NOTE 7)
6(NOTE 4)
8 CONTROL BOX
After test operation is completed, check the items mentioned in
the clause 2 “2. Items to be checked at delivery” on page 3.
If the interior finish work is not completed when the test
operation is finished, for protection of the system, ask the
customer not operate the indoor unit until the interior finish work
is completed.
If the system is operated, the inside of the indoor units may be
polluted by substances generated from the coating and
adhesives used for the interior finish work and cause water
splash and leakage.
English 16
3D079560-1E FXHQ32 • 63 • 100AVEB FXHQ32 • 63 • 100AVEB9
3
564
1
2
2
7
8
9
9
A1P
C105
F1U
F2U
HAP
KPR
M1F
M1SPSR1T
R2T
R3T
V1R
X1M
X2M
Y1E
Z1F
X15A
X24A
X25A
X33A
X35A
PRINTED CIRCUIT BOARD
CAPACITOR
FUSE (T, 3.15A, 250V)
FUSE
FLASHING LAMP
(SERVICE MONITOR GREEN)
MAGNETIC RELAY (DRAIN
PUMP)
MOTOR (INDOOR FAN)
MOTOR (SWING BLADE)
POWER SUPPLY
THERMISTOR (AIR)
THERMISTOR (COIL)
THERMISTOR (COIL)
DIODE BRIDGE
TERMINAL BLOCK
TERMINAL BLOCK
ELECTRONIC
EXPANSION VALVE
NOISE FILTER
CONNECTOR
(FLOAT SWITCH)
CONNECTOR
(WIRELESS REMOTE
CONTROLLER)
CONNECTOR (DRAIN PUMP)
CONNECTOR
(ADAPTOR FOR WIRING)
CONNECTOR
(POWER SUPPLY FOR
ADAPTOR)
PRINTED CIRCUIT BOARD
PRINTED CIRCUIT BOARD
PUSH BUTTON SWITCH
(ON/OFF)
PILOT LAMP (ON-RED)
PILOT LAMP
(TIMER-GREEN)
PILOT LAMP
(FILTER SIGN-RED)
PILOT LAMP
(DEFROST-ORANGE)
SELECTOR SWITCH
(MAIN/SUB)
SELECTOR SWITCH
(WIRELESS ADDRESS SET)
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
WIRING DIAGRAM
CONNECTOR FOR OPTIONAL PARTS
INDOOR UNIT
2. IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT IN ACCORDANCE WITH THE ATTACHED
INSTALLATION MANUAL.
3. X15A, X25A ARE CONNECTED WHEN THE DRAIN UP KIT IS BEING USED.
IN ACCORDANCE WITH THE ATTACHED INSTALLATION MANUAL.
4. IN CASE OF MAIN/SUB CHANGEOVER.
SEE THE INSTALLATION MANUAL ATTACHED TO REMOTE CONTROLLER.
5. SYMBOLS SHOW AS FOLLOWS: BLK: BLACK RED: RED BLU: BLUE WHT: WHITE YLW: YELLOW GRN: GREEN
ORG: ORANGE BRN: BROWN PNK: PINK.
6. SHOWS ONLY IN CASE OF PROTECTED PIPING. USE H07RN-F IN CASE OF NO PROTECTION.
7. WHEN CONNECTING THE INPUT WIRES FROM OUTSIDE, FORCED OFF OR ON/OFF CONTROL OPERATION CAN BE
SELECTED BY THE REMOTE CONTROLLER. SEE INSTALLATION MANUAL FOR MORE DETAILS.
: TERMINAL BLOCK , : CONNECTOR : FIELD WIRING
: SHORT CIRCUIT CONNECTOR
1.
NOTES
WIRELESS REMOTE CONTROLLER
(RECEIVER / DISPLAY UNIT)
17 English
Fig. 36
3P368557-2D EM12A009D
(1904) HT
Loading...
