DAIKIN ROOM AIR CONDITIONER
PENDINGIN UDARA RUANGAN DAIKIN
Operation Manual
Panduan Pengoperasian
English
NOMOR : I.15.DAI54.04104.1114
Indonesia
Note :
Illustrations in this manual are for explanation to user only. And may differ from
the actual machine. Are subject to change without prior notice. For the development
of future products.
22
19
17
16
14
12
10
5
2
Read the precautions in this manual carefully
before operating the unit.
Safety precautions
Keep this manual where the operator can easily find them.
After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment
is transferred to a new user, be sure also to hand over the manual.
Read all safety precautions in this manual carefully before operating the unit.
For safety reason the operator must read the following cautions carefully.
The precautions described herein are classified as WARNING and CAUTION. They both contain important
information regarding safety. Be sure to observe all precautions without fail.
When the air conditioner is malfunctioning (giving off a burning odour, etc.) turn off power to the unit and contact your local
dealer. Continued operation under such circumstances may result in a failure, electric shocks or fire hazards.
.snoitcurtsni eht wollof ot erus eBNever attempt.
Be sure to establish an earth connection.
Never wet the air conditioner nor the remote controller
with water.
Never touch the air conditioner nor the remote
controller with wet hands.
WARNING
Failure to follow these instructions properly may result in
personal injury or loss of life.
CAUTION
Failure to observe these instructions properly may result in
property damage or personal injury, which may be serious
depending on the circumstances.
If the air conditioner is not cooling properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage, electric shocks or
fire. For installation, consult the dealer or a qualified technician.
In order to avoid electric shock, fire or injury, if you detect any abnormality such as smell of fire, stop the operation and
turn off the breaker. And call your dealer for instructions.
Do not wash the air conditioner with water, as this may result in electric shocks or fire.
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any
refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas
heaters, kerosene heaters or gas range.
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which flammable or
corrosive gases, are detected near the unit.
It is not good for health to expose your body to the air flow for a long time.
Do not attempt to repair, dismantle reinstall or modify the air conditioner yourself as this may result in water leakage,
electric shocks or fire hazards.
Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric
shocks or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
Do not use flammable spray near the air conditioner, or otherwise fire may result.
Do not place flammable items, such as spray cans, within 1 meter of the air outlet.
The spray cans may explode as a result of hot air from the indoor or outdoor units.
Do not place objects, including rods, your fingers, ec., in the air inlet or outlet. Product malfunctioning, product or injury
damage may result due to contact with the air conditioner's high-speed fan blades.
Do not place water containers (flower etc.) above the unit, as this may result in electric shocks or fire hazards.
WARNING
•
•
•
•
operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
2.6m2.
Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using
other refrigerant may cause trouble or damage to the unit, and personal injury.
Do not sit or place objects on the outdoor unit. Falling yourself or falling objects could cause injury.
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain
conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping,
resulting in fouling or failure of the object concerned.
After prolonged use, check the unit stand and its mounts for damage. If left in a damaged condition, the unit may
fall and cause injury.
The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and
harm to health may result.
Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental
operation by a child may result in impairment of bodily functions and harm health.
To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used
together with the air conditioner.
Before cleaning, be sure to stop unit operation, turn the breaker off or remove the power cord.
Otherwise, an electric shock and injury may result.
Do not connect the air conditioner to a power supply different from the one as specified. It may cause trouble or fire.
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leakage breaker may
result in electric shocks.
Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool
or warm air refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air
conditioner is safe and normally does not leak. However, in the event of a leakage, contact with a naked burner,
heater or cooker may result in generation of noxious gas. Do not longer use air conditioner until a qualified service
person confirms that the leakage has been repaired.
Do not sit on the outdoor unit. Put things on the unit, or pull the unit. Doing so may cause accidents, such as falling
or toppling down, thus resulting in injury, product malfunctioning, or product damage.
Do not give impact to the indoor and outdoor units, or otherwise product damage may result.
Do not place objects around the indoor unit. Doing so may have an adverse influence on the performance, product
quality, and life of the air conditioner.
Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shocks
or fire.
Do not sit or hang on the panel. The panel may fall, and injury or product malfunctioning may result.
Do not sway the panel. The panel may hit people or objects, and injury or property damage may result.
Do not let children play around the panel. Injury or property damage may result.
Do not pull the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
Do not locate obstacles in the route. The panel may fall, and injury or property damage may result.
Do not bend or damage the wires. The wires may be broken and the panel may fall, and injury or property damage
may result.
Do not put objects on the panel, or otherwise production malfunctioning may result.
Do not use an unstable stand at the time of operating or maintaining the air conditioner, or otherwise you may topple
over or injury youself.
Locate the remote controller in places out of reach of children. The wrong operation of the remote controller may
result in injury.
Do not place appliances that produce naked flames in places exposed to the air flow from the unit as this may
impair combustion of the burner.
Do not expose plants or animals directly to airflow from the unit as this may cause adverse effects.
To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
Only connect the air conditioner to the specified power supply circuit. Power suppliers other than the one specified may
result in electric shocks, overheating and fires.
Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead.
Imperfect earthling may result in electric shocks.
Be sure to install an earth leakage breaker. Failure to install an earth leakage breaker may result in electric shocks or fire.
CAUTION
Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air
conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely
affect the performance, quality and/or longevity of the object concerned.
Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too
cool or too warm can be harmful to your physical condition and health.
To install the air conditioner in the following types of environments, consult the dealer.
Places with an oily ambient or where steam or soot occurs.
Salty environment such as coastal areas.
Places where sulfide gas occurs such as hot springs.
Places where snow may block the outdoor unit.
Also pay attention to operating noise.
Select the following kinds of location:
A. A place that can sufficiently withstand the weight of the air conditioner with less running noises and
vibrations.
B. A place where warm airflow from the air outlet of the outdoor unit and operating noise do not cause
a nuisance to neighbours.
Be sure there are no obstructions near the air outlet of the outdoor unit.
Obstructions may result in poor performance and increased operating noise. If abnormal noise
occur, ask your dealer for advise.
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
Consult your Daikin dealer about remodelling and relocation.
Installation site.
Consider nuisance to your neighbours from noises.
Electrical work.
System relocation.
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the building, furniture
etc.
Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around
the unit.
Leaves are a hotbed for small animals which can enter the unit.
Once in the unit, such animals can cause malfunctions, smoke or fire when making contact with electrical parts.
To avoid electric shocks, do not operate with wet hands.
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
Do not place things such as vessels containing water or anything else on top of the unit. Water may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
•
The indoor unit is at least 1m away from any television or radio set (unit may cause interference with
the picture or sound).
•
The drain from the outdoor unit must be discharged to a place of good drainage.

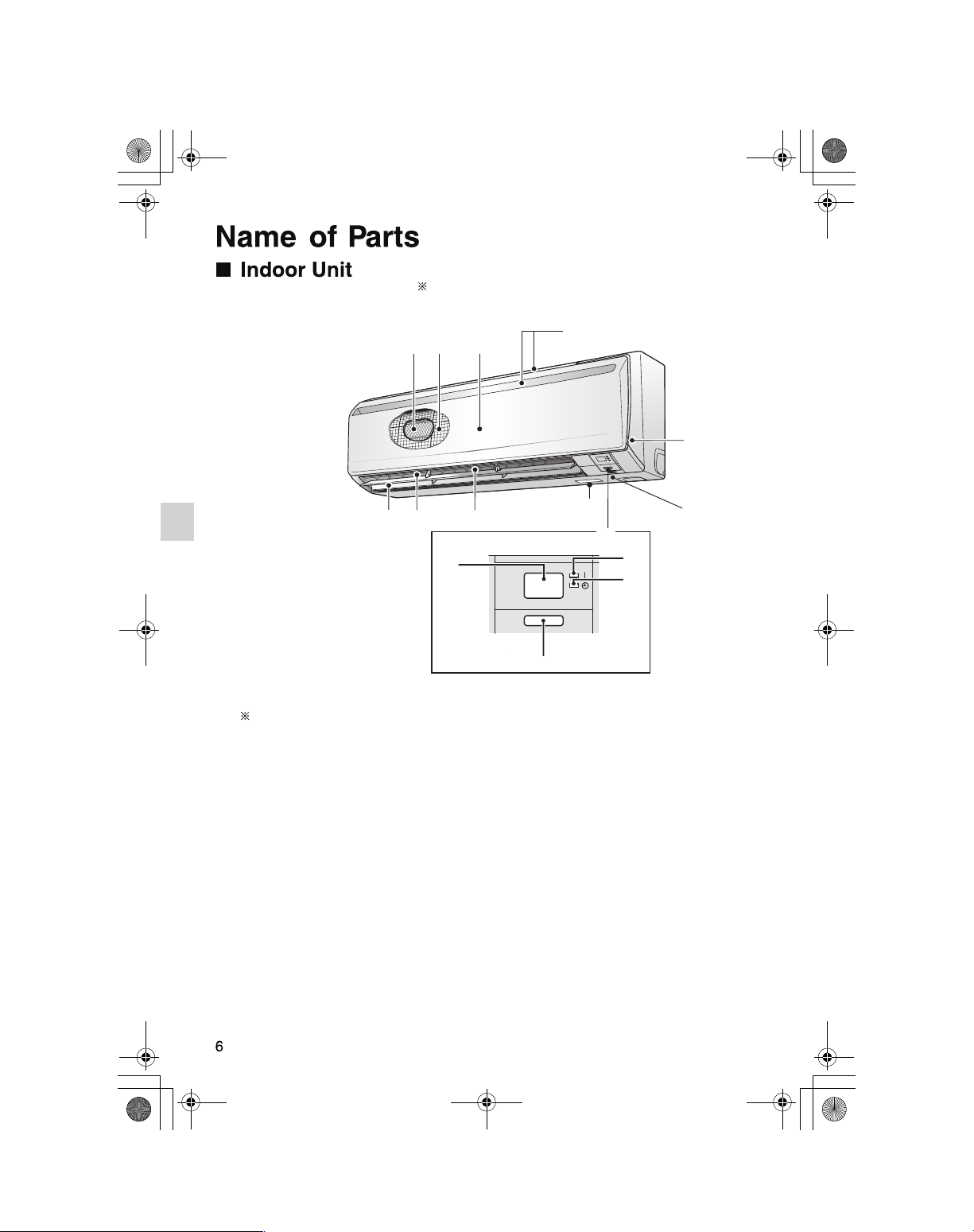

(For Model FTM25/35JV14)
(For Model FTM50JV14)
3
4
8
10
9
5
6
12
13
14
11
2
1
7

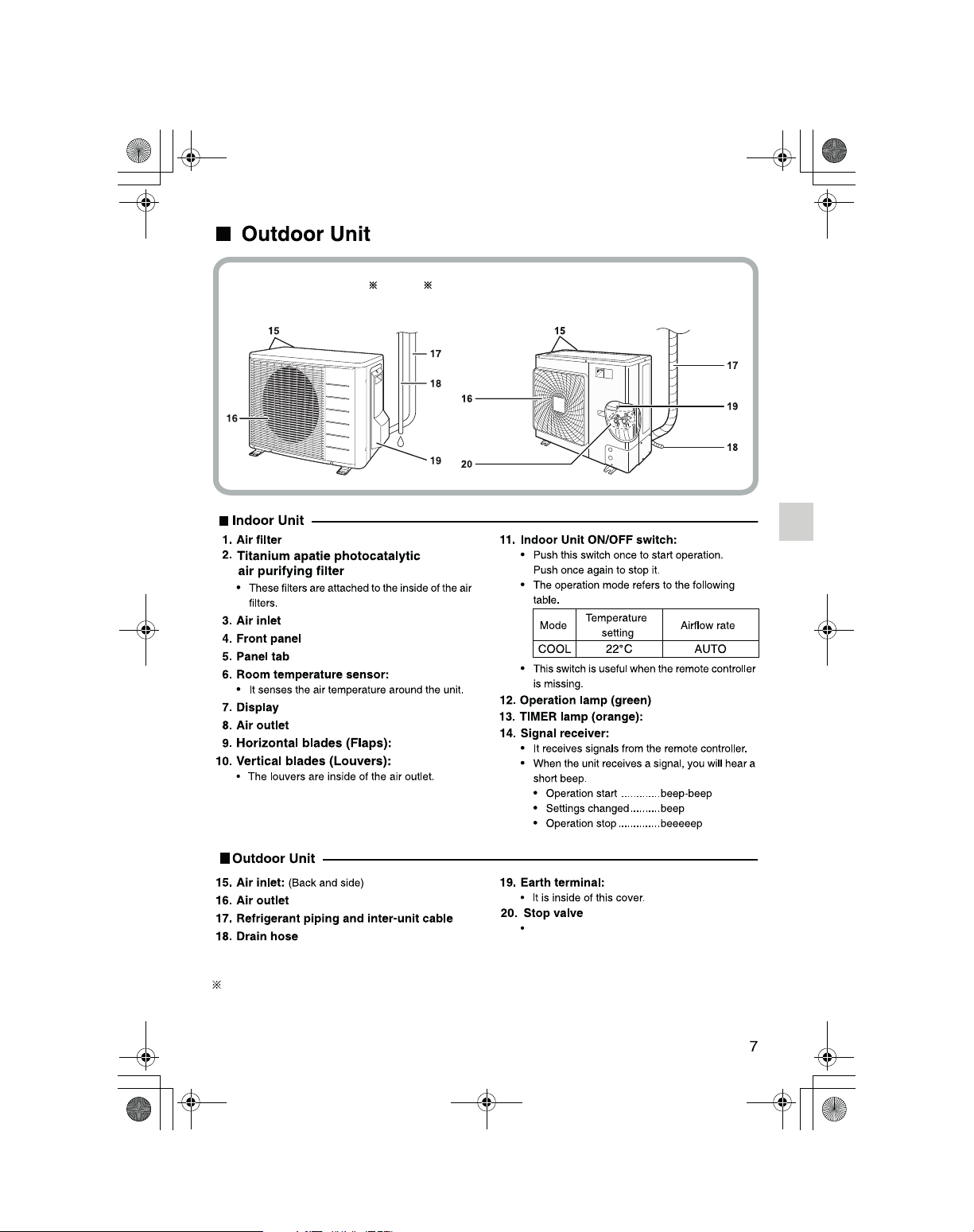

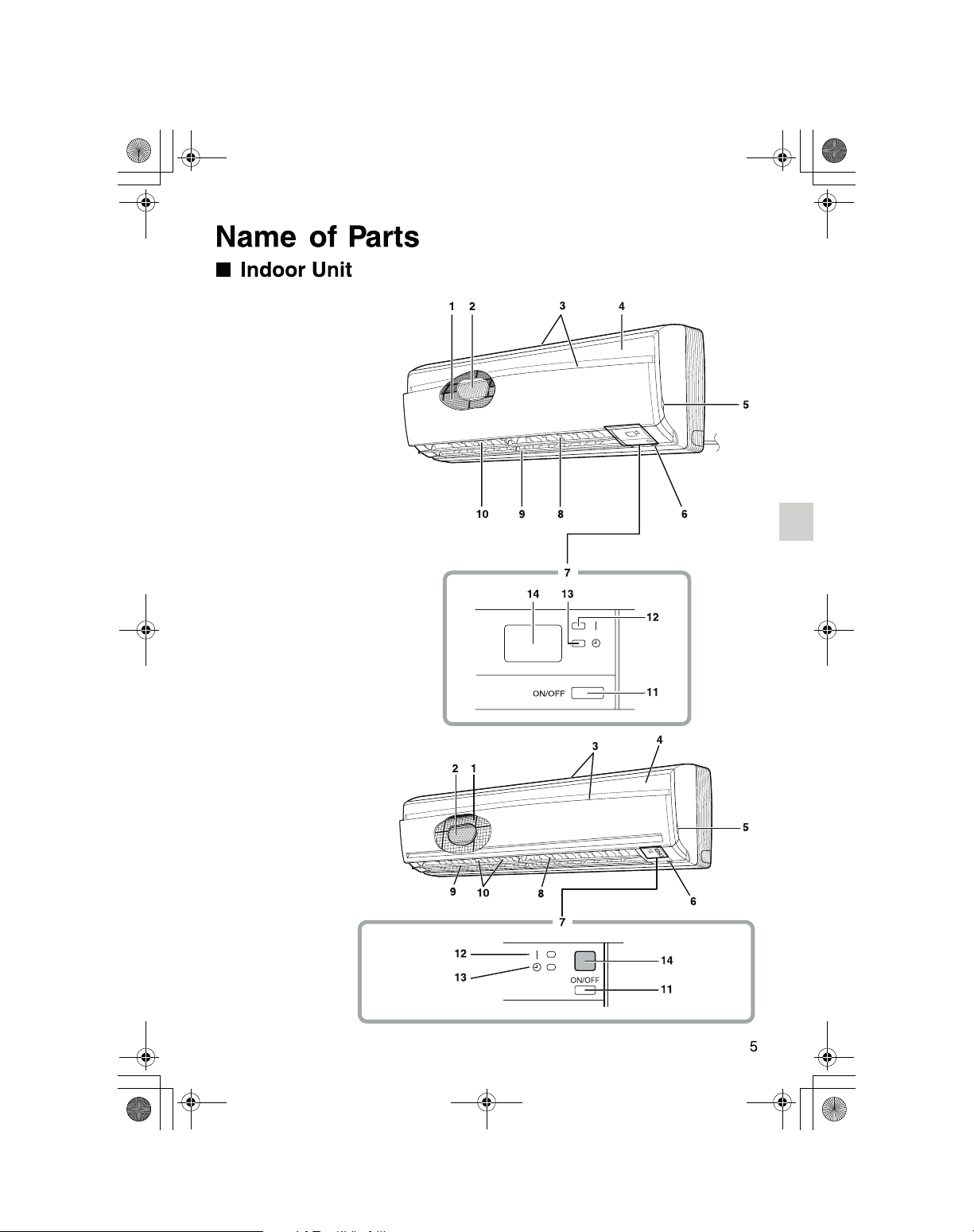

Display Name
(For Model FTM60/71
JV14)
Appearance of the indoor unit may differ from some models.
(For Model RM25 /35/50 JV14) (For Model RM60/71JV14)
(page 14.)
(FTM25/35JV14 page 14,
FTM50/60/71JV14 page15.)
(page 17.)
Appearance of the outdoor unit may differ from some models.
Dew condensation may from on the stop valve
during operation. This does not indicate any type
of malfunction in the outdoor unit.
(For Model FTM25/35JV14)
(page 12.)
(page 17.)
(page 18.)
(page 14.)
(page 11.)
(page 16.)

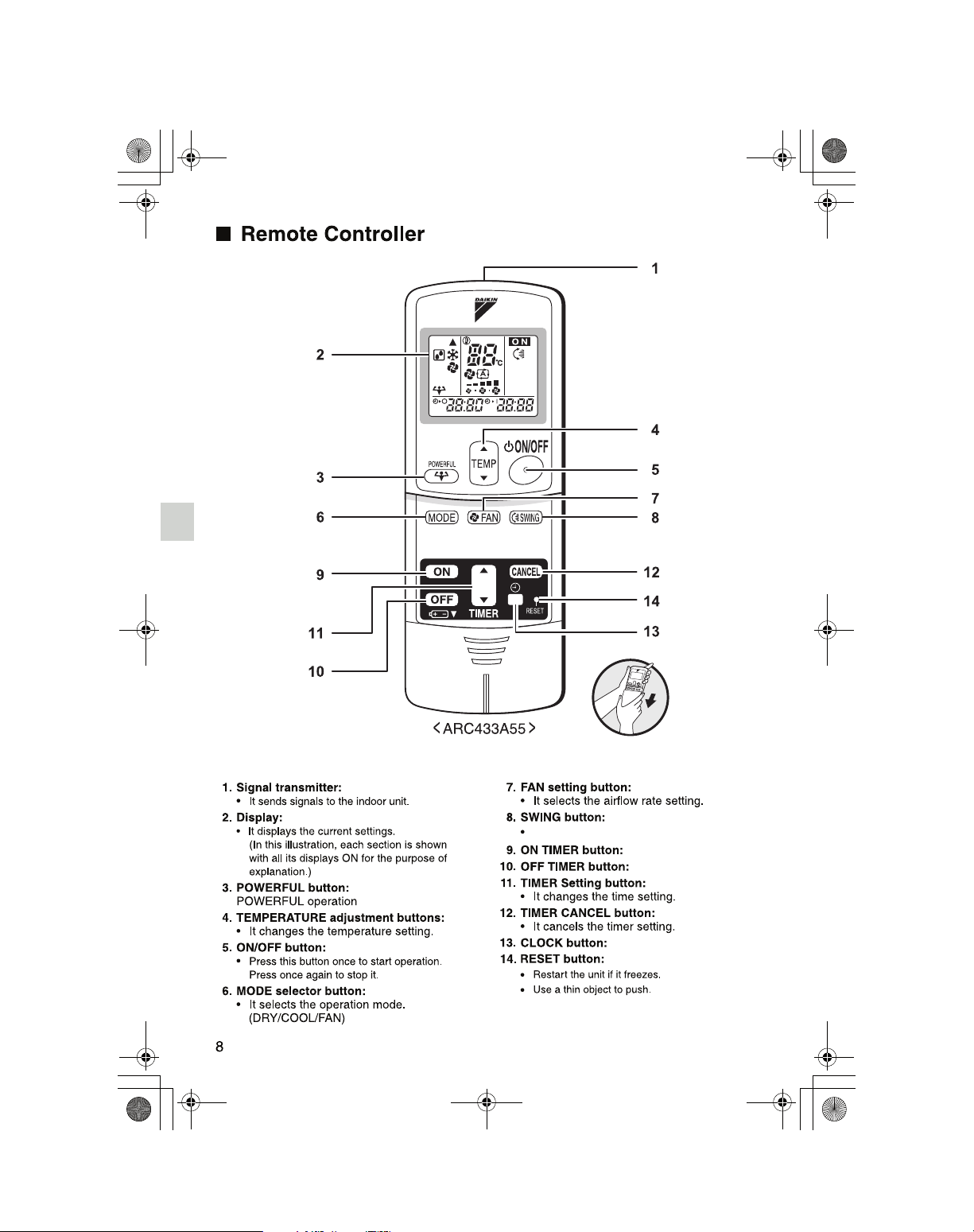

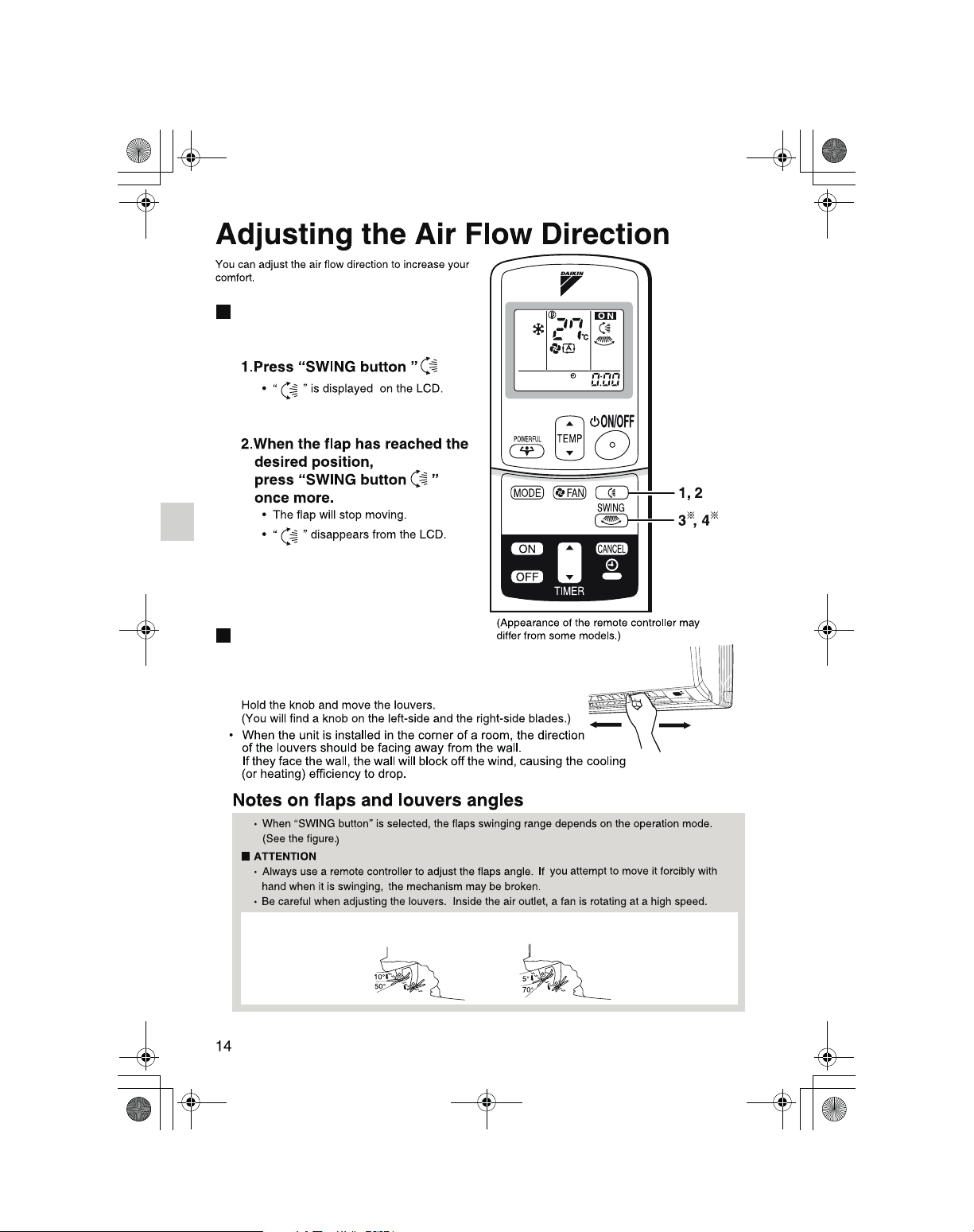

Adjusting the Airflow Direction.
(page 12.)
Louvers (vertical blades). (page 14,15.)
(page 16.)
(page 11.)
(page 17.)
(page 18.)
(page 14.)
SWING button:
SWING button:
POWERFUL operation.
(For Model FTM50/60/71JV14)
(Appearance of the indoor unit
may differ from some models.)
winter, turn the breaker OFF.
(For Model FTM25/35JV14)
(For Model FTM60/71JV14)
(For Model FTM50JV14)
• The flaps will begin to swing.
To adjust the Flaps
(horizontal blades)
(For Model
FTM50/60/71JV14)
(For Model FTM25/35JV14)
To adjust the louvers
(vertical blades)
(For Model FTM25/35JV14)

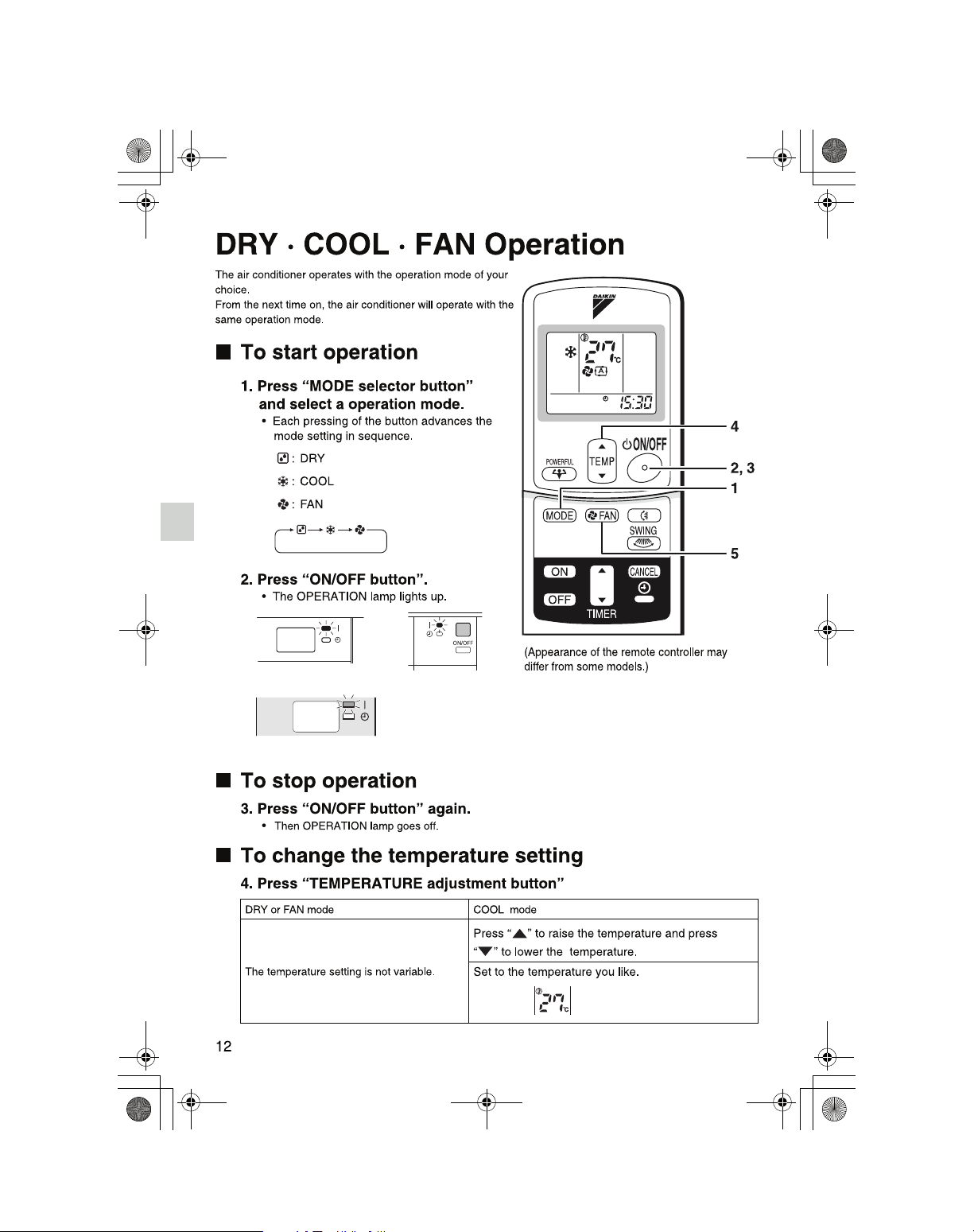

COOL and Dry operation
Stop operation
Upper imit
Lower imit
FAN operation
Stop operation
Upper limit
Lower imit
Loading...
