DAIKIN ROOM AIR CONDITIONER
ACONDICIONADOR DE AIRE DAIKIN PARA HABITACIONES
Operation Manual
Manual de Operación
MODELS
MODELO
ENGLISH .................. P1~P16
ESPAÑOL ............... P17~P32
FT25JV1A
FT35JV1A
CONTENTS
READ BEFORE OPERATION
■ Safety Precautions ................................................. 2
■ Names of Parts
● Indoor unit, Opening the front grille .............. 5
● Outdoor unit, Remote controller ................... 6
■ Preparation Before Operation
● Remote controller ......................................... 7
● Indoor unit ..................................................... 8
OPERATION
■ DRY • COOL • FAN Operation ............................... 9
■ Adjusting the Air Flow Direction
● Adjusting the horizontal blade (flap) ............. 9
● Adjusting the vertical blade (louvre) ............. 9
■ POWERFUL Operation ........................................ 10
■ Timer Operation
● OFF TIMER operation ................................ 11
● ON TIMER operation .................................. 11
CARE
■ Care and Cleaning
● Cleaning the air filters ................................. 12
● Cleaning the indoor and outdoor units
and the remote controller ............................ 12
● Replacing air purifying filters ...................... 12
● Cleaning the front grille ............................... 13
● Check .......................................................... 13
● Before a long idle period ............................. 13
TROUBLE SHOOTING
■ Trouble Shooting
● These cases are not troubles ..................... 14
● Check again ................................................ 15
● Call the service shop immediately .............. 16
1
Safety Precautions
■ Read the following warnings and cautions
carefully before operating the system and
use it correctly.
■ This manual classifies the precautions to
the user into two categories on the right.
Be sure to follow all as they are all
important to ensure safety.
■ After reading this manual, keep it in a place
easily accessible to the user for future
reference.
WARNING
Failure to follow a warning is very likely to
result in such grave consequences as death or
serious injury.
CAUTION
Failure to follow a caution may result in
serious injury or property damage, and in
certain conditions, may result in a grave
consequence.
WARNING
● ●
● Do not expose your body to the cool air for a long time, do not cool the room too much.
● ●
It will affect your physical conditions and cause health problems.
● ●
● Do not put a finger, a rod or other objects into the air outlet or inlet.
● ●
As the fan is rotating at a high speed, it will cause injury.
● ●
● Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself.
● ●
Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult the shop
where you bought the air conditioner.
● ●
● If anything abnormal such as a burning smell occurs, stop the operation immediately
● ●
and turn the breaker OFF.
Continued abnormal operation will cause troubles, electric shocks, fire etc. If anything is
abnormal, consult the shop where you bought the air conditioner.
● ●
● If the air conditioner is not cooling or heating properly, the refrigerant may be leaking,
● ●
so see the dealer where the unit was purchased. Check with a qualified repairman
before attempting any repairs, which might accompany addition of refrigerant.
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some
reason any refrigerant happens to leak into the room, make sure it does not come in contact with
any flame, such as fan heaters, kerosene heaters, or gas ranges, as this may result noxious
substances being generated.
CAUTION
● ●
● Do not use the air conditioner for preservation purposes.
● ●
Do not use it for preserving precision instruments, foods, plants, animals, works of fine arts etc.
Performance or quality may deteriorate and animal or plant life may be shorter.
● ●
● Do not operate the air conditioner with a wet hand.
● ●
It may cause an electric shock.
● ●
● Ventilate the room from time to time.
● ●
Be careful especially when using a burning appliance in the same room. Insufficient
ventilation may cause shortage of oxygen.
● ●
● Before cleaning, be sure to stop the operation and turn the breaker OFF.
● ●
As a fan is rotating at a high speed, cleaning during operation may cause injury.
● ●
● After a long use, check the unit stand and fittings for damage.
● ●
The unit may drop and cause injury if damage is left unrepaired.
2
● ●
● Do not stand or sit on the outdoor unit. Do not place any object on the unit.
● ●
The object or the person may fall down or drop, causing injury.
● ●
● Do not place under the indoor or outdoor unit anything which must be kept away from
● ●
moisture.
Indoor unit : moisture in the air may condense and drip in certain conditions.
outdoor : during cooling operation, condensation may drip from the piping connections.
● ●
● Do not wash the unit with water.
● ●
It may cause an electric shock.
● ●
● Do not place a burning appliance in places exposed to the air flow from the unit or
● ●
under the indoor unit.
It may cause incomplete combustion or deformation of the unit from heat.
● ●
● Do not place a vessel containing water on the unit.
● ●
Water may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
● ●
● Do not expose plants or animals directly to the air flow.
● ●
It may cause adverse effects on the plant or the animal.
● ●
● Do not block air inlets nor outlets.
● ●
Impaired air flow may result in insufficient performance or troubles.
● ●
● Do not allow children to mount on the outdoor unit or avoid placing any object on it.
● ●
Falling or tumbling may result in injury.
Installation
WARNING
● ●
● Do not attempt to install the air conditioner by yourself.
● ●
Consult the service shop or a qualified technician.
Incorrect work will result in water leakage, electric shocks or fire. For installation, consult the
service shop where you bought the unit or a qualified technician.
● ●
● The air conditioner must be earthed.
● ●
Incomplete earthing may result in electric shocks. Do not connect the earth line to a gas
pipe, water pipe, lightening rod, or a telephone earth line.
CAUTION
● ●
● Depending on the environment, an earth leakage breaker must be installed.
● ●
Lack of an earth leakage breaker may result in electric shocks.
● ●
● Do not install the air conditioner in places where flammable gas may leak.
● ●
If leaked gas should accumulate near the unit, fire may occur.
● ●
● Arrange the drain hose to ensure smooth drainage.
● ●
Incomplete drainage may cause wetting of the building, furniture etc.
● ●
● Do not connect the air conditioner to a power supply different from the specification.
● ●
It may cause trouble or fire.
● ●
● Do not place objects in direct proximity of the outdoor unit and do not let leaves and
● ●
other debris accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals
can cause malfunctions, smoke or fire when making contact with electrical parts.
3
Installation site
■ To install the air conditioner in the following types of environments, consult the shop.
● Places with an oily ambient or where steam or soot occurs.
● Salty environment such as coastal areas.
● Places where sulfide gas occurs such as hot springs.
● Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
Consider nuisance to your neighbours from noises
■ For installation, choose a place as described below.
● A place solid enough to bear the weight of the unit which does not amplify the
operation noise or vibration.
● A place from where the air discharged from the outdoor unit or the operation noise
will not annoy your neighbours.
Electrical work
● For power supply, be sure to use a separate power circuit dedicated to the air
conditioner.
System relocation
● Relocating the air conditioner requires specialized knowledge and skills. Please
consult the shop where you bought the air conditioner if relocation is necessary for
moving or remodeling.
4

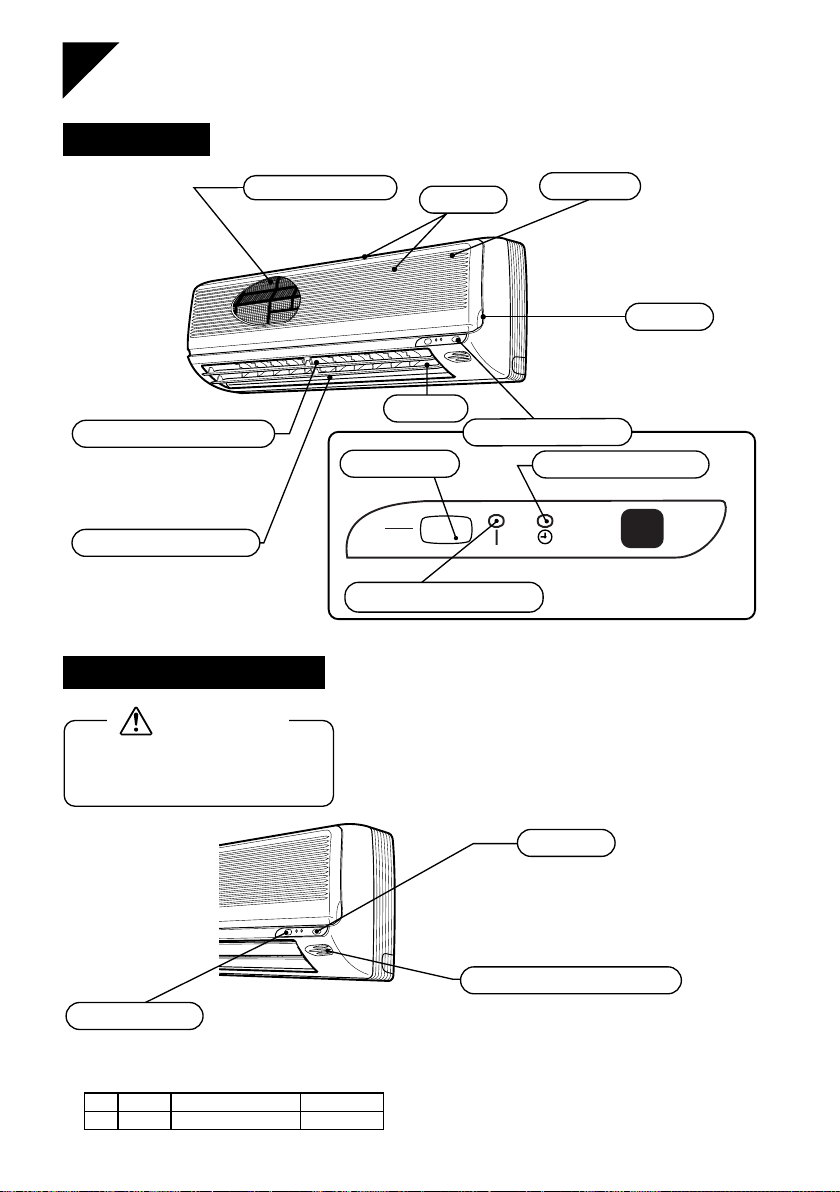

Names of Parts
Indoor unit
Air purifying filter
Air purifying filters are
attached to the inside of
the air filters.
Louvre (vertical blades)
The louvre is inside of the air
outlet.
(See page 9.)
Flap (horizontal blade)
(See page 9.)
Receiver explanation
CAUTION
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
Air inlet
Air outlet
Front grille
Indicator lamps
ON/OFF button
(See page 11.) (See page 11.)
TIMER lamp (orange)
ON
OFF
Operation lamp (green)
Grille tab
ON/OFF button
• Push this button once to start operation. Push once again to stop it.
• This button is useful when the remote controller is missing.
• The operation mode refers to the following table.
FT
Mode
Temperature setting
COOL
22˚C
Air flow rate
AUTO
• It senses the air temperature around the
Receiver:
• It receives signals from the
remote controller.
• When the unit receives a signal,
you will hear a short beep.
Room temperature sensor:
unit.
5
