Page 1
Air Conditioners
Technical Data
H i g h C O P, r o u n d f l o w c a s s e t t e
FCQHG-F
E E D E N 1 2 - 1 0 0
Page 2
• Indoor Unit • High COP, round flow cassette • FCQHG-F
TABLE OF CONTENTS
FCQHG-F
1Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional Drawings with Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
11 Air flow patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Air Flow Pattern - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Air Flow Pattern - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
• Split - Sky Air® • Indoor Unit
1
Page 3
• Indoor Unit • High COP, round flow cassette • FCQHG-F
1 Features
Indoor Unit Split - Sk FCQHG-FHigh COP, r
• User friendly remote control with contemporary design
• Easy to use: all main functions directly accessible
• Seasonal efficiency gives an indication on how efficient an air
conditioner operates over an entire heating or cooling season.
1
1
• Easy setup: clear graphical user interface for advanced menu
settings
• High COP ensures top performance
3 steps optional
2
• Split - Sky Air® • Indoor Unit
Page 4
• Indoor Unit • High COP, round flow cassette • FCQHG-F
2 Specifications
2-1 Technical Specifications FCQHG71FEVB FCQHG100FEVB FCQHG125FEVB FCQHG140FEVB
Casing Material Galvanised steel plate
Dimensions Unit Height/Width/
Depth
Packed unit Height/Width/
Depth
Weight Unit kg 25 26
Packed unit kg 29 30
Decoration panel Model BYCQ140D7W1
Colour Pure White (RAL 9010)
Dimensions Height/Width/
Weight kg 5.4
Decoration panel 2 Model BYCQ140D7W1W
Colour Pure White (RAL 9010)
Dimensions Height/Width/
Weight kg 5.4
Decoration panel 3 Model BYCQ140D7GW1
Colour Pure White (RAL 9010)
Dimensions Height/Width/
Weight kg 10 10.3
Heat exchanger Inside length mm 2,090
Outside length mm 2,184
Rows Quantity 3
Fin pitch mm 1.2
Passes Quantity 17
Face area m² 0.556
Stages Quantity 18
Empty tubeplate
hole
Fin Type Cross fin coil (multi slit fins and hi-XA tubes)
Fan Type Turbo fan
Quantity 1
Air flow rate Cooling High m³/min 21.2 32.3 33.5
Fan motor Model QTS48C15M
Speed Steps 3
Output High W 48 106
Sound power level Cooling High dBA 53 61
Heating High dBA 53 61
Sound pressure level Cooling High/Nom./Low dBA 36/33/29 44/39/33 45/40/35 45/41/37
Heating Super high/High/
Refrigerant Type R-410A
Piping connections Sound absorbing insulation Foamed Polyurethane
Liquid Type/OD mm Flare connection/9.52
Gas Type/OD mm Flare connection/15.9
Drain VP25 (I.D. 25/O.D. 32)
Heat insulation Foamed polystyrene / Foamed polyethylene
Air filter Type Resin net with mold resistance
Standard Accessories : Clamps;
Standard Accessories : Drain sealing pad;
Standard Accessories : Sealing pads; Quantity : 4;
Standard Accessories : Insulation for fitting; Quantity : 2;
Depth
Depth
Depth
Quantity 0
Heating High m³/min 21.2 32.3 33.5
Nom./Low
mm 288/840/840
mm 300/880/880
mm 60/950/950
mm 60/950/950
mm 145/950/950
Nom. m³/min 16.7 25.7 26.7 27.3
Low m³/min 12.2 19.0 19.9 21.1
Nom. m³/min 16.7 25.7 26.7 27.3
Low m³/min 12.2 19.0 19.9 21.1
dBA -/36/33/29 -/44/39/33 -/45/40/35 -/45/41/37
3
1
2
• Split - Sky Air® • Indoor Unit
3
Page 5
• Indoor Unit • High COP, round flow cassette • FCQHG-F
2 Specifications
Standard Accessories : Installation guide;
Standard Accessories : Screws;
Standard Accessories : Washer for hanger bracket;
Standard Accessories : Clamp for drain hose;
Standard Accessories : Drain hose;
1
Standard Accessories : Installation manual;
2
Standard Accessories : Operation manual;
2-2 Electrical Specifications FCQHG71FEVB FCQHG100FEVB FCQHG125FEVB FCQHG140FEVB
Power supply Name VE
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current - 60Hz Nominal running current A -
Notes
(1) The sound power level is an absolute value indicating the power which a sound source generates.
(2) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and that it is consequently not advised to install the
BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
4
• Split - Sky Air® • Indoor Unit
Page 6
• Indoor Unit • High COP, round flow cassette • FCQHG-F
3 Safety device settings
3 - 1 Safety Device Settings
3
1
3
• Split - Sky Air® • Indoor Unit
5
Page 7

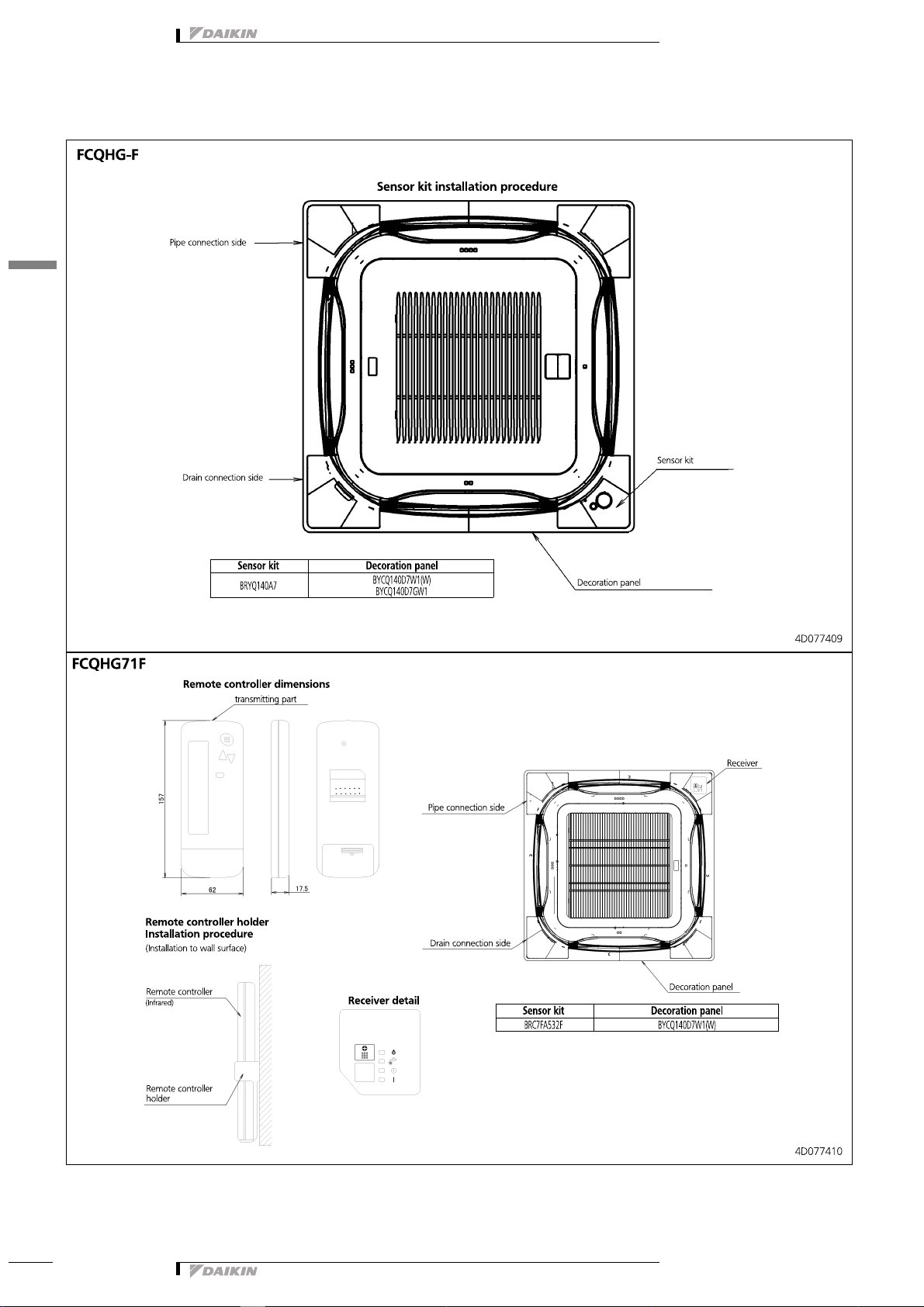

4 Options
4 - 1 Options
1
4
• Indoor Unit • High COP, round flow cassette • FCQHG-F
6
• Split - Sky Air® • Indoor Unit
Page 8
• Indoor Unit • High COP, round flow cassette • FCQHG-F
5 Dimensional drawings
5 - 1 Dimensional Drawings
3
1
5
• Split - Sky Air® • Indoor Unit
7
Page 9
• Indoor Unit • High COP, round flow cassette • FCQHG-F
5 Dimensional drawings
5 - 2 Dimensional Drawings with Accessories
1
5
8
• Split - Sky Air® • Indoor Unit
Page 10
• Indoor Unit • High COP, round flow cassette • FCQHG-F
6 Centre of gravity

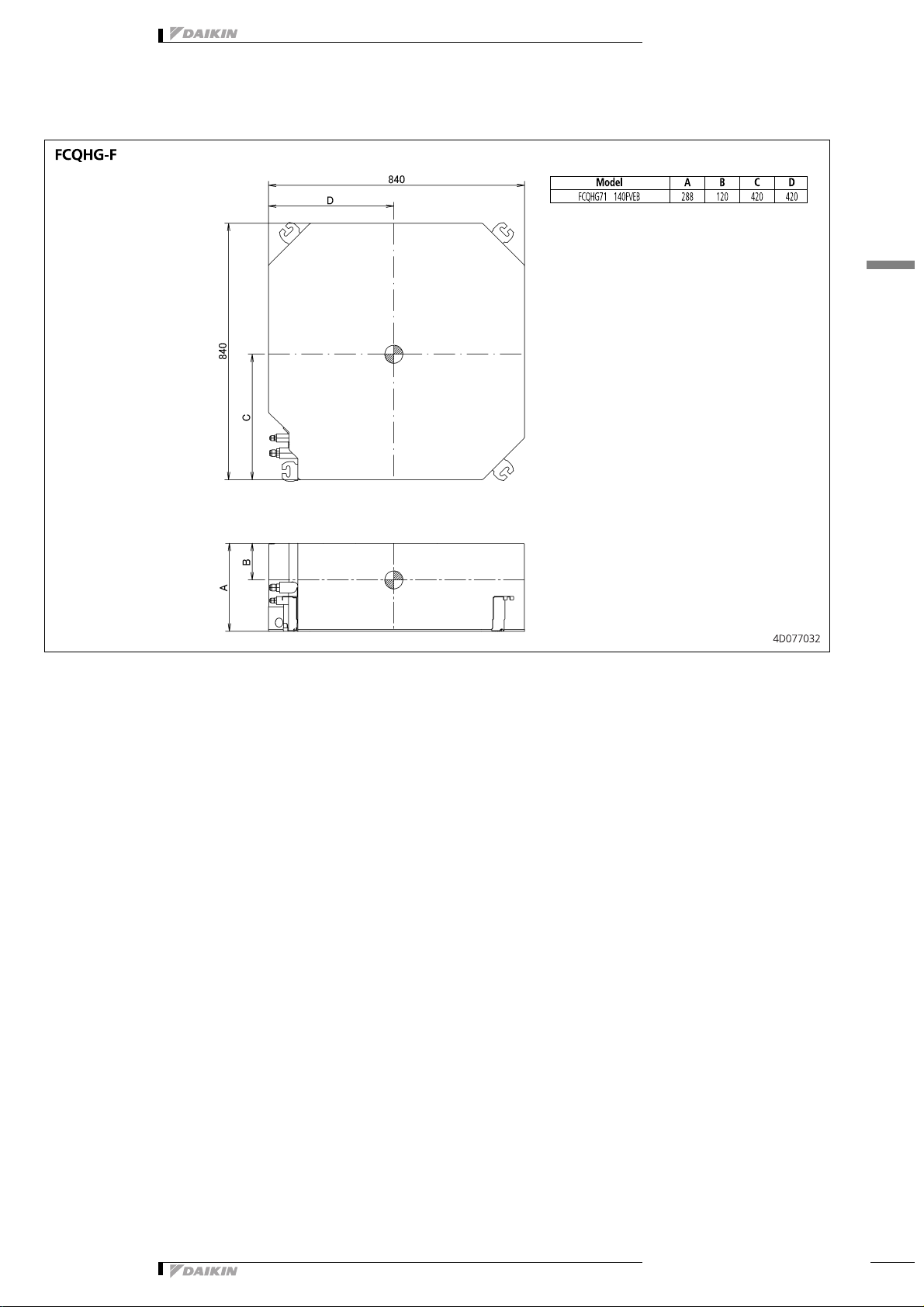

6 - 1 Centre of Gravity
3
∼
1
6
• Split - Sky Air® • Indoor Unit
9
Page 11
7 Piping diagrams

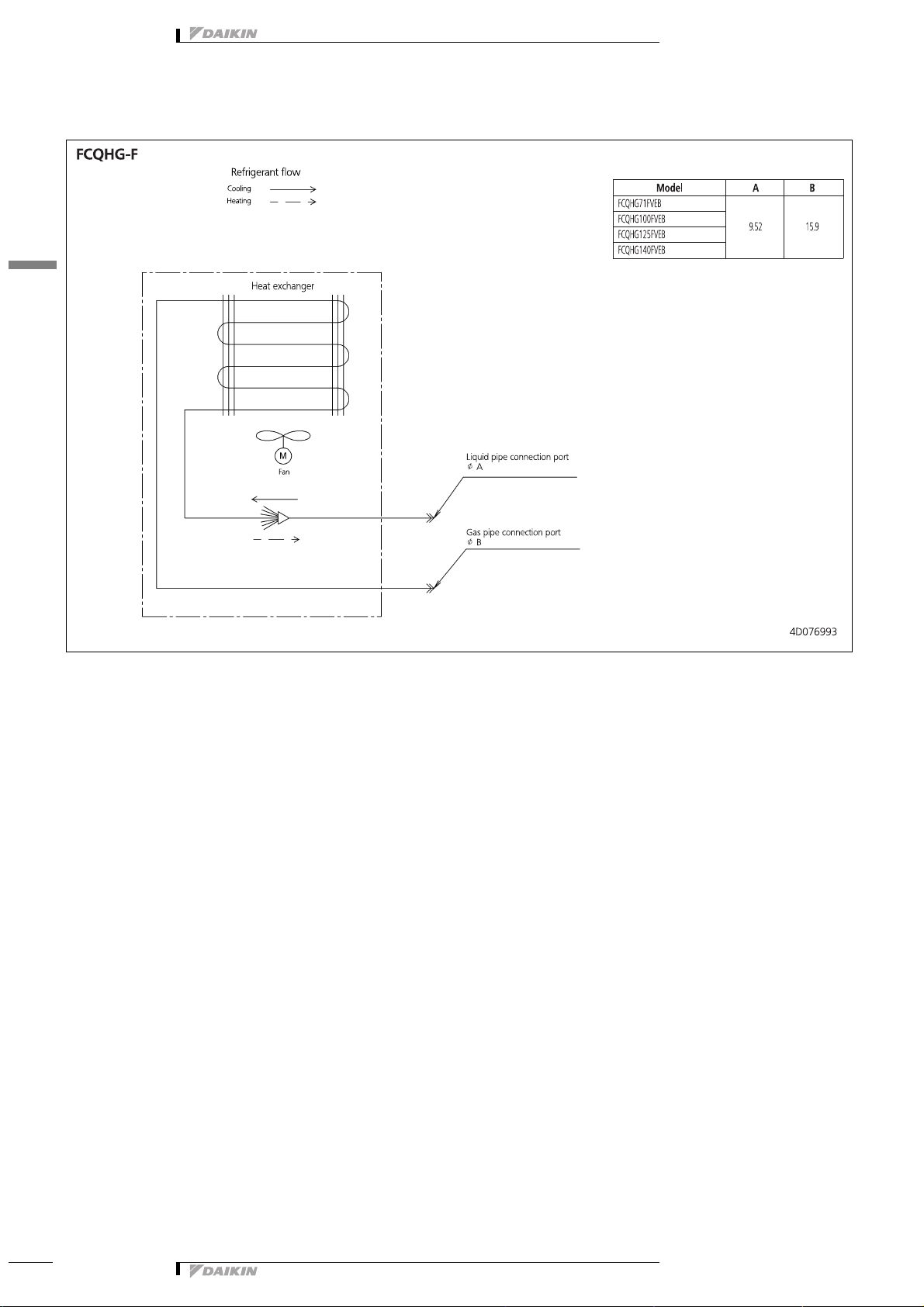

7 - 1 Piping Diagrams
1
7
• Indoor Unit • High COP, round flow cassette • FCQHG-F
10
• Split - Sky Air® • Indoor Unit
Page 12
• Indoor Unit • High COP, round flow cassette • FCQHG-F
8 Wiring diagrams

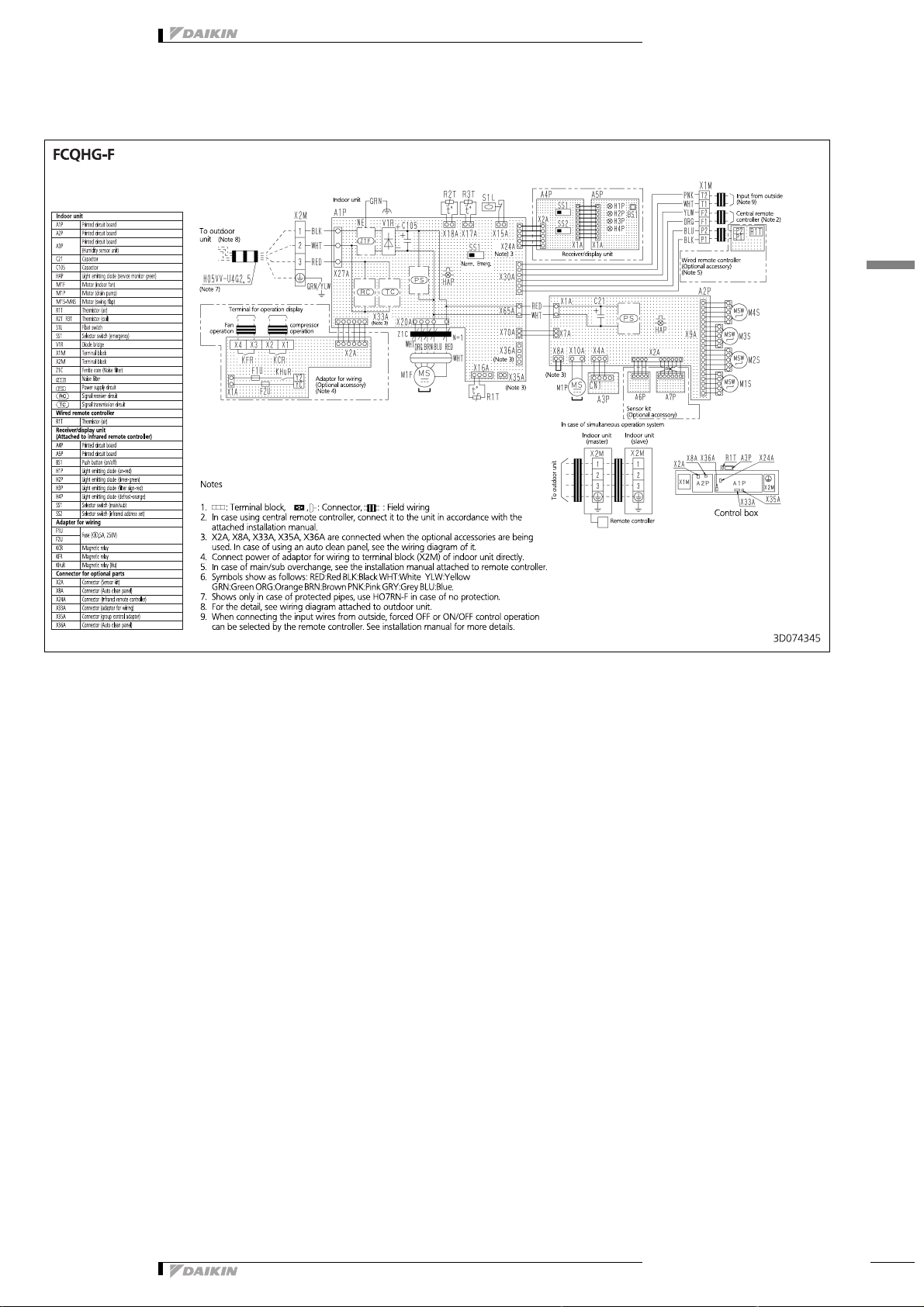

8 - 1 Wiring Diagrams - Single Phase
•
3
1
8
• Split - Sky Air® • Indoor Unit
11
Page 13
• Indoor Unit • High COP, round flow cassette • FCQHG-F

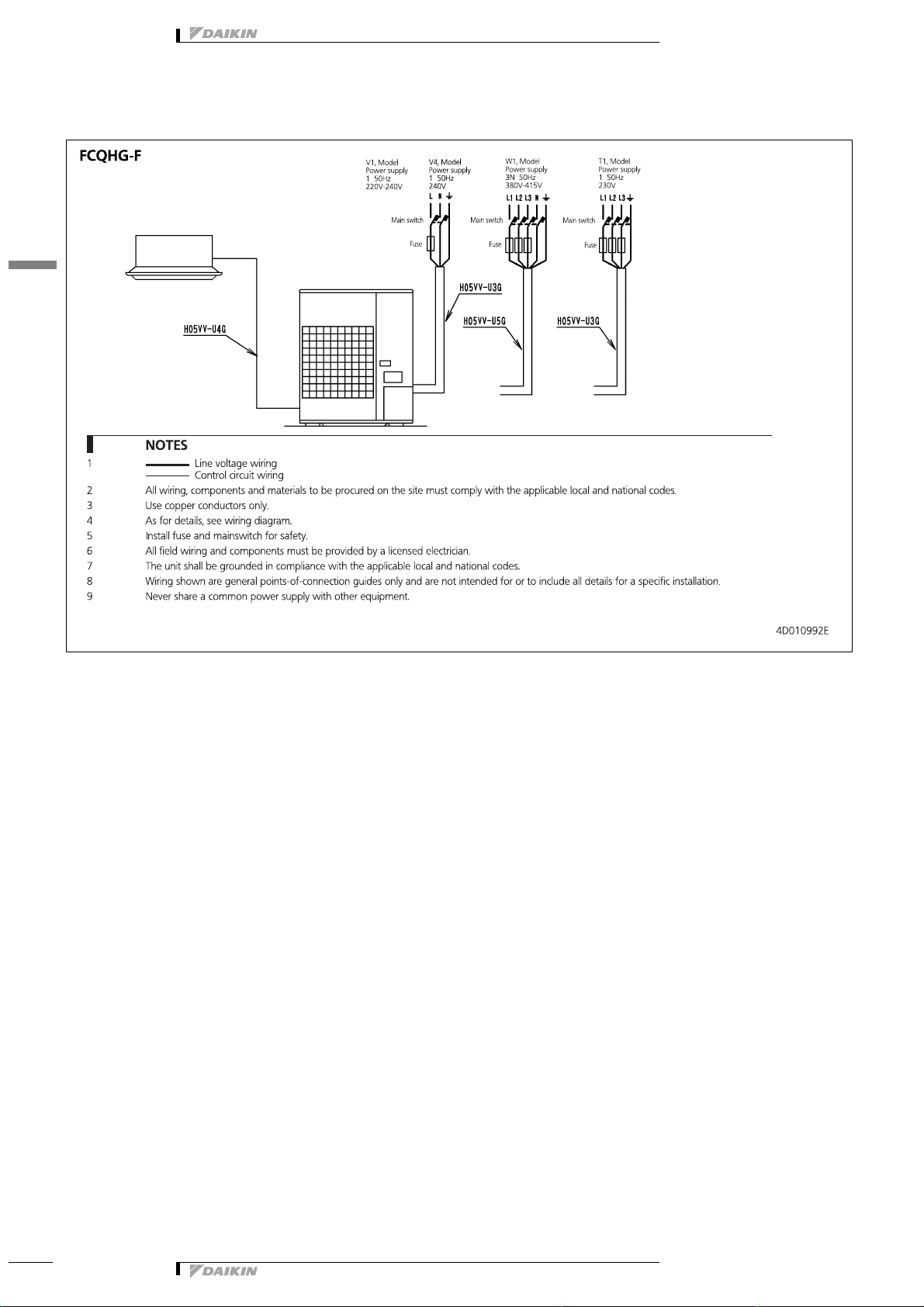

9 External connection diagrams
9 - 1 External Connection Diagrams
1
9
∼
∼
∼∼
12
• Split - Sky Air® • Indoor Unit
Page 14
• Indoor Unit • High COP, round flow cassette • FCQHG-F
10 Sound data

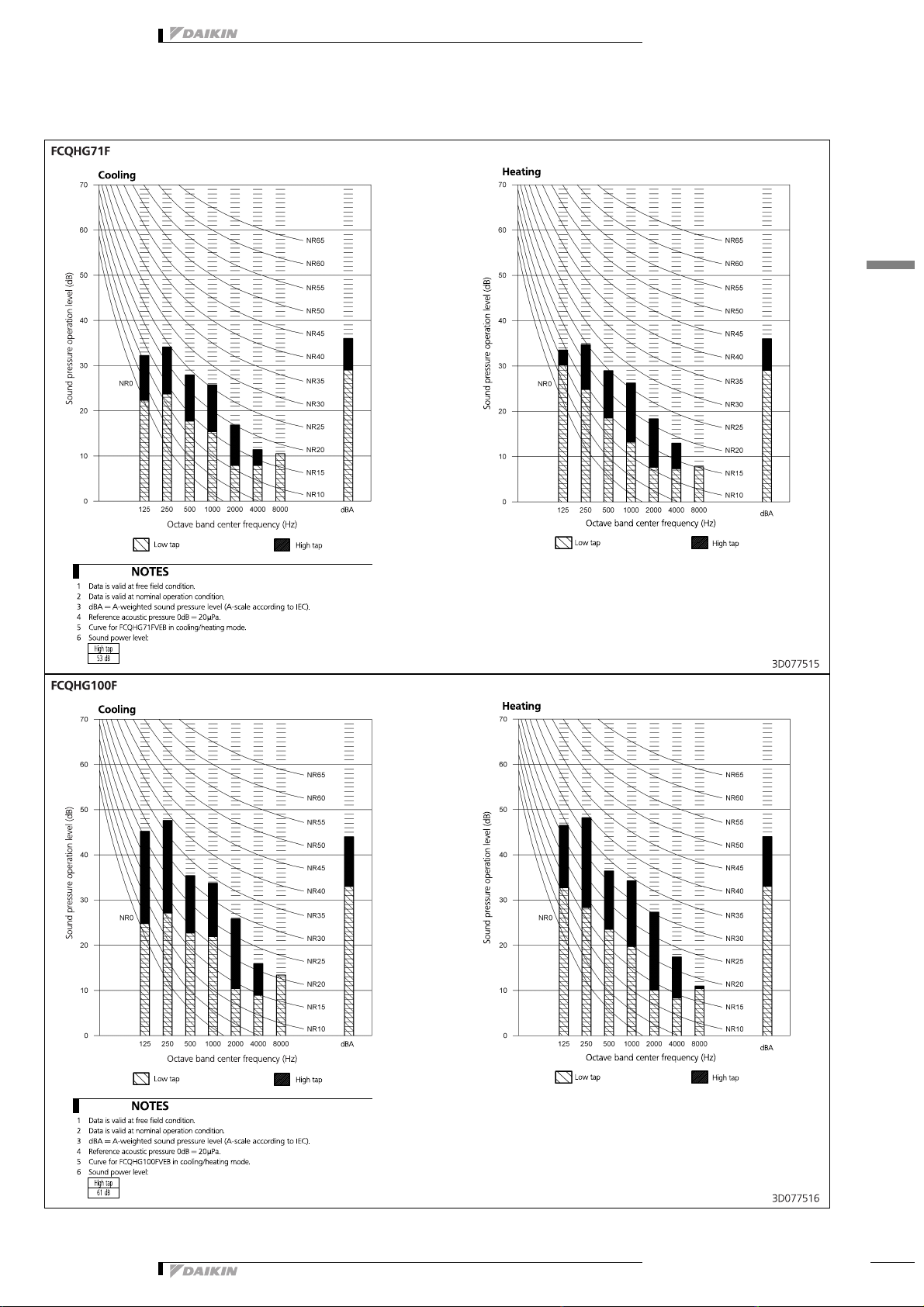

10 - 1 Sound Pressure Spectrum
3
1
10
• Split - Sky Air® • Indoor Unit
13
Page 15
• Indoor Unit • High COP, round flow cassette • FCQHG-F
10 Sound data

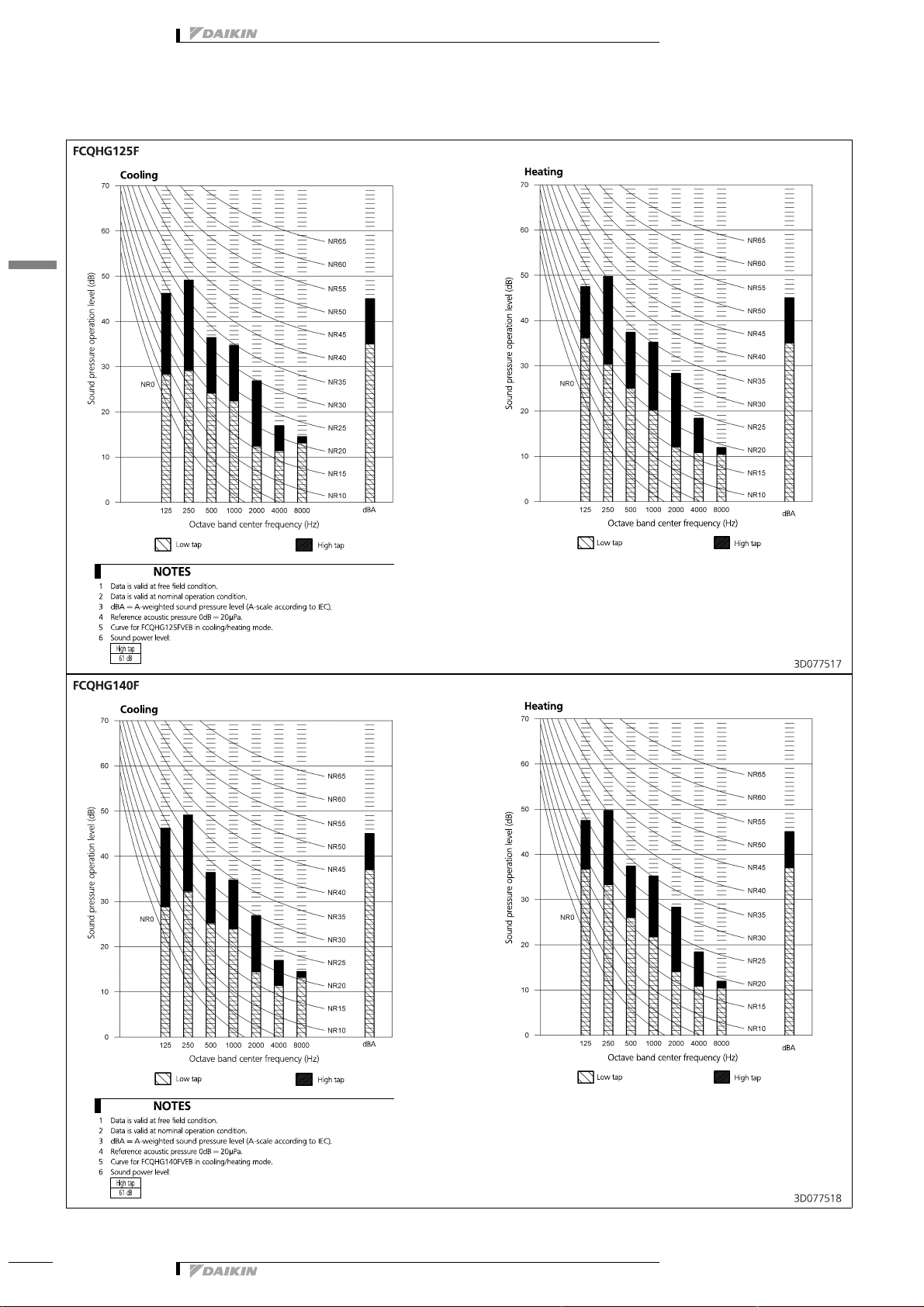

10 - 1 Sound Pressure Spectrum
1
10
14
• Split - Sky Air® • Indoor Unit
Page 16
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns

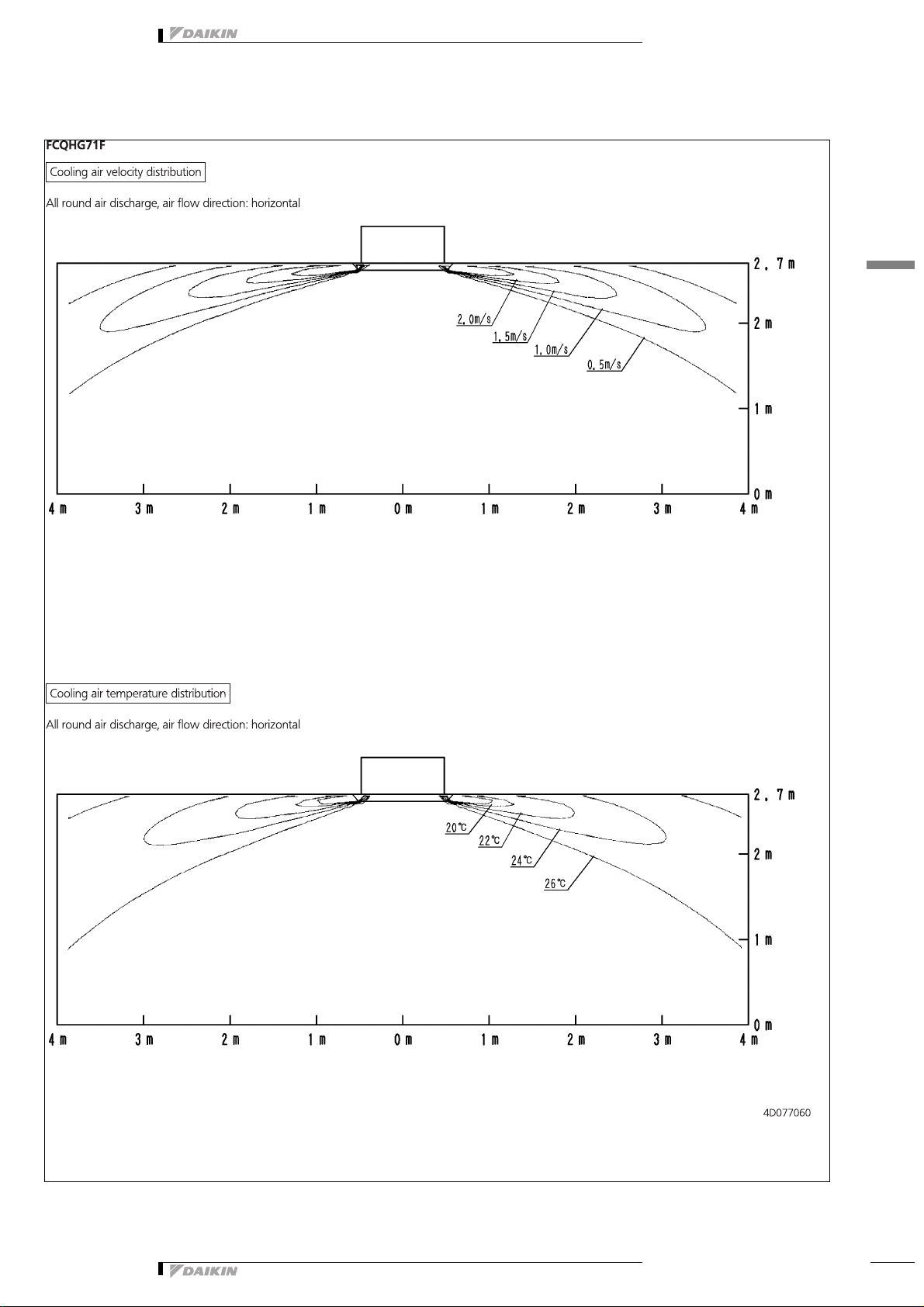

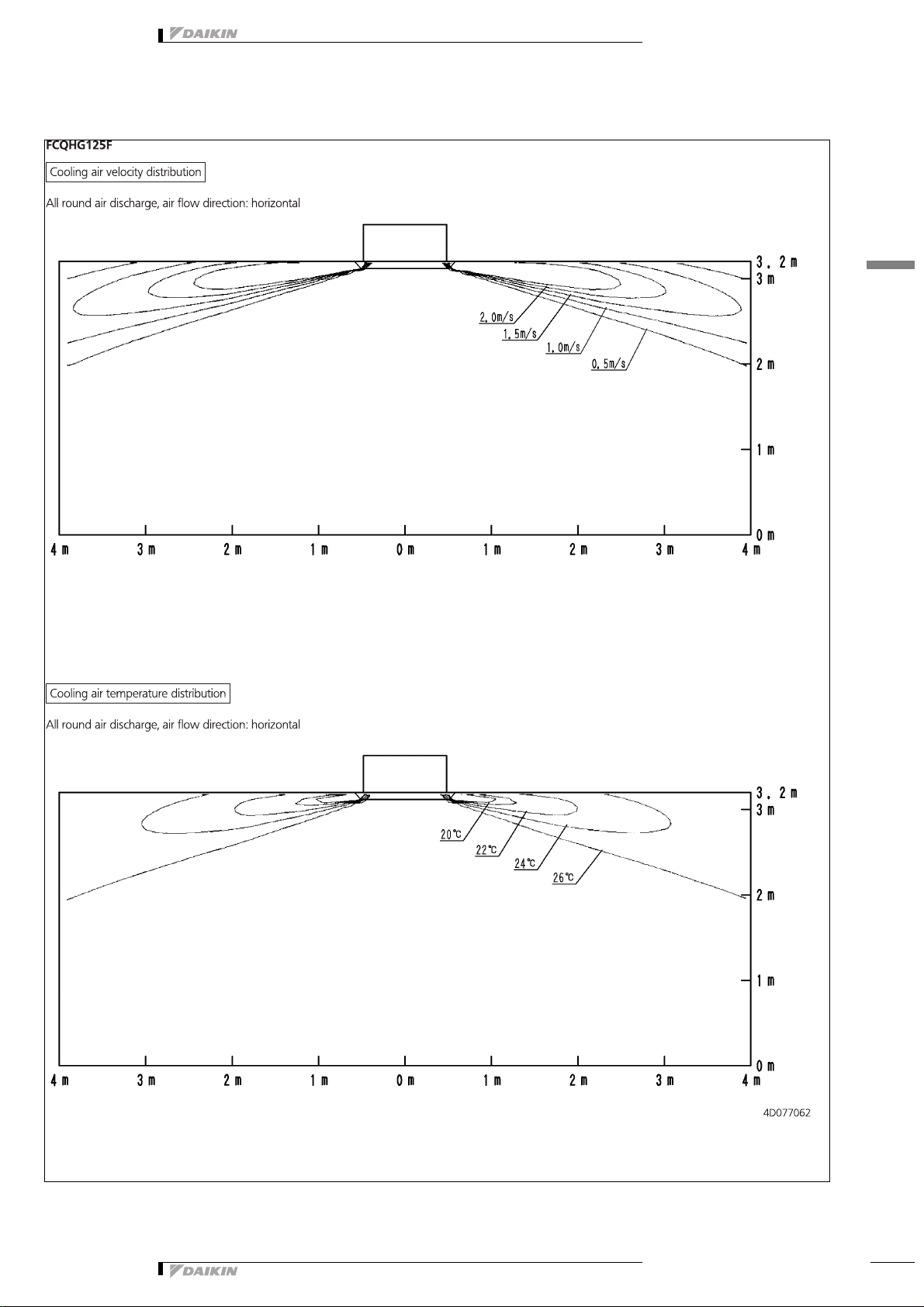

11 - 1 Air Flow Pattern - Cooling
3
1
11
• Split - Sky Air® • Indoor Unit
15
Page 17
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns
11 - 1 Air Flow Pattern - Cooling
1
11
16
• Split - Sky Air® • Indoor Unit
Page 18
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns

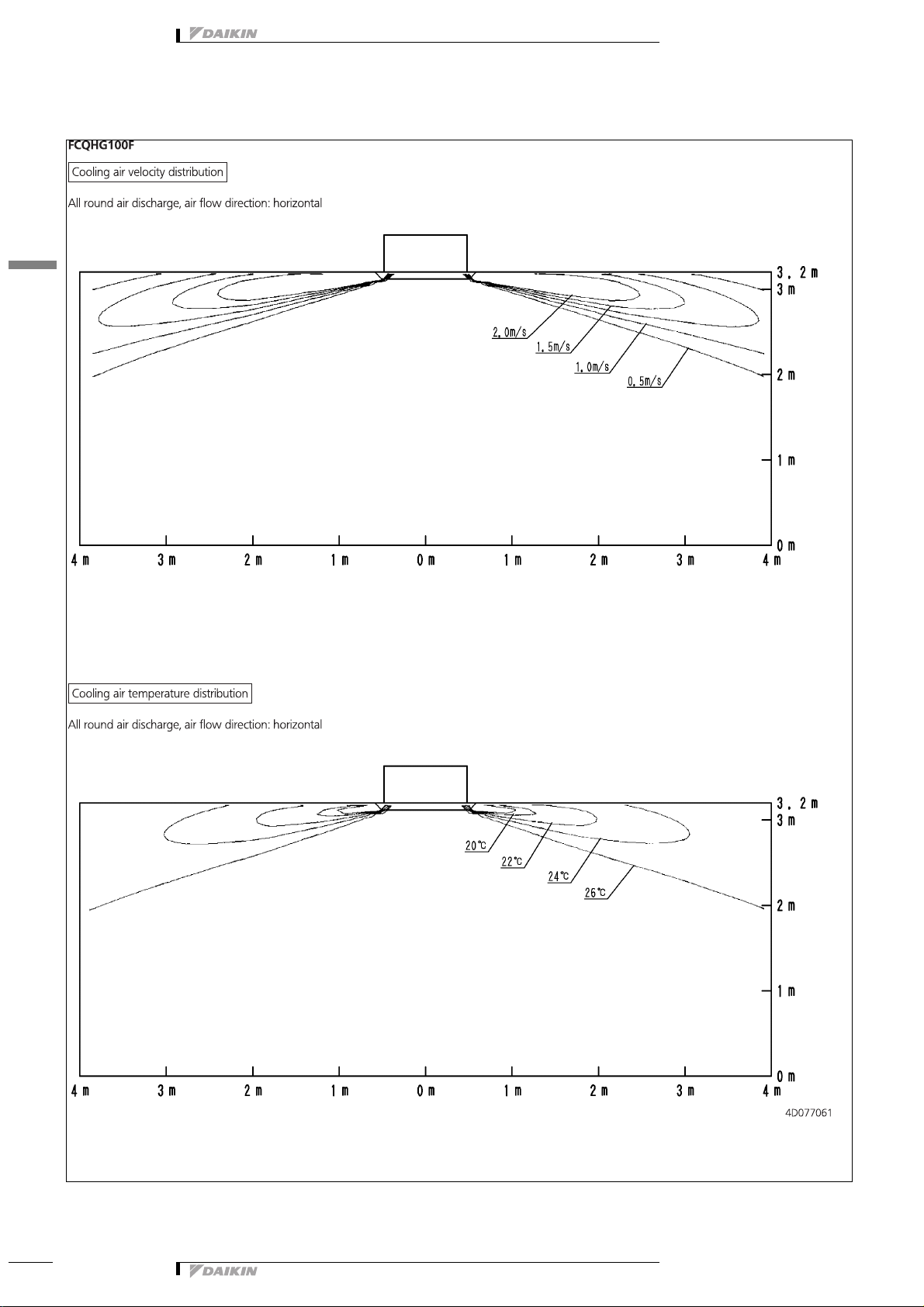

11 - 1 Air Flow Pattern - Cooling
3
1
11
• Split - Sky Air® • Indoor Unit
17
Page 19
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns
11 - 1 Air Flow Pattern - Cooling
1
11
18
• Split - Sky Air® • Indoor Unit
Page 20
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns

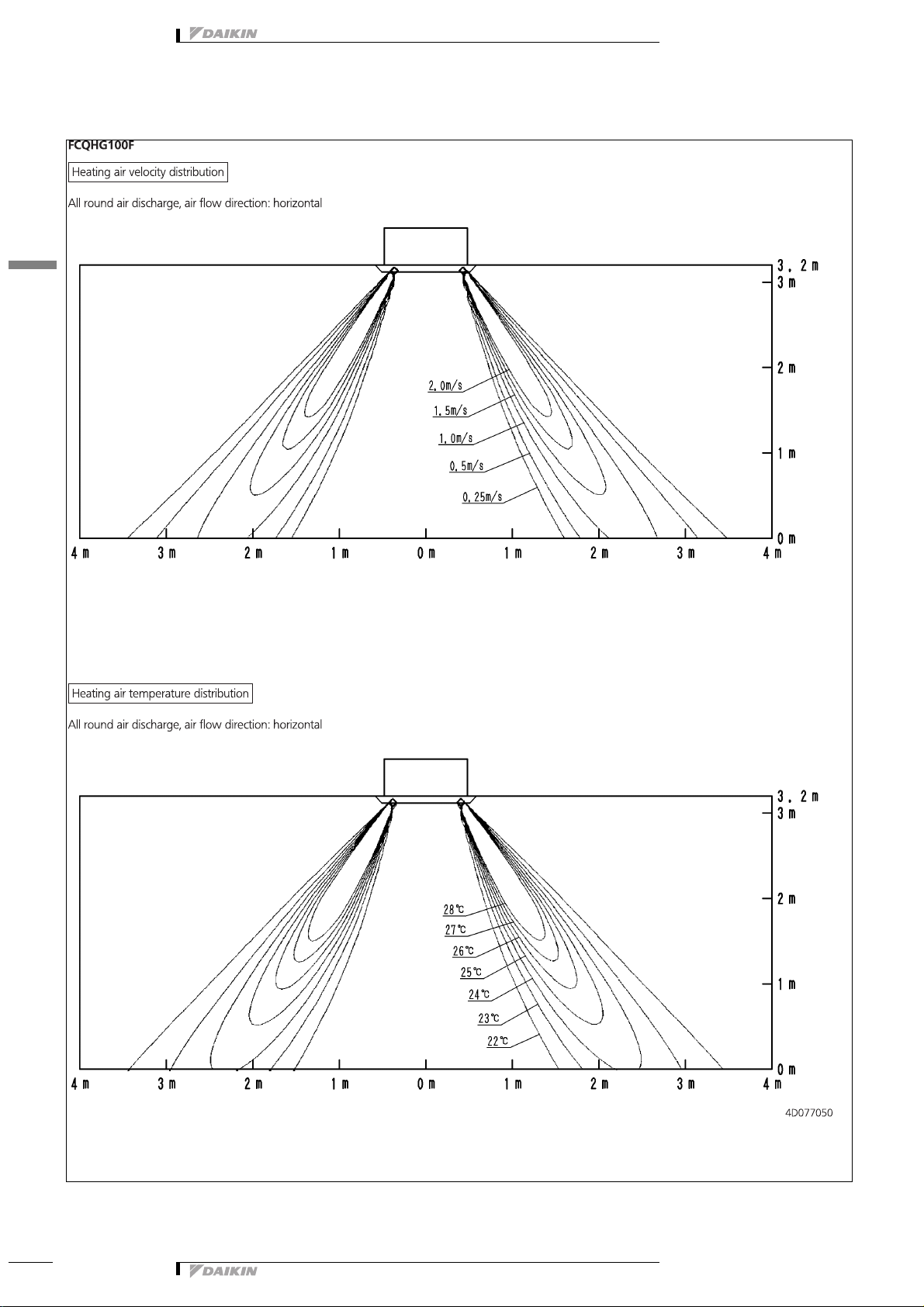

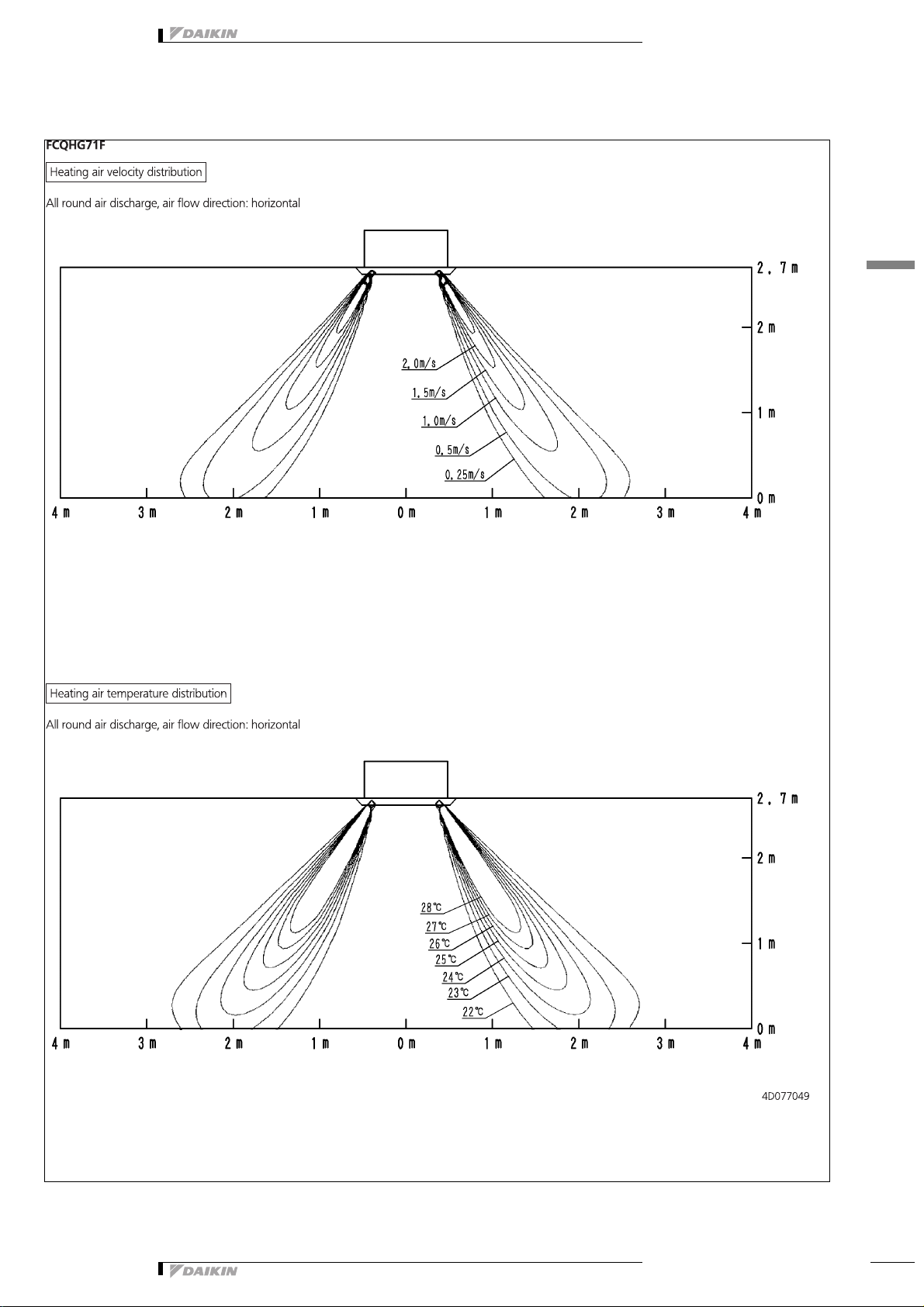

11 - 2 Air Flow Pattern - Heating
3
1
11
• Split - Sky Air® • Indoor Unit
19
Page 21
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns

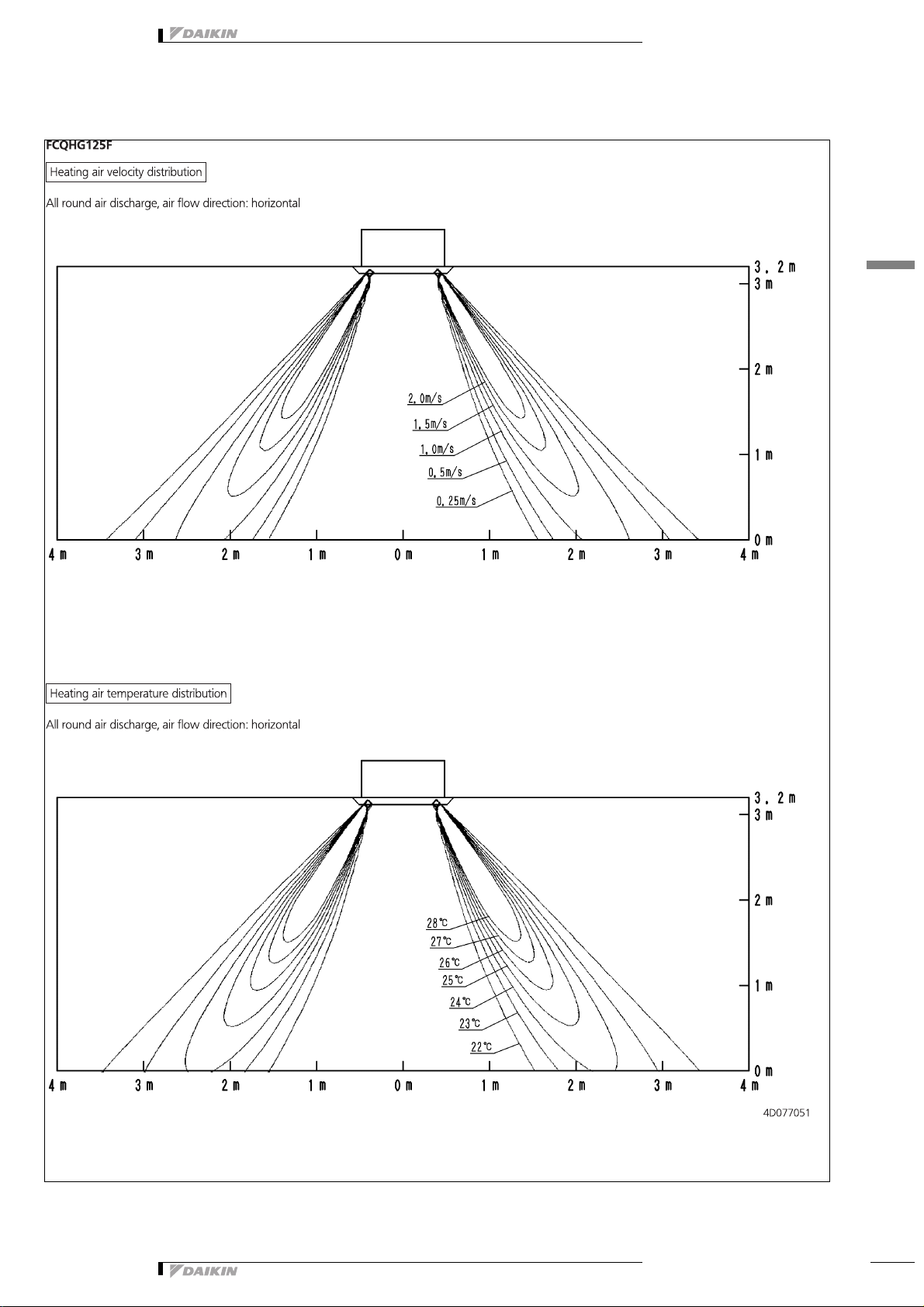

11 - 2 Air Flow Pattern - Heating
1
11
20
• Split - Sky Air® • Indoor Unit
Page 22
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns

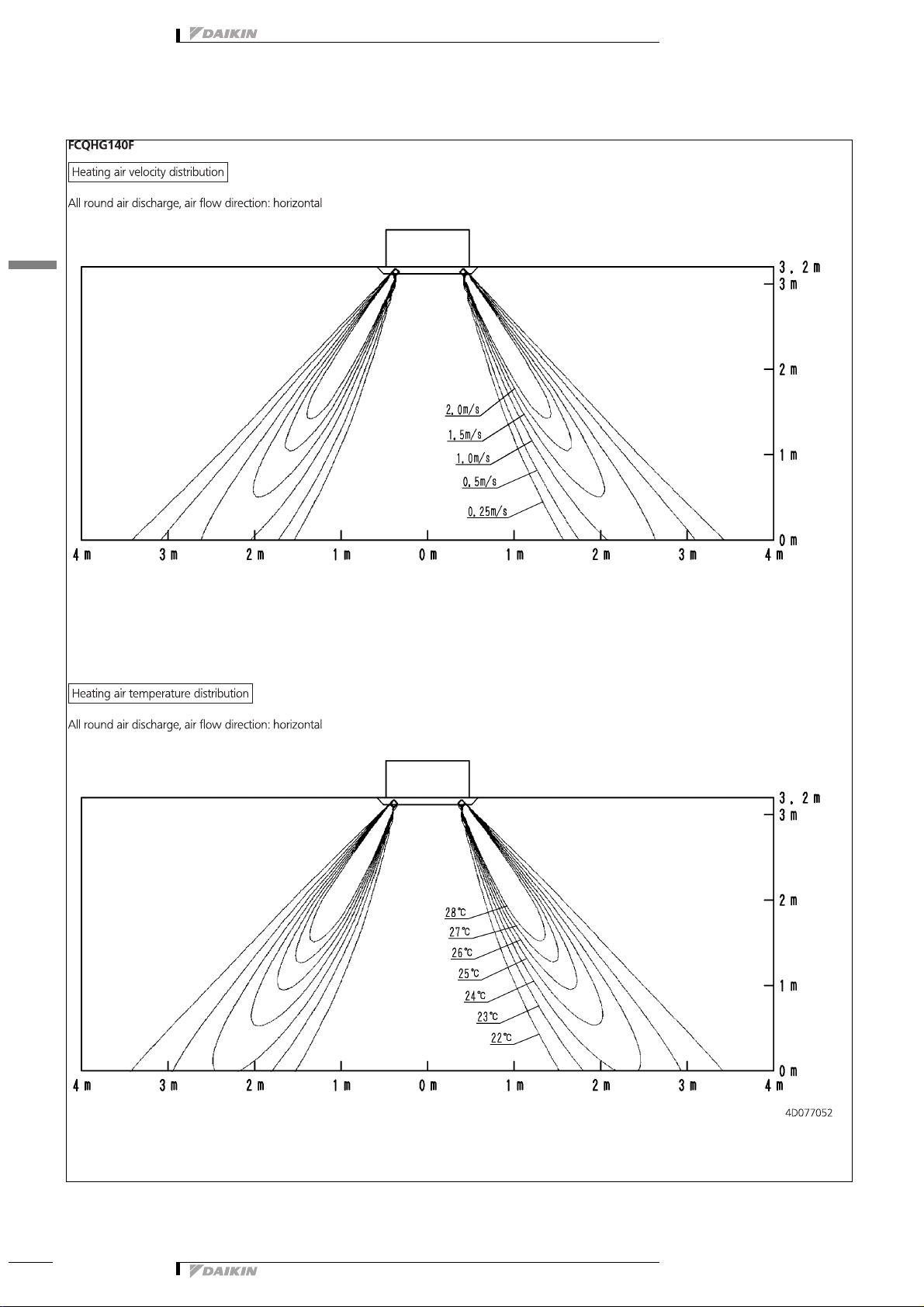

11 - 2 Air Flow Pattern - Heating
3
1
11
• Split - Sky Air® • Indoor Unit
21
Page 23
• Indoor Unit • High COP, round flow cassette • FCQHG-F
11 Air flow patterns
11 - 2 Air Flow Pattern - Heating
1
11
22
• Split - Sky Air® • Indoor Unit
Page 24
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and refrigerants
has led to its close involvement in environmental issues.
For several years Daikin has had the intention to become
a leader in the provision of products that have limited
impact on the environment. This challenge demands the
eco design and development of a wide range of products
and an energy management system, resulting in energy
conservation and a reduction of waste.
The present leaflet is drawn up by way of information only and does not
constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V. has
compiled the content of this leaflet to the best of its knowledge. No express
or implied warranty is given for the completeness, accuracy, reliability or fitness
for particular purpose of its content and the products and services presented
therein. Specifications are subject to change without prior notice. Daikin Europe
N.V. explicitly rejects any liability for any direct or indirect damage, in the
broadest sense, arising from or related to the use and/or interpretation of this
leaflet. All content is copyrighted by Daikin Europe N.V.
